FISNAR DSP501A-4 User manual

P/N 561864 REV. B AUG. 05
DSP501A-4 & DSPE501A-4
AUTOMATIC LIQUID DISPENSERS
OPER ATING MANUAL
The DSP501A-4 & DSPE501A-4 are ideal for dispensing
applications requiring simultaneous control of between one
and four barrels. A common internal manifold distributes
the air pressure to four outputs on the side of the unit. A
larger internal air solenoid assists in exhausting the greater
volume of air found in a multiple barrel configuration.
An internal vacuum prevents dripping of very low viscosity
liquids.
The DSP501A-4 and DSPE501A-4 provide timer
programming from 0.01 to 31 seconds. Foot pedal initiation
can be for either maintained or momentary operation.
Specifications
•
Size: 9 ” x 8 ” x 2 ” (24 x 21.6 x 6.7cm)
•
Weight: 4lbs 2oz (1.9kg)
•
Input Voltage: 110V – Model DSP501A-4
220V – Model DSPE501A-4
•
Dispense Time: 0.01 - 31 seconds
•
Internal Voltage: 24V dc
•
Cycle Initiation: Maintained or Momentary
•
Cycle Speed: 600+ /Minute
•
Air Input: 80-100psi (5.5-7 bar)
•
Air Output: 4 outputs: 1-100psi (0.1-7 bar)
•
Standards: European CE approved unit
•
Barrel “Suck-Back” Feature
Ordering Guide
Part No Description
DSP501A-4 Automatic Liquid Dispenser – 110V ac
DSPE501A-4 Automatic Liquid Dispenser – 220V ac
Standard Accessories
Qty
Description
Re-order P/N
Re-order
Qty/Pkg
1
1
1
1
1
1
1
1
3
3
3
3
2
2
2
2
2
2
2
2
2
2
2
2
2
Power cord – 110V unit
Power cord – 220V unit
Power cord – 220V unit
Barrel stand
Air hose
Foot pedal & cord
30 cc barrel adapter
5 cc barrel adapter
30 cc barrel
5 cc barrel
30 cc barrel piston PE
5 cc barrel piston PE
Barrel tip cap
14 gage tapered tip
16 gage tapered tip
18 gage tapered tip
20 gage tapered tip
22 gage tapered tip
24 gage tapered tip
20 gage blunt end tip
21 gage blunt end tip
22 gage blunt end tip
23 gage blunt end tip
25 gage blunt end tip
30 gage blunt end tip
560033
560033E-CE
560033E-PLUG
560751
560752
560027CW
560004A
560003A
560002E
560001A
560552
560550
580142
560783K
560010K
560011K
560012K
560013K
561338K
560088
560089
560090
560014
560015
560016
1
1
1
1
1
1
1
1
10
10
20
40
10
25
25
25
25
25
25
25
25
25
25
25
25
SETTING UP
- 2 -
1.Connect air hose to filtered compressed air 70 - 100 psi
(5-7 bar) and connect coupling to dispenser.
2.Insert Foot Switch Plug.
3.Insert and twist male quick connect into dispenser. Features
simultaneous dispensing from one up to four barrels.
4.Insert power cord female plug into dispenser and insert the
male plug into a grounded outlet - CHECK VOLTAGE
LABEL on back of unit.
5.Fill barrel (with barrel tip cap on the barrel) with material to
be dispensed and lock barrel to adapter assembly as shown.
AIR & ELECTRICAL SET UP DIAGRAM
ADAPTER
ASSEMBLY
BARREL
POWER CORD
AIR HOSE
COMPRESSED AIR
FOOT
SWITCH
PLUG
FEMALE PLUG
MALE
Q
UICK CONNECT
BARREL
BARREL STAND
COUPLING
DSP501A-4
ATurn unit on.
B Turn amber light on – this will provide continuous flow of
material as long as the foot pedal is depressed.
CTurning the pressure adjust knob (D) allows for
adjustments of air pressure.
EPush foot pedal to start dispensing.
The amount of liquid dispensed depends on air pressure, size of
dispense tip, viscosity of material and time of pulse (F).
To produce timed deposits, press (B) to turn off amber light.
C D F A B G
1. Hold the barrel at approximately 60º (±20º) angle (Fig. 1).
2. After making deposit remove tip as shown (Fig. 2).
3. Do not permit the liquid to flow back into the controller as shown in Fig. 3.
HELPFUL HINTS FOR MAKING DEPOSITS
4. Increase or decrease size of dots by either:
Increasing or decreasing time only (F)
Increasing or decreasing pressure only (C) (D)
Increasing or decreasing size of tip
Increasing or decreasing any combination of time, pressure and size of tip.
5. To increase pressure, turn knob (D) clockwise. To decrease pressure, first
turn knob (D) counter clockwise past the value desired and then clockwise to
the value desired.
6. For thin liquids, like water, you can prevent dripping by slowing turning the
vacuum control (G) counter clockwise. WARNING – Too much vacuum
will cause bubbles and suck liquid back into the controller thus creating
p
ermanent
dama
g
e
to
the
unit.
FIG. 1
FIG. 2
FIG. 3
60
º
UNDERSTANDING THE FUNCTIONS
OF YOUR DISPENSER DISPLAY
- 3 -
E
LIMITED WARRANTY
Manufacturer warrants this product to the original purchaser for a period of two (2) years from
the date of purchase to be free from defects in material and workmanship, but not against damages
caused by misuse, negligence, accident, faulty installation, abrasion, corrosion or by not operating in
accordance with factory recommendations and instructions. Manufacturer will repair or replace
(at factory's option), free of charge, any component of the equipment thus found to be defective, upon
return of the component to the factory during the warranty period of the equipment. In no event shall
any liability or obligation of Manufacturer arising from this warranty exceed the purchase price of the
equipment. This warranty is valid only when 5 micron filtered air is used. The manufacturer's written
liability, as stated herein, cannot be altered or enlarged except by a written statement signed by an
officer of the company. In no event shall manufacturer be liable for consequential or incidental
damages. A return authorization is required from I&J FISNAR INC. prior to shipping a defective unit
to the factory.
Manufacturer reserves the right to make engineering or product modifications without notice.
©2005 I&J FISNAR INC.
- 4 -

This manual suits for next models

1

Other FISNAR Dispenser manuals

FISNAR SL101N User manual

FISNAR

FISNAR SL101N User manual

FISNAR DC100 MAX User manual

FISNAR

FISNAR DC100 MAX User manual

FISNAR DC100 User manual

FISNAR

FISNAR DC100 User manual

FISNAR FCG-300 User manual

FISNAR

FISNAR FCG-300 User manual

FISNAR DTD50 User manual

FISNAR

FISNAR DTD50 User manual

FISNAR DC50 User manual

FISNAR

FISNAR DC50 User manual

FISNAR DC200 User manual

FISNAR

FISNAR DC200 User manual

FISNAR TD101 User manual

FISNAR

FISNAR TD101 User manual

FISNAR DC100 User manual

FISNAR

FISNAR DC100 User manual

Popular Dispenser manuals by other brands

Westfalia GH2163 instruction manual

Westfalia

Westfalia GH2163 instruction manual

WEPA satino 331010 Assembly instructions

WEPA

WEPA satino 331010 Assembly instructions

Vermes MDV 3200A-HS-UF Quick reference guide

Vermes

Vermes MDV 3200A-HS-UF Quick reference guide

Graco LineLazer IV Installation

Graco

Graco LineLazer IV Installation

Air Wolf Alpha Series manual

Air Wolf

Air Wolf Alpha Series manual

Bunn BUNN-O-MATIC ULTRA-1 Service and repair manual

Bunn

Bunn BUNN-O-MATIC ULTRA-1 Service and repair manual

Vollrath LidSaver 3 installation instructions

Vollrath

Vollrath LidSaver 3 installation instructions

dosatron D3 Series owner's manual

dosatron

dosatron D3 Series owner's manual

Graco Husky 715 Instructions-parts list

Graco

Graco Husky 715 Instructions-parts list

Clatronic ESS 3768 instruction manual

Clatronic

Clatronic ESS 3768 instruction manual

Gastrorag DK04B instruction manual

Gastrorag

Gastrorag DK04B instruction manual

Cornelius Bubble Installation, operation & service manual

Cornelius

Cornelius Bubble Installation, operation & service manual

Kolin KCB-BLC-8859T owner's manual

Kolin

Kolin KCB-BLC-8859T owner's manual

Solaris LoCor Recessed Electronic Dispenser user guide

Solaris

Solaris LoCor Recessed Electronic Dispenser user guide

Bras FBM L Operator's manual

Bras

Bras FBM L Operator's manual

Hilti HIT-MD 1000 operating instructions

Hilti

Hilti HIT-MD 1000 operating instructions

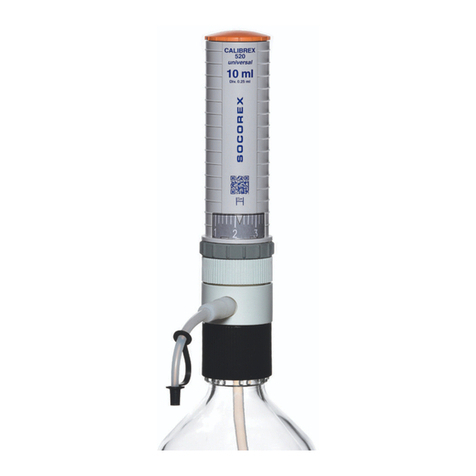

socorex CALIBREX universal 520 operating instructions
