1
Introduction
The 820-2 Stroboscope (the Product) uses an adjustable LED
strobe light to show the movement of mechanical parts. The
frequency range is 30 flashes per minute (FPM) to 300,000 FPM.

820-2
Users Manual
2
Safety
A Warning identifies conditions and procedures that are dangerous
to the user.
 Warning
To prevent possible personal injury:
•Read all safety information before you use the
Product.
•Carefully read all instructions.
•Use the Product only as specified, or the
protection supplied by the Product can be
compromised.
•Do not touch the moving target object when you
use the Product. In stroboscopic light, object
movement can appear still or slowed.
•Do not use the Product around explosive gas,
vapor, or in damp or wet environments.
•Do not use the Product around personnel that
are susceptible to epileptic seizures.
•Do not use the Product if it is damaged.

Stroboscope
Symbols
3
Symbols
Symbols used in the manual or on the Product are shown in Table 1.
Table 1. Symbols
Symbol Definition
 Risk of danger. Important information. See manual.
 Battery
 Conforms to relevant Australian EMC standards.
 Conforms to European Union directives.
 Conforms to relevant South Korean EMC Standards.

This product complies with the WEEE Directive
(2002/96/EC) marking requirements. The affixed label
indicates that you must not discard this
electrical/electronic product in domestic household
waste. Product Category: With reference to the
equipment types in the WEEE Directive Annex I, this
product is classed as category 9 "Monitoring and
Control Instrumentation" product. Do not dispose of
this product as unsorted municipal waste. Go to
Fluke’s website for recycling information.

820-2
Users Manual
4
Standard Equipment
If an item below is missing or damaged, contact Fluke. The Product
comes with:
• Quick Reference Guide
• Safety Information
• International Registration Card
• Statement of Quality
• Hard Case
• AA Batteries (3)
• External Trigger Input Connector

Stroboscope
Features
5
Features
Figure 1, Table 2, and Table 3 show the Product.
5
7
8
9
6
3
2
1
4
gsh01.eps
Figure 1. The Product

820-2
Users Manual
6
Table 2. The Product
Item Description
 Display

Power Button- Push  to turn on the Product.
Push and hold  for 2 seconds to turn off the
Product.

Push  to divide the current set value by two.
The scroll speed increases when  is
continuously held down.
 External trigger connection
 Setup- Push  to move between different
settings and modes.
 Push  to double the current set value. Speed of
the scroll increases when this button is held down.
 LED strobe

Push the trigger () up to increase the current set
value. Push  down to decrease the current set
value. Speed increases when  is held down.
 Battery compartment

Stroboscope
Features
7

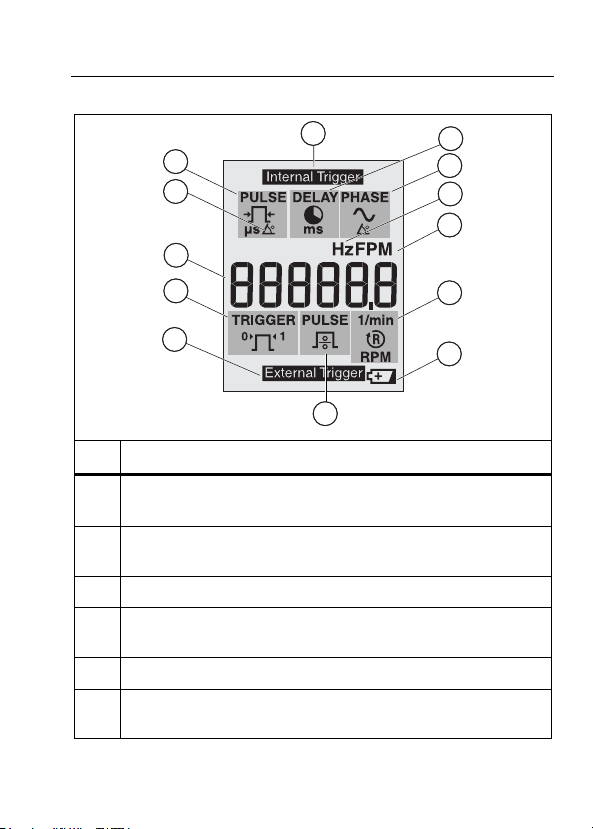

Table 3. Display
1
2
3
4
5
11
9
8
7
13
10
12
6
gsh02.eps
Item Description
 Adjustable pulse width in microseconds (μs). Adjustment
is accessed in the Setup Menu.
 Adjustable pulse width in degrees. Adjustment is
accessed in the Setup Menu.
 Primary display. Six digits with decimal.
 Set external trigger edge to 0 for positive and 1 for
negative. Adjustment is accessed in the Setup Menu.
 External trigger input is connected.
 Set the external trigger pulse divider from 1 to 255.
Adjustment is accessed in the Setup Menu.

820-2
Users Manual
8
Table 3. Display (cont.)
Item Description Item Description
 Low battery. Replace
the battery.  1/min or RPM for external trigger input.

Flashes per minute
(FPM), default at power
up. 
Flashes per second.
Adjustment is
accessed in the Setup
Menu.

Pulse delay in degrees
(Phase degree).
Adjustment is
accessed in the Setup
Menu.

Pulse delay in
milliseconds (ms).
Adjustment is
accessed in the Setup
Menu.
 Internal trigger
Auto Off
To conserve battery power, the Product turns off after 15 minutes
of non-use.
Low-Battery Indicator
The low-battery indicator is shown when the battery is low. When
the low-battery indicator shows (), change the batteries.

Stroboscope
Product Use
9
Product Use
The subsequent sections tell you how to use the Product.
Push to turn on the Product. Push and hold for 2
seconds to turn off the Product.
Default Settings
To set the Product to the default settings, push and hold  and
.
The default settings are:
• 1000 FPM
• 16.7 Hz
• 333 Pulse μs
• 2.0 Pulse deg
• 0 Delay ms
• 0 Phase deg
• External pulse divider = 1
• External trigger edge = 0 (positive)

820-2
Users Manual
10
Setup Menu
When you push , the display shows the Setup menu. From the
Setup menu, you can change these parameters:
• Hz setting – Adjust the flashes per seconds in Hz.
• Pulse width in μs () – Adjust the flash intensity in
microseconds of pulse width.
• Pulse width in degrees () – Adjust the flash intensity in
degrees of flash rate.
• Delay in ms () – Adjust the delay time in milliseconds
between internal trigger and flash. Precise adjustments of the
observation position can be made with this setting.
• Phase degree () – Adjust the degrees of phase shift
between internal trigger and flash. Precise adjustments of the
observation position can be made with this setting.
• External trigger pulse divider () – Set the external trigger
divider, to adjust the flash rate.
• External trigger edge () – Set the external trigger edge to
either positive (0) or negative (1).
Push , , and  to make adjustments to each parameter.
Push  to change parameters and to enter and exit the Setup
menu.
Range
When the external trigger is >5 kHz, -OL- shows on the display.
When the external trigger is <0.5 Hz, -UL- shows on the display.

Stroboscope
Maintenance
11
External Trigger
Use the External Trigger Input Connector for outside trigger
sources. When the Connector is plugged into the Product (see
Figure 1, item ) the Product displays . Table 3
shows what options are available when an external trigger is
used. For Connector polarity information, see Figure 2.
+
-
gsh04.eps
Figure 2. External Trigger Connector Polarity
Maintenance
 Caution
The Product contains no user-serviceable parts. To
prevent damage to the Product, do not open the
case. For service, see “How to Contact Fluke”.

820-2
Users Manual
12
How to Clean the Product
Regularly clean the case with a damp cloth and mild detergent.
 Caution
To prevent damage to the Product, do not use
abrasives or solvents to clean the Product case.
How to Change the Batteries
The Product is energized by three AA (LR6) batteries. When the
low battery symbol shows on the display (), replace the
batteries. See Figure 3.
 Caution
To prevent damage to the Product:
• Be sure that the battery polarity is correct to
prevent battery leakage.
• Remove batteries to prevent battery leakage
and damage to the Product if it is not used for
an extended period.

Stroboscope
Maintenance
13
gsh03.eps
Figure 3. Battery Replacement

820-2
Users Manual
14
Specifications
Mechanical Specifications
Size (H x W x L) .................. 5.71 cm x 6.09 cm x 19.05 cm
(2.25 in x 2.4 in x 7.5 in)
Weight .... ............................ 0.24 kg (0.53 lb)
Environmental Specifications
Operating Temperature ....... 0 °C to +45 °C (+32 °F to +113 °F)
Storage Temperature .......... -10 °C to +50 °C (+14 °F to +122 °F)
Operating Humidity .......... Non-condensing, < +50 °F (< +10 °C)
90 %RH, +10 °C to +30 °C
(+50 °F to +86 °F)
75 %RH, +30 °C to +40 °C
(+86 °F to +104 °F)
45 %RH, +40 °C to +50 °C
(+104 °F to +122 °F)
(Without Condensation)
Absorption/Corrosion ........ +30 °C (+86 °F), 95 %RH, 5 days
Product functions normally
Operating Altitude ............... 2,000 m
Storage Altitude .................. 12,000 m
Vibration .............................. MIL-PRF-28800F Class 2
