Before You Start
Introduction
Before You Start
Introduction
Fluke’s Hart Scientific Division Metrology Wells (9170, 9171, 9172, and 9173) are designed to be
stable heat sources that can be used in a laboratory or field environment. With a calibrated display
and an optional built-in reference thermometer input (designated with “–R”), Metrology Wells
may also be used as a reference standard.
Metrology Wells feature interchangeable probe sleeves that fit various sized diameter probes.
The Metrology Wells’ controller uses a PRT sensor and thermoelectric modules or heaters to
achieve stable, uniform temperatures throughout the block.
The LCD display continuously shows many useful operating parameters including the block
temperature, block stability, heating and cooling status, and current set-point. The temperature
may be easily set with the control buttons to any desired temperature within the calibrator’s
specified range.
Metrology Wells are designed for laboratory performance that can be used anywhere. With proper
use, the instrument will provide continued accurate calibration of temperature sensors and devices.
Before use, the user should be familiar with the warnings, cautions, and operating procedures of
the calibrator as described in the Getting Started Guide.
Symbols Used
Table 1 lists various International symbols. Some or all of these symbols may be used on the
instrument or in this guide.

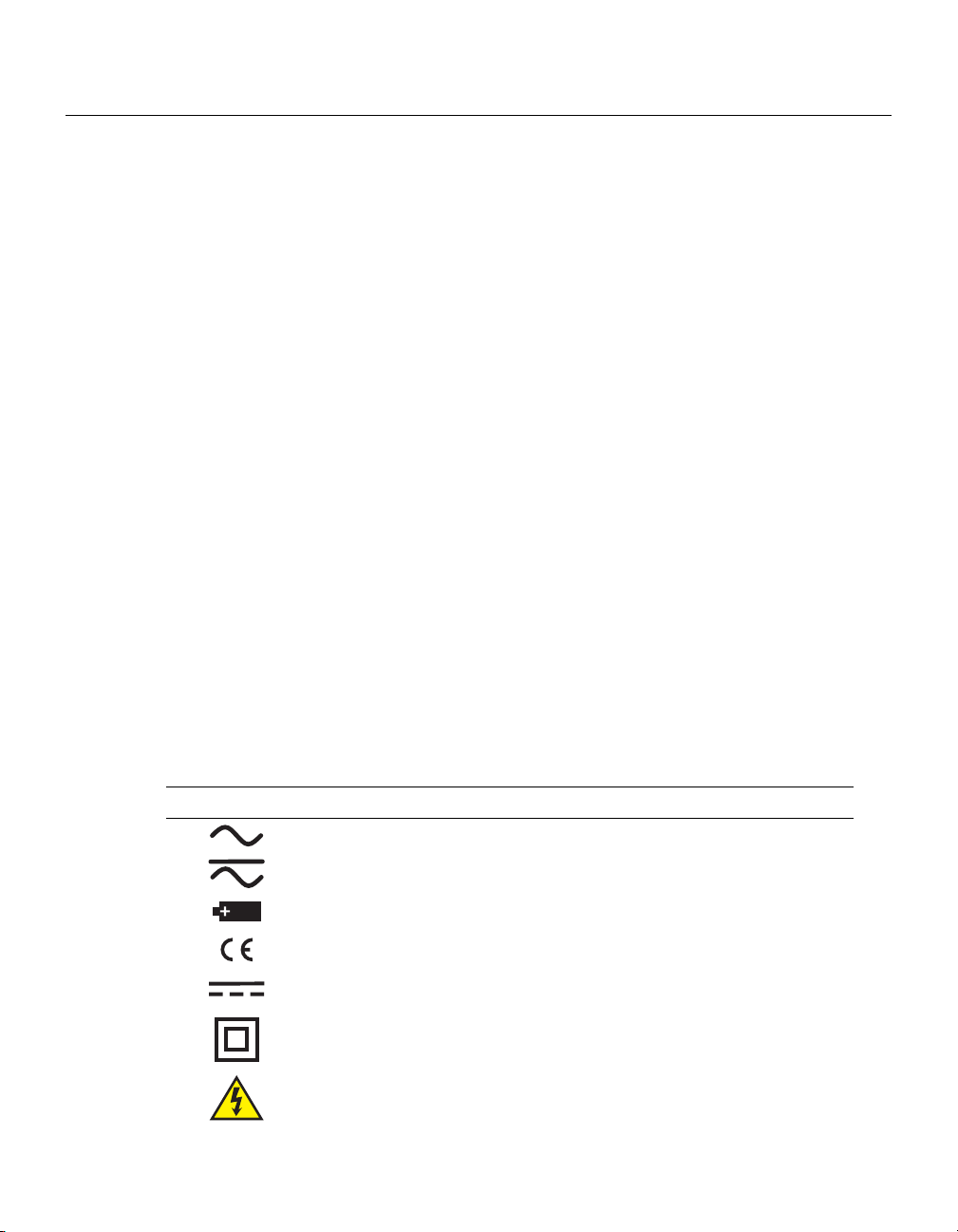

Table 1 International symbols
Symbol Description
AC (Alternating Current)
AC-DC
Battery
Complies with European Union directives
DC
Double Insulated
Electric Shock
1

917X Series Metrology Wells
Getting Started
Symbol Description
CAT
Fuse
PE Ground
Hot Surface (Burn Hazard)
Read the User’s Guide (Important Information)
Off
On
Canadian Standards Association
OVERVOLTAGE (Installation) CATEGORY II, Pollution Degree 2 per IEC1010-1 refers to
the level of Impulse Withstand Voltage protection provided. Equipment of OVERVOLTAGE
CATEGORY II is energy-consuming equipment to be supplied from the fixed installation.
Examples include household, office, and laboratory appliances.
C-TIC Australian EMC mark
The European Waste Electrical and Electronic Equipment (WEEE) Directive (2002/96/EC)
mark.
Safety Information
Use this instrument only as specified in this guide. Otherwise, the protection provided by the
instrument may be impaired. Refer to the safety information in the Warnings and Cautions
sections below.
The following definitions apply to the terms “Warning” and “Caution”.
•“Warning” identifies conditions and actions that may pose hazards to the user.
•“Caution” identifies conditions and actions that may damage the instrument being used.
Warnings
To avoid personal injury, follow these guidelines.
2

Before You Start
Safety Information
GENERAL
DO NOT use this instrument in environments other than those listed in the User’s Guide.
Inspect the instrument for damage before each use. DO NOT use the instrument if it appears
damaged or operates abnormally.
Follow all safety guidelines listed in this guide.
Calibration equipment should only be used by trained personnel.
If this equipment is used in a manner not specified by the manufacturer, the protection provided by
the equipment may be impaired.
Before initial use, or after transport, or after storage in humid or semi-humid environments, or
anytime the Metrology Well has not been energized for more than 10 days, the instrument needs to
be energized for a “dry-out” period of 2 hours before it can be assumed to meet all of the safety
requirements of the IEC 1010-2. If the product is wet or has been in a wet environment, take
necessary measures to remove moisture prior to applying power such as storage in a low humidity
temperature chamber operating at 50°C for 4 hours or more.
DO NOT use this instrument for any application other than calibration work. The instrument was
designed for temperature calibration. Any other use of the instrument may cause unknown hazards
to the user.
Completely unattended operation is not recommended.
DO NOT place the instrument under a cabinet or other structure. Overhead clearance is required.
Always leave enough clearance to allow for safe and easy insertion and removal of probes.
Use of this instrument at HIGH TEMPERATURES for extended periods of time requires
caution.
Completely unattended high temperature operation is not recommended due to safety hazards that
can arise.
If the instrument is used in a manner not in accordance with the equipment design, the operation of
the Metrology Well may be impaired or safety hazards may arise.
This instrument is intended for indoor use only.
BURN HAZARD
Each Metrology Well is equipped with a Block Temperature Indicator (front panel LED HOT
indicator – Patent Pending) even when the instrument is unplugged. When the indicator is
flashing, the instrument is not powered and the temperature of the block is above 50°C. When the
indicator is illuminated, always on, the instrument is powered and the block temperature is above
50°C.
DO NOT turn the instrument upside down with the inserts in place; the inserts will fall out.
DO NOT operate near flammable materials.
3

917X Series Metrology Wells
Getting Started
DO NOT touch the well access surface of the instrument.
The block vent may be very hot due to the fan blowing across the heater block of the Metrology
Well.
The calibration well temperature of the Metrology Well is the same as the actual display
temperature, for example, if the instrument is set to 700°C and the display reads 700°C, the well is
at 700°C.
The air over the well can reach temperatures greater that 200°C for high temperature (400°C and
higher) Metrology Wells.
Probes and inserts may be hot and should only be inserted and removed from the instrument when
the instrument is operating at temperatures below 50°C.
DO NOT turn off the instrument at temperatures higher than 100°C. This could create a hazardous
situation. Select a set-point less than 100°C and allow the instrument to cool before turning it off.
The high temperatures present in Metrology Wells designed for operation at 300°C and higher
may result in fires and severe burns if safety precautions are not observed.
ELECTRICAL HAZARD
These guidelines must be followed to ensure that the safety mechanisms in this instrument will
operate properly. This instrument must be plugged into a 115 VAC (230 VAC optional), AC only
electric outlet. The power cord of the instrument is equipped with a three-pronged grounding plug
for your protection against electrical shock hazards. It must be plugged directly into a properly
grounded three-prong receptacle. The receptacle must be installed in accordance with local codes
and ordinances. Consult a qualified electrician. DO NOT use an extension cord or adapter plug.
If supplied with user accessible fuses, always replace the fuse with one of the same rating, voltage,
and type.
Always replace the power cord with an approved cord of the correct rating and type.
HIGH VOLTAGE is used in the operation of this equipment. SEVERE INJURY or DEATH may
result if personnel fail to observe safety precautions. Before working inside the equipment, turn
power off and disconnect power cord.
Cautions
To avoid possible damage to the instrument, follow these guidelines:
DO NOT leave the sleeve(s) in the instrument for prolonged periods. Due to the high operating
temperatures of the instrument, the sleeves should be removed after each use and buffed with a
Scotch-Brite® pad or emery cloth (see the Maintenance section of the Users Guide).
Always operate this instrument at room temperature between 5°C and 50°C (41°F and 122°F).
Allow sufficient air circulation by leaving at least 6 inches (15 cm) of clearance around the
instrument. Overhead clearance is required. DO NOT place the instrument under any structure.
4

Before You Start
CE Comments
Component lifetime can be shortened by continuous high temperature operation.
DO NOT apply any type of voltage to the switch terminals. Applying a voltage to the terminals
may cause damage to the controller.
DO NOT use fluids to clean out the well. Fluids could leak into electronics and damage the
instrument.
DO NOT introduce any foreign material into the probe hole of the insert. Fluids, etc. can leak into
the instrument causing damage.
DO NOT change the values of the calibration constants from the factory set values. The correct
setting of these parameters is important to the safety and proper operation of the calibrator.
DO NOT slam the probe sheath or sleeves into the well. This type of action can cause a shock to
the sensor and affect the calibration.
The instrument and any thermometer probes used with it are sensitive instruments that can be
easily damaged. Always handle these devices with care. DO NOT allow them to be dropped,
struck, stressed, or overheated.
DO NOT operate this instrument in an excessively wet, oily, dusty, or dirty environment. Always
keep the well and inserts clean and clear of foreign material.
The Metrology Well is a precision instrument. Although it has been designed for optimum
durability and trouble free operation, it must be handled with care. Always carry the instrument in
an upright position to prevent the probe sleeves from dropping out. The convenient handle allows
for hand carrying the instrument.
If a mains supply power fluctuation occurs, immediately turn off the instrument. Power bumps
from brown-outs could damage the instrument. Wait until the power has stabilized before re-
energizing the instrument.
The probe and the block may expand at different rates. Allow for probe expansion inside the well
as the block heats. Otherwise, the probe may become stuck in the well.
Most probes have handle temperature limits. Be sure the air temperature above the Metrology
Well does not exceed the probe handle’s temperature limit. If the probe handle limits are
exceeded, the probe may be permanently damaged.
CE Comments
EMC Directive
Fluke’s Hart Scientific Division equipment has been tested to meet the European Electromagnetic
Compatibility Directive (EMCEMC Directive, 89/336/EEC). The Declaration of Conformity for
your instrument lists the specific standards to which the instrument was tested.
5

917X Series Metrology Wells
Getting Started
The instrument was designed specifically as a test and measuring device. Compliance to the EMC
directive is through IEC 61326-1 Electrical equipment for measurement, control and laboratory
use – EMC requirements (1998).
As noted in the IEC 61326-1, the instrument can have varying configurations. The instrument was
tested in a typical configuration with shielded RS-232 cables.
Immunity Testing
The instrument was tested to the requirements for laboratory locations.
Emission Testing
The instrument fulfills the limit requirements for Class A equipment but does not fulfill the limit
requirements for Class B equipment. The instrument was not designed to be used in domestic
establishments.
Low Voltage Directive (Safety)
In order to comply with the European Low Voltage Directive (73/23/EEC), Fluke’s Hart Scientific
Division equipment has been designed to meet the IEC 1010-1 (EN 61010-1) and the IEC 1010-2-
010 (EN 61010-2-010) standards.
Authorized Service Centers
Please contact one of the following authorized Service Centers to coordinate service on your Hart
product:
Fluke, Hart Scientific Division
799 E. Utah Valley Drive
American Fork, UT 84003-9775
USA
Phone: [phone]
Telefax: +1.801.763.1010
E-mail: [email protected]m
Fluke Nederland B.V.
Customer Support Services
Science Park Eindhoven 5108
5692 EC Son
NETHERLANDS
Phone: [phone]
Telefax: [phone]
6

Before You Start
Authorized Service Centers
E-mail: [email protected]
Fluke Int’l Corporation
Service Center - Instrimpex
Room 2301 Sciteck Tower
22 Jianguomenwai Dajie
Chao Yang District
Beijing 100004, PRC
CHINA
Phone: [phone]
Telefax: [phone]
E-mail: [e-mail]
Fluke South East Asia Pte Ltd.
Fluke ASEAN Regional Office
Service Center
60 Alexandra Terrace #03-16
The Comtech (Lobby D)
118502
SINGAPORE
Phone: [phone]
Telefax: [phone]
E-mail: [email protected]
When contacting a Service Center for support, please have the following information available:
•Model Number
•Serial Number
•Voltage
•Complete description of the problem
7

Specifications and Environmental Conditions
Specifications
Specifications and Environmental Conditions
Specifications
Table 2 Metrology Well specifications
Specifications 9170 9171 9172 9173
Range –45°C to 140°C
(–49°F to 284°F)
–30°C to 155°C
(–22°F to 311°F)
35°C to 425°C
(95°F to 797°F)
50°C to 700°C
(122°F to 1292°F)
Display Accuracy2±0.1°C full range ±0.1°C: 35°C to 100°C
±0.15°C: 100°C to 225°C
±0.2°C: 225°C to 425°C
±0.2°C: 50°C to 425°C
±0.25°C: 425°C to 660°C
Stability1±0.005°C full range ±0.005°C: 35°C to 100°C
±0.008°C: 100°C to 225°C
±0.01°C: 225°C to 425°C
±0.005°C: 50°C to 100°C
±0.01°C: 100°C to 425°C
±0.03°C: 425°C to 700°C
Axial Uniformity2
(40 mm [1.6 in])
±0.08°C: –45°C to –35°C
±0.04°C: –35°C to 0°C
±0.02°C: 0°C to 50°C
±0.07°C: 50°C to 140°C
±0.025°C: –30°C to 0°C
±0.02°C: 0°C to 50°C
±0.05°C: 50°C to 155°C
±0.05°C: 35°C to 100°C
±0.09°C: 100°C to 225°C
±0.17°C: 225°C to 425°C
±0.09°C: 50°C to 100°C
±0.22°C: 100°C to 425°C
±0.35°C: 425°C to 700°C
Axial Uniformity2
(60 mm [2.3 in])
±0.1°C: –45°C to –35°C
±0.04°C: –35°C to 0°C
±0.02°C: 0°C to 50°C
±0.07°C: 50°C to 140°C
±0.025°C: –30°C to 0°C
±0.02°C: 0°C to 50°C
±0.07°C: 50°C to 155°C
±0.05°C: 35°C to 100°C
±0.1°C: 100°C to 225°C
±0.2°C: 225°C to 425°C
±0.1°C: 50°C to 100°C
±0.25°C: 100°C to 425°C
±0.4°C: 425°C to 700°C
Axial Uniformity2
(80 mm [3.15 in])
N/A ±0.05°C: –30°C to 0°C
±0.04°C: 0°C to 50°C
±0.15°C: 50°C to 155°C
±0.06°C: 35°C to 100°C
±0.12°C: 100°C to 225°C
±0.23°C: 225°C to 425°C
±0.15°C: 50°C to 100°C
±0.30°C: 100°C to 425°C
±0.45°C: 425°C to 700°C
Radial Uniformity ±0.01°C full range ±0.01°C: 35°C to 100°C
±0.02°C: 100°C to 225°C
±0.025°C: 225°C to 425°C
±0.01°C: 50°C to 100°C
±0.025°C: 100°C to 425°C
±0.04°C: 425°C to 700°C
Loading Effect (with
reference thermometer)
±0.02°C: –45°C to –35°C
±0.005°C: –35°C to 100°C
±0.01°C: 100°C to 140°C
±0.005°C: –30°C to 0°C
±0.005°C: 0°C to 100°C
±0.01°C: 100°C to 155°C
±0.01°C full range ±0.02°C: 50°C to 425°C
±0.04°C: 425°C to 700°C
Hysteresis ±0.025°C ±0.04°C ±0.07°C
Operating Range15°C to 40°C (41°F to 104°F)
Well Depth 160 mm (6.3 in) 203 mm (8 in)
Resolution 0.001° C/F
Display LCD, °C or °F user–selectable
Key Pad Ten key with decimal and +/– key. Function keys, menu key, and °C/°F key.
Cooling Time 44 min: 23°C to –45°C
19 min: 23°C to –30°C
19 min: 140°C to 23°C
30 min: 23°C to –30°C
25 min: 155°C to 23°C
220 min: 425°C to 35°C
100 min: 425°C to 100°C
235 min: 700°C to 50°C
153 min: 700°C to 100°C
Heating Time 32 min: 23°C to 140°C
45 min: –45°C to 140°C
44 min: 23°C to 155°C
56 min: –30°C to 155°C
27 min: 35°C to 425°C 46 min: 50°C to 700°C
Size 366 x 203 x 323 mm (14.4 x 8 x 12.7 in) [height x width x depth]
Weight 14.2 kg (31.5 lb) 14.6 kg (32 lb) 12.2 kg (27 lb) 14.2 kg (31 lb)
Power 115 V (±10%), 50/60 Hz, 6.3A
230 V (±10%), 50/60 Hz, 3.15A
115 V (±10%), 50/60 Hz, 10A
230 V (±10%), 50/60 Hz, 5A
Safety OVERVOLTAGE (Installation) CATEGORY II, Pollution Degree 2 per IEC–61010–1:2001
9

917X Series Metrology Wells
Getting Started
Specifications 9170 9171 9172 9173
1
Specifications are given with an ambient temperature of 23°C (73.4°F). Range, display accuracy, axial uniformity, loading
effect, cooling time, and heating time are subject to the ambient temperature and may be affected outside the “Full Accuracy” temperature
range
2
Refer to the Maintenance section in the User’s Guide regarding maintaining the accuracy of the instrument.
Table 3 Built-in reference specifications
Specifications Built-in Reference Input
Temperature Range1–200°C to 962°C
(–328°F to 1764°F)
Resistance Range 0Ωto 400Ω, auto-ranging
Characterizations ITS-90 subranges 4, 6, 7, 8, 9, 10, and 1
Callendar-Van Dusen (CVD): R0, ALPHA, DELTA, BETA
Resistance Accuracy10Ωto 20Ω: 0.0005Ω
20Ωto 400Ω: 25 ppm (0.0025%)
Temperature Accuracy1, 2 10ΩPRTs:
±0.013°C at 0°C
±0.013°C at 50°C
±0.014°C at 155°C
±0.014°C at 225°C
±0.019°C at 425°C
±0.028°C at 700°C
25Ωand 100ΩPRTs:
±0.005°C at –100°C
±0.007°C at 0°C
±0.011°C at 155°C
±0.013°C at 225°C
±0.019°C at 425°C
±0.027°C at 661°C
Temperature Resolution 0.001° C/F
Operating Range 5°C to 40°C (41°F to 104°F)
Calibration NIST-traceable calibration provided
Recommended Probes 5626-15-D or 5614-12-D3
1
Specifications are given with an ambient temperature of 23°C (73.4°F). Resistance accuracy and temperature accuracy are
subject to the ambient temperature and may be affected outside the “Full Accuracy” temperature range.
2
The temperature range may be limited by the reference probe connected to the external “Probe” connection of the Metrology Well. Does
not include sensor probe accuracy. It does not include probe uncertainty or probe characterization errors.
3
The 5614–12–D’s temperature range is 420°C.
Environmental Conditions
Although the instrument has been designed for optimum durability and trouble-free operation, it
must be handled with care. The instrument should not be operated in an excessively dusty or dirty
environment. Maintenance and cleaning recommendations can be found in the Maintenance
section of the Users Guide.
The instrument operates safely under the following environmental conditions:
•temperature range: 5–40°C (41–104°F)
•ambient relative humidity: maximum 80% for temperature <31°C, decreasing linearly to
50% at 40°C
•pressure: 75kPa–106kPa
•mains voltage: within ±10% of nominal
•vibrations in the calibration environment should be minimized
10

Specifications and Environmental Conditions
Environmental Conditions
•altitude: less than 2,000 meters
•indoor use only
11
