☞Service Guidelines Service Guidelines
•Precise adjustment should be made in a shield box or shield room where spurious
noise has been eliminated.
•When using magnetized tools, note that related magnetic elements may cause
malfunctioning of critical parts (such as IC).
•Use a twisted pair wire of thick type when measuring level. Using such a thick
twisted pair wire could reduce the measurement error as the wire contains less RF
resistance.
•When disassembling the phone set, you must use a driver tool meeting standard
requirements.
•When making repairs with power on after connecting the test package, note that
dangers such as overcurrent, parts deterioration caused by short-circuit may occur.
•Note that PCB land may be detached due to overheating of a soldering iron while
making repairs on board status.
•Any additional devices that cause the change of performance shall not be added
to this phone, as registered.

VK Quality Group GSM C/S
☞
☞Table of Contents Table of Contents
Chapter 1. Overview & Features
Chapter 2. Appearance & Configuration
Chapter 3. Assembling & Disassembling Methods
Chapter 4. Block Diagram
Chapter 5. Schematic
Chapter 6. PCB Diagram
Chapter 7. Trouble Shooting
Appendix. Electrical Part List

VK Quality Group GSM C/S
CHAPTER 1.
CHAPTER 1.
OVERVIEW & FEATURES
OVERVIEW & FEATURES
1.
1. Overview Overview
2.
2. Features Features
3.
3. Standard Standard

VK Quality Group GSM C/S
☞
☞Overview Overview
VK 3100 Mobile Phone is a clamshell type MP3, 300
VK 3100 Mobile Phone is a clamshell type MP3, 300 kpixel kpixel camera mobile phone camera mobile phone
with dual color LCD, operated in the GSM, Digital Cellular Mobil
with dual color LCD, operated in the GSM, Digital Cellular Mobile Radio System and e Radio System and
Personal Communication System, which is the Pan
Personal Communication System, which is the Pan- -European mobile cellular standard. European mobile cellular standard.
VK 3100 Mobile Phone has the operation band of GSM 900, DCS 1800
VK 3100 Mobile Phone has the operation band of GSM 900, DCS 1800 and GSM 850, and GSM 850,
PCS 1900. GSM Phase II features are fully supported and parts of
PCS 1900. GSM Phase II features are fully supported and parts of the GSM Phase II+ the GSM Phase II+
features are also supported.
features are also supported.
About the SIM Toolkit, VK 3100 Mobile Phone supports up to Class
About the SIM Toolkit, VK 3100 Mobile Phone supports up to Class 3 including Class 1, 3 including Class 1,
2.
2.
For speech communication, VK 3100 Mobile Phone supports Full
For speech communication, VK 3100 Mobile Phone supports Full Rate(FR Rate(FR), Enhanced ), Enhanced
Full
Full Rate(EFR Rate(EFR) and Half ) and Half Rate(HR Rate(HR). For easy text, ). For easy text, eZi eZi Text is implemented and WAP Text is implemented and WAP
protocol is adopted for internet connection.
protocol is adopted for internet connection.
VK 3100 Mobile Phone supports GPRS up to Class 10.
VK 3100 Mobile Phone supports GPRS up to Class 10.

VK Quality Group GSM C/S
☞
☞Features (HW) Features (HW)
Catagory Sub-Catagory Description
Dimension
98 x 54 x 14.9
Weight
82 g with standard battery
Form Factor
Clamshell
Antenna
Intenna
Radio
GSM, EGSM, GPRS
R/F band
3.5 band GSM850, GSM900,
DCS1800, PCS1900
GPRS Class
Class B 10 (4+2)
Speech Codec
FR, HR, EFR, AMR
Main display
176x220 (2.2") 262K color, TFT
Sub displqy
96x96 (1.04”) 65K color, CSTN
Image sensor
CMOS
Resolution
640 x 480 pixel
Digital Zoom
x 4
Motion JPEG
Yes
Camcorder supporting
Motion JPEG
Sound format
MIDI, sp-MIDI, MP3
Ringtones
Yes (64poly MIDI, MP3)
MP3 playback
Yes
Voice support codec
AMR (TBD)
SMS/EMS/MMS
Yes
WAP
2
Java
MIDP2.0/CLDC1.1
Instant Massage
N/A
e-mail
N/A
Nor/SRAM
128 Mb / 64 Mb
Nand
512Gb
External Memory
T-flash
Audio
Data Service
Memory
Design
Network
LCD
Camera
Catagory Sub-Catagory Description
46x30x48 (680mAh)
Thickness : Max. 4.6mm (Initial fully charged
cell)
Width : Max. 30.1mm
Height : Max. 48.2mm
Extended
N/A
RS232C
Yes
USB
Yes
Bluetooth
Yes
PC syncronization
Yes
Travel charger
Ear – Microphone
Hand strap
Battery Charger
PC – Sync
GSM850 Min 5dBm ~ Max. 33dBm
EGSM900 Min 5dBm ~ Max. 33dBm
DCS1800 Min 0dBm ~ Max. 30dBm
PCS1900 Min 0dBm ~ Max. 30dBm
Standard
Connectivity
Option
RF Output Power Range
Battery

VK Quality Group GSM C/S
☞
☞Features (SW) Features (SW)
FUNCTION DETAIL ITEM COMMENTS
Last dialed number 40 entry
Last received number 50 entry
Last missed number 20 entry
Call Call waiting Yes Network dependent
Earpiece volume 5 level
Mute on & Mute off Yes
Phone book SIM/Phone
Languages S/T Chinese & English Type A, D
All outgoing calls
International outgoing calls
International outgoing calls except to home
All incoming calls
All incoming calls when roaming
Call Diverting
Write message Send/Add Object/Remove Object(MMS
only)/Page(MMS only)/Save/Edit
Subject(MMS only)/Preview(MMS
only)/Exit/Add Contact/Edit Email(MMS
only)
Outbox(unsent items/sent items) Send/Edit/Delete/Delete All/Copy to
SIM,Phone(SMS only)/Move to
SIM,Phone(SMS only)/Details(MMS only)
Inbox Delete/Delete All/Reply/Reply All(MMS
only)/ Forward/Callback/Extract/Details/Copy
to SIM,PHONE(SMS only)/Move to
SIM,PHONE(SMS only)
Information Message Reception(On/Off)/Read Topics(Edit/Delete)
Voice message Listen to Voice Mail/Set Voice Mail Number
Memory status SMS SIM/PHONE(Number), MMS(%)
Settings delivery report, read report(MMS only), report
sending(MMS only), profile setting(MMS
only), auto download(MMS only)Validity
period/SMS center No.(SMS only)
Call barring
Normal features
Audio
Supplementary services
Short/Multimedia message

VK Quality Group GSM C/S
☞
☞Features (SW) Features (SW)
FUNCTION DETAIL ITEM COMMENTS
GSM 850 / PCS 1900
GSM 900 / DCS1800
Test facility
Display software version
English
Simplified Chinese
Traditional Chinese
T9 Predictive word input
Photo/Video/Image/Animation
Sound/Music
Camera Photo shot/Sticker shot/Video clip
WAP Built in WAP 2.0
EMS Built in
GPRS Built in Class 10
New
Delete All
Schedule List
Morning Call
Reminder
Memo Edit and view 10 Memos
Addition
Subtraction
Multiplication
Division
Length conversion
Weight conversion
Volumes conversion
Surface conversion
Temperature conversion
Setting local time
Number of selectable cities 65 Cities
Player
Edit Play List Option (Repeat, Shuffle)
Release Release 96
Refresh O
SIM Card
Language
Unit converter
World time
MP3
Alarm
Calculator Operator
Text input
Gallery
Calendar
Multi-band Support of multi-band & mode
Miscellaneous function

VK Quality Group GSM C/S
☞
☞Standard Standard
GSM850 Tx= 824~849 Rx= 869~894MHz
P-GSM Tx= 890~915 Rx= 935~960MHz
DCS Tx= 1710~1785 Rx= 1805~1880MHz
PCS Tx= 1850~1910 Rx=1 930~1990MHz
3) Radiowave Type: E-GSM Tx= 880~915 Rx= 925~960MHz
4) Oscillation Mode:
5)Modulation Mode:
7) Terminal Amp(IC):
8) ChannelSeparation:
10) IF VCO Frequency:
11) Multiplying Method:
12)Spurious Frequency Multiplying 1G~4G(-30dBmor below fromthe FTA standard)
Transmitter
GSM850 = 896MHz
EGSM = 798MHz
DCS = 766MHz
PCS = 854 MHz
TQ7M4006
200KHz
9) RF1 Local Oscillation Frequency: GSM850 = 1737.8 ~ 1787.8MHz
EGSM = 1849.8 ~ 1919.8MHz
DCS = 1804.9~1879.9MHz
PCS = 1929.9 ~ 1989.9MHz
2) Frequency Range:
PLLSynthesize
GMSK
6) Frequency Stability: GSM900, GSM850 = 90Hz
DCS, PCS = 180Hz
1) Rated Output: GSM900 = 2W(Max)
GSM850 = 2W(Max)
DCS = 1W(Max)
PCS = 1W(Max)
E-GSM = 975~1023, 1~124
P-GSM = 1~124
GSM850 = 128 ~ 251
DCS = 512~885
PCS =512 ~ 810
2) Channel Separation: 200KHz
3) Oscillation Mode: PLL Synthesize
GSM850 = 1272 ~ 1297MHz
E-GSM = 1279 ~ 1314MHz
DCS = 1327 ~ 1402MHz
PCS = 1423 ~ 1483MHz
5) Intermediate Frequency: 100KHz
6) Modulation Mode: GMSK
7) Spurious: 1G~4G(-30dbm or below from the FTA standard)
1) Channel Number:
Receiver
4) RF2 Local Oscillation
Frequency:

VK Quality Group GSM C/S
CHAPTER 2.
CHAPTER 2.
APPEARANCE & CONFIGURATION
APPEARANCE & CONFIGURATION
1.
1. Appearance Appearance
2.
2. Configuration Configuration
3.
3. LCD Panel LCD Panel

VK Quality Group GSM C/S
☞

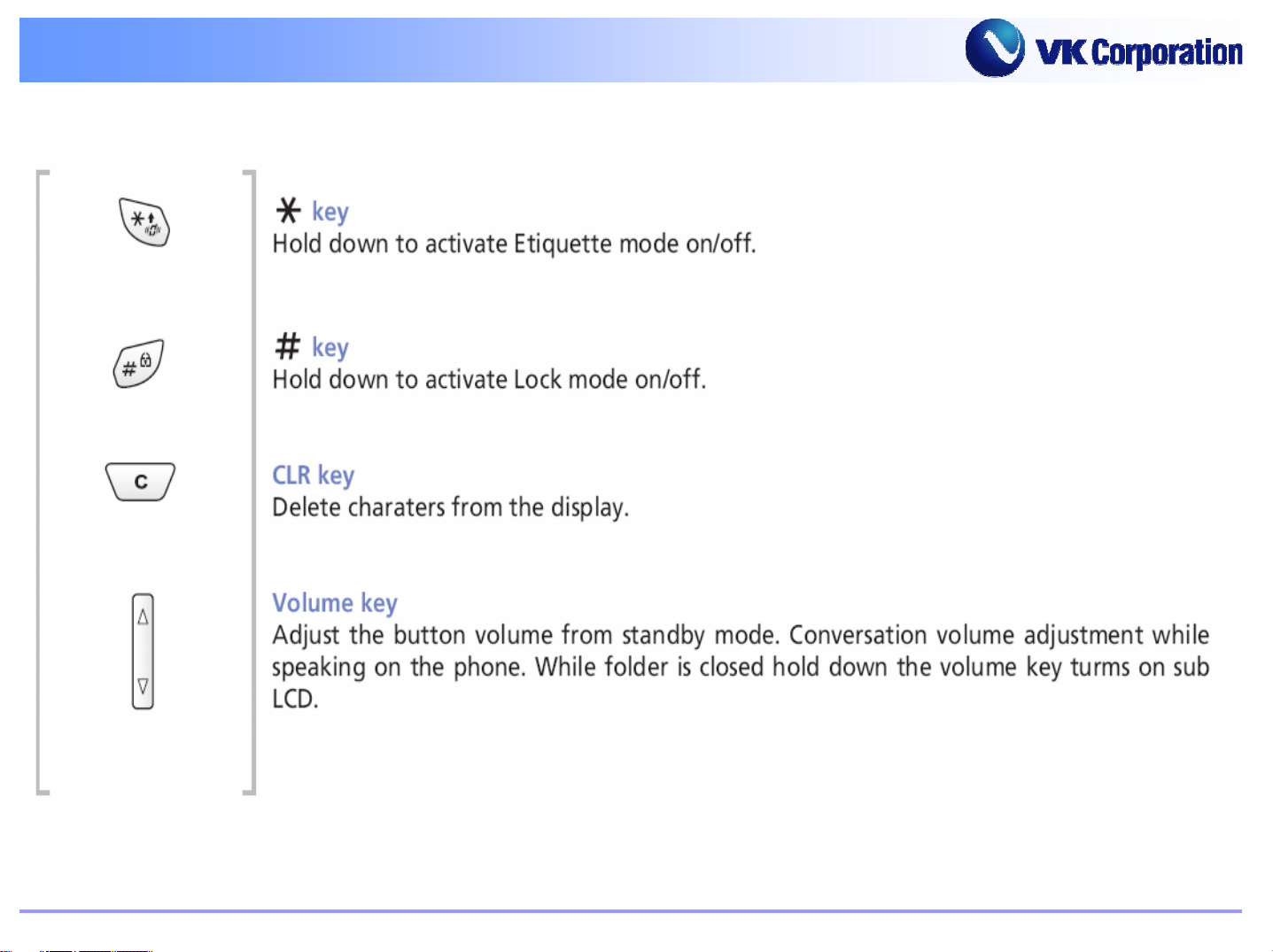

☞Appearance Appearance

VK Quality Group GSM C/S
☞
☞Icons Icons

VK Quality Group GSM C/S
☞
☞Icons Icons

VK Quality Group GSM C/S
☞
☞Icons Icons

VK Quality Group GSM C/S
☞
☞LCD Panel LCD Panel

VK Quality Group GSM C/S
CHAPTER 3.
CHAPTER 3.
ASSEMBLING & DISASSEMBLING
ASSEMBLING & DISASSEMBLING
1.
1. Assembly Drawings Assembly Drawings
2.
2. Disassembling Methods Disassembling Methods

VK Quality Group GSM C/S
1. Assembly Drawings
1. Assembly Drawings
1)
1) Exploded Exploded Ass Ass’ ’y yView View
2)
2) Mechanical Parts List Mechanical Parts List
3)
3) Ass Ass’ ’y yView View

VK Quality Group GSM C/S
☞
☞Exploded View & Parts List Exploded View & Parts List
NO. DESCRIPTION Q’TY
1DecoSpeaker 1
2 Indicator 1
3 WindowCamera 1
4DecoCamera 1
5 FolderUpper 1
6 Cushion WindowSub 1
7 LCDModule 1
8 Cushion WindowMain 1
9 LCDModule 1
10 Magnet 1
11 Folder Lower 1
12 Hinge 1
13 WindowMain 1
14 Deco Ear 1
15 Screw 8
16 RubberScrewFolder 1
17 RubberStopper 1
18 RubberDamper 1
19 MetalKeypad 1
20 RubberScrewMain 5
21 Case Front 1
22 EL FPCB 1
23 EL Plate 1
24 RubberMic 1
25 Main Board 1
26 Knob Side 1
27 Guide SimCard 1
28 SimPlate 1
29 CoverT-Fresh 1
30 CoverUSB 1
31 Knob Lock 1
32 Spring Knob Lock 1
33 Case Rear 1
34 Battery Cell 1
33 CoverBattery 1
34 CoverRF 1

VK Quality Group GSM C/S
☞
☞Ass Ass’ ’y yView View
Folder Front Ass’y
Folder Front
Folder Front Ass Ass’ ’y y

VK Quality Group GSM C/S
☞
☞Ass Ass’ ’y yView View
Folder Lower Ass’y
Folder Lower
Folder Lower Ass Ass’ ’y y
