Foc.us St-iiib User manual

P/N 20130320-1

ST-IIIB user manual

Dear customer:

Congratulations on purchasing you new security systeman thank

you for the confidence you have shown in us.You have chosena high

-quality.

Product that has been produced,tested and packed wthegreatest

care.Please familiarize yourself with these instructions before atte

mpting operation will only been sure if it is fitted properly.We hope your

new security system will bring you lasting pleasure.

Brief

User manual

Content

User manual

Chapter I Introduction 1

Chapter 2 Installation and Connection 4

2.1 Installation 4

2.2 Connection(N.O. N.C) 4

2.3 Install wired detector 4

2.4 Intall wereless detector 5

Chapter 3 Keybad and Operation 5

3.1 About panel 5

3.2 Basic operation 7

3.5 Alarm procedure 10

Chapter IV Voice alarm receiving 11

and GSM control

4.1 Remote phone control 11

4.2 Alarm receiving phone operation 11

4.3 GSM remote operation 12

4.4 GSM alarm receiving 12

4.5 GSM control via SMS 12

Chapter IV Voice alarm receiving and GSM control 13

5.1 Set system clock 13

5.2 Set user password 13

5.3 Set voice phone 13

Chapter VI System Setting 14

6.1 Set password 14

6.2 Set CMS number 15

3.3 Flashes when phone line cut 7

3.4 Host arm and disarm 8

6.3 Set voice phone 16

6.4 Set system options 17

6.4.1 Set system clock 17

User manual

6.4.2 Set entry delay 18

6.4.3 Set exit delay 18

6.4.4 Set siren time 18

6.4.5 Set ring times 18

6.4.6 Set detector loss inspection 19

6.4.7 Set arm/disarm tone 19

6.4.8 Set arm/disarm report 20

6.4.9 Set others 20

6.4.9.1Set emergency alarm siren type 20

6.4.9.2 Ac off inspection time setting 21

6.4.9.3 Magnetic contact inspection 21

6.4.9.4 Check wireless detector tamper 21

6.4.9.5 Set force arm 21

6.4.9.7 Set zone alrm times 22

6.4.9.8 Set listen-in time 22

6.4.9.9 Set AC off remind 23

6.5 Manage wireless device 23

6.5.1 Set remote control 23

6.5.1.1 Enroll remote control 23

6.5.1.2 Enter remote control code 24

6.5.1.3 Delte remote control 24

6.5.2 Set detector 24

6.5.2.1 Detector coding 24

6.5.2.2 Enter detector code 25

6.5.2.3 Delete detector 25

6.5.3 Set appliance switch 25

6.5.3.1 Enroll appliance switch 25

6.5.3.2 Delete appliance switch 26

6.5.4 Enroll wireless siren 26

6.5.4.1 Enroll wireless siren 26

6.5.4.2 Delete wireless siren 26

6.6.5 Set door bell 27

6.5.5.1Enroll doorbell 27

6.5.5.2 Delete doorbell 27

6.4.9.6 Set telehpone line disconnect remind 22

User manual

6.6.1 Set zone attribution 28

6.6.2 Set zone siren type 28

6.6.3 Set wired zone loop type 28

6.6.4 Set wired zone response speed

6.6.5 Set related zone 29

6.7 System maintance 30

6.7.1 Set timing operation 31

6.7.2 Recording 31

6.7.3 Play recording 31

6.7.4 Set programmable output port 31

6.7.6 Restore to factory default 32

6.7.5 Delete system events 32

6.8 Set GSM module 32

6.9 Advanced setting options 34

6.9.2 Set sever IP address 35

6.9.1 GPRS enable and disable 35

6.9.3 Set sever port 36

6.9.4 Set user ID 36

6.9.5 Set user password 36

6.9.6 GSM SMS language 36

6.9.7 Delay zone tone source options 37

6.9.8 Handshake tone input signal intensity 37

6.9.9 DTMF output signal intensity 37

6.9.10 Set LCD standby brightness 37

6.9.11 Alarm event retain time 38

Chapter VII technical specification 39

7.1 General data 39

7.2 Physical performance 39

Chapter VIII maintenance 40

8.1 Regular test 40

8.2 The cleanliness of control main machine 40

Chapter VX limitation of the products 40

I Alarm mode: with PSTN and GSM network alarm, GSM networ k with

GPRS function(GPRS function is for China market only), remote arm and

disarm panel through CMS or SMS CID protocol, SMS notification, the

priority of PSTN and GSM network is Optional.

With a newlarge-screen, full-touch buttons, LCD graphic displaysteps,

work status,Alarm process easy and intuitive.

The full English voice prompting operation: all local or remote operation,

alarm information, event log view.

GSM-hook and voice telephone with intercom function.

5 All alarm informationcan be programmed for the following settings:

0 does not send any information

1,Send only SMS 2,Only call users 3,SMS + call user 4, CMS only

5 ,CMS + SMS. 6,CMS + call user 7. CMS + SMS + call user

6 Sleep mode: Under sleep mode, all the lights, backlight, voice and

remind tone are disabled.

7 Alarm panel under idle status is equivalent to a cellphone, you can call

through the GSM network for balance inquiries

8 The associated zone: 4 groups associated zone, three kinds of

association patterns, can effectively reduce false alarm or for other

functions.

9 PGM output: With a programmed output port, followed by five kinds of

alarm events output.

10 The doorbell Audio Optional:

1. Ding Dong 2 Welcome 3. Recording 4. Dee-Dee~

11 Remote phone operation:dialing by telephone offsite, after password

verification, you canarm, disarm, listen-in premise, system status query

and electrical switches controls and otheroperations.

12 VoiceAlarm: When panel alarm, it will automatically dial the preset user

phone numbers to report alarm information then you can remote control

the panel afterenter user passwords.

User manual

Chapter I Introduction

1.1 Function Introduction

23 For CMS

Password access management: the panel has one administrator

password 16 user password, The administrator password primarily for

system administrators to set up the alarm system; The user passwords

for users in the day-to-day use such arm/ disarm,remote operation. The

administrator password, user password can be freely modified.

networking alarm, depending on the number of users, the user

can set four, six or eight usercodes(account number).

14 8 wired zones, User can set the circuit type and speed of

response, support N.O, N.C.

15 Enable enroll total 8 wireless remote,8 electronic switch,1 pc of wirele-

ss doorbell and Unlimited for quantity of one way wireless siren.

16 Follow me phone #,two for CMS,four for private alarm receiving.

17 Status inspection function:Enable record and inquiry 120 alarm event

messages.Like the timewhen happens anti-tam per alarm,detector alarm,

tel-line off,arm,disarm,system setting,battery low voltage etc.And also

can inquiry the zone number and alarm type.

18 Timing arm and disarm: 4 sets of timing arm and disarm time.

19 Electrical switches control: User can remote switch on/off via phone or

SMS, also can be controlled manually through the local alarm panel.

20 Zone programmable: factorypreset for each zone type.Users

can modify all the zone type according to the actual needs .

21 Clock: Built-in fullautomatic calendar clock, set to local time

consistent

User manual

13 Wireless zones, each wireless zone can automatically learn the codes

or be coded manually via the keyboard.

24 Zone type identification:After an alarm is triggered, the alarm zone

number displayed on the LCD screen of the panel, also can send the

detailed report toCMS which includes alarm locations andzone types.

25 Al-proof function:If try to cut off the wire between wered detector and

panel or cut off the tel line which.

User manual

26 The tampering alarm: cut the cable between wired detectors and the panel

will trigger larm,the telephone line cut will automatically trigger siren alarm.

When someone deliberately dismantled the panel, it will alarm when

triggering tamper switch at the back of the panel.

27 Timing arm/disarm:Enable set 4 group time arm/disarm time.

28 CMS communications test: The panel will send a message to CMS at the

pre-set time interval to inspect the communicaiton if normal.

29 Siren options:Built-in siren, external wired siren, Wirelss siren. All sirens

can be programmedas enabled/disbale when alarms.

30 The voice speakervolume adjustment: adjust the volume bya rotary

switch on the panel.

31 Wireless repeater function:can extend the distance between the detector

and the panel by adding a wireless repeater of our company.

32 The wireless detector low battery prompted:Detectors will send status

report to the panel every 1-3 hours, the corresponding zone number and

the battery voltagesymbol will be displayed on theLCD screen and also

will report toCMS.

2.1

Installation

Fix the bracket to the wall and hang the pane to the bracket

The large metalobjects can not be placed aroundthe panel, so as not to

affect the wireless signal.

Make sure toplace the panel within the wirelessrange of all wireless

accessoris and pay attention to the hidden

2.2 Connection(N.O. N.C)

LINE TELL

DC15V/2A

Power

PGM GND Z33 Z34 GND Z35 Z36 Z37 Z38 GND Z39 Z40

Here only introduce thezone 33, 34, 37, 38. The other zones please

2.3 Install wired detector

2.3.1The wired zones is disabled factory default. when to use wired zones

please enable the zones firstly.When wired zones is in trouble, the

panel will voice prompt "operation fails, Zone trouble if users try

User manual

N.ON.C

As pictures

Chapter 2 Installation and Connection

Voice volume

knobs

refer to the above.

The control pane can power 15V, 100mAto detectors. The max curent

is 100mA. Do not exceed 100mA, otherwise please use extra power

supply.

2.3.2

3.1 Aboutpanel

User manual

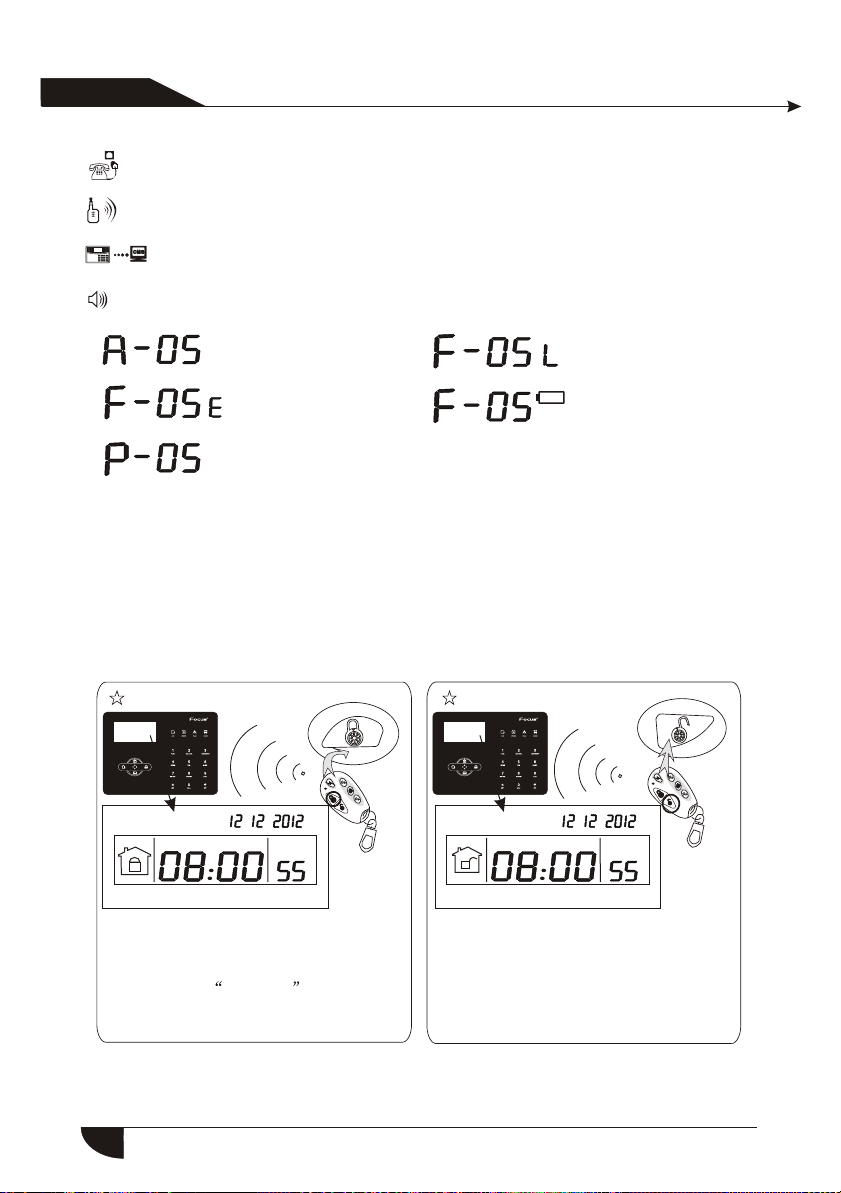

To arm the panel. The zone number will be also display on the LCD

screen. At this time arm system is not allowedunless you force arm.

2.4 Intall wereless detector

2.4.1 As the detector`s manual says,install coded detector in the area 150m

from the controlpanel.Please test and make sure detectorcan work with

control panel normally.

2.4.2 Wireless repeater function:when wireless detector is too far from the

panel or some occluders between panel and detector which disable the

panel receivethe signal from wireless detector.Now you can choose our

made wireless repeater to achieve wireless signal relay trans mitting.

Arm Disarm Alarm

LCD screen

Fault

Chapter 3 Keybad and Operation

Stay/on turn key

Intercom/monitor hole

Protection

/return button

Event query

/under turn key

Key machine

A lighthole

Set the

keys

Enter

key

Arm led: Lighton under armed status, Light flashesunder stay status.

Disarm led: Light on under disarmed status

Trouble led: Light on whenwith zone trouble. Light flashes when AC cut.

Alarm led: Lightflashes when alarm.

Press 3 seconds to enter or exit sleep mode.

Bypass zone: bypassed zones means zones disabled. The bypass will be

restored when usersdisarm systems under home armed orarmed status.

Siren test: to test if siren working normal

Walk test: to test if the detectors are working normally with the panel and alarm

User manual

Press 3 secondsto tirgger fire alarm

Press 3 seconds for medical help

Press 3 secondsfor SOS

Press 3 seconds then enter user code to enable or disable delay

zone doorbell(Refer to page 36)

Press 3 secondsthen enter user code to enableor disable PGM

output(refer to page 30)

Press 3 secondsto make phone call through GSM,the longest

talk time is 240 seconds. the call willbe interrupted when alarm

occurs.

Press 3 seconds then enter user code to proceed normal testing,

siren testing and walk testing.

Press 3 seconds then enter user code to bypass zones or

activate zones.

Press 3 seconds then enter user code to enable or disable

eletrical switch.

Sleep mode: all led indicators, backlight, voice, remind tone will be disabled

under sleep mode,The panel will exit sleep mode automatically whenusers

enter system settingor when alarm occurs.

Communication test: To test the communication between the panel and the

CMS if normal

User manual

3.2 Basic operation

Factory default

Adminitrator password: 012345

16 User passwords, NO. 01 factory default is 1234. No. 02-16 of the user

password is blank and can not enter the user setting untill user set the

password.

Home arm: Home arm key

Arm: Armkey

Event log: inquiry key

Shutdown operation: AC power-off state ( press and hold for more than 3

seconds) + userpassword [1234]+

Disarm: User password[1234]+DISARM

Enter system setting: press andhold for more than 3 seconds+

adminstrator password [012345]+

Enter user setting: Press and holdfor more than 3 seconds+ userNO.

(01) +user password(1234)+

Zone inspection: Not insepct wired zones within one minutes of panel

power up

Password reset: Enter 000000 to enter system setting menu within one

minute of panel power up.

3.3 Flashes when phone line cut. Light on when phone line

is normal.

Icon Meaning

Detector low battery

Alarm

GSM is enabled

Left behind

Disarm

Arm

Enable GPRS

++__

Voice prompts

GSM signal strength

Telephoneline

PANELlow battery

Icon Meaning

Zone 5 alarm

Zone 5 trouble

Zone 5 bypass

Zone 5 detectorlost

Zone 5 lowbattery

The alarm zone number will still be displayed on LCD screenafter first disarm

when alarm accurs, returned to normal screen display only users disarm twice.

Flashes when phone line cut. Light on when phone line is normal.

Flashes when GSM not ready, Light on when GSM is normal.

Flashes when GPRS disconnected with CMS. Light on when GPRS is

connected well withCMS.

Flashes under sleep mode. Light on uder normal working mode.

3.4 Host arm and disarm

Arm

Disarm

YDMYDM

Press the keyfor arm away on remote

or the keypad,thenyou hear"system

armed,please exit theprotection area"

there will be Dee-dee sound to

confirm the systemis armed

successfully.

Press the disarmkey on the remote or

enter your userpassword on the

keypad,then you willhear"dee"and

voice"system disarmed",then youhave

disarm successfully.

~DI~DI~~DI~DI~

User manual

Panic

Home Arm

YDMYDM

User manual

Press the keyfor home armon the

remote or "HOME"keyon the keypad,

then you willhear ystem stay

And it displayhome arm iconon the

LCD screen.

Press the panicbutton on remoter,or

press" key on panelfor 3

seconds.

~DI~DI~~DI~DI~

The codes ofarm/disarm via different ways:

Arm/disarm via keyfobs: 1-8 keyfobs----#40-47

Arm/disarm via user codes: 1-16 user codes---#01-16

Arm/disarm via phone call: 1-4 user phone number---#60-63

Arm/disarm via CMS: #97

Arm/disarm via home arm key or arm key in panel: #98

Auto arm/dsiarm via auto timer or key zone: #99

3.5 Alarmprocedure

User manual

Tele Telephone telephone Cell phone

1st 2nd 3rd 4th

3.The panel willdial 1-4 telephonenumbers

as preset.If morethan 4 numbers,thepanel will

start with secondtelephone number,then 3,4...

Wired

Alarm situation found,

start to sendmessage

1.The detector activated

send alarm infor

mation to alarming

center.

Alarm software

CMS

110 alarm center

Wireless

2.The panel useAdemco ContactID to send

alarm information toalarming center.

If the panelgot confirmation fromcenter,

then alarm successfully.Otherwise, the panel

will repeat alarm.Thealarm information will

be display andreslove by thealarm center computer

software.

1 2

Chapter IV Voice alarm receiving

and GSM control

4.1 Remote phone control

User can remote control the system by phone call, after the preset ringing

times then panel will off hook the phone then enter the 4 digit user codes

according to voice prompting and operate as per the voice prompting.

User call landline

phones

The phone ringsis 7

times, after 7times ring,

the panel willoff-hook

automatically.

Please enter

password

Then enter usercode according

to voice prompting(the factory

default user codeis 1234)

Press 1 toarm system

Press 2 todisarm system

Press 3 toStay arm

Press 4 tocheck system status

Press 5 toappliance switch control

Press 6 tocontrol programmable

output port

Press 0 toDisconnect

4.2 Alarm receiving phone operation

When alram, the panel will dial the pre-set voice phone number, when the

user pick upthe call, they will hear thevoice prompting asbelow, if not press 1

to cancel the alarm or press 4 to disarm the system, after off-hook, the panel

will call otherpreset voice phone numbers .

The panel willdial

the preset voice

phone number

when alarm occurs

The user pickup

the call

Play the recordedvoice message

first, then :

Press 1 tocancel alarm

Press 2 tocheck alarm event

Press 3 toarm system

Press 4 todisarm system

Press 5 toStay arm

Press 6 toenable siren

Press 7 tolisten-in

Press 8 tocontrol programmable

output port

Press 0 toDisconnect

User manual

Telephone line

4.3 GSM remote operation ( talk-back function added)

When alarm occurs, GSM will call the preset voice number, when pick up

the call,enter 4digit user code, then voice prompt:Press 1 to arm system,

Press 2 to disarm system, Press 3 to Stay arm, Press 4 to check system

status, Press 5to appliance switch control, Press 9to talk-back, Press0 to

Disconnect.

4.4 GSM alarm receiving (talk-back function added)

When alarm occurs, it will send SMS first, then call the preset voice number,

when pick upthe call, it will play therecorded voice messagefirst, then voice

prompt: Press1 to cancel alarm, Press 2 to check alarm event, Press 3 to arm

system,Press 4 to disarm system, Press 5 to Stay arm, Press 6 to enable siren,

Press 7 to listen-in, Press 8to con trolprogrammable output port, Press 9 to

talk-back, Press 0 to Disconnect.

4.5 GSM control via SMS

Arm command: password:1234system arm

Disamr command: password:1234system disarm

Stay command: password:1234 system home

Cancel alarm command: password:1234 system cancel

Status checking command: password:1234 system status

Enable programmable output port command: pasword:1234 pgm open

Disable programmable outputport command: password:1234pgm close

Enable appliance switch command:

password:1234 switch open X(X=1-8 on behalfof appliance switchnumber)

Disable appliance switch command:

password:1234 switch close X(X=1-8 on behalfof appliance switchnumber)

User manual

Set apn:

Set ID:

Set password:

password:1234 apn: aaa

password:1234 user: bbb

password:1234 pwd: ccc

Note: the factorydefault user code is 1234, whenarm successfully, SMS auto

reply arm successfully , if the password is correct, the command is not

correct, SMS willreply operation failure , if thepassword is not correct,

no SMS reply.

Set system clock

Set user password

Set voice phone

5.1 Set system clock

For example: set system clock as : 22:59:36 22/12/2012

Press[*] for 3 seconds

Please enter system

clock, pressconfirm

key tosave,press

back key toexit.

According to flash of Y.M.D.H.Min.Sec on screen, enter 12.12.22.22.59.36

by turn, also can press [UP] [DOWN] key to move cursor.

2122222

5936#

YMDH

Min Sec on screen

Enter passord +++

For example: Set No.16 user pasword as 5678

Press[*] for 3 seconds

#2#

Enter password, press

confirm key tosave,

press back keyto exit.

5.2 Set user password

Chapter IV Voice alarm receiving

and GSM control

User manual

Enter passord 1234

Please enter theserial number

of your modifiedpassword,

confirm key toconfirm,press

back key toexit.

Note: Can set 16 user passwords, corresponding password No. from 01 to 16,

Only No.1 password can enter user setting.

5.3 Set voice phone (refer to page 15)

12341##

Press[*] for 3 seconds

6.1 Set password

Set password

[2]Set user password

XXX

[1]Set Admin password

XXX

XXX#

Chapter VI System Setting

41#

Press[*] for 3 seconds

User manual

Set password

Set CMS number

Set voice phone

Set system options

Set wireless devices

Set zone

System maintenance

Set GSM

Set advanced options

Press[*] for 3 seconds

Then operate according to the

voice prompt as below.

Enter password,

press confirm keyto save,

press back keyto exit.

The setting issaved

Please enter theserial number

of your modifiedpassword, confirm

key to confirm,press back keyto

exit press confirmkey to save,

Enter password,press

confrim key tosave,

Press back keyto exit

The setting issaved

Note: 1. passwordsetting include user password and administrator password ,
