FONESTAR SMA-12800U User manual

SMA-12800U
POWERED MIXER WITH
USB/SD/MP3 PLAYER
INSTRUCTION MANUAL

EN
- 2-
We take this opportunity to thank you for buying this product.
We recommend you read the instruction manual before switching on the machine and follow the instructions
that are given. eep the manual for future reference.
SECURI Y AND HE ENVIRONMEN
ELECTRICAL SECURITY
Check that the current in the mains connection where the machine is to be installed corresponds to the
power supply of the machine.
To avoid damaging the equipment, electrical shocks, fire or physical injury when you connect or disconnect
the equipment from the power supply, pull the plug firmly out of the mains socket holding the plug, never the
cable.
Always do this with dry hands.
eep the power supply cable far from sources of heat. Do not put heavy objects on top of it or change it.
Clean dust and dirt off the power supply cable regularly.
Do not open the machine; you could get an electric shock.
CAUTION
While installing the machine, make sure it is switched off and unplugged.
Do not open the machine. Touching the internal parts is dangerous and you could receive an electric shock.
The machine must not be splashed or dripped on. Never place recipients with liquid inside on the machine.
Do not place anything inside the machine.
LOCATION
Place the equipment on a horizontal surface with enough space around it to allow ventilation.
Avoid direct sunlight, heat sources and excessive dust.
Do not place the machine near magnetic fields or static electricity.
Do not use surfaces which vibrate or receive impact.
Do not pile machines on top of one another.
VENTILATION
Never block or cover the ventilation slits on the machine.
Do not expose it to direct sunlight or place it near sources of heat.
PERIODS OF INACTIVITY
When the machine is not going to be used for a long period of time, disconnect it from the mains.
If you are using an adapter, take into account that it will continue using electricity even if the machine is
switched off. If it is not going to be used for a long period of time, disconnect it from the mains.
THE ENVIRONMENT
To save energy, switch the machine off when you are not going to use it for a long time. The machine could
contain substances that are harmful to the environment or human health. To minimize the effect of these
substances the machine must be correctly managed and recycled when you decide to dispose of it.
When you dispose of it remember: it cannot be thrown into a conventional rubbish bin.
If it contains or uses batteries, these must be disposed of separately.
The machine (without batteries) must be disposed of correctly. Put it in a container specially intended for the
collection of electronic and electrical appliances, at the dump or hand it over to the dealer when you purchase
similar equipment, so that the dealer can dispose of it correctly (at no added cost).

SIGNIFICANCE OF HE SYMBOLS ON HE MACHINE*
The symbol formed by the expression “Class 1 laser product” written in a rectangle
indicates that visible or invisible laser radiation could be produced. Avoid direct exposure
to the laser.
The symbol formed by a ray of lightening inside a triangle shows that the machine has
connection terminals or a circuit with areas with a current which could cause an electric
shock, even in normal working conditions.
The symbol formed by an exclamation mark in a triangle shows that the instruction manual
must be referred to for information on how the machine works and its use.
The symbol formed by one square inside another square shows that the machine has
double electrical insulation.
The European Community symbol shows that the machine complies with the current
European Union legislation, as well as its transposition to local legislation.
The symbol of a rubbish bin crossed out and over a horizontal line shows that when the
product is disposed of it must be done properly, placing it in a special selective electronic
and electrical equipment container or through a dealer when purchasing a similar product,
at no additional cost. It also shows that the machine was put on the market after 13th
August 2005 (European Community Directive 2002/96/CE of Electrical and Electronic
recycling, and its Spanish equivalent R.D.208/2005).
In accordance with what is set out in the aforementioned decree, FONESTAR is registered
in the RAEE (Registro de Aparatos Eléctricos y Electrónicos) in a special section REI
(Registro de establecimientos Industriales), with the entry number 001851.
*It is possible that some of these symbols do not appear on the machine.
EXEMP ION OF LIABILI Y
The characteristics of the equipment and the content of the manual can change without forewarning.
FONES AR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the
information supplied in this instruction manual, and specifically disclaims any implied liability for marketability
or fitness for any other use.
All rights reserved by FONES AR, S.A.
- 3-
EN

DESCRIP ION
- The model SMA-12800U is a professional 12-channel powered mixer, 350 + 350 W at 4 Ω, 250 + 250 W
at 8 Ω, specially suitable for live applications, music group sound systems, etc. They can be used in a wide
variety of applications thanks to their flexibility.
- The mixer inputs support a wide variety of signals. The controls of each channel allow equalizing and the
levels of the different audio sources and the volumes to be adjusted, etc.
- It is equipped with a USB/SD/MP3 player to reproduce audio files contained in the USB storage devices
or SD memory cards.
- 7-band graphic equalizer and 16 digital effects.
CON ROLS AND FUNC IONS
FRON PANEL
1.- MIC: balanced mic. input, female XLR connector.
2.- LINE: unbalanced line input, 6.3 mm jack connector.
3.- PEAK: LED peak level indicator. The LED indicator will light up when the input signal
has a high level and is distorted. Adjust the input level with the GAIN control so that
the LED indicator lights up occasionally.
4.- GAIN: input signal gain control. Input sensitivity setting.
5.- PAD: attenuation selector. Allows the input signal to be attenuated 20 dB.
6.- HIGH, MID, LOW: tone controls. Equalizer that adjusts the bass, mid and treble level
in the corresponding channel. Controls with a gain of ±15 dB.
7.- AUX: sending of input channel signal to EFX mix bus (AUX) (pre-fader).
8.- EFF: sending of input channel signal to EFF mix bus (post-fader).
9.- PAN: balance control. Sends the signal to the left channel (L) or right (R) of the stereo
image to the final mix (MAIN L/R).
10.- PFL: pre-fader cue. Sends the signal to the PFL bus and allows the channel signal to
be monitored through the headphone output (PHONE)).
11.- Sliding volume control. Adjusts the channel signal level that is sent to the final mix
(MAIN L/R).
LINE
MIC
1
MAX
0
0
0
MIN
MAXMIN
MAXMIN
HIGH
MID
LOW
PAD
-20 dB
PEAK
MAXMIN
GAIN
PFL
RL
MAX
0
0
MIN
MAXMIN
AUX
EFF
PAN
5
10
+dB
0
5
10
15
20
25
30
40
50
-dB
1
1
2
3
4
5
6
7
8
9
10
11
- 4-
EN

12.- SD: SD memory card connection port.
13.- USB: USB storage device connection port.
14.- S EREO OU : unbalanced line level outputs of the
main mix bus MAIN, 2 x XLR connectors and 2 x 6.3 mm
jacks.
15.- SEND: mix bus AUX unbalanced line level output, 6.3 mm jack connector.
16.- RE URN: line level mono input that is sent to the final mix bus MAIN L/R, 6.3 mm jack connector. It is
generally used to connect the return of the audio signal sent to an external processor via the SEND
output.
17.- REC: main mix bus line level output MAIN for recording applications, 2 x RCA connectors. Level
controlled by the faders MAIN L/R.
18.- USB/SD/MP3 player module information display.
Displays ID3 file information (if it is available), the total
number of tracks contained in the source, the track
currently being played and the playback time.
19.- USB/SD/MP3 PLACYBAC MODULE CONTROLS
12: starts and pauses playback.
3:stops playback.
9:allows playback mode to be seleceted among the
following: all (repeat all tracks), one (repeat one track) and
random (random playback).
7/8: one press of these buttons moves to the next
track.
20.- Selected effect display.
21.- LED output signal level MAIN L/R. If the LED indicators
light up red, it indicates that the output signal has a very
high level. Reduce the level to avoid the sound coming
out distorted.
22.- GRAPHIC EQUALIZER: 7-band graphic equalizer for
MAIN L/R.
23.- MAIN L/R: sliding volume controls that adjust the final mix output signal in the L and R channels.
24.- EFFEC : general volume sliding control of effects sent to final mix bus MAIN L/R.
25.- Headphone output, 6.3 mm jack connector.
26.- LEVEL: headphone output volume control.
27.- PFL: allows selection of signal monitoring through the headphone output PHONE.
28.- EFFEC PAN: balance control. Sends the effects bus signal to the left channel (L) or right (R) of the final
mix bus MAIN L/R.
29.- EFFEC REPEA : control to adjust the number of effect repetitions.
30.- UP/DOWN: effect selection buttons.
LINE
MIC
1
MAX
0
0
0
MIN
MAXMIN
MAXMIN
HIGH
MID
LOW
PAD
-20 dB
PEAK
MAXMIN
GAIN
PFL
RL
MAX
0
0
MIN
MAXMIN
AUX
EFF
PAN
5
10
+dB
0
5
10
15
20
25
30
40
50
-dB
1
1
12
13
14 15 16
17
2
318
19
4
5
6
7
8
9
10
11
SD
LR
STEREO OUT REC
LR
SEND RETURN
MAIN RL EFFECT
PFL
MP3 PLAYER
MP3 PLAYER
AUX
EFFECT
DSP EFFECTS
UP
DOWN
+6
+4
+2
0
-2
-4
-7
-10
-15
-20
POWER
GRAPHIC EQUALIZER
63 Hz
+12
-12
0 dB
+12
-12
0 dB
150 Hz 400 Hz 1 kHz 2.5 kHz5 6.4 kHz 15 kHz
0
MAXMIN
LEVEL
SEND
RETURN
LEVEL
REPEAT
PAN
LEVEL
MAXMIN
MAXMIN
MAXMIN
MAXMIN
RL
MAXMIN
POWERED MIXER SMA-12800U
L R
L
R
5
10
+dB
0
5
10
15
20
25
30
40
50
-dB
5
10
+dB
0
5
10
15
20
25
30
40
50
-dB
5
10
+dB
0
5
10
15
20
25
30
40
50
-dB
22
23
25
24
26
27
28
29
30
31
32
33
34
21
20
- 5-
EN
LINE
MIC
1
MAX
0
0
0
MIN
MAXMIN
MAXMIN
HIGH
MID
LOW
PAD
-20 dB
PEAK
MAXMIN
GAIN
PFL
RL
MAX
0
0
MIN
MAXMIN
AUX
EFF
PAN
5
10
+dB
0
5
10
15
20
25
30
40
50
-dB
1
1
12
13
14 15 16
17
2
318
19
4
5
6
7
8
9
10
11
SD
LR
STEREO OUT REC
LR
SEND RETURN
MAIN R
LEFFECT
PFL
MP3 PLAYER
MP3 PLAYER
AUX
EFFECT
DSP EFFECTS
UP
DOWN
+6
+4
+2
0
-2
-4
-7
-10
-15
-20
POWER
GRAPHIC EQUALIZER
63 Hz
+12
-12
0 dB
+12
-12
0 dB
150 Hz 400 Hz 1 kHz 2.5 kHz5 6.4 kHz 15 kHz
0
MAXMIN
LEVEL
SEND
RETURN
LEVEL
REPEAT
PAN
LEVEL
MAXMIN
MAXMIN
MAXMIN
MAXMIN
RL
MAXMIN
POWERED MIXER SMA-12800U
LR
L
R
5
10
+dB
0
5
10
15
20
25
30
40
50
-dB
5
10
+dB
0
5
10
15
20
25
30
40
50
-dB
5
10
+dB
0
5
10
15
20
25
30
40
50
-dB
22
23
25
24
26
27
28
29
30
31
32
33
34
21
20

EN
- 6-
31.- EFFEC LEVEL: volume control of the EFF effects bus signal that is sent to the effects processor.
32.- AUX RE URN: volume control of the input signal RETURN that is sent to the final mix bus MAIN L/R.
33.- AUX SEND: output signal SEND volume control.
34.- MP3 LEVEL: USB/SD/MP3 player general volume control that is sent to the final mix bus MAIN L/R.
REAR PANEL
1.- POWER: mixer on/off switch.
2.- AC SELEC : power supply voltage selector.
3.- Power supply 115/230 V AC, 50/60 Hz.
4.- +48 V: phantom power supply selector. Press this button to activate the phantom power supply in all
the microphone inputs.
5.- SPEAKERS: L/R speaker outputs to connect 2 speakers of 4-8 Ω or 4 speakers of 8 Ω, 2 connectors
x 6.3 mm jack and 2 x speaker connectors. For more information, consult the CONNECTION section.
6.- Fan.
CAUTION:SHOCK HAZARD-DONOT OPEN
RISKOFFIRE-REPLACE FUSEASMARKED
CAU TION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
POWER CONSUMPTION: 900 W
~115 V AC, 50/60 Hz FUSE: 10 A
~230 V AC, 50/60 Hz FUSE: 5 A
ON
OFF
PHANTOM
48 V
SPEAKERS
AA
BB
RL
POWER
SMA-12800U
12 CHANNEL
POWERED MIXER
350 W + 350 W MAX, 4Ω
1
2
3
456

CONNEC ION
- Before making any connections make sure that the devices are switched off and disconnected from the
mains.
- Check that each channel’s controls and the MAIN L/R output level controls are at their minimum.
- Connect the required devices to the channel inputs, use the XLR connector if it is a dynamic microphone
or the jack connector if it is a line level input.
- Regulate the level of the inputs with the GAIN control and if necessary, the signal can be attenuated with
the PAD control, so that the LED PEA indicator lights up occasionally. If the LED indicator lights up
constantly, reduce the signal level with the GAIN and/or PAD control.
- The auxiliary SEND can be used to connect an external audio processor. The processor output can be
connected to the mixer via the auxiliary RETURN.
- Connect a USB device with FAT32 format or an SD memory card with MP3 archives to the corresponding
port of the MP3 player.
- Connect the loudspeakers to the SPEA ERS output located in the rear panel of the mixer. Take into
consideration the power supplied by the device. The resulting impedance of the loudspeakers varies
according to the way in which it is connected. Be sure to maintain the power and resulting impedance at
the value specified or higher. The power offered according to the impedance is as follows.
350 W + 350 W at 4 Ω
250 W + 250 W at 8 Ω
If connecting 2 loudspeakers, one in each channel, the loudspeakers can be of 4-8 Ω. If connecting
4 loudspeakers, two in each channel, the loudspeakers must be of 8 Ω.
- Connect the devices to the power supply.
- If extra amplification is required, connect the STEREO OUT output to a line level input of an amplifier. If
you wish, the REC output can be connected to a line level input for recording applications.
- Switch on the devices in this order: firstly the periphery devices, followed by the powered mixer
SMA-12800U and finally the external amplifier.
- Adjust the volume and equalization using the knobs and sliding controls for each channel.
- Adjust the MAIN mix bus output level with the volume controls MAIN L/R.
EN
- 7-

EN
- 8-

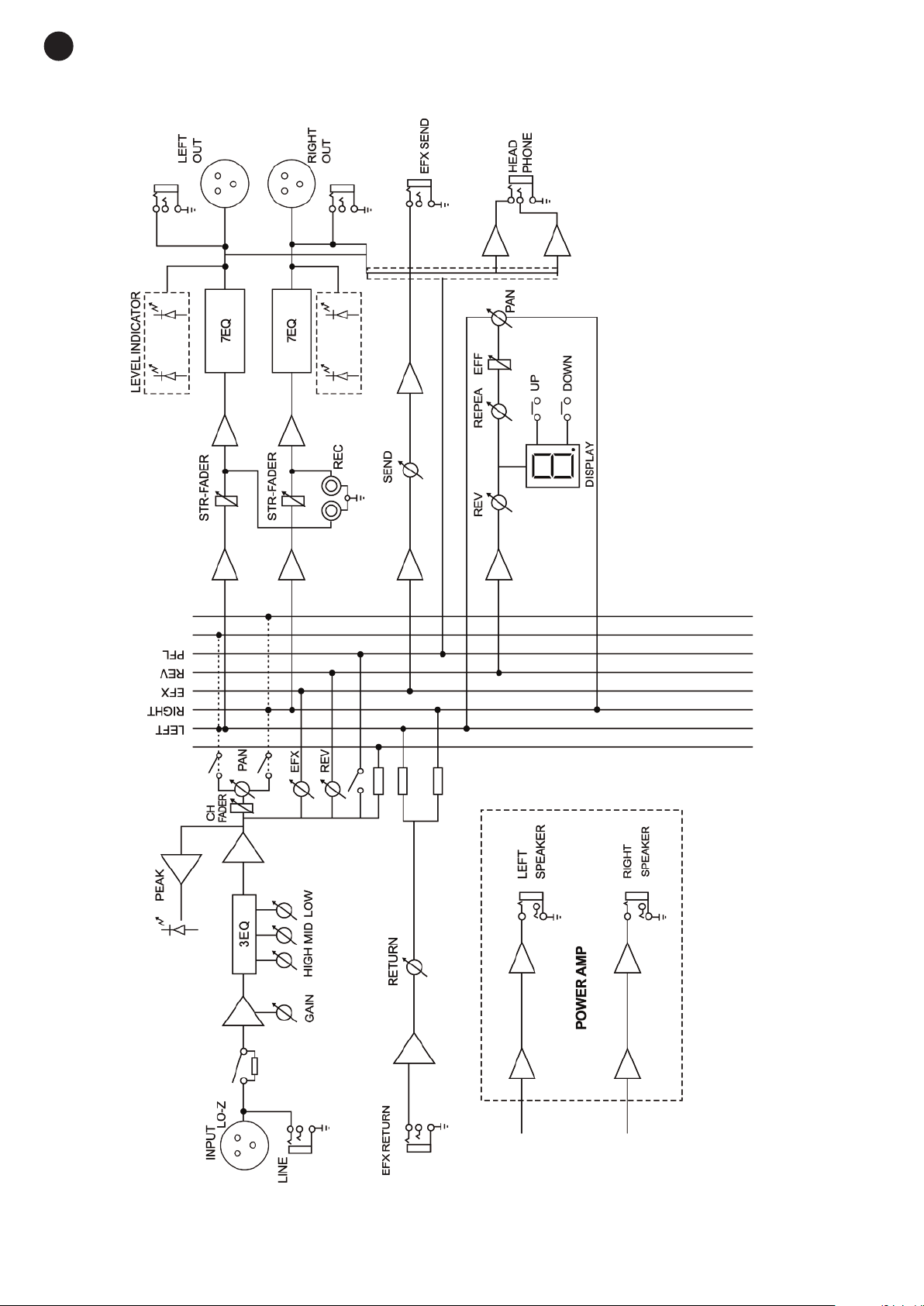

BLOCK DIAGRAM

EN
- 9-
ECHNICAL SPECIFICA IONS
SMA-12800U
CHARAC ERIS ICS 12-channel professional powered mixer.
USB/SD/MP3 player.
16 digital effects processor.
7-band graphic equalizer.
POWER 350 + 350 W maximum at 4 Ω
250 + 250 W maximum at 8 Ω
USB PLAYER Plays MP3 files
USB port for USB drive connection
SD card reader
Supports drives of up to 32 GB
ID3 tag information
INPU S 12 balanced mono mic./unbalanced line channel, XLR/6.3 mm jack
1 unbalanced mono aux return, 6.3 mm jack
CON ROLS Mic./line: gain, attenuation, treble, mid, bass, aux, effects, pan, PFL and
sliding volume
USB/SD/MP3 player: play/pause, stop, fast forward, rewind and track
repetition
Main L/R: sliding volume
Effects: effect level, repeat and sliding volume
Effects selector
FUNC IONS Cueing through headphones assignable to each channel
LED peak level per channel indicator
LED main output level indicators
OU PU S Unbalanced main stereo, 2 x XLR/6.3 mm jack
1 unbalanced mono aux send, 6.3 mm jack
1 stereo headphone, 6.3 mm jack
Stereo loudspeaker, 2 groups, 4-8 Ω, 2 x loudspeaker connectors/6.3 mm
jack
1 stereo rec., 2 x RCA
PHAN OM 48 V, selectable
RESPONSE 20-20,000 Hz
POWER SUPPLY 230/115 V AC
DIMENSIONS 470 x 135 x 430 mm depth

WARRAN Y
This product has been tested and has passed the corresponding quality control prior to being put on the market.
FONES AR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and
commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los
Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.
The lack of conformity in the first six months after purchase, due to a manufacturing defect, will be rectified with no more than
showing the proof of purchase. After six months FONES AR reserves the right to demand proof of the product being sold with
that problem.
This warranty does not include damage produced by: inappropriate use or negligence, accidents, worn out parts due to use,
breakages, burns, spilt liquids or other substances, excessive humidity, battery deterioration and internal manipulation of the
device, the software or its components by unauthorized persons, and in general any use that is unrelated to the nature and
purpose of the product.
If any service is needed during the warranty period because of lack of conformity, please contact the business or distributor
where the product was purchased in no more than 2 months after being conscious of the problem. It is only necessary to
contact FONES AR if it is impossible or imposes an undue burden for them to solve it.
To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or
crossing out.
This document adds information, and never decreases the consumers’ rights, which in all cases are protected by the Spanish
law ‘La Ley General para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre’.
FONES AR is a member of ECOEMBALAJES ESPAÑA, S.A. “ECOEMBES”, with number 03497 and all our products carry
the symbol, backed by our membership and subscription to the above mentioned organization with the recycling and
subsequent management of our packaging.
FONESTAR, S.A. - NIF: A28780443 - Polígono Trascueto - 39600 Revilla de Camargo, Cantabria (Spain)
www.fonestar.com
EN
- 10 -

- 11 -
EN

www.fonestar.com
