FOR-A UFH-70DCM User manual

UFH-70DCM
HD/SD Down Converter with D/A Converter
1st Edition - Rev.1
OPERATION
MANUAL

Precautions
Important Safety Warnings
[Power]
Do not place or drop heavy or sharp-edged objects on power cord. A damaged cord
can cause fire or electrical shock hazards. Regularly check power cord for
excessive wear or damage to avoid possible fire / electrical hazards.
[Circuitry Access]
Do not touch any parts / circuitry with a high heat factor.
Capacitors can retain enough electric charge to cause mild to serious shock, even
after power is disconnected. Capacitors associated with the power supply are
especially hazardous. Avoid contact with any capacitors.
Unit should not be operated or stored with cover, panels, and / or casing removed.
Operating unit with circuitry exposed could result in electric shock / fire hazards or
unit malfunction.
[Potential Hazards]
If abnormal smells or noises are noticed coming from the unit, turn power off
immediately and disconnect power cord to avoid potentially hazardous conditions. If
problems similar to above occur, contact authorized service representative before
attempting to again operate unit.
[Consumables]
The consumables used in unit must be replaced periodically. For further details on
which parts are consumables and when they should be replaced, refer to the
specifications at the end of the Operation Manual. Since the service life of the
consumables varies greatly depending on the environment in which they are used,
they should be replaced at an early date. For details on replacing the consumables,
contact your dealer.
Caution
Stop
Hazard
Stop
Caution

Upon Receipt
Unpacking
UFH-70DCM HD/SD Down Converter with D/A Converter and their accessories are fully
inspected and adjusted prior to shipment. Operation can be performed immediately upon
completing all required connections and operational settings.
Check your received items against the packing lists below.
ITEM QTY REMARKS
UFH-70DCM 1
Operation Manual 1
Check
Check to ensure no damage has occurred during shipment. If damage has occurred, or items
are missing, inform your supplier immediately.

Table of Contents
1. Prior to Starting ...........................................................................................................................1
1-1. Welcome.............................................................................................................................1
1-2. Features..............................................................................................................................1
2. Panel Descriptions......................................................................................................................2
2-1. Front Panel .........................................................................................................................2
2-2. Rear Panel..........................................................................................................................3
3. Connection..................................................................................................................................4
4. Operations ..................................................................................................................................5
4-1. Power On............................................................................................................................5
4-2. Front Panel Controls...........................................................................................................6
4-2-1. UNITY/OPERATE .......................................................................................................6
4-2-2. VIDEO LEVEL ............................................................................................................6
4-2-3. CHROMA LEVEL........................................................................................................7
4-2-4. SETUP/BLACK ...........................................................................................................7
4-2-5. CHROMA PHASE.......................................................................................................7
4-3. Dipswitch Setting (FUNCTION)...........................................................................................8
4-3-1. Detailed Setting for Analog Output..............................................................................9
4-4. Rotary Switch Setting........................................................................................................10
4-4-1. FILTER (Enhancer) ...................................................................................................10
4-4-2. ASPECT....................................................................................................................10
5. Internal Settings........................................................................................................................11
5-1. Dipswitch Settings.............................................................................................................11
6. Specifications and Dimensions .................................................................................................14
6-1. Unit Specifications.............................................................................................................14
6-2. External Dimensions.........................................................................................................15

1
1. Prior to Starting
1-1. Welcome
Congratulations! By purchasing HD/SD Down Converter with D/A Converter you have entered
the world of FOR-A and its many innovative products. Thank you for your patronage and we
hope you will turn to FOR-A products again and again to satisfy your video and audio needs.
FOR-A provides a wide range of products, from basic support units to complex system
controllers, which have been increasingly joined by products for computer video based systems.
Whatever your needs, talk to your FOR-A representative. We will do our best to be of continuing
service to you.
1-2. Features
This is a down-converter used for monitoring applications and is available in a modular format
for installation in a UFH frame. It can convert HD-SDI signals into SD-SDI signals and analog
signals or convert SD-SDI signals into analog signals.
 Down-conversion of HD-SDI signals into SD-SDI signals and analog signals (HD or SD)
 Conversion into any of five aspect ratios (4:3, 13:9, 14:9, 16:9, squeeze)
 Selection of analog signal output enabled (YPBPR, GBR, Y/C, composite signals)
 Sync output signals for monitoring supported
 Process control functions provided (video level, chroma level, chroma phase, setup/black
level)
 Built-in cross color reduction circuit
 Selection of enhanced level enabled

2
2. Panel Descriptions
2-1. Front Panel
No Name Description Refer to
Lit Power is supplied to the unit.
(1) POWER LED Unlit Power is not supplied to the unit. ―
Lit Input signal is present.
(2) INPUT LED Unlit Input signal is not present. ―
If set to UNITY:
All knobs of (4) VIDEO LEVEL, (5) CHROMA
LEVEL, (6) SETUP/BLACK and (7) CHROMA
PHASE are returned to factory default. (Unity
setting)
(3) UNITY / OPERATE
switch If set to OPERATE:
All knobs of (4) VIDEO LEVEL, (5) CHROMA
LEVEL, (6) SETUP/BLACK and (7) CHROMA
PHASE are enabled.
4-2-1
(4) VIDEO LEVEL Used to adjust video level. 4-2-2
(5) CHROMA LEVEL Used to adjust chroma level. 4-2-3
(6) SETUP / BLACK Used to adjust setup level. 4-2-4
(7) CHROMA PHASE Used to adjust chroma phase. 4-2-5
(8) FUNCTION Used to select output signal and operation mode. 4-3
(9) FILTER Used to select an enhanced level. 4-4-1
(10) ASPECT Used to select an aspect mode. 4-4-2
142ASPECT 53 678 FILTER
UFH-70DCM
4:3
14:9 16:9
SQUEEZE
1
23
4
POWERINPUT VIDEOLEVEL SETUP/BLACK CHROMAPHASECHROMA LEVEL PROCESSCONTROL FUNCTION
UFH-70DCM
UNITY
OP-
ERATE
(
1
)
(
2
)
(
3
)
(
4
)
(
5
)
(
6
)
(
7
)
(
8
)
(
9
)
(
10
)

3
2-2. Rear Panel
No Name Description
(1)
HD/SD-SDI IN
HD/SD-SDI
OUT
The left connector is used to input a serial digital component signal
(HD/SD-SDI).
The right connector is used to output an active-through out of
HD/SD-SDI IN. The jitter in the active-through output depends on
how much jitter is included in the input video. This card module has
no jitter-reducing function.
(2) SD-SDI OUT
(1 / 2)
Used to output SD-SDI signals.
Signals, down-converted and adjusted by Proc Amp, are output if an
HD-SDI signal is input.
Proc Amp adjusted signals are output if an SD-SDI signal is input.
(3) Y / G / C1
(HD/SD,
ANALOG OUT)
The signal input from (1) or the signal output from (2) is D/A converted
and output from (3), (4), (5), and (6). The Y (HD/SD component), G
(RGB component) or composite signal can be output from this
connector (3).
(4) PB/ B / C2
(HD/SD,
ANALOG OUT)
The signal input from (1) or the signal output from (2) is D/A converted
and output from (3), (4), (5), and (6). The PB(HD/SD component), B
(RGB component), Y(Y/C) or composite signal can be output from
this connector (4).
(5) PR/ R / C3
(HD/SD,
ANALOG OUT)
The signal input from (1) or the signal output from (2) is D/A converted
and output from (3), (4), (5), and (6). The PR(HD/SD component), R
(RGB component), C (Y/C) or composite signal can be output from
this connector (5).
(6) SYNC / C4 (HD/SD,
ANALOG OUT)
The signal input from (1) or the signal output from (2) is D/A converted
and output from (3), (4), (5), and (6). The composite, bi-level sync, or
tri-level sync signal can be output from this connector (6).
The FUNCTION (see previous page) on the front panel enables you to select the type of signal
output from HD/SD ANALOG OUT (see also section 4-3).
The SD-SDI OUT and ANALOG OUT connector output a down-converted signal and/or a signal
input from HD/SD-SDI IN. The available output signal formats of these two outputs for different
input signal formats are as shown in the table below. The unit may not output signals correctly if
any other signal format than those listed below is used to input to the unit.
No Input Signal Format SD-SDI OUT ANALOG OUT
①525/59.94 (NTSC) 525/59.94 (NTSC) 525/59.94 (NTSC)
②1080/59.94i 525/59.94 (NTSC) 525/59.94 (NTSC) or 1080/59.94i
③720/59.94p 525/59.94 (NTSC) 525/59.94 (NTSC) or 720/59.94p
④625/50 (PAL) 625/50 (PAL) 625/50 (PAL)
⑤1080/50i 625/50 (PAL) 625/50 (PAL) or 1080/50i
⑥720/50p 625/50 (PAL) 625/50 (PAL) or 720/50p
21 SYNC/C4P /R/C3P /B/C2Y/G/C1
Y
BR
C
SD-SDI OUTHD/SD-SDI IN HD/SD ANALOG OUT UFH-70DCM
(
1
)
(
2
)
(
3
)
(
4
)
(
5
)
(
6
)

4
3. Connection
Connect the unit to other equipment in the total system as shown in the figure below.
Note that before installing the UFH-70DCM into the System Frame, you should thoroughly read
the operation manual for the System Frame where you will be installing. Turn off the System
Frame and other equipment before connection.
SD-SDI OUT 1
SD-SDI OUT 2
UFH-70DCM
HD/SD SDI IN
HD/SD SDI OUT
ANALOG
Y / G / C1
ANALOG OUT
PB/ B / C2
ANALOG
PR/ R / C3
ANALOG
SYNC / C4
HD-SDI signal
or
SD-SDI signal
HD/SD-SDI Monitor
or other device
UFH System Frame
SD-SDI Monitor
or other device
Analog Monito
r
or other device

5
4. Operations
4-1. Power On

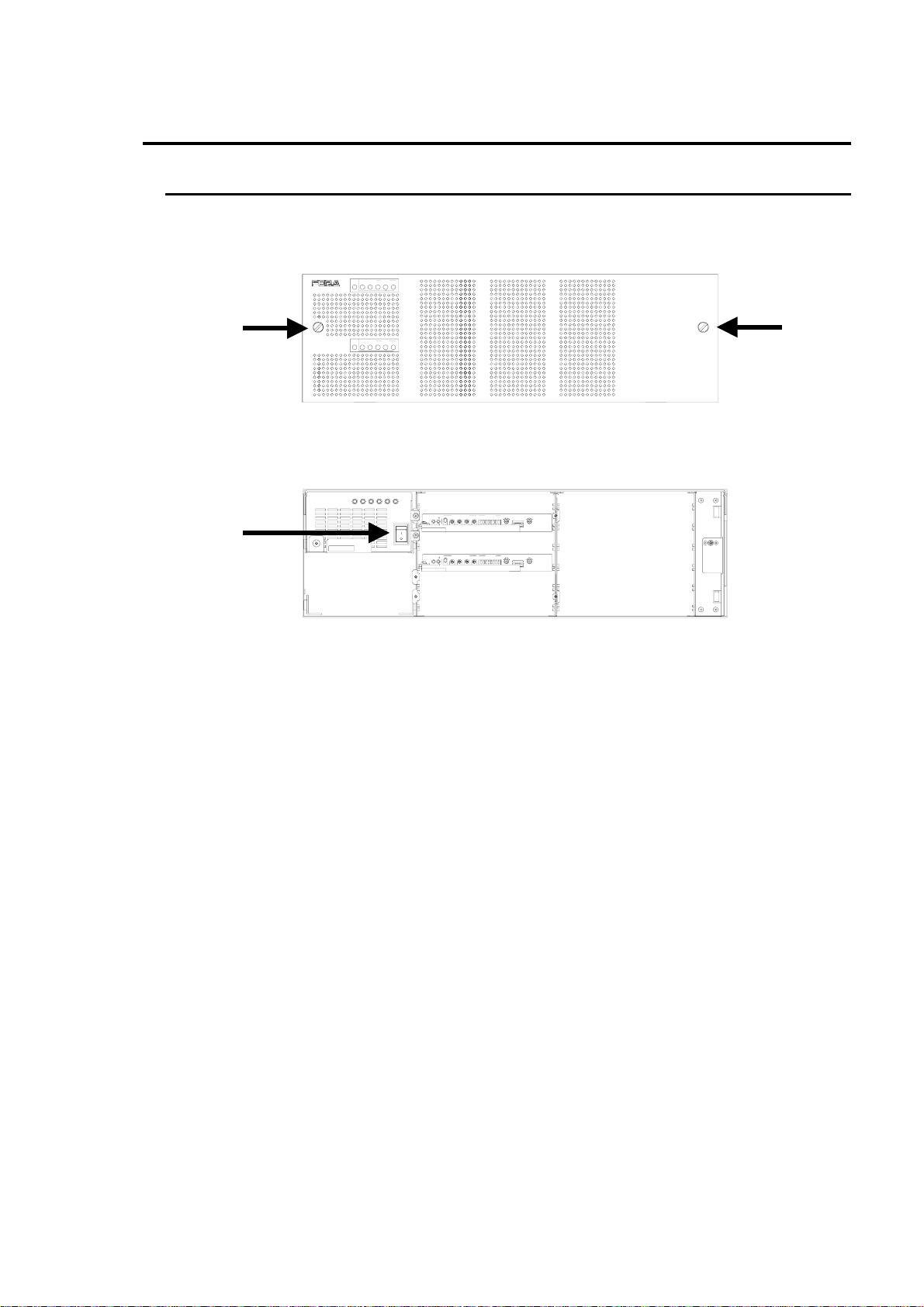

1) Loosen the two knob screws on the front panel face of the system frame, and then grasp the
knob screws to pull them out.
2) Turn the power switch(es) ON.
ALARMGENLOCK
FAN2TEMP
1
POWER GENLOCK
12FAN
ALARM
TEMP DCPOW
1DCPOW2
POWER
UFH-112A
SYSTEM FRAME
21
+-
POWER GENLOCK FAN V.ADJ
DC POWER
V.CHK
POWER
TEMP
21
DC POWERTEMPFANGENLOCK
POWER
POWER
SER.NO.
UFH-70DCMD
PROCESS CONTROLPOWER
OP-
ERATE
UNITY 142
UFH-70DCMD
ASPECT
53FUNCTION678 FILTER
4:3
14:9 16:9
SQUEEZE
123
4
INPUT CHROMALEVELVIDEOLEVEL CHROMAPHAS ESETUP/BLACK
142ASPECT 53678
FILTER
UFH-70DCM
4:3
14:9 16:9
SQUEEZE
1
23
4
POWER INPUT VIDEOLEVEL SETUP/BLACK CHROMAPHASECHROMALEVE L PROCESSCONTROL FUNCTION
UFH-70DCM
UNITY
OP-
ERATE

6
4-2. Front Panel Controls
4-2-1. UNITY/OPERATE
Set the switch to the upper or lower positions to switch between UNITY and OPERATE.
Switch and Controls Description
Upper
position
(UNITY)
All process control settings are
disabled and return to the
default settings.
All four LEDs below the
controls illuminate.
Lower
position
(OPERATE)
The following process control
settings are enabled.
VIDEO LEVEL
CHROMA LEVEL
SETUP/BLACK
CHROMA PHASE

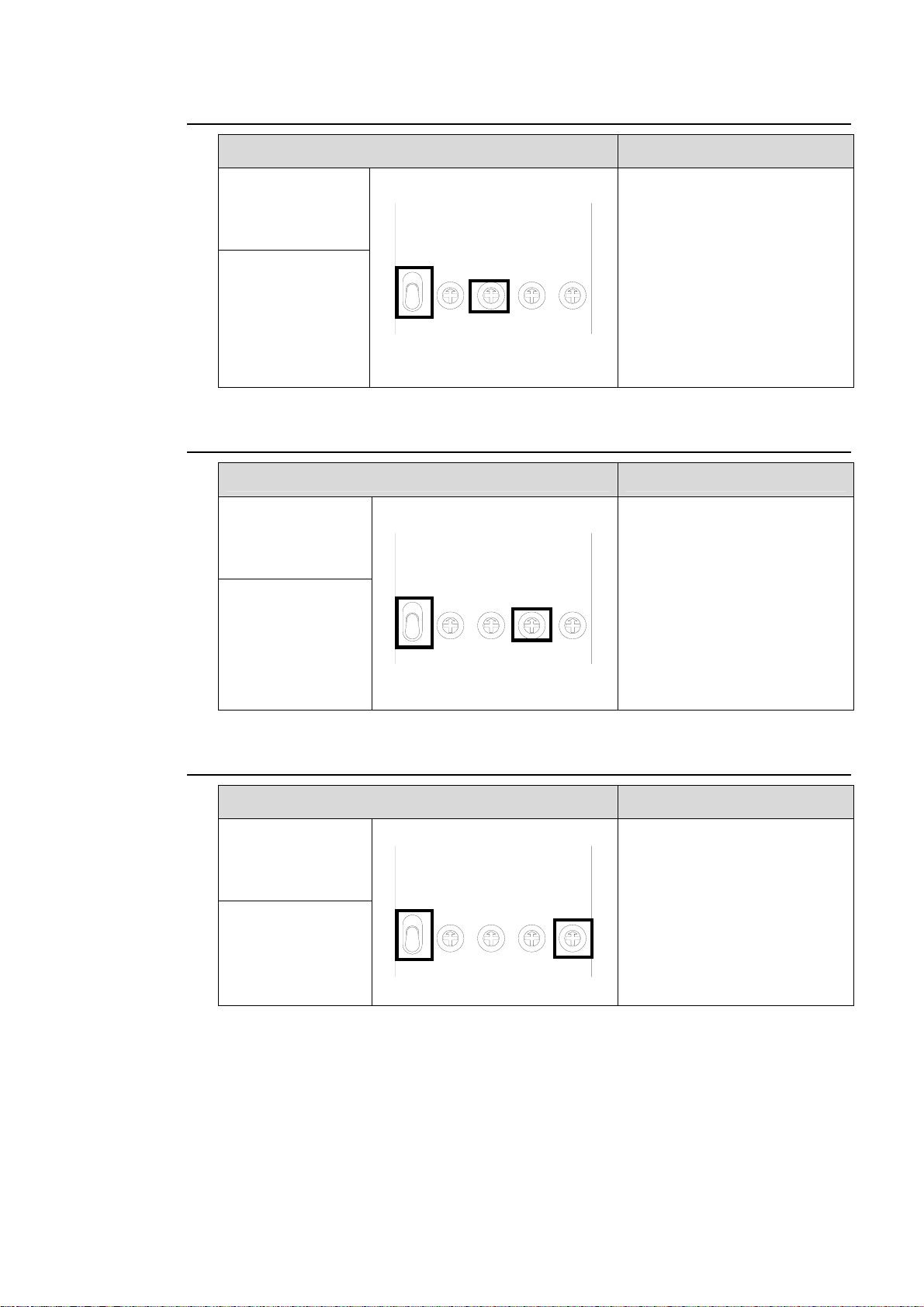

4-2-2. VIDEO LEVEL
Switch and Controls Description
UNITY/OPERATE:
Lower position
(OPERATE)
Turn the VIDEO
LEVEL control to
adjust.
Adjusts video level.
Setting range: -3dB to +3dB
When the control is set to the
center position (unity setting),
the LED below the control
illuminates.
PROCESS CONTROL
VIDEO
LEVEL
UNITY
OPERATE
LEVEL SETUP/ BLACK PHASE
CHROMACHROMA
PROCESS CONTROL
VIDEO
LEVEL
UNITY
OPERATE
LEVEL SETUP/ BLACK PHASE
CHROMACHROMA
PROCESS CONTROL
VIDEO
LEVEL
UNITY
OPERATE
LEVEL SETUP/ BLACK PHASE
CHROMACHROMA

7
4-2-3. CHROMA LEVEL
Switch and Controls Description
UNITY/OPERATE:
Lower position
(OPERATE)
Turn the CHROMA
LEVEL control to
adjust.
Adjusts chroma level.
Chroma Level controls how
much color (saturation) is
increased or decreased.
Setting range: -3dB to +3dB
When the control is set to the
center position (unity setting),
the LED below the control
illuminates.
4-2-4. SETUP/BLACK
Switch and Controls Description
UNITY/OPERATE:
Lower position
(OPERATE)
Turn the SETUP/
BLACK control to
adjust.
Adjusts setup black level.
Turning the control clockwise
brightens the setup black.
Setting range:
-15 IRE to +15 IRE
When the control is set to the
center position (unity setting),
the LED below the control
illuminates.
4-2-5. CHROMA PHASE
Switch and Controls Description
UNITY/OPERATE:
Lower position
(OPERATE)
Turn the CHROMA
PHASE control to
adjust.
Adjusts chroma phase.
Setting range: -30°to +30°
When the control is set to the
center position (unity setting),
the LED below the control
illuminates.
PROCESS CONTROL
VIDEO
LEVEL
UNITY
OPERATE
LEVEL SETUP/ BLACK PHASE
CHROMACHROMA
PROCESS CONTROL
VIDEO
LEVEL
UNITY
OPERATE
LEVEL SETUP/ BLACK PHASE
CHROMACHROMA
PROCESS CONTROL
VIDEO
LEVEL
UNITY
OPERATE
LEVEL SETUP/ BLACK PHASE
CHROMACHROMA

8
4-3. Dipswitch Setting (FUNCTION)
Setting
Pin No. Item OFF (Up) ON (Down)
Factory
Set
1=OFF, 2=OFF: YPBPR
SW2-1 1=ON, 2=OFF: GBR OFF
1=OFF, 2=ON: Y/C
SW2-2
Analog output selection 1
1=ON, 2=ON: Composite OFF
SW2-3 Analog output selection 2 Composite SYNC OFF
SW2-4 HD/SD analog output selection SDTV HDTV OFF
SW2-5 Output selection when signal
not present BLACK NO SIGNAL OFF
SW2-6 Internal test signal OFF ON OFF
7=OFF, 8=OFF: OFF
SW2-7 7=OFF, 8=ON: LOW OFF
7= ON, 8=OFF: MID
SW2-8
Cross color reduction
7= ON, 8=ON: HI OFF
 Analog output selection 1 ( SW2-1, 2 )
Selects an output signal format for the connectors Y/G/C1, PB/B/C2 and PR/R/C3 (see
section 4-3-1).
 Analog output selection 2 ( SW2-3 )
Selects an output signal format for the SYNC/C4 connector.
SYNC may not be selected depending on the selection set at Analog output selection 1 (see
section 4-3-1).
 HD/SD analog output selection ( SW2-4 )
Selects HDTV or SDTV for analog output.
HDTV cannot be selected when the SD-SDI signal is input to the unit, or when Y/C or
Composite is selected for Analog output selection 1 (see section 4-3-1).
 Output selection when signal not present ( SW2-5 )
Selects black video or no video output from SD-SDI OUT and ANALOG OUT when input
signal is not present. No signal will be output from HD/SD-SDI OUT (active through)
regardless of this setting when input signal is not present.
 Internal test signal ( SW2-6 )
Outputs a test signal (Color Bar or Cross Hatch) from SD-SDI OUT and ANALOG OUT if set
to ON. However, the test signal is not output from HD/SD-SDI OUT (active through). Use
dipswitch SW6-8 to select test signal between Color Bar and Cross Hatch. (See section 5-1)
The test signal of both HDTV and SDTV can be output in synced with the input signal if an
HD-SDI signal is input to the unit. The test signal of SDTV can be output in synced with the
input signal if a SD-SDI signal is input to the unit. Select the test signal format manually by the
SW6 switch setting if any signal is not input to the unit. If set to Auto Detection and any signal
is not input to the unit, the last used signal format is selected for the test signal (see section
5-1). Proc Amp controls and aspect conversion cannot be performed during test signal
output.

9
 Cross color reduction ( SW2-7, 8 )
Reduce the cross color noise. This setting is available only for down-converted output.
4-3-1. Detailed Setting for Analog Output
Analog output signals can be set manually as shown in the table below by the dipswitches
SW2-1, SW2-2, SW2-3 and SW2-4.
Switch Setting Analog Output Signal
SDI
Input
SW
2-1
SW
2-2
SW
2-3
SW
2-4 Y/G/C1 PB/B/C2 PR/R/C3 SYNC/C4
OFF OFF OFF ―Y (SD) B-Y (SD) R-Y (SD) Composite
OFF OFF ON ―Y (SD) B-Y (SD) R-Y (SD) Bi-level
Sync
ON OFF OFF ―G (SD) B (SD) R (SD) Composite
ON OFF ON ―G (SD) B (SD) R (SD) Bi-level
Sync
OFF ON OFF ―Composite Y (SD) C (SD) Composite
OFF ON ON ―B.B. Y (SD) C (SD) Bi-level
Sync
SD-SDI
ON ON ――Composite Composite Composite Composite
OFF OFF OFF ON Y (HD) PB(HD) PR(HD) Composite
OFF OFF ON ON Y (HD) PB(HD) PR(HD) Tri-level
Sync
ON OFF OFF ON G (HD) B (HD) R (HD) Composite
ON OFF ON ON G (HD) B (HD) R (HD) Tri-level
Sync
OFF OFF OFF OFF Y (SD) B-Y (SD) R-Y (SD) Composite
OFF OFF ON OFF Y (SD) B-Y (SD) R-Y (SD) Bi-level
Sync
ON OFF OFF OFF G (SD) B (SD) R (SD) Composite
ON OFF ON OFF G (SD) B (SD) R (SD) Bi-level
Sync
OFF ON OFF ―Composite Y (SD) C (SD) Composite
OFF ON ON ―B.B. Y (SD) C (SD) Bi-level
Sync
HD-SDI
ON ON ――Composite Composite Composite Composite

10
4-4. Rotary Switch Setting
4-4-1. FILTER (Enhancer)
This filter is used to sharpen the edges of the down-converted SDTV images when an
HD-SDI signal is input to the unit.
1: Enhancer OFF
2: Enhanced level LOW
3: Enhanced level MID
4: Enhanced level HI
4-4-2. ASPECT
This switch is used to select an aspect ratio of the down-converted SDTV images when an
HD-SDI signal is input to the unit.
 4:3 Side cut
 14:9 (13:9) Semi-Letter box
 16:9 Letter box
 SQUEEZE
 To display output images in Semi-Letter Box 13:9, set SW5-1 to On. The images are
displayed in Semi-Letter Box 14:9 if SW5-1 is set to Off (see section 5-1).
4:3 mode
13:9 mode
14:9 mode
16:9 mode
SQUEEZE
Cut both ends.
Contract and cut both ends.
Contract and cut both ends.
Contract.
Squeeze horizontally.

11
SW7SW5
Front moduleRear module
SW6
5. Internal Settings
5-1. Dipswitch Settings
The following settings can be made at the dipswitches (SW5, SW6 and SW7) on the front
module of the UFH-70DCM.
SW5 Setting
Setting
Pin No. Item OFF ON Factory Set
SW5-1 Semi-Letter Box 14：9 13：9 OFF
2=OFF, 3=OFF, 4=OFF: BLACK
2=ON, 3=OFF, 4=OFF: BLUE
SW5-2
2=OFF, 3= ON, 4=OFF: RED
OFF
2= ON, 3= ON, 4=OFF: MAGENTA
2=OFF, 3=OFF, 4= ON: GREEN
SW5-3
2= ON, 3= OFF, 4= ON: CYAN
OFF
2=OFF, 3= ON, 4= ON: YELLOW
SW5-4
Background color for
blank areas
2= ON, 3= ON, 4= ON: WHITE OFF
SW5-5 Delay mode switch Minimum delay One-frame delay OFF
SW5-6 ―――OFF
SW5-7 ―――OFF
SW5-8 ―――OFF
 Semi-Letter Box ( SW5-1 )
Selects Semi-Letter box mode between 14: 9 and 13: 9. This setting is available only when
14:9 mode is selected for ASPECT.
 Background color for blank areas ( SW5-2 to SW5-4)
Selects a color to fill the blank parts in the background when the video is smaller than the
effective area. Applicable for 13:9, 14:9 and 16:9 modes.
 Delay mode switch( SW5-5)
Switches delay mode between Minimum delay and One-frame delay when inputting HD SDI
signals and outputting SD signals (SDI and analog).

12
SW6 Setting
Setting
Pin No. Item OFF ON
Factory
Set
SW6-1 OFF
SW6-2 OFF
SW6-3 OFF
SW6-4 OFF
SW6-5
Input signal format (See table below.)
OFF
SW6-6 Setup 0 IRE 7.5 IRE OFF
SW6-7 Component signal level BETACAM SMPTE OFF
SW6-8 Test signal selection Color Bar Cross Hatch OFF
 Input signal format ( SW6-1 to SW6-5 )
Selects the input signal format. To use the input signal auto detection, set all switches
(SW6-1 to SW6-5) to Off. Otherwise, set manually following the table below.
Input signal
format SW6-1 SW6-2 SW6-3 SW6-4 SW6-5
Auto
Detection ―OFF OFF OFF OFF OFF
Manual Set 525/59.94 (NTSC) ON OFF OFF OFF OFF
Manual Set 1080/59.94i ON ON OFF ON OFF
Manual Set 720/59.94p OFF OFF ON OFF OFF
Manual Set 625/50(PAL) OFF ON OFF OFF OFF
Manual Set 1080/50i OFF OFF ON ON OFF
Manual Set 720/50p ON OFF ON OFF OFF
NOTE
Set the input signal format manually if auto format detection is not properly carried out.
 Setup ( SW6-6 )
Selects the black setup between 0 or 7.5 IRE when SDTV (NTSC) analog signal (YPBPR, Y/C
or Composite) is selected for output.
 Component signal level ( SW6-7 )
Selects the component signal level between BETACAM or SMPTE when YPBPRof SDTV
(NTSC) is selected for analog output.
 Test signal selection ( SW6-8 )
Select an internally generated test signal between Color Bar and Cross Hatch.

13
SW7 Setting
Setting
Pin No. Item OFF ON
Factory
Set
SW7-1 ―――OFF
SW7-2 ―――OFF
SW7-3 Mono/Color output Color Mono OFF
SW7-4 ―――OFF
SW7-5 ―――OFF
SW7-6 ―――OFF
SW7-7 GBR output w/ sync
or w/o sync ON OFF OFF
SW7-8 ―――OFF
 Mono/Color output ( SW7-3 )
Selects color or monochrome (B/W) output.
 GBR output with sync or without sync ( SW7-7 )
Selects GBR with sync or GBR without sync. Set to Off if using GBR with sync (factory
default).

14
6. Specifications and Dimensions
6-1. Unit Specifications
HD SDI 1080/59.94i, 720/59.94p, 1080/50i, 720/50pStandards
SD SDI 525/59.94, 625/50
Quantizing Y: 10-bit, C: 10-bit
Video Inputs HD/SD SDI 1.485G / 270Mbps, 75Ω, BNCx1
HD/SD SDI 1.485G / 270Mbps, 75Ω, BNCx1 (active through)
SD SDI 270Mbps, 75Ω, BNCx2
75Ω, BNCx4 (refer to below)
-YPBPR (HD/SD) Y:1.0Vp-p, PBPR or B-Y/R-Y: 0.7Vp-p
-GBR(HD/SD) 1.0Vp-p (with sync)
-Y/C Y: 1.0Vp-p, C: 0.682Vp-p
-Composite 1.0Vp-p
-Bi-level sync 0.3Vp-p
Video Outputs
Analog
-Tri-level sync 0.6Vp-p
I/O Delay HD SDI(1080i) input / SD output :
Minimum delay (approx. 90 lines) or One-frame delay
HD SDI(720p) input / SD output :
Minimum delay (approx. 120 lines) or One-frame delay
(See section 5-1.)
SD SDI input / output:: Approx. 3µs
HD SDI Y: 74.25/1.001MHz, C: 37.125/1.001MHzSampling Frequency
SD SDI Y:13.5MHz, C: 6.75MHz
Video Level Over ±3dB
Chroma Level Over ±3dB
Hue ±30°
Process Control
Setup / Black Level ±15IRE
Temperature 0°C - 40°C
Humidity 30% - 90% (no condensation)
Power Supply from UFH Frame, +24VDC
Consumption Approx. 9.6VA (9.6W)
Weight Approx. 1 kg
Front module 138.5 (W) x 400 (D) mm
Dimensions
Rear module 141 (W) x 101 (D) mm
Required Slot 1 slot
Consumables No Consumables
