Fortis Suit User manual

Product manual

2
Dear Customer,
we are very glad that you choose
to use this product. Our products
have undergone stringent safety
and reliability verication. Please
read this manual carefully and
use it according to the operation
requirements.

1
Catalog
1 Product Instructions
2 Safety Warning
3 Contraindications
4 Adverse Reactions
5 Notation
6 Energy box storage&maintenance
7 Operating Instructions
8 APP Operating
9 Performance Parameter
10 Energy suits cleaning
11 After-Sales Service
1.Product Instructions

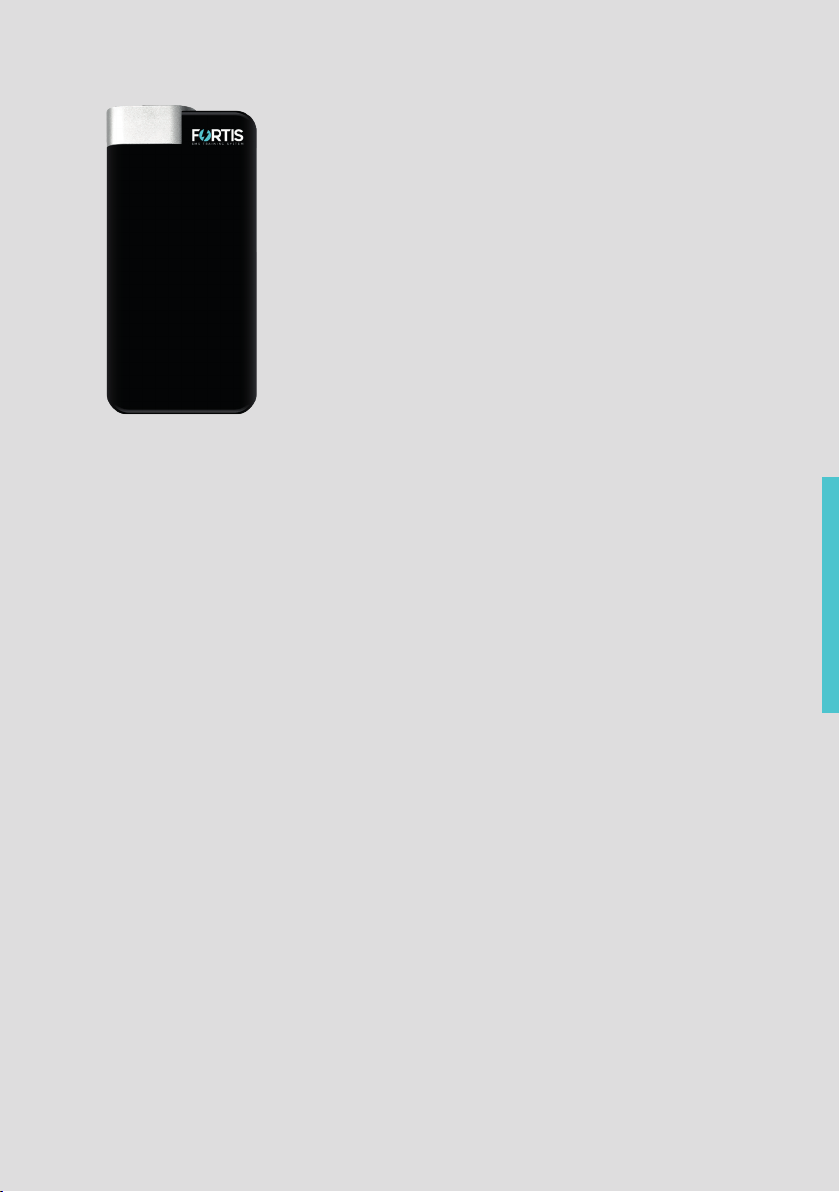

1. The host adopts ABS+PC shell, one switch button on the top, a Bluetooth
communication indicator light and micro USB charging port, and 24 probes
on the bottom to connect with suits. This product includes energy box, ener-
gy suits, operation APP (tablet is provided by the customer, download APP)
2. Function: this product is a training auxiliary equipment, used for tness ex-
ercise and weight loss. The equipment was connected with clothing connec-
tion board by 24 probes and output electric pulse was applied to the skin
through electrodes of various parts of the training suit to stimulate muscle
contraction to achieve the purpose.
3.The operating device can be operated by the tablet computer APP, and the
user can adjust the stimulation intensity through the APP.
4. The electrode function site:
1. Number of electrodes: a total of 20 electrodes for suits, 10 outputs,
and 2 electrodes each symmetrically constituting a loop.
2. Function site: 1. abdomen, 2. chest, 3. front arm, 4. rear arm, 5. shoulder,
6. back, 7. waist, 8. hip, 9. rear thigh, 10. front thigh
5. About the Suit:
• High-elastic material for you to do many sports
• Fabric electrodes
• Totally wireless

2
Suit sizes:
Men: S, M, L, XL, XXL
Women: XS, S, M, L, XL
The sizes are based on regular sizes.
6. Mechanism of action: The EMS training controller (hereafter referred to as the
controller) is based on “transcutaneous electrical nerve stimulation (TENS)” and
“electron muscle stimulation (EMS)”theory. The therapy device can generate
low frequency currents of 10–208Hz, dierent waveforms, dierent modulation
methods, through the electrode pads on special clothes, act on the human body
to promote blood and lymph circulation, it can strengthen muscle strength, reg-
ulate muscle morphology, reduce fat and shape, prevent muscle atrophy, im-
prove smooth muscle tension; act on ganglia and nerve Segments can produce
reexes and regulate autonomic function.
2. Safety Warning
Check the instrument for malfunction before operation. There are metal objects
in the aected area, such as keys, necklaces, etc. should be removed rst, other-
wise it is not suitable for treatment. The intensity should be gradually increased,
and each training will take about 20-30 minutes depending on the individual
feeling. It is not appropriate for physiotherapy for patients with contraindica-
tions During use, it is normal to feel the current enhancement is a change in the
treatment waveform. Do not panic. Do not treat under hunger to avoid fainting.
Do not disassemble, repair or modify the main unit of this product.
3. Contraindications
Malignant neoplasms, acute inammation, active tuberculosis, amyotrophic
lateral sclerosis, progression of multiple sclerosis, atherosclerotic sinus, bleed-
ing tendency, local metal foreign body, pregnant women’s waist and abdo-
men, with pacemaker, severe heart disease Patient, disable to use this product.
4. Adverse Reactions
1. If you have fatigue, headache, chest tightness, nausea, lethargy, etc. during
use, immediately suspend training and consult the manufacturer.
2. Please spray the energy lm with moderate warm water before use, and do
warm-up exercise for 5-10 minutes. Then start the equipment. If the energy
sheet is not enough humidity, it may cause tingling. Please continue to in-
crease the humidity of the energy sheet and adjust it. Mode until the tingling
sensation disappears. If the tingling sensation persists, please stop using the
product and consult the manufacturer.

3
5. Notation
6. Energy box Storage & Maintenance
Storage temperature: -20 ° C ~ 55 ° C; relative humidity, ≤ 93% R. H.;
atmospheric pressure: 50.0 KPa ~ 106.0 KPa.
Avoid direct sunlight, good ventilation, no corrosive gases, away from heating
devices or places with open ames, and avoid accidents; keep away from
moiture and water.
The controller that has not been used after packaging is stored under the above
storage conditions for a period of 5 years.
Maintenance instructions: Please use this product under normal conditions. Do
not use this product on open ames or heating devices. Do not dry the machine
or its accessories with a microwave oven, or hair dryer. Keep away from wet
places and water.
7. Operating Instructions
1. The position of the energy piece of the training suit is properly wetted with
water in advance.
2. Pull the controller and clothes together and turn on the power. The blue
light ashes.
3. Open the APP and conrm the connection between Bluetooth and the de-
vice. The Bluetooth light is always on when connected.
4. Operate the APP for mode selection, intensity adjustment, training time set-
ting, and start training.
Because dierent human bodies have dierent tolerances to the intermediate
frequency current, when the same parts and methods used, dierent people
need dierent amounts of electricity, and the measurement is divided into the
following three types:
Feel limit - limited to the feeling of just reaching
Shrinkage limit - limited to cause muscle contraction
Tolerance limit - limited to the amount of electricity that can be tolerated
Warning! Please read the instructions
Upward
Damp and drench proof marks
Recyclable

4
8. APP Operating Instructions

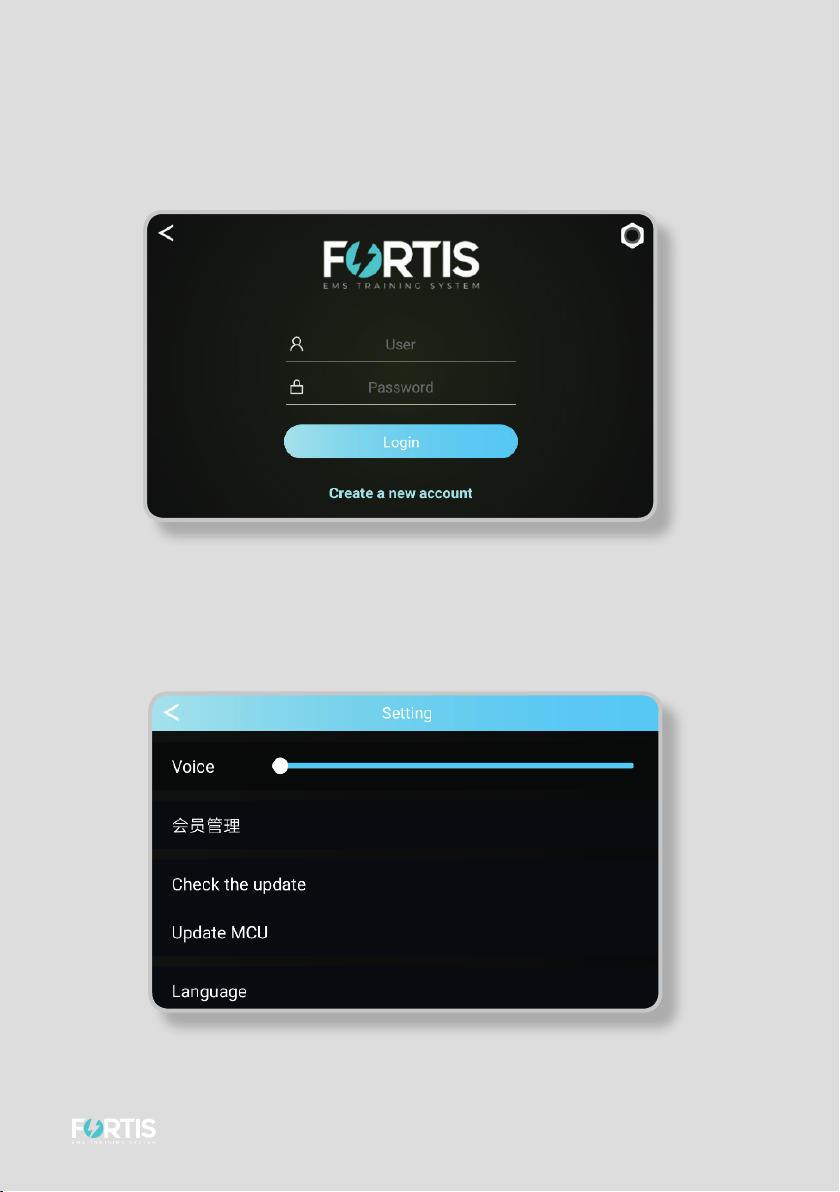

1. About Registration/Login
This APP has not opened the registration/login function for the time be-
ing. You don’t need the account password, and you can directly click the
login button to enter.
2. Choose Language
Click the Settings button, enter the Settings page, and click language.
Select the language and click “ok”. English, German, French, Russian, Chinese-
Japanese and Korean languages are available. After switching languages, click
ok and restart the home page to take eect

5

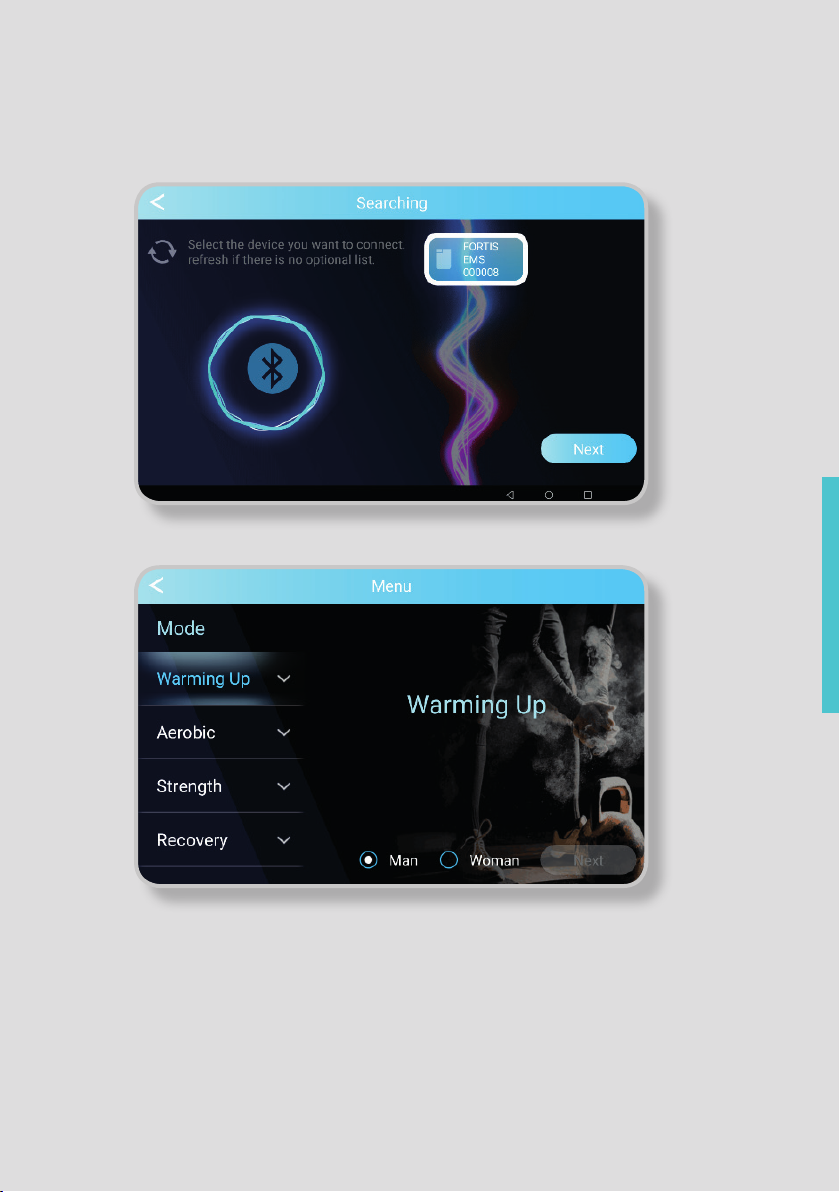

3. Connect Device
Enter the search interface, click the device to be connected, and you can
connect up to 4 devices
After selecting the device, click Next to start connecting the device
After successful connection, click OK to enter the mode selection page

6

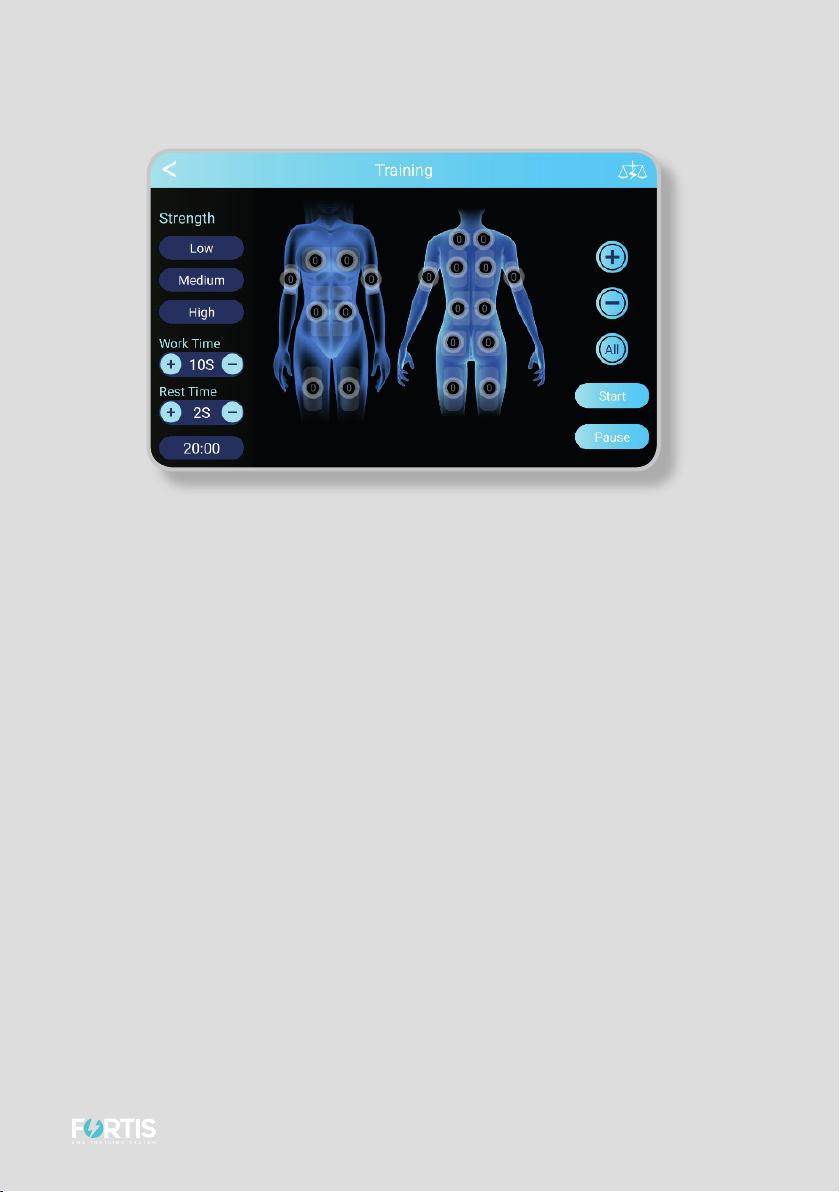

4. Adjust
After selecting the mode, click next to enter the training adjustment page
(1) Quickly adjust
Directly click (Low, Medium, High) Can quickly adjust the intensity
(2) Precise adjustment
Click to select the part to be adjusted, ALL is selected,
and then press the“+”and“-”keys on the right to adjust
5. Boot and timing instructions
Choice after entering the interface machine input mode has been
launched, only the output intensity is zero (can be considered as the out-
put), after adjusting the intensity, then the parts would have to adjust the
intensity of the out put, but the countdown will not enter the timing, at
this point you can click the pause (pause) key to suspend the output, after
suspending can click on the Continue (Continue) key to output;
Only when the Start button is clicked will the countdown Start and Stop
after 20 minutes (or click the Stop button). At this time, the output of the
device stops and the intensity is all 0 and cannot be adjusted. Only when
the Start button is clicked again can the intensity be adjusted.
6. Setting and description of mode parameters
Since the parameters of the nal mode are not determined, the APP can
set dierent parameters for the experience in order to test the best sense
of body and the most eective mode.Enter the Settings page, quickly click
the bottom space 5 times in a row to enter the hidden Settings page

7
Pulse width:
To adjust this item is to adjust the pulse width of all modes
(mode_1_1 to mode_4_4 16 modes)
Submode 1 is to adjust 4 modes of mode_1_1 mode_2_1 mode_3_1 mode_4_1
Submode 2 is to adjust mode_1_2 mode_2_2 mode_3_2 mode_4_2
Submode 3 is to adjust 4 modes of mode_1_3 mode_2_3 mode_3_3 mode_4_3
Submode 4 is to adjust mode_1_4 mode_2_4 mode_3_4 mode_4_4
Mode 1 fundamental wave, mode 1 carrier
Mode_1_1 mode_1_2 mode_1_3 mode_1_4
Mode 2 fundamental, mode 2 carrier
Mode_2_1 mode_2_2 mode_2_3 mode_2_4
Mode 3 fundamental wave, mode 3 carrier
That is to adjust mode_3_1 mode_3_2 mode_3_3 mode_3_4 four modes;
Mode 4 fundamental wave, mode 4 carrier
That is to adjust mode_4_1 mode_4_2 mode_4_3 mode_4_4 4 modes;
9. Performance Parameter
• Power supply: lithium battery pack 1500MAH
• Maximum charging current: 1A
• Power supply range: 3.2-6V
• Maximum working current of the whole machine: no more than 1A
(regulated power supply test)
• Standby current: 40 MA±3 (power supply test method)
• Static current: no more than 30uA
• Low voltage alarm: 3.3V red light ashes
• Treatment current: 6MA-100MA
• Output interface: metal probe
• Output channel: 10 channels
• Frequency range: 10-208Hz
• Fundamental wave: Square wave, Trapezoidal wave,
Sine wave, Triangular wave
• Pulse Width: 400-833us
• Weight :120g

8
10. Energy Suits Cleaning
Because the energy coat contains silver, the storage,
maintenance and washing methods are more particular.
1. Active silver ions are easily chemically reacted with some chemical agents. Do
not touch strong acids, strong bases and various metal oxidants during use.
2. Please wash the energy clothing immediately after use. After cleaning, put it
in a ventilated place to dry.
3. please wash with no more than 40 ˚C at room temperature, do not dry clean-
ing, can not be soaked at high temperature, it is not recommended to machine
wash, machine Dry out, such as machine wash must use the laundry bag for
cleaning.
4. Please wash with neutral detergent or neutral soap when washing. Please do
not use bleaching detergent, bleaching powder, brightening agent or strip-
ping agent.
5. Try to wash with tap water that can reach the drinking standard. Because the
chlorine content in the tap water that is not up to standard is high, it will react
with silver to form a silver chloride precipitate, causing the loss of silver to lose
energy conduction. .
6. energy clothing should be washed separately, and the washing time should
not be too long, 5 minutes is appropriate, to reduce the chemical reaction of
silver and water uncertain substances, eectively protect the energy transfer
function of energy clothing.
7. When washing, do not use a dehydrator/dryer or other dry method to dehy-
drate. It is best to gently dry it by hand.
8. when drying, should be aired in a dry and ventilated place (avoid direct sun-
light): energy clothing is the most direct sun exposure, direct sunlight will
make the ber elastic fatigue and greatly reduce the eect; and the direct
sunlight will increase the temperature of the energy clothing High, speed up
the chemical reaction between silver and sulfur and oxygen in the air to form
silver sulde and silver oxide, so that the energy lm function of the energy
coat is reduced. Appropriate cleaning and care can extend the service life of
the energy garment and exert the best health care eect.
9. Storage: Please fold the energy clothing at and place it in a dry and ventilated
place.

9
11. After-Sales Service
(Energy clothing is a consumable item, only 7 days no reason
to return service and three months of paid maintenance service)
1. After the equipment is packaged, under the conditions of storage and use
specications, the manufacturer will repair and replace the user for free
within one year from the time of purchase.
2. When the user is using or simply troubleshooting, please contact our af-
ter-sales service if you have any questions.
3. Warranty conditions: When the warranty service is required, please show
the warranty card of this machine, and please ll in the relevant content in
detail. The company provides the user with a 12-month warranty from the
date of purchase of the product.
4. Warranty scope: The quality problems appearing under normal use, the
damage caused by non-external force damage; if the damage caused by ex-
ternal force needs to be repaired, certain inspection and spare parts fees are
charged; the product is out of warranty for one year. All charges will apply.
5. The following conditions do not enjoy warranty rights:
(1) Man-made damage, such as damage caused by improper use, abnormal appear-
ance, wear, fall, circuit burnout, squeezing deformation, foreign matter entering,
damp and any other visible man-made damage
(2) Other conditions such as damage caused by the user’s own reasons (unauthor-
ized disassembly and assembly, improper use, improper operation, water ingress,
etc.).
(3) Damage caused by force majeure factors such as earthquakes, oods, res, hurri-
canes or wars.
(4) The warranty card for this product is limited to the warranty for this product.
(5) The appearance of the product, the consumables and consumables are not cov-
ered by the warranty.
(6) The company reserves the right of nal interpretation of the warranty card.

10
www.fortis-world.com
APP DOWNLOAD
