1 Overviews
FOSCAM FI8910W is an integrated wireless IP Camera with a color CMOS sensor. It combines
a high quality digital video camera, with a powerful web server, to bring clear video to your
desktop from anywhere on your local network or over the Internet.
The basic function of IPCAM is transmitting remote video on the IP network. The high quality
video image can be transmitted with 30fps speed on the LAN/WAN by using MJPEG hardware
compression technology.
With flexible 300-degree pan and 120-degree tilt, FI8910W gives users more comprehensive
control over a monitored site. FI8910W supports IR-CUT, when light conditions turns poor, the IR
cut filter will be automatically removed to accept IR illumination. Meanwhile, the camera switches
itself automatically from color to black and white, assuring optimal image quality at all times.
The IPCAM is based on the TCP/IP standard. There is a WEB server inside which could support
Internet Explore. Therefore the management and maintenance of your device is simplified by
using the network to achieve the remote configuration, start-up and to upgrade the firmware.
Controlling the IPCAM and managing images is simplified by using the provided web interface
across the network utilising either wired or wireless connectivity.
FOSCAM provides Phone APPs for Android and iPhone users, please search “Foscam ip cam
viewer” and install it through APP Store, then you can view your camera directly as a computer.
1.1 Key Features
● Powerful high-speed video protocol processor
● Color CMOS Sensor

w
www.foscam.co ww.foscam.com m
Shenzhen
Shenzhen Foscam Foscam Intelligent Intelligent Technology Technology Co., Co., Limited Limited
Tel:
Tel: [phone] 2674 5668 5668 Fax: Fax: [phone] 2674 5168 5168
2
● 300K Pixels
● IR night vision (Range: 8m)
● Pan 300 degree, tilt 120 degree
● Optimized MJPEG video compression for transmission
● Multi-level users’ management and passwords definition
● Embedded Web Server for users to visit by IE
● Wi-Fi compliant with wireless standards IEEE 802.11b/g/n
● Supports IR_CUT and the filter change automatically
● Embedded FOSCAM DDNS(dynamic domain name service) Service
● Supports Dynamic IP (DDNS) and UPnP LAN and Internet (ADSL, Cable Modem)
● Motion and Sound detection activates alarm
● Supports image snapshot
● Supports multiple network protocols: HTTP/TCP/IP/UDP/STMP/DDNS/SNTP/DHCP/FTP
● Supports WEP/WPA/WPA2 encryption
● Supports WPS(Wi-Fi Protected Set-up)
● Supports Daylight Saving Time
● Supports MSN
● Supports Gmail as sender on mail service settings
● Supports audio on Firefox, Google Chrome and Safari
● Providing Phone APPs for Android and iPhone users
● Providing Central Management Software to manage or monitor multi-cameras
1.2 Read Before Use
Please first verify that all contents received are complete according to the Package Contents
listed below. Before the Network Camera is installed, please carefully read and follow the
instructions in the Quick Installation Guide to avoid damage due to faulty assembly and
installation. This also ensures the product is used properly as intended.

w
www.foscam.co ww.foscam.com m
Shenzhen
Shenzhen Foscam Foscam Intelligent Intelligent Technology Technology Co., Co., Limited Limited
Tel:
Tel: [phone] 2674 5668 5668 Fax: Fax: [phone] 2674 5168 5168
3
1.3 Packing Contents
● IPCAM×1 ● CD×1
● Wi-Fi Antenna×1 (only available for wireless model) ● Quick Installation Guide×1
● DC Power Supply×1 ● Warranty Card×1
● Mounting bracket×1(option) ● Network Cable×1
1.4 Physical Description
Front Panel
Figure 1.1
1 Speaker: Built-in speaker
2 LENS: CMOS sensor with fixed focus lens
3 Infrared LED: 11 IR LEDs
4 Microphone: Built-in microphone
5 WIFI Antenna: Wireless Antenna
1
3
4
5
2

w
www.foscam.co ww.foscam.com m
Shenzhen
Shenzhen Foscam Foscam Intelligent Intelligent Technology Technology Co., Co., Limited Limited
Tel:
Tel: [phone] 2674 5668 5668 Fax: Fax: [phone] 2674 5168 5168
4

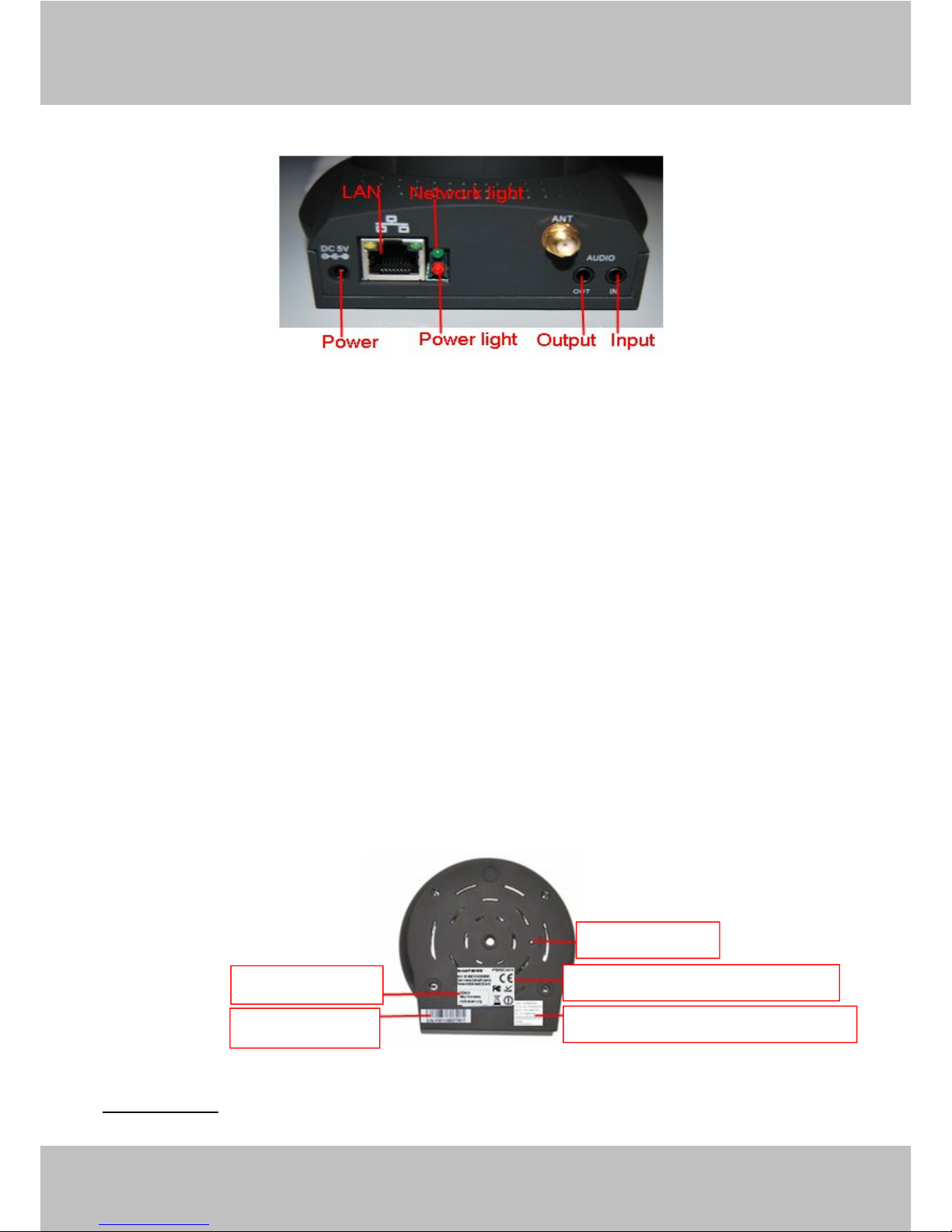

Back View
Figure 1.2
LAN: RJ-45/10-100 Base T
Power: DC 5V/2A Power supply
Network Light: The LED will blink when power and network cable are plugged in
Power Light: If the power adapter works well, the light will turn on
Audio Input: This jack is used to plug an external microphone
Audio Output: This jack is used to plug an external speaker
Bottom View
There are up to three labels located on the body of the camera; this is an important feature of
original Foscam cameras. If your camera does not have labels as shown in Figure 1.3 ,it may be
a clone one. Cloned Foscam cameras can not use original firmware and are not eligible for
warranty or technical services.
Figure 1.3
Reset button
1) Press and hold down the RESET BUTTON about 10 seconds. when released the IP camera
Reset button
MAC address of wired connection
MAC address of wireless connection
S/N of FOSCAM
FOSCAM domain

w
www.foscam.co ww.foscam.com m
Shenzhen
Shenzhen Foscam Foscam Intelligent Intelligent Technology Technology Co., Co., Limited Limited
Tel:
Tel: [phone] 2674 5668 5668 Fax: Fax: [phone] 2674 5168 5168
5
will be reset back to factory default settings. You must power on the camera before reset.
2) Press and hold down the RESET BUTTON about 4 seconds, then press the WPS button on
the router, then you can use the WPS function. (For more details: please read Wireless Settings
in the User Manual)
2 Surveillance Software GUI
Please refer to the Quick Installation Guide if you install the camera at first time. After finishing
quick installation, you can take time to learn the operation of the software.
2.1 Login Window
Figure 2.1
1
2
3
4
5
6

w
www.foscam.co ww.foscam.com m
Shenzhen
Shenzhen Foscam Foscam Intelligent Intelligent Technology Technology Co., Co., Limited Limited
Tel:
Tel: [phone] 2674 5668 5668 Fax: Fax: [phone] 2674 5168 5168
6
Please check the login window above, it was divided to 6 sections from no. 1 to 6.
Section1 Select Language
FOSCAM camera supports up to multi-languages, such as English, Spanish, Deutsch and so on.
You can select the language you need via pull down the dropdown toolbar and click on the
language to switch.
Section2 FOSCAM Website Link
There is an access link to Foscam website homepage, if you need tech support you can contact
Foscam directly.
Section3 ActiveX Mode
If your PC is windows based OS, such as Windows XP, Windows7, Windows Vista and you are
using IE-based browsers like IE6, IE7, IE8, please choose IE ActiveX Mode login mode.
Section4 Server Push Mode
If you are using non-IE based browser, like Firefox, Safari, Google Chrome please choose
Server Push Mode.
Section5 Mobile Phone
If you are using the Mobile to access the camera, here you need to select Mobile Phone login
mode.
Section6 Note
Note that when you login the camera, please select the corresponding login mode.
2.2 Surveillance Window
Select the ActiveX mode and you will enter the surveillance window.

w
www.foscam.co ww.foscam.com m
Shenzhen
Shenzhen Foscam Foscam Intelligent Intelligent Technology Technology Co., Co., Limited Limited
Tel:
Tel: [phone] 2674 5668 5668 Fax: Fax: [phone] 2674 5168 5168
7

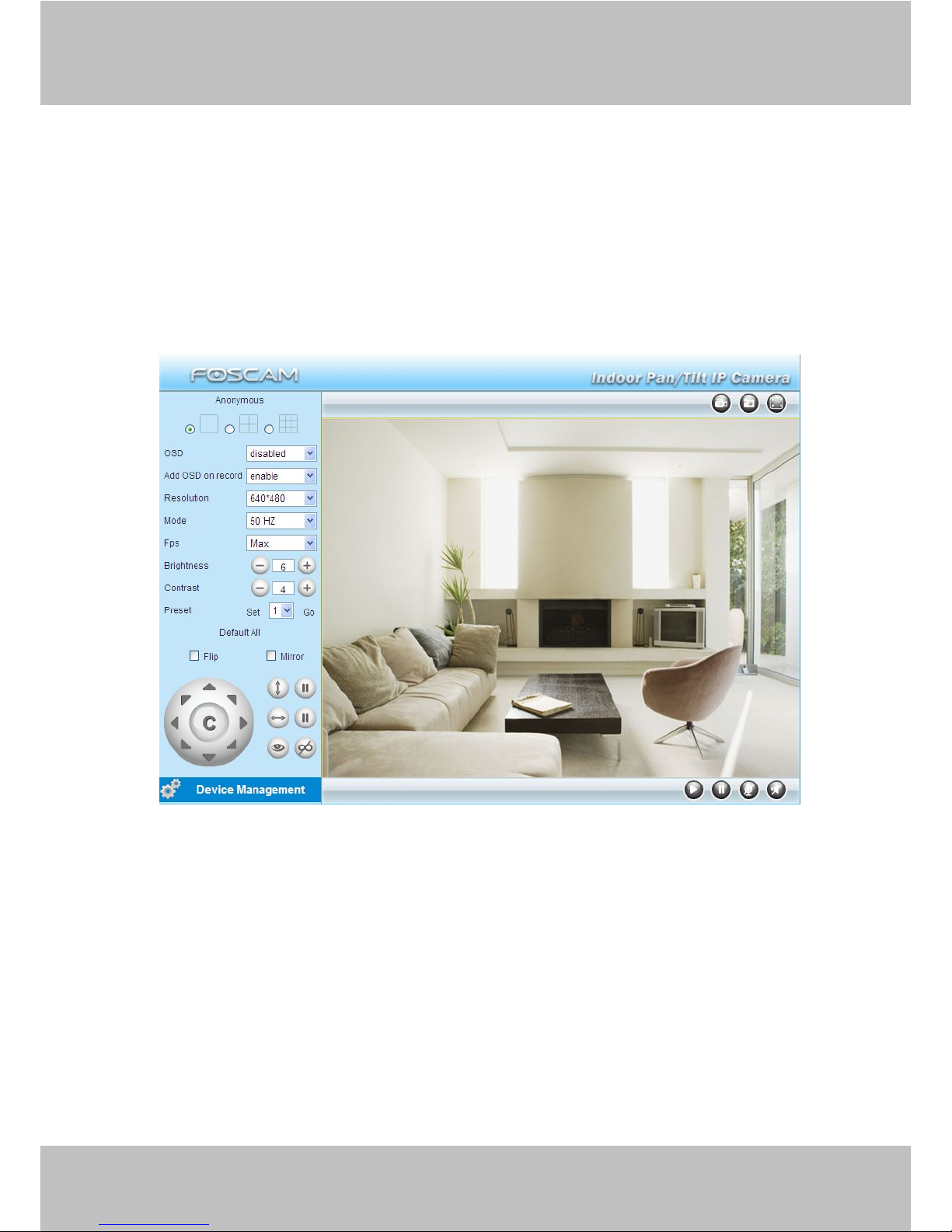

Figure 2.2
Section1 Device Name
Default device name is Anonymous. You can define a name for your camera as you like (Please
go to chapter 3.1 and read how to set it)
Section2 Multi-Device Window
The firmware inside the camera supports up to maximum of 9 cameras being monitoring at the
same time. You can add other cameras in multi-device setting (read chapter 3.5).
1
2
3
6
4
5
7
