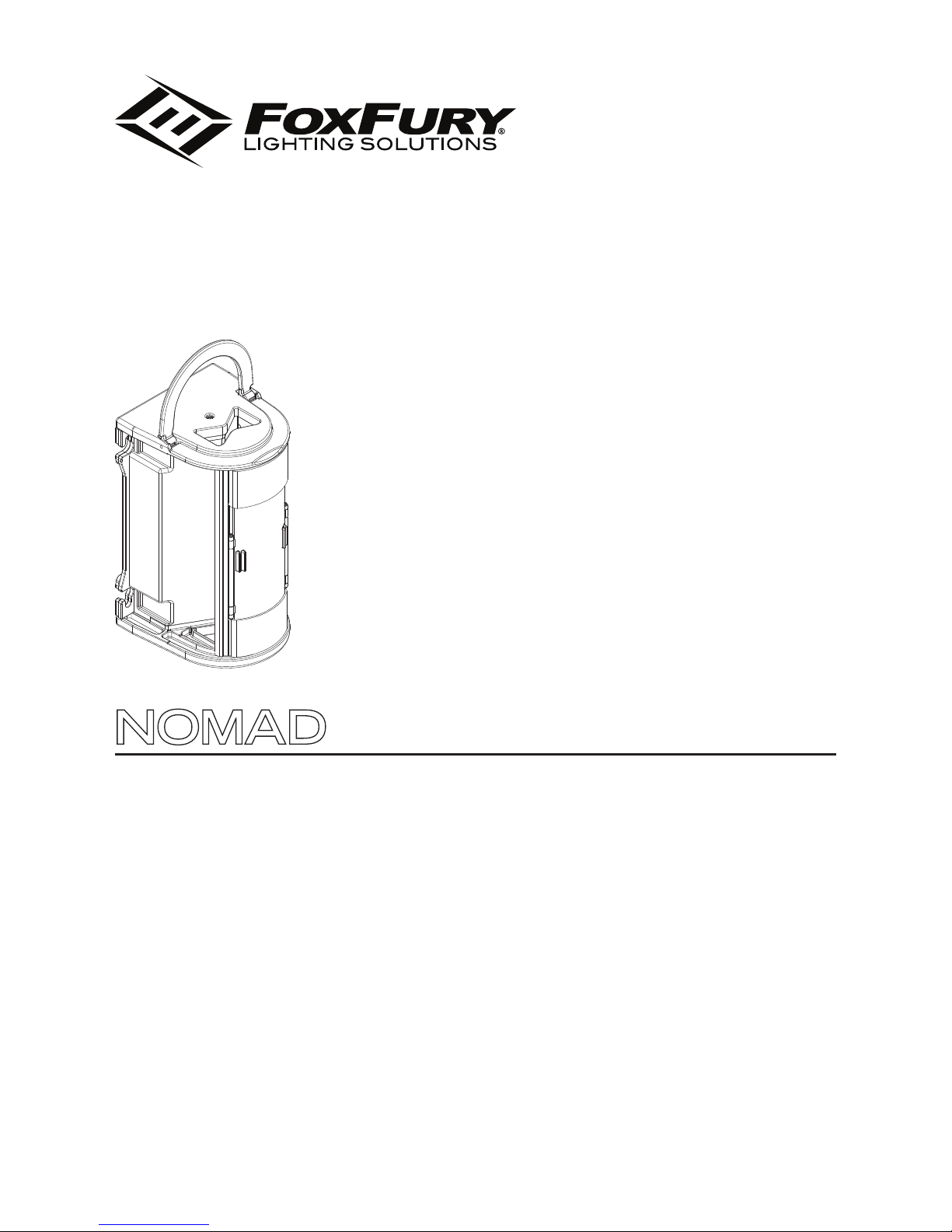

Foxfury Lighting Solutions Nomad N32 User manual

PRODUCT MANUAL
200–4N32 |200–4N56
NOMAD®N32 & N56

2
TABLE OF CONTENTS
INTRODUCTION
Reference Guide 3
Overview 4
Physical Characteristics 4
BATTERY PACK
Charging the Battery Pack 5
Charging from a 12VDC Vehicle Adaptor 5
Charge Indicator 5
OPERATIONAL MODES
AC - DC Adaptor and International Use 6
Operational Modes 6
Battery Life 7
Battery Life Indicator 7
Using the Nomad®while Plugged in 7
FEATURES
Swiveling Light Head 8
Sliding Diffuser Lens 8
Remote Key Fob Use 9
MOUNTING THE NOMAD®
Magnetic Mount 10
Stacking 10
ACCESSORIES (NOT INCLUDED)
Horizontal Right Angle Mount 10
Utility Mount 11
Wall Mount Kit 11
Tripo-Scope®M1, Tripod and FoxFury Puck Adaptor 11
MAINTENANCE 12–14
WARRANTY 15–16
CONTACT FOXFURY 16

3
NOMAD®REFERENCE GUIDE
COLLAPSIBLE
HANDLE
SLIDING DIFFUSER LENS
(AREA-SPOT)
REMOTE SWITCH
SWIVELING
LIGHT HEAD
¼"-20 MOUNT
(ON TOP & BOTTOM)
BATTERY LIFE/
CHARGE INDICATOR
MAGNETIC/WALL
MOUNT HOLES (4)
CHARGING PORT
POWER/MODE SWITCH
REMOTE SWITCH
INDICATOR
ALSO INCLUDED
12VDC Vehicle Adaptor
Small FoxFury Duffel Bag
All Thread ¼"-20 Screw
Remote Key Fob
Magnetic Mount
AC-DC Adaptor
AC Cable

4
OVERVIEW
The Nomad®N32 & N56 deliver studio quality lighting outside of the studio.
Models can be magnet and tripod mounted and feature a rechargeable Li-ion
Battery Pack providing 3–24 hours of light. They shine bright in any weather
and can even be fully submerged. The N32 delivers up to 2,400 lumens of
3,200 Kelvin (tungsten) light with a high CRI of 95 for precise color rendering.
The N56 delivers up to 2,700 lumens with a color temperature of 5,600 Kelvin
(daylight) with a high CRI of 95 for precise color rendering.
IMPORTANT!
Please fully charge the battery before using the Nomad®for the first time.
PHYSICAL CHARACTERISTICS
Please read below before using your Nomad®as it relays beneficial operating
and safety information.
NOMAD®N32 & N56
DIMENSIONS 8.7 x 5.3 x 4.3 in (221 x 135 x 110 mm)
WEIGHT 4.5 lbs (2 kg)
WARNINGS
When used for extended periods of time the Nomad®Light Head will
become HOT to the touch. Please use care when operating.
Do not stare into LEDs for long periods of time or from a close range
(less than 2 ft).
Be sure to rinse the Nomad®with fresh water immediately after use in
the ocean or a pool.
!
!

5
CHARGING THE BATTERY PACK
1. Start with the AC Cable. Connect it to the AC - DC Adaptor.
The AC Cable is Universal to NEMA 5-15P, 3 prong for USA and will
work with a power range of 100VAC–240VAC 50/60 Hz.
2. Then, plug the Barrel Connector (part of the AC-DC Adaptor) into the
Charging Port of the Nomad®.
Input voltage: 11–17VDC. Do NOT exceed!
The Nomad®is shipped with a 30% charge. It is important to charge it
before using it for the first time.
When the Charge Indicator FLASHES green it indicates that the
Battery Pack is being charged. When the Nomad®is completely
charged, the Charge Indicator will turn solid green.
Charging time will be approximately 4 hours.
CHARGING FROM A 12VDC VEHICLE ADAPTOR
1. Insert the 12VDC Vehicle Adaptor into a 12V socket (located within the
vehicle).
2. Then, insert the opposite end (Barrel Connector) into the Charging Port of
the Nomad®.
NOTE: Do NOT start vehicle while the Nomad®is being charged or when using
while plugged in.
CHARGE INDICATOR (FOR LOCATION, PLEASE REFERENCE PAGE 3)
COLOR DESCRIPTION
GREEN (SOLID) FULLY CHARGED
GREEN (FLASHING) CHARGING
RED (SOLID) CHARGING ERROR
*If a charging error occurs, please contact FoxFury Customer Service (see pg. 16).
NOTE: Continuously charging (leaving the unit plugged in) could damage the
Battery Pack and lead to a decreased battery life. Please disconnect the unit
once it is fully charged.
Please DO NOT leave AC-DC Adaptor plugged in for more than eight (8)
continuous hours.

6
AC-DC ADAPTOR AND INTERNATIONAL USE
The Nomad®Series has a AC - DC Adaptor which uses AC Cables like those
used in desktop computers or monitors. With every Nomad®, FoxFury supplies
a cable that terminates in the USA standard 110 VAC plug.
The plug of the AC Cable should be country specific. Example: IEC Types A-N.
The Female Connector side of the AC Cable must be IEC Type C13 to mate
with the Male Inlet of the AC-DC Adaptor.
ON/LOW mode: Press the Power/Mode Switch once.
MEDIUM mode: From LOW mode, press the Power/Mode Switch once.
HIGH mode: From MEDIUM mode, press the Power/Mode Switch once.
OFF: From HIGH mode, press the Power/Mode Switch once.
NOTE: The light does not retain the mode in memory. Once the light is ON,
re-select the mode desired.
OPERATIONAL MODES
AC CABLE
TYPE B
10A (250V)
INLET (MALE) (C14 IEC)
(LOCATED AT END OF
ADAPTOR)
CONNECTOR
(FEMALE) (C13 IEC)
(VIEW OF CABLE END)
AC-DC ADAPTOR
BARREL CONNECTOR
CONNECTOR (FEMALE) AC PLUG
MUST BE IEC C13
CONNECTOR CAN BE ANY PLUG IEC TYPES A-N
AC CABLE
10A (250V)

7
BATTERY LIFE
MODE BATTERY LIFE N32 LUMENS N56 LUMENS
HIGH POWER 3 hrs 2,400 2,700
MEDIUM POWER 9 hrs 900 1,000
LOW POWER 24 hrs 200 300
*Battery Pack life may vary according to age and ambient conditions.
BATTERY LIFE INDICATOR
COLOR DESCRIPTION
GREEN FULL BATTERY
ORANGE CAUTION—BATTERY IS GETTING LOW
RED (FLASHING) CHARGE IMMEDIATLY
USING THE NOMAD®WHILE PLUGGED IN
The Nomad®can run for longer periods by plugging it into a power source.
1. Start with the AC Cable. Connect it to the AC-DC Adaptor.
2. Then, plug the Barrel Connector (part of the AC-DC Adaptor) into the
Charging Port of the Nomad®.
3. Press the Power/Mode Switch. The light will then turn ON.
The Nomad®must be turned OFF in order to charge the Battery Pack.
If it is plugged in and the Nomad®is ON, the battery is NOT being
charged.
As long as the unit is plugged into a power source, (even if it has a
very low battery) the light can be turned ON.
Continuously charging (leaving the Nomad®plugged in) could damage
the Battery Pack and also lead to decreased battery life.
Input voltage: 11–17VDC. Do NOT exceed!
NOTE: The Nomad®will NOT accept a 24VDC input.

8
SWIVELING LIGHT HEAD
The Nomad®Light Head is able to swivel 45° to the left or right. This allows the
light beam to be manually directed.
SLIDING DIFFUSER LENS
The Nomad®N32 & N56 provide two types of lights in one. To increase
diffusion, slide the Diffuser Lens down (Area). To decrease diffusion, simply
slide the Diffuser Lens up (Spot).
NOTE: The Sliding Diffuser Lens can be removed and cleaned. Please
reference pg. 13 for instructions.
FEATURES
NORMALLEFT RIGHT
SPOT
AREA

9
REMOTE KEY FOB USE
TO ACTIVATE THE REMOTE KEY FOB
Press the Remote Switch on the light once and make sure the green
indicator light is ON.
TO DEACTIVATE THE REMOTE KEY FOB
Press the Remote Switch on the light once and make sure the green
indicator light is OFF.
REMOTE KEY FOB FEATURES
The Remote Key Fob functions at a maximum distance of 70 ft (21 m)
(This is the maximum distance that multiple stacked units will operate in
sync).*This distance was recorded without obstructions or interference, in ideal
conditions.
The Nomad®runs on one (1) 27A battery.
The Remote Key Fob has the ability to cycle through the standard modes.
Multiple Nomad®N32s or N56s share the same code, meaning that the
included Remote Key Fob can be used for multiple Nomad®N32s or N56s.
NOTE: While the Remote Key Fob is active, the Power/Mode Switch also
functions. You may use the switch on the Light Head and the Remote Key Fob
simultaneously.
IMPORTANT!
Make sure to turn OFF the Remote Switch when not in use to prevent battery
drain OR accidental activation.
LOST REMOTE KEY FOBS
If the Remote Key Fob becomes lost, please contact FoxFury Customer
Service (see pg. 16).

10
MOUNTING THE NOMAD®
ACCESSORIES (NOT INCLUDED)
HORIZONTAL RIGHT ANGLE MOUNT
The Horizontal Right Angle Mount can be mounted to the Nomad®using two
(2) bolts. This allows the light to be mounted horizontally to a tripod or any
mount with a ¼"-20 screw providing the ability to direct light 45° up or down.
MAGNETIC MOUNT
The Nomad®can also be mounted via the Magnetic Mount (included). This
allows the light to be held vertically on a magnetic surface. The Nomad® and
Magnetic Mount can be pulled and placed from one surface to another to fit
your workspace and needs.
STACKING
The Nomad®can stack to other units via the ¼"-20 Threaded Screw
(included). Thread the crew into either end of the light, then, twist and screw
another Nomad onto the opposite end of that same Threaded Screw.
NOTE: Do not exceed three (3) Nomads.

11
WALL MOUNT KIT
The Nomad®Wall Mount can be permanently mounted to a wall or surface by
using the provided hardware.
TRIPO-SCOPE®M1, TRIPOD AND FOXFURY PUCK
ADAPTOR
The Nomad®can be mounted to the FoxFury Tripo-Scope®M1, most
professional tripods or to the FoxFury Puck Adaptor. Thread the hole of the
Nomad®onto the ¼"-20 Threaded Screw of the tripod or Puck Adaptor. Then,
twist the Nomad®onto the Puck Adaptor until it is securely fastened.
UTILITY MOUNT
The Nomad®Utility Mount allows the light to be mounted on utility vehicles with
buckets or on trucks with tailgates. To prevent possible scratching of paint, it
is recommended that a cloth be placed between the painted surface and the
Utility Mount.

12
REMOVING THE BATTERY PACK |4 MINS (APPROX)
At the end of the Battery Packs's life (which is about 500+ full charges), the
Battery Pack will stop holding a charge and will need replacing.
Make sure the Nomad®is turned OFF before starting.
1. Begin with the back of the Nomad®facing you. Locate the eight (8)
screws on the rear panel.
2. Use a Phillips Head (+) #1 screwdriver to unscrew and remove the eight (8)
screws. Then, remove the rear panel.
3. Once the rear panel is removed, notice a black strap, which holds the
Battery Pack in place. There is one (1) screw on each side of the strap.
Remove both using the same Phillips Head screwdriver. This will then
release the Battery Pack strap.
4. Pull the Battery Pack out of the Nomad® Body. Then, detach it from the
light by unclipping the Connector.
1
1
2
3
4
3
2
4
MAINTENANCE
CONNECTOR

13
REPLACING THE BATTERY PACK |4 MINS (APPROX)
1. Attach the new Battery Pack to the light by re-clipping it the Connector.
Then, place the new Battery Pack back inside the Nomad®.
2. Place the black strap over the Battery Pack. Then, re-insert and tighten
the two (2) screws.
3. Place the rear panel back onto the Nomad®. Align as needed (it will only
properly fit in one direction). Re-insert and tighten the eight (8) screws
using a Phillips screwdriver.
NOTE: Remember to test the light’s performance by activating the Power/
Mode Switch.
REMOVING THE SLIDING DIFFUSER LENS |3 MINS (APPROX)
1. Slide the Sliding Diffuser Lens back into the 'Area' setting. Locate and
remove the four (4) screws located on each side of it.
2. Then, tilt the Sliding Diffuser Lens forward.
3. Pull the Sliding Diffuser Lens out and free from the Light Head.
FOR RE-INSTALLATION: Repeat the steps above in reverse order.
2
1
1
2
3
3

14
MAINTENENCE (CONT'D)
GENERAL TIPS
The Nomad®reaches a full charge in approximately 4 hours. (Charge time
may depend on ambient conditions and battery health).
Maintain the light fully charged at all times, so that it is ready for use in
the event of an emergency.
If used outdoors in cold weather for an extended period of time allow
the Nomad®to warm up to above 10°C/50°F before charging.
Lithium-Ion batteries have a 500 full charge cycle life (CC followed by a
CV cycle)*. When the light gets near this number of cycles, there will be a
decrease in usage time. *CC=Constant Current charge (fast rate)
The Lithium-Ion batteries have a top-off or micro-charge life of around
1,200 cycles or more (CV only)*. If the Nomad®is un-used for 60 to 90
days, plug in the AC-DC Adaptor for 1 to 2 hours to bring the batteries
back up to peak charge. *CV=Constant Voltage charge (slow rate)
As needed, wash the Nomad®using a soft washcloth, clean
water and a mild soap. When done, pat dry with a soft cloth.
STORING THE NOMAD®
Make sure the light is powered OFF by pressing the Power/Mode Switch
until the light is no longer ON.
Press the Remote Switch to turn OFF the remote. If it is not turned OFF,
the battery will drain over time.
If the AC-DC Adaptor or 12VDC Vehicle Adaptor is being used,
disconnect it from the Nomad®and store.
WARNINGS WHEN STORING
The Nomad®depends on “ambient air” for cooling of its Light Head. After
being ON for a while, the Nomad®Heatsink Fins (which help disperse
heat), behind the Light Head will become warm to the touch (possibly
hot). This depends on the run time, setting, and/or air temperature. The
warmer the ambient air temperature is, the faster the Light Head’s
temperature will increase.
When it is time to put the Nomad®away, either wait for the unit to cool off
(usually 10 - 20 min) or protect hands (with work gloves or a cloth) while
adjusting the Light Head.

15
NOTES

16
WARNINGS
FoxFury, LLC is not responsible for the
incorrect use of any FoxFury Lighting
product.
When used for extended periods of
time the light will become HOT to
the touch. Please use care when
operating.
Lights are strong enough to cause
damage to the human eye.
Do not stare into LEDs for long
periods of time or from a close
range (less than 2 ft).
FoxFury, LLC is not responsible
for any injury or damage caused
during the use of this product.
Usage of this product must be
supervised by an adult when it is
being used by a minor.
Any FoxFury product should be
operated at speeds safe enough
to maneuver around surrounding
obstacles.
Do not use under the influence
of drugs or alcohol.
LIMITED LIFETIME
WARRANTY
FoxFury, LLC (“FoxFury”) warrants
this product to be free from defects
in material for a lifetime of use except
for batteries, LEDs, abuse, and
normal wear. We will repair or replace
this product should we determine it
to be defective. This limited lifetime
warranty excludes rechargeable
batteries, chargers, switches, and
electronics, which have a 2-year
warranty with proof of purchase.
This limited lifetime warranty is
given only to the original end user of
the accompanying product. If you
WARRANTY AND OTHER
INFORMATION
IPX7
3 M 1 M
PRODUCT DURABILITY
CARE/CLEANING
Your FoxFury product is a professional
tool. Regular maintenance and care of
your light will maximize performance for
you. As needed, wash your FoxFury
product using a soft washcloth, clean
water and a mild soap. Be sure that the
Battery Pack is reassembled securely
before washing. When done, pat dry with
a damp cloth.
AVAILABLE ACCESSORIES
Nomad®NOW AC Adaptor-DC
Cord Set, P/N 600-120
Nomad®NOW Battery Kit
Replacement, P/N 600-200-400
Nomad®Wall Mount Kit,
P/N 85-044
Nomad®NOW Horizontal Right
Angle Mount, P/N 85-046
Nomad®NOW Magnetic Mount,
P/N 85-040
Puck Adaptor, P/N 85-045
Nomad®NOW Utility Mount,
P/N 85-048
Small FoxFury Duffel Bag,
P/N 850-200-400
Accessories Bag, P/N 600-250
Remote Key Fob: Multi Activation,
P/N 51-123
Tripo-Scope®M1, P/N 650-100
Sliding Diffuser Lens, P/N 51-011

17
purchased a product from someone
other than an authorized FoxFury
reseller/distributor or if the product
was used, (including but not limited
to demo models, show models or
refurbished product by someone
other than FoxFury) prior to your
purchase, you are not the Original
Purchaser and the product that you
purchased is not covered by this
warranty. This limited warranty is
VOID if this Product has been altered
or modified in any way (including but
not limited to attempted warranty
repair without authorization from
Foxfury and/or alteration/removal
of the serial number). To expedite
warranty concerns, we encourage
the end user to register their FoxFury
Product at www.foxfury.com/pages/
warranty-registration.
THIS IS THE ONLY WARRANTY,
EXPRESSED OR IMPLIED,
INCLUDING ANY WARRANTY OF
MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE.
INCIDENTAL, CONSEQUENTIAL
OR SPECIAL DAMAGES ARE
EXPRESSLY DISCLAIMED EXCEPT
WHERE SUCH LIMITATION IS
PROHIBITED BY LAW.
You may have other specific legal
rights which vary by jurisdiction. Go
to www.foxfury.com/pages/warranty
for a complete copy of the warranty.
Retain your receipt for proof of
purchase.
CONTACT FOXFURY
FoxFury, LLC
Oceanside, CA 92056 USA
Toll-Free: 844-FOXFURY
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Web: FoxFury.com
All FoxFury products are designed in
Oceanside, CA. All FoxFury products
are manufactured with the highest
quality USA and foreign parts.
Products are assembled in either
FoxFury’s controlled plant in Asia or
the USA, under strict quality control.

FOXFURY.COM 10/2018
