PRODUCT MANUAL
200-800 |200-800-TC |200-8P56
NOMAD®PRIME & P56

2
TABLE OF CONTENTS
INTRODUCTION
Reference Guide 3
Overview 4
Physical Characteristics 4
BATTERY
Charging the Batteries 5
Charging from a 12VDC Vehicle Adaptor 5
Charge Indicator 5
OPERATION
AC-DC Adaptor and International Use 6
Operational Modes 6
Battery Life 7
Battery Life Indicator 7
Using the Nomad®while Plugged in 7
FEATURES
Swivel and Tilt Light Head 8
Diffuser Lens (Area-Spot) 8
Swivel and Tilt Light Head 9
Leveling Leg Extensions and Level Bubble 9
Anchor Strap 9
DEPLOYING THE NOMAD®10–11
MAINTENANCE 12–17
WARRANTY 18–19
CONTACT FOXFURY 19

3
NOMAD®REFERENCE GUIDE
BATTERY SYSTEM/
NOMAD®BODY
POWER/MODE
SWITCH
CARRY
STRAP
CLIP
BATTERY LIFE/
CHARGE INDICATOR
LEVEL BUBBLE
ANCHOR
STRAP
CHARGING PORT
PROTECTIVE
LIGHT CAP
LOCKING SLEEVE
TRIPO-SCOPE®
POLES
TRIPO-SCOPE®
TIGHTENING
RINGS (3)
FOLDING
TRIPO-SCOPE®
LEGS (3)
TRIPO-SCOPE®
LEG LOCK
LEVELING LEG
EXTENSIONS
DIFFUSER LENS
(AREA-SPOT)
TILT ADJUSTMENT
KNOB SWIVEL ADJUSTMENT
KNOB (340º)
LIGHT HEAD
ALSO INCLUDED
Accessories Bag
3M (Yellow) Reflective Tape
Carry Strap
AC-DC Adaptor
AC Cable
12VDC Vehicle Adaptor
DEPLOYED VIEW
STORED POSITION

4
OVERVIEW
The Nomad®Prime & P56 provide 3–24 hours of continuous lighting. It
converts from an area light to spotlight in seconds by attaching/detaching the
Diffuser Lens. Its portable, waterproof and adaptive design allows it to be
used in places where other area lights cannot. You can use it as a bazooka
light to survey an area or illuminate your path. In around 20 seconds, you’ll be
able to deploy the self-contained Tripo-Scope®Legs and raise the telescoping
head up to 8 ft tall to illuminate the work area.
IMPORTANT!
Please fully charge the Battery System before using the Nomad®for the
first time.
PHYSICAL CHARACTERISTICS
Please read below before using the Nomad®as it relays beneficial operating
and safety information.
NOMAD®PRIME & P56
DIMENSIONS 34.4 x 4.6 in (874 x 117 mm)
WEIGHT 18.4 lbs (8.3 kg)
WARNINGS
When used for extended periods of time the Nomad®will become HOT to
the touch. Please use care when operating.
Do not stare into LEDs for long periods of time or from a close range
(less than 2 ft).
Be sure to rinse the Nomad®with fresh water immediately after use in
the ocean or a pool.
This product may contain chemical(s) known to the State of California
to cause cancer, birth defects or other reproductive harm. For more
information, go to www.P65Warnings.ca.gov/product.
!
!
!

5
CHARGING THE BATTERIES
1. Start with the AC Cable. Connect it to the AC-DC Adaptor.
The AC Cable is Universal to NEMA 5-15P, 3 prong for USA and will
work with a power range of 100VAC–240VAC 50/60 Hz.
2. Plug the Barrel Connector (part of the AC-DC Adaptor) into the Charging
Port of the Nomad®Prime or P56.
Input voltage: 11–17VDC. Do NOT exceed!
The Nomad®Prime is shipped with a 30% charge. It is important to
charge it before using for the first time.
When the Charge Indicator FLASHES green it indicates that the
battery is being charged. When the Nomad®is completely charged, the
Charge Indicator will turn solid green.
Charging time will be approximately 5 hours.
CHARGING FROM A 12VDC VEHICLE ADAPTOR
1. Insert the 12VDC Vehicle Adaptor Cable into a 12V socket (located within
the vehicle).
2. Insert the opposite end (Barrel Connector) into the Charging Port of the
Nomad®Prime or P56.
NOTE: Do NOT start vehicle while the Nomad®is plugged in.
CHARGE INDICATOR (FOR LOCATION, PLEASE REFERENCE PAGE 3)
COLOR DESCRIPTION
GREEN (SOLID) FULLY CHARGED
GREEN (FLASHING) CHARGING
RED (SOLID) CHARGING ERROR
*If a charging error occurs, please contact FoxFury Customer Service (see pg. 18).
NOTE: Continuously charging (leaving the unit plugged in) could damage the
Battery Pack and lead to a decreased battery life. Please disconnect the unit
once it is fully charged.
Please DO NOT leave AC-DC Adaptor plugged in for more than eight (8)
continuous hours.
1
1
2
2

6

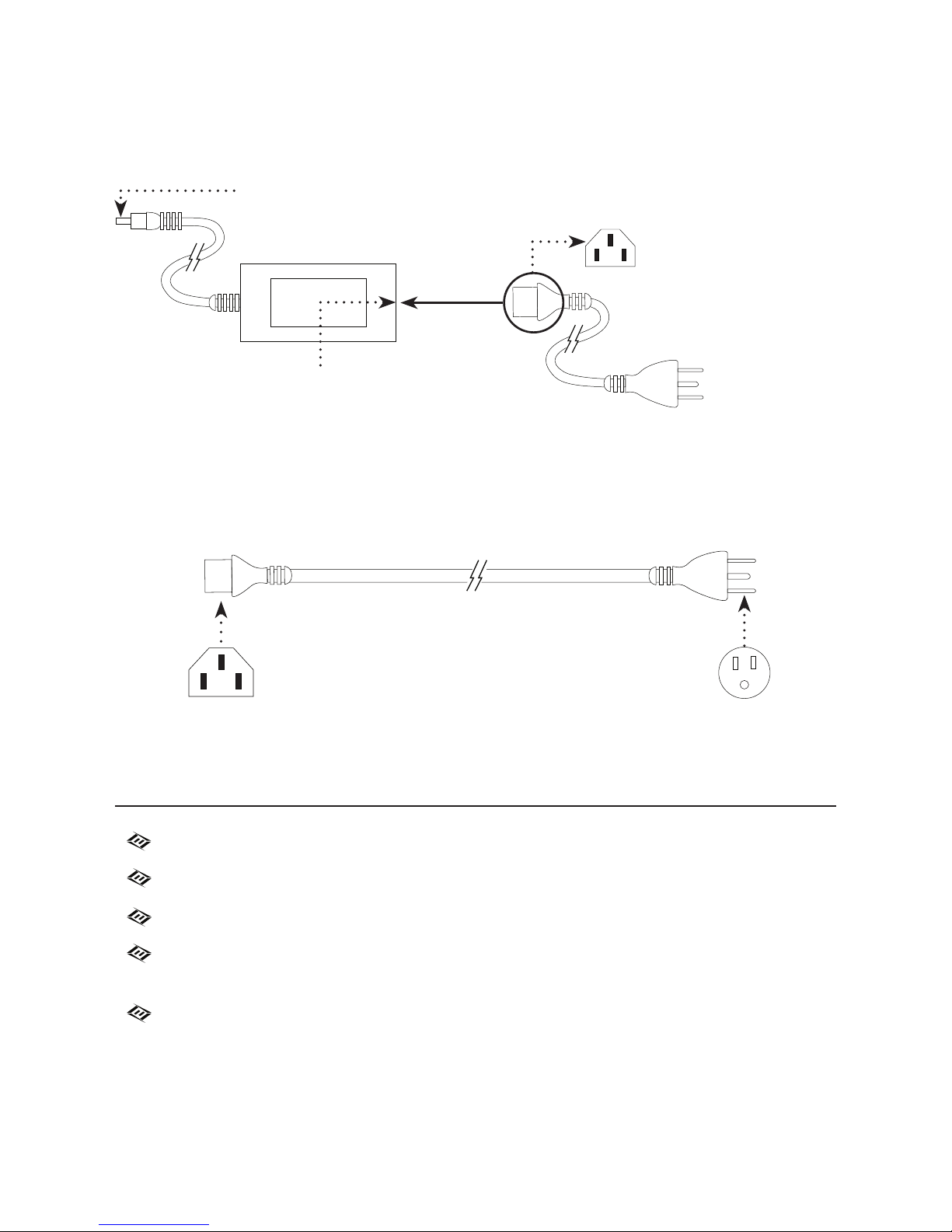

AC-DC ADAPTOR AND INTERNATIONAL USE
The Nomad®Series has a AC-DC Adaptor which uses AC Cables like those
used in desktop computers or monitors. With every Nomad®, FoxFury supplies
a cable that terminates in the USA standard 110 VAC plug.
The plug of the AC Cable should be country specific. Example: IEC Types A-N.
The Female Connector side of the AC Cable must be IEC Type C13 to mate
with the Male Inlet of the AC-DC Adaptor.
ON/LOW mode: Press the Power/Mode Switch once.
MEDIUM mode: From LOW mode, press the Power/Mode Switch once.
HIGH mode: From MEDIUM mode, press the Power/Mode Switch once.
FLASHING mode (excludes Nomad®P56): From HIGH mode, press the
Power/Mode Switch once.
OFF: From HIGH/FLASHING mode, press the Power/Mode Switch once.
NOTE: The light does not retain the mode in memory. Once the light is ON,
re-select the mode desired.
OPERATIONAL MODES
AC CABLE
TYPE B
10A (250V)
INLET (MALE) (C14 IEC)
(LOCATED AT END OF
ADAPTOR)
CONNECTOR
(FEMALE) (C13 IEC)
(VIEW OF CABLE END)
AC-DC ADAPTOR
BARREL CONNECTOR
CONNECTOR (FEMALE) AC PLUG
MUST BE IEC C13
CONNECTOR CAN BE ANY PLUG IEC TYPES A-N
AC CABLE
10A (250V)

7
BATTERY LIFE
MODE BATTERY LIFE PRIME LUMENS P56 LUMENS
HIGH 3 hours 5,000 4,100
MEDIUM 9 hours 2,000 1,600
LOW 24 hours 600 450
FLASHING 9 hours 5,000 NA
*Battery life may vary according to age and ambient conditions.
BATTERY LIFE INDICATOR (FOR LOCATION, PLEASE REFERENCE PAGE 3)
COLOR DESCRIPTION
GREEN FULL BATTERY
ORANGE CAUTION— BATTERY IS GETTING LOW
RED (FLASHING) CHARGE IMMEDIATELY
USING THE NOMAD®PRIME WHILE PLUGGED IN
The Nomad®can run continuously by plugging it into a power source.
1. Start with the AC Cable. Connect it to the AC-DC Adaptor.
2. Plug the Barrel Connector (part of the AC-DC Adaptor) into the Charging
Port of the Nomad®.
3. Press the Power/Mode Switch. The light will then turn ON.
The Nomad®must be turned OFF in order to charge the Battery
System. If it is plugged in and the Nomad®is ON, the battery is NOT
being charged.
As long as the unit is plugged into a power source, (even if it has a
very low power) the light can be turned ON.
Input voltage: 11–17VDC. Do NOT exceed!
NOTE: The Nomad®will NOT accept a 24VDC input.
1
2
3

8
SWIVEL AND TILT LIGHT HEAD
The Nomad®Light Head has the versatility to swivel (via the Swivel
Adjustment Knob) and tilt (via the Tilt Adjustment Knob).
DIFFUSER LENS (AREA-SPOT)
Lighting needs can change in an instant or on a case by case basis. As an
Area-Spot light, the Nomad®provides two types of lights in one.
NOTE: The Diffuser Lens can be removed and cleaned for maintenance.
Please reference pg. 15.
FEATURES
SPOT AREA

9
LEVELING LEG EXTENSIONS AND LEVEL BUBBLE
On uneven ground, fine adjustments can be made by releasing the Leveling
Leg Extensions. The Level Bubble can be used for reference.
ANCHOR STRAP
In case of heavy wind or extreme weather conditions, attach a sand bag, or
equivalent weight, to the concealed Anchor Strap (see the "Nomad®Reference
Guide" on pg. 3 for location).
LEVEL BUBBLE
LEVELING LEG
EXTENSION RELEASED

10
DEPLOYING THE NOMAD®
1
5
2
LEGS LOCKED LEGS RELEASED
LIGHT HEAD (SIDE VIEW)
TILT
ADJUSTMENT
KNOB
HINGE
SCREW
A
B
D
3 4
6
OR
C
LEVELING LEG
EXTENSION RELEASED

11
1. Set the Nomad®down vertically, on a flat surface, as shown. Open the
Protective Light Cap and twist the Locking Sleeve to the right ( ) and
slide upwards ( ). While still holding the Locking Sleeve up, twist it back to
the left ( ).The Folding Tripo-Scope®Legs are now accessible to deploy
( ).
2. Unfold each Tripo-Scope®Leg and make sure they are locked in place by
the Leg Locks (see the "Nomad®Reference Guide" on pg. 3 for location).
3. Pull the Light Head up from inside the Locking Sleeve. If using for
directional lighting, tilt and adjust the Light Head accordingly. Then, based
on preference or need, adjust the Diffuser Lens to either Spot or Area
lighting (see "Diffuser Lens" on pg. 8 for more information).
4. Adjust the angle and swivel position of the Light Head by loosening the Tilt
Adjustment Knob to the desired orientation and then re-tighten.
Light Head placement and adjustment can be made easier by
tightening the Hinge Screw (located near the Tilt Adjustment Knob).
5. Elevate the Light Head to desired height by raising the Tripo-Scope®Poles.
Tighten the Tripo-Scope®Tightening Rings (clockwise) to hold the poles at
desired height.
IMPORTANT: To reposition, loosen the Tightening Rings, bring the
Tripo-Scope®Poles down again and turn the Light Head OR physically
pick up and move the position of the whole Nomad®. DO NOT TRY TO
TURN THE TRIPO-SCOPE®POLES AGAINST EACH OTHER. This
can cause permanent damage.
6. On uneven ground, adjust each Tripo-Scope® Leg individually, as necessary.
Lift the leg off the ground, and then, using both thumbs, press and hold
both of the Leg Extension Release Tabs until the Leveling Leg Extensions
(located at the end of each of the Tripo-Scope®Legs) are released.
Retract the Leveling Leg Extensions in the same manner.
Fine adjustment can be made by turning the Leveling Leg Extension
by hand. Use the Level Bubble for reference.
In case of heavy wind or extreme weather conditions, attach a sand
bag, or equivalent weight, to the concealed Anchor Strap (see the
"Anchor Strap" on pg. 9 for location).
THE NOMAD®IS NOW READY FOR USE!
B
A
C
D
2
3
4
5
6
1

12
MAINTENANCE

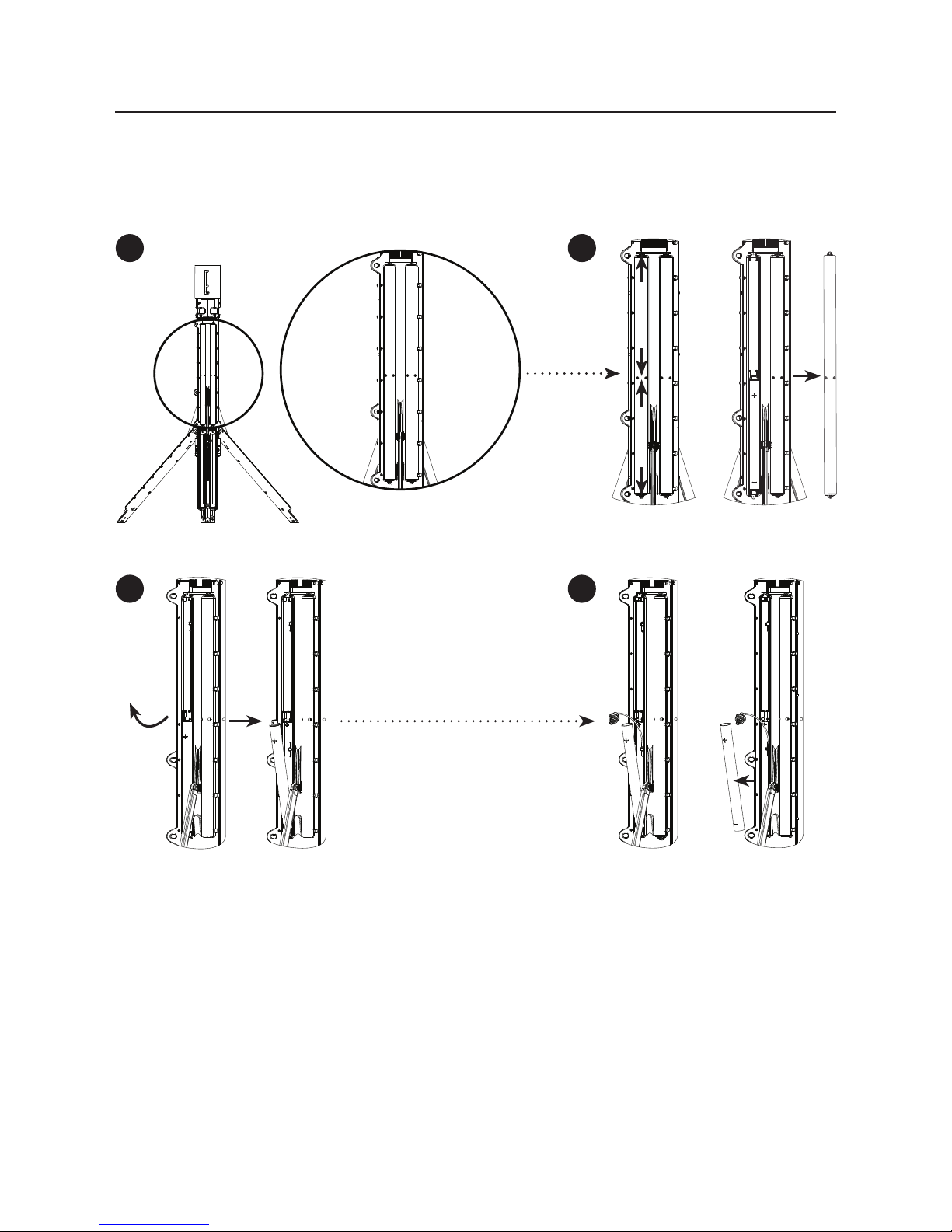

REMOVING THE BATTERY TUBES |30 MINS
The Nomad®uses six (6) Battery Tubes. Repeat the following steps three (3)
times in order to replace all six (6) Battery Tubes.
1
3
BATTERY COVER(S) ON BATTERY COVER
REMOVED
BATTERIES REMOVED
2
4

13
Make sure the Nomad®is OFF and UNPLUGGED before starting.
1. Open the Folding Tripo-Scope®Legs so they are locked and deployed.
Then, locate a Battery Cover.
2. Use a Phillips Head (+) #1 Screwdriver to remove the four (4) screws that
hold the Battery Cover. Once the screws are removed, pull the Battery
Cover off and set it aside.
Once the Battery Cover is removed, the Battery Tube is accessible.
3. At the TOP of the Battery Tube, there will be a red (positive) Battery
Tube Cap. Place an index finger on it and pull the tube out by the red Cap
(this should then help the bottom portion (black Cap) of the Battery Tube
to easily slide out of the Battery Compartment). This action is similar to
removing a AA battery from any generic battery holder.
To easily remove the Battery Tube from the Nomad®Body, it is best to
pull straight out from the "crown" of the Red Cap.
NOTE: The wiring for the positive (+) and negative (–) Caps will remain
attached to the Nomad®Body while the Battery Tube is pulled out of
the Battery Compartment.

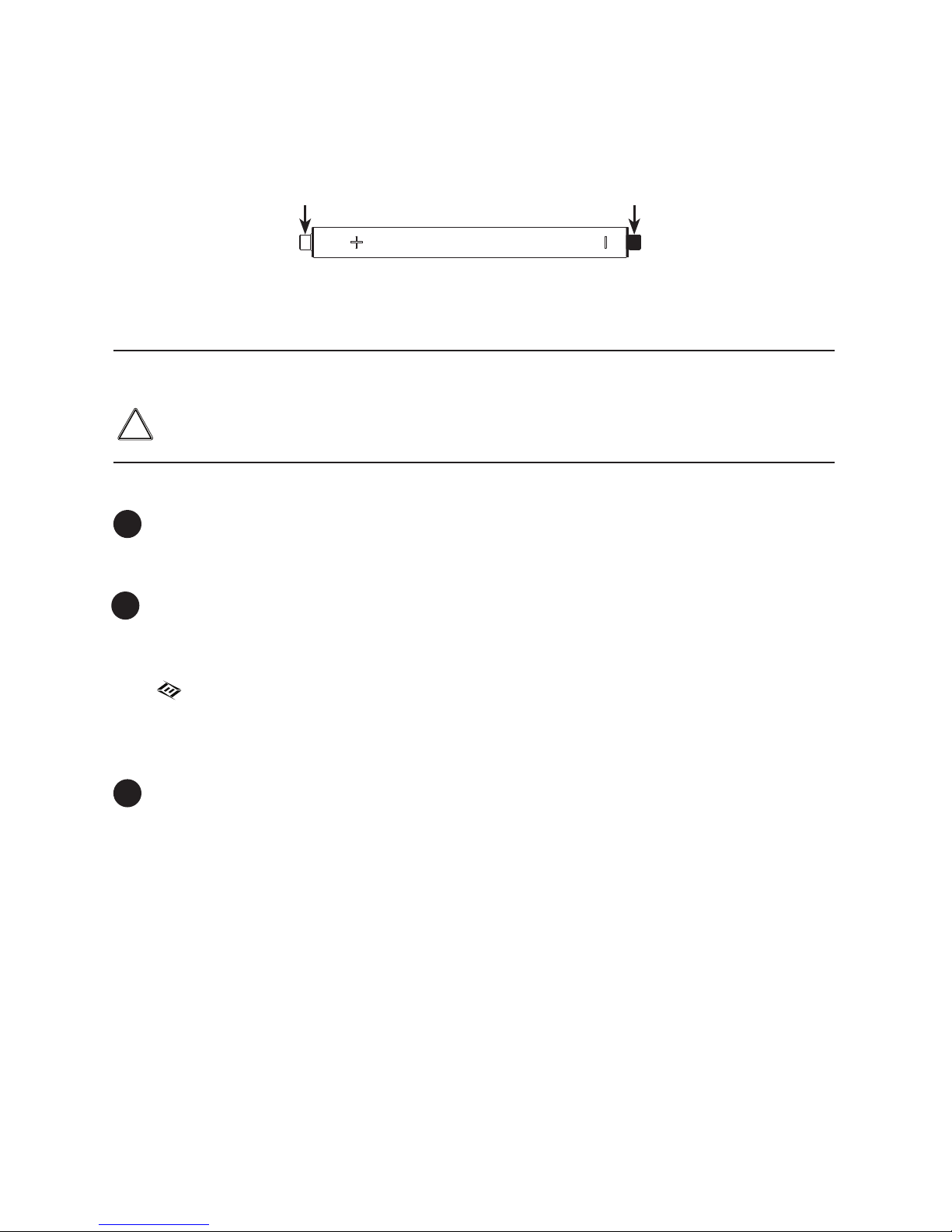

4. Remove the Battery Tube Caps (red and black) from each end of the
Battery Tube. This can be done by simply popping the Battery Tube Cap
off with one thumb.
DO NOT pull the Battery Tube Caps by the wires.
REPEAT STEPS 1– 4 FOR THE 5 REMAINING BATTERIES.
2
3
4
1
IMPORTANT!
Please follow applicable laws and regulations for transport and disposal
of batteries. For details on recycling please contact a government
recycling agency, a waste-disposal service, or visit reputable online
recycling sources such as www.batteryrecycling.com.
!

14
INSTALLING THE BATTERY TUBES |30 MINS
Installing the Nomad®Battery Tubes follows the same procedures as removing
them but in reverse order.
1. Start with the bottom of the Battery Tube. Attach the black Cap to the
NEGATIVE end of the Tube. While holding the Cap in place, reinsert it into
the Battery Compartment, at an angle.
2. While still applying downward pressure to the Battery Tube, attach the red
Cap to the opposite POSITIVE end of the Tube. Once secure, slide the
Tube into place in the Battery Compartment.
IMPORTANT: Be sure to place the red and black wires directly
behind the Battery Tube before re-installing the Tube into the Battery
Compartment. This will prevent the wires from being damaged, and it
will help the Battery Tube go back into place easier.
3. Once the Battery Tube is installed, test the Nomad®to make sure it turns
ON. If it does not, check the Battery Tubes for any connection errors with
the positive (+) and negative (–) ends. Then, place the Battery Cover back
over the Battery Tube and tighten the four (4) screws into place.
2
3
1
WARNINGS
Be sure to check polarity (positive (+) and negative (–)) when installing the
Battery Tubes.
!
BATTERY TUBE PLACEMENT WHILE INSTALLED
(HORIZONTAL VIEW)
TOP
RED CAP
(POSITIVE +)
BLACK CAP
(NEGATIVE –)

15

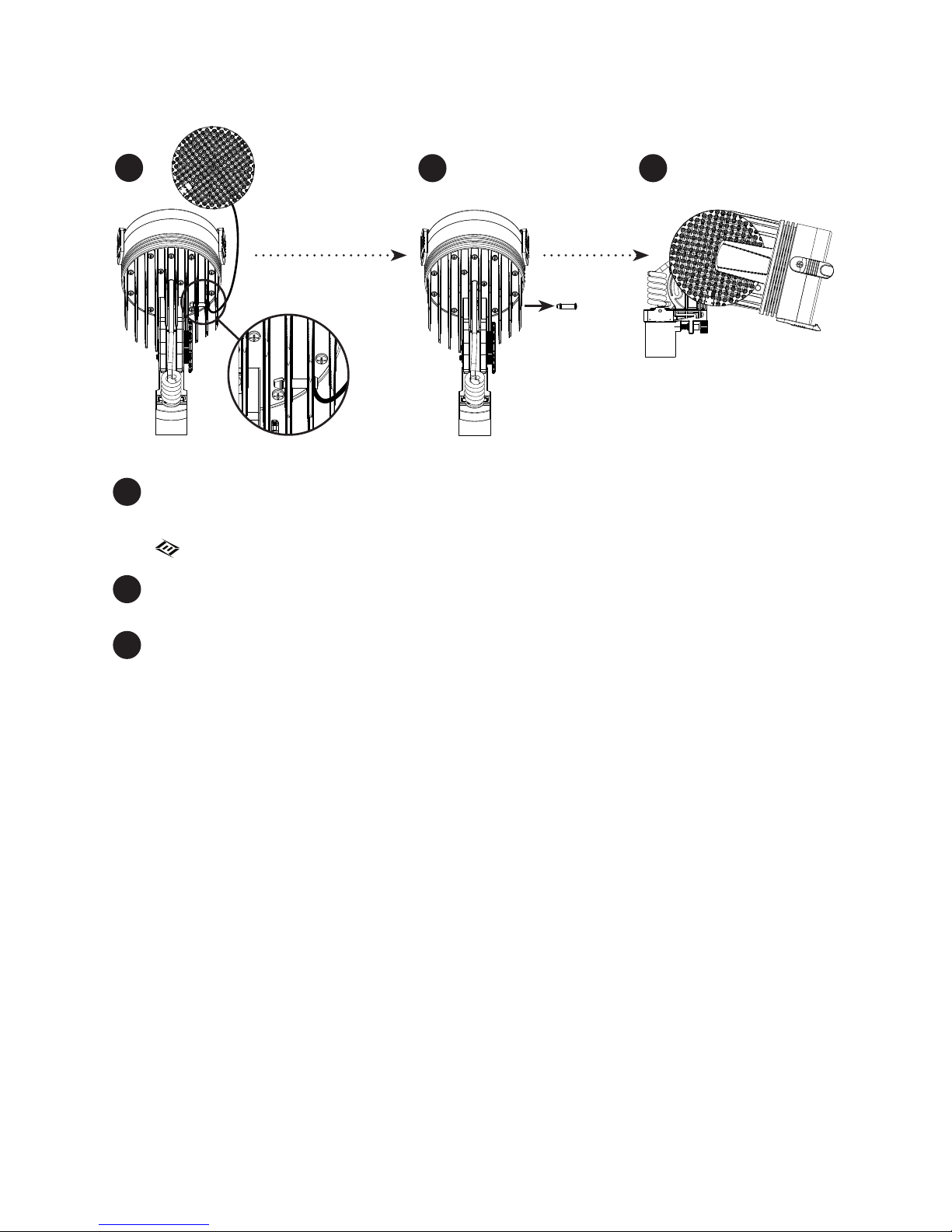

REMOVING/INSTALLING THE DIFFUSER LENS |1 MIN
1. Press the retaining fastener through the heatsink fins, laterally. The spring
end will compress allowing it to fit through the hole.
Use a small hand tool such as a flathead screwdriver.
2. Then, pull the fastener along with the Diffuser Lens and tether free from
the Light Head.
3. The Diffuser Lens can be placed between the two most distal heatsink
fins for a temporary holding place when adjusting from Area to Spot, to
360° with the Scene Cap, or during routine maintenance.
FOR RE-INSTALLATION: Repeat steps 1–2 in reverse order. Make sure that
the centerline of the loop at the end of the tether is placed between the two
most distal fins and aligned with the hole when inserting the fastener.
2
13
2
3
1

16
NOTES

17
STORING YOUR NOMAD®
Make sure the light is powered OFF by pressing the Power/Mode Switch
until the light is no longer ON.
Be sure to position the Light Head into the upright position BEFORE
lowering the Tripo-Scope®Poles in the body.
Put the Nomad®back into the Stored Position. Lower the Tripo-Scope®
Poles by untightening the Tripo-Scope®Tightening Rings. Then, push the
Light Head back into the Locking Sleeve.
If the AC-DC Adaptor or 12VDC Cigarette Lighter Cable is being used,
disconnect it from the Nomad®and store.
WARNINGS WHEN STORING
The Nomad®depends on “ambient air” for cooling of its Light Head. After
being ON for a while, the Nomad®Heatsink Fins (which help disperse
heat) behind the Light Head will become warm to the touch (possibly hot)
depending upon the run time, setting, and/or air temperature. The warmer
the ambient air temperature is, the faster the head’s temperature will
increase.
When it is time to put the Nomad®away, either wait for the unit to cool off
(usually 10–20 min) or protect hands (with work gloves or a cloth) when
adjusting the Light Head.
GENERAL MAINTENANCE TIPS
The Nomad®reaches a full charge in approximately 5 hours. (Charge time
may depend on ambient conditions and battery health).
Maintain the light fully charged at all times, so that it is ready for use in
the event of an emergency.
If used outdoors in cold weather for an extended period of time allow the
Nomad®to warm up to above 10°C/50°F before charging.
Lithium-Ion batteries have a 500 full charge cycle life (CC followed by a
CV cycle)*. When the light gets near this number of cycles, there will be a
decrease in usage time. *CC=Constant Current charge (fast rate)
The lithium-Ion batteries have a top-off or micro-charge life of around
1,200 cycles or more (CV only)*. If the Nomad®is unused for 60 to 90
days, plug in the AC/DC Adaptor for 1 to 2 hours to bring the batteries
back up to peak charge. *CV=Constant Voltage charge (slow rate)
As needed, wash the Nomad®using a soft washcloth, clean water and a
mild soap. When done, pat dry with a soft cloth.

18
PRODUCT DURABILITY
CARE/CLEANING
Your FoxFury product is a professional
tool. Regular maintenance and care of
your light will maximize performance for
you. As needed, wash your FoxFury
product using a soft washcloth, clean
water and a mild soap. Be sure that all
parts are reassembled securely before
washing. When done, pat dry with a
damp cloth.
AVAILABLE ACCESSORIES
Speed Ring Adaptor, P/N 85-047
Nomad Prime Video System
P/N 200-800-SYS-MM
Nomad®Prime & NOW AC Adaptor
DC Cord Set, P/N 600-120
Nomad®Prime Battery
Replacement, P/N 600-200-800
Carry Strap, P/N 51-056
Nomad®Mount Clamps
(set of 2), P/N 850-800
Nomad®Carrying Bag,
P/N 850-200-800
Accessories Bag, P/N 600-250
3M Reflective (Yellow) Tape Strips
(set of 3), P/N 70-125
3M Reflective (Yellow) Stickers
(set of 3), P/N 70-126
Diffuser Cap & Color Bands, P/N
850-080
WARNINGS
FoxFury, LLC is not responsible for the
incorrect use of any FoxFury Lighting
product.
When used for extended periods
of time the Nomad®will become
HOT to the touch. Please use care
when operating.
Lights are strong enough to cause
damage to the human eye.
Do not stare into LEDs for long
periods of time or from a close
range (less than 2 ft).
FoxFury, LLC is not responsible
for any injury or damage caused
during the use of this product.
Usage of this product must be
supervised by an adult when it is
being used by a minor.
Any FoxFury product should be
operated at speeds safe enough
to maneuver around surrounding
obstacles.
Do not use under the influence
of drugs or alcohol.
LIMITED LIFETIME
WARRANTY
FoxFury, LLC (“FoxFury”) warrants
this product to be free from defects
in material for a lifetime of use except
for batteries, LEDs, abuse, and
normal wear. We will repair or replace
this product should we determine it
to be defective. This limited lifetime
warranty excludes rechargeable
batteries, chargers, switches, and
electronics, which have a 2-year
warranty with proof of purchase.
This limited lifetime warranty is
given only to the original end user of
the accompanying product. If you
purchased a product from someone
other than an authorized FoxFury
reseller/distributor or if the product
was used, (including but not limited
to demo models, show models or
WARRANTY AND OTHER
INFORMATION
IPX7
3 M 1 M

19
refurbished product by someone
other than FoxFury) prior to your
purchase, you are not the Original
Purchaser and the product that you
purchased is not covered by this
warranty. This limited warranty is
VOID if this Product has been altered
or modified in any way (including but
not limited to attempted warranty
repair without authorization from
Foxfury and/or alteration/removal
of the serial number). To expedite
warranty concerns, we encourage
the end user to register their FoxFury
Product at www.foxfury.com/pages/
warranty-registration.
THIS IS THE ONLY WARRANTY,
EXPRESSED OR IMPLIED,
INCLUDING ANY WARRANTY OF
MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE.
INCIDENTAL, CONSEQUENTIAL
OR SPECIAL DAMAGES ARE
EXPRESSLY DISCLAIMED EXCEPT
WHERE SUCH LIMITATION IS
PROHIBITED BY LAW.
You may have other specific legal
rights which vary by jurisdiction. Go
to www.foxfury.com/pages/warranty
for a complete copy of the warranty.
Retain your receipt for proof of
purchase.
CONTACT FOXFURY
FoxFury, LLC
Oceanside, CA 92056 USA
Toll-Free: 844-FOXFURY
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Web: FoxFury.com
All FoxFury products are designed in
Oceanside, CA. All FoxFury products
are manufactured with the highest
quality USA and foreign parts.
Products are assembled in either
FoxFury’s controlled plant in Asia or
the USA, under strict quality control.

FOXFURY.COM 10/2018
