Franke KEMWSBF User manual

10112 036865-004
MODULAR SPORTS BOTTLE FILLER
InSTRUcTIOnS FOR MODELS: KEMWSBF, KEMW8SBF, KEMW12SBF,
KEM8SBF, KEM12SBF
1. InSPEcTIOn
Inspect the cartons and various components for evidence of rough handling and concealed damage. Damage claims should be filed
with the carrier.
2. InSTALLATIOn, PLUMBInG & ELEcTRIcAL cOnnEcTIOnS
a) NOTE: The following states require a licensed plumber to install cooler; AR, GA, MA, MI, OK, RI, SC, SD, TX, VT and WI. CA, KS, MN, NM and
OR allow for a state-registered installer or contractor as well. State and local plumbing codes may prohibit the use of saddle tapping valves
for water line connection in some applications. All connections must conform to applicable plumbing codes.
b) Plumbing rough-in and wall opening should be prepared as shown on roughing-in drawing.
c) FLUSH BUILDING WATER SUPPLY BEFORE INSTALLING UNIT.
d) Install drain receptor to frame with screws provided.
e) A 2X4 junction box is provided for the installation of a 115 volt receptacle. The bottle filler is provided with a power cord with a grounded
NEMA 15 plug. It is recommended that flexible conduit be used to supply power to the junction box and chiller if used. Check the electric
current available. Type and voltage must be the same as listed on the unit data plate.
f) Refer to the appropriate connection diagram for water and drain connections. Check for leaks.
g) The lower panel can be secured with the provided key locks or screws. The KEM8SBF features one lockable and one non lockable lower
panel, these are interchangeable.
MODELS WITH CHILLER
h) Attach cradle mounting angles to unit mounting cradle with 4 screws provided. Slide unit mounting cradle into frame and secure in place
with 4 screws, provided. (Cradle is used only when cooling unit is to be installed.) NOTE: BOTTOM FLANGE ON CRADLE IS TO
BE BEHIND FRAME FRONT FLANGE.
i) Slide cooling unit onto cradle.
KEM8SBF & KEM12SBF WITH FOUNTAIN
j) Install the fountain mounting plate to the frame assembly using the provided screws.
k) Place the upper panel in place on the frame top angle and fasten with 2 screws, provided, at the bottom.
l) Remove the bottom plate from the fountain arm. Save the screws.
m) Snap the reveal gasket over the back end of the fountain arm.
n) Add compression connector, furnished by others, to the fountain waste tube and slide back approximately 3" out of the way. Refer to the
appropriate connection diagram.
o) Hang the fountain on the mounting plate studs. NOTE: AS THE FOUNTAIN IS HUNG, FEED THE WASTE TUBE INTO THE WASTE STUB ON THE
WALL SIDE.
p) Tighten the fountain to the mounting plate with the 5/16 - 18 nuts and washers and the 1/4 - 20 bolts and washers provided.
q) Slide the reveal gasket(s) back into the notch between the panel and the arm. The gasket serves as an appearance item only (to close up any
opening around the panel and the mounting plate).
3. OVERLOAD PROTEcTIOn (SySTEMS WITh chILLER)
The compressor motor is equipped with an automatic reset protector which will disconnect the motor from the line in case of overload.
4. LUBRIcATIOn (SySTEMS WITh chILLER)
This unit is equipped with a hermetically sealed compressor. No additional lubrication is required. The fan motor installed on this unit
seldom needs oiling. If required, a few drops of SAE 10 oil should be used.

2036865-004 0112 30112 036865-004
MODULAR SPORTS BOTTLE FILLER
InSTRUcTIOnS FOR MODELS: KEMWSBF, KEMW8SBF, KEMW12SBF,
KEM8SBF, KEM12SBF
MODULAR SPORTS BOTTLE FILLER
InSTRUcTIOnS FOR MODELS: KEMWSBF, KEMW8SBF, KEMW12SBF,
KEM8SBF, KEM12SBF
5. TO DIScOnTInUE USE OF SySTEMS WITh chILLER
Drain cooler when removed from service: (1) Remove grille, (2) Close supply valve, (3) Provide container to catch water, and remove drain plug.
6. MAInTEnAncE (SySTEMS WITh chILLER)
The only maintenance required is the removal of dirt and lint from the condenser. Inspection should be made at 3 month intervals. Remove the grille
and clean the condenser with a vacuum attachment.
The warranty and the Underwriters’ Laboratory listing for this machine are automatically voided if this machine is altered, modified,
or combined with any other machine or device. Alteration or modification of this machine may cause serious flooding and/or hazardous electrical
shock or fire. EXCEPT AS SET FORTH HEREIN, THE MANUFACTURER MAKES NO OTHER WARRANTY, GUARANTEE OR AGREEMENT EXPRESSED,
IMPLIED OR STATUTORY, INCLUDING ANY IMPLIED WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
WARnInG
19 [483]
WALL OPENING
19 3/4
[502]
9 7/8
[251]
40 [1016]
WALL
OPENING
40 3/4
[1035]
28 3/8
[721]
3 15/16 [100]
5 5/16
[136]
WATER OUTLET
AND INLET
6 7/16 [164]
JUNCTION BOX
5/16 [8] DIA. MOUNTING
HOLES 8 EACH SIDE,
4 TOP AND 4 BOTTOM
1 13/16 [46]
1/2 [13]
11 5/16 [287]
WALL OPENING
8 1/8 [206]
2 [52]
1 1/2 OR 1 1/4
IPS WASTE
STUB OUT
1/4 OD TUBE
COOLING UNIT
WATER INLET
1 1/4 TAILPIECE
1 3/8 [35]
ELECTRICAL
CONNECTION
COOLING UNIT
FRAME ASSY
FURNISHED
FINISHED WALL
FLOOR LINE
3 1/2 [89]
4 5/16 [110]
21 9/16
[548]
21 3/8
[644]
26 5/8
[677]

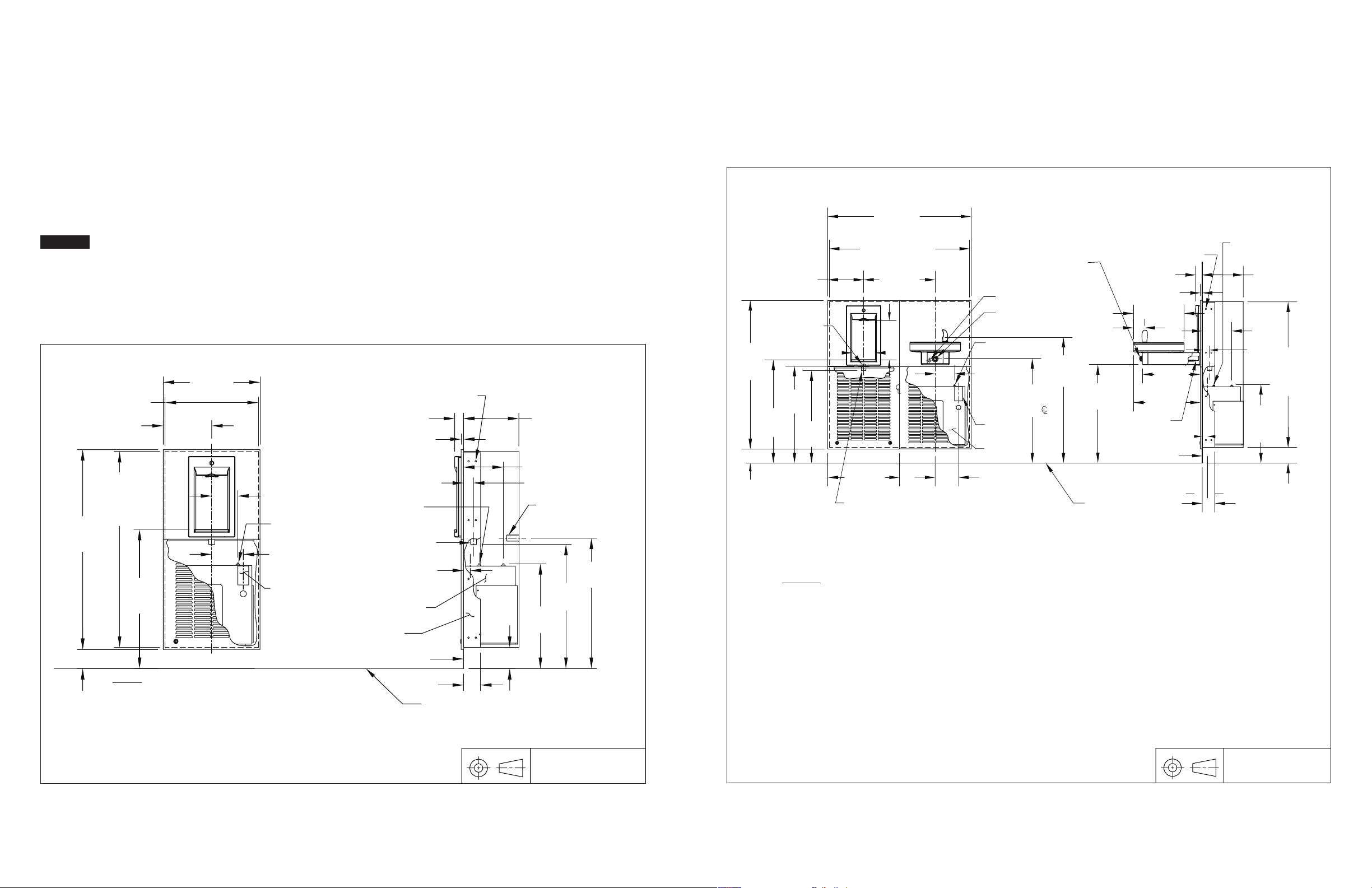

ROUGHING-IN
AND
DIMENSIONAL DRAWING
THIRD ANGLE PROJECTION
NOTES:
1. RECOMMENDED ADULT HEIGHT INSTALLATION SHOWN.
ADJUST VERTICAL DIMENSIONS AS REQUIRED TO COMPLY
WITH FEDERAL, STATE AND LOCAL CODES.
2. STOP VALVE, TRAP, PIPE CONNECTOR TO WASTE
WASTE LINE NOT PROVIDED. SHORT RADIUS TRAP REQUIRED.
3. ALL DIMENSIONS ARE IN INCHES.
DIMENSIONS IN BRACKETS [ ] ARE IN MILLIMETERS.
MODULAR SPORTS BOTTLE FILLER - MODELS KEMWSBF, KEMW8SBF, KEMW12SBF
39 1/2
[1003]
38 3/4 [984]
WALL OPENING
19 3/4
[502]
9 7/8
[251]
REMOVE NUT AND BUTTON
FOR FLOW REGULATOR
ACCESS
3/8 O.D. WATER INLET
1 1/2 OR 1 1/4 IPS WASTE
STUB OUT 2[51] 3 [80]
TO ORIFICE
WATER OUTLET
AND INLET
5/16 [8] DIA. MOUNTING
HOLES 8 EACH SIDE,
8 TOP AND 8 BOTTOM
1 13/16 [46]
1/2 [13]
14 [356]
5 5/16 [136]
28 3/4
[730]
TO FTN
34 9/16
[878]
ORIFICE
27
[686]
FLOOR LINE
6 7/16 [164]
JUNCTION
BOX
COOLING
UNIT
1 1/4 OD TAILPIECE
1 3/8 [35] ELECTRICAL
CONNECTION
FINISHED WALL
16
[406]
18 1/2
[470]
1 1/2 OR 1 1/4
IPS WASTE
STUB OUT
6 1/2 [165]
10 13/16
[274]
40 3/4
[1035]
3 15/16 [100]
1 1/4 TAILPIECE
19 3/4
[502]
28 3/8
[721]
26 5/8
[677]
25 3/8
[644]
3 1/2 [89] FRAME
ALLOW ADDITIONAL
DEPTH FOR WATER
AND WASTE LINES
4 5/16 [110]
21 9/16
[548]
40
[1016]
WALL
OPENING
2 [52]
8 1/8
[206]
11 5/16 [287]
WALL OPENING
1/4 O.D TUBE
COOLING UNIT
WATER INLET
NOTES:
1. RECOMMENDED ADULT HEIGHT INSTALLATION SHOWN. ADJUST VERTICAL DIMENSIONS AS
REQUIRED TO COMPLY WITH FEDERAL, STATE AND LOCAL CODES.
2. STOP VALVE, TRAP, PIPE CONNECTOR TO WASTE, WASTE LINE NOT PROVIDED. SHORT RADIUS
TRAP REQUIRED.
3. ALL DIMENSIONS ARE IN INCHES. DIMENSIONS IN BRACKETS [ ] ARE IN MILLIMETERS.
THIRD ANGLE PROJECTION
ROUGHING-IN
AND
DIMENSIONAL DRAWING
MODULAR SPORTS BOTTLE FILLER - MODELS KEM8SBF, KEM12SBF

4036865-004 0112 50112 036865-004
MODULAR SPORTS BOTTLE FILLER
InSTRUcTIOnS FOR MODELS: KEMWSBF, KEMW8SBF, KEMW12SBF,
KEM8SBF, KEM12SBF
MODULAR SPORTS BOTTLE FILLER
InSTRUcTIOnS FOR MODELS: KEMWSBF, KEMW8SBF, KEMW12SBF,
KEM8SBF, KEM12SBF

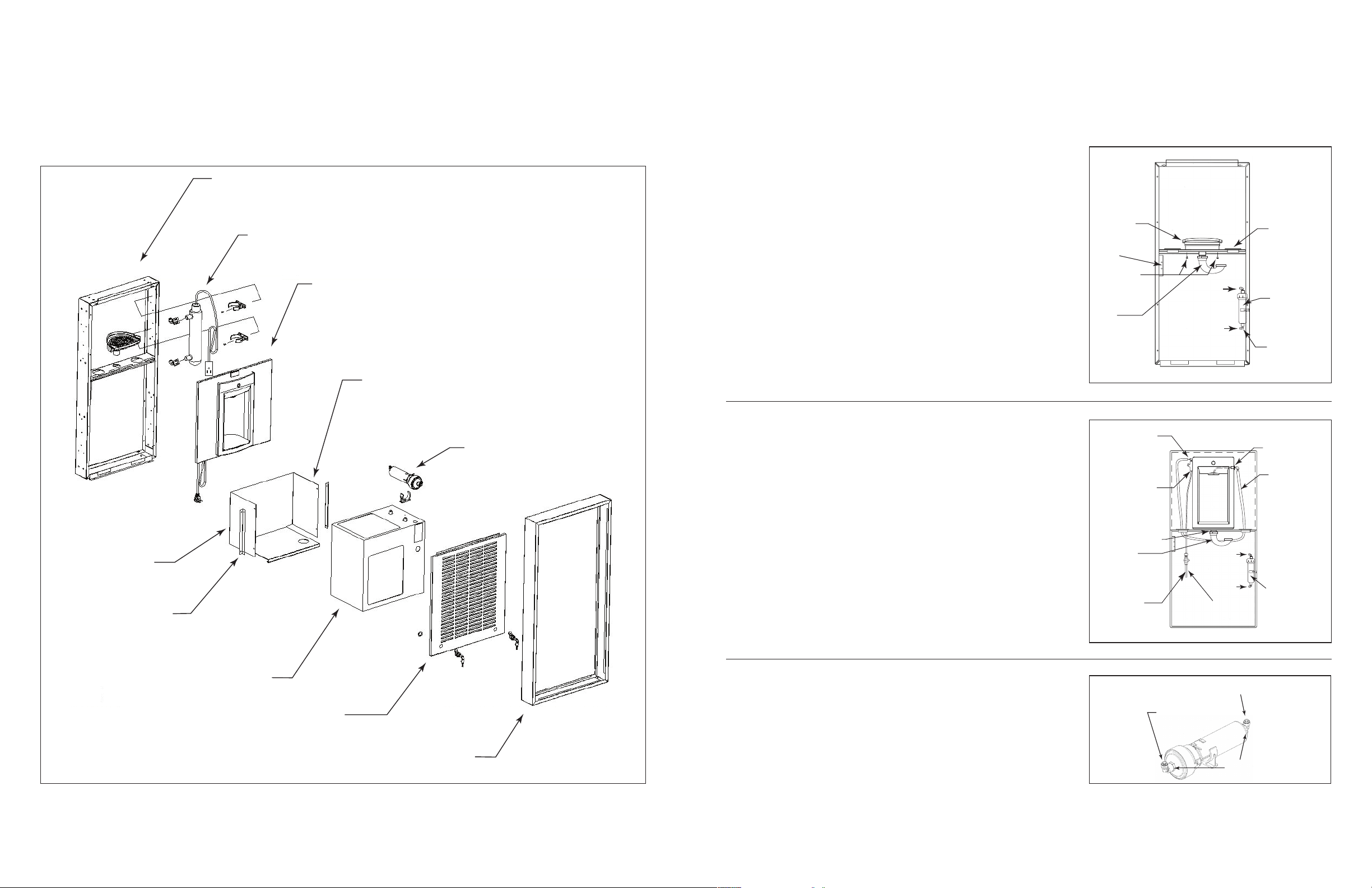

BOTTLE FILLER ASSEMBLy WITh chILLER
WALL MOUNTING FRAME
SECURES INTO WALL
WITH FACE FLUSH WITH
FINISHED WALL
UV KIT (ACCESSORY)
(SEE STEP 9)
UPPER FRONT PANEL
MOUNTS TO FRAME
WITH BOTTOM SCREWS
SECURE CRADLE MOUNTING ANGLE TO
FRAME FLANGE USING SCREWS PROVIDED.
DO NOT TIGHTEN SCREWS. SLIDE CRADLE
BETWEEN ANGLES AND ATTACH TO ANGLES
WITH SCREWS PROVIDED. TIGHTEN ALL SCREWS.
OPTIONAL FILTER
(SEE STEP 6)
COOLING UNIT
MOUNTING CRADLE
CRADLE MOUNTING
ANGLES (2 PROVIDED)
COOLING UNIT (OPTIONAL)
MOUNTS INSIDE CRADLE
LOWER FRONT PANEL
MOUNTS TO FRAME
WITH BOTTOM SCREWS
OR OPTIONAL LOCKS
(2 PROVIDED) TRIM BEZEL (ACCESSORY)
(SEE STEP 11)
STEP 1: InSTALL MOUnTInG FRAME
a) Install frame per rough in drawing.
b) Install drain assembly.
c) Install Snap bushings.
STEP 2: KEMWSBF (WIThOUT chILLER)
a) Install provided ball valve and 3/8" O.D. copper tube to
building water supply.
b) Install tubing as shown before mounting the panel assembly.
c) Install upper panel assembly (Screws provided).
d) Install lower louver panel using strainer supplied locks or screws.

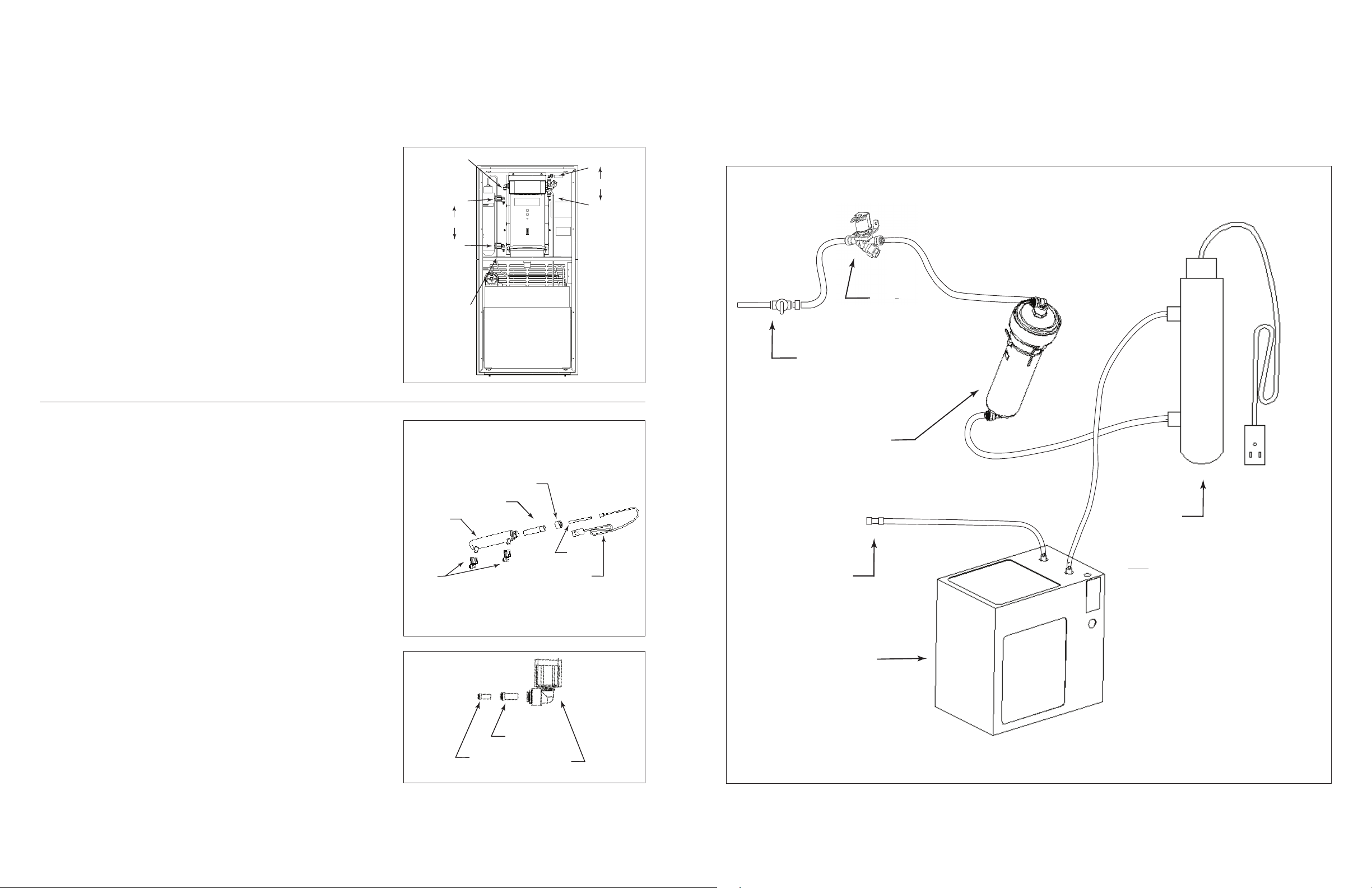

STEP 3: FILTER InSTALLATIOn (WIThOUT chILLER)
a) Mount filter clip to frame. (See Figure 2)
b) Install provided stem elbows.
c)
Run water line from solenoid valve to bottle filler delivery tube (See Figure 2).
d) Connect solenoid valve out to filter in.
e) Connect filter out to filler delivery tube.
IN
OUT
STRAINER
INSIDE
IN
OUT
STEM
ELBOWS
DRAIN
ASSEMBLY
2X4 JUNCTION
BOX
MOUNTING
SCREW
(2 PROVIDED)
DRAIN
COMPONENTS
NOT INCLUDED
SHORT RADIUS
TRAP REQUIRED
SNAP
BUSHINGS
OPTIONAL FILTER
LOCATION
LESS CHILLER
1/4" STEM
ELBOWS
(2 PROVIDED)
IN
OUT
SOLENOID
VALVE OUT
SOLENOID
VALVE IN
1 1/4" TAILPIECE
DRAIN
COMPONENTS
NOT INCLUDED
SHORT RADIUS
TRAP REQUIRED
PROVIDED
BALL VALVE AND
3/8" O.D. COPPER
TO BUILDING
WATER SUPPLY
FILLER DELIVERY
TUBE
INSULATED TUBE
CONNECTS TO
FILLER TUBE
SEE
STEP 3
FROM
SOLENOID
VALVE
TO BOTTLE
FILLER DELIVERY
TUBE
IN
OUT
STRAINER
INSIDE
IN
OUT
STEM
ELBOWS
DRAIN
ASSEMBLY
2X4 JUNCTION
BOX
MOUNTING
SCREW
(2 PROVIDED)
DRAIN
COMPONENTS
NOT INCLUDED
SHORT RADIUS
TRAP REQUIRED
SNAP
BUSHINGS
OPTIONAL FILTER
LOCATION
LESS CHILLER
1/4" STEM
ELBOWS
(2 PROVIDED)
IN
OUT
SOLENOID
VALVE OUT
SOLENOID
VALVE IN
1 1/4" TAILPIECE
DRAIN
COMPONENTS
NOT INCLUDED
SHORT RADIUS
TRAP REQUIRED
PROVIDED
BALL VALVE AND
3/8" O.D. COPPER
TO BUILDING
WATER SUPPLY
FILLER DELIVERY
TUBE
INSULATED TUBE
CONNECTS TO
FILLER TUBE
SEE
STEP 3
FROM
SOLENOID
VALVE
TO BOTTLE
FILLER DELIVERY
TUBE
IN
OUT
STRAINER
INSIDE
IN
OUT
STEM
ELBOWS
DRAIN
ASSEMBLY
2X4 JUNCTION
BOX
MOUNTING
SCREW
(2 PROVIDED)
DRAIN
COMPONENTS
NOT INCLUDED
SHORT RADIUS
TRAP REQUIRED
SNAP
BUSHINGS
OPTIONAL FILTER
LOCATION
LESS CHILLER
1/4" STEM
ELBOWS
(2 PROVIDED)
IN
OUT
SOLENOID
VALVE OUT
SOLENOID
VALVE IN
1 1/4" TAILPIECE
DRAIN
COMPONENTS
NOT INCLUDED
SHORT RADIUS
TRAP REQUIRED
PROVIDED
BALL VALVE AND
3/8" O.D. COPPER
TO BUILDING
WATER SUPPLY
FILLER DELIVERY
TUBE
INSULATED TUBE
CONNECTS TO
FILLER TUBE
SEE
STEP 3
FROM
SOLENOID
VALVE
TO BOTTLE
FILLER DELIVERY
TUBE
Figure 1
Figure 2
Figure 3

6036865-004 0112 70112 036865-004
MODULAR SPORTS BOTTLE FILLER
InSTRUcTIOnS FOR MODELS: KEMWSBF, KEMW8SBF, KEMW12SBF,
KEM8SBF, KEM12SBF
MODULAR SPORTS BOTTLE FILLER
InSTRUcTIOnS FOR MODELS: KEMWSBF, KEMW8SBF, KEMW12SBF,
KEM8SBF, KEM12SBF
CHILLER
FRONT OF CHILLER
IN
OUT
SOLENOID
VALVE OUT
SOLENOID
VALVE IN
1 1/4" TAILPIECE
PROVIDED BALL
VALVE AND 3/8" O.D.
COPPER TUBE
CONNECT TO
BUILDING WATER
SUPPLY
1/4" UNION
FTGS. PROVIDED
FILLER DELIVERY
TUBE
TO CHILLER OUT
OPTIONAL FILTER
LOCATION WITH
CHILLER
TO CHILLER IN
FILTER CLIP
PLACE FILTER
IN CLIP AS
SHOWN
FROM
SOLENOID
VALVE
TO BOTTLE
FILLER DELIVERY
TUBE
STEM
ELBOWS
CHILLER
FRONT OF CHILLER
IN
OUT
SOLENOID
VALVE OUT
SOLENOID
VALVE IN
1 1/4" TAILPIECE
PROVIDED BALL
VALVE AND 3/8" O.D.
COPPER TUBE
CONNECT TO
BUILDING WATER
SUPPLY
1/4" UNION
FTGS. PROVIDED
FILLER DELIVERY
TUBE
TO CHILLER OUT
OPTIONAL FILTER
LOCATION WITH
CHILLER
TO CHILLER IN
FILTER CLIP
PLACE FILTER
IN CLIP AS
SHOWN
FROM
SOLENOID
VALVE
TO BOTTLE
FILLER DELIVERY
TUBE
STEM
ELBOWS
STEP 4: KEMW8SBF AnD KEMW12SBF (cOnnEcTInG ThE chILLER)
a) Attach cradle to frame per rough in drawing (Screws provided - 4).
b) Place chiller in frame.
c) Install 1/4" Union fittings on chiller inlet and outlet.
d) Run the water line from the bottle filler solenoid valve OUT to chiller IN.
Cut off excess and use it to run from chiller OUT to the bottle filler
delivery tube.
STEP 5: FILTER LOcATIOn (WIThIn chILLER)
a) Screw filter clip to unit in location as shown in Figure 5 (Screw provided).
b) Install 1/4" stem elbows (provided) in filer inlet and outlet.
c) Place filter in clip as shown in Figure 6.
STEP 6: FILTER InSTALLATIOn (WITh chILLER)
a) Mount filter to chiller casing (See Figure 6).
b) Install provided stem elbows.
c) Run the water line from the bottle filler solenoid valve to the chiller inlet.
d) Connect bottle filler solenoid valve to filter inlet.
e) Connect filter out to the chiller inlet.
CHILLER
FRONT OF CHILLER
IN
OUT
SOLENOID
VALVE OUT
SOLENOID
VALVE IN
1 1/4" TAILPIECE
PROVIDED BALL
VALVE AND 3/8" O.D.
COPPER TUBE
CONNECT TO
BUILDING WATER
SUPPLY
1/4" UNION
FTGS. PROVIDED
FILLER DELIVERY
TUBE
TO CHILLER OUT
OPTIONAL FILTER
LOCATION WITH
CHILLER
TO CHILLER IN
FILTER CLIP
PLACE FILTER
IN CLIP AS
SHOWN
FROM
SOLENOID
VALVE
TO BOTTLE
FILLER DELIVERY
TUBE
STEM
ELBOWS
STEP 7: chILLER AnD FOUnTAIn cOnnnEcTIOnS
(KEM8SBF, KEM12SBF)
a) Install chiller in frame.
b) Install 1/4" union on chiller IN.
c) Connect 1/4" union tee to chiller OUT.
d) Determine tube length needed to connect bottle filler solenoid IN (The
line with the attached ball valve) to chiller tee. Cut tube and connect.
e) Attach remaining tube from ball valve to chiller IN.
f) Remove adapter fitting and copper tube from the fountain water line.
Install provided 1/4" union.
g) Determine length of tube needed to connect bottle filler solenoid OUT
to bottle filler delivery tube, cut off excess.
h) Use excess tube to connect fountain to chiller tee.
STEP 8: FILTER cOnnEcTIOn (BOTTLE FILLER AnD FOUnTAIn)
a) Mount filter to chiller casing (See Figure 5).
b) Install provided stem elbows (See Figure 8).
c) Cut the tube to the chiller inlet.
d)
Connect tubing from ball valve to filter IN. Connect filter OUT to chiller IN.
FRONT OF CHILLER
CHILLER
OUT
IN
SOLENOID
VALVE OUT
SOLENOID
VALVE IN
1 1/4"
TAILPIECE
DRAIN
COMPONENTS
NOT INCLUDED
SHORT RADIUS
TRAP REQUIRED
FILLER DELIVERY TUBE
1/4" UNION FITTING
1 1/4" TAILPIECE
(TRAP NOT INCLUDED)
1/4" UNION CHILLER
IN CONNECTS TO BALL
VALVE OF FILTER OUT
(IF USED)FITTINGS
PROVIDED
PROVIDED BALL
VALVE AND 3/8"
O.D. COPPER
TO BUILDING
WATER SUPPLY
1/4" UNION TEE
CHILLER OUT
CONNECT TO
FOUNTAIN AND
BOTTLE FILLER
SOLENOID IN
FILTER CLIP
PLACE FILTER
IN CLIP AS
SHOWN
STEM
ELBOWS
FROM PROVIDED
BALL VALVE
TO BOTTLE
FILLER DELIVERY
TUBE
FRONT OF CHILLER
CHILLER
OUT
IN
SOLENOID
VALVE OUT
SOLENOID
VALVE IN
1 1/4"
TAILPIECE
DRAIN
COMPONENTS
NOT INCLUDED
SHORT RADIUS
TRAP REQUIRED
FILLER DELIVERY TUBE
1/4" UNION FITTING
1 1/4" TAILPIECE
(TRAP NOT INCLUDED)
1/4" UNION CHILLER
IN CONNECTS TO BALL
VALVE OF FILTER OUT
(IF USED)FITTINGS
PROVIDED
PROVIDED BALL
VALVE AND 3/8"
O.D. COPPER
TO BUILDING
WATER SUPPLY
1/4" UNION TEE
CHILLER OUT
CONNECT TO
FOUNTAIN AND
BOTTLE FILLER
SOLENOID IN
FILTER CLIP
PLACE FILTER
IN CLIP AS
SHOWN
STEM
ELBOWS
FROM PROVIDED
BALL VALVE
TO BOTTLE
FILLER DELIVERY
TUBE
FRONT OF CHILLER
CHILLER
OUT
IN
SOLENOID
VALVE OUT
SOLENOID
VALVE IN
1 1/4"
TAILPIECE
DRAIN
COMPONENTS
NOT INCLUDED
SHORT RADIUS
TRAP REQUIRED
FILLER DELIVERY TUBE
1/4" UNION FITTING
1 1/4" TAILPIECE
(TRAP NOT INCLUDED)
1/4" UNION CHILLER
IN CONNECTS TO BALL
VALVE OF FILTER OUT
(IF USED)FITTINGS
PROVIDED
PROVIDED BALL
VALVE AND 3/8"
O.D. COPPER
TO BUILDING
WATER SUPPLY
1/4" UNION TEE
CHILLER OUT
CONNECT TO
FOUNTAIN AND
BOTTLE FILLER
SOLENOID IN
FILTER CLIP
PLACE FILTER
IN CLIP AS
SHOWN
STEM
ELBOWS
FROM PROVIDED
BALL VALVE
TO BOTTLE
FILLER DELIVERY
TUBE
Figure 4
Figure 5
Figure 6
Figure 7
Figure 5
Figure 8

8036865-004 0112 90112 036865-004
MODULAR SPORTS BOTTLE FILLER
InSTRUcTIOnS FOR MODELS: KEMWSBF, KEMW8SBF, KEMW12SBF,
KEM8SBF, KEM12SBF
MODULAR SPORTS BOTTLE FILLER
InSTRUcTIOnS FOR MODELS: KEMWSBF, KEMW8SBF, KEMW12SBF,
KEM8SBF, KEM12SBF
STEP 9: UV KIT - InSTALLATIOn GUIDE (BAcK VIEW WITh chILLER,
UV, AnD FILTER)
a) Remove lower and upper front panels, if needed.
b) Screw UV housing clip to frame (only one clip required). Holes provided
in frame upper left side (Figure 9 - BACK VIEW).
c) Install inter connecting water fitting to UV housing, provided. Refer to
Figure 10 and 11 for details.
d)
Install quartz sleeve with O-Ring into UV housing. Assemble retainer
nut - do not over tighten refer to Figure 10 for details.
e) Run UV power cord connection through hole provided in frame. Connect
UV bulb to power supply cord and insert bulb into UV housing. See Figure
9 and 10 for details.
STEP 10: UV KIT - InSTALLATIOn GUIDE
a) CAUTION - Carefully swap UV housing into clip installed in STEP 9.
The UV bulb and quartz sleeve are made of glass and are fragile.
Use CAUTION in this step to avoid damaging these parts.
b) Connect all interconnecting water lines. See water circuit illustration on
next page.
c) Re-connect electrical power and install upper and lower front panels.
INLET
OUTLET
UV
INLET
OUTLET
HOLE PROVIDED
FOR ELECTRICAL
AND WATER RUN
FILLER DELIVERY TUBE
SOLENOID VALVE
SEE FIG. 11
FOR DETAILS
UV HOUSING
QUARTZ SLEEVE
AND O-RING
RETAINER NUT
UV LAMP
POWER SUPPLY
AND CONNECTOR
1/4" X 3/8"
REDUCER
3/8" X 1/2"
REDUCER
1/2" X 1/2"
ELBOW
INLET
OUTLET
UV
INLET
OUTLET
HOLE PROVIDED
FOR ELECTRICAL
AND WATER RUN
FILLER DELIVERY TUBE
SOLENOID VALVE
SEE FIG. 11
FOR DETAILS
UV HOUSING
QUARTZ SLEEVE
AND O-RING
RETAINER NUT
UV LAMP
POWER SUPPLY
AND CONNECTOR
1/4" X 3/8"
REDUCER
3/8" X 1/2"
REDUCER
1/2" X 1/2"
ELBOW
INLET
OUTLET
UV
INLET
OUTLET
HOLE PROVIDED
FOR ELECTRICAL
AND WATER RUN
FILLER DELIVERY TUBE
SOLENOID VALVE
SEE FIG. 11
FOR DETAILS
UV HOUSING
QUARTZ SLEEVE
AND O-RING
RETAINER NUT
UV LAMP
POWER SUPPLY
AND CONNECTOR
1/4" X 3/8"
REDUCER
3/8" X 1/2"
REDUCER
1/2" X 1/2"
ELBOW
A
AA
BB
B
SOLENOID VALVE
PROVIDED. SEE FIG.
2 IN STEP 2 OF THESE
INSTRUCTIONS.
BALL VALVE AND
3/8" O.D. COPPER
TO BUILDING
WATER SUPPLY.
FILTER ASSEMBLY
(OPTIONAL)
ATTACHED TO FILLER
DELIVERY TUBE. SEE
FIG. 2 IN STEP 2 OF
THESE INSTRUCTIONS.
REMOTE CHILLER
(OPTIONAL)
UV HOUSING
AND BALLAST
NOTE:
IF OPTIONAL FILTER ASSEMBLY IS NOT INSTALLED,
CONNECTION "A" WILL CONNECT TO LOCATION "AA" OF
THE UV ASSEMBLY.
IF OPTIONAL REMOTE CHILLER IS NOT INSTALLED,
CONNECTION "B" WILL CONNECT TO LOCATION "BB" OF
THE UV ASSEMBLY.
UV KIT - WATER cIRcUIT
Figure 9
(BAcKVIEW)
Figure 10
Figure 11

10 036865-004 0112 110112 036865-004
MODULAR SPORTS BOTTLE FILLER
InSTRUcTIOnS FOR MODELS: KEMWSBF, KEMW8SBF, KEMW12SBF,
KEM8SBF, KEM12SBF
MODULAR SPORTS BOTTLE FILLER
InSTRUcTIOnS FOR MODELS: KEMWSBF, KEMW8SBF, KEMW12SBF,
KEM8SBF, KEM12SBF
STEP 11: TRIM BEZEL InSTALLATIOn
a) Install frame assembly to a flat surface. Use appropriate fastening hardware (not included). Refer to the first 2 pages of this instruction
package for the correct installation height.
b) Remove bottom plate from trim bezel (4 Screws).
c) Install trim bezel to frame assembly and replace bottom plate with screws.
d) Install drain assembly, snap bushings and any other accessories included with this kit.
e) Install upper and lower front panel.
TRIM BEZEL
*
*
*
FRAME ASSEMBLY
UPPER AND LOWER
FRONT PANELS
FASTENING POINTS
ON FRAME
TRIM BEZEL BOTTOM
PLATE WITH SCREWS
TRIM BEZEL InSTALLATIOn
2 REQ’D
2 REQ’D
4 REQ’D
3 REQ’D
2 REQ’D
2 REQ’D
FLOW RESTRICTOR
THIS FLOW RESTRICTOR IS INTENDED TO MAKE YOUR WATER
FLOW AT THE PROPER RATE.
- PRESS THE FLOW RESTRICTOR FIRMLY INTO THE
TUBING PROVIDED.
- INSERT THE TUBING WITH THE FLOW RESTRICTOR INTO ELBOW
FITTING AT THE TOP FITTING OF THE SOLENOID VALVE.

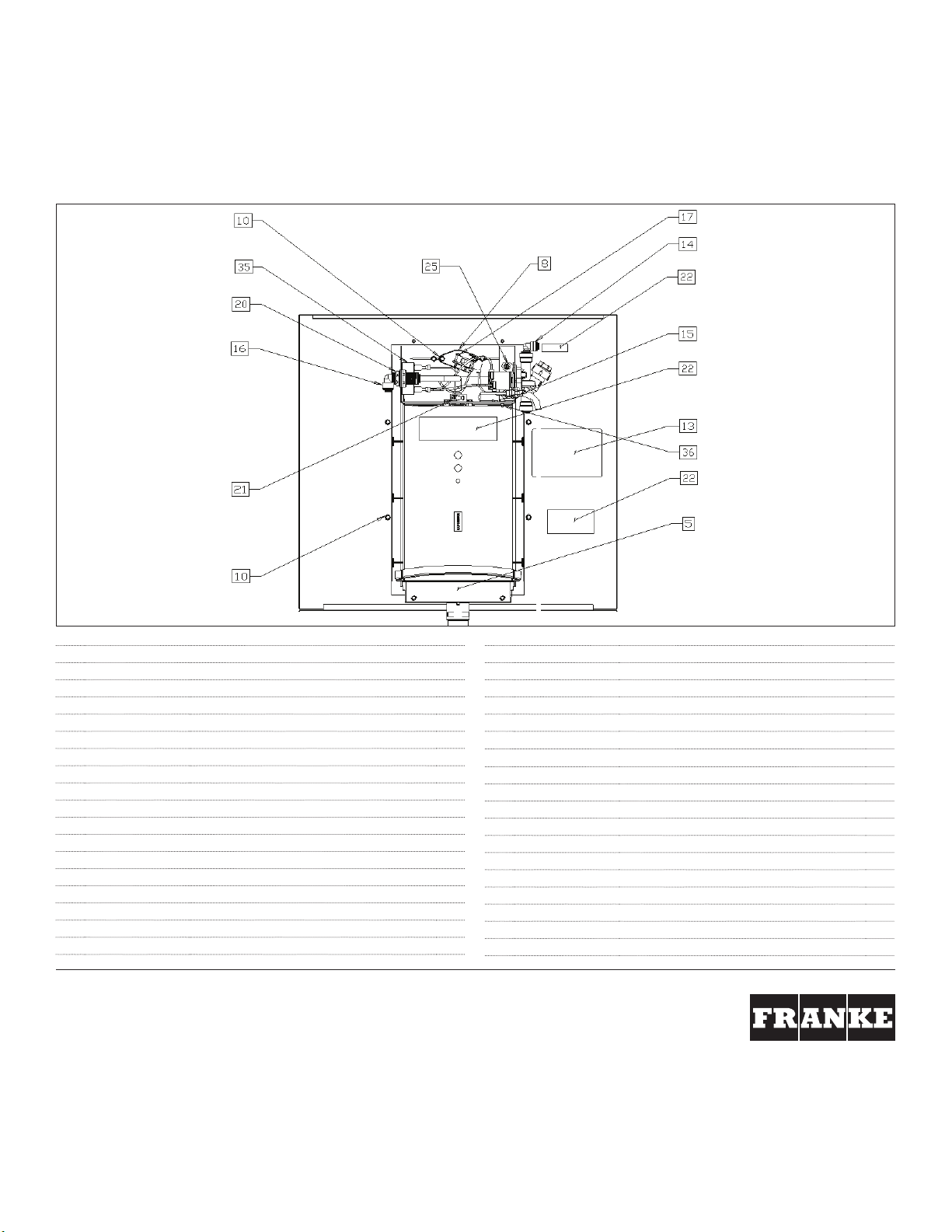

ILLUSTRATED PARTS BREAK DOWn
Figure 12

036865-004 0112
Franke Kindred Canada Limited
1000 Franke Kindred Road
Midland, ON L4R 4K9
CANADA
Tel. [phone]
Fax [phone]
www.franke-commercial.com
MODULAR SPORTS BOTTLE FILLER
InSTRUcTIOnS FOR MODELS: KEMWSBF, KEMW8SBF, KEMW12SBF,
KEM8SBF, KEM12SBF
2 REQ’D
6 REQ’D
“SERIAL
& DATA
LABEL”
2 REQ’D
1 027624-401 PANEL, BOTTLE FILLER UPPER 1
2 027697-005 PANEL, KEMWSBF LOWER LOUVER STN 1
3 034649-001 SPRING, MSBF 1
4 036190-001 ALCOVE, MSBF 1
5 036191-001 DRAIN, MSBF 1
6 036192-001 GRILLE, MSBF 1
7 036194-001 BUTTON, MSBF 1
8 036195-001 MOUNT, SWITCH 1
9 036197-001 SHELF, ACTIVATION MSBF 1
10 026642-003 SCREW, HEX HD TAPPING 14
11 026675-003 SCREW, FLAT HD TAPPING 3
12 201828-01 SOLENOID VALVE 120V/50-60HZ 1
13 030939-002 LABEL, WIRING DIAGRAM MSBF 1
14 029994-103 FTG, JG. ELBOW, PLUG IN WHI 1
15 019008 BUSHING, STRAIN RELIEF SR6P34 1
16 029139-001 FTG, JG. ELBOW, PLUG IN 1
17 026630-039 SCREW, PAN HD TAPPING TYPE AB 1
18 036207-001 COVER, ACTIVATION SHELF 1
19 036208-001 TUBE, FILL 1
20 028913-001 FTG, JG. BULKHEAD UNION 3/8 1
21 024070-006 TIE, CABLE 6" 1
22 029583-005 LABEL GROUP, CARTON & UNIT 1
23 026210 ANGLE, CRADLE MTG 2
24 027270-003 BAG, PLASTIC 1
25 026642-023 SCREW, HEX HD TAPPING 2
26 020850-004 INSERT, N’PLATE FRANKE GEL BA 1
27 031657-004 LOCK ASSY WITH CAM 2
28 031657--005 WASTER FOR COMPK BF 2
29 036466-001 PACKAGING GROUP BF 1
30 036471-001 ELEC CKT DWG W/ LEAD WIRE P/N 1
31 036470-001 KIT, BF ACCESSORIES 1
32 026660-006 SCREW, RD HD MACHINE 1
33 026824-006 NUT, HEX 1
34 0211413 LOCKWASHER, EXTERNAL TOOTH 1
35 030973-003 TIMER, SOLID STATE 60 SEC 1
36 026670-028 SCREW, HEX HD MACHINE 1
ILLUSTRATED PARTS BREAK DOWn cOnTInUED Items not shown: 23, 24, 29, 30, 31, 37
PART # DEScRIPTIOn qTy PART # DEScRIPTIOn qTy
