Freecom FHD-2 User manual

FHD-2
USB 2.0 / USB 2.0 & FireWire version
Rev. 316

2
FREECOM FHD-2
GB
Warning !
All rights reserved. The products named in this manual are only used for identification
purposes and may be trademarks or registered trademarks of the respective
companies. This device was designed for home or office use.
Freecom cannot be made liable for any damages, loss of data or damage following
thereof -whatsoever (including, without limitation, damages for loss of business
profits, business interruption, loss of business information, or other pecuniary loss)
arising out of the use of or inability to use this Freecom product, even if Freecom
has been advised of the possibility of such damages.
We reserve the right to upgrade our products in keeping with technological
advances.
Dear user!
Thank you for choosing the Freecom FHD-2 external hard drive. For optimal use
and performance we advise you to read this manual carefully before using this
product.
Freecom Technologies Germany
www.freecom.com
Contents of the box
Please check the contents of the box; the following items should be included:
 Freecom FHD-2 external hard drive
 Power Adapter *
 Interface Cable
 CD-ROM with manual, driver and application software
 Quick Install Guide
 Warranty card + envelope
* Use the included AC adapter with i.LINK interface or when the power provided by the
USB or FireWire port is not sufficient.

3
GB
Table of Contents
© 2003 Freecom Technologies
USER MANUAL
General Information ........................................................................... page 4
Precautionary measures .....................................................................page 5
CHAPTER 1:
FHD-2 external USB 2.0 hard drive .................................................... page 6
CHAPTER 2:
Hardware installation ......................................................................... page 7
CHAPTER 3:
Driver installation ............................................................................... page 9
FHD-2 USB 2.0 version ........................................................................ page 9
FHD-2 USB 2.0 & FireWire version ..................................................... page 12
CHAPTER 4:
Daily use of the FHD-2 ........................................................................ page 15
CHAPTER 5:
Partitioning your FHD-2 .....................................................................page 16
Freecom Internet Service & Support Hotline .................................... page 29

4
FREECOM FHD-2
GB
General Information
The following hardware and software requirements must be fulfilled to ensure
trouble-free operation.
Hardware Requirements
In order to use the Freecom FHD-2, following components are needed:
 Intel Pentium II 233MHz or higher
 64MB RAM or higher
 CD-ROM drive for installing drivers and/or software
USB-2 version: Available USB 2.0 or USB 1.1 port*
USB-2 & FireWire version: Available USB 2.0 or USB 1.1 port*
and/or FireWire interface
 Internet connection for online warranty registration and driver/software
updates and downloads
Software Requirements
 Windows 98 SE
 Windows ME
 Windows 2000
 WindowsXP
* (USB 2.0 is downwards compatible to USB 1.1. To achieve optimal performance from the
Freecom FHD-2 your PC should be equipped with an USB 2.0 port. USB 2.0 PCI Host
Controllers are separately available at www.freecom.com).

5
GB
Precautionary measures
Precautionary measures
To ensure that your Freecom FHD-2 functions properly, please take note of the
following precautions. If these are not followed, you may void your warranty
and damage the FHD-2.
 Safely remove the FHD-2 via your operating system (the "unplug or eject
hardware" option in the Windows taskbar) before disconnecting the Cable
or the power cable. Failing to do so may result in data loss.
 Do not drop the Freecom FHD-2 or expose it to other kinds of sudden
mechanical shocks as this may result in data loss and damage to the hard
drive.
 Do not use the Freecom FHD-2 when the ambient temperature is below 10°C
or above 45°C.
 If the Freecom FHD-2 is moved from a cool environment to a warmer
environment, please allow the drive to acclimatize to the ambient temperature
before operating the device. Failing to do so may lead to condensation
within the drive enclosure, which in turn may cause the drive to malfunction.
 Do not place liquids or drinks on the FHD-2. When liquids are spilled and get
in contact with the electronics within the drive enclosure, it will damage the
drive and will cause the drive to malfunction.
 Do not use the FHD-2 in a dusty environment. Dust inside the enclosure may
damage the internal electronics and result in drive malfunction.
 Only use the power adapter that was supplied with the FHD-2.
 Opening the FHD-2 will void the warranty.
USB-Note: Since USB 2.0 is backwards compatible with USB 1.1, the FHD-
2 can be connected to all USB ports. When connected to a USB 1.1 port,
however, the performance (data transfer rate) of the FHD-2 will be much
lower than when the drive is connected to a USB 2.0 port.

6
FREECOM FHD-2
GB
1
Options:
 Freecom USB 2.0 LE PCI Host Controller, 2 ports
 Freecom FireWire PCI Card
 Additional Cable USB, FireWire Cable, Power Adapter
See www.freecom.com for these and other Freecom products, or contact your
local Freecom reseller/dealer.
USB 2.0 & FireWire-VersionUSB 2.0-Version
CHAPTER 1: FHD-2 external hard drive
If you are looking for maximum performance, maximum storage capacity and
maximum reliability from an external hard drive, the Freecom FHD-2 is the right
choice. The hi-speed data transfer through the USB 2.0 and/or FireWire interface
makes it ideally suitable for data-storage, file sharing, backup, archiving, digital
video editing, audio playback and all applications that need fast file access.
For your convenience, the Freecom FHD-2 has been partitioned (1 partition) and
pre-formatted (FAT32 file system). The FAT32 format ensures maximum
interchangeability of the FHD-2 between different computers. Should you
choose to format the FHD-2 in another file system (e.g. NTFS), please be aware
of possible problems when connecting the FHD-2 to another computer than the
one you used for formatting.

7
GB
1
FHD-2 external hard drive
1. Connect the interface cable to the Freecom FHD-2.
2. Connect the cable of the power supply to the FHD-2
and the power supply itself to the socket. Use the
included AC adapter with i.LINK interface or when
the power provided by the USB or FireWire port is
not sufficient.
3. Connect the interface cable to the interface port of
your computer.
CHAPTER 2: Hardware Installation
USB-Note: Since USB 2.0 is backwards compatible with USB 1.1, the FHD-2 can be
connected to all USB ports. When connected to a USB 1.1 port, however, the
performance (data transfer rate) of the FHD-2 will be much lower than when the
drive is connected to a USB 2.0 port.

8
FREECOM FHD-2
GB
2
USB Port
Power cord
connection *
USB Port
Power cord
connection *
Computer
(FireWire)
other device
(FireWire)
Connect the drive always only either by the FireWire or by the USB port.
USB 2.0 version
Remark (if your drive is connected to the computer via USB): Since USB 2.0 is
backwards compatible with USB 1.1, the FHD-2 can be connected to all USB ports.
When connected to a USB 1.1 port, however, the performance (data transfer
rate) of the FHD-2 will be much lower than when the drive is connected to a USB
2.0 port.
USB 2.0 &
FireWire version
Remark when connecting by the FireWire port): When the drive is connected to
the computer by the FireWire port you can connect further peripheral devices to
the drives second FireWire jack.
For optimal performance, the FHD-2 should always be connected to a
USB 2.0 port or FireWire port. Freecom USB 2.0 PCI Host Controllers or
Freecom FireWire PCI Card are available at www.freecom.com.

9
GB
2
Driver Installation
CHAPTER 3: Driver installation
Under Windows ME / 2000 / XP a separate Freecom driver is not required. The
drivers will be installed automatically by the operating system after plugging in
the Freecom FHD-2 into the USB port of the computer.
3.1 FHD-2 USB 2.0 version
Driver installation USB under Windows 98 SE
Note: Your Freecom FHD-2 is fully backwards compatible with USB 1.1.
The installation for USB 1.1 is the same as described below for USB 2.0.
1. Insert the Freecom Manual and driver CD into the CD-ROM drive.
2. Connect your Freecom FHD-2 to the USB connector of your notebook or
computer.
3. The "Add New Hardware Wizard" opens and a "USB 2.0 Device" (USB 2.0 PCI
Host Controller) or a "USB TO IDE" (USB 1.1 connector) is found.
Click on "Next".

10
FREECOM FHD-2
GB
3
4. In the next window select "Search for the best driver for your device.
(Recommended)". Click on "Next".
5. Make sure that the checkbox "CD-ROM drive" is activated in the next
window.
Continue by clicking on "Next".

11
GB
3
Driver installation
6. The Hardware Wizard finds a "Freecom Freecom FHD-2".
By clicking on "Next" the necessary files will be installed. Afterwards click on
"Finish" to complete the installation. Congratulations! Youve just finished to
install the Freecom FHD-2 and the external hard drive is almost ready to use.

12
FREECOM FHD-2
GB
3
3.2 FHD-2 USB 2.0 & FireWire version
Driver installation USB under Windows 98 SE
Connect the drive always only either by the FireWire or by the USB port.
Note: Your Freecom FHD-2 is fully backwards compatible with USB 1.1.
The installation for USB 1.1 is the same as described below for USB 2.0.
1. Insert the Freecom Manual and driver CD into the CD-ROM drive.
2. Connect your Freecom FHD-2 to the USB connector of your notebook or
computer.
3. The "Add New Hardware Wizard" opens and a "USB 2.0 Device" (USB 2.0 PCI
Host Controller) or a "USB TO IDE" (USB 1.1 connector) is found.
Click on "Next".

13
GB
3
4. In the next window select "Search for the best driver for your device.
(Recommended)". Click on "Next".
5. Make sure that the checkbox "CD-ROM drive" is activated in the next
window.
Continue by clicking on "Next".
Driver installation USB 2.0/FireWire version

14
FREECOM FHD-2
GB
3
6. The Hardware Wizard finds a "Freecom Freecom FHD-2".
By clicking on "Next" the necessary files will be installed. Afterwards click on
"Finish" to complete the installation. Congratulations! Youve just finished to
install the Freecom FHD-2 and the external hard drive is almost ready to use.
Driver installation FireWire under Windows 98 SE
The required driver for is automatically installed under Windows ME / 2000 / XP once
the FireWire cable has been inserted and it is immediately allocated a drive letter.
Note: FireWire is only supported by Windows 98 SE (and above). If you
are using an older version, you must first update Windows.
1. The driver database is loaded automatically after you have connected the
FireWire cable to the PC.
2. (Only when you need) Now place the "Windows 98 Installation CD" in your
internal CD-ROM drive.
3. The "Hardware assistant" window appears on the screen. Click on "Next".
4. Select the item "Search for the best driver for the device" (Recommended)
and confirm with "Next".
5. The CD-ROM drive for the "Windows 98 Installation CD" driver installation
is selected in the next window. If the search in the CD-ROM drive has not yet
been activated, you should dial this point. Confirm with "Next".
6. The next window shows the driver file found on the CD-ROM. Confirm with
"Next".
7. Click on "Finish" in the next window.
8. In order for the changes to take effect, you must restart your computer.
Note: You can plug the drive in and unplug it at the FireWire port while
the PC is running. The drive will be recognized automatically under "My
Computer" when it is reconnected ("hot plug & play").

15
GB
4
CHAPTER 4: Daily use of the FHD-2
The hi-speed data transfer through the USB 2.0 and/or FireWire interface makes
it ideally suitable for data-storage, file sharing, backup, archiving, digital video
editing, audio playback and all applications that need fast file access.
1. LED
2."ON" / "OFF"
1. The status of LEDs
Die Freecom FHD-2 has two LEDs to indicate its status
LED: blue (left) red (right)
"Harddisk Access" "Power On"
2. Button for switching the FHD-2 on and off
Daily use of the FHD-2

16
FREECOM FHD-2
GB
5
CHAPTER 5: Partitioning your FHD-2
5.1 General information
Your FHD-2 was partitioned and formatted to provide you with the maximum
available capacity and compatibility. FAT32 was chosen as file system to assure
that you will be able to read your files on any PC. It is recommended not to
change the current configuration of your FHD-2.
For some users another file system might fit better for their needs. This manual
describes current limitations of most common file systems and Instructions to
enable you to adapt the FHD-2 to your needs.
5.2 File System features
Please refer to the tables below for an overview:
File systems supported by different operating systems
FAT FAT32 NTFS
Windows 98SE yes yes not supported
Windows ME yes yes not supported
Windows 2000 yes yes yes
Windows XP yes yes yes
Maximum size of a partition
FAT FAT32 NTFS
Windows 98SE 2 GB 60 GB *1, 2 n.a.
Windows ME 2 GB 2 TB *2 n.a.
Windows 2000 4 GB *3 32 GB 16 TB
Windows XP 4 GB *3 32 GB 16 TB
File system
Operating system
File system
Operating system
*1: A patch for Windows 98SE is required for hard disk larger than 60 GB.
*2: Hard disk capacity will not be displayed correctly by fdisk!
*3: FAT partitions larger than 2 GB can only be administrated by Windows 2000/XP.

17
GB
5
Partitioning your FHD-2
Example for different partitions with different file systems on one FHD-2
NTFS FAT32
120 GB 90GB 30 GB
The example above is a good solution for Windows 2000/XP users who sometimes
exchange data with Windows 98SE/ME PCs.
For storing the data under Windows 2000/XP both partitions can be used. As the
NTFS file system is not recognized by Windows 98SE/ME data to be used on these
operating systems must be stored on the FAT32 partition.
Please follow the steps below to adapt the FHD-2 for your needs.
File system
Total size of FHD-2

18
FREECOM FHD-2
GB
5
5.3 Partitioning your FHD-2 under Windows 98SE / Windows ME
Windows 98SE only: The fdisk version which is installed together with your
operating system does not recognize the correct size of hard disks larger than 64
GB.
Windows 98SE/ME: For large partitions fdisk will not display the partion size
correctly! Please ignore this as the partitioning results will still be OK.
5.3.1 Deleting a partition on the FHD-2 under Windows 98SE / ME
The following steps will explain how to delete a partition on your FHD-2.
1. Click on the "Start" button.
2. Select "Run".
3. Enter "fdisk" and confirm with "OK".
4. fdisk will be started. Answer the question "Do you wish to enable large disk
support?" by pressing the 'Return' key. FAT32 is now activated.
5. Choose Option 5 "(Change current fixed disk drive)" by pressing '5' and
'Return'.
6. Select the hard disk to be deleted by its number. ATTENTION: Please make
sure that the correct drive is selected. Selecting the wrong drive will lead to
a loss of your data!
7. Choose Option "3 (Delete partition or Logical DOS Drive)" by pressing '3' and
'Return'.
8. Your FHD-2 comes formatted as primary partition. Select option 1 "Delete
Primary DOS Partition" by pressing '1' and 'Return'.
9. Select the partition to be deleted by pressing its number and 'Return'.
10. Enter the drive label and press 'Return'.
11. Confirm with 'Y' and 'Return' to delete the partition.
12. Press the 'ESC' key to return to the fdisk options.
13. Press 'ESC' to exit fdisk. Stop your hard disk by using the hot unplug icon in
the lower right corner of your screen and remove the FireWire cable from
your hard disk. Afterwards connect your hard disk again with your computer.
The hard disk will now be recognized by Windows.
As Windows tries to access your hard disk an error message will appear. This
happens, because your hard disk is not yet formatted.

19
GB
5
Partitioning your FHD-2
5.3.2 Creating a partition on the FHD-2 under Windows 98 SE / ME
The following steps will guide you the process of creating partitions on your
FHD-2 under Windows 98SE/ME. After this procedure your Freecom FHD-2 will
be ready for use and it will be allocated a drive letter.
1. Click on the "Start" button.
2. Select "Run".
3. Enter "fdisk" and confirm with "OK".

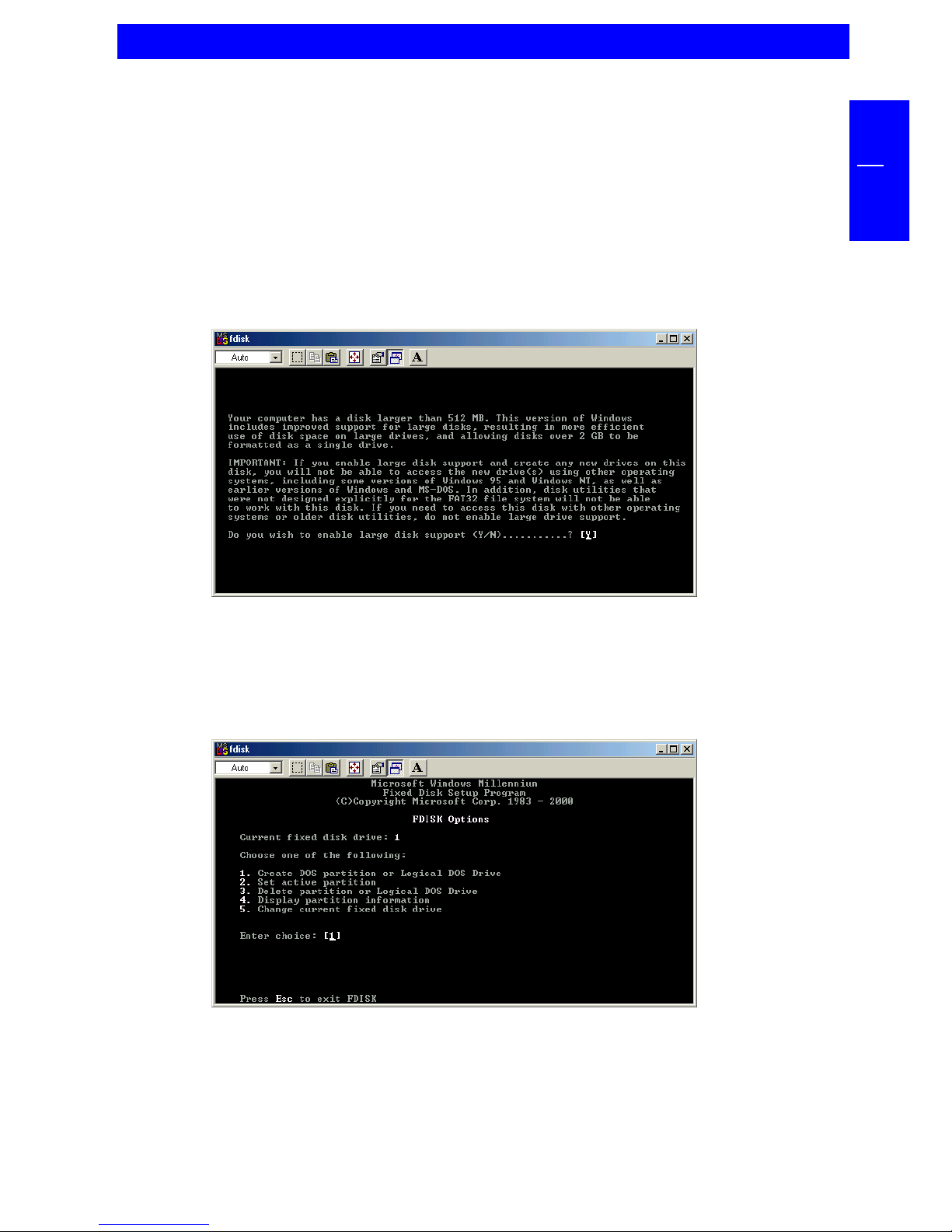

4. Answer the question "Do you wish to enable large disk support?" by pressing
the 'Return' key. FAT32 is now activated.
5. Choose Option "5 (Change current fixed disk drive)" by pressing '5' and
'Return'.
6. Select the hard disk by its number where the "Usage" contains no value but
only a percent symbol. Select the number of the corresponding hard disk and
confirm by pressing the "Return" key.
Now your hard disk is activated and ready to be partitioned.

20
FREECOM FHD-2
GB
5
Note: Partition size of large hard disks will not be displayed correctly!
However partitioning results will be OK.
7. Select Option 1 "(Create DOS partition or Logical DOS drive)" by pressing '1'
and confirm with 'Return'.
8. Select Option 1 "(Create primary DOS partition)" by pressing '1' and confirm
with 'Return'.
Wait until drive integrity is completely checked.
9. If only one partition is required then answer "Y" to the question: "Do you
wish to use the maximumavailable size for a Primary DOS partition?" If more
than on partition is required go to the next section "Create two or more
partitions on the FHD-2 under Windows 98 / Windows ME".
Now the whole disk will be partitioned as one primary partition. Wait until
the drive integrity check is completed.
10. Press the 'ESC' key to return to the fdisk options.
11. Now press the 'ESC' key to close the "fdisk window". Your hard disk is now
partitioned.
