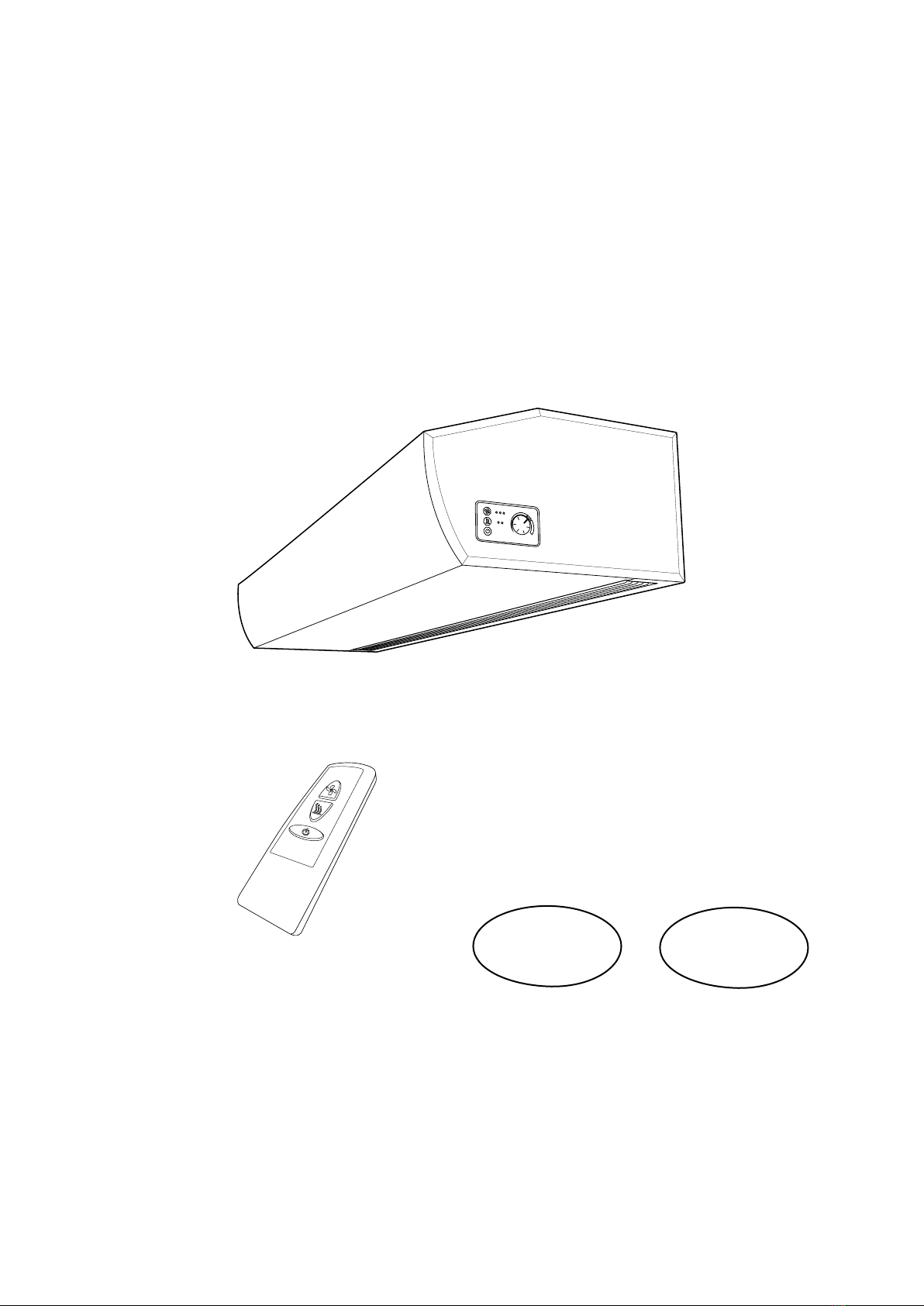

Frico PL3200C User manual

PL3200C
Recommended installation height 3,2 m
GB FR

PL3200C
2

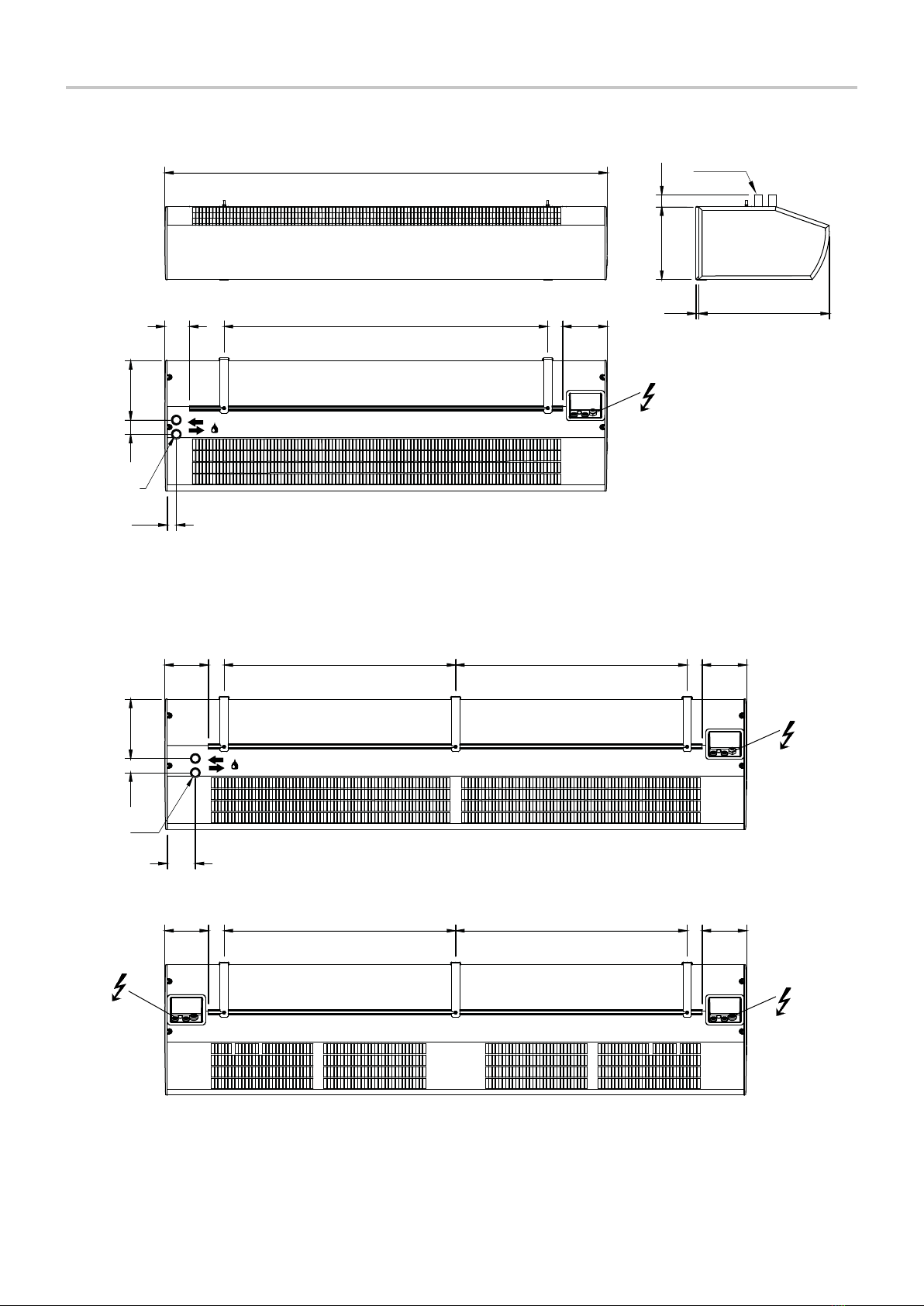

Fig. 1
1046 / 1556 / 2046
459
42
10
256
min 500 15787
209
50
DN20 (3/4 ")
32
153 min 500 min 500 157
157
min 500 min 500 153
99
50 209
DN20 (3/4 ")
1046 / 1556 / 2046
459
42
10
256
min 500 15787
209
50
DN20 (3/4 ")
32
153 min 500 min 500 157
157
min 500 min 500 153
99
50 209
DN20 (3/4 ")
L = 2 m
A / W
E
DN20 (3/4")
outside thread
1046 / 1556 / 2046
459
42
10
256
min 500 15787
209
50
DN20 (3/4 ")
32
153 min 500 min 500 157
157
min 500 min 500 153
99
50 209
DN20 (3/4 ")

PL3200C
3

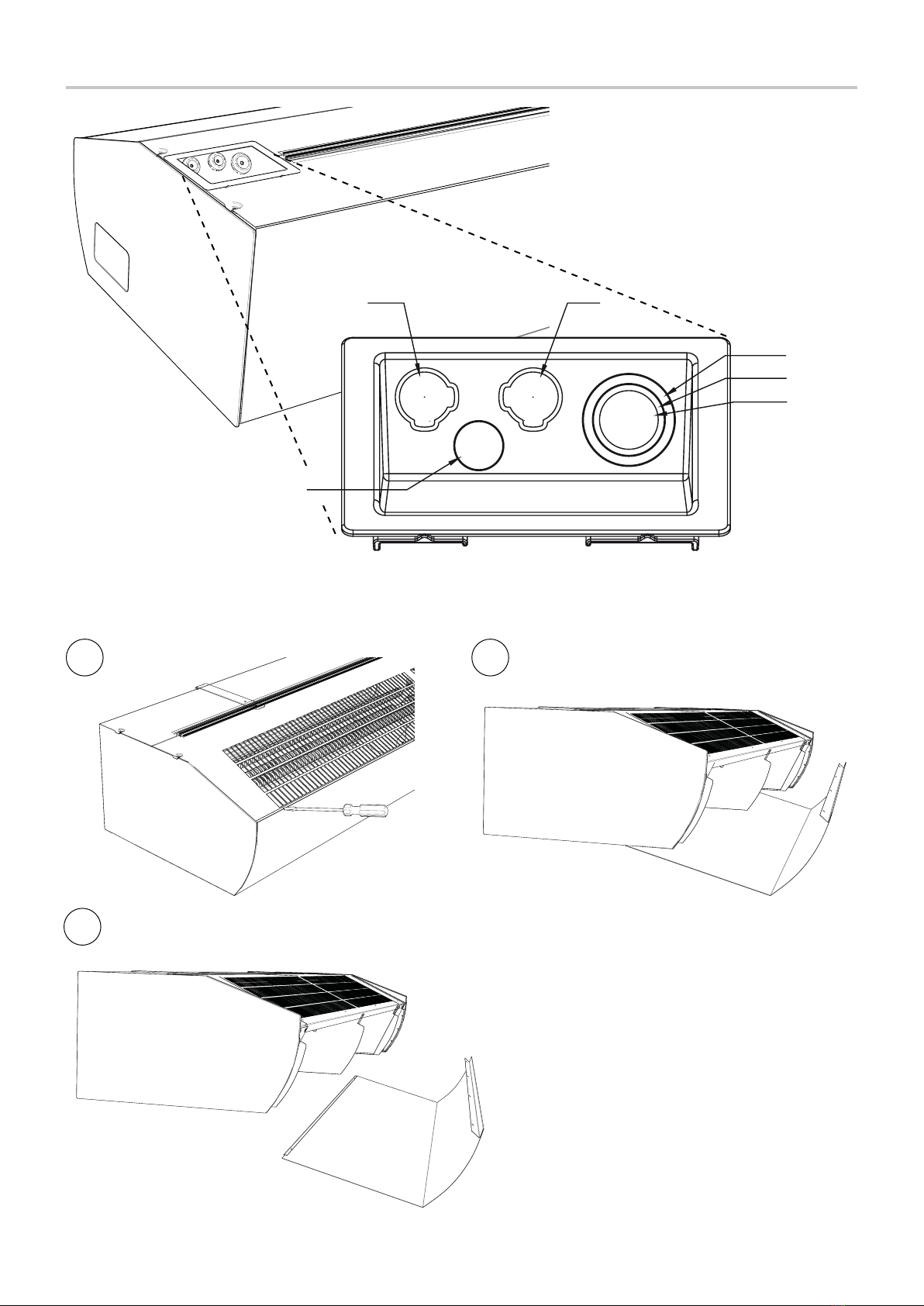

Fig. 2
Fig. 3: Open the unit.
A B
C
Gland
Knock-out
Knock-out
Knock-out
ø17, 5ø17,5
ø32,5
ø25,5
ø20,5
ø17, 5
Gland Gland

PL3200C
4

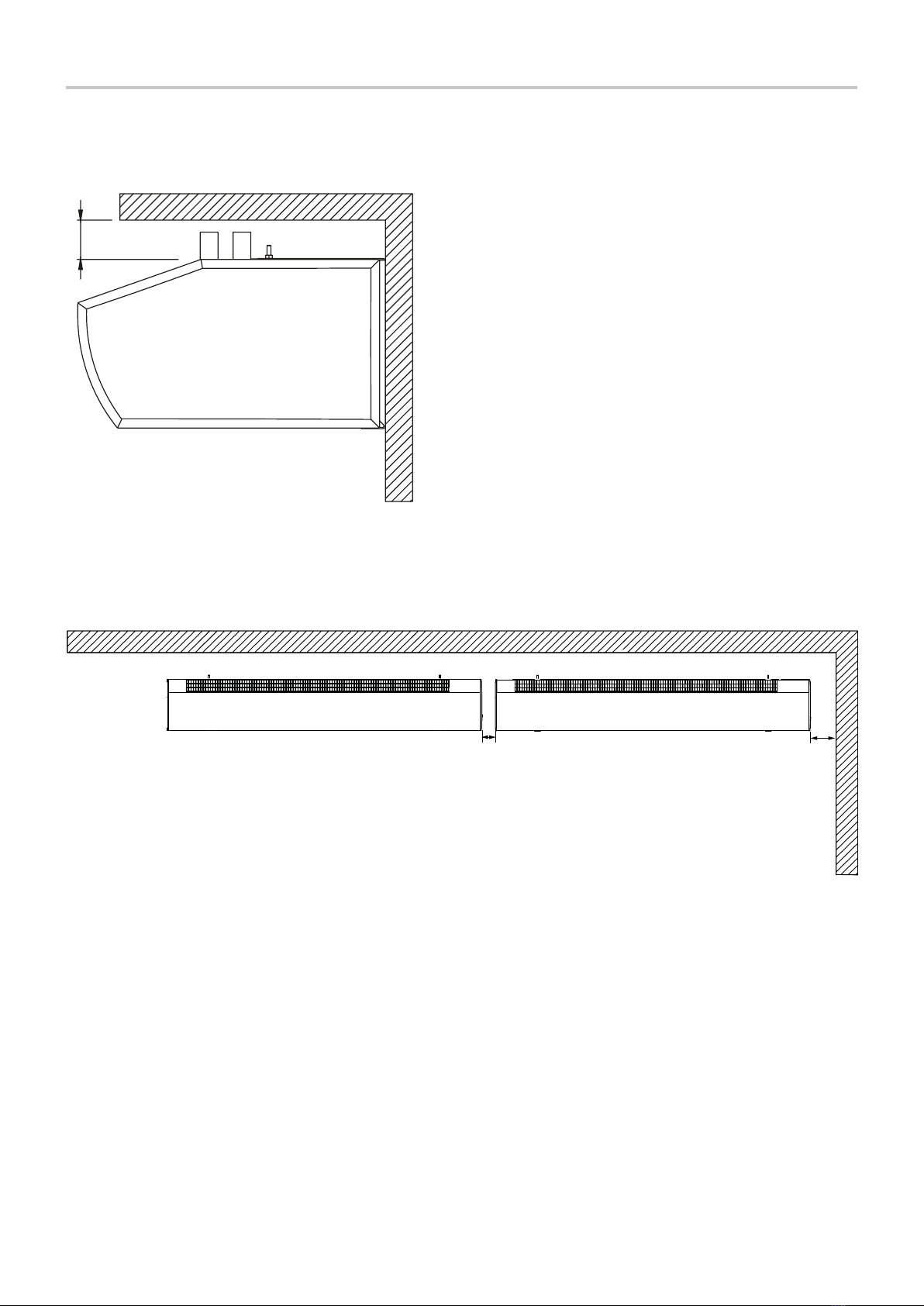

Fig. 4
Fig. 5
Minimum distance
30 mm 60 mm
min 60

PL3200C
5
min 500 mm
Fig. 6: Mounting with wall brackets
Mounting with wall brackets
PL3210C 2 pcs
PL3215C 2 pcs
PL3220C 3 pcs
AB
C
D
Ø8 (3x)
Ø7
Ø16
213
37
260
75 35 20

PL3200C
6

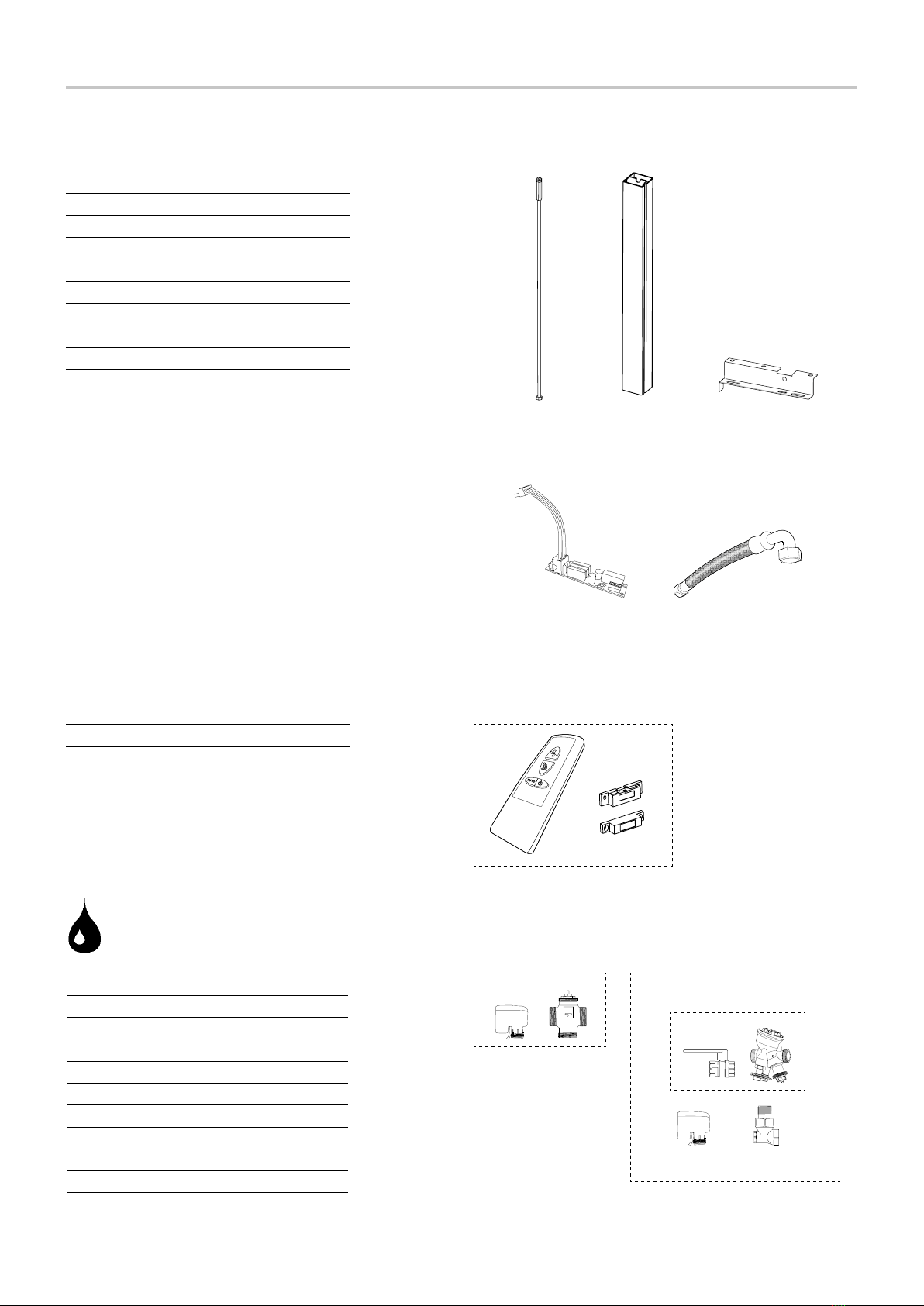

Accessories
PA34TR15 PL3210C, PL3215C, 1 m
PA34TR20 PL3220C, 1 m
PA2P15 PL3210C, PL3215C, 1 m
PA2P20 PL3220C, 1 m
PA3PF15 PL3210C, PL3215C
PA3PF20 PL3220C
PAMLK PL3200C
FHDN20 PL3200C W
PA34TR PA2P PA3PF
PAMLK FHDN20
PL2DR
VOT
VOT15 DN15
VOT20 DN20
VOT25 DN25
VKF15LF DN15
VKF15NF DN15
VKF20 DN20
VKF25 DN25
VKF32 DN32
SD230
BPV10
VKF
SD230 BPV10
VLSP
PL2DR

PL3200C
7
PL3210CA / PL3215CA / PL3220CA
5A x 3
5A
16A
NH1H2
N
1
On
Off
F1 F2 F3
on/off2
N
LPE NL
PE
~
0 -10V
0 - 10V HEAT
ALARM
WATER
IR
PL3210CA PL3215CA PL3220CA
C°
3220CA 3215CA 3210CA Red
Red
Black
Blue
Brown
LN Low
Mid b1 c1
Orange
Yellow Yellow Yellow
Mid Low
Blue
Black
b1 c1
Orange
Red
Orange
White White White
Black
Blue
Brown
M
Left motor
~
Run
Only 2 m version
Black
Blue
Low
LN Mid c1b1
M
Right motor
~
Run

PL3200C
8

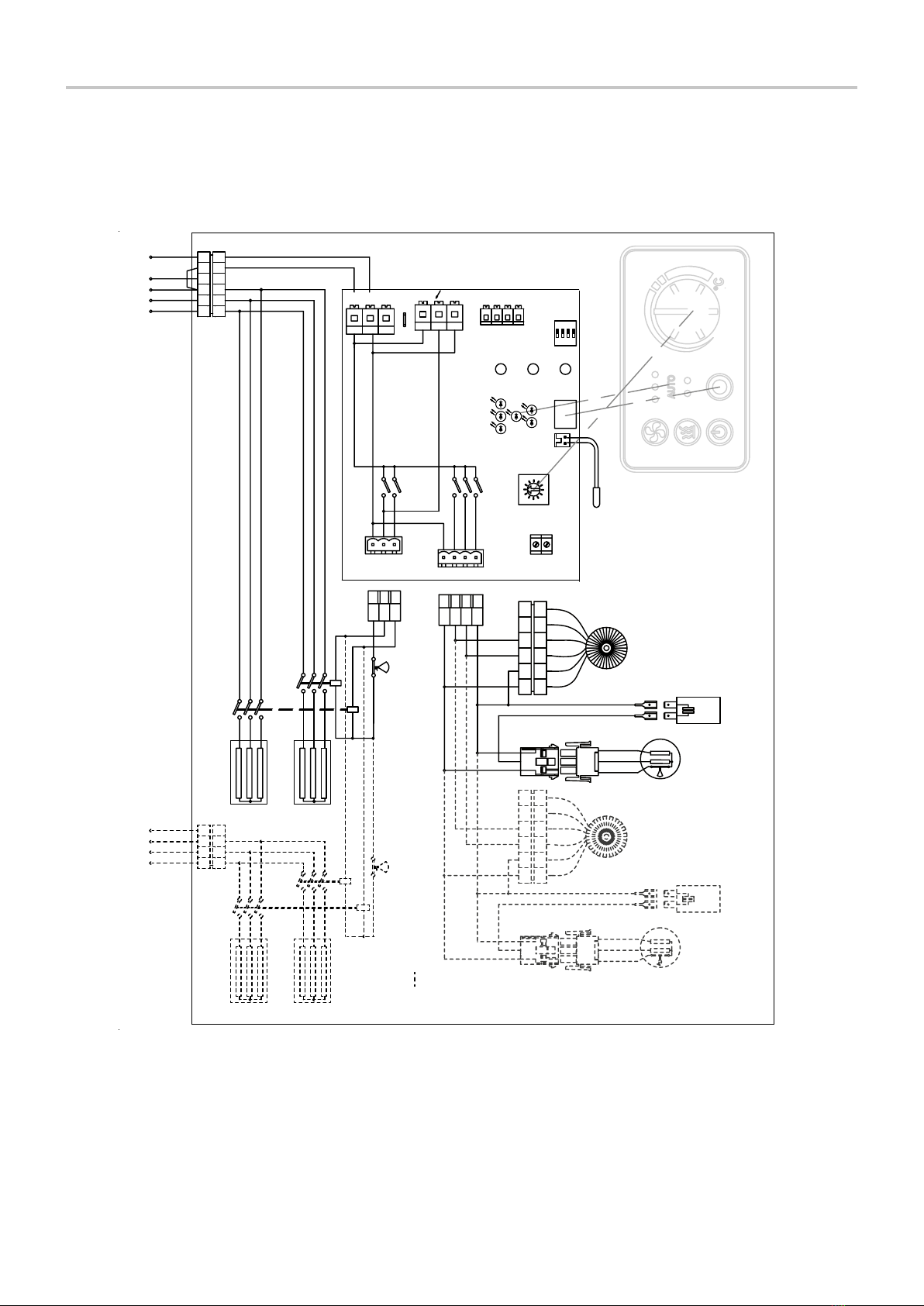

PL3210CE8 / PL3215CE12 / PL3220CE16
5A x 3
5A
16A
NH1H2
N
1
On
Off
F1 F2 F3
on/off2
N
LPE NL
PE
~
0 -10V
0 - 10V HEAT
ALARM
WATER
INTERNAL SENSOR
IR
K2
Over heat cut-out
°C
K1K1 = high power
K2 = low power
L2 PE
L1 LN
L3
400V 3N~
Over heat
°C
cut-out
PL3210CE PL3215CE PL3220CE
Only 2 m version
K4
K3K3 = high power
K4 = low power
PE
400V3~
L2 L1
L3
C°
Black
Brown
Blue
Mid Low
N L c1
b1
Red
Yellow
Orange
White
Blue
Black
M
Left motor
~
Run
M
Right motor
~
Run
Black
Blue
Brown
Nb1 c1
Mid
LLow
Red
Yellow
Orange
Black
Blue
White

PL3200C
9
5A x 3
5A
16A
NH1H2
N
1
On
Off
F1 F2 F3
on/off2
N
LPE NL
PE
~
0 -10V
0 - 10V HEAT
ALARM
WATER
INTERNAL SENSOR
IR
PL3210CW PL3215CW PL3220CW
Black
Brown Blue
C°
3220CW 3215CW 3210CW
Red
Black
Blue
Brown
LN Low
Mid b1 c1
Orange Orange
White
Yellow
White
Mid Low
Blue
Black
b1 c1
Red
Orange
Red
Yellow
White
Yellow
Black
Blue
Brown
M
Left motor
~
Run
Only 2 m version
Black
Blue
Low
LN Mid c1b1
M
Right motor
~
Run
PL3210CW / PL3215CW / PL3220CW

PL3200C
10

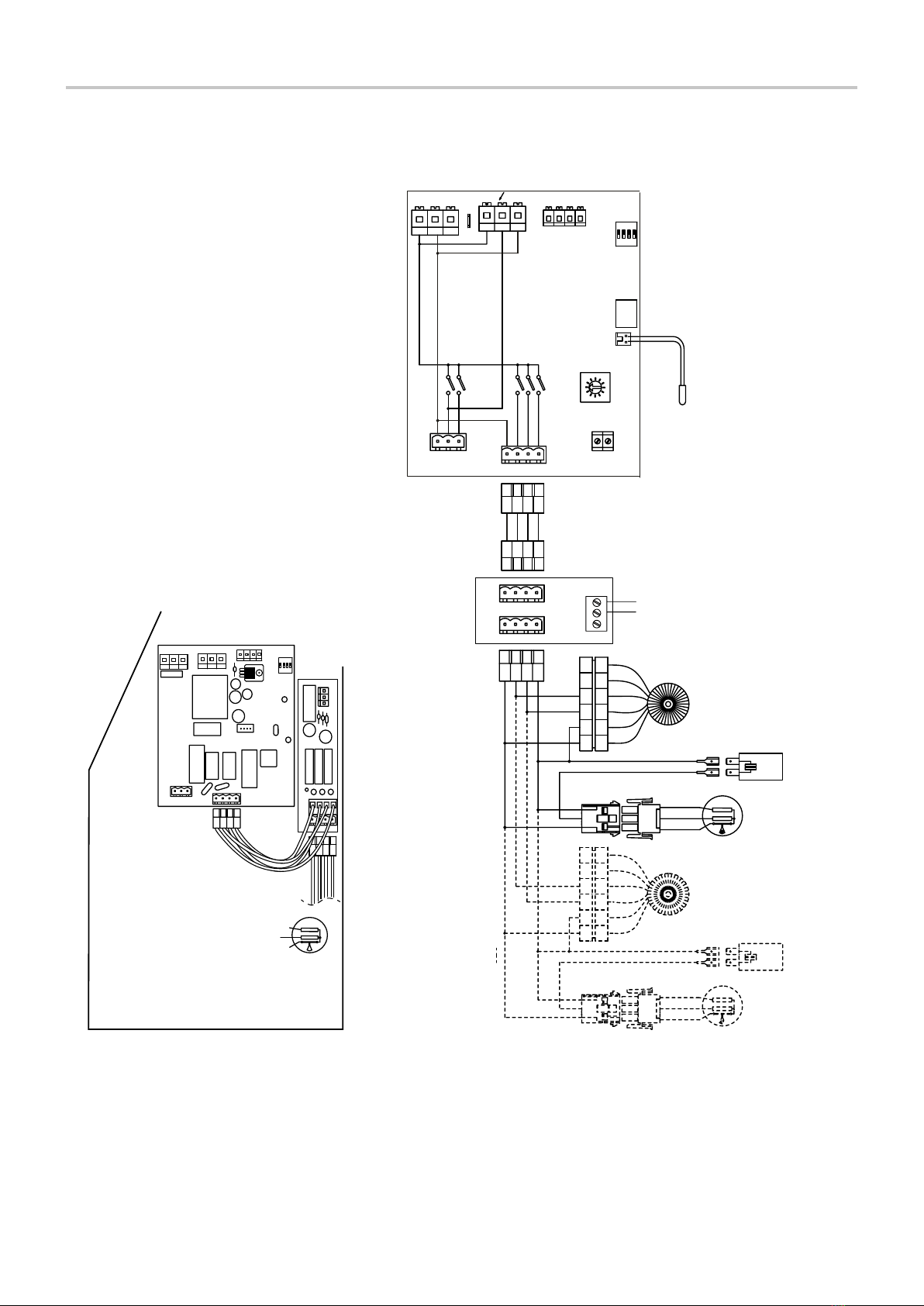

PAMLK
On
Off
M
C°
~
NF1F2F3
OUT PAMLK
CNC NO
Motor alarm (pot. free contact)
5A x 3
5A
16A
NH1H2
N
1
On
Off
F1 F2 F3
on/off2
N
LPE NL
PE
~
0 -10V
0 - 10V HEAT
ALARM
WATER
INTERNAL SENSOR
IR
C°
Black
Brown
Blue
Mid Low
N L c1
b1
M
Le
ft
motor
~
Run
M
Right motor
~
Run
Black
Blue
Brown
Nb1 c1
Mid
LLow
Only 2 m version

PL3200C
11
Type Output
[kW]
Airflow*1
[m3/h]
Sound
level*2
[dB(A)]
Voltage
motor
[V]
Amperage
motor
[A]
Length
[mm]
Weight
[kg]
PL3210CA 0 1100/1750 46/57 230V~ 0,7 1046 22
PL3215CA 0 1700/2750 46/59 230V~ 1,0 1556 31
PL3220CA 0 2300/3500 50/60 230V~ 1,3 2046 41
Type Output
step
[kW]
Airflow*1
[m3/h]
∆t*3
[°C]
Sound
level*2
[dB(A)]
Voltage
motor
[V]
Amperage
motor
[A]
Voltage [V]
Amperage [A]
(heat)
Length
[mm]
Weight
[kg]
PL3210CE08 5/8 1100/1750 22/13 46/57 230V~ 0,65 400V3~/11,5 1046 26
PL3215CE12 8/12 1700/2750 21/13 46/59 230V~ 1,0 400V3~/17,3 1556 37
PL3220CE16 10/16 2300/3500 22/13 50/60 230V~ 1,3 400V3~/23,1 2046 51
Type Output*4
[kW]
Airflow*1
[m3/h]
∆t*3,4
[°C]
Water
volume
[l]
Sound
level*2
[dB(A)]
Voltage
motor
[V]
Amperage
motor
[A]
Length
[mm]
Weight
[kg]
PL3210CW 8 1050/1700 16/14 1,3 45/55 230V~ 0,65 1046 26
PL3215CW 14 1850/2700 17/15 2,1 46/57 230V~ 0,7 1556 36
PL3220CW 18 2200/3300 18/16 2,7 49/58 230V~ 1,3 2046 48
2Water heat - PL3200C W
3Electrical heat - PL3200C E
1Ambient, no heat - PL3200C A
*1) Lowest/highest airflow of totally 3 fan steps.
*2) Conditions: Distance to the unit 5 metres. Directional factor: 2. Equivalent absorption area: 200 m². At
lowest/highest airflow.
*3) ∆t = temperature rise of passing air at maximum heat output and lowest/highest airflow.
*4) Applicable at water temperature 60/40 °C, air temperature, in +18 °C.
Protection class for units with electrical heating: IP20.
Protection class for units without heating and units with water heating: IP21.
CE compliant.

PL3200C
12
Output charts water PL3200C
*1) Recommended outlet air temperature for good comfort and optimized output.
*2) Nominal output at given supply and return water temperature.
Supply water temperature:80 °C
Room temperature: +18 °C
Outlet air temperature: +35 °C*1
Water temperature: 80/60 °C
Room temperature: +18 °C
Type Fan
position
Airflow
[m3/h]
Output
[kW]
Return
water temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
Output *2
[kW]
Outlet
air temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
PL3210CW max 1700 9,8 42 0,06 1,4 14,6 43 0,18 8,5
min 1050 6,2 38 0,04 0,5 10,6 48 0,13 4,8
PL3215CW max 2700 15,6 38 0,09 2,0 24,7 45 0,30 16,8
min 1850 10,5 34 0,06 0,9 19,2 49 0,23 10,6
PL3220CW max 3300 18,6 36 0,10 1,9 31,2 46 0,38 19,0
min 2200 12,6 34 0,07 0,9 23,7 50 0,29 11,5
Supply water temperature: 60 °C
Room temperature: +18 °C
Outlet air temperature: +35 °C*1
Water temperature: 60/40 °C
Room temperature: +18 °C
Type Fan
position
Airflow
[m3/h]
Output
[kW]
Return
water temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
Output *2
[kW]
Outlet
air temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
PL3210CW max 1700 10,0 48 0,19 10,5 8,0 32 0,10 3,1
min 1050 6,1 41 0,08 2,1 5,8 34 0,07 1,8
PL3215CW max 2700 16,0 45 0,26 13,4 13,9 33 0,17 6,3
min 1850 10,8 40 0,13 4,0 10,8 35 0,13 4,0
PL3220CW max 3300 18,9 42 0,26 10,2 1 7, 6 34 0,21 7, 1
min 2200 12,9 39 0,15 3,6 13,4 36 0,16 4,4
Supply water temperature: 55°C
Room temperature: +18 °C
Outlet air temperature: +35 °C*1
Water temperature: 55/35°C
Room temperature: +18 °C
Type Fan
position
Airflow
[m3/h]
Output
[kW]
Return
water temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
Output *2
[kW]
Outlet
air temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
PL3210CW max 1700 9,8 48 0,35 31,3 6,3 29 0,08 2,1
min 1050 5,9 42 0,11 3,6 4,6 31 0,06 1,2
PL3215CW max 2700 15,7 46 0,42 32,9 11,2 30 0,14 4,3
min 1850 10,8 42 0,19 8,1 8,7 32 0,11 2,8
PL3220CW max 3300 18,7 44 0,40 22,4 14,1 31 0,17 4,9
min 2200 12,5 39 0,19 5,9 10,7 32 0,13 3,0
Supply water temperature:70 °C
Room temperature: +18 °C
Outlet air temperature: +35 °C*1
Water temperature: 70/50 °C
Room temperature: +18 °C
Type Fan
position
Airflow
[m3/h]
Output
[kW]
Return
water temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
Output *2
[kW]
Outlet
air temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
PL3210CW max 1700 9,7 44 0,09 2,7 11,3 38 0,14 5,5
min 1050 6,1 39 0,05 0,9 8,3 41 0,10 3,2
PL3215CW max 2700 15,6 41 0,13 3,9 19,4 39 0,24 11,1
min 1850 11,0 38 0,08 1,7 15,0 42 0,18 7, 0
PL3220CW max 3300 18,9 39 0,15 3,7 24,4 40 0,30 12,5
min 2200 12,9 36 0,09 1,6 18,6 43 0,23 7, 6

13
PL3200C
GB
Mounting
The air curtain unit is installed horizontally
with the supply air grille facing downwards
as close to the door as possible. Minimum
distance from outlet to floor for electrically
heated units is 1800 mm. For other minimum
distances, see fig. 4.
Brackets and torx bit are enclosed in the
gable end packaging upon delivery.
Mounting with wall brackets (fig. 6)
1.Mount the brackets on the wall, see fig.6A
and dimension drawing fig.1. If the wall is
uneven the brackets must be compensated
for this.
2.Hook on the unit at the lower edge of the
brackets. (Fig.6B-C)
3.Bend the top of the console over the the
unit and slide the units screws along the
rail into the slots on the consoles. (Fig.6D)
When the bracket is bent once, it must be
replaced if bent back more than 45 °.
4.Lock the nuts against the brackets. (Fig.6E)
Horizontal mounting on the ceiling
Threaded rods, hanging brackets and ceiling
mounting brackets for ceiling mounting are
available as accessories, see accessories pages
and separate manuals.
Electrical installation
The installation, which should be preceded
by an omnipolar switch with a contact
separation of at least 3 mm, should only
be wired by a competent electrician and in
accordance with the latest edition of IEE
wiring regulations. The control system is pre-
installed in the air curtain.
Unit without heating
Connected via the built-in control board with
1,5 m cord and plug.
Unit with water heating
Connected via the built-in control board with
1,5 m cord and plug.
General Instructions
Read these instructions carefully before
installation and use. Keep this manual for
future reference.
The product may only be used as set out in
the assembly and operating instructions. The
guarantee is only valid if the product is used
in the manner intended and in accordance
with the instructions.
Application
PL3200C is a compact air curtain with a
recommended installation height of 3,2
metres. The air curtain has an integrated
control system and can be remotely
controlled.
The air curtain is available without heat,
with electrical heating and with water heating.
Protection class for units with electrical
heating: IP20.
Protection class for units without heating and
units with water heating: IP21.
Operation
Air is drawn in at the top of the unit and
blown out downwards so that it shields the
door opening and minimizes heat loss. To
achieve the optimum curtain effect the
unit must extend the full width of the door
opening.
The grille for directing exhaust air is
adjustable and is normally angled outwards to
achieve the best protection against incoming
cold air.
The efficiency of the air curtain depends
on the air temperature, pressure differences
across the doorway and any wind pressure.
NOTE! Negative pressure in the building
considerably reduces the efficiency of the air
curtain. The ventilation should therefore be
balanced.

14
PL3200C GB
Start-up (E)
When the unit is used for the first time or
after a long period of disuse, smoke or odour
may result from dust or dirt that has collected
on the element. This is completely normal
and disappears after a short time.
Connecting the water coil (W)
The installation must be carried out by an
authorised installer.
The water coil has copper tubes with
aluminium fins and is suitable for connection
to a closed water heating system. The heating
coil must not be connected to a mains
pressure water system or an open water
system.
Note that the unit shall be preceded by a
regulating valve, see Frico valve kit.
The water coil is connected on top of the unit
via steel pipes with DN20 (3/4’’) terminals,
external thread. Flexible hoses are available
as accessories, see accessories pages.
The connections to the heating coil must
be equipped with shut off valves to allow
problem free removal. Water coil is equipped
with a drain valve. A vent valve should be
connected at a high point in the pipe system.
Air valves are not included.
NOTE: Care must be taken when
connecting the pipes. Use a wrench or similar
to hold the air curtain connections to prevent
straining of the pipes and subsequent water
leakage during connection to water supply
pipe-work.
Adjustment of the air curtain and air flow
The direction and speed of the air flow should
be adjusted considering the load on the
opening. Pressure forces affect the air stream
and make it bend inwards into the premises
(when the premises are heated and the
outdoor air is cold).
The air stream should therefore be directed
outwards to withstand the load. Generally
speaking, the higher the load, the greater the
angle that is needed.
Basic setting fan speed
The fan speed when the door is open is set
using the control. Note that the air flow
direction and fan speed may need fine
adjustment depending on the loading of the
door.
Filter (W)
The water coil is protected against dirt and
blockage by an internal air filter which covers
the coil face.
[kW] [V] [mm2]
0 230V~ 1,5
PL3210CE08 8 400V3~ 2,5
PL3215CE12 12 400V3~ 4
PL3220CE16 16 400V3~ 6
*) Dimensioning of external wiring shall comply
with applicable regulations and local deviations
may occur.
Type Output Voltage Minimum
area*
Control
Unit with electrical heating
The electrical connection is made on the top
of the unit. See Fig.2. Control (230V~) and
power supply for heat (400V3~) should be
connected to a terminal block in the terminal
box. 2-metre and longer units require dual
power supplies.
The largest cable diameter for the terminal
block is 16 mm². The cable glands used must
meet the protection class requirements. In
the distribution board it is to be indicated
that ”the air curtains can be supplied from
more than one connection”.
See wiring diagrams.

15
PL3200C
GB
Overheating
The air curtain unit with electric heater is
equipped with an overheat protector. If it is
deployed due to overheating, reset as follows:
1.Disconnect the electricity with the fully
isolated switch.
2.Determine the cause of overheating and
rectify the fault.
3.Remove the front hatch.
4.Press the red button located inside the
air curtain unit, at the inner gable of the
terminal box.
5.Reattach the front hatch and connect the
unit again.
All motors are equipped with an integral
thermal safety cut-out. This will operate,
stopping the air curtain should the motor
temperature rise too high. The cut-out
will automatically reset when the motor
temperature has returned to within the
motor’s operating limits.
Temperature control
See control pages.
Replacing heating elements/heating
package (E)
1.Mark and disconnect the cables to the
heating elements/package
2.Remove the mounting screws securing the
heating elements/package in the unit and
lift the heaging elements/package out.
3.Install the new heating elements/package in
reverse order to the above.
Service, repairs and maintenance
For all service, repair and maintenance first
carry out the following:
1.Disconnect the power supply.
2.The front hatch is removed by removing
the screws on the top of the unit and then
detach the bent edge at the bottom. (Fig.3)
3.After the service, repair and maintenance
reattach the front hatch. Place the hatch
at the lower edge with the bent edge and
fasten on top with screws.
Note that when carrying out work where the
end is removed, the outlet grille also detaches.
Maintenance
Unit with water heating
The appliance filter should be cleaned
regularly to ensure the air curtain effect and
the heat emission from the device. How often
depends on local circumstances. A clogged
filter is not a risk, but the appliance function
can fail.
1. Disconnect the power supply.
2. The front hatch is removed by removing
the screws on the top of the unit and then
detach the bent edge at the bottom. (Fig.3)
3. Remove the filter and vacuum clean or
wash it. If the filter is clogged or damaged, it
may need to be changed.
All units:
Since fan motors and other components are
maintenance free, no maintenance other than
cleaning is necessary. The level of cleaning
can vary depending on local conditions.
Undertake cleaning at least twice a year. Inlet
and exhaust grilles, impeller and elements
can be vacuum cleaned or wiped using a
damp cloth. Use a brush when vacuuming
to prevent damaging sensitive parts. Avoid
the use of strong alkaline or acidic cleaning
agents.
Replacing motor or impeller
1.Remove gable end.
2.Remove the screw between motor and fan.
3.Disconnect the cables to the motor.
4.Remove the screws securing the motor and
lift it out together with the impeller.
5.Install the new motor and/or the new
impeller as above in reverse order.

16
PL3200C GB
Draining the water coil (W)
The drain valve is on the underside of the coil
on the connector side. It can be accessed via
the front hatch.
Safety
• For all installations of electrically heated
products should a residual current circuit
breaker 300 mA for fire protection be used.
• Keep the areas around the air intake
and exhaust grilles free from possible
obstructions!
• The unit may have hot surfaces during
operation and when cooling down!
• The unit must not be fully or partially
covered with clothing, or similar
materials, as overheating can result in a
fire risk! (E)
• Lifting equipment must be used to lift the
unit.
• This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved. Children
shall not play with the appliance. Cleaning
and user maintenance shall not be made
by children without supervision.
Trouble shooting
If the fans are not working or do not blow pro-
perly, check the following:
• The functions and settings of the built-in
control system.
• That the intake grille/filter is not dirty.
If there is no heat, check the following:
• The functions, internal sensor and settings
of the built-in control system.
For units with electrical heating, also check the
following:
• Power supply to electric heater coil; check
fuses and circuit-breaker (if any).
• That the overheat protection for the motors
has not been deployed.
For units with water coil, also check the follo-
wing:
• That the water coil is air free.
• That there is enough water flow.
• That incoming water is heated enough.
If the fault cannot be rectified, please contact
a qualified service technician.
Residual current circuit breaker (E)
When the installation is protected by means
of a residual current circuit breaker, which
trips when the appliance is connected,
this may be due to moisture in the heating
element. When an appliance containing a
heater element has not been used for a long
period or stored in a damp environment,
moisture can enter the element.
This should not be seen as a fault, but is
simply rectified by connecting the appliance
to the main supply via a socket without a
safety cut-out, so that the moisture can be
eliminated from the element. The drying
time can vary from a few hours to a few days.
As a preventive measure, the unit should
occasionally be run for a short time when it is
not being used for extended periods of time.
Replacing the water coil (W)
1.Shut off the water supply to the unit.
2.Disconnect the connections to the water
coil.
3.Detach the plastic ends.
4.Detach the intake grille by drilling out the
rivet(s).
5.Remove the mounting screws securing the
coil in the unit and lift the coil out.
6.Install the new coil in reverse order to the
above.

17
PL3200C
GB
1234
ON
1234
ON
230V~

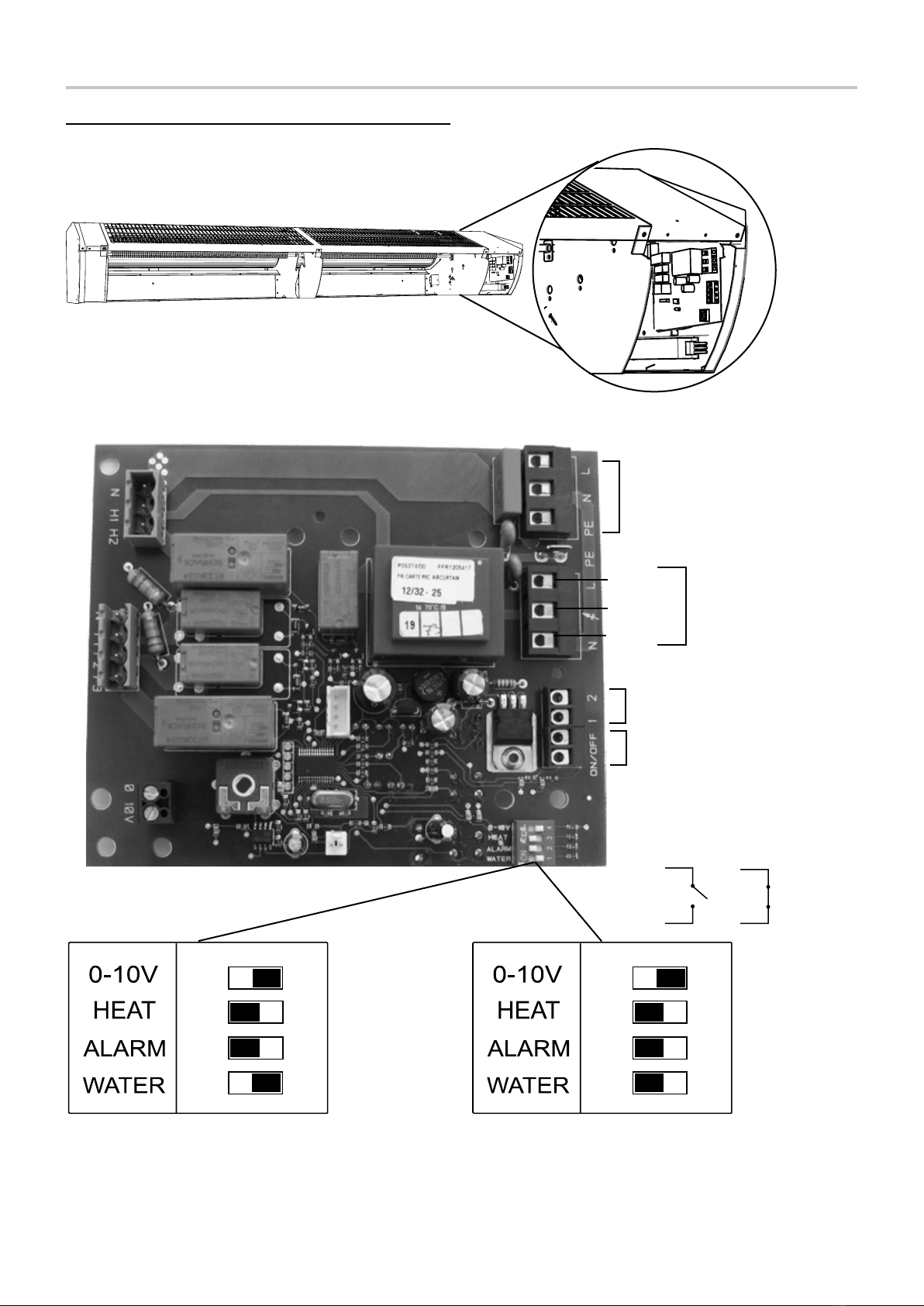

Controls
The air curtain has an integrated control
system and can be remotely controlled.
ON OFF
Actuator SD230
(remove the quick
connector)
Black
Brown
Blue
External on/off
Eg time switch.
External potential free
closure = off
PL2DR
(accessory)
Factory setting dip-switches - Unit without heating
or with electrical heating
Dip-switch 3 is used for PL2DR (optional).
21
3
Factory setting dip-switches - Unit with water
heating
Dip-switch 3 is used for PL2DR (optional).

18
PL3200C GB
On/off
~20 °C
Fan step 1/2/3
On/off
Fan step 1/2/3
Remote control - on/off, fan steps and heating steps
Heat step
Electric: Half/full power
Water: On/off (1 LED)
Control panel - Unit without heating
Control panel - Unit with electrical heating or water
heating
1
3
2
Temperature control
If the temperature exceeds 50 °C, the fan
runs at full speed for 2 minutes to vent out
the heat, if the temperature rises above 50
°C again during the following 5 minutes
overheating alarm is deployed. The red LEDs
flash and all the buttons are locked.
1.Disconnect the electricity with the fully
isolated switch.
2.Determine the cause of overheating and
rectify the fault.
3.Connect the unit again.
Functional test
Functional test is started using the remote
control.
Push
and
in 5 seconds
Fan and heatings steps are tested in
10-second intervals which is indicated by
lighted LEDs. When the test is completed, all
LEDs will flash for 30 seconds.

Art.no.117959, 2013-10-24 CH/HH
Technical Support - tel. [phone]
