Frico PAEC4010A-NA User manual

PAEC4000
Original instructions
.... 23
EN .... 28 .... 35 FR ES
Frico AB certies that PAEC4000W, PAEC4000E and PAEC4000A shown herein are licensed to bear
the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance
with AMCA Publication 211 and AMCA Publication 311 and comply with the requirements of
the AMCA Certied Ratings Program. The AMCA Certied Ratings Seal applies to airow rate,
average outlet velocity, outlet velocity uniformity, velocity projection and power rating at free
delivery only.

PAEC4000
2
Type Output
[kW]
Airow*1
[m3/h]
Sound
power*2
[dB(A)]
Motor
power
[W]
Voltage
motor
[V]
Amperage
motor
[A]
Weight
[kg]
PAEC4010A-NA 0 2330 80 500 208V1~ 3.0 38
PAEC4015A-NA 0 3270 81 673 208V1~ 4.5 49
PAEC4020A-NA 0 4650 82 1000 208V1~ 6.0 64
PAEC4025A-NA 0 5600 83 1173 208V1~ 7.5 78
Type Output
steps
[kW]
Airow*1
[m3/h]
Sound
power*2
[dB(A)]
FLA (full load
amperage)*3
[A]
Motor
power
[W]
Amperage
motor
[A]
Voltage [V]
Amperage [A]
(heat)
Weight
[kg]
PAEC4010E10-208VNA 4/10 2330 80 31 500 3.0 208V3~/27 42
PAEC4015E15-208VNA 5/15 3270 81 45 673 4.5 208V3~/40 57
PAEC4020E20-208VNA 7/20 4650 82 60 1000 6.0 208V3~/54 78
PAEC4010E12-480VNA 4/12 2330 80 18 500 3.0 480V3~/15 47
PAEC4015E18-480VNA 6/18 3270 81 27 673 4.5 480V3~/22 62
PAEC4020E20-480VNA 8/24 4650 82 35 1000 6.0 480V3~/29 84
PAEC4025E24-480VNA 10/30 5600 83 45 1173 7.5 480V3~/37 106
PAEC4010E12-600VNA 4/12 2330 80 15 500 3.0 600V3~/12 47
PAEC4015E18-600VNA 6/18 3270 81 23 673 4.5 600V3~/18 62
PAEC4020E24-600VNA 8/24 4650 82 30 1000 6.0 600V3~/24 84
PAEC4025E30-600VNA 10/30 5600 83 38 1173 7.5 600V3~/30 106
Type Output*4
[kW]
Airow*1
[m3/h]
Sound
power*2
[dB(A)]
Motor
power
[W]
Voltage
motor
[V]
Amperage
motor
[A]
Water
volume
[l]
Weight
[kg]
PAEC4010W-NA 16 2130 79 501 208V1~ 3.0 1.9 45
PAEC4015W-NA 25 3100 79 666 208V1~ 4.0 3.0 56
PAEC4020W-NA 35 4250 81 1002 208V1~ 6.0 4.1 74
PAEC4025W-NA 44 5250 81 1167 208V1~ 7.0 5.2 96
3 Electrical heat - PAEC4000E (IP20)
2 Water heat - PAEC4000W (IP21)
1 Ambient, no heat - PAEC4000A (IP21)
*1) Highest airow of totally 5 fan steps.
*2) Values shown are for total sound power levels for Installation Type A: free inlet, free outlet. The Sound
power level ratings shown are in decibels, referred to 10-12 watts, calculated per AMCA Standard 301.
*3) FLA: total amperage for motor and heat.
*4) Applicable at water temperature 60/40 °C, air temperature, in +18 °C.
Above table is valid for 208V/1ph/60Hz. Also approved for 230V/1ph/60Hz. Product performance for
230V/1ph/60Hz will differ from stated data.
Protection class for units with electrical heating: IP20.
Protection class for units without heating and units with water heating: IP21.
CE compliant.
Metric chart

PAEC4000
3
Type Nozzle depth
and width
[mm]
Max velocity
at nozzle
[m/s]
Outlet velocity
[m/s]
Outlet velocity
uniformity
[%]
PAEC4010A-NA/PAEC4010Exx 960x70 15.92 13.90 89
PAEC4015A-NA/PAEC4015Exx 1470x70 15.51 13.54 87
PAEC4020A-NA/PAEC4020Exx 1960x70 15.92 13.90 89
PAEC4025A-NA/PAEC4025Exx 2470x70 15.72 13.72 88
PAEC4010W-NA 960x70 12.86 11.50 85
PAEC4015W-NA 1470x70 15.21 12.71 87
PAEC4020W-NA 1960x70 12.86 11.50 85
PAEC4025W-NA 2470x70 14.04 12.11 86
Frico AB certies that PAEC4000W, PAEC4000E and PAEC4000A shown herein are licensed to bear
the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance
with AMCA Publication 211 and AMCA Publication 311 and comply with the requirements of
the AMCA Certied Ratings Program. The AMCA Certied Ratings Seal applies to airow rate,
average outlet velocity, outlet velocity uniformity, velocity projection and power rating at free
delivery only.
Velocity projection: Model PAEC4010E/A-NA
Distance from nozzle [mm] 70 500 1000
Core velocity [m/s] 13.9 9 6.73
Uniformity [%] 89 84 78
Velocity projection: Model PAEC4010W-NA
Distance from Nozzle [mm] 70 500 1000
Core Velocity [m/s] 11.5 7.89 5.93
Uniformity [%] 85 88 84

PAEC4000
4
Type Output
[MBH]
Airow*1
[cfm]
Sound
power*2
[dB(A)]
Motor
power
[W]
Voltage
motor
[V]
Amperage
motor
[A]
Weight
[lb]
PAEC4010A-NA 0 1400 80 500 208V1~ 3.0 84
PAEC4015A-NA 0 1950 81 673 208V1~ 4.5 108
PAEC4020A-NA 0 2800 82 1000 208V1~ 6.0 141
PAEC4025A-NA 0 3300 83 1173 208V1~ 7.5 172
Type Output
steps
[MBH]
Airow*1
[cfm]
Sound
power*2
[dB(A)]
FLA (full load
amperage)*3
[A]
Motor
power
[W]
Amperage
motor
[A]
Voltage [V]
Amperage [A]
(heat)
Weight
[lb]
PAEC4010E10-208VNA 14/34 1400 80 31 500 3.0 208V3~/27 93
PAEC4015E15-208VNA 17/51 1950 81 45 673 4.5 208V3~/40 126
PAEC4020E20-208VNA 24/68 2800 82 60 1000 6.0 208V3~/54 172
PAEC4010E12-480VNA 14/41 1400 80 18 500 3.0 480V3~/15 104
PAEC4015E18-480VNA 20/61 1950 81 27 673 4.5 480V3~/22 137
PAEC4020E20-480VNA 27/82 2800 82 35 1000 6.0 480V3~/29 185
PAEC4025E24-480VNA 34/102 3300 83 45 1173 7.5 480V3~/37 234
PAEC4010E12-600VNA 14/41 1400 80 15 500 3.0 600V3~/12 104
PAEC4015E18-600VNA 20/61 1950 81 23 673 4.5 600V3~/18 137
PAEC4020E24-600VNA 27/82 2800 82 30 1000 6.0 600V3~/24 185
PAEC4025E30-600VNA 34/102 3300 83 38 1173 7.5 600V3~/30 234
Type Output*4
[MBH]
Airow*1
[cfm]
Sound
power*2
[dB(A)]
Motor
power
[W]
Voltage
motor
[V]
Amperage
motor
[A]
Water
volume
[US gal]
Weight
[lb]
PAEC4010W-NA 55 1300 79 501 208V1~ 3.0 0.49 99
PAEC4015W-NA 85 1900 79 666 208V1~ 4.0 0.78 123
PAEC4020W-NA 119 2600 81 1002 208V1~ 6.0 1.09 163
PAEC4025W-NA 150 3150 81 1167 208V1~ 7.0 1.37 212
*1) Highest airow of totally 5 fan steps.
*2) Values shown are for total sound power levels for Installation Type A: free inlet, free outlet. The Sound
power level ratings shown are in decibels, referred to 10-12 watts, calculated per AMCA Standard 301.
*3) FLA: total amperage for motor and heat.
*4) Applicable at water temperature 140/104F, air temperature, in +64F.
Above table is valid for 208V/1ph/60Hz. Also approved for 230V/1ph/60Hz. Product performance for
230V/1ph/60Hz will differ from stated data.
Protection class for units with electrical heating: IP20.
Protection class for units without heating and units with water heating: IP21.
CE compliant.
3 Electrical heat - PAEC4000E (IP20)
2 Water heat - PAEC4000W (IP21)
1 Ambient, no heat - PAEC4000A (IP21)
Imperial chart

PAEC4000
5
Type Nozzle depth
and width
[in]
Max velocity
at nozzle
[fpm]
Outlet velocity
[fpm]
Outlet velocity
uniformity
[%]
PAEC4010A-NA/PAEC4010Exx 37.8x2.8 3133 2736 89
PAEC4015A-NA/PAEC4015Exx 57.9x2.8 3053 2665 87
PAEC4020A-NA/PAEC4020Exx 77.2x2.8 3133 2736 89
PAEC4025A-NA/PAEC4025Exx 97.2x2.8 3094 2700 88
PAEC4010W-NA 37.8x2.8 2531 2263 85
PAEC4015W-NA 57.9x2.8 2994 2501 87
PAEC4020W-NA 77.2x2.8 2531 2263 85
PAEC4025W-NA 97.2x2.8 2763 2328 86
Frico AB certies that PAEC4000W, PAEC4000E and PAEC4000A shown herein are licensed to bear
the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance
with AMCA Publication 211 and AMCA Publication 311 and comply with the requirements of
the AMCA Certied Ratings Program. The AMCA Certied Ratings Seal applies to airow rate,
average outlet velocity, outlet velocity uniformity, velocity projection and power rating at free
delivery only.
Velocity projection: Model PAEC4010E/A-NA
Distance from Nozzle [in] 2.7 20 40
Core Velocity [fpm] 2736 1771 1324
Uniformity [%] 89 84 78
Velocity projection: Model PAEC4010W-NA
Distance from Nozzle [in] 2.7 20 40
Core Velocity [fpm] 2263 1553 1167
Uniformity [%] 85 88 84

PAEC4000
6
Output charts water PAEC4000
Imperial chart
*1) Recommended outlet air temperature for good comfort and optimized output.
*2) Nominal output at given supply and return water temperature.
Supply water temperature:176 °F
Room temperature: +64 °F
Outlet air temperature: +95 °F*1
Water temperature: 176/140 °F
Room temperature: +64 °F
Type Fan
position
Airow
[cfm]
Output
[MBH]
Return
water
temp.
[°F]
Water
ow
[US gal/h]
Pressure
drop
[kPa]
Output*2
[MBH]
Outlet
air
temp.
[°F]
Water
ow
[US gal/h]
Pressure
drop
[kPa]
PAEC4010W-NA max 1530 50.9 88 69.4 2.7 96.9 122 330.0 40.5
PAEC4015W-NA max 2000 65.9 84 86.6 1.6 137.2 127 466.1 30.6
PAEC4020W-NA max 2855 96.6 86 130.3 1.6 193.2 127 657.2 26.9
PAEC4025W-NA max 3090 104.4 81 133.2 2.0 223.5 131 760.9 42.0
Supply water temperature: 140 °F
Room temperature: +64 °F
Outlet air temperature: +95 °F*1
Water temperature: 140/104 °F
Room temperature: +64 °F
Type Fan
position
Airow
[cfm]
Output
[MBH]
Return
water
temp.
[°F]
Water
ow
[US gal/h]
Pressure
drop
[kPa]
Output*2
[MBH]
Outlet
air
temp.
[°F]
Water
ow
[US gal/h]
Pressure
drop
[kPa]
PAEC4010W-NA max 1530 52.6 99 156.9 11.5 56.3 99 190.2 16.2
PAEC4015W-NA max 2000 68.6 95 183.6 6.2 79.9 100 269.2 12.2
PAEC4020W-NA max 2855 96.6 95 257.8 5.5 112.3 100 379.5 10.7
PAEC4025W-NA max 3090 105.5 95 257.8 6.5 132.1 104 447.0 17.2
*1) Recommended outlet air temperature for good comfort and optimized output.
*2) Nominal output at given supply and return water temperature.
Supply water temperature:80 °C
Room temperature: +18 °C
Outlet air temperature: +35 °C*1
Water temperature: 80/60 °C
Room temperature: +18 °C
Type Fan
position
Airow
[m3/h]
Output
[kW]
Return
water
temp.
[°C]
Water
ow
[l/s]
Pressure
drop
[kPa]
Output*2
[kW]
Outlet
air temp.
[°C]
Water
ow
[l/s]
Pressure
drop
[kPa]
PAEC4010W-NA max 2600 14.9 31 0.07 2.7 28.4 50 0.35 40.5
PAEC4015W-NA max 3400 19.3 29 0.09 1.6 40.2 53 0.49 30.6
PAEC4020W-NA max 4850 28.3 30 0.14 1.6 56.6 53 0.69 26.9
PAEC4025W-NA max 5250 30.6 27 0.14 2.0 65.5 55 0.80 42.0
Supply water temperature: 60 °C
Room temperature: +18 °C
Outlet air temperature: +35 °C*1
Water temperature: 60/40 °C
Room temperature: +18 °C
Type Fan
position
Airow
[m3/h]
Output
[kW]
Return
water
temp.
[°C]
Water
ow
[l/s]
Pressure
drop
[kPa]
Output*2
[kW]
Outlet
air temp.
[°C]
Water
ow
[l/s]
Pressure
drop
[kPa]
PAEC4010W-NA max 2600 15.4 37 0.17 11.5 16.5 37 0.20 16.2
PAEC4015W-NA max 3400 20.1 35 0.19 6.2 23.4 38 0.28 12.2
PAEC4020W-NA max 4850 28.3 35 0.27 5.5 32.9 38 0.40 10.7
PAEC4025W-NA max 5250 30.9 35 0.27 6.5 38.7 40 0.47 17.2
Metric chart

PAEC4000
7
The introduction pages consist mainly of pictures. For translation of the English
texts used, see the respective language pages.
EN
Les pages de présentation contiennent principalement des images. Pour la
traduction des textes en anglais, consultez la page correspondante à la langue
souhaitée.
Las páginas introductorias contienen básicamente imágenes. Consulte la tra-
ducción de los textos en inglés que las acompañan en las páginas del idioma
correspondiente.
FR
ES

PAEC4000
8

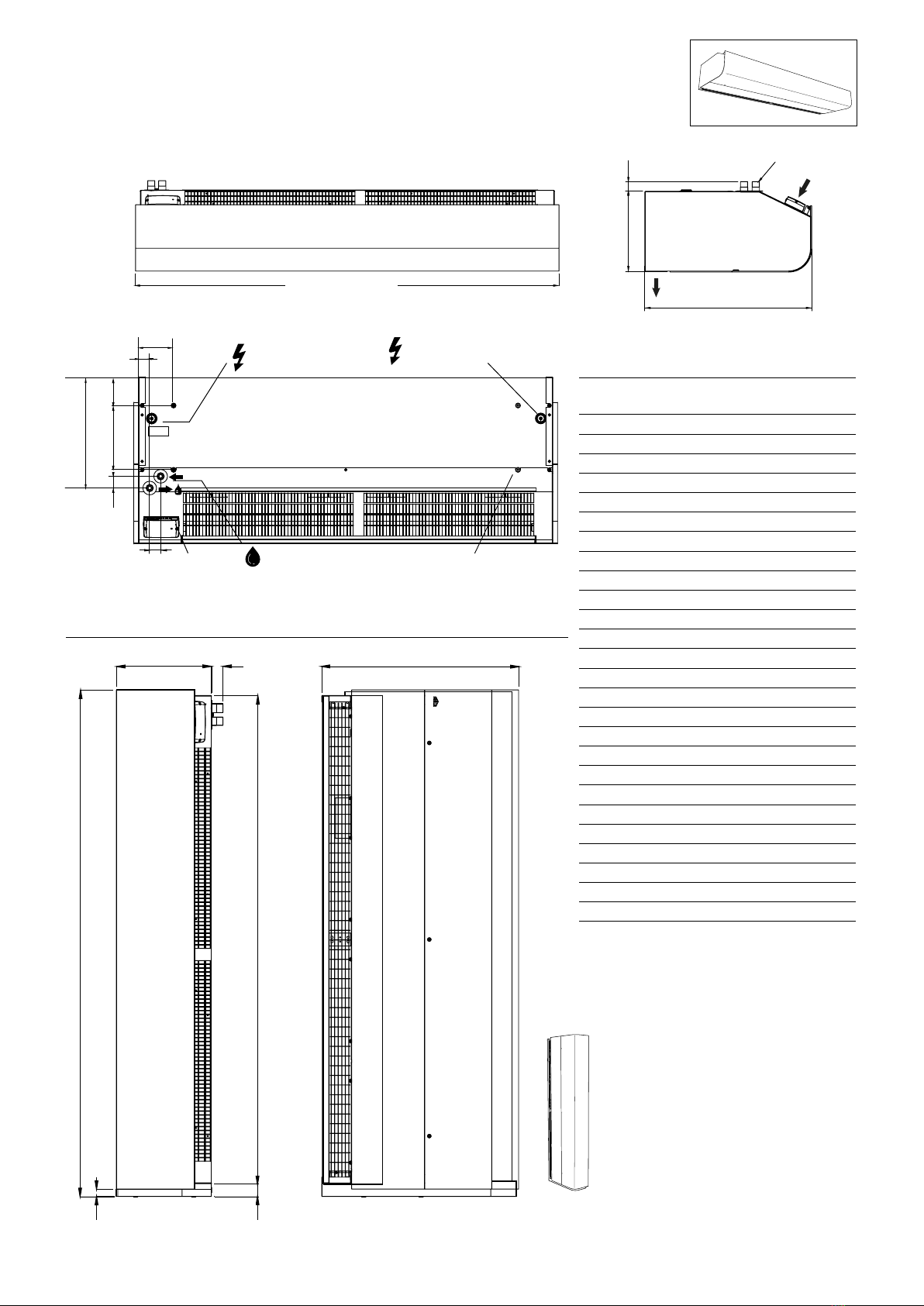

PAEC4000
Ref Metric
[mm]
Imperial
[in]
Product type
A1039 41.56 PAEC4010x
B1549 61.96 PAEC4015x
C2039 81.56 PAEC4020x
D2549 101.96 PAEC4025x
E40 1.60 PAEC4010/15/20x
F39 1.56 PAEC4025x
G127 5.08
H404 16.16
I102 4.08
J235 9.40
K43 1.72
L40 1.60
M36 1.44
N295 11.80
O611 24.44
P295 11.80
Q36 1.44
R1572 62.88 PAEC4015x
S2062 82.48 PAEC4020x
T2572 102.88 PAEC4025x
U1515 60.60 PAEC4015x
V2004 80.16 PAEC4020x
W2515 100.60 PAEC4025x
X23 0.92
Y40 1.60
Z611 24.44
611
L
295 36
40
127
A
43 235 102
404
1, 1,5 m:4 M8
2 m: 6 M8
2,5 m: 8 M8
DN20 (3/4"), outside thread
SIRe
PAEC 2; 2.5 m / 6.6; 8.2 ft
295 36 611
40
23
L2
L1
A / B / C / D
R / S / T
U / V / W
E / F
G
O
Z
L
PQ
X
Y
H
MN
JIK
Metric
1 m: 4 x M8
1.5 m: 4 x M8
2 m: 6 x M8
2.5 m: 6-8 x M8
Imperial
3.3 ft: 4 x M8
4.9 ft: 4 x M8
6.6 ft: 6 x M8
8.2 ft: 6-8 x M8

PAEC4000
9
2
1

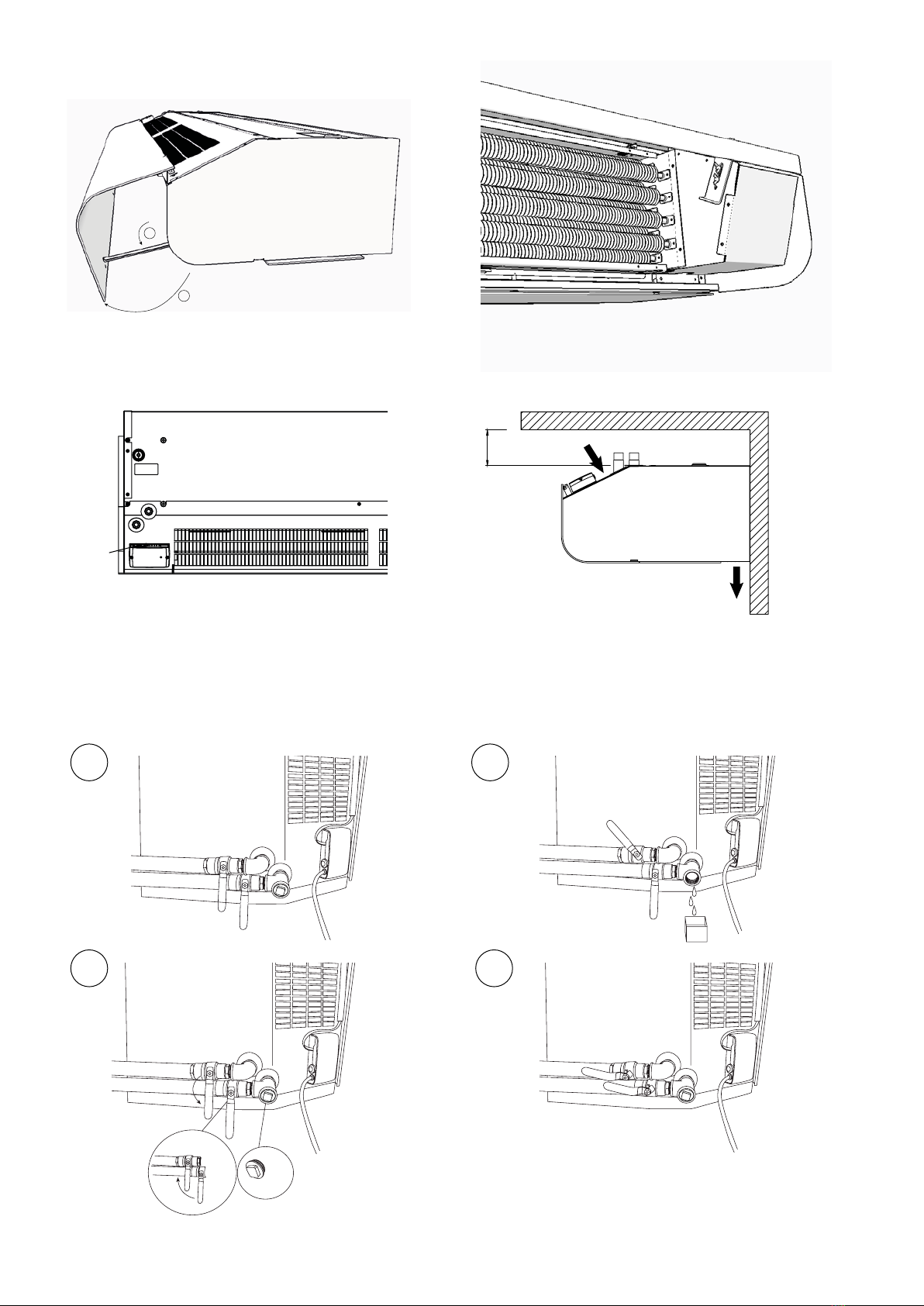

Fig. 1A: Open the unit by raising the front panel.
The front is blocked in open position with the
front hatch hook.
Fig. 2: Control card SIRe is integrated in the air
curtain at delivery.
SIRe
Fig. 1B: When the front has been removed it it
important to be sure it is rmly seated in the front
locks again.
min 100
Fig. 3: Minimum distance.
BA
Filling the water coil
Fig. 4
A B
CD

PAEC4000
10
AB
A
127L
B
127875875
AB
127770745745
Fig. 5: M8-holes for mounting.
PAEC4010x/PAEC4015x
PAEC4020x
PAEC4025x
Ref Metric
[mm]
Imperial
[in]
Product type
A127 5.08 PAEC4010/15/20/25x
B102 4.08 PAEC4010/15/20/25x
C235 9.40 PAEC4010/15/20/25x
D750 30.00 PAEC4010x
E1260 50.40 PAEC4015x
F875 35.00 PAEC4020x
G745 29.80 PAEC4025x
H770 30.80 PAEC4025x
A
F
G GH
FA
A
C
C
C
D / E

PAEC4000
11
Fig. 6: See separate manual for PA34WB/PAWBL.
PAEC4000 + PA34WB/PAWBL
20 mm
A
B
C
D
E
F
PA34WB/ PAWBL
20 mm / 0,80"
79
19
120
11
40
40 40
Type Product type Quantity
included
Length
Metric
[mm]
Length
Imperial
[in]
Fig.
PA34WB15 PAEC4015x 2 pcs 400 15.75 Fig. 6
PA34WB20 PAEC4020x 3 pcs 400 15.75 Fig. 6
PA34WB30 PAEC4025x 4 pcs 400 15.75 Fig. 6
PAWBL15 PAEC4015x 2 pcs 560 22.05 Fig. 6
PAWBL20 PAEC4020x 3 pcs 560 22.05 Fig. 6
PAWBL30 PAEC4025x 4 pcs 560 22.05 Fig. 6
PA34WB
Ref Metric
[mm]
Imperial
[in]
A11 0.43
B19 0.75
C80 3.15
D40 1.58
E40 1.58
F120 4.72
PAWBL
Ref Metric
[mm]
Imperial
[in]
A11 0.43
B19 0.75
C120 4.72
D60 2.36
E52.5 2.07
F165 6.50
A
C
B
D
E
D
F

PAEC4000
12
Fig. 7: PA34TR + PA34CB + PA34VD.
See separate manual for PA34TR.
Fig.8: PA34WS + PA34CB
See separate manual for PA34WS.
Fig. 9: See separate manual for PA4JK.
PA4JK
PA34WS
(PA34CB)
PA34TR
(PA34VD)
PA34CB
Type Product type Quantity
included
Length
Metric
Length
Imperial
PA34CB15 PAEC4010/15x 4 pcs
PA34CB20 PAEC4020x 6 pcs
PA34CB30 PAEC4025x 8 pcs
PA34WS15 PAEC4010/15x 4 pcs 3 m 9.8 ft
PA34WS20 PAEC4020x 6 pcs 3 m 9.8 ft
PA34WS30 PAEC4025x 8 pcs 3 m 9.8 ft
PA34TR15 PAEC4010/15x 4 pcs 1 m 3.3 ft
PA34TR20 PAEC4020x 6 pcs 1 m 3.3 ft
PA34TR30 PAEC4025x 8 pcs 1 m 3.3 ft
PA34VD15 PAEC4010/15x 4 pcs
PA34VD20 PAEC4020x 6 pcs
PA34VD30 PAEC4025x 8 pcs
Type Product type
PA4JK PAEC4000
Accessories

PAEC4000
13

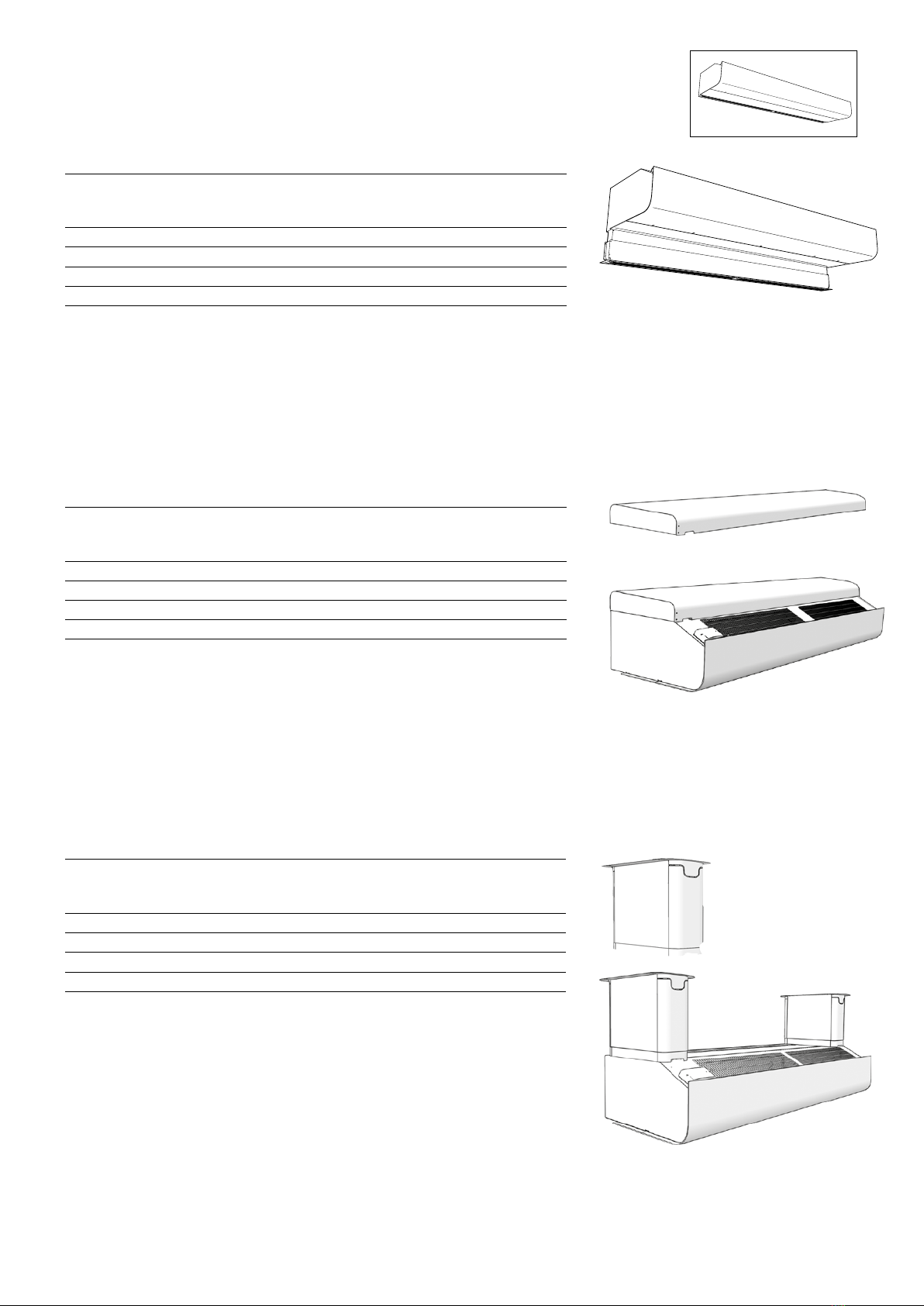

Fig. 10: See separate manual for
PA4XT.
Accessories
See separate manual for PA4DW.
Type Product type Dimensions
Metric
[mm]
Dimensions
Imperial
[in]
PA4DW10 PAEC4010x 87x424x1006 3.48x16.96x40.24
PA4DW15 PAEC4015x 87x424x1516 3.48x16.96x60.64
PA4DW20 PAEC4020x 87x424x2006 3.48x16.96x80.24
PA4DW25 PAEC4025x 87x424x2516 3.48x16.96x100.64
Type Product type Length
Metric
[mm]
Length
Imperial
[in]
PA4XT10 PAEC4010x 130-200 5.20-8.00
PA4XT15 PAEC4015x 130-200 5.20-8.00
PA4XT20 PAEC4020x 130-200 5.20-8.00
PA4XT25 PAEC4025x 130-200 5.20-8.00
PAEC4010x: 2 pcs
PAEC4015x: 2 pcs
PAEC4020x: 3 pcs
PAEC4025x: 4 pcs
See separate manual for PA4DC.
Type Product type Length
Metric
[mm]
Length
Imperial
[in]
PA4DCS PAEC4000 200-300 8.00-12.00
PA4DCM PAEC4000 300-500 12.00-20.00
PA4DCL PAEC4000 500-900 20.00-36.00
PA4DXT PAEC4000 420 16.80
PA4DW
PA4DC

PAEC4000
14
Accessories
Note! The air curtain
must be secured in
the wall or ceiling.
Fig. 11: See separate manual for PA4JK.
PA4VDW
PA4JK

PAEC4000
15
AXP300
PA4VDWPA4JK
Type Product type
PA4JK PAEC4000
PA4VDW15 PAEC4015x
PA4VDW20 PAEC4020x
PA4VDW25 PAEC4025x
PA4HE PAEC4000
PA4HEVDW PAEC4000
AXP300 PAEC4000
Accessories
Type Product type Length
Metric
Length
Imperial
PA34EF10 PAEC4010W
PA34EF15 PAEC4025W
PA34EF20 PAEC4020W
PA34EF25 PAEC4025W
DTV200S PAEC4000W
FHDN20 PAEC4000W 350 mm 13.8 in
FHDN2010 PAEC4000W 1 m 3.3 ft
See separate manual for
FHDN20.
See separate manual for
PA34EF.
DTV200S
PA4HE(VDW)

PAEC4000
16

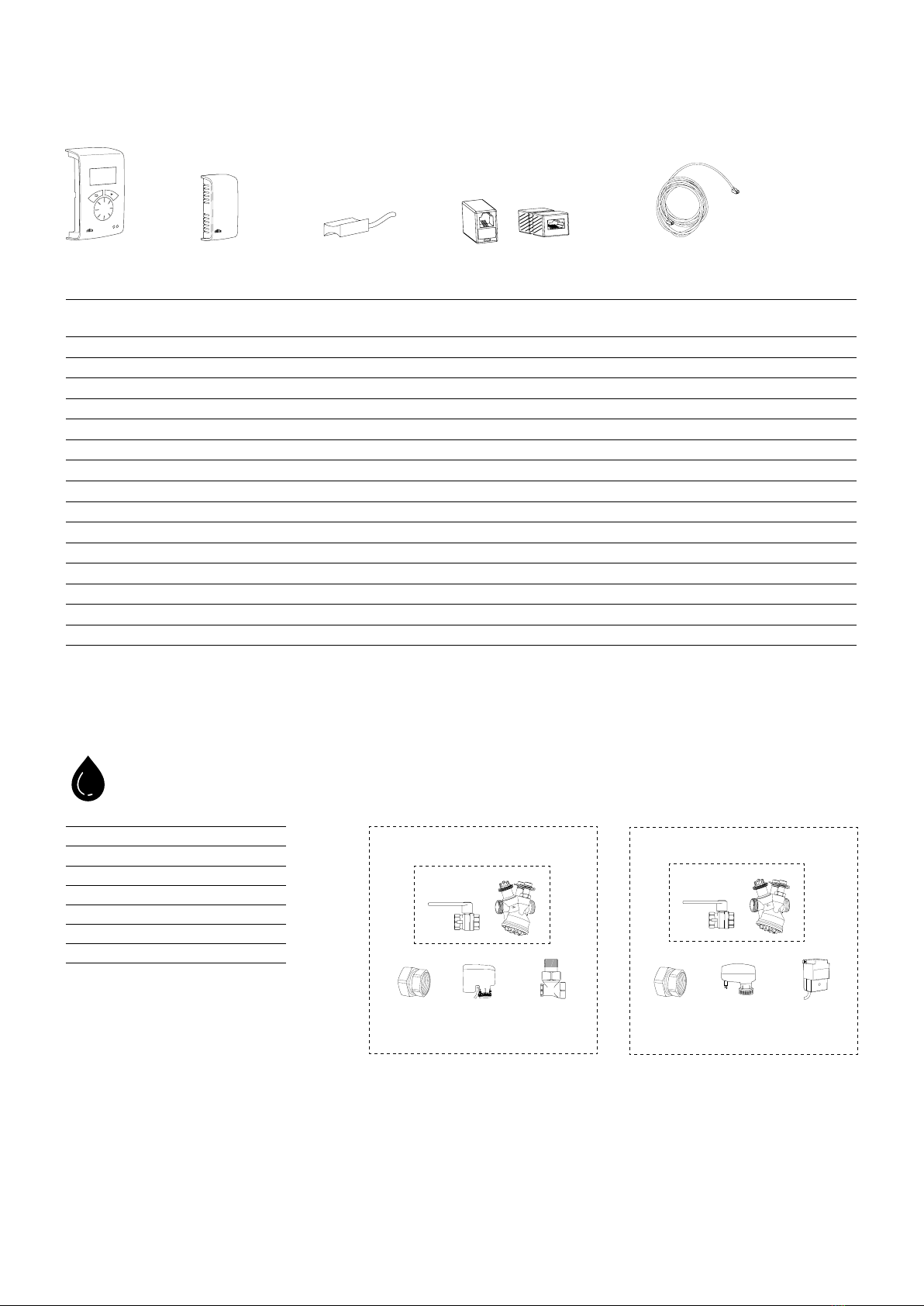

Type Dimensions
Metric
Length
Metric
Dimensions
Imperial
Length
Imperial
SIReACY
SIReAAY
SIReRTX 70x33x23 mm 2.80x1.32x0.92 in
SIReWTA
SIReCJ4
SIReCJ6
SIReCC603 3 m 9.8 ft
SIReCC605 5 m 16.4 ft
SIReCC610 10 m 32.8 ft
SIReCC615 15 m 49.2 ft
SIReCC640 40 m 131.2 ft
SIReCC403 3 m 9.8 ft
SIReCC405 5 m 16.4 ft
SIReCC410 10 m 32.8 ft
SIReCC415 15 m 49.2 ft
Accessories
SIReACY
SIReAAY
SIReRTX SIReWTA SIReCCSIReCJ4/SIReCJ6
VKF
SDM24 ST23024
SD230 BPV10
VKF
VLSP-NA VLP-NA
Nipple
G-NPT
Nipple
G-NPT
Type Connection
VLSP15NF-NA DN15 (1/2”)
VLSP20-NA DN20 (3/4”)
VLSP25-NA DN25 (1”)
VLP15NF-NA DN15 (1/2”)
VLP20-NA DN20 (3/4”)
VLP25-NA DN25 (1”)

PAEC4000
17
PAEC4000A/W
H1 H2N
Id
SIRe B1EC
RoomC2 C1 Actuator 230V Supply 230V
PE L
N
Heating
L
N
~
L
Trafo
Motor
pr otection 0-10V
GND
PWM
LN
Motor
Internal
sensor
MMMM
4010WA
4025WA/4020WA/4015WA
208V1~
PE L1 L2
AREC4000W/A
PAEC4000W/A
161120

PAEC4000
18
PAEC4010/15E-208V
H1 H2N
Id
SIRe B1EC
RoomC2 C1 Actuator 230V Supply 230V
PE L
N
Heating
L
N
~ L
Trafo
K2
K1
4010E
4015E 4010E/4015E
TS1
TS2
Motor
protection 0-10V
GND
PWM
LN
Motor
Internal
sensor
MMMM
L1L2 L3
L1 K2
L2 K2
L3 K2
L1 K1
L2 K1
L3 K1
PAEC/AREC4010E/4015E
161121
208V3~

PAEC4000
19

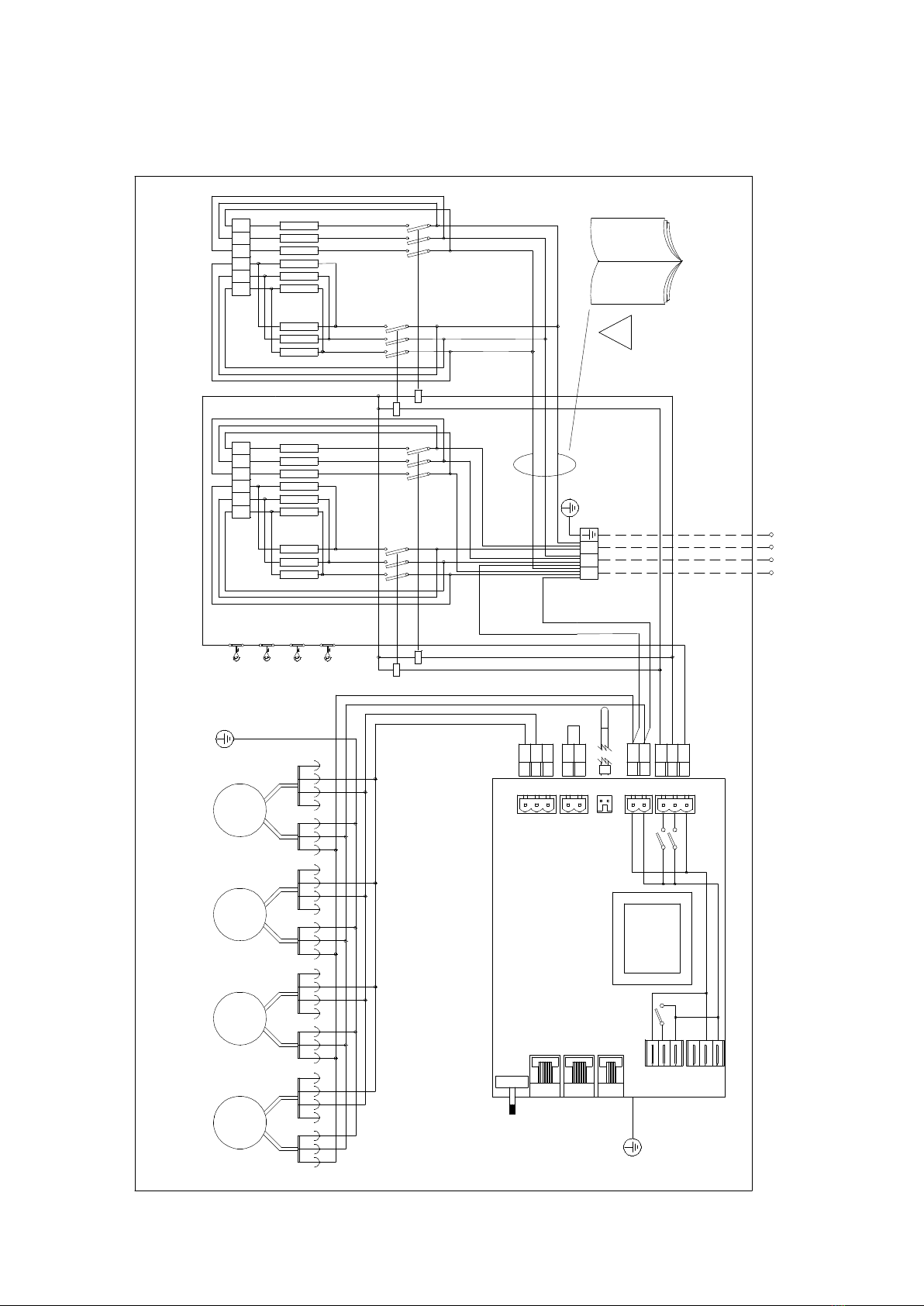

PAEC4020/25E-208V
H1 H2N
Id
S I R e B1 E C
Ro o mC2 C1 Actuator230V Supply 23 0V
PE L
N
Heating
L
N
~ L
Trafo
K2
K1
K2
K1
4020E/4025E
!
2 X 208V3~
TS 2
TS 1
Mo t o r
protection 0-10V
GND
PWM
LN
Mo t o r
In te rna l
se n so r
MMMM
2 0 8 V3~
L1L2 L3
4025E/4020E 4020:6 motors 4025:7 motors
L1 K2
L2 K2
L3 K2
L1 K1
L2 K1
L3 K1
TS 4 TS 3
L1 K2
L2 K2
L3 K2
L1 K1
L2 K1
L3 K1
PAEC/AREC 4020E/4025E
161123

PAEC4000
20
PAEC4010/15E-480V/600V
H1 H2N
Id
SIRe B1EC
RoomC2 C1 A c t u at or 23 0V S uppl y230V
PE L
N
H e a t i ng
L
N
~ L
Traf o
K2
K1
4010E
4015E
TS 1
TS 2
Motor
protecti on
LN
Motor
Internal
sensor
MMMM
600/480V - 230V Transformer
2 x 10A FUSE
L1L2 L3
231
PAEC/AREC 4010E/4015E
215222
600V3~/480V3~
4010E/4015E
