Friedrich M09YJ User manual

SVC Manual (Exploded View)
TYPE : WALL MOUNTED
Applied Models :
M09YJ
M12YJ
M09CJ
M12CJ
FAC P/no : 960-920-00

ProductSpecifications
FAC Model Name
System
M09CJ
M12CJ
M09YJ
M12YJ
Outdoor Unit
MR09C1J
MR12C1J
MR09Y3J
MR12Y3J
Indoor Unit
MW09C1J
MW12C1J
MW09Y3J
MW12Y3J
Cooling Capacity
kW
0.89~2.638~3.70
0.89~3.106~4.30
0.89~2.638~3.70
0.89~3.282~4.30
Btu/h.
3,070~9,000~12,620
3,070~10,600~14,660
3,070~9,000~12,620
3,070~11,200~14,660
Heating Capacity
kW
-
-
0.89~3.165~3.70
0.89~3.898~4.30
Btu/h.
-
-
3,070~10,800~17,060
3,070~13,300~20,470
Power Input
Cooling
W
677
815
677/700
896/1,000
Running Current
Cooling
A
6
7.3
3/3.7
4.2/4.9
Starting Current
Cooling
A
6
7.3
3/3.7
4.2/4.9
Cooling COP
-
3.9
3.81
3.9
3.66
EER
-
13.3
13.0
13.3
12.5
SEER
-
21.5
21.5
21.5
21.5
HSPF
-
-
-
11
11
Power Supply
Ø / V / Hz
1/115/60
1/115/60
1/208-230/60
1/208-230/60
Power Factor
%
98
97
94
97
Air Flow Rate
Indoor (QUIET, LOW, MED, HIGH)
m
3
/min(CFM)
3.5(124)/6.0(212)/7.7(272)/9.5(335)
3.5(124)/6.0(212)/7.7(272)/9.5(335)
3.5(124)/6.0(212)/7.7(272)/9.5(335)
3.5(124)/6.0(212)/7.7(272)/9.5(335)
Outdoor,Max
m
3
/min(CFM)
33(1,165)
33(1,165)
33(1,165)
33(1,165)
Moisture Removal
l/h.
1.1
1.3
1.1
1.3
Sound Level
Indoor,H/M/L/Sleep
dB(A)±3
39 / 33 / 24 / 19
39 / 33 / 24 / 19
39 / 33 / 24 / 19
39 / 33 / 24 / 19
Outdoor,Max
dB(A)±3
45
45
45
45
Refrigerant & Charge (at 7.5 m/24.6ft)
g(oz)
R410A, 1,000(35.3)
R410A, 1,000(35.3)
R410A, 1,000(35.3)
R410A, 1,000(35.3)
Additional Refrigerant charge
g/m(oz/ft)
20(0.22)
20(0.22)
20(0.22)
20(0.22)
Compressor
Type
Single Rotary
Single Rotary
Single Rotary
Single Rotary
Model
GA102MFB
GA102MFB
GA102MFB
GA102MFB
Motor Type
Brushless DC Motor
Brushless DC Motor
Brushless DC Motor
Brushless DC Motor
Oil Type
PVE(FVC68D)
PVE(FVC68D)
PVE(FVC68D)
PVE(FVC68D)
Oil Charge
cc
310
310
310
310
O.L.P. name
-
-
-
-
Fan(Indoor)
Type
Cross Flow Fan
Cross Flow Fan
Cross Flow Fan
Cross Flow Fan
Motor Output
W
20
20
20
20
Fan(Outdoor)
Type
Propeller
Propeller
Propeller
Propeller
Motor Type
BLDC
BLDC
BLDC
BLDC
Motor Output
W
43
43
43
43
Circuit Breaker*
A
20
20
15
15
Power Supply Cable
3*2.0(14)
3*2.0(14)
3*1.0(18)
3*1.0(18)
Power and Transmission Cable
4*1.0 (18)
4*1.0 (18)
4*1.0 (18)
4*1.0 (18)
Piping Connections
Liquid Side
mm(in)
6.35(1/4)
6.35(1/4)
6.35(1/4)
6.35(1/4)
Gas Side
mm(in)
9.52(3/8)
9.52(3/8)
9.52(3/8)
9.52(3/8)
Drain Hose(O.D / I.D.)
mm(in)
21.5 / 16.0(0.85 / 0.63)
21.5 / 16.0(0.85 / 0.63)
21.5 / 16.0(0.85 / 0.63)
21.5 / 16.0(0.85 / 0.63)
Dimensions
Indoor (W*H*D)
mm
885*285*210
885*285*210
885*285*210
885*285*210
inch
35.2*11.2*8.3
35.2*11.2*8.3
35.2*11.2*8.3
35.2*11.2*8.3
Outdoor (W*H*D)
mm
770*545*288
770*545*288
770*545*288
770*545*288
inch
30.3*21.5*11.3
30.3*21.5*11.3
30.3*21.5*11.3
30.3*21.5*11.3
Net Weight
Indoor
kg(lbs)
10.2(22.5)
10.2(22.5)
10.2(22.5)
10.2(22.5)
Outdoor
kg(lbs)
34(78)
34(78)
34(78)
34(78)
Gross Weight
Indoor
kg(lbs)
12.4(27.3)
12.4(27.3)
12.4(27.3)
12.4(27.3)
Outdoor
kg(lbs)
35.8(78.9)
35.8(78.9)
35.8(78.9)
35.8(78.9)
Operation Range
Cooling(Outdoor)
°C(℉)DB
-10(-18)*~48{14.0(0)*~118.4}
-10(-18)*~48{14.0(0)*~118.4}
-10(-18)*~48{14.0(0)*~118.4}
-10(-18)*~48{14.0(0)*~118.4}
Heating(Outdoor)
°C(℉)WB
-
-
-20(-4)~24(75.2)
-20(-4)~24(75.2)
Piping Length (Min/Max)
m(ft)
2(6.6) / 20(65.6)
2(6.6) / 20(65.6)
2(6.6) / 20(65.6)
2(6.6) / 20(65.6)
Chargeless
m(ft)
12.5(41.0)
12.5(41.0)
12.5(41.0)
12.5(41.0)
Max. Elevation Difference
m(ft)
10(32.8)
10(32.8)
10(32.8)
10(32.8)
Tool Code(Chassis)
Indoor + Outdoor
SB + UL2
SB + UL2
SB + UL2
SB + UL2
Functions
Temperature Control
O
O
O
O
Allergy free filter
-
-
-
-
Plasma Filter
-
-
-
-
Prefilter(washable/anti-fungus)
O
O
O
O
Auto Clean
O
O
O
O
CHAOS Wind(Auto Wind)
O
O
O
O
Steps, Fan/Cool/Heat
6/6
6/6
6/6/6
6/6/6
Airflow Direction Control(Up& Down)
Auto
Auto
Auto
Auto
Airflow Direction Control(Left & Right)
Auto
Auto
Auto
Auto
Remote Controller Type
Wireless LCD
Wireless LCD
Wireless LCD
Wireless LCD
Setting Temperature
Cooling
18℃~30℃
18℃~30℃
18℃~30℃
18℃~30℃
Range
Heating
-
-
16℃~30℃
16℃~30℃
Auto Operation (MicomControl)
-
-
-
-
Auto Changeover (MicomControl)
O
O
O
O
Self Diagnosis
O
O
O
O
Timer
24h, On/off
24h, On/off
24h, On/off
24h, On/off
Sleep Operation
O
O
O
O
Soft Dry Operation
O
O
O
O
Restart Delay(minute)
3
3
3
3
Deice Control(Defrost)
-
-
O
O
Hot Start
-
-
O
O
sURGE Cool(Surge)
O
O
O
O
Low Ambient Operation
O
O
O
O
Special Function
Water Level Sensor
Water Level Sensor
Water Level Sensor
Water Level Sensor
Wind Baffle kit
Wind Baffle kit
Wind Baffle kit
Wind Baffle kit
Note:
O : Applied, - : No relation
*
For circuit breaker rating, please conform to local standards wherever necessary.
❈ Some of functions are slightly different depending upon models.
❈ The specification may be subject to change without notice for purpose of improvement.
- 2 -

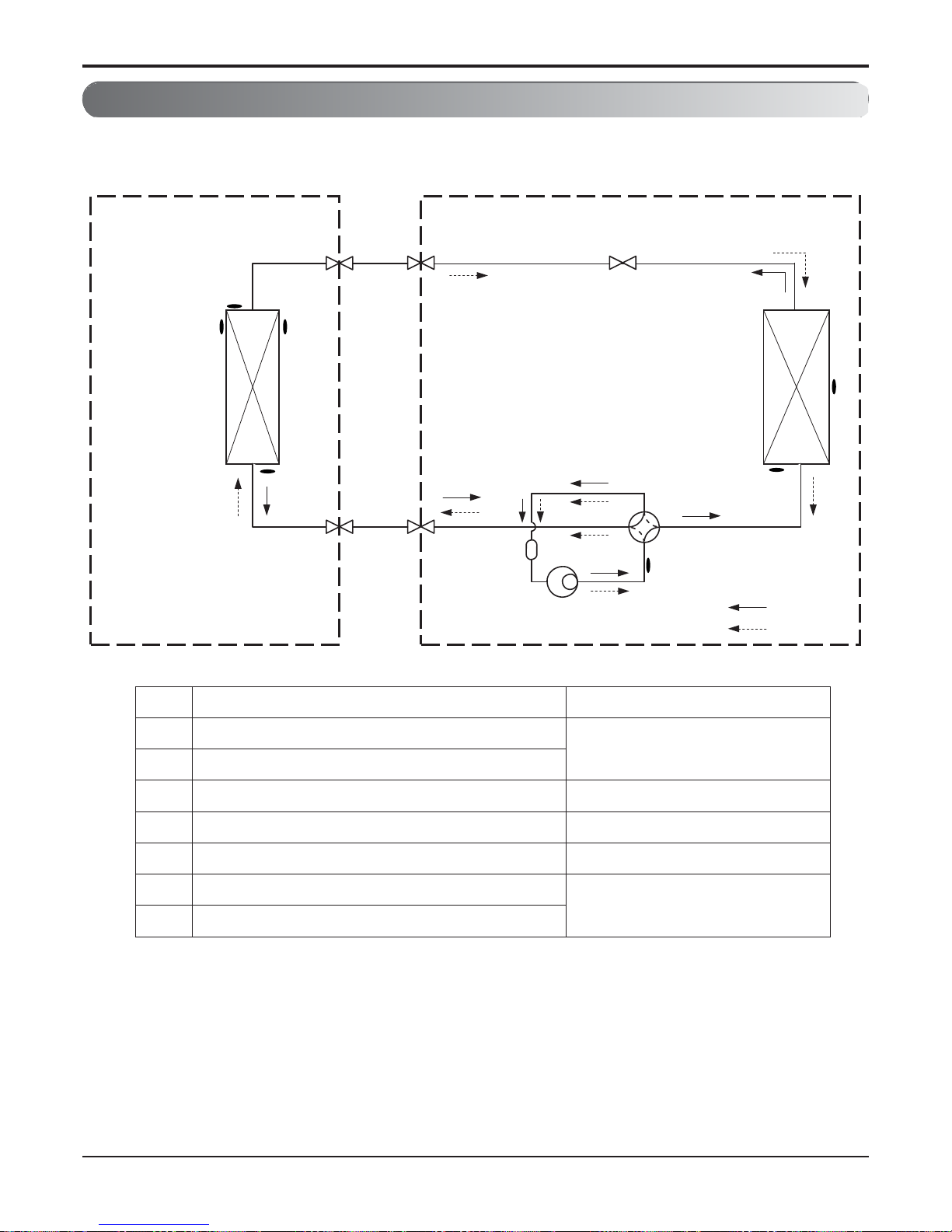

2. Piping Diagrams
Model : M09YJ / M12YJ
Indoor Unit Outdoor Unit
Liquid Side
Th2
2-Way Valve EEV
Th1 Th4
Heat
Exchanger
(Evaporator)
Heat
Exchanger
(Condenser)
Th7
Th3
Gas Side
3-Way Valve
Accumulator
Th6
Reversing Valve
Compressor
Th5
Cooling
Heating
LOC. Description PCB Connector
Th1 Thermistor for suction air temperature
CN-TH1(Indoor)
Th2
Thermistor for evaporator inlet temperature
Th3
Thermistor for evaporator outlet temperature
CN-TH2(Indoor)
Th4
Thermistor for evaporator middle temperature
CN-TH3(Indoor)
Th5
Thermistor for discharge pipe temperature
CN-TH2(OUTDOOR)
Th6
Thermistor for condensing temperature
CN-TH1(OUTDOOR)
Th7 Thermistor for outdoor air temperature
- 3 -

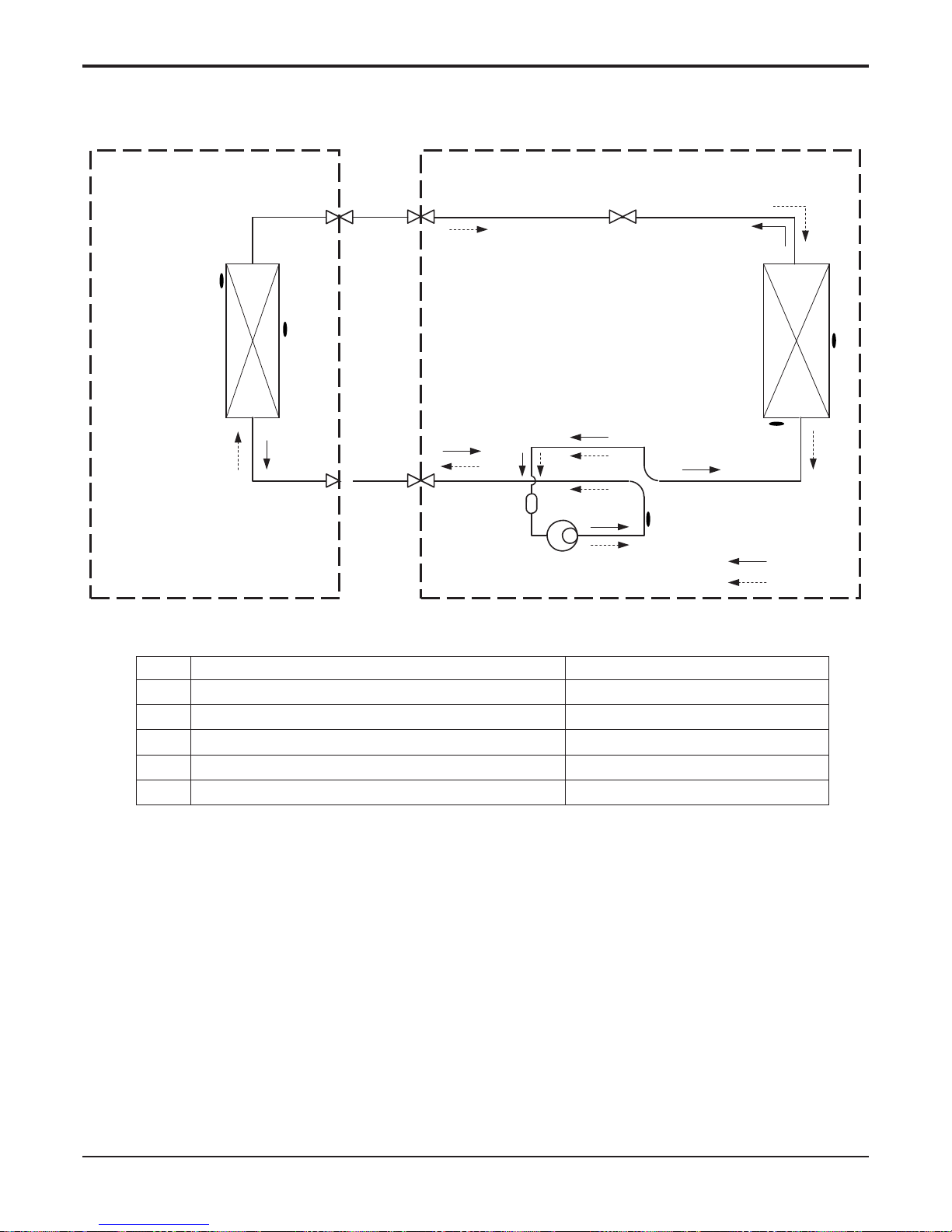

Model : M09CJ / M12CJ
Indoor Unit Outdoor Unit
Liquid Side
2-Way Valve EEV
Th1
Heat
Exchanger
(Evaporator)
Th2 Heat
Exchanger
(Condenser)
Th5
Gas Side
3-Way Valve
Accumulator
Th4
Compressor
Th3
Cooling
Heating
LOC.
Description
PCB Connector
Th1
Thermistor for sunction air temperature
CN-TH1(Indoor)
Th2
Thermistor for evaporator middle temperature
CN-TH3(Indoor)
Th3
Thermistor for discharge pipe temperature
CN-TH2(OUTDOOR)
Th4
Thermistor for condensing temperature
CN-TH1(OUTDOOR)
Th5
Thermistor for outdoor air temperature
CN-TH1(OUTDOOR)
※ EEV : Electronic Expansion Valve
- 4 -

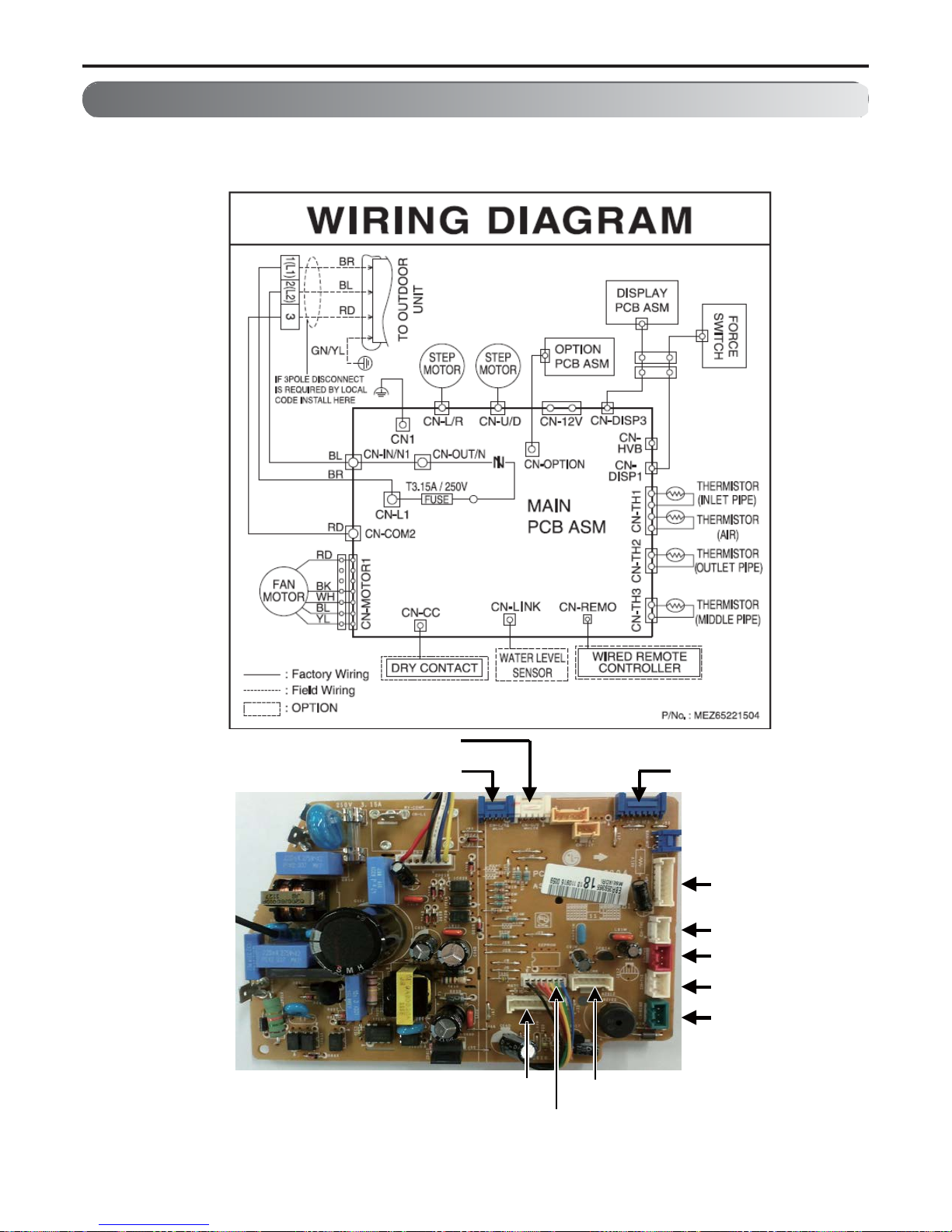

3. Wiring Diagrams
Indoor Unit
Model : MW09Y3J / MW12Y3J
CN-U/D
CN-L/R
CN-DISP3
CN-DISP1
CN-TH1
CN-TH2
CN-TH3
CN-CN-REMO
CN-CC CN-LINK
CN-MOTOR1
- 5 -

Indoor Unit
Model : MW09C1J / MW12C1J
CN-U/D
CN-L/R
CN-DISP3
CN-DISP1
CN-TH1
CN-TH2
CN-TH3
CN-CN-REMO
CN-CC
CN-MOTOR1
- 6 -

Safety Precautions
Outdoor Unit
Model : MR09Y3J / MR12Y3J
CN-U(R)
CN-V(S)
CN-W(C)
CN-TH1
CN-FAN(DC) CN-TH2
CN-EEV
CN-4WAY
CN-HEATER
CN-COM
CN-COIL1
WCN-P(L)
CN-3
CN-COIL2 CN-E
WCN-P(N)
7

Outdoor Unit
Model : MR09C1J / MR12C1J
CN-U(R)
CN-V(S)
CN-W(C)
CN-FAN(DC)
CN-EEV
CN-TH1
CN-TH2
CN-COM
CN-COIL1
WCN-P(L)
CN-3
CN-COIL2 CN-E
WCN-P(N)
8

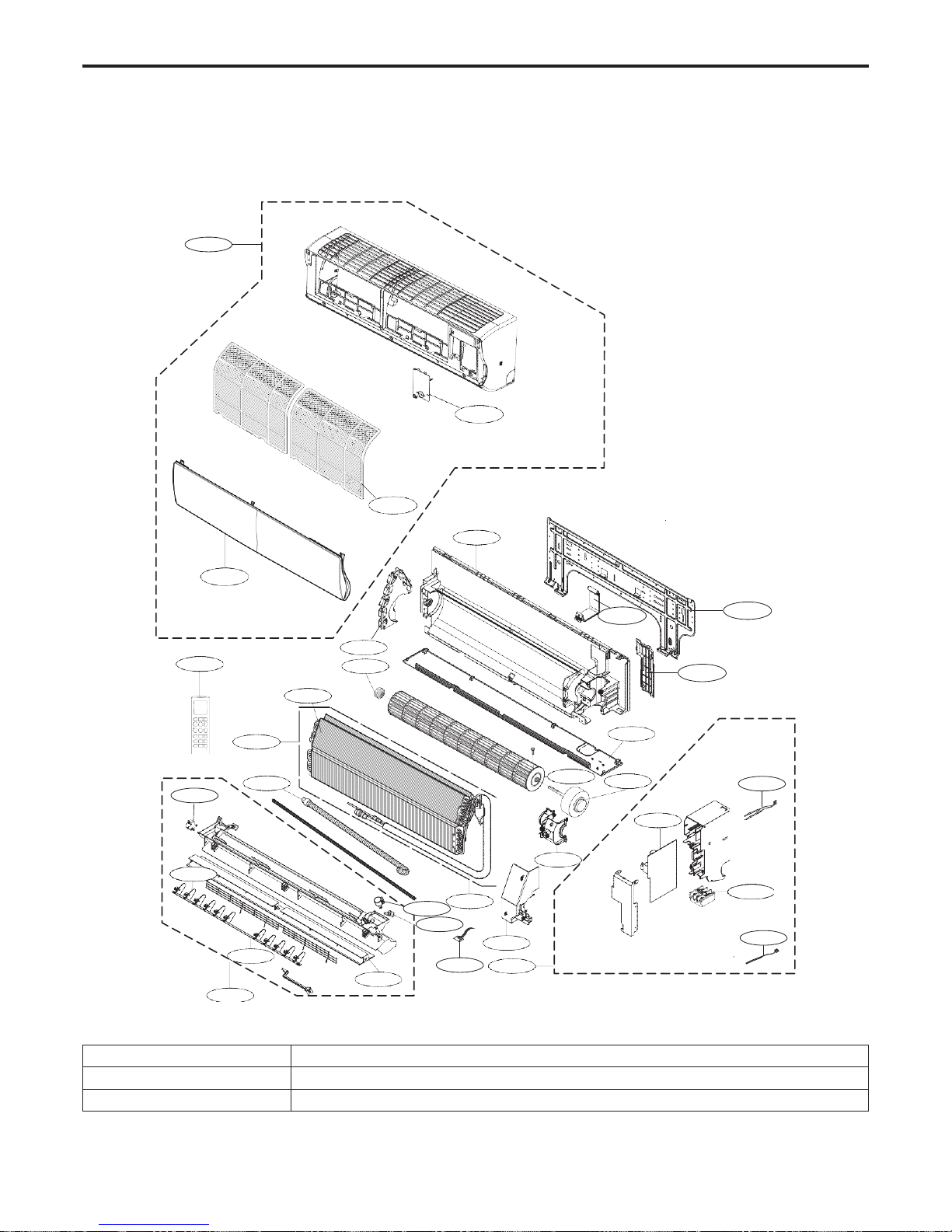

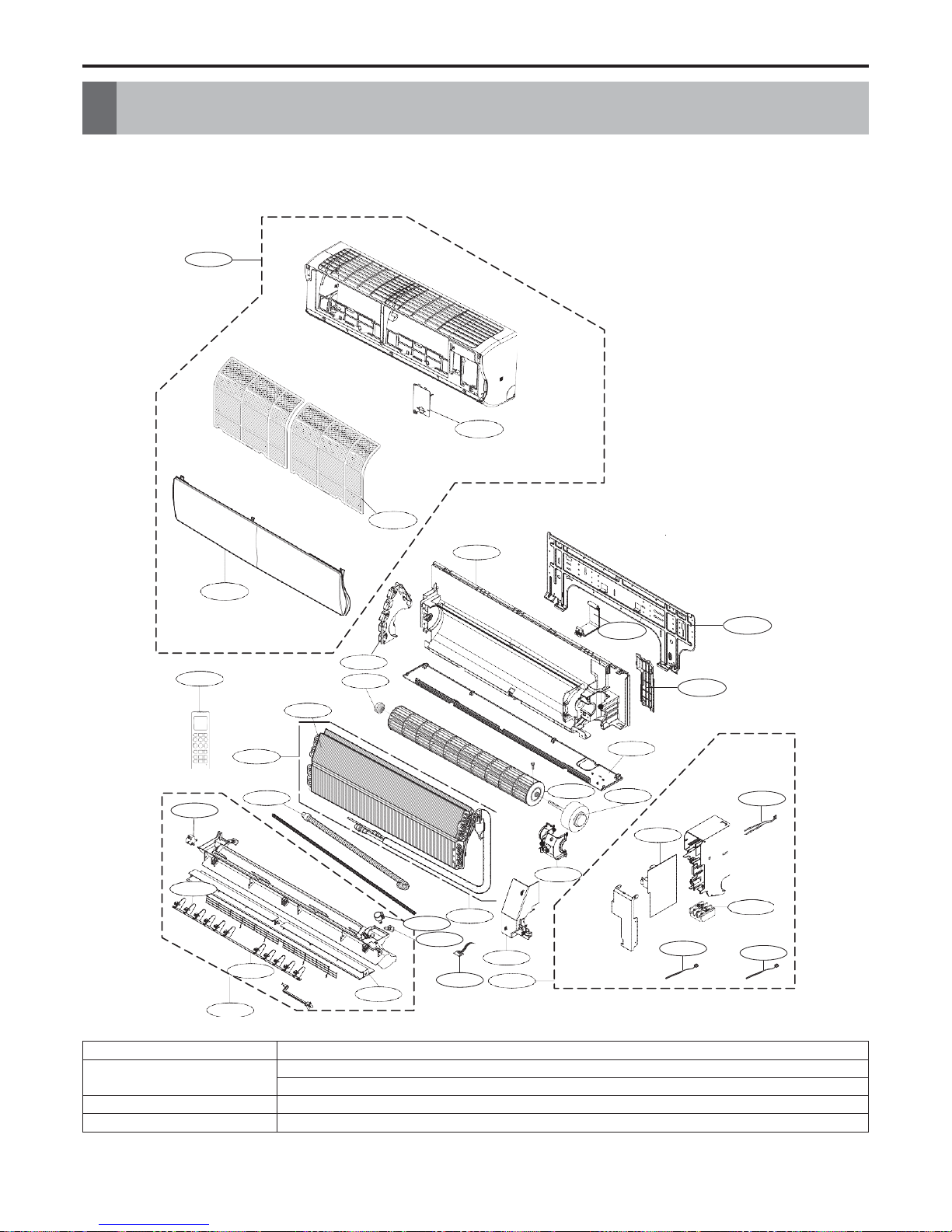

Exploded View
Indoor Unit
Model: MW09Y3J / MW12Y3J
135316
135500B
152302A
131410
135313
149303
733010
267110
354210
149304
342800
135500A
354212
135080
146811B
352150
359011
346810
263230A
268711B
147582
146811A
35211B
135500C
W6640A
145200
135311
147581
W50400
268711D
749740
249951
263230C
263230B
LOC
Description
263230A
Thermistor for suction air temperature
Thermistor for evaporator inlet temperature
263230B
Thermistor for evaporator outlet temperature
263230C
Thermistor for evaporator middle temperature
9

Model: MW09Y3J
MW09Y3J
Loc No. P/N_FRD Description Qty
131410 67601005 Chassis Assy 1
149303 67602708 Holder Tubing 1
346810 67603336 Motor Assy DC Indoor 1
135500C 67601516 Cover 1
359011 67602121 Fan Assy Cross Flow 1
342800 67606700 Bearing 1
149304 67602709 Holder Evaporator 1
354212 67602018 Evaporator Assy Final 1
354210 67602019 Evaporator Assy First 1
35211B 67605006 Tube Assy Tubing 1
249951 67600931 Case Assy Control(Indoor) 1
W6640A 67601403 Connector Terminal Block 1
268711B 67603934 PCB Assy Main 1
263230C 67604830 Thermistor Assy NTC 1
263230B 67604831 Thermistor Assy NTC 1
263230A 67604832 Thermistor Assy NTC 1
268711D 67603935 PCB Assy Option 1
135311 67602525 Grille Assy Discharge(Indoor) 1
147581 67603207 Louver Horizontal 1
147582 67603208 Louver Vertical 11
146811A 67603319 Motor Assy DC Stepping 1
146811B 67603321 Motor Assy DC Stepping 1
W50400 67601700 Damper 1
145200 67603004 Link 1
749740 67607200 Guide 1
135500A 67601517 Cover 1
733010 67604003 Plate Assy Installation 1
135316 67602526 Grille Assy Front(Indoor) 1
135313 67603844 Panel Front 1
135500B 67601518 Cover 1
152302 67602214 Filter Air 2
135080 67601805 Decor 1
352150 67602808 Hose Assy Drain 1
267110 67604308 Remote Controller Assy 1
10

Model: MW12Y3J
MW12Y3J
L/N P/N_FRD Description Qty
131410 67601005 Chassis Assembly 1
149303 67602708 Holder,Tubing 1
346810 67603336 Motor Assembly,DC,Indoor 1
135500C 67601516 Cover 1
359011 67602121 Fan Assembly,Cross Flow 1
342800 67606700 Bearing 1
149304 67602709 Holder,Evaporator 1
354212 67602018 Evaporator Assembly,Final 1
354210 67602019 Evaporator Assembly,First 1
35211B 67605006 Tube Assembly,Tubing 1
249951 67600932 Case Assembly,Control(Indoor) 1
W6640A 67601403 Connector,Terminal Block 1
268711B 67603934 PCB Assembly,Main 1
263230C 67604830 Thermistor Assembly,NTC 1
263230B 67604831 Thermistor Assembly,NTC 1
263230A 67604832 Thermistor Assembly,NTC 1
268711D 67603937 PCB Assembly,Option 1
135311 67602525 Grille Assembly,Discharge(Indoor) 1
147581 67603207 Louver,Horizontal 1
147582 67603208 Louver,Vertical 11
146811A 67603319 Motor Assembly,DC,Stepping 1
146811B 67603321 Motor Assembly,DC,Stepping 1
W50400 67601700 Damper 1
145200 67603004 Link 1
749740 67607200 Guide 1
135500A 67601517 Cover 1
733010 67604003 Plate Assembly,Installation 1
135316 67602526 Grille Assembly,Front(Indoor) 1
135313 67603844 Panel,Front 1
135500B 67601518 Cover 1
152302 67602214 Filter,Air 2
135080 67601805 Decor 1
352150 67602808 Hose Assembly,Drain 1
267110 67604308 Remote Controller Assembly 1
11

Indoor Unit
Model: MW09C1J / MW12C1J
135316
135500B
152302A
131410
135313
149303
733010
267110
354210
149304
342800
135500A
354212
135080
146811B
352150
359011
346810
263230A
268711B
147582
146811A
35211B
135500C
W6640A
145200
135311
147581
W50400
268711D
749740
249951
263230B
LOC.
Description
263230A
Thermistor for suction air temperature
263230B
Thermistor for evaporator middle temperature
12

Model: MW09C1J
MW09C1J
Loc No.
P/N_FRD
Description
Qty
131410 67601005 Chassis Assy 1
149303 67602708 Holder Tubing 1
346810 67603336 Motor Assy DC Indoor 1
135500C 67601516 Cover 1
359011 64302121 Fan Assy Cross Flow 1
342800 67606700 Bearing 1
149304 67602709 Holder Evaporator 1
354212 67602018 Evaporator Assy Final 1
354210 67602019 Evaporator Assy First 1
35211B 67605006 Tube Assy Tubing 1
249951 67600933 Case Assy Control(Indoor) 1
W6640A 67601403 Connector Terminal Block 1
268711B 67603939 PCB Assy Main 1
263230B 67604830 Thermistor Assy NTC 1
263230A 67604808 Thermistor Assy NTC 1
268711D 67603940 PCB Assy Option 1
135311 67602525 Grille Assy Discharge(Indoor) 1
147581 67603207 Louver Horizontal 1
147582 67603208 Louver Vertical 11
146811A 67603319 Motor Assy DC Stepping 1
146811B 67603321 Motor Assy DC Stepping 1
W50400 67601700 Damper 1
145200 67603004 Link 1
749740 67607200 Guide 1
135500A 67601517 Cover 1
733010 67604003 Plate Assy Installation 1
135316 67602526 Grille Assy Front(Indoor) 1
135313 67603844 Panel Front 1
135500B 67601818 Cover 1
152302 67602214 Filter Air 2
135080 67601805 Decor 1
352150 67602808 Hose Assy Drain 1
267110 67604308 Remote Controller Assy 1
13

Model: MW12C1J
MW12C1J
Loc No. P/N_FRD Description Qty
131410 67601005 Chassis Assy 1
149303 67602708 Holder Tubing 1
346810 67603336 Motor Assy DC Indoor 1
135500C 67601516 Cover 1
359011 67602121 Fan Assy Cross Flow 1
342800 67606700 Bearing 1
149304 67602709 Holder Evaporator 1
354212 67602018 Evaporator Assy Final 1
354210 67602019 Evaporator Assy First 1
35211B 67605006 Tube Assy Tubing 1
249951 67600935 Case Assy Control(Indoor) 1
W6640A 67601403 Connector Terminal Block 1
268711B 67603939 PCB Assy Main 1
263230C 67604830 Thermistor Assy NTC 1
263230B 67604832 Thermistor Assy NTC 1
268711D 67603942 PCB Assy Option 1
135311 67602525 Grille Assy Discharge(Indoor) 1
147581 67603207 Louver Horizontal 1
147582 67603208 Louver Vertical 11
146811A 67603319 Motor Assy DC Stepping 1
146811B 67603321 Motor Assy DC Stepping 1
W50400 67601700 Damper 1
145200 67603004 Link 1
749740 67607200 Guide 1
135500A 67601517 Cover 1
733010 67604003 Plate Assy Installation 1
135316 67602526 Grille Assy Front(Indoor) 1
135313 67603844 Panel Front 1
135500B 67601518 Cover 1
152302 67602214 Filter Air 2
135080 67601805 Decor 1
352150 67602808 Hose Assy Drain 1
267110 67604308 Remote Controller Assy 1
14

Outdoor Unit
Model: MR09Y3J / MR12Y3J
LOC
Description
263230A
Thermistor for suction air temperature
Thermistor for condenser inlet temperature
263230B
Thermistor for condenser outlet temperature
15

Model: MR09Y3J
MR09Y3J
Loc No.
P/N_FRD
Description
Qty
437211 67603845 Panel Assy Front(Outdoor) 1
237202 67603846 Panel Front 1
435301 67602527 Grille Discharge 1
435512 67601618 Cover Assy Top(Outdoor) 1
554031 67601312 Condenser Assy Bending 1
549610 67600718 Bracket Assy Motor(Outdoor) 1
546810 67603316 Motor Assy DC Outdoor 1
559010 67602122 Fan Assy Propeller 1
137213B 67603847 Panel Assy Side 1
263230A 67604823 Thermistor Assy NTC 1
263230B 67604819 Thermistor Assy NTC 1
554160 67601206 Compressor Set China 1
W6631 67602607 Harness Multi 1
W4986A 67602404 Gasket 1
W4986B 67602406 Gasket 1
W4986C 67602405 Gasket 1
550140 67601702 Damper Compressor 3
261704 67604901 Transformer Reactor 1
447910 67600308 Barrier Assy Outdoor 1
430410 67600608 Base Assy Outdoor 1
152503 67603500 Nipple Drain 1
552116A 67606111 Tube Assy Reverse 1
561410 67601112 Solenoid 1
148000 67604613 Supporter 1
55211G 67605905 Tube Assy Expansion 1
552200B 67606300 Valve Expansion Body 1
661400 67601106 Coil Expansion 1
649950 67601008 Case Assy Control(Outdoor) 1
268711B 67603936 PCB Assy Main 1
W6640 67601412 Connector Terminal Block 1
135500 67601519 Cover 1
552203B 67606512 Valve Service 1
552203A 67606502 Valve Service 1
435513 67601619 Cover Assy Tubing 1
435300 67602528 Grille Rear 1
137213A 67603847 Panel Assy Side 1
552112 67605309 Tube Assy Condenser(In) 1
553000 67607300 Heater Sump 1
552116B 67606111 Tube Assy Reverse 1
552202 67606404 Valve Reverse 1
263230C 67604811 Thermistor Assy NTC 1
16

Model: MR12Y3J
MR12Y3J
Loc No. P/N_FRD Description Qty
437211 67603845 Panel Assembly,Front(Outdoor) 1
237202 67603846 Panel,Front 1
435301 67602527 Grille,Discharge 1
435512 67601618 Cover Assembly,Top(Outdoor) 1
554031 67601312 Condenser Assembly,Bending 1
549610 67600718 Bracket Assembly,Motor(Outdoor) 1
546810 67603316 Motor Assembly,DC,Outdoor 1
559010 67602122 Fan Assembly,Propeller 1
137213B 67603847 Panel Assembly,Side 1
263230A 67604823 Thermistor Assembly,NTC 1
263230B 67604819 Thermistor Assembly,NTC 1
554160 67601206 Compressor Set,China 1
W6631 67602607 Harness,Multi 1
W4986A 67602404 Gasket 1
W4986B 67602406 Gasket 1
W4986C 67602405 Gasket 1
550140 67601702 Damper,Compressor 3
261704 67604901 Transformer,Reactor 1
447910 67600308 Barrier Assembly,Outdoor 1
430410 67600608 Base Assembly,Outdoor 1
152503 67603500 Nipple,Drain 1
552116A 67606111 Tube Assembly,Reverse 1
561410 67601105 Solenoid 1
148000 67604613 Supporter 1
55211G 67605905 Tube Assembly,Expansion 1
552200B 67606300 Valve,Expansion Body 1
661400 67601106 Coil,Expansion 1
649950 67601006 Case Assembly,Control(Outdoor) 1
268711B 67603938 PCB Assembly,Main 1
W6640 67601412 Connector,Terminal Block 1
135500 67601519 Cover 1
552203B 67606512 Valve,Service 1
552203A 67606502 Valve,Service 1
435513 67601619 Cover Assembly,Tubing 1
435300 67602528 Grille,Rear 1
137213A 67603847 Panel Assembly,Side 1
552112 67605309 Tube Assembly,Condenser(In) 1
553000 67607300 Heater,Sump 1
552116B 67606111 Tube Assembly,Reverse 1
552202 67606404 Valve,Reverse 1
263230C 67604811 Thermistor Assembly,NTC 1
17

Outdoor Unit
Model: MR09C1J / MR12C1J
LOC
Description
263230A
Thermistor for suction air temperature
Thermistor for condenser inlet temperature
263230B
Thermistor for condenser outlet temperature
18

Model: MR09C1J
MR09C1J
Loc No.
P/N_FRD
Description
Qty
437211 67603845 Panel Assy Front(Outdoor) 1
237202 67603846 Panel Front 1
435301 67602527 Grille Discharge 1
435512 67601618 Cover Assy Top(Outdoor) 1
554031 67601312 Condenser Assy Bending 1
549610 67600718 Bracket Assy Motor(Outdoor) 1
546810 67603316 Motor Assy DC Outdoor 1
559010 67602122 Fan Assy Propeller 1
137213B 67603847 Panel Assy Side 1
263230A 67604823 Thermistor Assy NTC 1
263230B 67604819 Thermistor Assy NTC 1
554160 67601206 Compressor Set China 1
W6631 67602607 Harness Multi 1
W4986A 67602404 Gasket 1
W4986B 67602406 Gasket 1
W4986C 67602405 Gasket 1
550140 67601702 Damper Compressor 3
261704 67604901 Transformer Reactor 1
447910 67600308 Barrier Assy Outdoor 1
430410 67600608 Base Assy Outdoor 1
152503 67603500 Nipple Drain 1
552116A 67606111 Tube Assy Reverse 1
148000 67604613 Supporter 1
55211G 67605905 Tube Assy Expansion 1
552200B 67606300 Valve Expansion Body 1
661400 67601106 Coil Expansion 1
649950 67600934 Case Assy Control(Outdoor) 1
268711B 67603941 PCB Assy Main 1
W6640 67601412 Connector Terminal Block 1
135500 67601519 Cover 1
552203B 67606512 Valve Service 1
552203A 67606502 Valve Service 1
435513 67601619 Cover Assy Tubing 1
435300 67602528 Grille Rear 1
137213A 67603847 Panel Assy Side 1
552112 67605309 Tube Assy Condenser(In) 1
553000 67607300 Heater Sump 1
552116B 67606111 Tube Assy Reverse 1
552202 67606404 Valve Reverse 1
263230C 67604811 Thermistor Assy NTC 1
19

Model: MR12C1J
MR12C1J
Loc. No P/N_FRD Description Qty
437211 67603845 Panel Assy Front(Outdoor) 1
237202 67606846 Panel Front 1
435301 67602527 Grille Discharge 1
435512 67601618 Cover Assy Top(Outdoor) 1
554031 67601312 Condenser Assy Bending 1
549610 67600718 Bracket Assy Motor(Outdoor) 1
546810 67603316 Motor Assy DC Outdoor 1
559010 67602122 Fan Assy Propeller 1
137213B 67603847 Panel Assy Side 1
263230A 67604823 Thermistor Assy NTC 1
263230B 67604819 Thermistor Assy NTC 1
554160 67601206 Compressor Set China 1
W6631 67602607 Harness Multi 1
W4986A 67602404 Gasket 1
W4986B 67602406 Gasket 1
W4986C 67602405 Gasket 1
550140 67601702 Damper Compressor 3
261704 67604901 Transformer Reactor 1
447910 67600308 Barrier Assy Outdoor 1
430410 67600608 Base Assy Outdoor 1
152503 67603500 Nipple Drain 1
552116A 67606111 Tube Assy Reverse 1
148000 67604613 Supporter 1
55211G 67605905 Tube Assy Expansion 1
552200B 67606300 Valve Expansion Body 1
661400 67601106 Coil Expansion 1
649950 67600936 Case Assy Control(Outdoor) 1
268711B 67603943 PCB Assy 1
W6640 67601412 Connector Terminal Block 1
135500 67601519 Cover 1
552203B 67606512 Valve Service 1
552203A 67606502 Valve Service 1
435513 67601619 Cover Assy Tubing 1
435300 67602528 Grille Rear 1
137213A 67603847 Panel Assy Side 1
552112 67605309 Tube Assy Condenser(In) 1
553000 67607300 Heater Sump 1
552116B 67606111 Tube Assy Reverse 1
552202 67606404 Valve Reverse 1
263230C 67604811 Thermistor Assy NTC 1
20
