Friedrich XQ05J10A-B User manual

920-132-00 (5-04)
2004
Parts Manual
Room Air Conditioners

2
TABLE OF CONTENTS
PAGE
PORTABLE "Q" SERIES UNITS .............................................................................................. 4-9
SMALL CHASSIS "S" SERIES UNITS (115 & 230 VOLT) .................................................... 10-19
MEDIUM CHASSIS "M" SERIES UNITS (115 & 230 VOLT) ................................................. 20-26
LARGE CHASSIS "L" SERIES UNITS ................................................................................. 28-33
CASEMENT "C" SERIES UNITS (115 & 230 VOLT) ............................................................ 34-38

3

4
"Q" Series
Portable Chassis
Room Air Conditioner Section

5

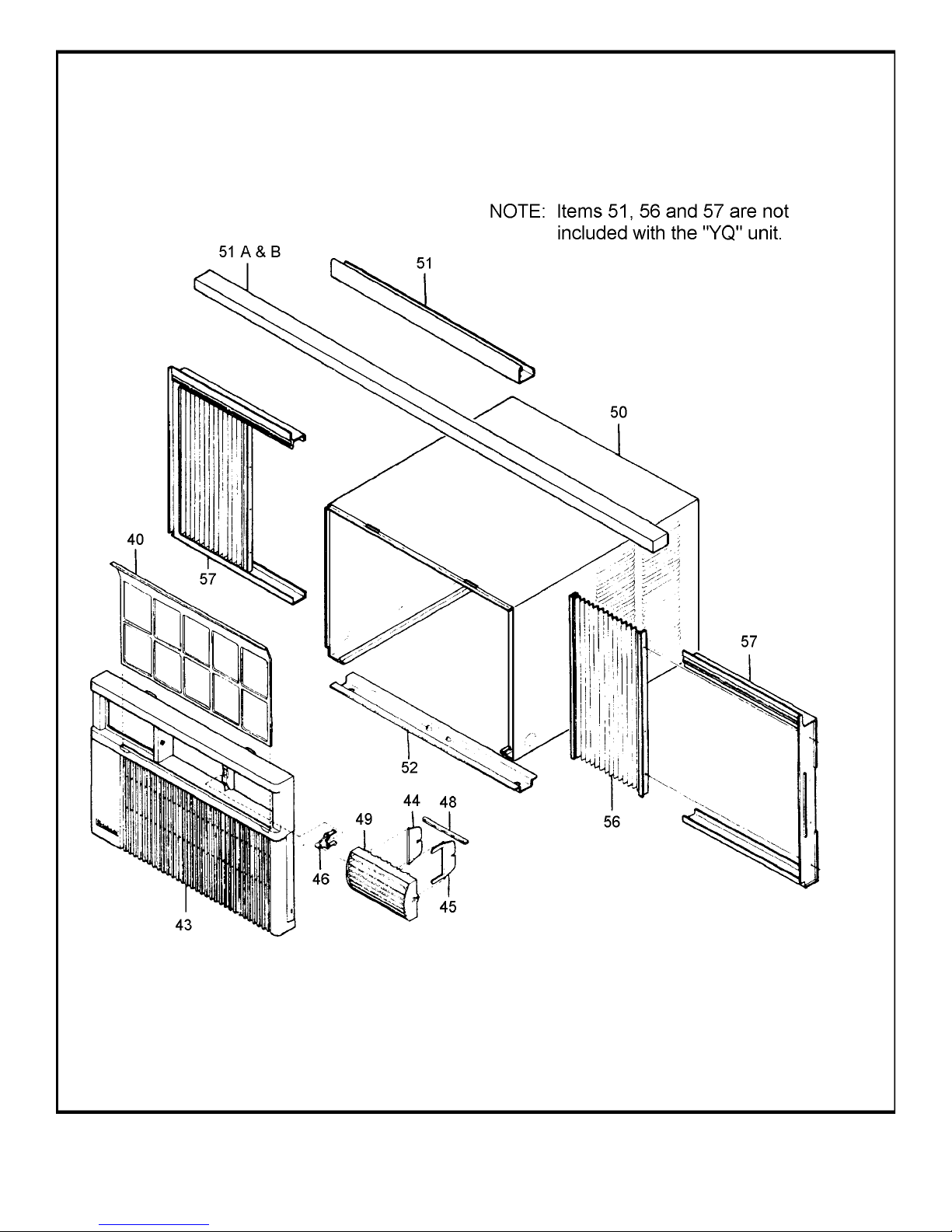

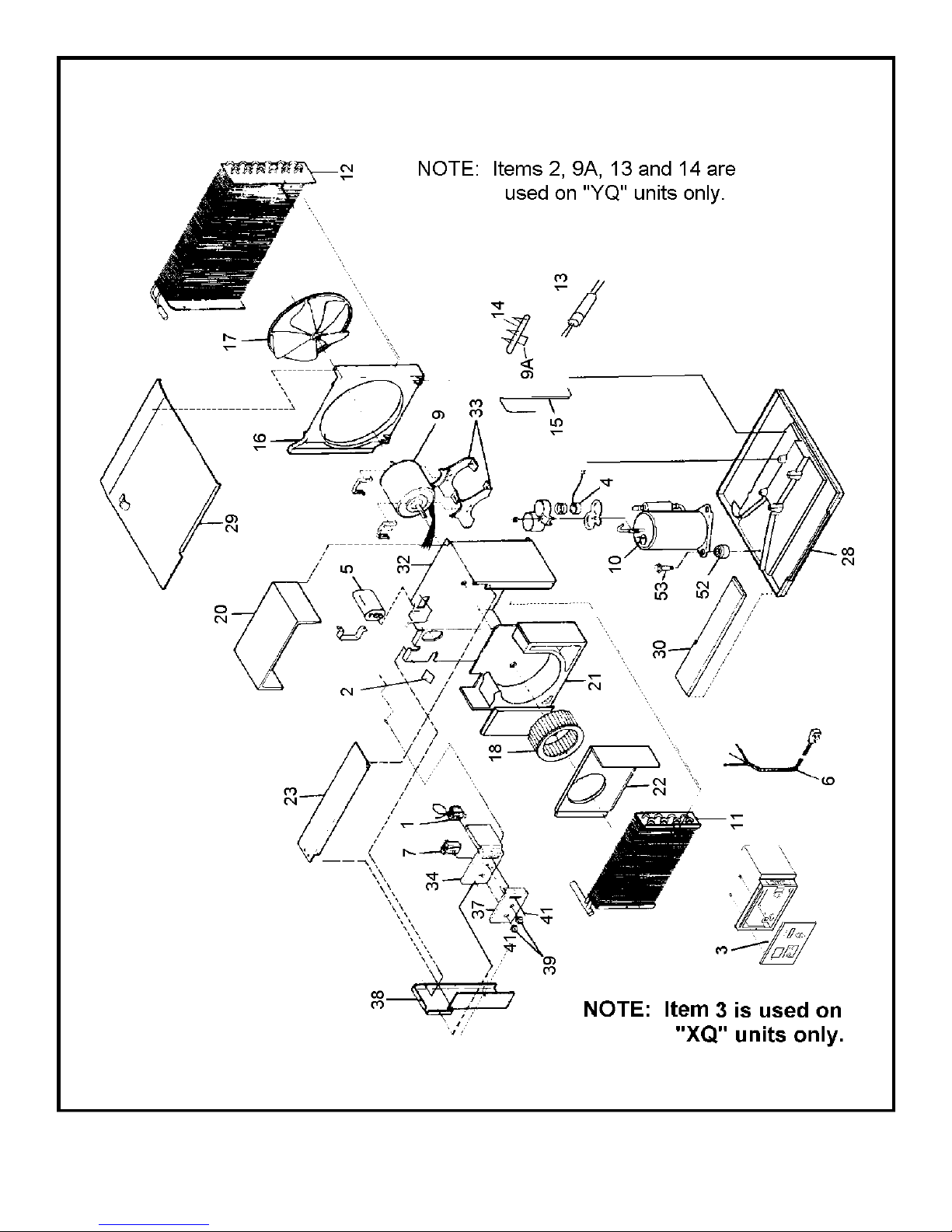

"Q" SERIES CABINET PARTS

6
"Q" SERIES CABINET PARTS`

7
PORTABLE "Q" SERIES
* PARTS NOT SHOWN
REF DESCRIPTION PART NO# CODE
ELECTRICAL PARTS
XQ05J10A-B XQ06J10A-A XQ06J10A-B XQ08J10B-A
XQ10J10-A XQ10J10-B
EQ08J11A-A
YQ07J10-B
1THERMOSTAT 61828401 1 120
1THERMOSTAT 61822401 1 120
2THERMOSTAT, DEFROST 60442500 1 122
3ELECTRONIC BOARD 61921102 11111 340
3ELECTRONIC BOARD 61921110 1 340
*REMOTE CONTROL 61826603 111111 350
*RESISTOR 61900500 1 200
4OVERLOAD 61764539 1 1 190
4OVERLOAD 61764526 1 190
4OVERLOAD 61764519 1 1 190
4OVERLOAD 61764507 1 1 1 190
5CAPACITOR 61080550 1111 11 150
5CAPACITOR 61080528 1 1 150
6SUPPLY CORD 60500065 11111111 220
7SWITCH ROTARY 6 POS 60441607 1 130
7SWITCH ROTARY 6 POS 60441610 1 130
*HEATER 61929601 1 193
9FAN MOTOR 61871451 111111 110
9FAN MOTOR 61871452 1 1 110
9A SOLENOID, REV . V AL V E 25063500 1 240
REF DESCRIPTION PART NO# CODE
REFRIGERATION SYSTEM PARTS
XQ05J10A-B XQ06J10A-A XQ06J10A-B XQ08J10B-A
XQ10J10-A XQ10J10-B
EQ08J11A-A
YQ07J10-B
10 COMPRESSOR 61562832 1 1 1 600
10 COMPRESSOR 61716640 1 1 600
10 COMPRESSOR 61716658 1 600
10 COMPRESSOR 61985100 1 600
10 COMPRESSOR 61985101 1 600
11 EVAPORATOR COIL 61600257 1 1 1 400
11 EVAPORATOR COIL 61600258 1 1 400
11 EVAPORATOR COIL 61600268 1 400
11 EVAPORATOR COIL 62050018 1 1 400
12 CONDENSER COIL 61600352 1 410
12 CONDENSER COIL 61600519 111 1 410
12 CONDENSER COIL 62050319 1 1 410
12 CONDENSER COIL 61600515 1 410
*DRIER, LIQUID 61481300 1111111 480
*DRIER, SUCTION 61828200 1 480
13 CHECK VALVE 61824400 1 510
14 REVERSING VALVE 25018201 1 500
15 CAPILLARY TUBE 01390595 1 1 471
15 CAPILLARY TUBE 03760545 111 471
15 CAPILLARY TUBE 03760513 1 1 471
15 CAPILLARY TUBE (HTG) 03760500 1 471
15 CAPILLARY TUBE (CLG) 03760554 1 471

8
PORTABLE "Q" SERIES
* PARTS NOT SHOWN
REF DESCRIPTION PART NO# CODE
CHASSIS PARTS
XQ05J10A-B XQ06J10A-A XQ06J10A-B XQ08J10B-A
XQ10J10-A XQ10J10-B
EQ08J11A-A
YQ07J10-B
16 SHROUD, CONDENSER 61627601 11111111 720
17 FAN BLADE 61634001 11111111 710
18 BLOWER WHEEL 60610606 111 1 700
18 BLOWER WHEEL 60610612 1111 700
20 COVER BLOWER 61619503 11111111 745
21 WRAPPER, SCROLL, 61990600 11111111 741
22 FRONT, BL OWER 61928801 1 742
22 FRONT, BL OWER 61990700 111111 1 742
23 DECK, BLOWER 61619405 1 745
23 DECK, BLOWER 61990500 111111 1 745
28 BASE PAN 61626302 1111 1 730
28 BASE PAN 61626303 1 1 730
28 BASE PAN 61626304 1 730
29 COVER, UNIT T OP 61715601 11111111 746
30 DRAIN PAN, EV A P. 61638400 11111111 840
32 INNER WALL 61597315 111111 777
32 INNER WALL 61597316 1 777
32 INNER WALL 61597318 1 777
33 FAN MOTOR MOUNT 61776903 11111111 900
*SCREW, FANMTR. MT. 21004672 44444444 999
34 CONTROL MT. BRACKET 61619612 1 1 763
34 CONTROL MT. BRACKET 61923900 111111 763

9
PORTABLE "Q" SERIES
* PARTS NOT SHOWN
REF DESCRIPTION PART NO# CODE
CHASSIS PARTS
XQ05J10A-B XQ06J10A-A XQ06J10A-B XQ08J10B-A
XQ10J10-A XQ10J10-B
EQ08J11A-A
YQ07J10-B
*COUNTER WEIGHT 61715800 22222222 999
*SEAL, FAN M OTOR 60217902 11111111 780
52 GROMMET, COMP. MT. 61028900 33333333 790
53 SCREW, COMP. MT. 91400400 33333333 999
56 CURTAIN ASSLY. 61680203 111111 999
*CARTON, SHIPPING 61841900 11111111 999
*PAD SHIPPING TOP 61769700 11111111 999
PAD SHIPPING BOTTOM 61716400 11111111 999
*ANTI-ICE KIT 61680600 1 1 250
*START ASSIST (PTCR) 61008903 11111111 160
*DRAIN KIT, DC - 2 O1900235 11111111
*INSTALLION BOOK 92003401 11111111
*OPERATION BOOK 92000306 11
*OPERATION BOOK 92011500 111111
*PARTS MANUAL 92013200 11111111
*SERVICE MANUAL 92013100 11111111
OPTIONAL ACCESSORIES
REF DESCRIPTION PART NO# CODE
CHASSIS PARTS
XQ05J10A-B XQ06J10A-A XQ06J10A-B XQ08J10B-A
XQ10J10-A XQ10J10-B
EQ08J11A-A
YQ07J10-B
37 CONTROL DEC. PANEL 61715916 1 1 760
38 PANEL ASSLY, L\S 61924900 11111111 765
39 CONTROL KNOBS 61911600 2 2 761
*HOLDER, TSTAT BULB 61900500 1 1 764
*HOLDER, THERMISTER 61925001 111111 764
40 FILTER, AIR 61632310 11111111 754
*LINK EXHAUST DOOR 61639301 111111 811
*EXHAUST DOOR 61632202 111111 810
*WIRE CLIP, EX HA US T 60301800 111111 999
SLIDE EXHAUST DOOR 61923802 111111 999
43 FRONT, DECORATIV E 61637710 11111111 750
50 SHELL, OUTER ASSY 61625801 11111111 720
51 ANGLE, TOP SUPPORT 61627303 111111 999
52 CHANNEL, SILL 61627201 11111111 999
*SCRIPT, FRIEDRIC H 60169103 11111111 999
51A GASKET, CHASSIS SEAL 61717300 11111111 780
51B GASKET, WINDOW SEAL 60073300 111111 780
*BAG ASSLY (SCREWS) 61778700 111111 999
*BAG ASSLY (SCREWS) 61778701 1 1 999

10
"S" Series
115V / 230V
Small Chassis
Room Air Conditioner Section

11

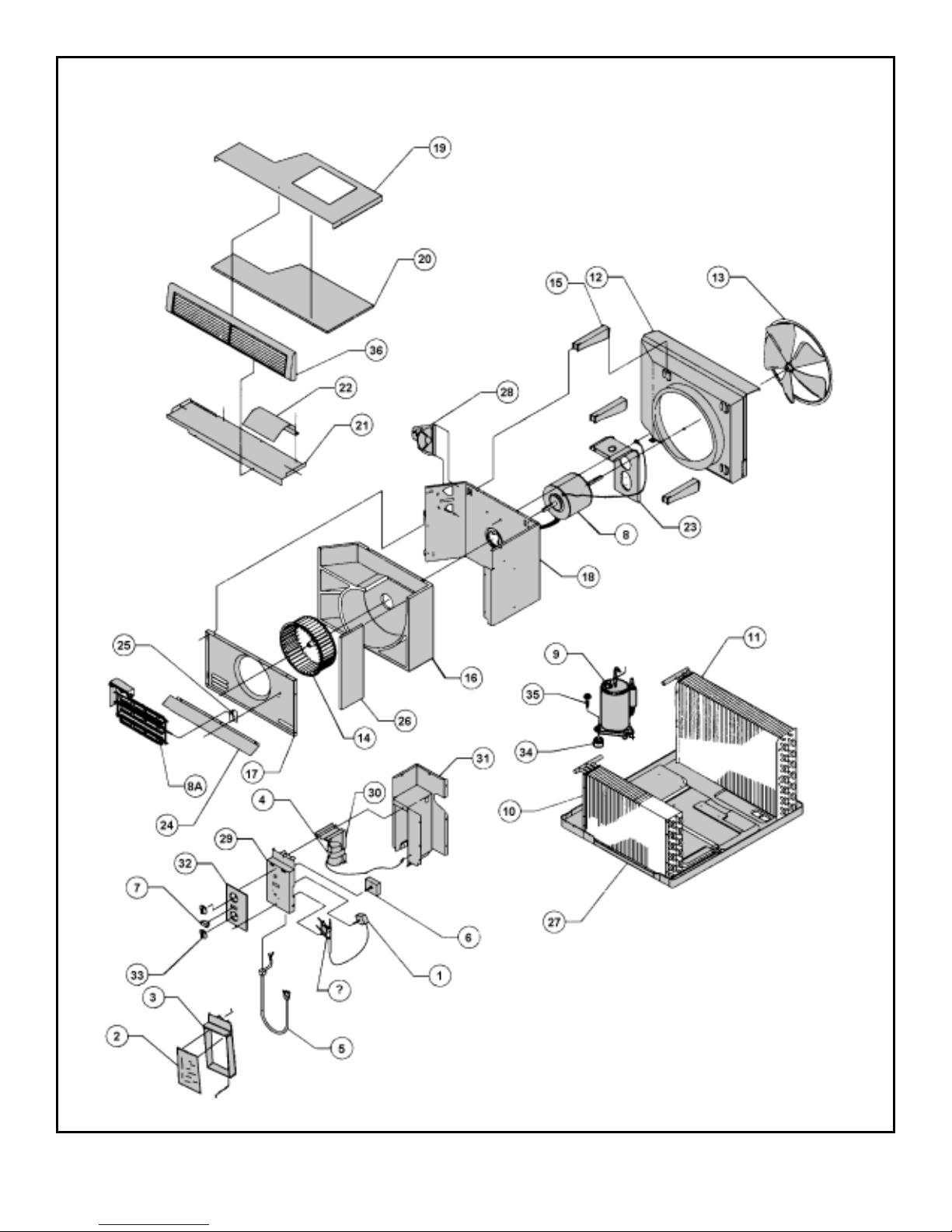

SMALL CHASSIS "S" SERIES CHASSIS PARTS
(ES, KS, RS, SS & YS)

12
SMALL CHASSIS "S" SERIES CHASSIS PARTS
(ES, KS, RS, SS & YS)

13
SMALL CHASSIS "S" SERIES PARTS LIST - 115V
* PARTS NOT SHOWN
DESCRIPTION PART NO# YS 115 CODE
ELECTRICAL PARTS
KS10E10-A KS10J10-C KS12J10B-A KS15J10-A RS12J10A-B RS10J10-C RS15J10-A SS08J10R-A SS09J10C-A SS10J10AR-A SS12J10AR-B SS14J10R-A SS14J10R-B YSO9J10B-A
1 THERMOSTAT 61822500 1111111 120
1 THERMOSTAT 61822400 1 120
* THERMOSTAT, DEFROST 61350313 1 122
2 ELECTRONIC CTRL. 61921103 11111 331
2 ELECTRONIC CTRL. 61921111 1 331
* REMOTE CONTROL 61826603 1 1111 350
3 RESISTOR 61808000 1111111 1 200
* OVERLOAD 61764519 1 1 1 1 1 1 1 190
* OVERLOAD 61764544 1 1 1 1 190
* OVERLOAD 61764536 1 1 190
* OVERLOAD 61764507 1 190
4 CAPACITOR 61080533 1 150
4 CAPACITOR 61080535 1 150
4 CAPACITOR 61080554 1 1 1 1 1 150
4 CAPACITOR 61080569 111 1 111 150
6 SUPPLY CORD 60500054 11 11 1111 1 220
6 SUPPLY CORD 60500053 1 1 1 1 1 220
6 SWITCH SYS. 5 POS. 60607203 1111 130
6 SWITCH SYS. 6 POS. 60607205 1 1 1 130
6 SWITCH SYS. 8 POS. 60607204 1 130
7 SWITCH (YES - NO) 61806102 1111111 1 132
8FANMOTOR 61871431 1 1 1 110
8FANMOTOR 61871428 1 111 110
8FANMOTOR 61871430 1 1 110
8FANMOTOR 61871436 1 1 110
8FANMOTOR 61871444 1 1 1 110
* SOLENOID COIL 25063500 1 240
KS 115 RS 115 SS 115

14
SMALL CHASSIS "S" SERIES PARTS LIST - 115V
* PARTS NOT SHOWN
DESCRIPTION PART NO# YS 115 CODE
REFRIGERATION PARTS
KS10E10-A KS10J10-C KS12J10B-A KS15J10-A RS12J10A-B RS10J10-C RS15J10-A SS08J10R-A SS09J10C-A SS10J10AR-A
SS12J10AR-B
SS14J10R-A SS14J10R-B YSO9J10B-A
9 COMPRESSOR 62199700 1 600
9 COMPRESSOR 61716641 1 1 1 600
9 COMPRESSOR 61716640 1 1 1 600
9 COMPRESSOR 61716653 1 1 1 1 600
9 COMPRESSOR 61562832 1 600
9 COMPRESSOR 61562608 1 1 600
10 EVAPORATOR COIL 62050014 1 1 1 1 400
10 EVAPORATOR COIL 61850101 1 1 1 400
10 EVAPORATOR COIL 61850100 1111 11 1400
11 CONDENSER COIL 61850303 1 1 1 410
11 CONDENSER COIL 61850217 1 1 1 410
11 CONDENSER COIL 61850302 1 1 1 1 1 410
11 CONDENSER COIL 62050302 1 1 1 410
*DRIER,LIQUID 60308101 1111111111111 480
* DRIER, SUCTION 61828200 1 480
* CHECK VALVE 61824400 1 510
* REVERSING VALVE 25018201 1 500
* CAPILLARY TUBE 03760520 1111 471
* CAPILLARY TUBE 03760473 1 1 1 471
* CAPILLARY TUBE 01389903 1 471
* CAPILLARY TUBE 03760501 1 1 1 1 471
* CAPILLARY TUBE 03760452 1 1 471
* CAPILLARY TUBE 03760556 1 471
KS 115 RS 115 SS 115

15
SMALL CHASSIS "S" SERIES PARTS LIST - 115V
* PARTS NOT SHOWN
DESCRIPTION PART NO# YS 115 CODE
CHASSIS PARTS
KS10E10-A KS10J10-C KS12J10B-A KS15J10-A RS12J10A-B RS10J10-C RS15J10-A SS08J10R-A SS09J10C-A SS10J10AR-A SS12J10AR-B SS14J10R-A SS14J10R-B YS09J10B-A
12 SHROUD, SML W/SUMP LOOP 61803601 1111111111111 1 720
13 FAN BLADE, CONDENSER 60542003 1111111111111 1 710
14 BLOWER WHEEL, EVAPORATOR 60610603 1111 111 111 1 700
14 BLOWER WHEEL, EVAPORATOR 60610604 1 1 1 700
15 BRACE, COND. SHROUD 61802600 3333333333333 3 722
16 SCROLL 61814902 1111111111111 1 743
17 BLOWER FRONT 61817300 1111111111111 1 742
* INSULATION, INNER WALL 61816900 1111111111111 1 781
18 INNER WALL 61907300 1111111111111 1 777
19 COVER, TOP 61906700 1111111111111 1 746
20 INSULATION, TOP COVER 61816701 1111111111111 1 781
21 DECK 61817100 1111111111111 1 745
22 AIR FOIL 61820200 1111111111111 1 744
23 MOUNT, FAN MOTOR 61802500 1111111111111 1 900
27 BASE PAN 61803409 1 1 730
27 BASE PAN 61803411 1111111 1111 730
27 BASE PAN 61809003 1 730
* DRAIN PAN 61803800 1111111111111 1 840
* BELLOWS, DRAIN VALVE 60179903 1 801
* GRILLE, REAR 61818800 1111111111111 1 771
28 DOOR, SLIDE ASSLY. 61821500 1111111111111 1 810
* CONNECTOR, SLIDE DOOR 61814800 111111111111 1 811
29 PANEL, CTRL. MT. 61807200 1111111 1 999
29 PANEL, CTRL. MT. 61807201 111111 999
30 BRACKET, CAP. MT 61820400 1111111111111 1 999
* PANEL, L/S 61937200 1111111111111 1 999
31 PARTITION, CTRL. BOX 61802800 1111111111111 1 999
32 DECORATIVE PANEL 61822603 111 999
32 DECORATIVE PANEL 61823300 1 999
32 DECORATIVE PANEL 61822600 1111 999
33 KNOBS, CTRL. 61493905 2222222 2 761
* HOLDER, THERMISTER 61925001 111111 764
* HOLDER, AIR FILTER 60865900 2222222222222 2 756
*FILTER,AIR 60865808 1111111111111 1 754
* CLAMP, SUPPLY CORD 91500301 1111111111111 1 999
* BRACKET, RESISTO BLOCK 61820600 1111111 1 999
34 GROMMET, SUCTION LINE 61807602 1111111111111 999
34 GROMMET, SUCTION LINE 61807600 1 999
34 GROMMET, COMPRESSOR 61028900 3333333333333 3 790
35 SCREW, COMPRESSOR MT. 91400400 3333333333333 3 999
* COUNTER WEIGHT 61715800 2222222222222 2 999
36 PLENUM ASSLY. 61810200 1111111111111 1 753
RS 115KS 115 SS 115

16
SMALL CHASSIS "S" SERIES PARTS LIST - 115V
* PARTS NOT SHOWN
DESCRIPTION PART NO# YS 115 CODE
CHASSIS PARTS
KS10E10-A KS10J10-C KS12J10B-A KS15J10-A RS12J10A-B RS10J10-C RS15J10-A SS08J10R-A SS09J10C-A SS10J10AR-A SS12J10AR-B SS14J10R-A SS14J10R-B YS09J10B-A
* LEVER, FRESH & EXHAUST 61809200 1111111111111 1 813
* KNOB, FRESH & EXHAUST 61809300 1111111111111 1 814
37 INTAKE GRILLE 61808903 1111111111111 1 772
* LATCH, INTAKE GRILLE 61989000 2222222222222 2
38 OUTER SHELL ASSLY 61825700 1111111111111 1 770
39 SILL PLATE 61808403 1111111111111 1
* CHASSIS GUIDE, SHELL 61819601 2222222222222 2
* FRIEDRICH SCRIPT 60169103 1111111111111 1
* PUSHNUTS, SCRIPT 91002900 2222222222222 2
* ACCESSORY PKGE. 61105004 1111111111111
40 WINGBOARD 60294408 1111111111111
41 BRACKET, SUPPORT 61109503 1222222222222
42 ANGLE, WINGBOARD 61819801 2222222222222
43 ANGLE, TOP 61819701 1111111111111
44 GASKET, VINYL. {item #12} 60610303 1111111111111
* HARDWARE BAG(SCREWS) 60846017 11
* HARDWARE BAG(SCREWS) 60846016 1111111111111
45 GASKET, CHASSIS. {item #14} 61717301 1111111111111 1
45 GASKET, WINDOW. {item # 13} 60073300 1111111111111
* CARTON, SHIPPING 61841901 1111111111111 1
* PAD, SHIPPING 61839500 1111111111111 1
* PAD, FRONT SUPPORT 61839700 1111111111111 1
* PAD, SHIPPING TOP 61839600 1111111111111 1
* ACCESSORY PACKAGE WIKS 1
*DRAINKIT,DC-2 01900235 1111111111111 1
* START KIT, CAP.\RELAY 61008903 1111111111111 1
* ANTI-ICE KIT 61680600 1111111111111 1
* REMOTE CONTROLLER 61826603 1
* INSTALLATION BOOK 92003602 1111111111111 1
* OPERATION BOOK 92000306 1
* OPERATION BOOK 92000505 1111
* OPERATION BOOK 92006102 111
* OPERATION BOOK 92009002 111111
* QUICK REF. CARD 92004401 111111
*PARTS MANUAL 92013200 111111111111 1
*SERVICE MANUAL 92013100 111111111111 1
OPTIONAL ACCESSORIES ITEMS
KS 115 RS 115 SS 115

17
* PARTS NOT SHOWN
REF DESCRIPTION PART NO# KS 230 RS 230 YS 230 CODE
REFRIGERATION PARTS
ES12J33B-A ES16J33A-A KS12J30B-A RS16J30A-A SS12J30D-A SS16J30A-A YS12J33-A
9 COMPRESSOR 61716628 11600
9 COMPRESSOR 61716645 11600
9 COMPRESSOR 61716631 111600
10 EVAPORATOR COIL 61850100 111400
10 EVAPORATOR COIL 61850101 1400
10 EVAPORATOR COIL 62050014 111400
11 CONDENSER COIL 61850217 1410
11 CONDENSER COIL 61850302 11410
11 CONDENSER COIL 61850306 1410
11 CONDENSER COIL 62050302 111410
*DRIER,LIQUID 60308101 111111 480
* DRIER, SUCTION 61828200 1480
* CHECK VALVE 61824400 1510
* REVERSING VALVE 25018301 1500
* CAPILLARY TUBE 03760513 1471
* CAPILLARY TUBE 03760545 1471
* CAPILLARY TUBE 03760473 11471
* CAPILLARY TUBE 01390005 111471
* CAPILLARY TUBE 03760520 1471
ES 230 SS 230
SMALL CHASSIS "S" SERIES PARTS LIST - 230V
REF DESCRIPTION PART NO# KS 230 RS 230 YS 230 CODE
ELECTRICAL PARTS
ES12J33B-A ES16J33A-A KS12J30B-A RS16J30A-A SS12J30D-A SS16J30A-A YS12J33-A
1 THERMOSTAT 61822400 11 1120
1 THERMOSTAT 61822500 11 120
* RESISTOR 61808001 1111 1200
* THERMOSTAT, DEFROST 61350313 1122
2 ELECTRONIC CTR. 61921104 11 331
*OVERLOAD 61764521 11190
*OVERLOAD 61764532 111190
*OVERLOAD 61764540 11190
4 CAPACITOR 61080536 1111111150
5 SUPPLYCORD 60500049 11 1220
5 SUPPLYCORD 60500051 1111 220
6 SWITCH, SYS. 8 POS. 60607204 11 1130
6 SWITCH, SYS. 5 POS. 60607203 1130
6 SWITCH , SYS. 6 POS 60607205 1130
7 SWITCH (YES - NO) 61806102 1111 1132
8FANMOTOR 61871441 1110
8FANMOTOR 61871429 11110
8FANMOTOR 61871437 11 1110
8FANMOTOR 61871438 1110
* SOLENOID 25063600 1240
8A HEATER 61878600 11 1210
* FUSE LINK 61596301 11 1192
* LIMITER, HEATER 61827901 11 1193
SS 230ES 230

18
SMALL CHASSIS "S" SERIES PARTS LIST - 230V
* PARTS NOT SHOWN
REF DESCRIPTION PART NO# KS 230 RS 230 YS 230 CODE
CHASSIS PARTS
ES12J33-A ES16J33A-A KS12J30B-A RS16J30A-A SS12J30D-A SS16J30A-A YS12J33-A
12 SHROUD, CONDENSER 61803601 1111111720
13 FAN BLADE 60542003 1111111710
14 BLOWER WHEEL 60610601 111700
14 BLOWER WHEEL 60610603 1111700
15 BRACE, COND. SHROUD 61802600 3333333722
16 SCROLL 61814902 1111111743
17 BLOWER FRONT 61817300 1111111742
* INSULATION, INNER WALL 61816900 1111111781
18 INNER WALL 61907300 1111111777
19 COVER, TOP 61906700 1111111746
20 INSULATION, TOP COVER 61816701 1111111781
21 DECK 61817100 1111111745
22 AIR FOIL 61820200 1111111744
23 MOUNT, FAN MOTOR 61802500 1111111900
24 SHIELD, BOTTOM 61812900 11 1999
25 BRACKET, HEATER MT. 61818900 11 1999
26 SHIELD, SIDE 61821800 11 1999
27 BASE PAN 61809005 11 730
27 BASE PAN 61803411 1111 730
27 BASE PAN 61809001 1730
* DRAIN PAN 61803800 1111111840
* BELLOWS, DRAIN VALVE 60179903 11 1801
* GRILLE, REAR 61818800 1111111771
28 DOOR, SLIDE ASSLY. 61821500 1111111810
* CONNECTOR, SLIDE DOOR 61814800 1111111811
29 PANEL, CTRL. MT. 61807201 11 999
29 PANEL, CTRL. MT. 61807200 1111 1999
30 BRACKET, CAP. MT 61820400 1111111999
* PANEL, L\S 61937200 1111111999
31 PARTITION, CTRL. BOX 61802800 1111 999
31 PARTITION, CTRL. BOX 61802801 11 1999
* BUSHING, SUPPLY CORD 60071311 11 1999
* BUSHING, SUPPLY CORD 60071316 1111111999
32 DECORATIVE PANEL 61823300 11 1999
32 DECORATIVE PANEL 61822603 1999
32 DECORATIVE PANEL 61822600 1999
33 KNOBS, CTRL. 61493905 2222 2761
29 PANEL, CONTROL SML 61807200 1111 1999
29 PANEL, CONTROL 61807201 11 999
* HOLDER, THERMISTER 61925001 11 764
* HOLDER, AIR FILTER 61823000 2222222756
*FILTER,AIR 60865808 1111111754
* CLAMP, SUPPLY CORD 91500302 1111111999
* BRACKET, RESISTO BLOCK 61820600 1111 1999
* GROMMET, SUCTION LINE 61807602 1111111999
34 GROMMET, COMPRESSOR 61028900 3333333790
35 SCREW, COMPRESSOR MT. 91400400 3333333999
ES 230 SS 230
*FILTER,AIR 60865808 1111111754
* CLAMP, SUPPLY CORD 91500302 1111111999
* BRACKET, RESISTO BLOCK 61820600 1111 1999
* GROMMET, SUCTION LINE 61807602 1111111999
34 GROMMET, COMPRESSOR 61028900 3333333790
35 SCREW, COMPRESSOR MT. 91400400 3333333999
* COUNTER WEIGHT 61715800 2222222999
36 PLENUM ASSLY. 61810200 1111111753
* KNOB,FRESH AIR & EXHAUST 61809300 1111111761

19
SMALL CHASSIS "S" SERIES PARTS LIST - 230V
* PARTS NOT SHOWN
CHASSIS PARTS
ES12J33-A ES16J33A-A KS12J30B-A RS16J30A-A SS12J30D-A SS16J30A-A YS12J33-A
37 INTA K E GRILLE 61808903 1111111772
* LATCH, INTAKE GRILLE 61989000 2222222
38 OUTER SHELL ASSLY 61825700 1111111770
39 SILL PLATE 61808403 1111111
* CHASSIS GUIDE, SHELL 61819601 2222222
* FRIEDRICH SCRIPT 60169105 1111111
* PUSHNUTS, SCRIPT 91002900 2222222
40 WINGBOARD 60294408 1111
41 BRACKET, SUPPORT 61109503 2222
42 ANGLE, WINGBOARD 61819801 2222
43 ANGLE, TOP 61819701 1111
44 GASKET, VINYL 60610303 1111111
* HARDWARE BAG(SCREWS) 60846017 11 1
* HARDWARE BAG(SCREWS) 60846016 1111
45 GASKET, CHASSIS 61717301 1111111
45 GASKET, WINDOW 60073300 1111
* PAD, SHIPPING TOP 61839600 1111111
* PAD, SHIPPING 61839500 111111
* PAD, FRONT SUPPORT 61839700 1111111
* CARTON, SHIPPING 61841901 1111111
*DRAIN KIT, DC-2 01900235 1111111
*START KIT, CAP.\RELAY 61008903 1111111
*REMOTE CONTROLLER 61826603 11
*INSTALLATION BOOK 92003601 1111111
*OPERATION BOOK 92000304 11 1
*OPERATION BOOK 92000505 1
*OPERATION BOOK 92006102 1
*OPERATION BOOK 92000901 11
*QUICK REF. CARD 92004401 11
*PARTS MANUAL 92013200 1111111
*SERVICE MANUAL 92013100 1111111
OPTIONAL ACCESSORY ITEMS

20
"M" Series
230V
Medium Chassis
Room Air Conditioner Section
