Front Runner SLIMLINE II TRAY User manual

RRSTUNI _REV_A05 © 2019 FRONT RUNNER VEHICLE OUTFITTERS
slimline ii tray
universal assembly
instructions
RRSTUNI
ENG
1
Thank you for purchasing a Front Runner Slimline II Tray.
Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.
Refer to Page 2 for a list of all the components, quantities and tools required.
READ ME !
IMPORTANT WARNING!
IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD
RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT
RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND
DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO
INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY
FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.
NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.
Please call us if you have any questions about the installation of this product.
front runner

RRSTUNI _REV_A05 2 © 2019 FRONT RUNNER VEHICLE OUTFITTERS
1
10
6
5
6
4
3
2
8
5
8
2
6
7
9
7
9
5
10

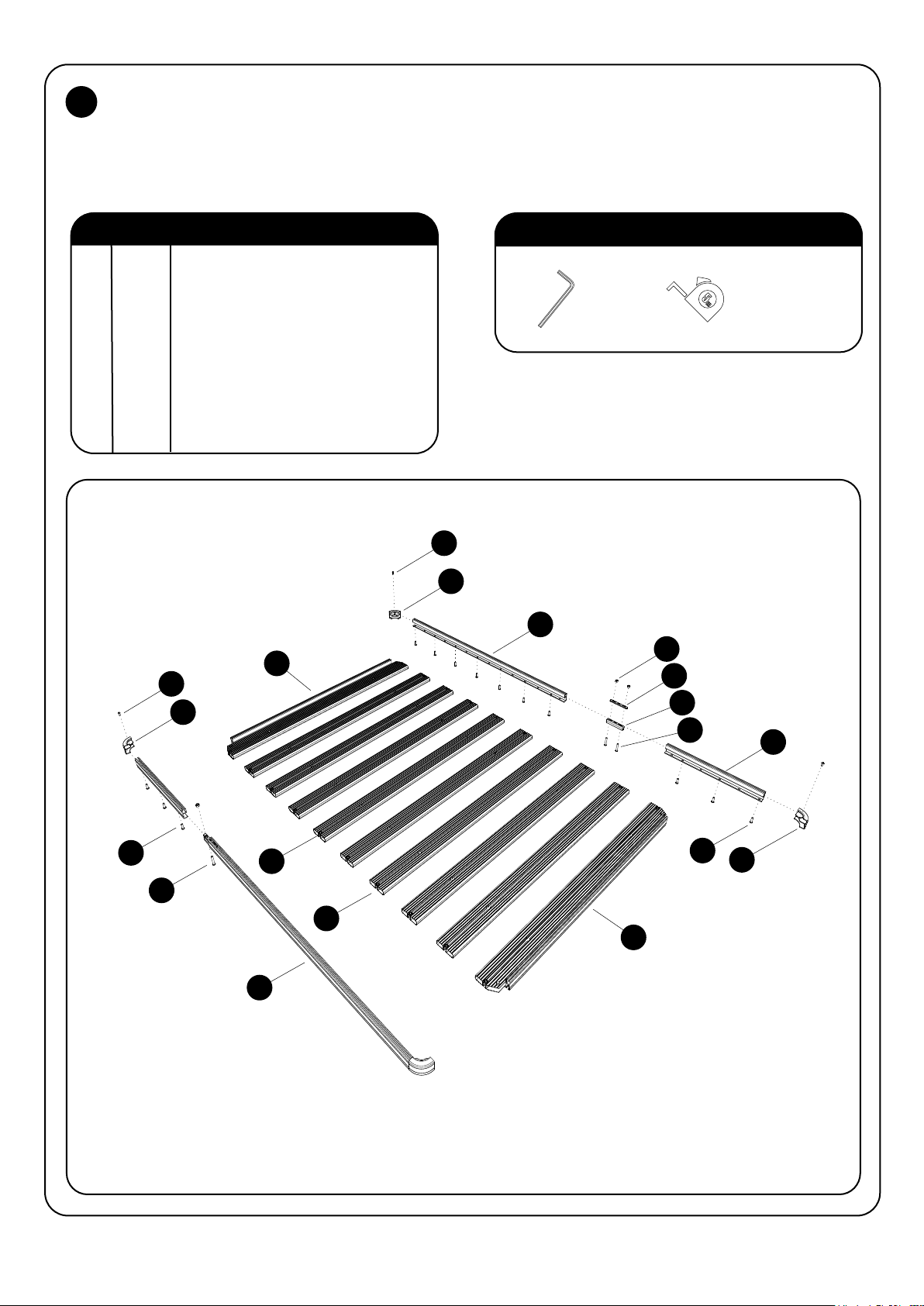

TOOLS NEEDED
1 32 X M8 Nyloc Nut
2 4 X M8 x45 Button Head Bolt
3 2 X Thick Joiner Piece
4 2 X Thin Joiner Piece
5 4 X Side Profile
6 4 X Corner
7 2 X Combined Slat
8 28 X M8 x 25 Button Head Bolt
9 12 X Standard Slat
10 4 X M6 x 10 Button Head Bolt
IN THE BOX
FIGURE 1.1
5mm
4mm
GET ORGANIZED1
Depending on which size Slimlime II Tray you order, quantities may vary from those pictured.
Here is what you are looking at for RRSTUNI:

RRSTUNI _REV_A05 3
5
Joiner Hole
T-slot Channel
U-Channel
RACK ASSEMBLY - SIDE PROFILES
2
The Side Profiles are supplied in pairs.
Take one profile from each pair, one short
and one long (Except for the 2772mm long
Slimline II rack where the Side Profiles will
be equal length. Even though both pairs
are the same length it is still important that
you take one Side Profile from each pair).
If you look at the Side Profiles you will see
that at one end there is a hole that goes
through the top and bottom of the
"U" Channel.
(Refer to Image 2.1). These are the
Joiner Holes that you will be using.
4MM
Insert a Thick Joiner (Item 3) into the
"U" Channel of the Side Profile lining
up the first hole with the hole in the side
profile as show in 2.2.
Now grab a Thin Joiner (Item 4) and
Nyloc Nut (Item 1). Slide the Joiner into the
"T-slot", followed by a Nyloc Nut.
The Nyloc Nut should sit on top of the
Thin Joiner with the "Dome" of the
Nyloc Nut facing up. Line up the outer
hole of the Thin Joiner and Nyloc Nut with
the Joiner Hole and loosely fasten it all
together using a M8 x 45 Button Head Bolt
(Item 2) and a 5mm Allen Wrench.
Slide the matching Side Profile over the two
Joiner pieces, remembering to insert a
Nyloc Nut, and fasten once again using a
M8 x 45 Button Head Bolt. Repeat the above
steps for the other side.
2.1
2.2
If you have received four lengths of Side Profile (Item 5), you will need to join the pieces together using the Joiners
(Items 3 & 4) to form only two lengths by following the easy steps below.
With the exception of the 2772mm long Slimline II Tray, the joints in the Side Profile will be diagonally opposite each other
once the Tray is assembled.
NOTE: Skip this step if your Slimline II Tray is 1560mm or shorter. you will only have two Side Profiles and assembly
is not required.
5MM
© 2019 FRONT RUNNER VEHICLE OUTFITTERS
2
3
4
1
5MM

RRSTUNI _REV_A05 © 2019 FRONT RUNNER VEHICLE OUTFITTERS 4

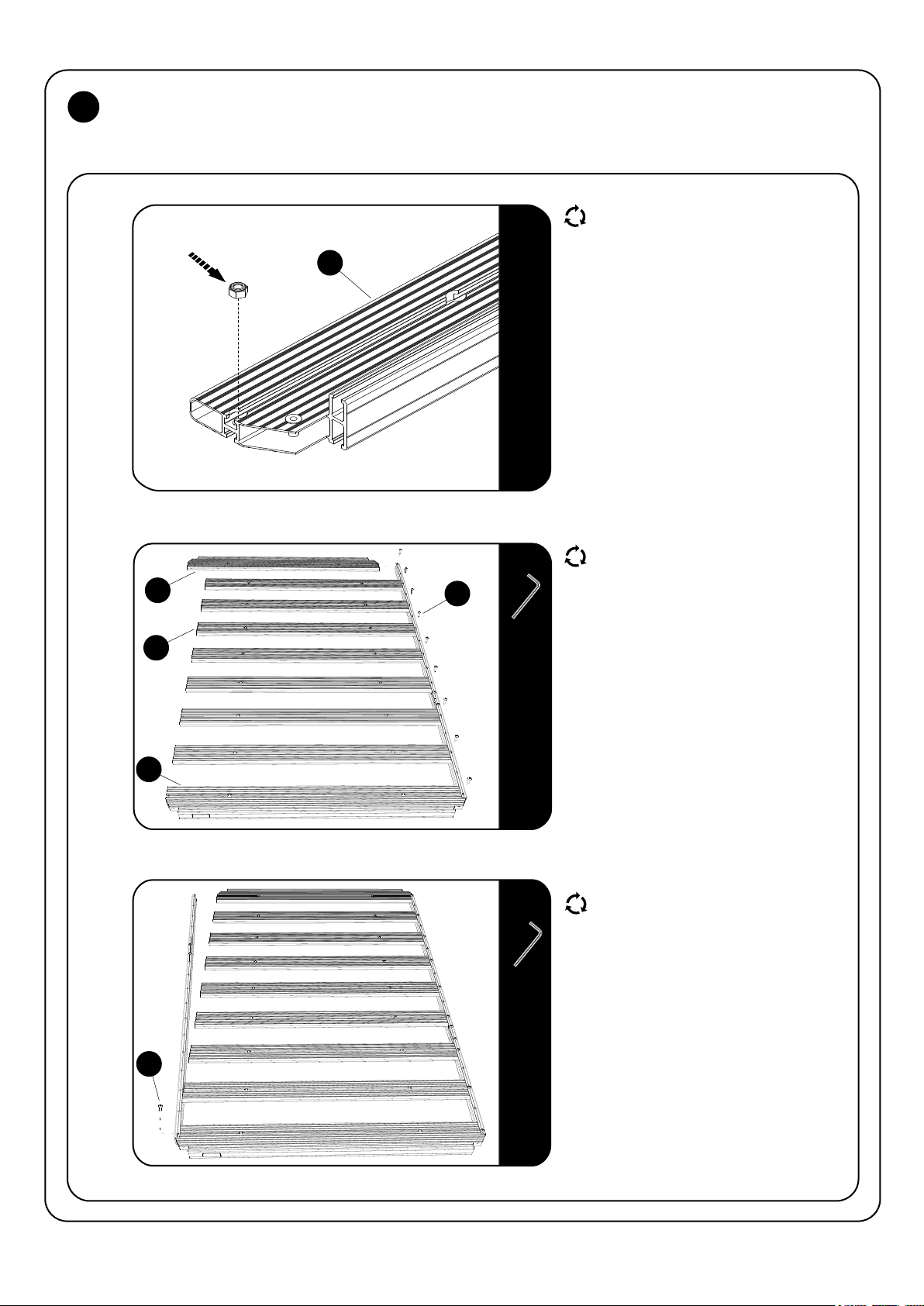

RACK ASSEMBLY - COMBINED SLATS AND STANDARD SLATS
7
Nyloc Nut
3
3.1
3.2
3.3
Look at the Combined Slats and Standard
Slats (Item 7 & 9) and ensure that there is a
Nyloc Nut inserted into each machined end
pocket. If the Nyloc Nut has fallen out
during shipping, insert it back into the
pocket as shown.
Turn the Combined Slat (Item 7) and the
Side Profile Assembly upside down. Ensure
that the nut in the Combined Slat is at the
bottom. Push the one end of the Combined
Slat into the Side Profile assembly and
align the holes.
Use a M8 x 25 Button Head (Item 8) and
loosely tighten using a 5mm Allen Wrench.
Do the same with the second Combined Slat
on the other end of the Side Profile Assembly.
Take a Standard Slat (Item 9) and as with
the Combined Slat, slide the one end into the
Side Profile Assembly as shown. Ensure that
the nut is at the bottom.
Use a M8 x 25 Button Head Bolt (Item 8)
and loosely fasten the Standard Slat to the
Side Profile using a 5mm Allen Wrench.
Repeat the process for the remaining
Standard Slats making sure that there
is an open hole in the Side Profile in between
each slat.
7
9
7
8
Take the other Side Profile Assembly and
starting at the one end push the Side Profile
over the ends of the Combined Slat and
Standard Slats, aligning the holes and loosely
inserting the M8 x 25 Button Heads as you
work your way to the Combined Slat
at the other end.
8
5MM
5MM

RRSTUNI _REV_A05 © 2019 FRONT RUNNER VEHICLE OUTFITTERS 5
10
6

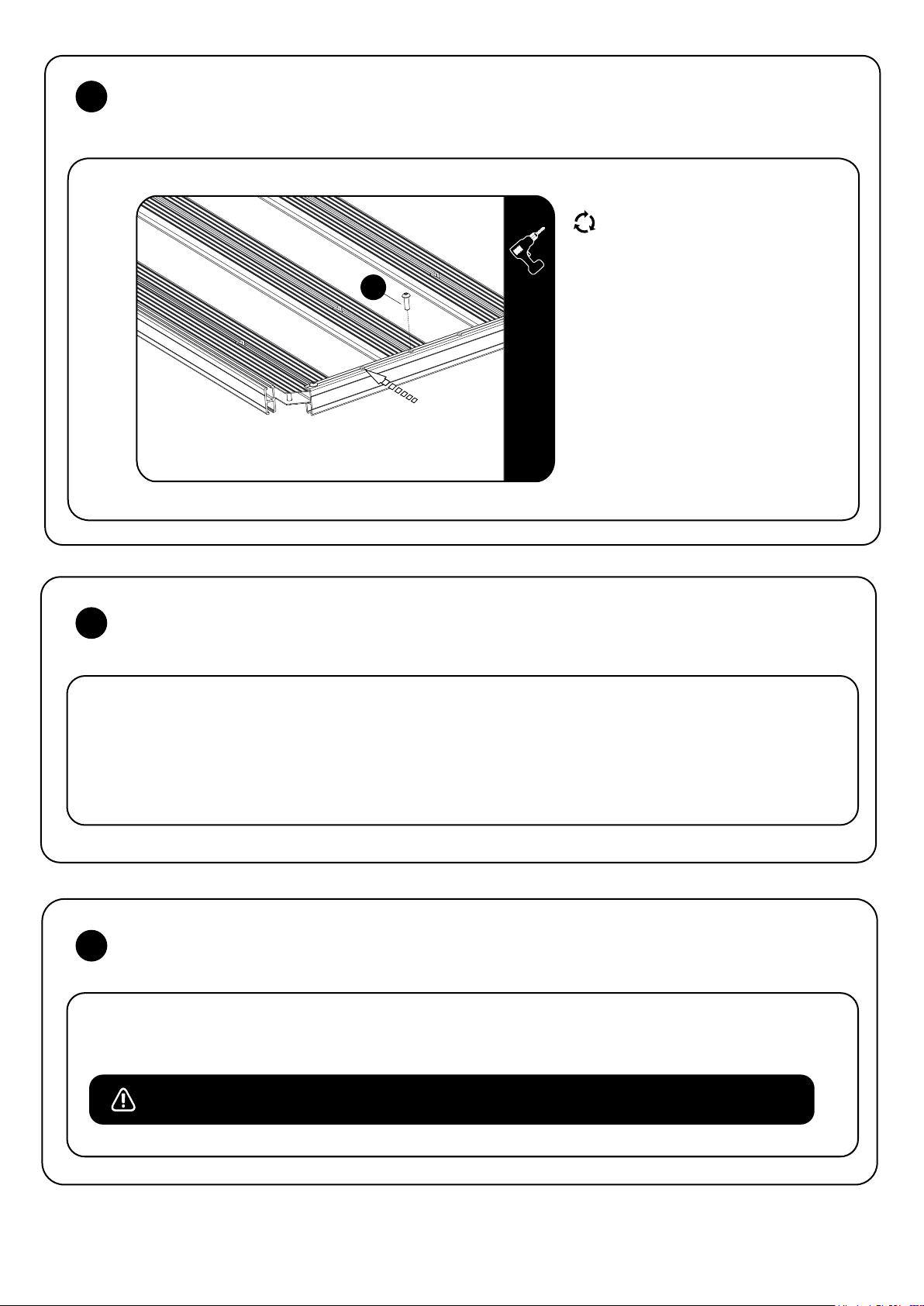

RACK ASSEMBLY - STANDARD SLATS
3
3.4
Square the Side Profiles and Slats up before
fully tightening all the fasteners.
Using a tape measure, measure from the one
corner across to the other corner. Do the
same on the opposite corners, if the two
measurement are the same the rack will be
square.
Fully tighten all the M8 x 25 Button Head Bolts.

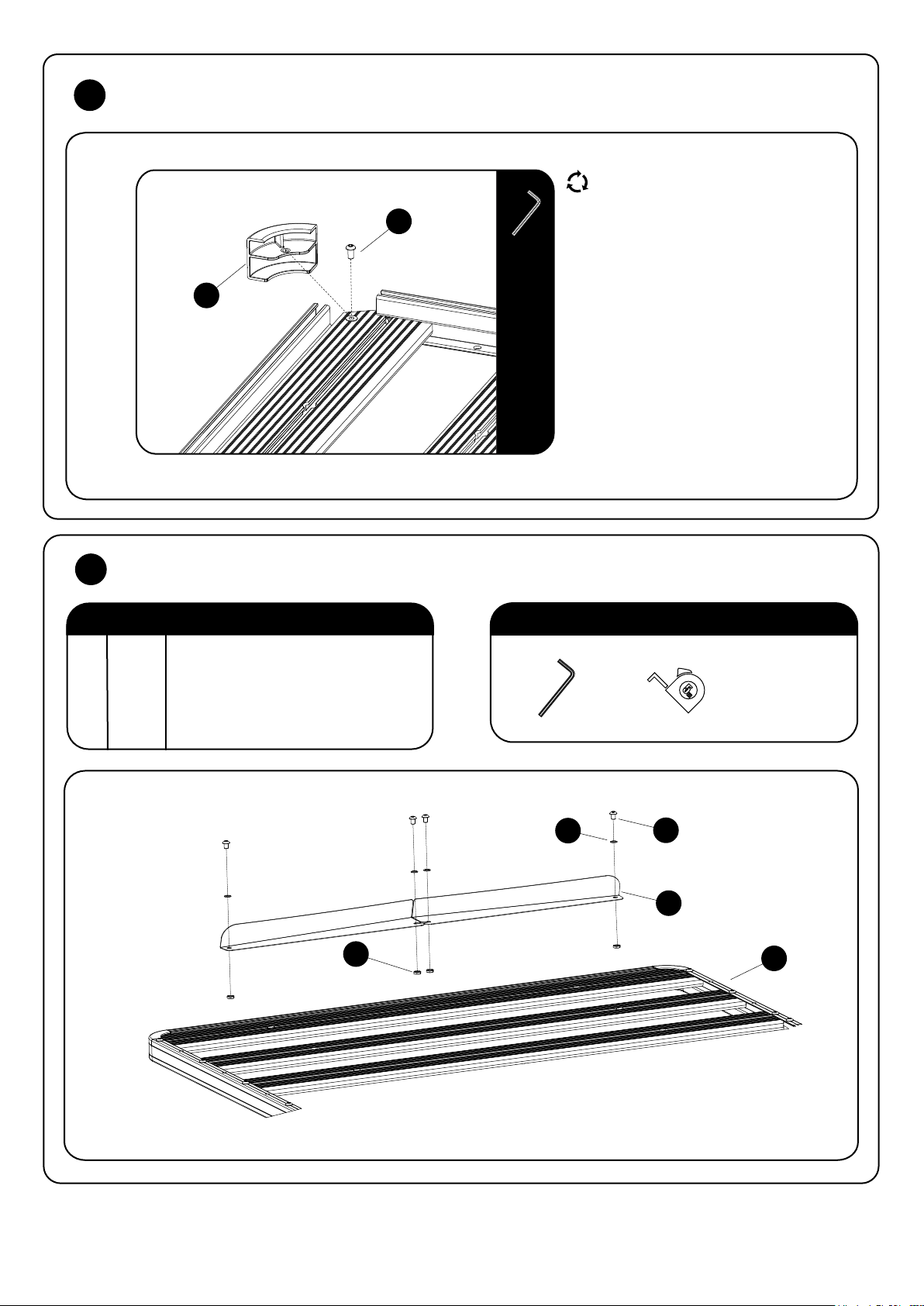

RACK ASSEMBLY- CORNERS
4
Flip the tray right side up.
Push the Corner into position as shown,
aligning the hole in the Corner with the
Rivnut already inserted in the Combined Slat.
Use a M6 x 12 Button Head Bolt (Item 10)
and fasten the Corner in position.
4.1
4MM
The recommended torque setting for the
M8 Button Head Bolts is 20 Nm or
15 ft lb.

RRSTUNI _REV_A05 © 2019 FRONT RUNNER VEHICLE OUTFITTERS 6

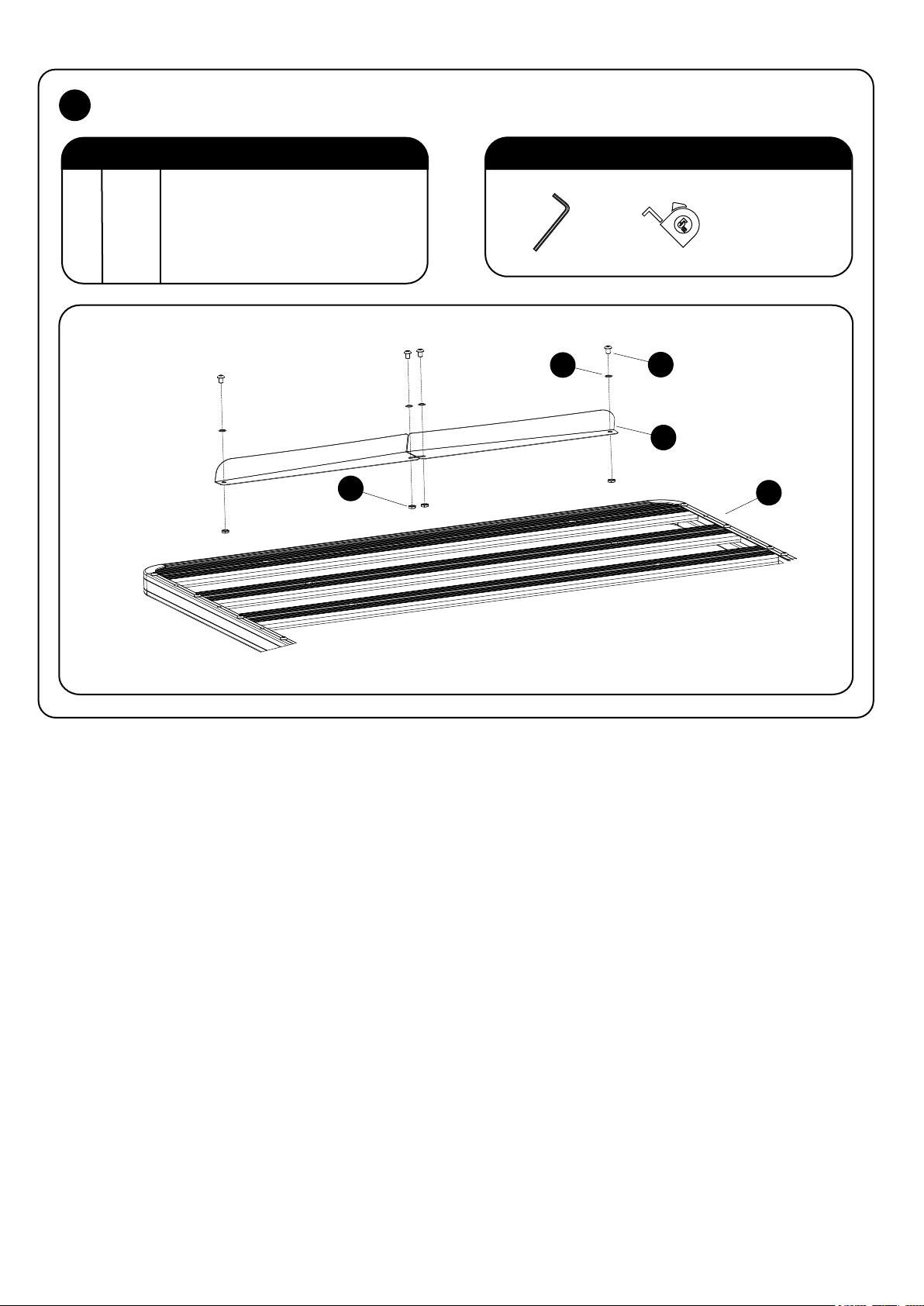

TOOLS NEEDED
1 1 Slimline II Tray
2 4 M8 Half Nut
3 2 Wind Deflector (1LH + 1RH)
4 4 Schnorr Washer
5 4 M8 x 12 Button Head Bolt
IN THE BOX
FIGURE 1.2
5mm
RACK ASSEMBLY - WIND DEFLECTOR5
5
4
3
21

RRSTUNI _REV_A05 © 2019 FRONT RUNNER VEHICLE OUTFITTERS 7

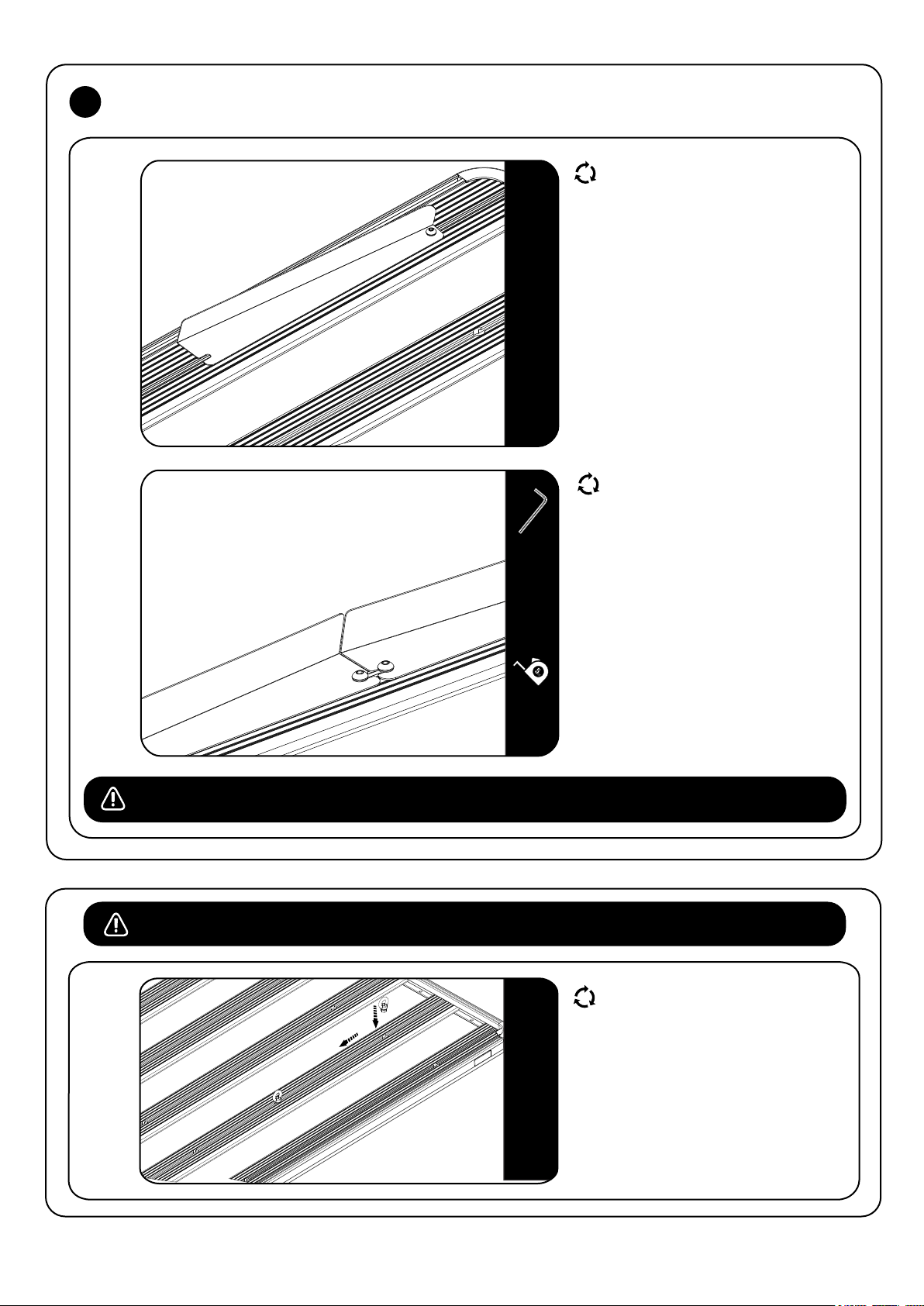

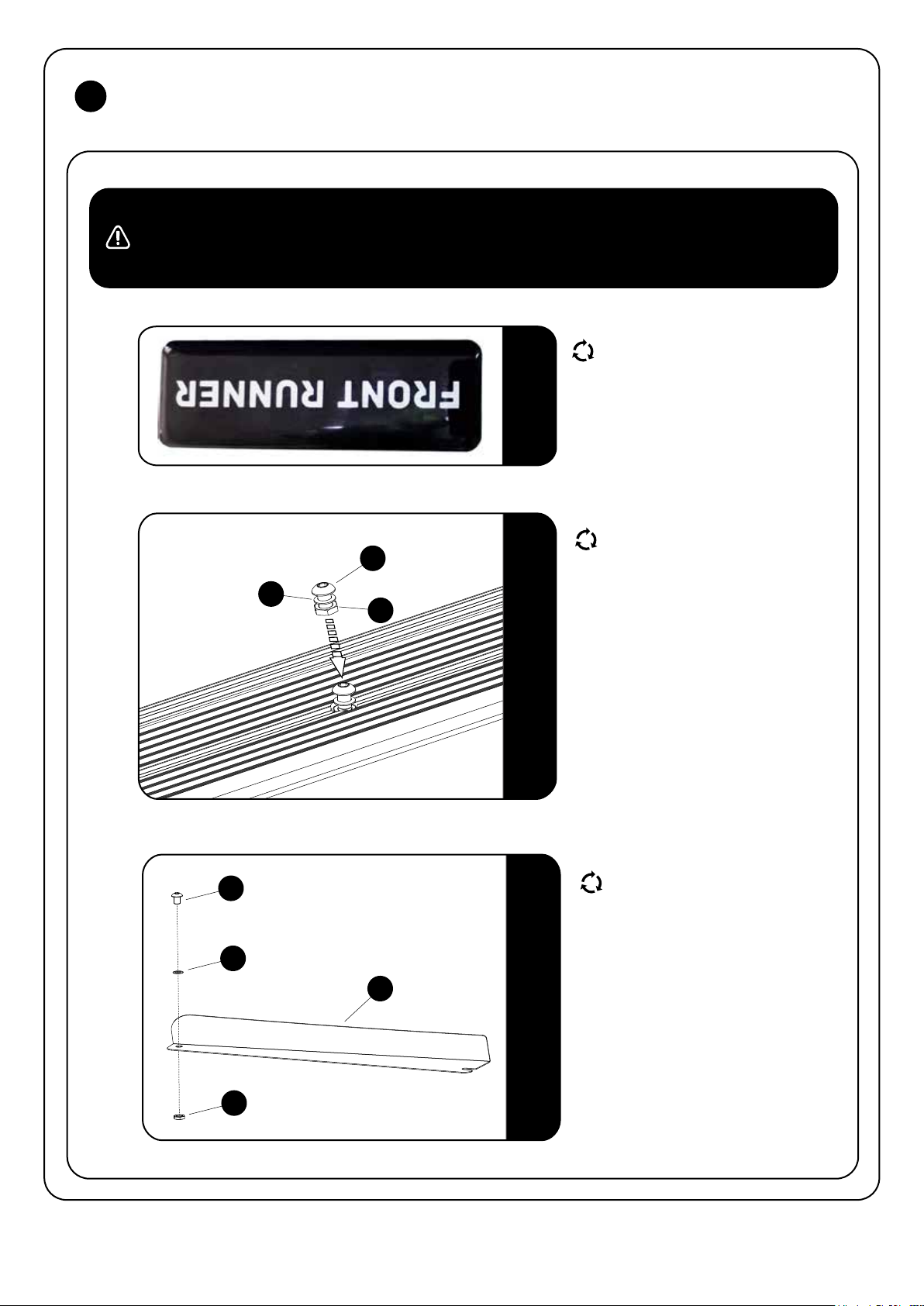

RACK ASSEMBLY - WIND DEFLECTOR
6
Insert two Button Head Bolts, M8 Half Nuts
and Schnorr Washers (Items 2, 4 & 5)
assemblies into the Combined Slat
as shown. Slide them to the center of the
Combined Slat making sure that the
Schnorr Washer is above the T-slot Channel.
Ensure that your Slimline II Tray is upside
down. Check by looking at the product
sticker. It should be upside down as shown.
6.2
6.3
Assemble Items 2, 4 & 5 to both LH & RH
Wind Deflectors (Item 3) as shown.
9MM
NOTE : The Wind Deflector must be fitted to the underside of the front Combined Slat.
If you are going to put a Leg or Foot on the Combined Slat (Recommended), you will need to slide the M8 Bolt
used for attaching these into the Machined Slots before assembling the Wind Deflector.
6.1
5
4
2
5
4
2
3

RRSTUNI _REV_A05 © 2019 FRONT RUNNER VEHICLE OUTFITTERS 8
RACK ASSEMBLY - WIND DEFLECTOR
6
5MM
Center the Wind Deflector on the rack and
move the bolt assemblies from Figure 8.2
into the slots as shown in Figure 8.5.
Insert the nut assembled to the
Wind Deflector in the Combined Slat T-slot
Pocket and slide to the side as shown in
Figure 8.4.
Repeat for the other half of the
Wind Deflector.
6.5
6.4
NOTE : Once the rack is fitted to the vehicle, take it for a test drive. Should there be excessive wind noise try moving the two
Wind Deflectors slightly apart, leaving a gap of about 20 - 30mm.
USEFULL TIP - PRE-LOAD TIE DOWN RINGS
It is usefull to fit Tie-Down Rings
(RRAC012) to your Front Runner Rack for
future use before you fit any accessories.
Insert the Tie Down Rings into the machined
slots and position them in the center of the
rack.

RRSTUNI _REV_A05 © 2019 FRONT RUNNER VEHICLE OUTFITTERS 9
HOW TO CARE FOR YOUR FRONT RUNNER GEAR
8
CHECK YOUR VEHICLE INSTALLATION GUIDE
7
7.1
Now that your Slimline II Tray is assembled, get your Rack Kit Installation Guide out and follow the instructions
to fit the Slimline II Tray to your specific vehicle.
FRONT RUNNER RACKS AND ACCESSORIES ARE HAPPIEST COVERED IN MUD
But in order to maintain full functionality of the rack slots and any moving parts, you may want to give
your gear a bath now and again.
It's easy! Take care of your Front Runner gear the same way you do the exterior of your vehicle:
WHETHER YOU LIKE TO ROLL DIRTY OR CLEAN, YOUR FRONT RUNNER GEAR WILL GIVE YOU MANY YEARS OF SERVICE!
Rinse with clean water and wipe down with a soft dry cloth. For stubborn spots, use a soft brush and mild soap.
In salty coastal climates, or snowy regions where salt is used to clear roadways, applying a silicone based oil
or spray to nuts and bolts will help prevent corrosion.
If you really want to baby your gear, feel free to lightly wax the surfaces or use a protective spray with UV
inhibitors. Just be sure not to use compound waxes that contain abrasives.
INSTALL OTHER VEHICLE AND RACK ACCESSORIES
9Now's the time to visit your favorite Front Runner Dealer in person or online.
Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam
Share your adventures on:

RRSTUNI _REV_A04 © 2019 FRONT RUNNER OUTFITTERS
Slimline II Dachträger
Universalmontageanleitung
RRSTUNI
DEU
1
Vielen Dank, dass Du Dich für ein Trägersystem von Front Runner entschieden hast.
Bevor Du beginnst, nimm Dir einen Moment Zeit und mache Dich mit der Montageanleitung
und allen Komponenten vertraut.
BITTE ZUERST LESEN
STELLE UNBEDINGT SICHER, DASS ALLE FRONT RUNNER PRODUKTE ORDNUNGSGEMÄß ZUSAMMENGEBAUT UND SICHER AN DEINEM FAHRZEUG BEFESTIGT
SIND. EINE UNSACHGEMÄßE INSTALLATION KÖNNTE ZU EINEM UNFALL UND ZU ERNSTHAFTEN FOLGEN UND SCHÄDEN DRITTER FÜHREN, BIS HIN ZU TÖDLICHEN
VERLETZUNGEN. DU BIST DAFÜR VERANWORTLICH, ALLE FRONT RUNNER PRODUKTE ZUSAMMENZUBAUEN UND AN DEINEM FAHRZEUG ZU SICHERN, DIE
BEFESTIGUNGEN VOR EINER VERWENDUNG REGELMÄßIG AUF EINSTELLUNG, ABNUTZUNG ODER SCHÄDEN ZU PRÜFEN. LIES DAHER UNBEDINGT VOR DER
MONTAGE ODER DER VERWENDUNG ALLE MIT DEINEM FRONT RUNNER PRODUKT GELIEFERTEN ANWEISUNGEN UND HINWEISE. FALLS DU NICHT ALLE
ANWEISUNGEN ODER HINWEISE VERSTEHST ODER DU KEINE TECHNISCHE ERFAHRUNG BESITZT UND MIT DEM ZUSAMENBAUEN NICHT VERTRAUT BIST,
SOLLTEST DU DAS PRODUKT VON TECHNISCHEM FACHPERSONAL ODER EINER ANDERWEITIG QUALIFIZIERTEN PERSON VERBAUEN LASSEN.
HINWEIS: Front Runner übernimmt keine Verantwortung oder Haftung für Schäden durch unsachgemäße Montage, die von der Montageanleitung abweicht.
Solltest Du irgendwelche Fragen zur Installation dieses Produktes haben, kontaktiere uns einfach.
WICHTIGER HINWEIS
front runner
