FT450/FT550 Sportsman Data logging A Harness
1. Index
2. Presentation .......................................................................................................... 4
4. Overview............................................................................................................... 7
4.1 FT450 Universal Harness................................................................................. 7
5. Diagrams .............................................................................................................. 9
5.1 FT450/FT550 A Connector ............................................................................. 9
5.2 Harness Components.................................................................................... 10
5.3 Smart Coil harness components (Sold Separately) .......................................... 11
6. Harness Connectors............................................................................................ 12
6.1 Relay and Fuses............................................................................................ 12
6.2 POWERED CAN A......................................................................................... 12
6.3 Extra Connections ......................................................................................... 12
6.4 Coolant and Transmission Temperature .......................................................... 12
6.5 Oil and Fuel Pressure..................................................................................... 13
6.6 WB-O2 NANO Connector.............................................................................. 13
6.7 Ignition Expansion.......................................................................................... 13
6.8 Firewall CPC Connector................................................................................. 14
6.9 Crank Hall/Crank VR...................................................................................... 14
6.10 Cam Hall/Cam VR ....................................................................................... 14
6.11 Aux. Power Connector................................................................................. 15
7. Standard Sensors ............................................................................................... 15
7.1 Fuel and Oil Pressure..................................................................................... 15
7.2 Engine Coolant Temperature .......................................................................... 15
8. Meters and Adapter Wires ................................................................................... 16

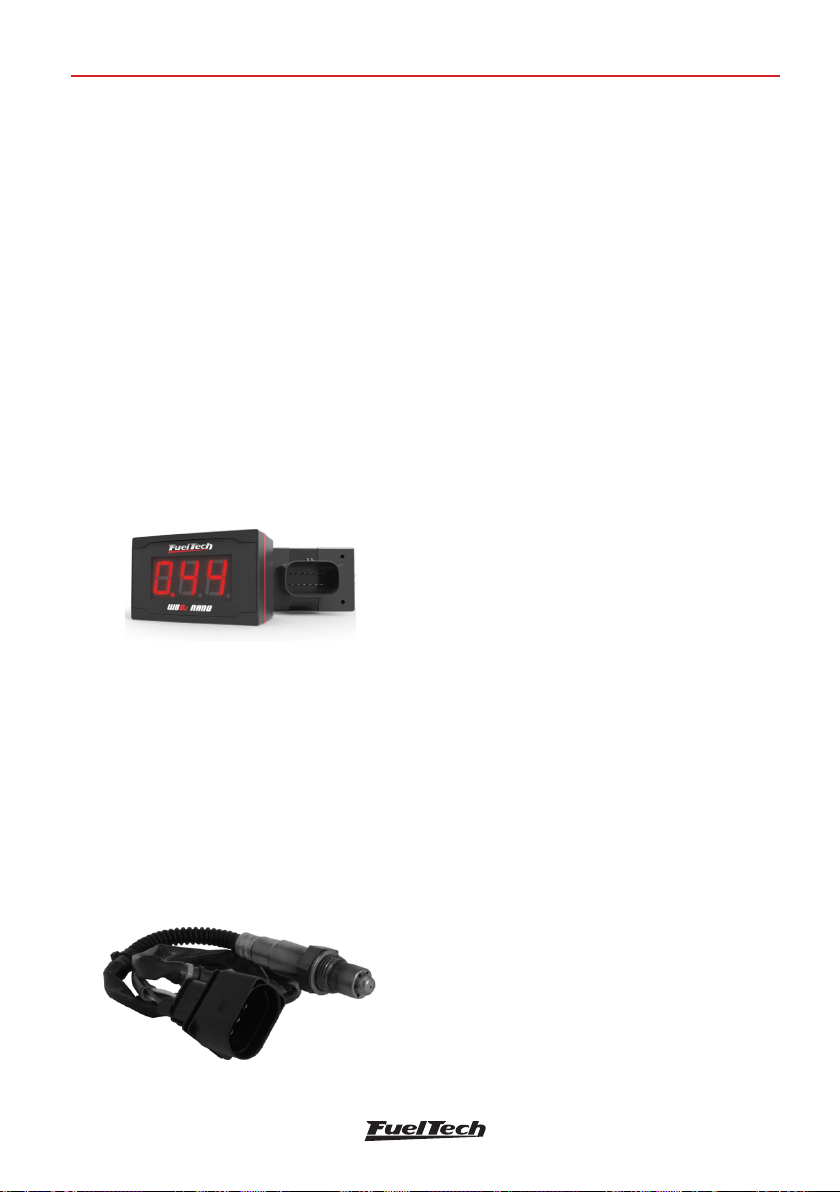

8.1 FuelTech WB-O2 NANO ................................................................................ 16
8.2 Bosch LSU 4.2 Wideband O2 Sensor............................................................ 16
9. Troubleshooting................................................................................................... 17
10. FuelTech Latest Manuals and Software................................................................. 17

4
FT450/FT550 Sportsman Data logging A Harness
2. Presentation
The FuelTech FT450 / FT550 Sportsman Data Logging A Harness is a plug
and play solution to easily incorporate data logging into any setup equipped
with an FT450 or FT550 ECU.
It comes pre-terminated to plug directly into essential data logging input
channels (see features below) and has an extra input connector to add up
to two more congurable inputs for sensors or buttons. It is also equipped
with two extra connectors that allow the use of 10 outputs to control EFI fuel
Injectors, ignition control through a CDI box with points input or smart coils (8
coils on wasted spark is not recommended for carbureted V8 applications). The
outputs can also be used to control accessories such as transbrake, shifter,
nitrous, throttle stop, fans, pumps, etc. The harness is set up for either VR or
Hall effect cam and crank sensors and includes 2 relays with built in fuses for
main electronics, injectors and coils. Each connector has its own label and
harness insulation is heat, moisture and oil resistant.
Designed around a Big Block Chevy, yet the harness has extra long leads that
allow it to be used in numerous other applications.
Features:
- FT450 Connector (FT550 A connector)
- CPC Firewall Connector
- Pre-terminated connections:
- Wide Band 02 Sensor x2
- Oil Pressure
- Fuel Pressure
- Engine Temperature
- Transmission Temperature
- Drive shaft sensor / 2-step connector
Extra Inputs connector:
- 2 configurable inputs for sensors or
buttons
Extra Outputs connector:
- For DIY expansion to control EFI fuel
injectors or relay activation for accessory
control (transbrake, shifter, nitrous, throttle
stop, fans, pumps, etc)
Ignition Expansion Connector:
- For DIY expansion to control Ignition or
relay activation for accessory control
(transbrake, shifter, nitrous, throttle stop,
fans, pumps, etc).

5
FT450/FT550 Sportsman Data logging A Harness
3. Warnings and Warranty Terms
The use of this equipment implies in total accordance with the terms
described in this manual and exempts the manufacturer from any
responsibility regarding product misuse.
Read all the information in this manual before starting the product installation.
This product must be installed and tuned by specialized auto shops
and/or personnel with experience in engine tuning.
Before starting any electrical installation, disconnect the battery.
The inobservance of any of the warnings or precautions described in this
manual may lead to engine damage and could cause the products warranty
to be voided.
This product does not have a certication for the use on aircrafts or any ying
vehicles, as it was not designed for such use or purpose.
In some countries where an annual inspection of vehicles is enforced, no
modication to the OEM ECU is permitted. Be informed about local laws and
regulations prior to the product installation.
Limited Warranty
All products manufactured by FUELTECH are warranted to be free from defects
in material and workmanship for three months the date of original purchase.
Warranty claim must be made by original owner with proof of purchase from an
authorized reseller. This warranty does not include sensors or other products
that FUELTECH carries but did not manufacture.
If a product is found defective, such products will, at FUELTECH’s option,
be replaced or repaired at no cost. All products alleged by Purchaser to be
defective must be returned to FUELTECH, postage prepaid, within the one
year warranty period. Purchaser must obtain an RMA number from FUELTECH
and complete an RMA form to be included in the return shipment prior to
sending back the product.
This limited warranty does not cover labor or other costs or expenses incidental
to the repair and/or replacement of products or parts. This limited warranty
does not apply to any product which has been subject to misuse, mishandling,

6
FT450/FT550 Sportsman Data logging A Harness
misapplication, neglect (including but not limited to improper maintenance),
accident, improper installation, tampered seal, modication (including but not
limited to use of unauthorized parts or attachments), or adjustment or repair
performed by anyone other than FUELTECH.
The parties hereto expressly agree that the purchaser’s sole and exclusive
remedy against FUELTECH shall be for the repair or replacement of the
defective product as provided in this limited warranty. This exclusive remedy
shall not be deemed to have failed of its essential purpose so long as
FUELTECH is willing and able to repair or replace defective goods.
FUELTECH reserves the right to request additional information such as, but
not limited to, tune up and log les in order to evaluate a claim.
Seal violation voids warranty and renders loss of access to software updates.
Version manual 1.0 - July/2021

7
FT450/FT550 Sportsman Data logging A Harness
4. Overview

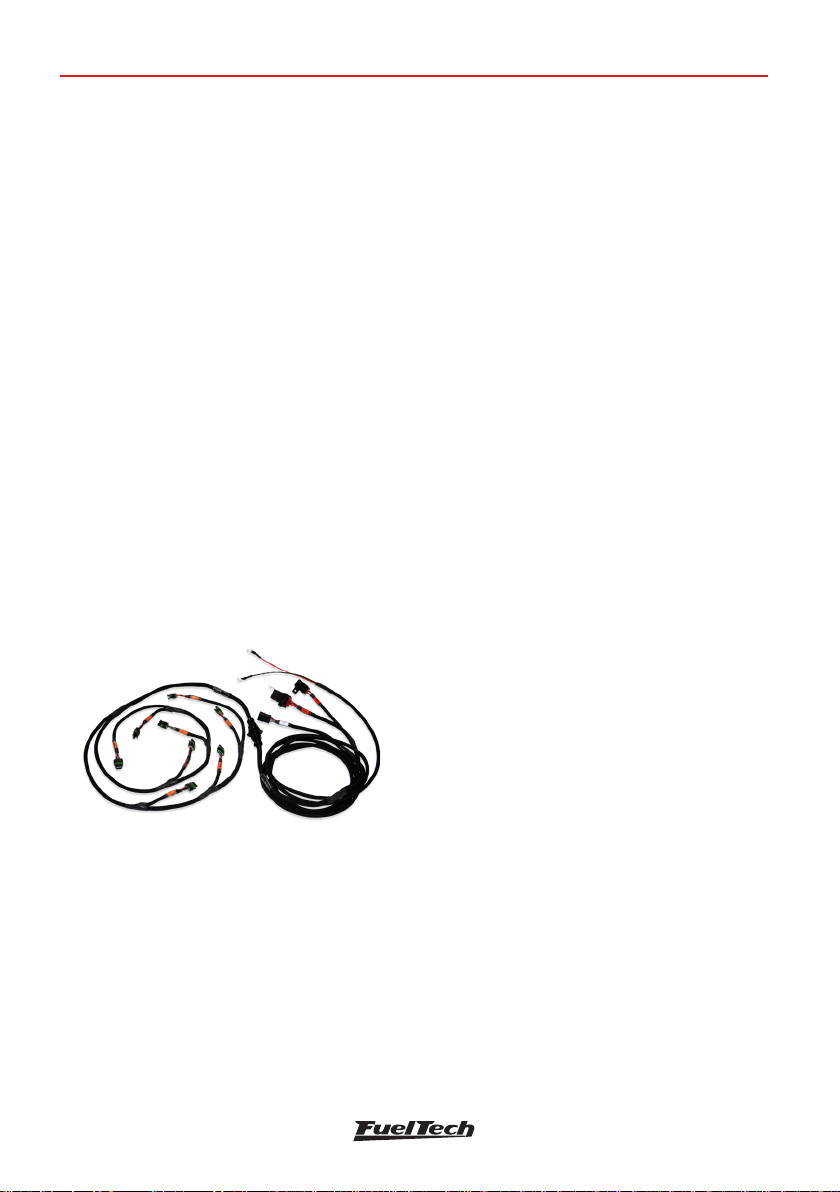

The Fueltech FT450 SPORTSMAN universal harness is a plug and play wiring
solution to be used with a FuelTech FT450 ECU. It comes pre-terminated to
plug directly into essential data logging input channels, and has an extra input
connector to add up to two more congurable inputs for sensors or buttons.
4.1 FT450 Universal Harness
This harness was designed for FuelTech Wideband NANO O2 systems with
Bosch LSU 4.2 sensor, ready to execute the reading of the engine temperature
and pressure sensors. There are 2 separate relays to supply the entire system.
There is also a head grounding wire, which must be connected to the engine
head. The motor MUST have its own ground wire (not included).
Inner
1 - FT450 Connector
2 - WB-O2 NANO Right Connector
3 - WB-O2 NANO Left Connector
4 - DriveShaft Sensor Connector
5 - Extra Outputs A Connector (blue outputs)
6 - Ignition Expansion Connector
7 - Relays and fuse
8 - 12V Switched
9 - +BATT (Red) and -BATT (Black)
10 - CPC Connector
11 - Extra Inputs Connector
12 - Powered CAN
1
3
2
4
5
6
78
10
9
11
12

8
FT450/FT550 Sportsman Data logging A Harness

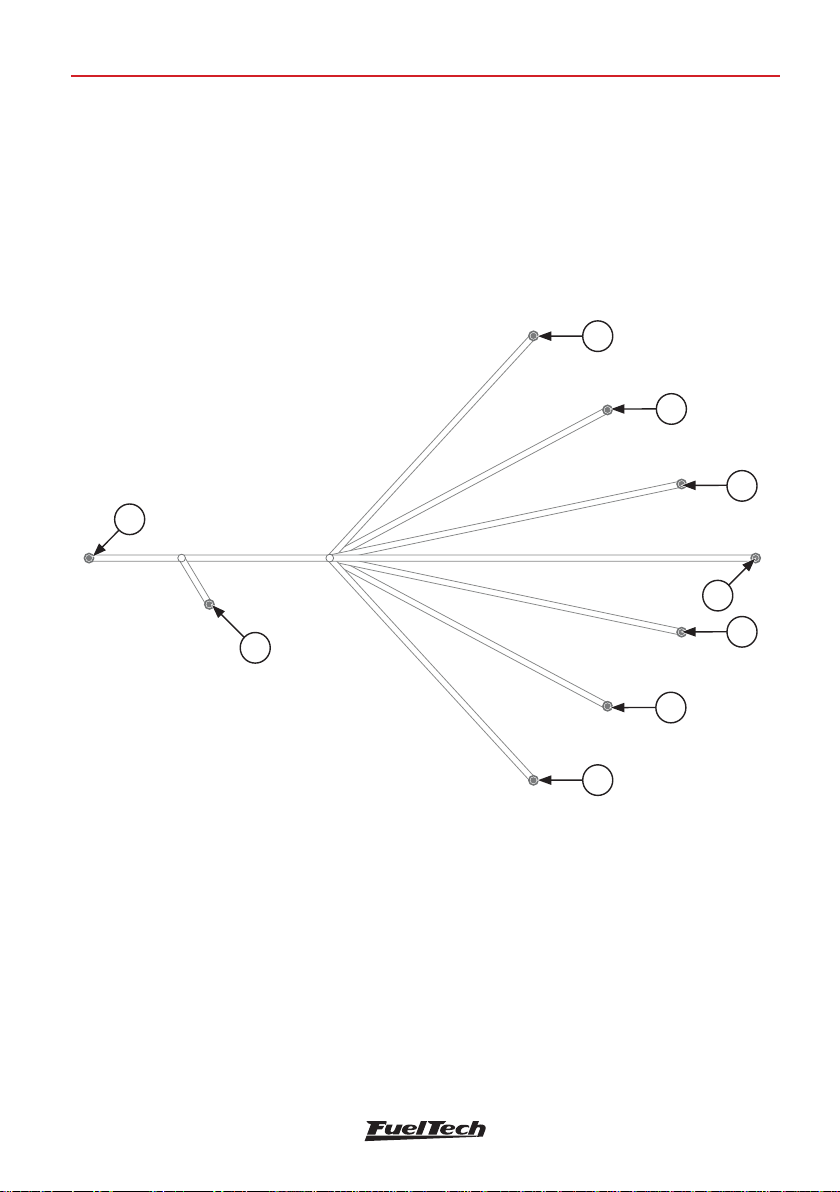

Engine
1 - CPC Connector
2 - O2 Sensor R
3 - O2 Sensor L
4 - Unterminated wires CAM and Crank
5 - Oil Pressure Connector
6 - Fuel Pressure Connector
7 - Engine Temperature Connector
8 - Transmission Temperature Connector
9 - Powered CAN
1
2
3
4
5
6
7
8
9

9
FT450/FT550 Sportsman Data logging A Harness
5. Diagrams
5.1 FT450/FT550 A Connector
FT450 Color Pin Connector Function CPC Pin
#1 Blue #1 A
Extra Output A Spare output connector -
#2 Blue #2 B
#3 Blue #3 C
#4 Blue #4 D
#5 Blue #5 E
#6 Blue #6 F
#7 Black/White - (-) BATT ground Chassis ground -
#8 Gray #1 A
Ignition Expansion Smart Coil Harness
Connector -
F
#9 Gray #2 H
E
#10 Gray #3 D
G
#11 Gray #4 B
C
#12 Black - (-) BATT signal Ground #6
#13 Red - 87 main relay 12V input from relay #7
#14 Green/Red
A DriveShaft
5V output sensors #3
F Extra Input
B Oil Pressure
B Fuel Pressure
#15 Blue/Yellow
#3 Powered CAN (inner)
CAN A (LOW) #4
#12 WB-O2 NANO R
#12 WB-O2 NANO L
#4 Powered CAN (engine)
#16 White/Red
#4 Powered CAN (inner)
CAN A (HIGH) #8
#6 WB-O2 NANO R
#6 WB-O2 NANO L
#8 Powered CAN (engine)
#17 White - Cam Hall / Cam VR Cam Sync signal input #9
#18 White - CRANK VR RPM reference input #10
#19 Red - CRANK VR / Hall RPM signal input #11

10
FT450/FT550 Sportsman Data logging A Harness
FT450 Color Pin Connector Function CPC Pin
#20 White #1 A Transmission temperature Transmission temp. Signal -
#21 White #2 B DRIVESHAFT RPM DRIVESHAFT RPM -
#22 White #3 A Extra Inputs Spare Inputs connector -
#23 White #4 D
#24 White #5 -
CPC Connector
Coolant temperature #1
#25 White #6 - Fuel Pressure #2
#26 White #7 - Oil pressure #5
5.2 Harness Components
- FuelTech FT450 connector: Direct
connection to FT450 or FT550 A
Connector.
- FuelTech Wideband NANO O2: This
connector goes to a FuelTech Wideband
NANO O2 module, it’s capable of reading
the BOSCH LSU 4.2 O2 sensor and send
the information to log in the ECU.
- 2x 40A Relay: The system has 2 relays
to power everything. The Main Relay
powers the ECU, Wideband NANO O2,
Peak and Hold drivers, sensors and extra
connector.
- +12V Switched wire: This wire goes
to the ignition key and is responsible for
powering the relays.
- Battery ground and battery positive:
It is the system power supply and must
be connected exactly as the following:
Battery (+) goes directly to the battery’s
positive or kill switch. Battery (-) MUST
GO ONLY on the battery’s negative
terminal
- Powered CAN: There are two Powered
CAN connectors available, “INNER”, and
“ENGINE”. CAN A can operate FTCAN
1.0, FTCAN 2.0 or CAN OEM. Both
protocols work with any FuelTech module
that communicates over CAN bus and are
able to broadcast data for external data
loggers or dash.
- Extra Outputs A Connector: The outputs
connector has six blue outputs and one
power ground.
- Ignition Expansion: The Ignition Outputs
connector has four gray outputs.
- Extra Inputs: two spare inputs available
for custom use.

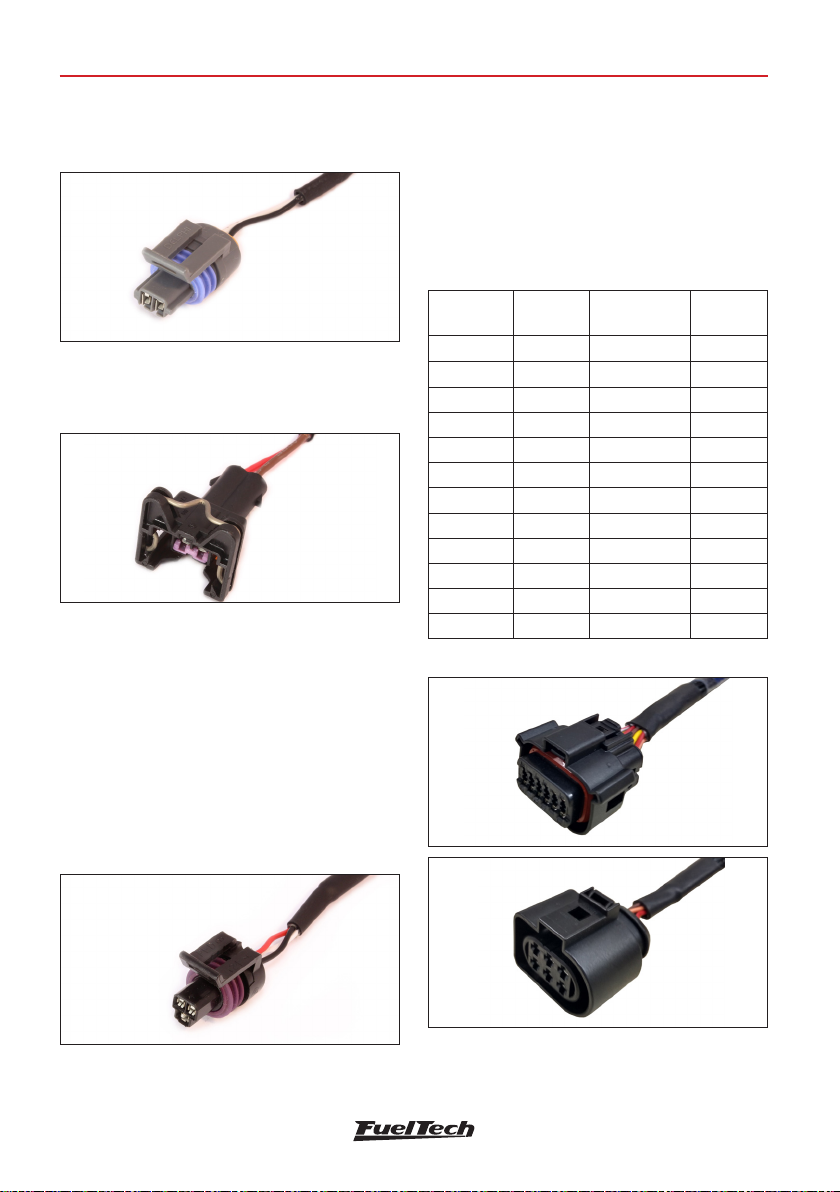

- Fuel pressure sensor: This input can
be used to read fuel pressure using a
FuelTech PS sensor or SSI P51 Packard
sensor.
- Oil pressure sensor: This input can be
used to read oil pressure using a FuelTech
PS sensor or SSI P51 Packard sensor.
- Crank trigger sensor (Hall effect
or variable reluctance): Wires are
unterminated and ready to receive a VR
or Hall effect sensor
- Cam sync sensor (Hall effect or variable
reluctance): Wires are unterminated and
ready to receive a VR or Hall effect sensor
- Coolant temperature sensor: Ready for
GM style CLT sensor.
- Bosch wideband O2 sensors: Designed
for Bosch LSU 4.2 O2 sensor.
- Aux Power: power and ground for
general purpose.

11
FT450/FT550 Sportsman Data logging A Harness
5.3 Smart Coil harness
components (Sold Separately)
This extension allows the use of 8 individual
Smart COP coils(w/ integrated igniter) on the
ignition system, it has 8 metri-pack 150.2
connectors, 2 relays and 2 fuses.
- Main Inner 16-way circular: The
Main connector is a 16-way Tyco CPC
connector which contains the outputs to
the 8 individual coils.
- 8x Smart coil connectors: 8 Smart
COP coil outputs (metri-pack 150.2
connectors) which allows wasted spark
ignition.
- 2x 30A Relay: These Relays will power
the coils.
- Gray Outputs connector: This connector
must be plugged to the “IGNITION
EXPANSION” connector at the Sportsman
A Harness.

12
FT450/FT550 Sportsman Data logging A Harness
6.2 POWERED CAN A
Auxiliary connectors in the Inner and Engine
side of the harness that plug directly to the
FuelTech Switch Panel or that can be used or
something else. It has Switched 12V, sensor
ground and CAN A communication.
- Pin 1: Switched +12V
- Pin 2: Sensor ground
- Pin 3: CAN A LO (-)
- Pin 4: CAN A HI (+)
6.3 Extra Connections
Extra Inputs: The Extra Inputs connector has
two white inputs that can be used to read any
0 to 5V analog sensor. The connector also has
a +5V output for sensors (green with red stripe)
and a +12V output from the main relay.
6. Harness Connectors
6.1 Relay and Fuses
Both relays in this harness are automotive type
with a 40A capacity, integrated 40A fuse and
an ON status LED.
There is a main relay for the FuelTech ECU,
O2 conditioner and sensors. There is also
a Outputs Relay, that supplies power to the
“Outputs A” and the “Aux Power” connectors.
FT450 - Gray - IGNITION EXPANSION
Connector: Connector designed to be used
with the SmartCoil Harness. Please read
sections 5.3 and 6.7 of this manual for more
info.
6.4 Coolant and Transmission
Temperature
The Harness has 2 temperature inputs. One
input is for the engine coolant temperature
and the other is for transmission temperature.
The engine Coolant Temperature connector
is a GM style and uses Metri-Pack 150.2
connectors. Compatible with FT 5005100016
water temperature sensor.
Pin Color Function
A Blue #1 Free
B Blue #2 Free
C Blue #3 Free
D Blue #4 Free
E Blue #5 Free
F Blue #6 Free
L Black Power Ground
Pin Color Function
A White #3 Extra Input
B Black Signal Ground
C Black Signal Ground
D White #4 Extra Input
E Red 12V for sensor
F Green/Red 5V for sensor
Extra Outputs A: The Extra Outputs A
connector has six blue outputs that can be
used for almost any kind of purpose, activating
solenoids (some need relays), injectors, loads
and general output. The connector also has a
power Ground.

13
FT450/FT550 Sportsman Data logging A Harness
6.5 Oil and Fuel Pressure
The oil and fuel pressure sensor connectors are
designed for the PS-150, PS-300, PS-500 and
PS-1500 sensors; ranging from 150 to 1500
psi, with a Packard style 3-way connector.
- Pin A: battery’s negative (black)
- Pin B: 5V supply (green/red)
- Pin C: signal output (white)
6.6 WB-O2 NANO Connector
The WB-O2 NANO has a 12 way connector
with 3 wire groups. One has the connector for
the O2 sensor (Part number 3022000965), the
second is for CAN communication and the third
is responsible for the power and analog output.
NANO
Pin
CPC
Pin
O2 sensor
Pin Color
Left #3 12 Left #1 brown
Left #7 13 Left #2 orange
Left #8 14 Left #3 green
Left #9 15 Left #4 blue
Left #2 16 Left #5 yellow
Left #1 17 Left #6 red
Right #3 18 Right #1 brown
Right #7 19 Right #2 orange
Right #8 20 Right #3 green
Right #9 21 Right #4 blue
Right #2 22 Right #5 yellow
Right #1 23 Right #6 red
Transmission Temperature: Compatible with
FT Temperature Sensor (5005100225), EV-1
connector
- Pin A: signal output
- Pin B: battery’s negative

14
FT450/FT550 Sportsman Data logging A Harness

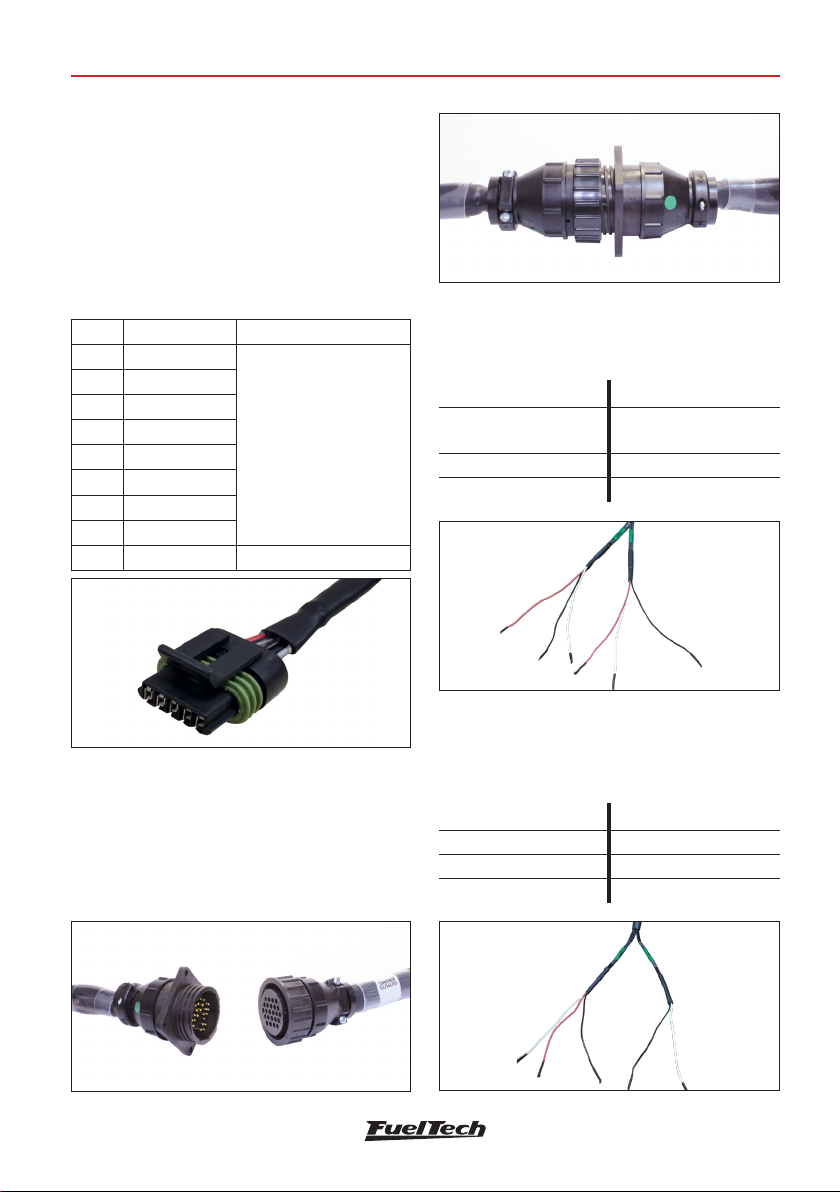

6.9 Crank Hall/Crank VR
Unterminated (loose). Color code:
Crank Hall: Crank VR:
Black: Ground Black: Shield
(Grounded)
Red: 12V Red: RPM signal
White: RPM signal White: VR Reference
6.10 Cam Hall/Cam VR
Unterminated (loose) Color code:
CAM Hall: CAM VR:
Black: Ground Black: Ground
Red: 12V
White: Signal White: Signal
6.8 Firewall CPC Connector
The CPC connector is both safe and user
friendly and offers the perfect connection
solution for the harness through the rewall,
by having keys that won’t allow connection in
the wrong position.
Pin Color Function
A Gray #1
Ignition Expansion
FT Smart Coil Harness
Ready
B Gray #4
C Gray #4
D Gray #3
E Gray #2
F Gray #1
G Gray #3
H Gray #2
K - BAT Ground
6.7 Ignition Expansion
When using this harness combined with
FuelTech Smart Coil Harness (sold separately
- 2002100108), there will be 8 Smart Coil
(5001100012) plugs.
The Smart Coil Harness’ Relay is powered by a
external switch that must be supplied trough the
“J” pin at the IGNITION EXPANSION connector.

15
FT450/FT550 Sportsman Data logging A Harness
IMPORTANT
Unused wires and wire shield
must never be grounded! Leave
them insulated.
7. Standard Sensors
7.1 Fuel and Oil Pressure
FuelTech PS-150/300/500/1500 are high
precision sensors responsible for general
pressure readings (fuel, oil, boost, exhaust
back pressure, etc.)
They can be purchased on-line at www.
fueltech.net or from an authorized FuelTech
dealer (check the website to locate the dealer
nearest to you).
FuelTech PS-150/300/500/1500 sensor
below:
- Connection: 1/8” - 27NPT
- Pressure Range: 0 to 150/300/1500psi
- Power Voltage: 5V
- Output Scale: 0.5-4.5V
- Electric Connector: 3-way Metri Pack 150
- Pin 1: Battery’s Negative
- Pin 2: 5V supply
- Pin 3: Output signal
7.2 Engine Coolant Temperature
This sensor is very important for a good
running engine, as varying engine temperatures
dramatically affect an engine’s fuel and timing
requirements.
On water cooled engines, place this sensor
near the engine head, reading the coolant
temperature. On air cooled engines, install
this sensor reading the engine oil temperature.
Part numbers: FuelTech 5005100016.
FuelTech part numbers:
- 5005100020 - 0-150 psi sensor
- 5005100021 - 0-300 psi sensor
- 5005100217 - 0-500 psi sensor
- 5005100022 - 0-1500 psi sensor
6.11 Aux. Power Connector
A - Positive battery
B - Negative battery
Transmission temperature sensor (0-300°F):
part number FuelTech 5005100225

16
FT450/FT550 Sportsman Data logging A Harness
8.2 Bosch LSU 4.2 Wideband
O2 Sensor
The BOSCH LSU 4.2 is a wideband O2 sensor
that can be used with both the WB-O2 NANO
and Alcohol O2. When using LSU 4.2 with
our Alcohol O2 reader, an adapter harness is
required, as well as free air calibration. Check
the Alcohol O2 manual for further instructions.
8. Meters and Adapter Wires
8.1 FuelTech WB-O2 NANO
The WB-O2 NANO has a 12-way connector
with 3 wire groups. One of them has the
connector for the O2 sensor, the second
makes the CAN communication.
By default, the analog output is set to values
of 8.7AFR to 16.2AFR Gas, but can be
congured to 5.14AFR to 17.6AFR Gas or 9.55
to 19.11AFR or 9.55 to 58.80AFR, 9.55 to
146.9AFR (Gas) or yet in Lambda, if necessary.
For further information, check the FuelTech
WB-O2 NANO manual.

17
FT450/FT550 Sportsman Data logging A Harness
9. Troubleshooting
Issue Solution
FT450 Unit doesn’t turn on
1. Check battery voltage
2. Check power and ground cables
3. Check Switched 12V cable
4. Check ECU harness cables
FT450 doesn’t read
cranking
1. Check crank trigger and Cam sync connections
2. Check sensor gap
3. Check diagnostic panel for RPM signal
FT450 reads RPM but
engine doesn’t start
1. Check if there is spark and injector pulse
2. Check fuel pressure
3. Check crank trigger alignment and TPS calibration
4. Check if outputs are activated and properly congured
5. Check the O2 sensor reading
Engine runs but doesn’t idle
1. Check TPS calibration
2. Check timing with a timing light
3. Check TPS idle table and adjustment
4. Check O2 sensor reading
Engine spits & sputters 1. Check O2 sensor reading
2. Check ignition calibration and ring order
ECU won’t communicate
to PC
1. Ensure your software version is compatible with your FT450
rmware version
2. Check if read and write buttons get colored when FT450
is connected
10. FuelTech Latest Manuals and Software
You can access all updated manuals and software at the FuelTech website:
www.fueltech.net/manuals
www.fueltech.net/software

FuelTechUSA
455 Wilbanks Dr.
Ball Ground, GA, 30107, USA
Phone: [phone]
Toll Free: [phone]
E-mail: [e-mail]
www.FuelTech.net
C
M
Y
CM
MY
CY
CMY
K
