Furuno PG500R User manual

OPERATOR'S MANUAL
www.furuno.com
Model
INTEGRATED HEADING SENSOR
PG-500
FLUXGATE HEADING SENSOR
C-500

i
Cd
IMPORTANT NOTICES
General
•This manual has been authored with simplified grammar, to meet the needs of
international users.
•The operator of this equipment must read and follow the descriptions in this manual.
Wrong operation or maintenance can void the warranty or cause injury.
•Do not copy any part of this manual without written permission from FURUNO.
•If this manual is lost or worn, contact your dealer about replacement.
•The contents of this manual and equipment specifications can change without notice.
•The example screens (or illustrations) shown in this manual can be different from the
screens you see on your display. The screens you see depend on your system
configuration and equipment settings.
•Save this manual for future reference.
•Any modification of the equipment (including software) by persons not authorized by
FURUNO will void the warranty.
•The following concern acts as our importer in Europe, as defined in DECISION No
768/2008/EC.
- Name: FURUNO EUROPE B.V.
- Address: Ridderhaven 19B, 2984 BT Ridderkerk, The Netherlands
•The following concern acts as our importer in UK, as defined in SI 2016/1025 as
amended SI 2019/470.
- Name: FURUNO (UK) LTD.
- Address: West Building Penner Road Havant Hampshire PO9 1QY, U.K.
•All brand, product names, trademarks, registered trademarks, and service marks belong
to their respective holders.
How to discard this product
Discard this product according to local regulations for the disposal of industrial waste. For
disposal in the USA, see the homepage of the Electronics Industries Alliance
(http://www.eiae.org/) for the correct method of disposal.
How to discard a used battery
Some FURUNO products have a battery(ies). To see if your product has a battery, see the
chapter on Maintenance. If a battery is used, tape the + and - terminals of the battery before
disposal to prevent fire, heat generation caused by short circuit.
In the European Union
The crossed-out trash can symbol indicates that all types of batteries
must not be discarded in standard trash, or at a trash site. Take the
used batteries to a battery collection site according to your national
legislation and the Batteries Directive 2006/66/EU.
In the USA
The Mobius loop symbol (three chasing arrows) indicates that Ni-Cd
and lead-acid rechargeable batteries must be recycled. Take the
used batteries to a battery collection site according to local laws.
In the other countries
There are no international standards for the battery recycle symbol. The number of symbols
can increase when the other countries make their own recycling symbols in the future.
Ni-Cd Pb

ii
SAFETY INSTRUCTIONS
Turn off the power at the mains
switchboard before beginning the
installation.
Post a sign near the switch to indicate
it should not be turned on while the
equipment is being installed.
Fire or electrical shock can result if the
power is left on or is applied while the
equipment is being installed.
WARNING
Safety Information for the Installer
Safety Information for the Operator
Confirm that the power supply voltage
is compatible with the voltage rating
of the equipment.
Connection to the wrong power supply
can cause fire or damage the equipment.
Use the supplied power cable.
Use of a wrong power cable can cause
fire or damage the equipment.
CAUTION
Maintain the compass safe distance to
prevent deviation to a magnetic
compass.
Standard compass Steering compass
0.3 m 0.3 m
WARNING
Do not disassemble or modify the
equipment.
Fire, electrical shock or serious injury can
result.
Turn off the power immediately if water
leaks into the equipment or the
equipment is emitting smoke or fire.
Continued use of the equipment can cause
fire or electrical shock.
Do not place liquid-filled containers on
the top of the equipment.
Fire or electrical shock can result if a liquid
spills into the equipment.
CAUTION
Turn off the autopilot before selecting
output data format.
The autopilot may turn the rudder suddenly.
CAUTION
Turn off the autopilot before aligning
heading.
The autopilot may turn the rudder suddenly.

iii
TABLE OF CONTENTS
FOREWORD ........................................................................................................ iv
SYSTEM CONFIGURATION................................................................................. v
EQUIPMENT LIST................................................................................................ vi
1. OPERATION...................................................................................................... 1
1.1 Controls and Indications ......................................................................................................1
1.2 Turning the Power On/Off ....................................................................................................1
1.3 Automatic Distortion Compensation.....................................................................................3
1.4 Damping Control ..................................................................................................................3
1.5 Selecting Output Data Format..............................................................................................4
2. MAINTENANCE & TROUBLESHOOTING................................................... 5
2.1 Maintenance ........................................................................................................................5
2.2 Troubleshooting ...................................................................................................................5
2.3 Diagnostic Test.....................................................................................................................6
2.4 Error Status ..........................................................................................................................7
2.5 Clearing the Memory............................................................................................................7
3. INSTALLATION ............................................................................................. 8
3.1 Mounting ..............................................................................................................................8
3.2 Connections .........................................................................................................................9
3.3 Correcting Magnetic Field Distortion..................................................................................10
3.4 Heading Alignment.............................................................................................................11
3.5 Setting Output Data............................................................................................................12
3.6 Setting Baud Rate..............................................................................................................13
SPECIFICATIONS........................................................................................... SP-1
PACKING LIST.................................................................................................. A-1
OUTLINE DRAWING ........................................................................................ D-1
INTERCONNECION DIAGRAM.........................................................................S-1

iv
FOREWORD
A Word to PG-500/C-500 Owners
Congratulations on your choice of the FURUNO PG-500 Integrated Heading Sensor, C-500
Fluxgate Heading Sensor. We are confident you will see why the FURUNO name has become
synonymous with quality and reliability.
Since 1948, FURUNO Electric Company has enjoyed an enviable reputation for innovative and
dependable marine electronics equipment. This dedication to excellence is furthered by our
extensive global network of sales and service.
Your heading sensor is designed and constructed to meet the rigorous demands of the marine
environment. However, no machine can perform its intended function unless installed, operated
and maintained properly. Please carefully read and follow the recommended procedures for
installation, operation and maintenance.
We would appreciate hearing from you about whether we are achieving our purposes.
Thank you for choosing FURUNO equipment.
Features
•The PG-500 uses a fluxgate magnetic sensor in conjunction with a solid-state angular rate
heading.
•The C-500 uses a fluxgate magnetic sensor.
•The PG-500/C-500 can correct magnetic deviation automatically.
•The PG-500/C-500 can convert magnetic heading to true heading (requires FURUNO GPS
Navigator).
CE declaration
With regards to CE declarations, please refer to our website (www.furuno.com), for further
information on RoHS conformity declarations.

v
SYSTEM CONFIGURATION
PG-500/C-500
RADAR/ARPA
(MODEL1832, 1721Mk-2, etc.)
AD-10 Format
NMEA
Format EXTERNAL EQUIPMENT
(NAVnet series, etc.)
Standard Supply
User Supply
12-24 VDC
PG-500
RADAR/ARPA
(MODEL1832, 1721Mk-2, etc.)
AD-10 Format
(Magnetic heading)
NMEA Format
(Magnetic heading) EXTERNAL EQUIPMENT
(NAVnet series, etc.)
NAVpilot-500
Processor unit
Power,
operation command
NMEA Format
(Magnetic heading)
Standard connection
Connection with NAVpilot-500
NMEA
Format
EXTERNAL EQUIPMENT
(NAVnet series, etc.)

vi
EQUIPMENT LIST
Standard set
Name Type Qty Remarks
PG-500-E Fluxgate and rate sensor
Sensor
C-500-E
1
Fluxgate sensor
Installation Materials - 1 set Refer to the packing list (page A-1).
Spare Parts - 1 set Fuse
Refer to the packing list (page A-1).
Option
Name Type Code No. Qty Remarks
MJ-A6SPF0003-050 000-117-603 1
6P connector, 5 m
(for AD-10 format, NMEA)
MJ-A6SPF0007-100C 000-159-695-10 1 6P-6P, 10 m (for AD-10 format)
MJ-A7SPF0006-100 000-143-578 1 7P-7P, 10 m (for NMEA/Power)
Cable assy.
MJ-A7SPF/SRMD-100 000-144-534 1 For extension. 7P-7P, 10 m

1
1. OPERATION
1.1 Controls and Indications
On: Auto correction is on.
Off: Auto correction is off.
On: True heading is output.
Off: Magnetic heading is output.
Off: Normal
Blinking: Correcting the deviation.
(For installation)
On: Normal
Off or blinking: Error
Corrects the heading.
Smoothes the heading data to output.
Turns deviation corrections on and off.
CALIBRATION
CALBTRUE STATUSAUTO
ADJDAMPAUTO
Front panel of sensor
1.2 Turning the Power
On/Off
Power to the sensor may be turned on or off
at the mains switchboard.
Turn the mains switch on.
The sensor checks the program version,
LED, ROM, RAM and deviation status in that
order for proper operation.
Program version
The program version, denoted by the LEDs
in binary notation, is shown. For example,
the LED state shown on the next page
means the program version is “1.03”.
ROM, RAM check
AUTO LED lights: ROM is normal.
TRUE LED lights: RAM is normal.
(CALB and STATUS LEDs are always lit.)
Deviation status
All LEDs blink twice when the calibration is
completed.
After the diagnostic tests are completed;
•C-500 outputs heading data and the
STATUS LED lights immediately.
•PG-500 calculates the rate sensor offset.
The STATUS LED blinks during the
calculation, which takes about two minutes.
When the STATUS LED lights, bearing is
reliable.
Note: Confirm that the STATUS LED is lit
(not blinking) before leaving port.

1. OPERATION
2

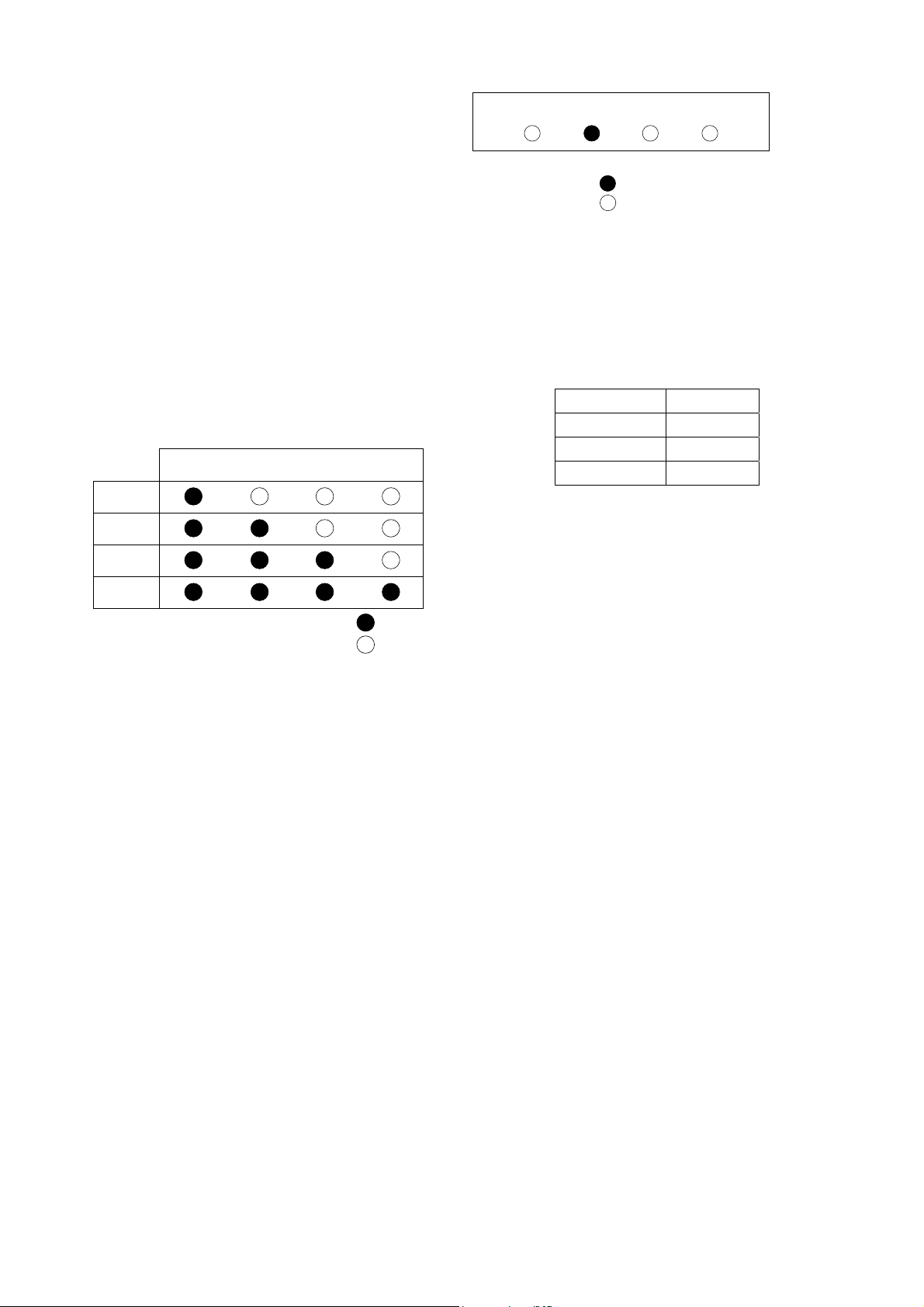

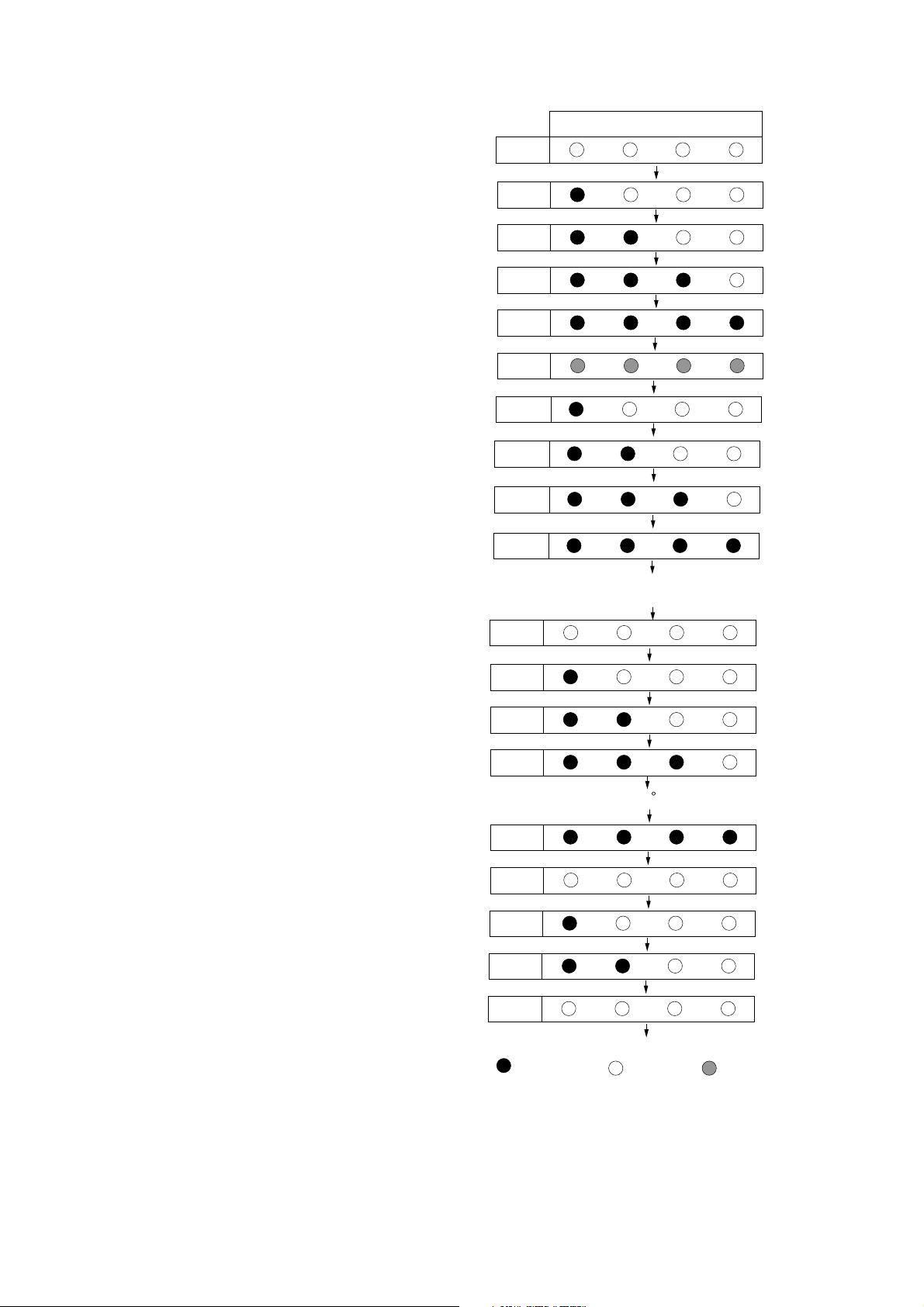

Sequence of Start up test
LED Sequence Test name
AUTO TRUE CALB STATUS
8421
AUTO TRUE CALB STATUS
8421
Program Version No.
: On
: Off
: Blinking
AUTO TRUE CALB STATUS
0.5 seconds
AUTO TRUE CALB STATUS
Twice
ROM, RAM check
Deviation status
Normal operation
AUTO TRUE CALB STATUS
8421
All LEDs go off.
AUTO TRUE CALB STATUS
8421
All LEDs go off.
0.5 seconds
0.5 seconds
0.5 seconds
0.5 seconds
0.5 seconds

1. OPERATION
3

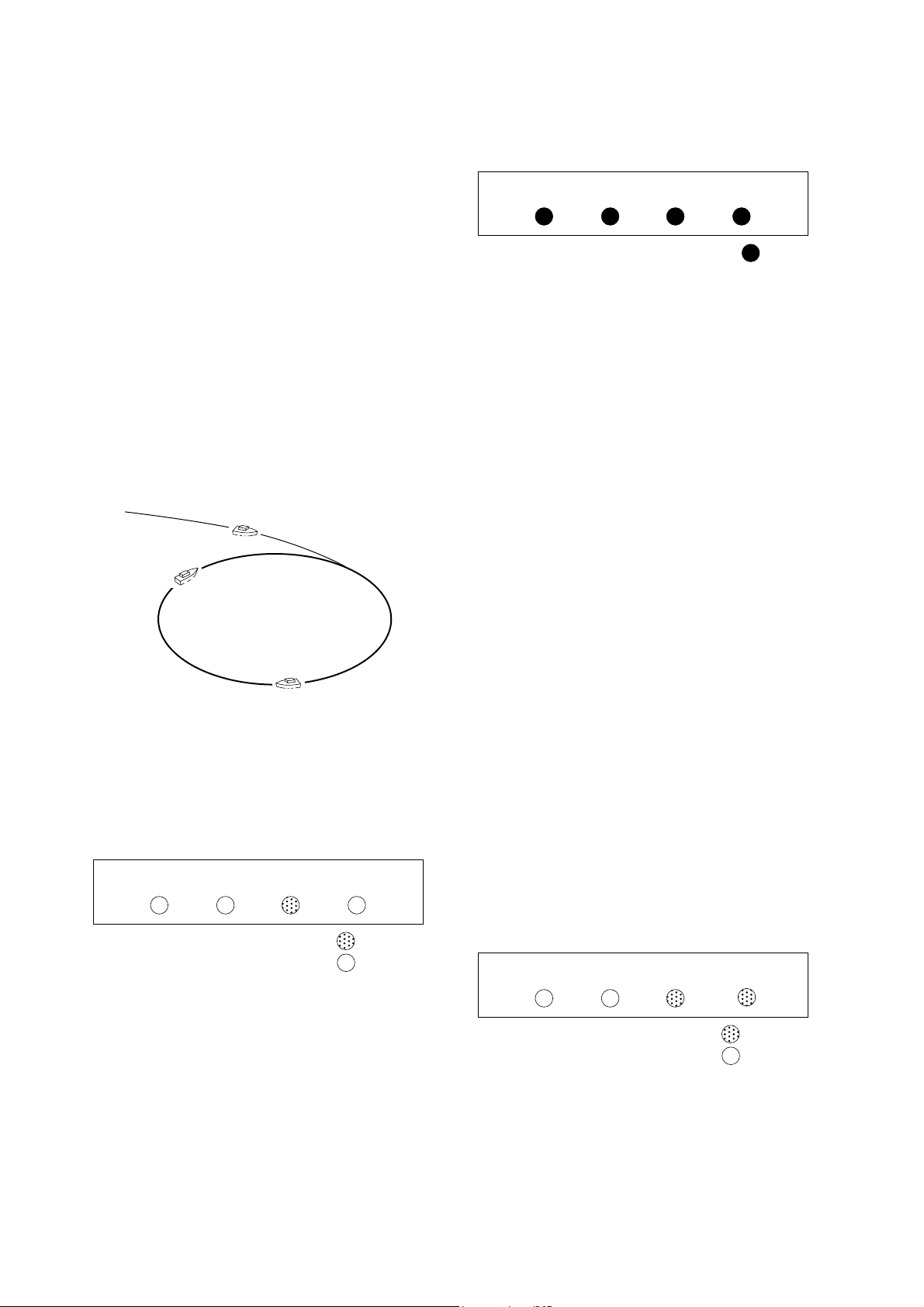

1.3 Automatic Distortion
Compensation
Magnetic field distortion on your vessel has
been compensated at the installation. When
the magnetic field distortion changes, it can
be compensated automatically as follows.
Note: This function is only effective after
compensating for magnetic field
distortion. (Refer to page 10.)
1. Press the [AUTO] key more than two
seconds to light the AUTO LED.
AUTO TRUE CALB STATUS
:On
:Off
:State depends on settings
Auto compensation
The STATUS LED lights during the automatic
distortion compensation functions.
2. To cancel automatic compensation, press
the [AUTO] key more than two seconds,
to turn off the AUTO LED.
Note 1: Do not conduct this procedure when
your boat is near a steel ship or iron
bridge, since they affect sensor
performance.
Note 2: Correct distortion whenever you feel
heading error is excessive.
1.4 Damping Control
The damping control determines how
sensitively the sensor responds to change of
ship’s heading. When the damping value is
large, the sensor responds smoothly but a
small boat may wander after the turning. Use
a small damping value as possible.
Note: When connecting with the autopilot
NAVpilot-500, use the default damping
setting (PG-500: damping 1, C-500:
damping 2).
1. Press the [DAMP] key more than two
seconds.
All LEDs go off, and then the current damping
setting is shown by the LEDs.
2. Press the [DAMP] key to change the
damping setting in the sequence of
damping 1→2→3→4→1→…

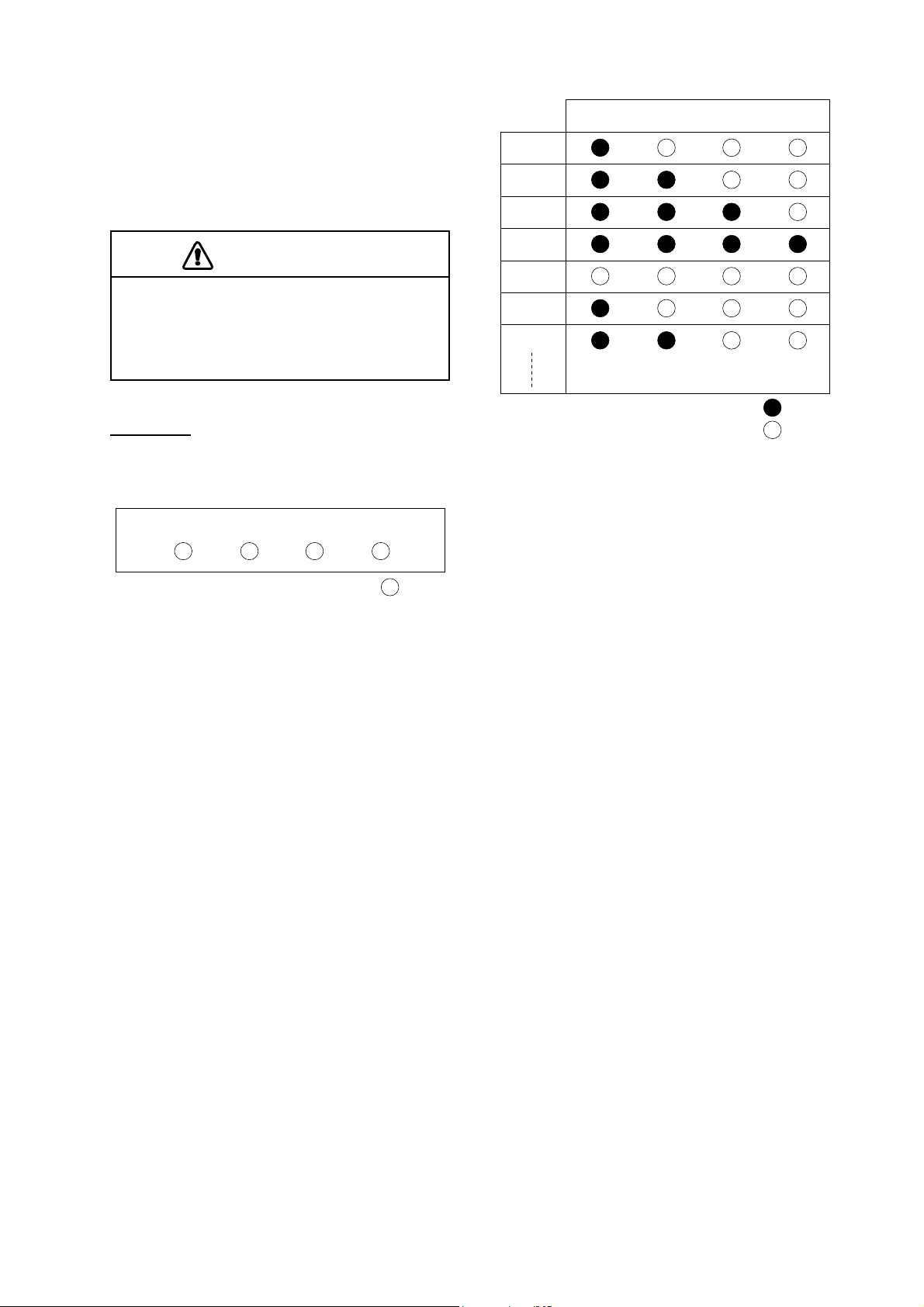

AUTO TRUE CALB STATUS
: On
: Off
Damping 1
Damping 2
Damping 3
Damping 4
Damping LED state
If three seconds passes with no operation,
the damping setting is fixed, and the
damping control mode is terminated.

1. OPERATION
4
1.5 Selecting Output Data
Format
The sensor can output true or magnetic
heading. The default setting is magnetic, in
AD-10 format.
CAUTION
Turn off the autopilot before selecting
output data format.
The autopilot may turn the rudder suddenly.
To output true heading, do the following:
1. Connect Furuno GPS Navigator which
can output data sentence RMC or VTG.
2. Set up magnetic variation (manual or
automatic) at the GPS Navigator.
When RMC or VTG is input to the sensor, the
TRUE LED lights and then true heading is
output to other equipment.
4. To return to magnetic heading output,
disconnect the GPS Navigator.
Note 1: If the TRUE LED does not light
within 90 seconds, check the
navigator setting and cable
connection.
Note 2: If the sensor stops receiving
magnetic variation data while
outputting true heading, the TRUE
LED stops lighting and blinks. The
last-used variation data is used.
Note 3: Magnetic variation cannot be
corrected manually at the sensor.
Therefore, if you desire true heading
output but do not have a navigation
aid, you may enter appropriate
variation as shown in 3.4 Heading
Alignment on page 11. HDM
sentence, however, cannot be
changed to true heading. For HDG
sentence, it can be changed to true
heading at the equipment connected,
by using the magnetic heading and
magnetic variation data in the
sentence.

5
2. MAINTENANCE &
TROUBLESHOOTING
2.1 Maintenance
Regular maintenance is important to maintain intended performance over a long period.
Regularly check the following:
•Clean the component with a soft cloth. Do not use chemical cleaners; they can remove paint
and markings.
•Make sure all connections are tight.
•Check the ground terminal for corrosion. Clean if necessary.
2.2 Troubleshooting
The table below provides simple troubleshooting procedures which the user can follow to
restore normal operation. If normal operation cannot be restored do not check inside the
equipment; there are no user-serviceable parts inside. Any repair work should be referred to a
qualified technician.
Symptom Remedy
Unit cannot be powered.
• Check power connector.
• Check the ship’s mains.
• Check the fuse.
LEDs do not light.
• Check power connector.
• Do the diagnostic test.
(Refer to the next page.)
Heading data error. • Do the diagnostic test.
(Refer to the next page.)
The heading data is not output to
external equipment.
• Check connections.
• Do the diagnostic test.
(Refer to the next page.)

2. MAINTENANCE & TROUBLESHOOTING
6
2.3 Diagnostic Test
This equipment has a diagnostic test which
checks the LED, key operation, ROM, RAM,
EEPROM, magnetic sensor, rate sensor
(PG-500 only) and loop back for proper
operation. Do this test after dismounting the
sensor.
1. Disconnect the power cable from the
equipment.
2. While pressing the [AUTO] and [DAMP]
keys together, reattach the power cable.
3. Release the [AUTO] and [DAMP] keys
when the AUTO LED lights.
Then, the test is executed in the sequence
shown in the right column.
*1: If STATUS LED does not light (NG),
this test cannot be carried out. Contact
your dealer.
Also, if the sensor is not turned within
one minute after the EEPROM test,
the test is carried out with the “Mag
sensor” is NG.
*2: The loop back test requires a special
test connector.
It is skipped when the test connector
is not connected.

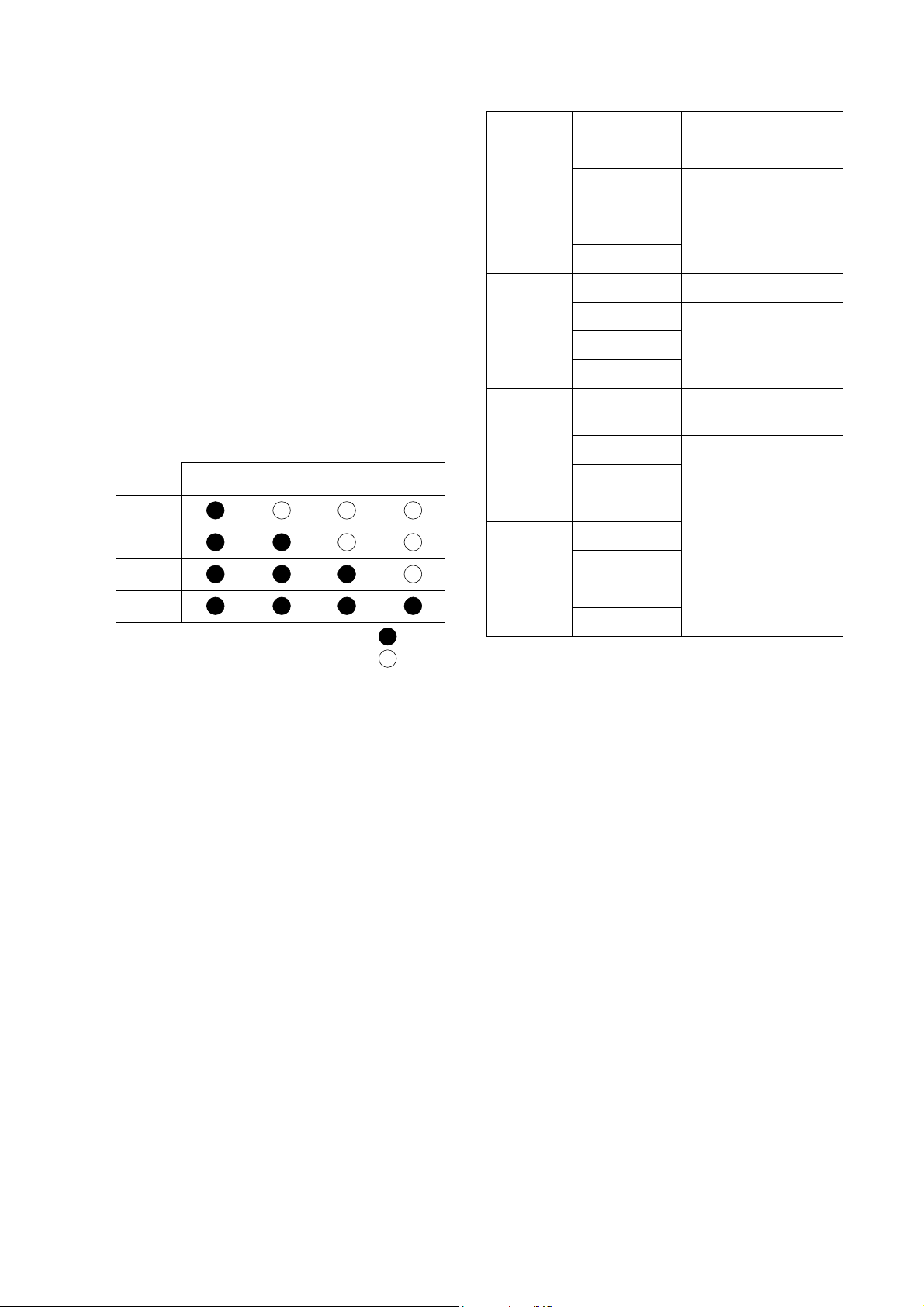

AUTO TRUE CALB STATUS
Start
CALIB
LED: OK
STATUS
LED: OK
AUTO LED
:
OK
TRUE LED
:
OK
All LEDs
blink twice.
AUTO lights
automatically.
AUTO key
: OK
DAMP key
: OK
ADJ key
: OK
Press the [AUTO] and [DAMP] keys together again.
Press the [AUTO] key.
Press the [DAMP] key.
Press the [ADJ] key.
EEPROM
: OK
Mag.
sensor: OK
ROM:
OK
: On (normal)
Rate
sensor:
OK
RAM: OK
All LEDs
go off.
Loop back
:
OK*2
All LEDs
go off.
Normal operation
All LEDs
go off.
(PG-500 only)
Turn the sensor more than 180 until STATUS LED lights.*1
: Off (error) : Blink
Sequence of diagnostic test

2. MAINTENANCE & TROUBLESHOOTING
7
2.4 Error Status
When error is detected, all LEDs go off and
then the STATUS LED blinks or goes off
depending on error type as shown in the
table below.
LED status Meaning Remarks
STATUS LED
blinks slowly.
Magnetic
deviation error
STATUS LED
blinks quickly.
EEPROM error
STATUS LED
goes off.
Other than the
above.
Appropriate LED
blinks.
CALIB LED:
Rate sensor
error
TRUE: Cable of
the magnetic
sensor is cut.
2.5 Clearing the Memory
The memory can be cleared to start afresh
with default settings.
1. Disconnect the power cable from the
equipment.
2. Reattach the cable while pressing the
[AUTO] and [ADJ] keys together.
After the memory has been cleared, the
sensor returns to the normal mode.
If the memory could not be cleared, the
STATUS LED blinks quickly.

8
3. INSTALLATION
3.1 Mounting
This sensor must be mounted indoors on the
horizontal plane.
When selecting a mounting location, keep in
mind the following points:
•Vibration at the mounting location should
be minimal.
•Install the sensor as far as possible from
power cables and ferrous materials.
•Install the sensor near the ship's center of
gravity.
•Align the bow mark with the ship's bow on
the fore-and-aft-line.
Fix the sensor by using tapping screws and
M4 flat washers (supplied).
Ship's bow
Material: Brass
Bow mark
Fixing hole
141
152 5.5
65
130
All dimensions in mm.
For added support, use M4 nuts, bolts
and washers instead of tapping screws.
Secure sufficient clearance around the
sensor for maintenance and checking.
This line should be at right
angles to the fore and aft line.
( 4.5 mm)
Mounting the sensor
Note: Do not overtighten the screws or bolts;
the sensor may crack.

3. INSTALLATION
9
3.2 Connections

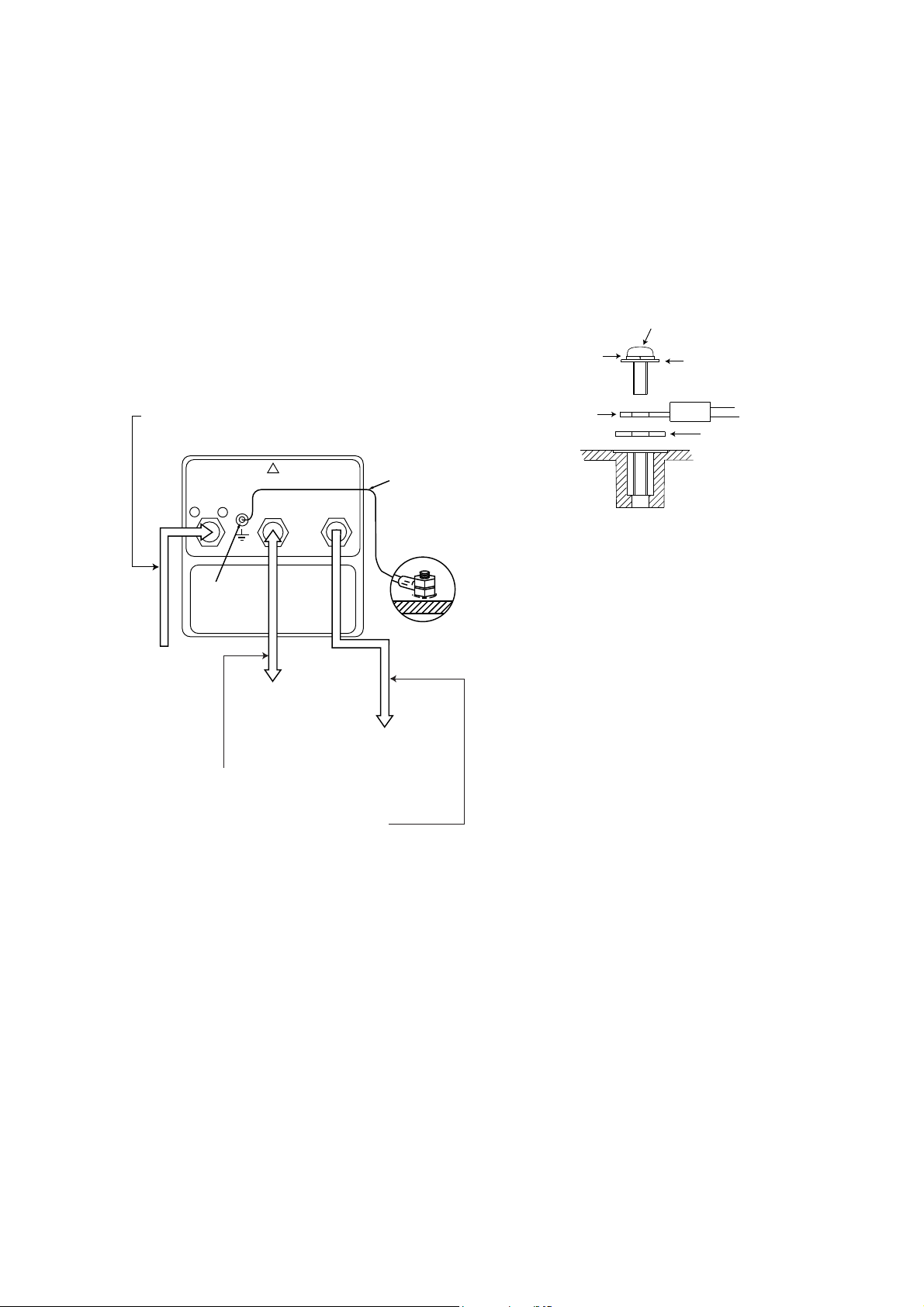

Connect cables as shown below.
Leave sufficient slack in cables for
maintenance and checking ease. If cables
run outside the bridge, run them through
conduit to protect them from corrosion.
Note: The NMEA port (the mid position) can
receive and send data. However,
when connecting with the
NAVpilot-500 or RD-30, the NMEA
port is for output only.
-
+
BOW
12-24 VDC
NMEA AD10
Grounding
12-24 VDC
or
Processor Unit
of NAVpilot-500
Ground
terminal
External equipment
(Radar, etc.)
Ground cable
(Local supply)
External equipment
(Current Indicator, etc.)
MJ-A6SPF0007-100
(supplied as installation material)
12-24 VDC: MJ-A7SPF0009-020 (supplied)
NAVpilot-500: MJ-A7SPF0010-100
(supplied with the NAVpilot-500)
MJ-A6SPF0003-050 (option)
Sensor, top view
Grounding
Ground the equipment as follows to prevent
loss of sensitivity:
•The ground wire should be as short as
possible.
•The ground wire should be about 1.25 sq
and not contain steel.
•Use only a closed-end lug.
Pan head screw
Spring washer Flat washer
Crimp-on lug
(closed,
local supply) Seal washer
Ground wire
(1.25 sq,
local supply)
Ground terminal, sectional view
Connection of external equipment
NMEA: Digital interface NMEA format
input/output terminal.
Output: HDG, HDT, HDM (Magnetic
Heading)
Input*: RMC or VTG
AD-10: Outputs heading information in
AD-10 format.
12-24VDC: Power input, Digital interface
NMEA format input/output terminal
Output: HDG, HDT, HDM (Magnetic
Heading)
Input*: RMC or VTG
*Only one port can be for Input.
Note: Cover unused connector(s) with the
rubber cap (supplied) to prevent
ingress of water.

3. INSTALLATION
10
3.3 Correcting Magnetic
Field Distortion
The magnetic field around the sensor is
subject to change with the ship structure,
engines, electronic equipment or any ferrous
materials in the vicinity.
The equipment contains an automatic
magnetic field distortion correction facility.
Do the following to correct magnetic field
distortion on calm water.
1. Steer the boat clockwise or
counterclockwise in a circular course.
Take about two minutes to complete the
circle (at about 3 kt). While turning the
boat, go to step 2.
2 minutes for a circle
(at about 3 kt)
Note: Complete circle within 2 minutes,
otherwise large error may result.
2. Press [ADJ] and [DAMP] keys together
more than two seconds. The CALB LED
blinks.
AUTO TRUE CALB STATUS
: Blinking
: Off
LED status during compensation
Note: You can return to normal operation
at any time by pressing the
[DAMP] key.
3. Continue turning the boat in a circle
(three to five times) until a result is shown
with the LEDs.
When correction is successful, all LEDs
light. Wait 30 seconds for the sensor to
return to normal operation, or press any
key for quick return.
AUTO TRUE CALB STATUS
: On
LED status at successful correction
Note 1: Do not turn off the power supply
during the correction. Data may be
corrupted.
Note 2: Continue turning the boat even if the
CALB LED status changes from
blinking to lighting. Keys are
inoperative when the CALB LED is
lighting.
Note 3: The sensor does not output heading
data during the correction.
4. Anchor the boat at the pier to check
sensor heading to a known point (for
example, lighthouse).
If there is error, see "3.4 Heading
Alignment.”
If some LED does not light, change
sensor location and repeat step 2
through 4.
If the correction failed, the LED status is
as shown below. This continues until you
press any key to clear the display.
(Turning off the power at switchboard will
not clear the LED display.) Try the
correction again.
AUTO TRUE CALB STATUS
: Blinking
: Off
LED status, compensation failed

3. INSTALLATION
11
3.4 Heading Alignment
Heading alignment is required when sensor
heading is different from actual heading.
This alignment must be done using magnetic
heading (default setting).
CAUTION
Turn off the autopilot before aligning
heading.
The autopilot may turn the rudder suddenly.
Procedure
1. Press the [ADJ] key more than two
seconds. All LEDs go off.
AUTO TRUE CALB STATUS
: Off
Note: Complete the next step within 10
seconds, otherwise normal operation
is restored.
2. Set difference between sensor heading
(output) and actual heading with the
[DAMP] key for “+” or [ADJ] key for “-”.
For example, the heading output by the
sensor is 70° and the actual heading is
75°. Therefore, the difference is +5°.
Press the [DAMP] key five times to set
+5°. Each time the [DAMP] key is
pressed, the LEDs light as shown below.
AUTO TRUE CALB STATUS
: On
: Off
+1°
+2°
+3°
+4°
+5°
+6°
+7°
Repeat
LED state and pressing of [DAMP] key
When pressing the [ADJ] key, the above
sequence begins from the STATUS LED
side.

3. INSTALLATION
12
3.5 Setting Output Data
Setting output interval
The default setting is 200 ms.
Refer to the table shown on the next page
for proper setting.
1. Disconnect the power connector from the
sensor.
2. Reattach the connector to the sensor
while pressing the [DAMP] key. The
equipment is powered on, and the
current output interval is shown by the
LEDs.
AUTO TRUE CALB STATUS
: On
: Off
1 s
200 ms
100 ms
25 ms
LED state and output interval
If step 2 was not completed satisfactorily, the
STATUS LED blinks quickly. Try step 2
again.
3. Press the [DAMP] key to change interval.
The sensor returns to the normal mode if
there is no operation for three seconds.
Setting the output sentence(s)
Select which type(s) of heading data to
output. The default setting is HDG.
1. Disconnect the power connector from the
sensor.
2. Reattach the connector to the sensor
while pressing the [ADJ] key. The
equipment is powered on, and LED(s)
light to show which output sentence(s) is
being output.
AUTO TRUE CALB STATUS
:On (current setting)
:Off
HDT HDG HDM
(sentence)
HDT
HDM
HDG
: True heading
: Magnetic heading
: Magnetic heading & Magnetic variation value
AUTO LED has no function.
LED and output sentence
3. Press key corresponding to sentence to
output.
Sentence Key
HDT [AUTO]
HDG [DAMP]
HDM [ADJ]
To cancel output, press the same key again.
Note 1: Several sentences may be
output simultaneously. However,
delay may result when the output
interval is 100 ms or 200 ms.
Note 2: "HDT" outputs true heading data.
However, if variation data is not
input from the GPS navigator,
magnetic bearing will be output.
The equipment returns to the normal mode if
there is no operation for three seconds.

3. INSTALLATION
13
3.6 Setting Baud Rate
Set the baud rate of external equipment.
The default setting is 4800 bps.
When connecting with the NAVpilot-500, use
the default setting (4800 bps).
1. Disconnect the power connector from the
sensor.
2. Reattach the connector to the sensor
while pressing the [AUTO] key. The
sensor is powered on, and the current
baud rate is shown by the LEDs.
3. Press the [AUTO] key to change the
baud rate as appropriate.
AUTO TRUE CALB STATUS
: On
: Off
4800
9600
19200
38400
LED and baud rate
If baud rate could not be set, the STATUS
LED blinks quickly. Try again.
The sensor returns to the normal mode if
there is no operation for three seconds.
Relation baud rate and output interval
Baud rate Output interval Available sentences
4800
25 No output
100 Up to two sentences can
be output.
200 Up to three sentences can
be output.
1000
9600
25 HDT or HDM
100
Up to three sentences can
be output.
200
1000
19200
25 Up to two sentences can
be output.
100
Up to three sentences can
be output.
200
1000
38400
25
100
200
1000
Note: When an error message occurs, the above
sentences may be changed.
