Installation Manual
MARINE RADAR MODEL1724C/1734C
COLOR VIDEO PLOTTER GD-1720C
SAFETY INSTRUCTIONS................................................................................................i
EQUIPMENT LISTS.........................................................................................................ii
SYSTEM CONFIGURATIONS........................................................................................iv
1. MOUNTING ...............................................................................................................1
1.1 Installation of Display Unit ....................................................................................................1
1.2 Mounting of Antenna Units....................................................................................................4
2. WIRING....................................................................................................................16
2.1 Standard Wiring..................................................................................................................16
2.2 External Buzzer (OP03-136, option) Connection................................................................19
2.3 How to Connect with a PC..................................................................................................20
3. SETTING UP THE EQUIPMENT.............................................................................21
3.1 Setting up with the Installation Wizard................................................................................21
3.2 Checking Magnetron Heater Voltage..................................................................................33
3.3 Remote Controller Setting ..................................................................................................34
PACKING LISTS.......................................................................................................... A-1
OUTLINE DRAWINGS.................................................................................................D-1
INTERCONNECTION DIAGRAMS.............................................................................. S-1
VX2
www.furuno.co.jp
All brand and product names are trademarks, registered trademarks or service marks of their respective holders.
Back

Thepaperusedinthismanual
iselementalchlorinefree.
・FURUNOAuthorizedDistributor/Dealer
9‑52Ashihara‑cho,
Nishinomiya,662‑8580,JAPAN
Telephone: +81‑(0)798‑65‑2111
Fax:
+81‑(0)798‑65‑4200
A
:
APR
2005
.
PrintedinJapan
Allrightsreserved.
E
:
JUL
.
16,2009
Pub.No.
IME‑35550‑E
*00015180914**00015180914*
(
HIMA
)
MODEL1704CGD‑1720C
*
00015180914
*
*
00015180914
*
*00015180914*

i
WARNING
Radio Frequency
Radiation Hazard
The radar antenna emits electromagnetic
radio frequency (RF) energy which can be
harmful, particularly to your eyes. Never
look directly into the antenna aperture from
a close distance while the radar is in
operation or expose yourself to the trans-
mitting antenna at a close distance.
Distances at which RF radiation levels of
100 and 10 W/m
2
exist are given in the
table below.
Note: If the antenna unit is installed at a
close distance in front of the wheel house,
your administration may require halt of
transmission within a certain sector of
antenna revolution. This is possible - Ask
your FURUNO representative or dealer to
provide this feature.
MODEL Distance to
100W/m
2
point
Distance to
10W/m
2
point
1724C Nil

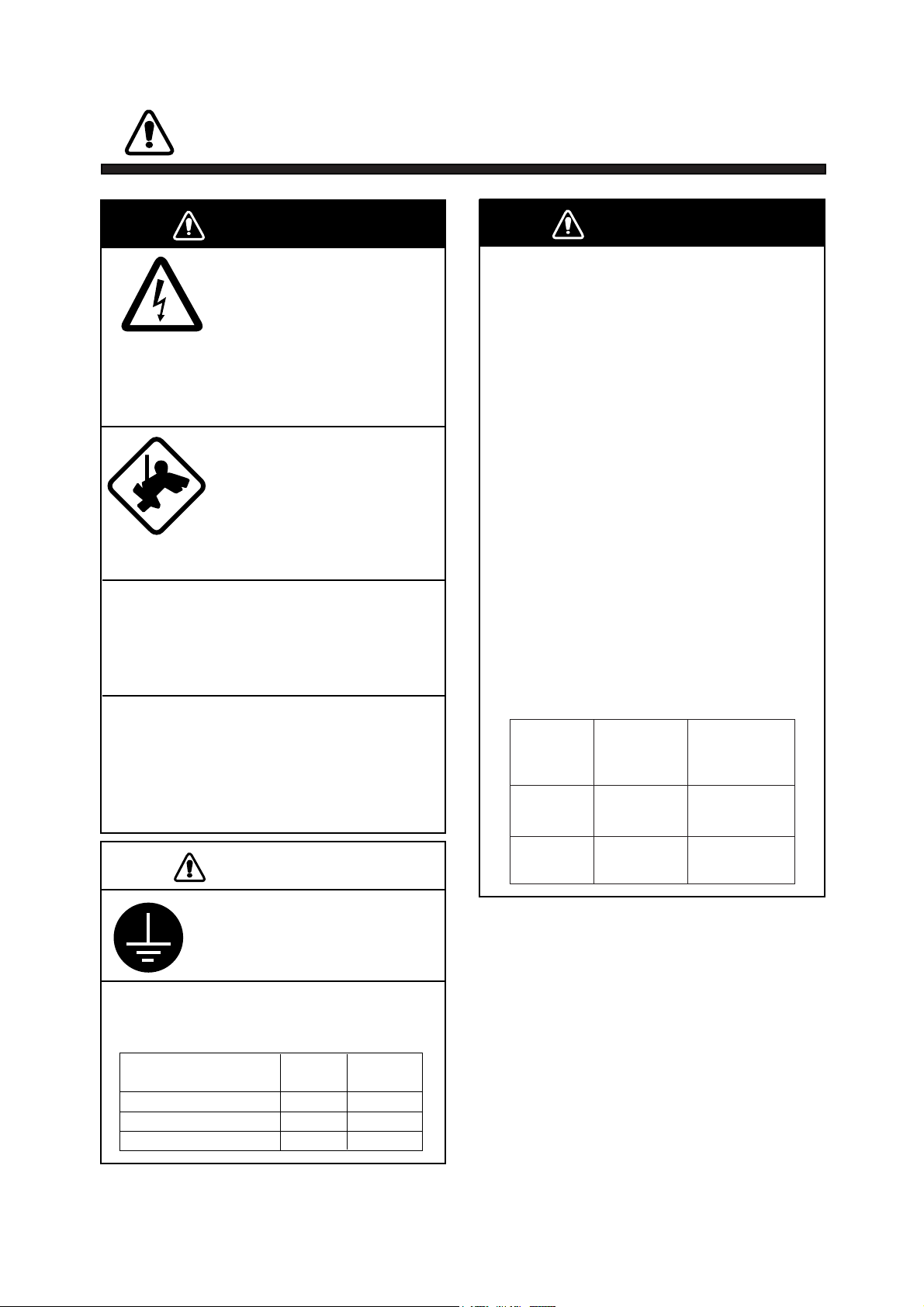

SAFETY INSTRUCTIONS
Do not open the equipment
unless totally familiar with
electrical circuits and
service manual.
Only qualified personnel
should work inside the
equipment.
Wear a safety belt and hard
hat when working on the
antenna unit.
Serious injury or death can
result if someone falls from
the radar mast.
WARNING
Construct a suitable service platform
from which to install the antenna unit.
Serious injury or death can result if some-
one falls from the radar mast.
Turn off the power at the mains switch-
board before beginning the installation.
Fire, electrical shock or serious injury can
result if the power is left on or is applied
while the equipment is being installed.
ELECTRICAL
SHOCK
HAZARD
1734C
Standard Steering
1734C antenna 1.41 m 1.10 m
0.40
Observe the following compass safe
distances to prevent deviation of a
magnetic compass.
CAUTION
Ground the equipment to
prevent electrical shock and
mutual interference.
Display unit
1724C antenna 0.55 m 0.35 m
1.30 m 0.80 m
Worst case
1.50 m
Worst case
4.00 m

ii
EQUIPMENT LISTS
Standard supply
Name Type Code No. Qty Remarks
Display unit RDP-148 - 1
RSB-110-070-A - 1 For MODEL1724C Antenna unit RSB-0071-058 - 1
For MODEL 1734C
Remote
controller set RMC-100 000-089-885 1
Remote controller, vinyl case,
battery, labels
CP03-22200 000-089-887 1 For display unit
CP03-22100 000-089-848
For MODEL 1724C antenna unit,
5 m signal cable S03-87-5
CP03-22110 000-089-849
For MODEL 1724C antenna unit,
10 m signal cable S03-87-10
CP03-22120 000-089-850
For MODEL 1724C antenna unit,
15 m signal cable SO3-87-15
CP03-22130 000-089-851
For MODEL 1724C antenna unit,
20 m signal cable SO3-87-20
CP03-22140 000-089-852
1
For MODEL 1724C antenna unit,
30 m signal cable S03-87-30
CP03-22300 000-089-888
For MODEL 1734C antenna unit,
10 m signal cable S03-88-10
CP03-22310 000-089-889
For MODEL 1734C antenna unit,
15 m signal cable SO3-88-15
CP03-22320 000-089-900
For MODEL 1734C antenna unit,
20 m signal cable S03-88-20
CP03-22330 000-089-914
1
For MODEL 1734C antenna unit,
30 m signal cable S03-88-30
CP03-20301 008-440-670 1
For antenna unit of
MODEL 1724C
Installation
materials
CP03-18001 008-478-740 1
For antenna unit of
MODEL 1734C
Spare parts SP03-15201 008-547-740 1

iii
Optional supply
Name Type Code No. Qty Remarks
000-013-484 For 100 VAC
000-013-485 For 110 VAC
000-013-486 For 220 VAC
Rectifier PR-62
000-013-487
1
For 230 VAC
External
buzzer OP03-136 000-086-443 1
MJ-A6SPF0014-010C 000-154-027-10 1 For NavNet, 1 m
MJ-A6SPF0014-050C 000-154-049-10 1 For NavNet, 5 m
MJ-A6SPF0014-100C 000-154-050-10 1 For NavNet, 10 m
MJ-A6SPF0014-200C 000-154-051-10 1 For NavNet, 20 m
MJ-A6SPF0014-300C 000-154-052-10 1 For NavNet, 30 m
MJ-A6SPF0012-050C 000-154-053-10 1 For navaid, 5 m
MJ-A6SPF0012-100C 000-154-037-10 1 For navaid, 10 m
MJ-A6SPF0003-050C 000-154-054-10 1 w/6P connector, 5 m
MJ-A6SPF0009-100C 000-154-036-10 1 w/6P connector, 10 m
MJ-A6SPF0007-100C 000-159-695-10 1 For compass, 10 m
MJ-A7SPF0007-050C 000-154-02810 1 For external buzzer/PC,
w/7P connector, 5 m
Cable assy.
MJ-A6SRMD/TM11AP
8-005 000-144-463 1 Adapter cable for HUB
Remote
controller set RMC-100 000-089-885 1 Remote controller, vinyl case, battery, labels
Mounting
bracket (1) OP03-92 008-445-070 1
For MODEL1734C antenna unit
Mounting
bracket (2) OP03-93 008-445-080 1
For MODEL1724C antenna unit
AIS Interface IF-1500AIS For connection of FA-100

iv
SYSTEM CONFIGURATIONS
All NavNet products incorporate a “network circuit board” to integrate each NavNet product
on board through an optional LAN cable (Ethernet 10BASE-T). Each NavNet product is
assigned an IP address to enable transfer of images between other NavNet products. For
example, video plotter pictures can be transferred to a radar and vice versa. Pictures
received via the NavNet may be adjusted at the receiving end.
The number of display units which may be installed depends on the number of network
sounder connected. For a system incorporating three or more products, a “hub” is required
to process data.
For one network sounder: one radar and three plotters
For two network sounder: one radar and two plotters
Antenna Unit
(ex. MODEL 1724C)
Network sounder
ETR-6/10N
ETR-30N 12-24 VDC
Other NavNet unit
(GD-1720C, etc.)
Rectifier
PR-62
Display Unit
RDP-148
Remote
Controller
RMC-100
AIS transponder AIS Interface
IF-1500AIS*
* Not required
for AIS Transponder
FA-150.
HUB FA-30
AIS RECEIVER
GPS receiver
GP-320B/330B
or
Weather station
WS-200
Echo sounder*
Navigator*
External buzzer
PC
Heading sensor
* NMEA sentence only
NavNet2 system MODEL 1724C/MODEL 1734C

v
Network
Sounder
ETR-6/10N
ETR-30N 12 - 24 VDC
Remote
Controller
RMC-100
Rectifier
PR-62
: Standard
: Option
: Local supply
Display unit
RDP-148
Other NavNet Unit
(Model 1724C, etc.)
AIS Interface
IF-1500AIS*
AIS transponder
* Not required for
AIS Transponder
FA-150.
HUB FA-30
AIS RECEIVER
GPS receiver
GP-320B/330B
or
Weather station
WS-200
Echo sounder*
Navigator*
External buzzer
PC
Heading sensor
* NMEA sentence only
Navnet2 system GD-1720C

vi
Antenna Unit GP-320B/330B,
WS-200
HUB
Radar data Plotter data
Network Sounder
ETR-6/10N
ETR-30N
(option)
Sounder data
Note: The picture disappears
10 seconds after the NavNet
cable is disconnected from a
"sub" NavNet display unit.
Network Sounder
ETR-6/10N
ETR-30N
(option)
Figure 2 (a) NavNet2 system, three-unit connection
Antenna Unit GP-320B/330B,
WS-200
Radar data
Plotter data
Figure 2 (b) NavNet2 system, two-unit connection

1
1. MOUNTING
NOTICE
Do not apply paint, anti-corrosive
sealant or contact spray to coating or
plastic parts of the equipment.
Those items contain organic solvents that
can damage coating and plastic parts,
especially plastic connectors.
1.1 Installation of Display Unit
The display unit can be installed on a tabletop, on the overhead or flush mounted in a
console or panel.
Hard Cover
Tabletop Overhead
Tabletop, overhead mounting method
When selecting a mounting location for the display unit keep the following in mind:
• Keep the display unit out of direct sunlight.
• The temperature and humidity should be moderate and stable.
• Locate the unit away from exhaust pipes and vents.
• The mounting location should be well ventilated.
• Mount the unit where shock and vibration are minimal.
• Keep the unit away electromagnetic field generating equipment such as motor, generator.
• For maintenance and checking purposes, leave sufficient space at the sides and rear of
the unit and leave slack in cables.
• A magnetic compass will be affected if the display unit is placed too close to the magnetic
compass. Observe the compass safe distances show in the Safety Instructions to prevent
disturbance to a magnetic compass.

2
1.1.1 Mounting procedure
Tabletop, overhead mounting
Follow the procedure below to mount the display unit on a tabletop or the overhead.
1. Fix the hanger by four tapping screw.
2. Screw knob bolts in display unit, set it to hanger, and tighten knob bolts.
3. Attach hard cover to protect LCD.
Tapping screws (4 pcs.)
Knob bolts (2 pcs.)
Display unit
Hanger
Tabletop, overhead mounting of display unit
