FWE HLC Series User manual

OPERATING
INSTRUCTIONS
HLC WITH DIXELL CONTROLS
“HLC” SERIES
WITH RADIANT HEAT SYSTEM
Quick Start
On Page 7
Detailed
Operating
Manual for
Controller
Included
Separately

FWE HLC WITH DIXELL CONTROLS
2
HLC-SL1826-5L
Shown with optional accessories
Lexan Door and Dixell Controller.
CONGRATULATIONS...
...and thank you for purchasing an FWE Handy Line Compartment.
Your unit has been designed and manufactured under rigid controls to
assure you the most efficient service. It is a full time unit, and may be
used continuously.
Please take a moment to read through this booklet of important
information pertaining to your cabinet. By following a routine of
proper use and care described on the following pages, your cabinet
will last for many years.
IMPORTANT: Your Manufacturer Registration Card must be
returned within 30 days after initial delivery to activate the warranty.

3
FWE standard models operate on 110/120 volt, 60 Hz, 1 ph, A.C.
(unless ordered otherwise), and are equipped with a three prong
grounding cord plug for your protection against possible shock
hazards. Be sure to plug only into a properly grounded three
prong wall receptacle. If you have any questions with regard to
adequate wiring or grounding in your building, a qualified
electrician should be contacted before using your cabinet.
The amperage of your cabinet is stamped on the name plate
attached to the unit.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE
THE GROUNDING PRONG FROM THE CORD PLUG.
WARNING: ONLY A QUALIFIED ELECTRICIAN SHOULD
ATTEMPT TO REPAIR OR REPLACE ELECTRICAL
COMPONENTS OR WIRING.
BE SURE THAT MODEL IS UNPLUGGED FROM ELECTRICAL
SOURCE BEFORE REMOVING CONTROL PANEL.
FWE HLC WITH DIXELL CONTROLS
SERIAL AND MODEL NUMBER
INSTALLATION AND CARE
UNPACKING
ELECTRICAL REQUIREMENTS AND GROUNDING
These numbers are found on the nameplate (serial tag) affixed
to the lower back of the unit. Please record them in this booklet,
in the space provided on page 9. When ordering parts and/or
service, you will need to provide this information. The voltage
and amperage of the unit are also stamped on the serial tag.
After uncrating your cabinet, remove all tape and padding
which held all doors, shelves, racks, cord, etc., in place during
shipment.

4
GENERAL OPERATING INSTRUCTIONS
PREPARING THE CABINET BEFORE LOADING FOOD
1) PLUG CABINET INTO A PROPERLY GROUNDED
POWER RECEPTACLE. The red indicating light will
come on the main power switch.
2) SELECT A TEMPERATURE SETTING. Please
refer to Dixell Quick Start on Page 7. For most foods,
a holding temperature of 150° - 160°F should
be adequate.
3) PRE-HEAT CABINET FOR 20-30 MINUTES.
Once the unit has reached the temperature which
you selected, load unit with your HOTfoods.
AVOID PUTTING YOUR HOT FOODS
INTO A COLD CABINET!
By pre-heating the unit 20-30 minutes before each use,
you can be assured of maintaining the temperature
and obtaining the best results from your cabinet.
4) LOAD THE CABINET. During the loading
procedure, keep the doors closed as much as
possible. After loading is completed, do not open
doors again until you are ready to serve.

5) TRANSPORTING HOT FOODS. Your cabinet is
equipped with a positive transportation latch to assure
safety during transportation. Before moving the cabinet,
keep it plugged in and wait until the cycling light goes
off. This recovery takes only a short time, and allows
the internal temperature to again reach the setting you
have selected. As soon as the cycling light goes off,
unplug the cabinet and wheel to serving area. Plug the
cabinet into an electrical outlet at the serving location
(if available), so that the thermostat will re-activate
and automatically hold your pre-selected temperature.
5
CAUTION:
HOLDING FOOD AT
TEMPERATURES OF
LESS THAN 140°F
MAY BE DANGEROUS.
TEMPERATURES
UNDER 140°F
PROMOTE THE GROWTH
OF HARMFUL BACTERIA
AND TOXINS IN
SOME FOODS.
GENERAL OPERATING INSTRUCTIONS
SERVICE RECORD

6
Keep your cabinet clean by simply wiping the interior and
exterior, as needed, with a damp cloth or sponge and a
mild soapy solution.
NEVER USE ABRASIVES, ACIDS, OR
STRONG CLEANERS.
Do not flood or allow electrical parts to become wet.
The interior tray slide assemblies and humidifier pans
are removable for easy cleaning.
A stainless steel cleaner/polish is recommended for the
exterior to maintain a "like-new" appearance.
DO NOT USE WAX OR STRONG CLEANERS ON
DOOR GASKETS OR VINYL TRIM.
CLEANING
GENERAL OPERATING INSTRUCTIONS
CARE & MAINTENANCE OF YOUR FWE CABINET

7
ELECTRONIC HEATING CONTROL OPERATION
Q UICK S TART
HEATING CONTROL:
When power is first turned on all LED’s and display segments light. After the control
initializes, the green thermometer bulb blinks. When the heating element is turned on the
green thermometer bulb symbol stops blinking. It completely turns off when the
temperature set point is reached and the heating element is turned off. This cycle
continues to maintain the box temperature while actual box temperature is displayed.

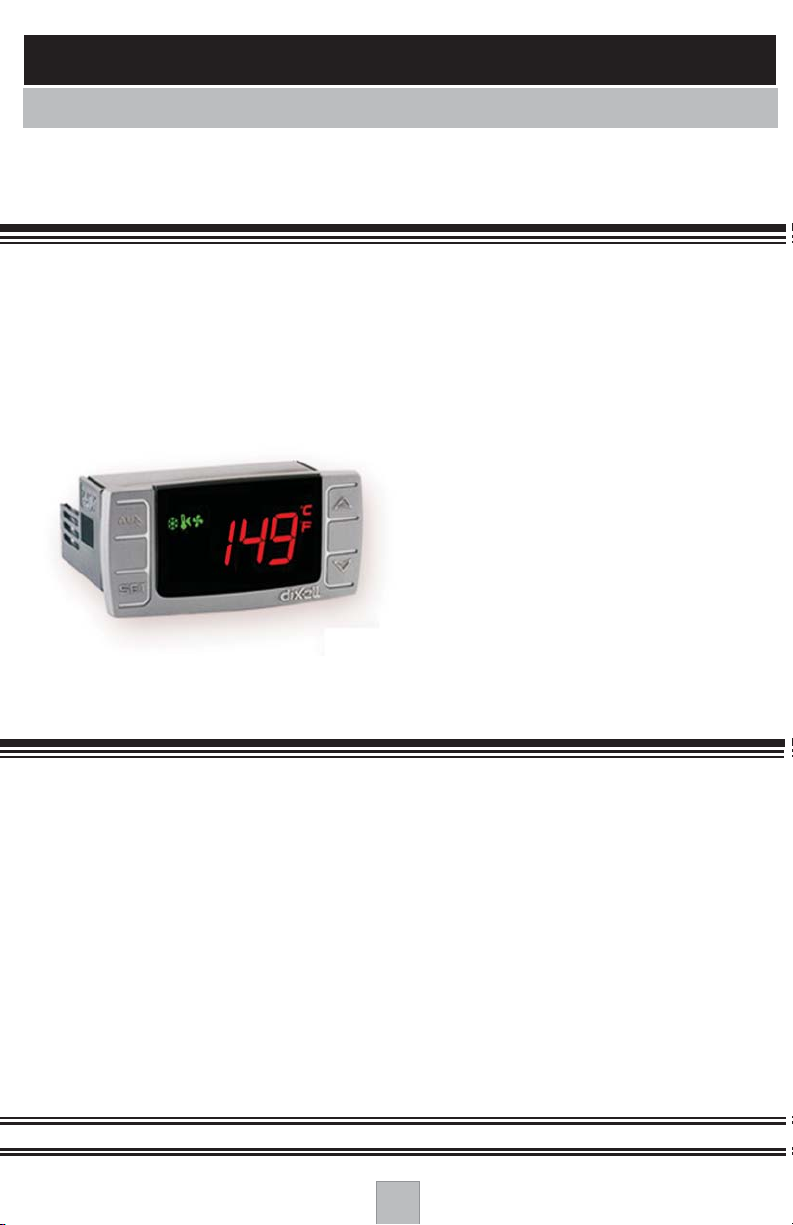

Figure 4 = display layout
* Note: The heating system fans will run constantly except when power is turned off.
HOW TO SEE THE SETPOINT (BOX TEMPERATURE CUT-OUT)
1. Push and immediately release the SET key: the display will show the set point value.
2. Push and immediately release the
SET key or wait 5 seconds to display the probe
value (actual box temperature) again.
HOW TO CHANGE THE SETPOINT
1. Push the SET key for more than 2 seconds to change the Set point value.
2. The value of the set point will be displayed and the ºC or ºF LED indicator starts blinking.
3. To change the Set value push the
UP or DOWN arrows within 10 seconds.
To memorize the new set value push the set key again or wait 10 seconds.
Quick Start
FWE HLC WITH DIXELL CONTROLS

PARTS LIST
FWE PARTS DEPARTMENT: 815 459 7500
CASTERS PART NUMBER
3.5'' rigid CSTR 3.5 R-5
3.5'' swivel with brake CSTR 3.5 SB-5
5'' rigid CSTR 5 R-2
5'' swivel CSTR 5 S-2
5'' swivel with brake CSTR 5 SB-2
HARDWARE
Door hinge, lift-off (pair) HNG L/O
Door gasket (by the foot) GSKT DR
Corner bumpers, set of four BMPR CR GR
Paddle latch LTH PDL
Bail or Drop Handles S/S DROP HANDLES
ELECTRICAL COMPONENTS
Dixell XR01CX Controller, JZ (HOT) CNTRL JZ
Probe for Dixell controllers, JZ CNTRL PROBE JZ
Heating element: 16'' / 500w /115v EL500/115A
Cordset and plug, 10 ft.,115v CRDSET 10 /115
8

FWE HLC WITH DIXELL CONTROLS
SERVICE RECORD
Model Number ______________________
Serial Number ______________________
Date of Purchase ____________________
Notes:
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
9

FWE HLC WITH DIXELL CONTROLS

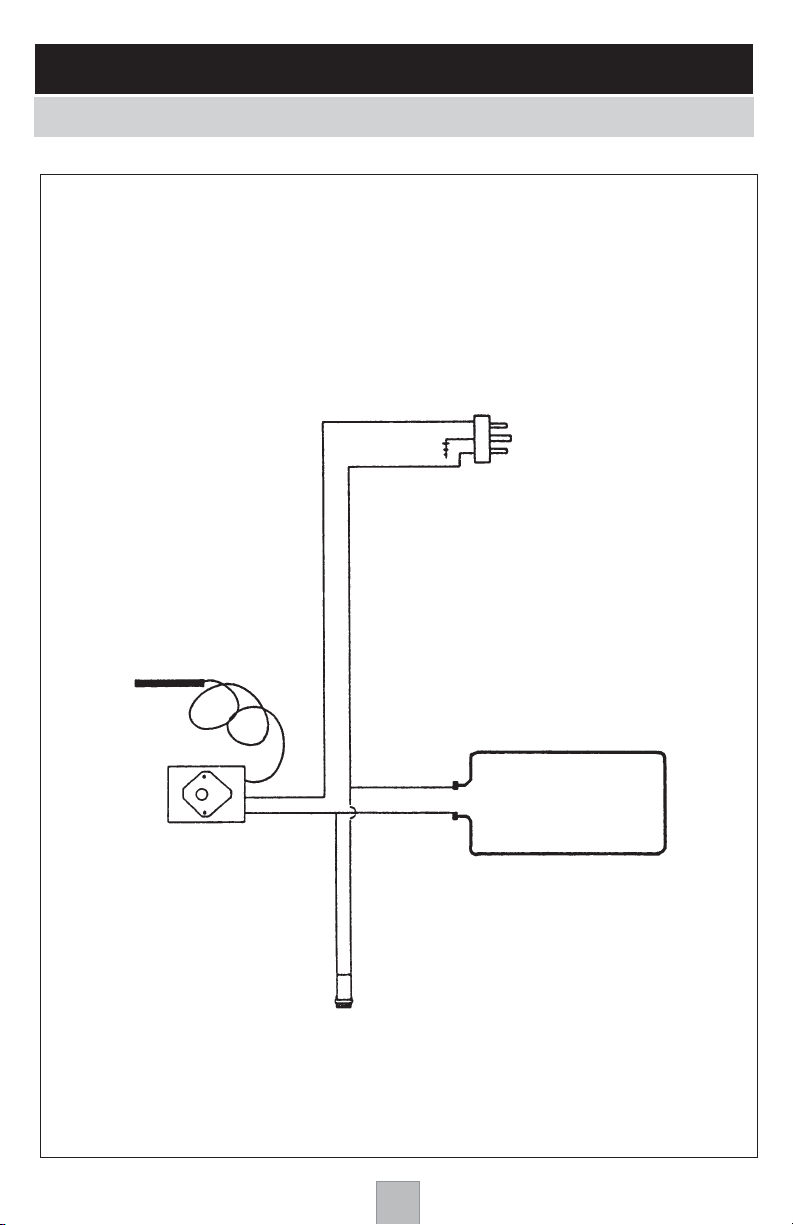

WIRING DIAGRAM
10
HEATING
ELEMENT
DIXELL
CONTROLLER
RED
RED
BLACK
ON/OFF SWITCH
WHITE
BLACK
WHITE
WHITE
CORD
SET

FWE / Food Warming Equipment Company, Inc. (Seller) warrants to the original purchaser,
subject to the exceptions and conditions below, that FWE manufactured equipment shall be
free from defects in material or factory workmanship, under ordinary use for the purpose for
which it is designed. The effective warranty period is as follows:
PARTS: Seller will furnish without charge to the original purchaser, FOB Sellers’ factory,
replacement parts for repairs to all new standard catalog products and factory custom /
modified units, which in Seller’s sole judgement, prove defective in materials or workmanship
under normal and proper use with the reserved right to request the return of any part claimed
to be defective, prior to issuing replacement part or authorizing warranty service, for a period
of two (2) years from date of original shipment from Seller’s plant,
except for equipment used
in a Correctional Environment / Facilities, which is warranted for a period of one (1) year
from date of original shipment from Seller’s plant.
LABOR: Seller’s labor warranty shall be performed by a Seller-approved Service Agency who
must contact Seller to obtain a Warranty Service Authorization (WSA) number prior to
performing any repairs. If service is required during overtime periods, the difference between
overtime and standard labor rates shall be paid by the purchaser. Seller does not assume any
responsibility for any charges not expressly authorized, incidental to the repair or replacement
of equipment covered by this warranty, nor charges exceeding, in Sellers sole judgement,
normal and customary amounts. Only approved travel charges will be allowed. Seller’s labor
warranty shall be from the date of original shipment date from Seller’s plant for a period of one
(1) year,
except for equipment used in a Correctional Environment / Facilities which is
warranted for a period of six (6) months.
This warranty is for normal usage and does not apply to any product or parts thereof that have
been misused, altered, or where Seller’s operating instructions or specific voltage is not
observed; nor shall this warranty apply to defective products or parts resulting from accident
following date of original shipment, nor extend to or cover removal, installation, reinstallation or
calibration, or service calls or cost of repairs undertaken by a customer. This warranty is also
subject to the following:
1.] Customer returning the warranty registration card, accompanying Sellers original
shipment, to Seller within thirty (30) days of receipt;
2.] Giving immediate notice of any allegedly defective part or product to Seller; and
3.] Customer, at Sellers request, returning said defective parts or product to Seller.
This is the sole warranty applicable to the merchandise. It is expressly understood that Seller’s
liability hereunder is limited to the repair or replacement, at Seller’s option, of products or parts,
defective materials or workmanship as provided above. Seller’s judgement as to the cause and
nature of any defect will be final.Seller shall in no case be responsible for special or con-
sequential damages or any other obligation or liability with respect to products sold by Seller.
This warranty, as stated above, applies to equipment installed in the Continental United States.
FWE equipment installed outside the Continental United States shall carry parts coverage
only. All labor costs are approved on a discretionary basis, based on like repairs in the
Continental U.S. This warranty shall stand in whole or in part as allowed by law. Any exclusion
of a part of this warranty, as may be allowed by law, shall not void balance of warranty.
This is a limited warranty pursuant to the Consumer Product Warranties Act, 15 U.S. Code. section 2303.
© 2010 Food Warming Equipment Co., Inc.
FWE HLC WITH DIXELL CONTROLS
LIMITED TWO YEAR WARRANTY
11

WE OFFER SALES AND SERVICE WORLDWIDE
Food Warming Equipment Company, Inc.
P.O. Box 1001
Crystal Lake, IL 60039-1001
Manufacturing Facilities:
7900 S. Route 31
Crystal Lake, IL 60014
OpsManual_HLC_Dixell © 2010 Food Warming Equipment Co., Inc. Printed in USA
FWE Parts Department:
815 459 7500
FAX:
815 459 7989
The best designed . . .
The best built . . .
The best performing units on the market!
◊
◊
◊
◊
◊
◊
◊
◊
◊
Retherm Cabinets
Self-Propelled Transports
Heated Banquet Cabinets
Universal Bulk Food
Cabinets
Utility Carts
Refrigerators, Freezers and
Convertibles
Prisoner & Correctional Tray
Delivery
Hospital Tray Delivery Carts
Portable Bars and Back-ups
Errors subject to correction. All specifications
subject to change without notice.
© 10 Food Warming Equipment Company. Inc.
