G.T.Power C6D Pro User manual

INTELLIGENT BALANCE CHARGER/DISCHAGER
Thank you for purchasing the balance charger.
This is a rapid charger/discharger with built-in
balancer, computerised with microprocessor and
can support scan QR code charging and phone
APP control. Please read the entire operating
manual completely and attentively before using.
Battery repairing function
Support AGM/PB
battery
Battery warmer
function
With built-in tire warmer mechanism/servo
test/Motor-run function
Count battery
using times
Newly added FB-DCHG mode
FB-DCHG
Download on the
App Store
GET IT ON
Google Play
NEW
functions
AGM/PB
w
a
t
t
300
p
o
w
e
r
DC 300W/AC 100W

12
Contents
1. Specications ...................................................................................................... 02
2. Features................................................................................................................ 03
3.The exterior appearance of the unit ................................................................. 05
4.Warnings and safety notes................................................................................. 06
5. Program ow chart............................................................................................. 08
6. Charging current setting.................................................................................... 09
7. Lithium battery (Lilon/LiPo/LiFe/LiHv) program............................................. 09
8. NiMH/NiCd battery program............................................................................. 13
9. PB battery program ............................................................................................ 15
10. DJI Phantom series battery charge program................................................. 17
11. Cell Meter test program ................................................................................... 17
12. IR Test ................................................................................................................. 18
13. Special function introduction ......................................................................... 19
14. Memory Mode .................................................................................................. 21
15. Load Mode......................................................................................................... 21
16. User settings...................................................................................................... 22
17. APP instruction ................................................................................................. 24
18. Warning and error messages........................................................................... 25
19. Warranty and service........................................................................................ 26

13
1. Specications
Input voltage AC.100-240V，DC.11-26V
Charge current 0.1-12A
Discharge Current 0.1-3A，12A in FB-DIS mode
Charge Power AC.Max.100W，DC Max 300W
Discharge Power max.5W，300W in FB-DIS mode
Balance Current max.1A
Balance Tolerance ±0.01V
Charging Capability LiXX:1-6cells
NiXX:1-15cells
Pb Battery Voltage Pb:2-20V
Weight 424g
Dimensions 119*122*53.5mm

14
2.Features
【Optimized operating software】
This unit can automatically adjust current according to the change of the charging time and
battery voltage when charging or discharging. It can avoid battery explosion due to user’s
inappropriate operation especially when charging LiXX batteries.This charger provide
balance port for lithium batteries suit for 2-6 cells.
【High Power and High Performance Circuits】
This charger’s maximum output power is 300W, maximum charging current is 12A, maximum
discharging current is 3A.Its high eciency cooling system can guarantee the normal
operation of the processor under such a big power.
【Individual voltage balancing for lithium battery packs】
The charger has a unique balancing function for lithium batteries inside, so no need extra
balancer to balance the voltage when charging for Lilo/LiPo/LiFe/LiHv batteries.
【Monitor and balancing individual cell voltage】
It can monitor and balance individual cell voltage when discharging. It will stop discharge
when the battery voltage is abnormal.
【Suit for variety of lithium batteries】
It can be compatible with LiIo，LiPo，LiFe，LiHV，NiCd，NiMH、Pb、AGM and Phantom2,
phantom3 batteries. You can set parameters according to battery types and specications.
【Lithium battery Fast charge and Storage mode.】
Fast charge reducing the charging time and storage mode can keep the rated voltage of
lithium batteries stored for a long time
【Maximum safety】
Delta-peak sensitivity: It is a automatic charge current termination program. Its working
principle is to turn o the charging current to complete charging when the battery voltage
rises to the highest point and starts to fall down.(NiCd/NiMH)
Charging capacity limit: Charging capacity is calculated through charging current multiply
by charging time.When set the maximum charging capacity , the charging program will be
forced to end when charging capacity exceed the setting value.

15
Temperature limit: The inner temperature will rise when charging.When set a maximum
temperature, the charging program will be forced to end when charging temperature exceed
the setting value.This function need to connect exterior temperature sensor.
Charge time limit: You can through restrain the charge time to prevent any possible over
charge/discharge.
Input voltage checking: To protect battery, program will automatically shut down the
charging current when the voltage decreased to the lowest.
Automatic cooling fan: The cooling system will run automatically when the internal
temperature raised and intelligently adjust speed according to temperature.
【Cyclic charging/discharging】
Perform 1-5 times charging/discharging cycles continually to refresh and activate long-term
unused NiCd/NiMH battery.

16
3、The exterior appearance of the unit
Air vent
Display screen
DEC key INC key
ENTER/START key
BATT.TYPE/STOP key
Balance portTemperature sensor /servo connector
Battery main connector
DC input port
AC input:100-240V

17
4. Warnings and Safety notes
• Never leave the charger unsupervised when it is connected to power.If any malfunction
happens, terminate the program immediately and refer to the operation manual for the
right operation.
• Keep the unit away from dust, damp, rain, heat, direct sunshine and vibration. Do not
drop it.
• The unit circuit is designed by 11-26V for DC input and 100-240V for AC input only.
• The charger and the battery to be charged should be set up on a heat-resistant,
non-ammable and non-conductive surface.Please ensure that the fan and vents of the
charger are not blocked by the surface that it is placed on.
• Never block or cover the cooling-vent of unit to keep well-ventilated. Please set up
parameter of battery correctly. Otherwise, the battery may be damaged. Especially for
Lithium battery, it may cause a re or an explosion by over-charging.
• To avoid short circuit between the charge leads, always ensure the leads are connected to
the charger rst and only then plugged into the battery. Always make sure that no
batteries are connected to leads before disconnecting them from the charger.
• You have to pay attention to verify the capacity and the voltage of the Lithium battery
pack. It may be composed of parallel and series connection mixed. In parallel link the
capacity of the battery pack is multiplied by the number of cells but the voltage remains
the same. That kind of voltage imbalance may cause a re or explosion during charge
process. We recommend you compose the Lithium battery pack in series only.
Discharge
• The typical purpose of discharge is to determine the residual capacity of the battery, or to
lower the voltage of battery to a defined level. When you discharge the battery you also
have to pay attention on the process same as charging. To avoid the battery becoming
deep-discharged, set the final discharge voltage correctly. Lithium batteries should not be
deep-discharged to lower than the minimum voltage, as this will leads to a rapid loss of
capacity or a total failure. Generally, you do not need to discharge Lithium battery
voluntarily.
• Some rechargeable batteries are said to have a memory eect. If they are partly used and
recharged before the whole charge is drawn out, they‘remember’ this and next time will
only use that part of capacity. This is a‘memory eect’. NiCd and NiMH batteries are both
have this‘memory eect’. They prefer complete cycles, fully charge then use until capacity
empty. NiMH batteries have less memory eect than NiCd.

18
• The Lithium battery prefers a partial rather than a full discharge. Frequent full discharges
should be avoided if possible. Instead, charge the battery more often or retain normal
voltage.
• The brand-new NiCd battery pack is partially useful with its capacity until it has been
subjected to 10 or more charge cycles in any case. The cyclic process of charge and
discharge will lead to optimise the capacity of battery pack.
Those warnings and safety notes are particularly important. Please follow the instructions
for a maximum safety; otherwise the charger and the battery can be damaged violently. And
also it can cause a re to injure a human body or to lose the property.
voltage level: 1.2V/cell
allowable fast charge current: 1C~2C depends on the performance of cell
discharge voltage cut o level: 0.85V/cell(NiCd), 1.0V/cell(NiMH)
voltage level: 3.6V/cell
max.charge voltage: 4.1V/cell
allowable fast charge current: 1C or less
min.discharge voltage cut o level: 2.5V/cell or higher
voltage level: 3.7V/cell
max.charge voltage: 4.2V/cell
allowable fast charge current: 1C or less
discharge voltage cut o level: 3.0V/cell or higher
voltage level: 3.3V/cell
max.charge voltage: 3.6V/cell
allowable fast charge current: 4C or less(e.g. A123M1)
discharge voltage cut o level: 2.0V/cell or higher
voltage level: 3.8V/cell
max.charge voltage: 4.35V/cell
allowable fast charge current: 1C or less
min.discharge voltage cut o level: 3.0V/cell or higher
voltage level: 2.0V/cell(Lead-acid)
max.charge voltage: 2.46V/cell
allowable fast charge current: 0.4C or less
discharge voltage cut o level: 1.50V/cell or higher
NiCd/
NiMH
LiIon
LiPo
LiFe
LiHV
Pb
(Lead-
acid)

19
5. Program ow chart
Start
Enter
Stop
Start
Enter
Stop
Start
Enter
Stop
Start
Enter
Stop
Start
Enter
Stop
Start
Enter
Stop
Start
Enter
Stop
Start
Enter
Stop
Start
Enter
Stop
Start
Enter
Stop
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
Lithium
Battery Mode
LiPo CHARGE
12.0A 7.4V(2S)
LiPo FB-DIS
2.0A 7.4V(2S)
LiPo STORE
2.0A 7.4V(2S)
LiPo REPAIR
2.0A 7.4V(2S)
LiPo BALANCE
2.0A 7.4V(2S)
LiPo DISCHG
2.0A 7.4V(2S)
USER SET
PROGRAM->
LiPo CutOff Volt
4.200V
LiHV CutOff Volt
4.350V
NiMH Sensitivity
D.Peak 10mv/Cell
NiCd Sensitivity
D.Peak 10mv/Cell
Temp Cut-off
ON 80℃176°F
Waste Time
CHG->DCHG 17min
NiMH/NiCd
Battery Mode
NiMH CHARGE
CURRENT 2.0A
NIMH CYCLE
CHG>DCHG 2
NIMH FB-DIS
2.0A 0.1V
NIMH RE-PEAK
2.0A 2
NIMH DISCHG
2.0A 0.1V
PROGRAM SELECT
Extend Function
MOTOR-RUN 010:00
5.0A 10.00V
CC-CV Out
10.0A 20.00V
Warmer 60℃
010:00 100W
PWMIn 0us
65.53ms/15.25 Hz
PWMIn AUT-2
20.0ms 1500
Lead Acid(PB)
Battery Mode
Pb CHARGE
2.0A 4.0V(2P)
Pb FB-DIS
2.0A 4.0V(2P)
Pb AGM CHG
2.0A 4.0V(2P)
Pb DISCHG
2.0A 4.0V(2P)
DJI Phantom
Battery Mode
DJI Phantom 3
2.0A
DJI Phantom 2
2.0A
USER PROGRAM
Cell Meter
MAIN: 25.2 V
H:4.20V L:4.20V
4.20 4.20 4.20 V
4.20 4.20 4.20 V
Test LiXX Inter-
nal Resistance
1:010 010 010 mR
4:010 010 010 mR
Battery Pack IR
60mR
PROGRAM SELECT
SAVE DATE
SAVE [1] LiPo
0.0V 0mAh
Capacity Cut-Off
OFF 5500mAh
Key Beep ON
Buzzer ON
Input Power Low
Cut-Off 11.0V
Load Factory Set
Enter
Safety Timer
OFF 120min
PROGRAM SELECT
LOAD DATE
LOAD [1] LiPo
0.0V 0mAh
LiIo CHARGE
12.0A 7.4V(2S)
LiIo FB-DIS
2.0A 7.4V(2S)
LiIo STORE
2.0A 7.4V(2S)
LiIo REPAIR
2.0A 7.4V(2S)
LiIo BALANCE
2.0A 7.4V(2S)
LiIo DISCHG
2.0A 7.4V(2S)
LiHv CHARGE
12.0A 7.4V(2S)
LiHv FB-DIS
2.0A 7.4V(2S)
LiHv STORE
2.0A 7.4V(2S)
LiHv REPAIR
2.0A 7.4V(2S)
LiHv BALANCE
2.0A 7.4V(2S)
LiHv DISCHG
2.0A 7.4V(2S)
LiFe CHARGE
12.0A 7.4V(2S)
LiFe FB-DIS
2.0A 7.4V(2S)
LiFe STORE
2.0A 7.4V(2S)
LiFe REPAIR
2.0A 7.4V(2S)
LiFe BALANCE
2.0A 7.4V(2S)
LiFe DISCHG
2.0A 7.4V(2S)
NiCd CHARGE
CURRENT 2.0A
NiCd CYCLE
CHG>DCHG 2
NiCd FB-DIS
2.0A 0.1V
NiCd RE-PEAK
2.0A 2
NiCd DISCHG
2.0A 0.1V
Product Version
1.0.4
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC

1:
Lithium
Battery Mode

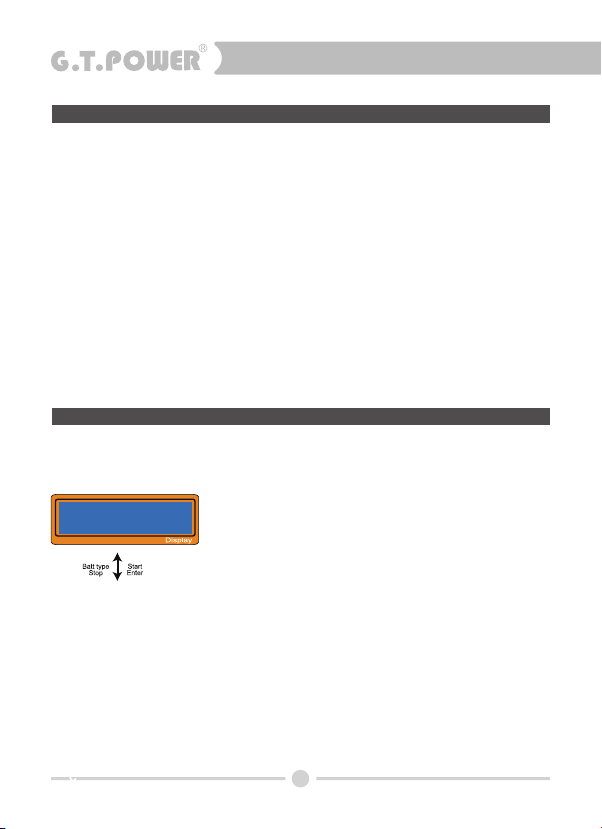

6. Charging current setting
You have to know the battery allowable maximum charging current before
charging.Charging current exceeds the allowable maximum charging current may cause
damage to battery and it is possible to lead a re and explosion of battery when charging.
We usually use C value to mark battery charging/discharging capability.The battery
allowable maximum charging current is calculated by multiply C value by battery capacity .
For example, if battery is 1000mAh, 5C, then the allowable maximum charging current is
1000*5=5000mA, that is the battery maximum allowable charging current is 5A.
To Lithium batteries, if you can’t conrm battery’s C value, for your safety, please set
charging current no more than 1C.
The relationship between C value and charging time is, charging time≥60minites/C value,
for example, charging with 1C, charging nish time need 60-70 minutes. This time may be
extended due to dierent battery performance.
7. Lithium battery(LiIon/LiPo/LiFe/LiHv)program
These program suit for Lilo/LiPo/LiFe/LiHv battery pack charge/discharge. You have to
choose the right program according to dierent lithium battery performance.
Select lithium battery charge mode, short press enter key to
the program.
Short press ‘Start/Enter’ key to select battery types（LiPo、
LiFe、Lilo、LiHv）and program modes, such as balance
charge,discharge, FB-DIS, storage, repair, normal charge,then,
you can through press INC and DEC key to change the
current value（0.1-12A）, discharge current value
(0.1-3A),FB-DIS discharge current value(0.1-12A).The same
operation method to set battery voltage and cells(1-6S).
For your attention,you need to connect the battery to the
charger’s output plug as well as the balance port correctly
when charging.

21
LiPo BALANCE
5.2A 11.1V(3S)
R: 3SER S: 3SER
CONFIRM(ENTER)
L3Bo 1.0A 12.16V
CHG 000:08 00002
4.15 4.15 4.15 V
0.00 0.00 0.00 V
The second line left side to set charge current value, right
side to set the battery pack voltage value. After done, press
and hold Start/Enter for 3 seconds to start the program.
（charge current：0.1～12.0A,cell voltage：1～6cells）
This shows the number of cells you set and the processor
detected. ‘R’ shows the number of cells found by the charger
and ‘S’ shows the number of cells you selected at previous
menu.If both numbers are the same, you can start charging
by press Start/Enter button.If not, press Batt type/Stop key go
back to the last menu to double check battery pack cell
number and charge again.
It shows the current charging status, press Batt type/Stop key
to stop charging.
It shows the individual cell voltage of each battery pack.
This is for balancing the voltages of Lithium batteries of the battery pack to be fully charged.
Inner system will monitor each cell’s voltage and restraint each cell’s current to fulll
balance charging. You need to connect the battery to the charger’s output plug as well as
the balance port when charging.
7.1 Lithium battery balance charge mode
The aim of discharging is to check the battery remaining capacity or to check the heath
status of battery.To avoid deep discharging, you need to set a right rated discharging
voltage when discharging. Lithium battery voltage should not lower than its rated voltage in
case causing any fast loss of battery capacity. In normal case no need to discharging Lithium
battery. For your safety, charger’s discharging current should not exceed the maximum
discharging current specied by the battery manufacturer, rated voltage should not lower
than the lowest discharging voltage specied by the battery manufacturer to avoid deep
discharging.
7.2 Discharging Lithium battery

22
LiIo DISCHG
2.0A 0.0V(0S)
3S 0.4A 11.84V
DSC 000:12 00001
3S 0.4A 11.81V
STD 000:05 00000
LiPo STORE
3.0A 11.1V(3S)
The second line left side to set dicharge current value, right
side to set the battery pack voltage value. After done, press
and hold Start/Enter for 3 seconds to start the program.
（dicharge current：0.1～3.0A,cell voltage：1～6cells）
It shows the current discharging status. Press Batt type/Stop
to stop discharge.
The second line left side to set storage current value, right
side to set the battery pack voltage value. After done, press
and hold Start/Enter for 3 seconds to start the program.
（storage current：0.1～3.0A,cell voltage：1～6cells）
It shows the current storage status. Press Batt type/Stop to
stop storage.
Lithium battery storage mode is to adjust each kind of battery voltage to a certain level
（LiPo:3.85V，Lilo:3.75V，LiFe:3.3V,LiHV：3.85V, this will make lithium batteries suitable for
long-term storage. If the voltage of the battery at its initial stage is higher than the rated
voltage,the program will start to discharge. If lower than the rated voltage, will start to
charging.
7.3 Storage mode for Lithium battery
LiPo 1.0A 11.91V
REP 000:05 00001
LiPo REPAIR
1.5A 11.1V(3S)
The second line left side to set charge current value, right
side to set the battery pack voltage value. After done, press
and hold Start/Enter for 3 seconds to start the program.
（charge current：0.1～1.5A,cell voltage：1～6cells）
It shows the current status, press Batt type/Stop to stop the
repair program.
This program can be used to repair the voltage gap between battery packs through a
unique program to charge the low voltage cell with a small current to increase the battery
activity, so that the voltage of each cell in the whole battery pack is consistent.
7.4 Lipo battery repair

23

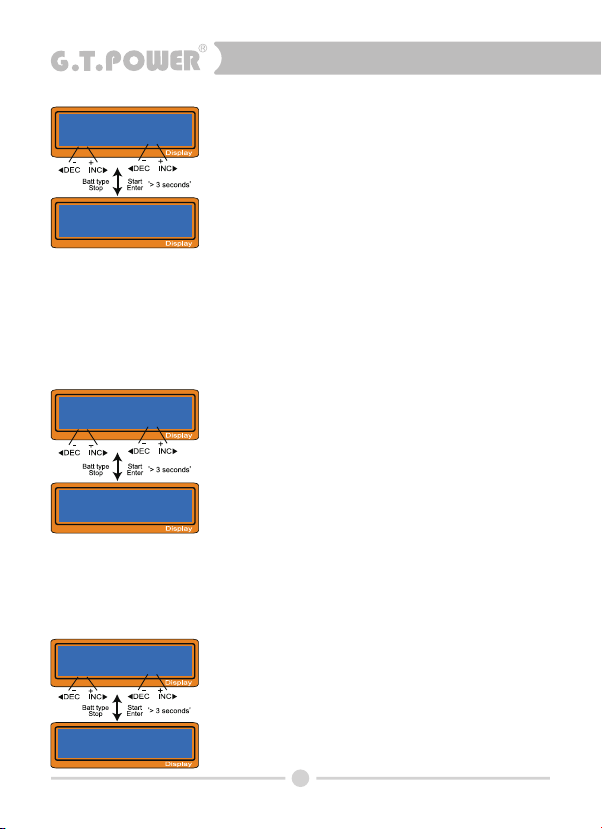

LiPo CHARGE
5.2A 11.1V(3S)
R: 3SER S: 3SER
CONFIRM(ENTER)
R: 3SER S: 3SER
CONFIRM(ENTER)
SET INPUT BATT
Pb 14.7V(6P)
LiPo FB-DIS
3.5A 11.1V(3S)
The second line left side to set charge current value, right
side to set the battery pack voltage value. After done, press
and hold Start/Enter for 3 seconds to start the program.
（charge current：0.1～12.0A,cell voltage：1～6cells）
Press ENTER to start program.
Set battery type and voltage value, then press and hold
Start/Enter for 3 seconds to start the program.
You have to use this mode under DC working status and input port connected to battery,
otherwise will report an error. FB-DIS working principle is transmit the standby discharging
battery capacity to input battery through the charger and acheived the discharge eect. For
your safety, the screen shows discharge current should not exceed the battery manufacturer
allowed maximum discharge current value, rated voltage should not exceed the battery
manufacturer allowed lowest voltage value, in case deep discharge.
7.5 LiPo FB-DIS mode
The second line left side to set charge current value, right
side to set the battery pack voltage value. After done, press
and hold Start/Enter for 3 seconds to start the program.
（charge current：0.1～12.0A,cell voltage：1～6cells）
It shows your set cell counts and charger detected cell
counts. R: shows the charger detected cell counts, S: shows
cell counts you selected in you last menu, if the value is the
same, press Start/Enter to start charge. If S and R value not
the same, press Batt type/Stop back to last menu and check
clear cell counts before charging.
It should connect the battery to the input connector and also connect the balance
connector when charge.
7.6 Charging Lithium battery in balance mode

24
L3Bo 1.0A 12.16V
CHG 000:08 00002
4.15 4.15 4.15 V
0.00 0.00 0.00 V
8. NiMH/NiCd battery program
It is designed for charging and discharging NiMH or NiCd battery that commonly used for
R/C model .
NiMH/NiCd
Battery Mode
NiMH CHARGE
CURRENT 5.2A
NiMH 0.3A 7.81V
CHG 000:05 00000
The screen turns bright when press Start/Enter, then you can
press DEC/INC to change the parameter value,press
Start/Enter to store
The second line left side to set charge current value, right
side to set the battery pack voltage value. After done, press
and hold Start/Enter for 3 seconds to start the program.
（charge current：0.1～12.0A）
Press Start/Enter for 3 seconds to start the program.
8.1 Charge NiCd/NiMH battery
NiMH DISCHG
3.0A 7.3V
NiMH 0.7A 7.70V
DSC 000:04 00000
The second line left side to set charge current value, right
side to set the battery pack voltage value. After done, press
and hold Start/Enter for 3 seconds to start the program.
（discharge current：0.1～3.0A, battery voltage:0.8-25V）
The screen shows the current discharging status, press Batt
type/Stop to stop discharge.
8.2 Discharging NiCd/NiMH battery
It shows the current charging status, press Batt type/Stop to
stop charge.
It shows each battery pack single cell voltage.

25
Set the sequence on the left and the number of cycle (1-5) on the right. You can use this
function to balance and refresh or cut o battery.To avoid battery temperature rising, there
will be a brief cooling process after each charge and discharge cycle. In this process, press
“Batt type /stop”to stop the program.
NiMH CYCLE
DCHG>CHG 3V
NiMH 0.7A 7.70V
DSC 000:04 00000
DCHG：discharge，CHG：charge
Press Start/Enter for 3 seconds to start the program.
8.3 NiMH /NiCd battery charge and discharge cycling mode
FB-DIS can only be operated when the battery is connected to the input interface under DC
mode, otherwise will report error. The FB-DIS mode is to transfer the capacity of the battery
to be discharged to the input battery through the charger to achieve the purpose of
8.5 NiMH/NiCD Battery FB-DIS
The charger has the new program which can charge the battery for second time. (The
battery which do not use for a long time or the old battery or the battery which can not
arrive the Max voltage after the rst charge). In this way, this mode can make the battery’s
capacity to the standard value and can extend the battery’s using time.
NiMH RE-PEAK
2.1A 1
Set the charge current in the left, set the second charge times
in the right. Press“Start/Enter” for 3seconds to start the
program and the program will stop by press “Batt type/Stop”.
(Charge current 0.1-12.0A, 1-3 times)
Press Start/Enter for 3 seconds to start the program.
8.4 NiMH/NiCD Battery second charge
NiMH 2.1A 8.74V
CHG 000:31 00018

26
Lead Acid(PB)
Battery Mode
Pb CHARGE
3.4A 20.0V(10P)
Pb 0.7A 7.85V
CHG 000:04 00000

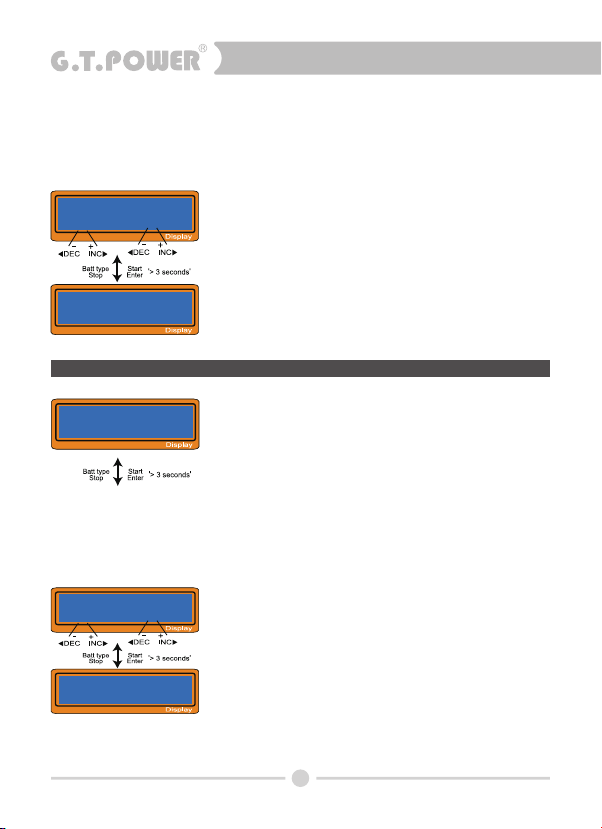

9、Pb battery program
This program is used for charging/discharging Pb batteries,
rated voltage from 2 to 20V.Pb batteries are dierent from
NIMH/NiCd batteries,Pb battery has a lower battery capacity
than NIMH/NiCd battery, they can only pass relatively lower
current,as well as have some current restraints during
charging process.Pb battery’s current is 1/10 of its battery
capacity, it can’t fast charging, you have to refer to the
specications of the battery manufacturer when charging.
NiMH FB-DIS
12.0A 9.0V
SET INPUT BATT
Pb 14.7V(6P)
Set the charge current value on the second line left side, set
the battery pack voltage on the right side. After set nished,
press and hold Start/Enter for 3 seconds to start the
program.(current：0.1～12.0A,battery voltage：0.8-25V)
Press ENTER to start program
Set input battery type and voltage, press and hold Start/Enter
for 3 seconds to start the program.
Set charge current on the left side and nominal voltage on
the right. Press Start /Enter for 3 seconds to start the charging
process.（current：0.1～12.0A, battery voltage：1-10P）
9.1 Charging Pb battery
discharge. For your safety, the discharge current value displayed on the screen should not
exceed the maximum discharge current specied by the battery manufacturer, and the
rated voltage should not be lower than the voltage level recommended by the battery
manufacturer to avoid deep discharge. Select discharge battery type and voltage correctly.

27
FB-DIS can only be operated when the battery is connected to the input interface under DC
mode, otherwise will report error. The FB-DIS mode is to transfer the capacity of the battery
to be discharged to the input battery through the charger to achieve the purpose of
discharge. For your safety, the discharge current value displayed on the screen should not
exceed the maximum discharge current specied by the battery manufacturer, and the
rated voltage should not be lower than the voltage level recommended by the battery
manufacturer to avoid deep discharge. Select discharge battery type and voltage correctly.

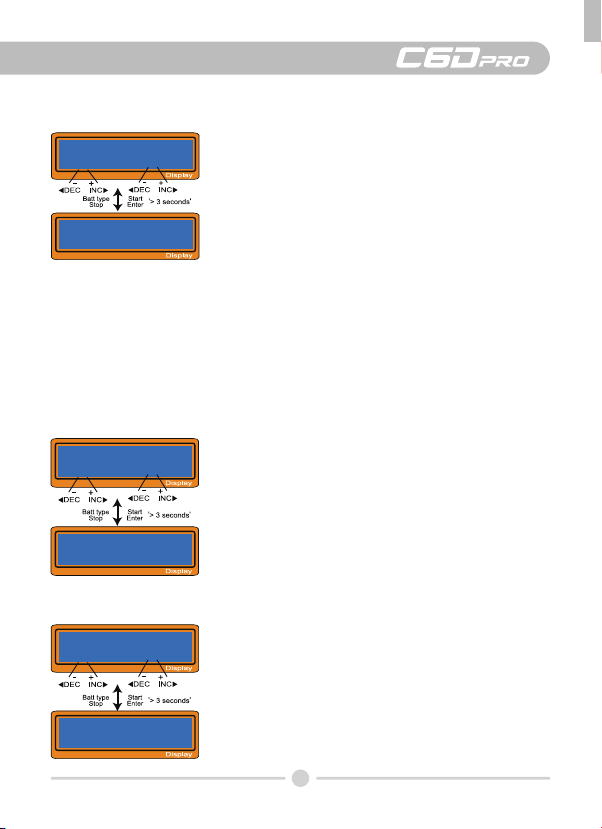

Pb DISCHG
2.0A 10.0V(5P)
SET INPUT BATT
Pb 14.7V(6P)
Set the discharge current value on the second line left side,
set the battery pack voltage on the right side. After set
nished, press and hold Start/Enter for 3 seconds to start the
program.(current：0.1～12.0A,battery voltage：1-10P)
Press ENTER to start program
Set input battery type and voltage, press and hold Start/Enter
for 3 seconds to start the program.
9.3 Pb battery FB-DIS
Pb DICHG
3.4A 12.0V(6P)
4P 0.1A 7.76V
DSC 000:02 00000
Pb AGM CHG
A 4.0V(2P)
Pb 0.4A 7.85V
CHG 000:04 00000
Set discharge current on the left side and nominal voltage on
the right. Press Start /Enter for 3 seconds to start the
discharging process.（current：0.1～3.0A, battery voltage：
1-10P）
9.2 Discharging Pb battery
This charge program is specially designed for AGM battery.
The second line left side to set the charge current, the right
side is to set the battery pack voltage. After nished set, press
and hold Start/Enter for 3 seconds to start the program.
（current：0.1～12.0A,battery voltage：1-10P）
9.4 AGM battery charge program

28
DJI Phantom
Battery Mode
DJI Phantom 3
2.1A
11. Cell Meter test program
This charger with built-in high-bit micro-processor, can be used as a cell meter.It can show
the voltage of each cells, the total battery pack voltage and the highest/ lowest voltage.

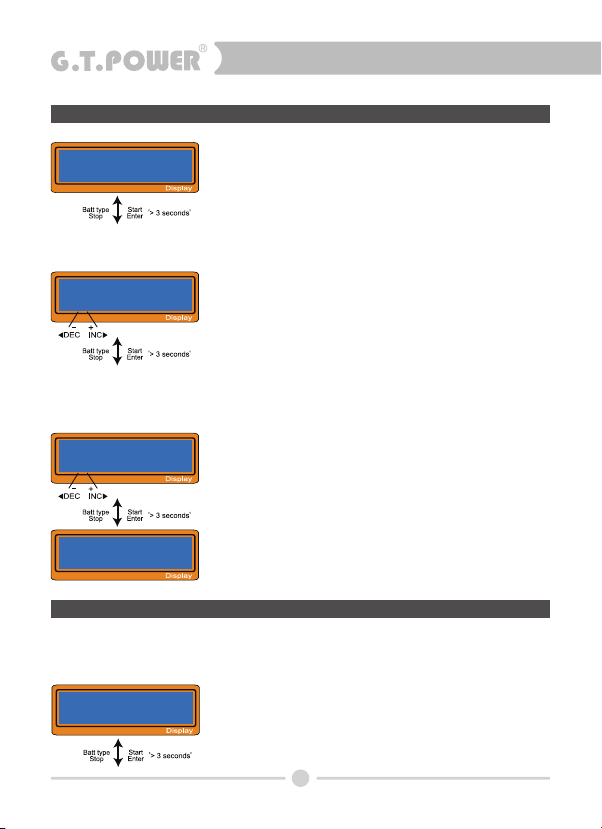

10、DJI Phantom series battery charge program
C6DPRO Charger is the intelligent multi-functional charger. It
can charge many dierent battery types and can also charge
DJI batteries.
The battery’s capacity of Phantom 3 professional and
Phantom 3 is 4480mAh and the standard voltage is 15.2V.
It is easy to operate the charger to charge the DJI batteries.
Connect the battery and press Start/Enter over 3 seconds to
start the program and press Batt type/Stop to stop the
charge.
10.1 DJI Phantom 3 battery charge program
DJI Phantom 2
2.1A
Dron 0.4A 7.82V
CHG 000:06 00000
USER PROGRAM
Cell Meter
The battery’s capacity of Phantom 2and Phantom 2 vision
and Phantom 2 Vision+ is 5200mAh and the standard voltage
is 11.1V.
Connect the battery and choose the charge program of
Phantom 2, then press Start/Enter over 3 seconds to start the
program and press Batt type/Stop to stop the charge.
Choose the cell meter program interface, press START to
enter, will show 1-6 cells voltage.
10.2 DJI Phantom 2 battery charge program

29
4.16 4.18 4.17 V
4.18 4.16 4.17 V
MAIN 25.01V
H4.178V L4.155V
12、IR Test
Lithium battery internal resistance is one of the important index of battery discharge
capability and eciency. We can know battery performance and the matching of each
battery by getting the battery IR value. The value more smaller the higher matching degree
between the batteries. The charger detected battery IR value is its relative value not
absolute value. It is the relative value under current testing voltage. But it can also know the
battery performance and matching rate through this relative value. If you want more battery
performance comparison, you had better put them under the same voltage to detect. For
example, to compare two 3-cells batteries, you should ensure that the total voltage is
consistent. Testing in the single voltage of 4.20V.
Test LiXX Inter-
nal Resistance
1:001 003 001 mR
4:007 --- --- mR
Battery Pack IR
12mR
Choose IR test program, press START enter into the interface
to show 1-6S IR value.
Press DEC/INC key to check the total IR value of battery pack
Press STATUS key to show the highest/lowest voltage of the
single cell and the total voltage of the battery pack.

2:

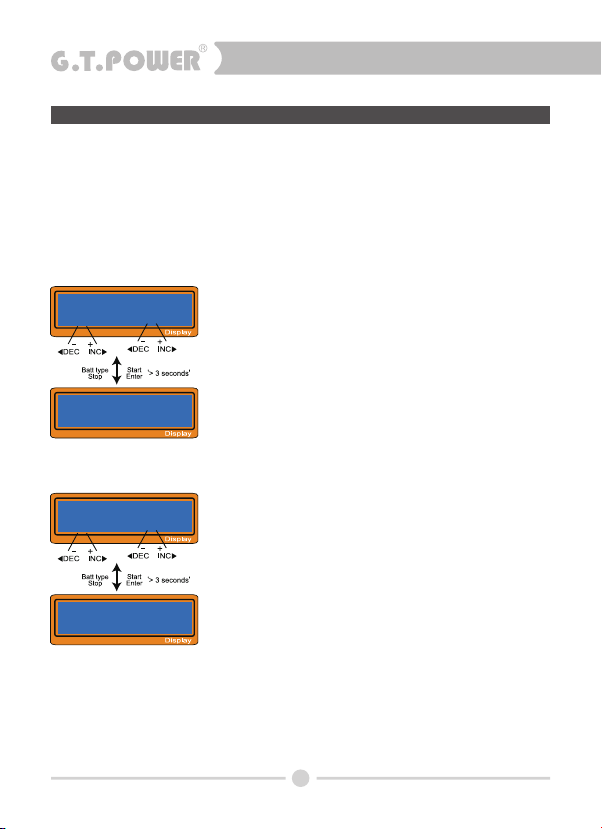

13、Special function introduction
We’ve added some extra functions for C6dpro, such as motor-run, digital power, tire warmer,
PWM test etc.
MOTOR-RUN 003:20
0.6A 24.90V
16W 2.1A 8.05V
MOR 000:06 00003
13.1 Motor-run introduction
This program aims to test the quality of DC two-phase motor and check the quality of motor.
Set the motor’s input power, check its output current and power, assisted with certain test
equipment to judge the motor using status and quality.
CC-CV Out
12.0A 25.00V
2W 0.1A 25.00V
CCV 000:28 00000
13.2 Digital power
Under this program, this charger can be used as a digital
power to power on other instrument, but can not be used as
a charger to charge/discharge. Voltage range is 0.2 -15V,
current 0.2-12A, max. Power 300W.
Select digital power program, Press and hold START for 2
seconds to start the program, interface will show the output
voltage, current and power.
Press STOP to end the program, back to set interface.
13.3 Tire warmer function introduction
Thetire warmer function is used for thehot-melt rc car tire. It can heat the hot-melt tire
quickly and increase the grip force to the ground. To use this function, you need to equip
with the heating cup.
According to the program ow chart, select Motor run
function, connect the positive and negative power supply
lines of the DC motor to the positive and negative output
terminals of the charger, adjust the current and voltage
through press DEC/INC. After set nished, short press ENTER
to nish voltage set.(current 0.1-12A, voltage: 0.2-25V)
After nished, long press ENTER enter into test interface. If
need re-set, short press STOP back to set interface.
