G.T.Power G.T. X2 User manual

MULTI CHEMISTRY
BALANCE CHARGER
AC-DC
OPERA T I N G M ANUA L
BALANCE CHARGER/DISCHARGER FOR
Li-ion/LiPo/LiHv/LiFe/NiMH/NiCd/Pb BATTERIES
AC 100V–240V | DC 11.0V–18.0V

Thank you for purchasing the G.T X2 Charger.This charger
is comprised of two, multi-chemistry capable, rapid chargers /
dischargers, cell balancers with built in microprocessors built into
one component. Please read and understand the entire manual
before operating this charger.
If you have read the entire manual and still are unclear regarding
any of the functions, warnings, or safety precautions, please
contact our customer service department to using this product.
Notes:

MULTI CHEMISTRY
BALANCE CHARGER
AC-DC
CONTENTS
SECTION PAGE
1. Features 1
2. Exterior of the Unit 3
3. Warnings & Safety Notes 4
4. Program Flow Chart 6
5. User Set Up 7
6. Charging Lithium Batteries 9
6.1 Charging Lithium Batteries in Balance Mode 10
6.2 “Fast Charging” Lithium Batteries 11
6.3 “Storage Mode” for Lithium Batteries 11
6.4 Discharging Lithium Batteries 12
6.5 Balancing Lithium Batteries During Discharge 12
6.6 LiHV Mode Instructions 12
7. NiMH / NiCd Battery Programs 13
7.1 Charging NiMH & NiCd Batteries 13
7.2 Discharging NiMH & NiCd Batteries 13
7.3 Cycling NiMH & NiCd Batteries 14
8. Pb Battery Programs 14
8.1 Charging Pb Batteries 14
8.2 Discharging Pb Batteries 15
9. Battery Meter Testing Programs 15
10. Saving Data Programs 15
11. Loading Data Programs 16
12. Various Messages During Charging & Discharging 17
13. Warning & Error Messages 17-18
14. Specifications 19
15. Warranty and Service 19-20

Dual Charge Circuitry
This charger features two individual charging
circuits allowing you to charge 2 batteries
simultaneously, regardless of battery chemistry
or cell count.
High Power Charging Circuit
The G.T. X2 charger features a powerful
80-Watt charging circuit.The charger can safely
charge or discharge up to 15 cells of NiMH or
NiCd batteries and up to 6S LiPo batteries.
Lithium Cell Voltage Monitoring
The G.T. X2 Charger can monitor and
balance individual cells within a LiPo battery in
either charge or discharge mode.
Multiple Chemistry Charging
The G.T. X2 charger will charge Lilo,
LiPo, NiMH, LiHV, NiCd, LiFe and Pb battery
types.

Multiple Charging Leads Included
The G.T. X2 comes with the following
charge leads to include the most common
connection types.
MULTI CHEMISTRY
BALANCE CHARGER
AC-DC

Batt type/Stop
To select main program
To stop the operation
Channel Selection
To select between
channel 1 or 2
Channel Lights
Indicator
Dec/Inc
To select sub program
To alter the value
Start/Enter
To resume or start
the operation
Charging lead
connector
(4mm banana female)
Charging lead
connector
(4mm banana female)
Balance block
input
Balance block
input

Voltage level: 1.2V/cell
Allowable fast charge current: 1C~2C depends on the
performance of cell discharge voltage cut off level
0.85V/cell(NiCd), 1.0V/cell(NiMH)
Voltage level: 3.6V/cell
Max. charge voltage: 4.1V/cell
Allowable fast charge current: 1C or less
Min. discharge voltage cut off level: 2.5V/cell or higher
Voltage level: 3.3V/cell
Max. charge voltage: 3.6V/cell
Allowable fast charge current: 4C or less(e.g. A123M1)
Discharge voltage cut off level: 2.0V/cell or higher
Voltage level: 2.0V/cell
Voltage level: 3.7V/cell
Max. charge voltage: 4.2V/cell
Allowable fast charge current: 1C or less
Discharge voltage cut off level: 3.0V/cell or higher
NiCd/NiMH
Lilo
LiFe
LiPo
Pb
LiHV
Voltage level: 3.8V/cell
Max. charge voltage: 4.35V/cell
Allowable fast charge current: 1C or less
Min.discharge voltage cut off level: 3.0V/cell
(Lead-acid) max. charge voltage: 2.46V/cell
Allowable fast charge current: 0.4C or less
Discharge voltage cut off level: 1.50V/cell or higher
• Never leave the charger unsupervised when it is connected to its power supply. If any
malfunction is observed immediately terminate the process and refer to the operation manual.
• Keep the charger away from dust, water, heat, direct sunlight and vibration.
• The circuit of this unit can be powered by AC 100-240V or DC 11~18 volt power source.
• This unit and the battery to be charged or discharged should only be set upon a heat resistant,
non-flammable and non-conductive surface. Never charge on a car seat, carpet or similar
surface. Keep all flammable or volatile materials well away from operating area.
• Be sure to understand the specifications of the battery to be charged or discharged. If the
program is set up incorrectly the battery can be severely damaged. Lithium batteries when
improperly charged or discharged, can cause permanent damage or fire.
• To avoid short-circuits between the charge leads, always connect the charge cable to the unit
first, and only then to the battery to be charged or discharged. Reverse the sequence when
disconnecting.
• Do not attempt to disassemble battery packs.
MULTI CHEMISTRY
BALANCE CHARGER
AC-DC

Discharge
Pay close attention and verify the capacity and the voltage of the Lithium battery
pack to be charged or discharged. It may be composed of parallel and series
connection mixed. In parallel link, the capacity of the battery pack is multiplied by
the number of cells but the voltage remains the same. Extreme voltage imbalance
can cause a fire or explosion during the charge process. We recommend you
configure the Lithium battery pack in series only.
• The typical purpose of discharge is to determine the residual capacity of the
battery, or to lower the voltage of battery to a defined level. Much like the
process of charging, when you discharge batteries you must not leave the battery
unattended. To avoid the battery becoming over discharged, set the final discharge
voltage correctly. Lithium batteries should not be over discharged to lower than
the minimum voltage, as this leads to a rapid loss of capacity or a total failure.
Generally, you do not need to discharge a Lithium battery.
• Some rechargeable batteries are said to have a memory effect. If they are partly
used and recharged before the whole charge is drawn out, they ‘remember’ this and
next time will only use that part of their capacity. NiCd and NiMH batteries are said
to suffer from memory effect. They prefer complete cycles; fully charge, then use
until empty. Do not recharge before storage; allow them to self discharge during
storage. NiMH batteries have less memory effect than NiCd.
• Lithium batteries prefer a partial rather than a full discharge. Frequent full
discharges should be avoided if possible. Instead, charge the battery more often or
use a larger capacity pack.
• A brand-new NiCd battery pack will not reach peak performance until the pack has
been cycled approximately 10 times. The cyclic process of charge and discharge
will optimize the capacity of battery pack.
These warnings and safety notes are VERY important. Please follow the instructions
for maximum safety; misuse can result in damage to the charger and battery. In
extreme cases, improper use can result in bodily injury or property damage.

PROGRAM SELECT
SAVE DATA
SAVE DATA
Start
Enter
PROGRAM SELECT
LOAD DATA
LOAD DATA
Start
Enter
Start
Enter
Key Beep
Buzzer
Input Power Low
Cut-Off
INC
DEC
INC
DEC
Battery Meter
Program Select
LI Batt Meter
Measuring VOL
Wait PLEASE...
3.88 3.88 3.84
0.00 0.00 0.00
MAIN 11.61V
H3.885V L3.837V
INC
DEC
PROGRAM SELECT
Pb BATT
Pb DISCHARGE
Pb CHARGE
Start
Enter
INC
DEC
LIXX DISCHARGE
PROGRAM SELECT
NiMH BATT
NiMH CHARGE
'Aut'/'Man'
NiMH DISCHARGE
NiMH CYCLE
Start
Enter
INC
DEC
INC
DEC
PROGRAM SELECT
Nicd BATT
N
icd
CHARGE
'Aut'/'Man'
N
icd
DISCHARGE
Nicd CYCLE
Start
Enter
INC
DEC
INC
DEC
Capacity Cut-Off
Safety Timer
INC
DEC
INC
DEC
Waste Time
CHG>DCHG
USER SET
PROGRAM
LIXX V. Type
Lilo / LiPo / LiFe
CHK Time
NiMH Sensitivity
D. Peak
Nicd Sensitivity
D. Peak
Start
Enter
INC
DEC
INC
DEC
INC
DEC
PROGRAM SELECT
LIXX BATT
LIXX CHARGE LIXX BALANCE
LIXX FAST CHG LIXX STORAGE
Start
Enter
INC
DEC
INC
DEC
INC
DEC
INC
DEC
INC
DEC
Batt type
stop
Batt type
stop
Batt type
stop
Batt type
stop
Batt type
stop
Batt type
stop
INC
DEC
Batt type
stop
MULTI CHEMISTRY
BALANCE CHARGER
AC-DC

Over discharged batteries MAY be detected as a lower cell count pack. Always confirm
your setting before starting a charge sequence. Using the “CHK TIME” parameter in
your LiPo/Lilo/LiHV/LiFe settings can allow you to delay detection in an attempt to bring
a dead battery back to life. YOU MUST USE EXTREME CAUTION WHEN DELAYING CELL
DETECTION. A 10 minute delay is suggested for larger mAh packs, but small capacity
batteries may finish charging/discharging before the 10 minute mark which could result
in catastrophic failure of the battery. If there are any doubts on how to use this feature,
please contact G.T. directly.
The Charger will use the default values upon being powered up for the first time. The
screen displays the following information in sequence, and the user can change the values
of each parameter.
The G.T. X2 charger features two full-featured chargers within a single housing.
To swap between channel 1 and channel 2, press the “CHANNEL” button on the front of
the charger. The two red LED lights on the front face of the charger will indicate whether
the left or right channel is currently selected.
To change the default values, press the Start/
Enter key once. The value to be adjusted will blink
indicating it can be edited. Use the Inc/Dec keys to
adjust the value to the desired setting, then press
the Start/Enter key once to save your changes for
that value.
The screen will show the nominal voltage of the
four types of Lithium batteries; LiFe (3.3V), Lilo
(3.6V), LiPo (3.7V) and LiHV(3.8V). It is very important
to make sure you choose the correct type of battery
during set up. Refer to the battery’s owner manual for
reference if needed. Failure to choose the correct
battery type can cause damage to the battery,
charger, and will void all warranties.
The charger will recognize the cell count of
lithium batteries automatically at the beginning
of the charge or discharge cycle and compare it
to the settings selected. If a voltage has been selected that is different from the voltage it
detects, an alarm will sound.

When performing a charge/discharge or discharge/
charge cycle, your battery can often become warm
after the charge or discharge period. The “waste time”
setting will insert a time delay to occur after each
charge and discharge process to allow the battery
adequate time to cool down before starting the next
process. The value ranges from 1 to 60 minutes.
Every charge is monitored by a safety timer. The
default setting is 240 minutes or 4 hours. Once this
time limit is reached the charger will stop charging
regardless if the charge is complete. This is
programmed to prevent accidental overcharging of the
battery, or if the termination circuit cannot detect the
battery is full. The value for the safety timer should be
long enough to allow a full charge of the battery. When
your charge completes, if the charger says “TIME” in
the upper right corner of the screen, your charge was
terminated due to the safety timer.
This shows the trigger voltage for automatic peak
detection of NiMH and NiCd batteries. The effective
value ranges from 5 to 20mV per cell. If the trigger
voltage is set higher, there is a danger of overcharging
the battery; if it is set lower, there is a possibility of
premature termination. Please refer the technical
specification of the battery. (NiCd default:12mV, NiMH
default: 7mV)
An optional temperature probe contacting the surface
of the battery can be used. You can set the maximum
temperature at which the charger should allow the
battery to reach during charge. Once a battery reaches
this temperature during charge, the process will be
terminated to protect the battery. This charger does not
connect to your PC.
MULTI CHEMISTRY
BALANCE CHARGER
AC-DC

This setting allows you to change the maximum capacity that
will be supplied to the battery during charge. If the nominal
pack voltage is not detected and the safety timer does not
expire for any reason, this feature will automatically stop the
process at the selected capacity value.
When connecting the charger to a 12 volt power source
(lead acid battery) in the field, this setting will allow you to
monitor the incoming voltage. Should the voltage drop below
the value selected, the charger will terminate operation to
protect the input battery.
The Key Beep/Buzzer settings allow you to turn off the
individual button “beep” as well as the musical tone that is
used to alert different mode changes.
Use these programs only when charging a lithium battery (Lilo/LiPo/LiHV/LiFe) with a nominal voltage of 3.6V,
3.7V, 3.8V or 3.3V per cell, respectively. The charge current going into the battery will vary depending on the
chemistry type so it is VERY IMPORTANT that you select the correct type for your battery. The ending voltage
of the charge is also important as it varies for all four types: 4.1V for Lilo, 4.2V for LiPo, 4.35V for LiHV and 3.6V
for LiFe. The charge current (how many Amps you are putting into the pack) and nominal voltage (Proper
voltage for the cell count of the battery you are charging) must be correct for the battery to be charged. To
change these settings, press the START/ENTER key to make the selected value blink. Using the increase and
decrease buttons, set your desired amperage, then press START/ENTER to save the setting. You will then be
asked to select your nominal voltage/cell count. Again, use the increase/decrease buttons to reach your
desired setting and Press the START/ENTER button to confirm and save.
Now, double check the charge settings. The upper left corner of the
screen should read the specific battery chemistry you are trying to
charge. In the case of the example, LiPo. The value underneath the
chemistry type is the charge current. Check your batteries specifications
for proper charge rating, but with all batteries, we recommend a 1C
charge rate. If your battery is a 5000mAh, your charge current should be
5.0A. If using a 2200mAh pack, the charge rate would be 2.2A. Simply
placing a decimal point after the first number in your capacity rating will
give the correct 1C charge rating. To further elaborate, a 2C charge rate
on a 5000mAh pack would be 10.0A.
The information on the right side of the screen will tell you which type of charge you are using and the voltage
and cell count you are attempting to charge. Remember, THIS VALUE MUST BE SET TO PROPERLY CHARGE
YOUR BATTERY.
When you are ready to charge, press and HOLD the START/ENTER button for 3 seconds.
(LiIo/LiPo/LiHV/LiFe) program

The next screen will ask to confirm the settings after the charger examines
the battery, giving a cell count. The “R:” value shows the number of cells
detected by the charger. The “S:” value shows the number of cells you
selected in the previous menu screen. If the “R:” value does not match the
“S:” value, the charger is seeing a different cell count than you have
selected. If this happens, press the Batt Type/Stop button to check the
number of cells you have selected. If this is correct compared to the battery,
you may have a problem with your battery. If the values are the same, it is
safe to charge at this point. Press and hold START/ENTER to start the Charge
sequence.
When charging, the screen provides useful information like the charge rate,
number of cells being charged, battery voltage and the amount of mAh, or
capacity that the charger has put into the pack being currently charged.
Press Batt type/Stop to stop the charging process at any time.
Lithium batteries comprised of more than one cell will need to be balanced occasionally to ensure the best
possible performance. When balancing you MUST connect the balance plug of your battery to the balance
board that should be plugged in to the front of the charger. The red and black positive and negative charge
leads will still need to be connected to the battery. The “balance” lead simply allows the charger to monitor
each individual cell. When “balance” charging, the charger will monitor each individual cell attempting to
bring them all to the same nominal voltage.
The next screen will ask to confirm the settings after the charger examines
the battery by giving a cell count. The “R:” value shows the number of cells
detected by the charger. The “S:” value shows the number of cells selected
in the previous menu screen. If the “R:” value does not match the “S:” value,
the charger is seeing a different cell count than what has been selected. If
this happens, press the Batt Type/Stop button to check the number of cells
selected. If this is correct compared to the battery, there may be a problem
with the battery. If the values are the same, it is safe to charge at this point.
Press and hold START/ENTER to start the charge sequence.
Like a standard charge sequence, the value in the lower left corner of the screen is the selected charge
current, in the lower right, the voltage of the pack that will be charged. To change these values, press the
START/ENTER key to cycle through the adjustable settings. Use the increase/decrease buttons to change the
values and use the START/ENTER button to confirm the values are set. When
ready to BALANCE charge, press and hold the START/ENTER button for 3
seconds to start the process.
When charging, the screen provides useful information like the charge rate,
number of cells being charged, battery voltage and the amount of mAh, or
capacity that the charger has put into the pack being currently charged.
When the balance plug is connected to the charger, you can press the
“increase” button to view the individual cell voltages. Pressing the “increase
button” a second time will return you to the previous screen. Press Batt type/
Stop to stop the charging process at any time.
MULTI CHEMISTRY
BALANCE CHARGER
AC-DC

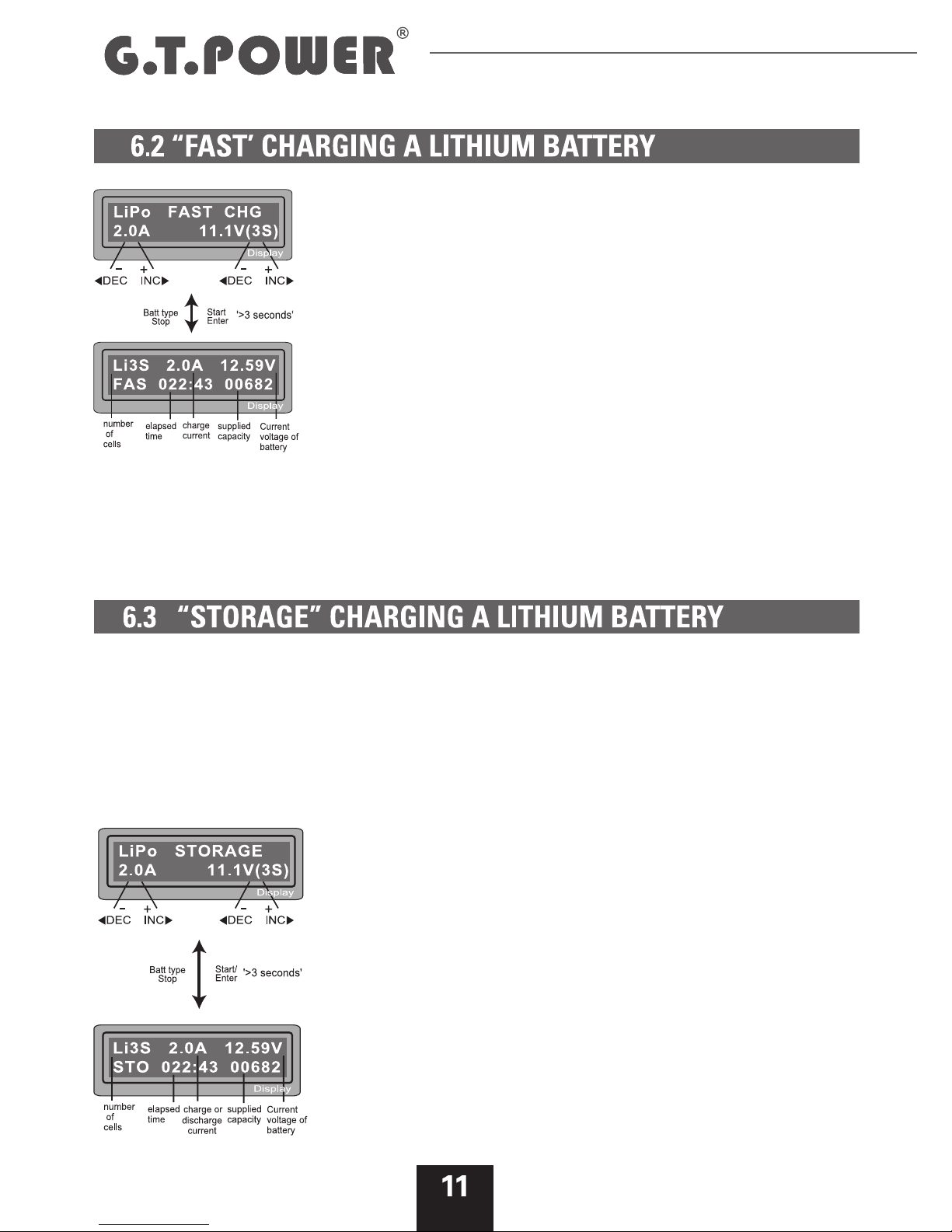

When charging a Lithium battery, the charging current will
begin to drop as the battery reaches nominal voltage. By using
the FAST charge option, the reduction of power will not be as
great as it is with a standard charge. The benefit of this is a
reduced charge time. The drawback is that the pack will most
likely not charge to its full capacity.
When charging, the screen provides useful information like the
charge rate, number of cells being charged, battery voltage
and the amount of mAh, or capacity that the charger has put
into the pack being currently charged. Press Batt type/Stop to
stop the charging process at any time.
When a lithium battery sits unused, for long periods of time, it is best to give that pack a
STORAGE charge. This will charge the battery to a nominal storage voltage (3.75V for LiPo,
3.75V for Lilo, 3.80V for LiHV and 3.3V for LiFe per cell). Storage mode will automatically
determine if the battery needs to be charged or discharged to reach this level. The balance
plug of the battery must be plugged into the charger for a proper storage charge to take
place. Set the charge current and the battery voltage/cell count as you would any other
charge mode by pressing the START/ENTER button to select
the parameter you wish to change, and use the INCREASE/
DECREASE buttons to adjust the value. When you wish to
confirm your setting, press the START/ENTER button. To
initiate the storage charge, press and hold START/ENTER for 3
seconds, confirm the cell count selected is the same that the
charger is indicating and press the START/ENTER button to
begin charging.
Like a standard charge sequence, the value in the lower left
corner of the screen is the selected charge current, in the lower
right, the voltage of the pack that will be charged. To change
these values, press the START/ENTER key to cycle through the
adjustable settings. Use the increase/decrease buttons to change the values and use the
START/ENTER button to confirm the values set. When ready to FAST charge, press and hold
the START/ENTER button for 3 seconds to start the process. Note, when FAST charging, the
lower left corner of the screen will show “FAS” and not the selected charge current.

Use this setting to discharge a Lithium pack. The charge current and pack
voltage are adjustable using the methods shown previously in the charge
and balance instructions. Never exceed 1C for the discharge rate and
never use a final voltage lower than what is recommended by the battery
manufacturer. The balance plug of the battery must be plugged into the
charger for a proper discharge to take place. Press and hold the START/
ENTER button to confirm cell count, then press the button again a second
time to start the discharge process.
The processor monitors the voltage of individual cells during ‘storage-mode’ and ‘discharge’ of a Lithium
battery pack. It tries to regulate the voltages to be equal. For this feature, the balance plug of the battery
pack must be connected to the balance port of the charger. If the voltage of any one or more cells varies
abnormally during the procedure, it terminates the process with an error message. If this happens, the
battery pack contains a bad cell, or there is a bad connection at the balance plug. You can easily know
which one cell is bad by pressing the increase button with the error message on screen to show the
individual cell voltages. This method of viewing cell voltages can be used
during any lithium battery charge, or discharge process provided the
balance lead from the battery is plugged into the charger.
In this example, the charger found that the voltage of one of the cells in this
4S pack is too low.
By pressing the “increase” button when the error message is displayed,
we can see that cell #4 is reading 2.18, which is below the minimum
recommended 3.0 per cell. If all cells read 0.00, the balance lead from
the battery may have come disconnected. Also check your balance port
connection at the charger.
Select LiHV battery with standard Voltage 3.8V from setting program, double
confirm the battery type when charging. If it’s not LiHV battery, press Stop
button to exit; if it’s confirmed LiHV battery, then go to the program.
Warning: The LiHV mode only supports 4.35V LiHV batteries. Do not use
any other battery type in this mode. Never charge a 4.20V LiPo battery
under this mode as it may cause the battery to catch fire or explode.
When discharging, the screen provides useful information like the
discharge rate, number of cells being discharged, battery voltage and the
amount of mAh, or capacity that the charger has removed from the pack
being currently discharged. Press Batt type/Stop to stop the discharging
process at any time.
MULTI CHEMISTRY
BALANCE CHARGER
AC-DC

Use these programs only when charging a NiMH (Nickel-Metal-Hydride) or NiCd
(Nickel-Cadmium) battery. To alter the value on the display, press the START/ENTER
key. The charge current can now be altered by using the increase/decrease buttons.
The value will be saved by pressing Start/Enter key once. To start the process, press
and hold the START/ENTER button for more than 3 seconds.
With NiMH and NiCD packs, you do not have to indicate to
the charger how many cells are in the pack. In auto “AUT”
mode, simply set your charge current (no more than a 1C
rating), press START/ENTER for 3 seconds and the charge
process will begin. In manual “MAN” mode, it will charge
the battery with the charge current you set at the display.
NOTE: Each mode can be switched by pressing increase/
decrease button simultaneously when the current field is
blinking.
The screen will display the current state of charging. To
stop the process, press the Batt type/Stop key once. An
audible sound will indicate you have ended of process.
The screen will display the current state of discharge. You
can alter the discharge current by pressing the START/
ENTER key during the process. Once you change the current
value, store it by pressing START/ENTER button again. To
stop discharging press Batt type/Stop key once. An audible
sound will indicate the process has ended.
Set discharge current on the left and final voltage on the
right. The discharge current ranges from 0.1 to 1.0A and the
final voltage ranges from 0.1 to 25.0V. Refer to your battery’s
specifications to determine optimal discharge current and
final voltage. To start the process, press START/ENTER key
for more than 3 seconds.

Select the sequence based on the current state of the battery.
If the battery is fully charged, use the Discharge/Charge
sequence. If the battery needs to be charged, use Charge/
Discharge. Press START/ENTER to confirm the setting, then
choose how many times to cycle the battery (1-5). Press and
hold START/ENTER to begin the process.
To stop the process, press the Batt/Stop button once. Change
the discharge or charge current by pressing START/ENTER
while charging. An audible sound will indicate when the process
has ended.
When the process is completed, use the increase/decrease
buttons to see the amount of capacity that was charged/
discharged. By pressing increase/decrease again, the results of
the next charge cycle will be shown.
Set up the charge current on the left and the nominal voltage of
the battery on the right. The charge current ranges from 0.1A to
6.0A and the voltage should be matched with the battery being
charged. Start the charge process by pressing the START/
ENTER button for more than 3 seconds.
The screen will display the current state of charging. To stop the
process, press the Batt type/Stop key once. An audible sound
will indicate you have ended of process.
This program is for charging Pb (lead-sulfuric acid) batteries with a nominal voltage from 2V
to 20V.The optimal charge rate for a Pb battery is 1/10 of the capacity. Pb batteries must NOT
be charged rapidly. Always follow the instructions supplied by the battery manufacturer.
When confident you have the correct settings for your Pb battery, press START/ENTER to
begin editing the settings. Use the increase/decrease buttons to adjust the value and press
START/ENTER to save the selected value.
MULTI CHEMISTRY
BALANCE CHARGER
AC-DC

Set discharge current on the left and final voltage on the right.
The discharge current ranges from 0.1A to 7.0A.
Start the discharge process by pressing the START/ENTER
button for more than 3 seconds.
The screen will display the current state of discharge. Alter
the discharge current by pressing the START/ENTER button
during charging. Once you have changed the value, save it by
pressing START/ENTER again. To stop the process, press the
Batt type/Stop key once. An audible sound will indicate you
have ended the process.
Battery Meter testing can be a very valuable tool for battery
diagnostics. To properly use the battery meter, you must
connect both the charge lead and the balance lead to the
charger.
To begin, press START/ENTER. The charger will provide the
results in the form of a voltage reading. Press increase to
check the total results of the pack. Press increase again to
return to the single cell data.
The G.T. X2 Charger provides a data storage and load feature for your
convenience. This feature can store information for up to 5 batteries to be called back
for the process of charging or discharging without having
to reprogram the charger. To alter the values, press START/
ENTER, then change the blinking value using the increase/
decrease buttons.

The value settings in this feature do NOT affect the
charge or discharge process, but rather allows you
to store statistics for commonly charged batteries to
speed up the charger setup time. To use this feature,
you will want to change the parameters to the exact
specifications of the batteries you wish to store. This
example shows a 12 cell, NiMH battery with a capacity
of 3000mAh.
Set up the charge current for manual charge mode, or
the current limit for automatic charge mode. Each mode
can be changed by pressing the increase/decrease
buttons at the same time when the “current” field is
blinking.
Setting up discharge current and final voltage.
Setting up the sequence of charge and discharge as
well as the amount of times to cycle.
Saving the data.
This program will call back the data that was stored
during the “Save Data” program. To load the data, press
START/ENTER once. Change the data number to the
battery you wish to recall using the increase/decrease
buttons, then press START/ENTER for 3 seconds.
Program select
Select the data number you wish to load. The data
displayed on screen is matched with the number
selected.
Loading the data.
MULTI CHEMISTRY
BALANCE CHARGER
AC-DC

Final voltage for selected cell type.
Displayed capacity cut-off function is turned on and the
current value the capacity is set to.
Displayed safety timer is turned on and the duration is set
in minutes.
Displayed temperature cut-off function is turned on.
The external temperature is displayed when the temp probe
is used.
Present input voltage.
The battery is connected using the balance lead and the
voltages of the three individual cells is being displayed. The
program will display the individual voltage of up to 6 cells. To
view this screen when charging/discharging, press
the increase button.
Here is a list of all warning and error messages the charger may display.
Please refer to this list should you have any difficulty charging.
