Gama Sonic 10051 User manual

SOLAR COACH LANTERN
Part #: 10001, 10003, 10051
Version 1.1
Instruction Manual
10001
10003
10051
US Patent #9458970

Solar Lamp Location:
Tools that are needed but not supplied with the solar post
lamps are: a screwdriver, power drill.
For optimum light duration throughout the night, it is very important
to place your solar lamp in a spot where it will receive the maximum
amount of direct sunlight throughout the day.
Note: The unit will operate optimally after 2 full days of charging in
direct sun in the “LOW" or "HIGH" position.
Open your package and remove the contents. Check to
make sure all pieces are present and accounted for.
page 2
Thank you for your purchase. GAMA SONIC
®
solar charged lights are brighter and last all
night with a full day solar charge. Unique designs, superior light output, and numerous
installation options confirm the outstanding value of our product.
For technical assistance and more information call our Toll-Free number:
800-835-4113 (only within the US)
Or
visit our website or download the latest version of your instruction manual:
www.gamasonic.com Or www.gamasonic.com/user-guides
Please read the instruction manual carefully to obtain the best results from your purchase.
What’s Inside:

page 3
1. Screw the wall mount (B) to a flat,
vertical surface by drilling two holes and
inserting the wall anchors. Then align
the wall anchors with the holes on the
wall mount plate and twist the screws in
to hold in place. (Fig. 4).
2. Simply slide the fixture (A) down onto
the grooves on the wall mount (Fig. 5).
1. Remove part (A) from part (B) by
screwing in Fig. 1.
2. Screw in provided A50WW10W Gama Sonic
bulb while gripping the base only (Fig. 2).
WARNING: GAMA SONIC®Light bulbs are not
to be used in other electrical sockets these
are low-voltage light bulbs that are built and
designed for our products only.
3. Reattach part (A) to part (B). Turn the
operation switch (Fig. 3) to the LOW or
HIGH position, and the solar lamp will
automatically operate from dusk to dawn.
Operation Instructions
InstallationInstructions
Fig. 2
Fig. 3
OPERATION SWITCH
Fig. 1
A
B
Fig.4
Fig. 5
B.
A.
LOW OFF HIGH
I O II

page4
ReplacingtheBatteries
Replacement batteries are available
at www.gamasonic.com or via our Toll free number: [phone]
After several years of use, the battery may need replacing.
1. Remove lamp from wall bracket

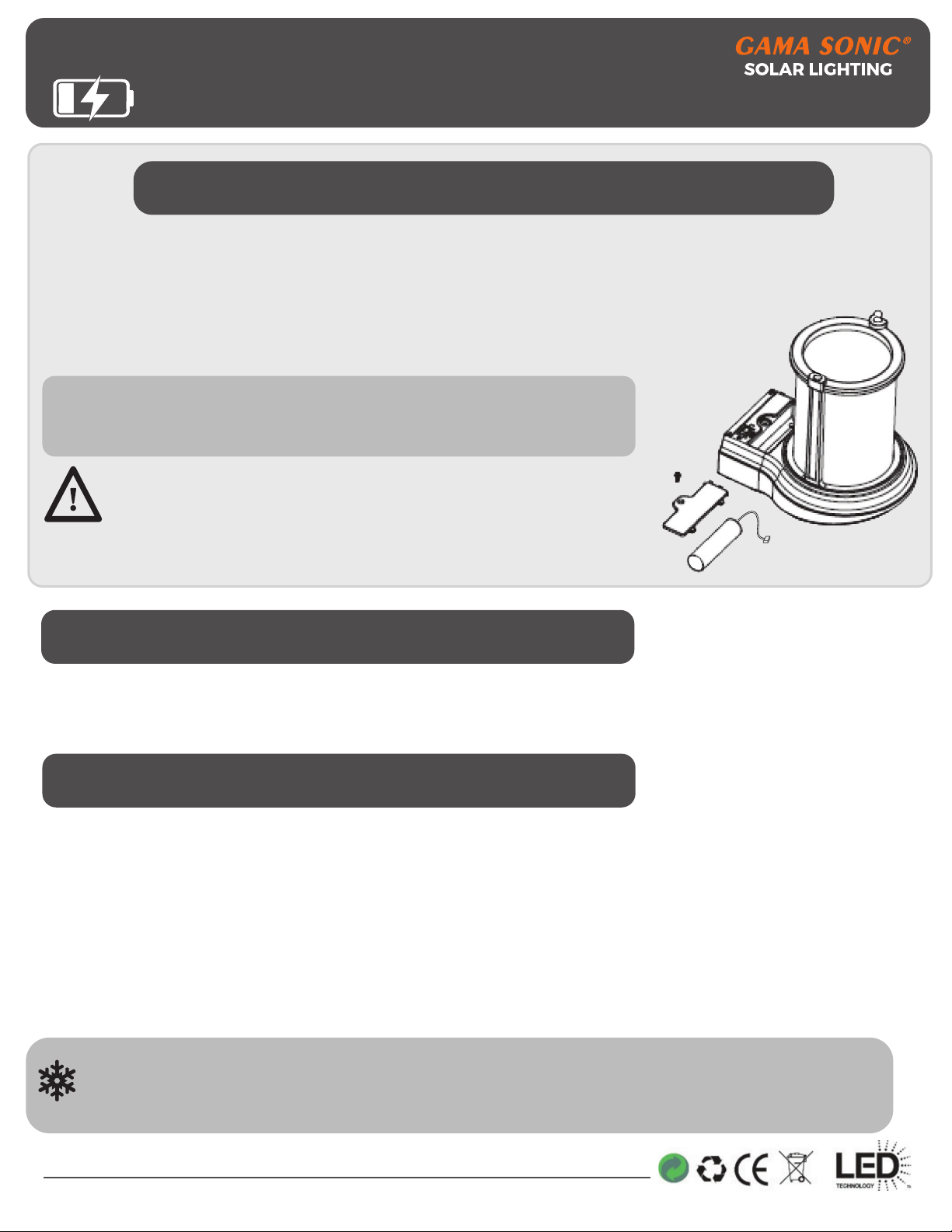

2. Flip the lamp over and unscrew the battery compartment to remove the battery (Fig. 6).
3. Unclip the connector and remove the old battery.
4. Clip on new battery and install into the battery compartment.
5. Insert the new battery and close the compartment, then re-install.
This lamp takes a 3.2V/1500 mAh Li-Ion battery pack (GS32V15).
Replacement batteries can be purchased through our
authorized dealers or by going to www.gamasonic.com
WARNING: Do not dispose of Li-Ion batteries in the regular trash,
municipal waste stream or by fire as batteries may leak or explode.
Do not open, short circuit, or mutilate batteries as injury may occur.
Preserve our environment by recycling Li-Ion batteries or disposing
of them in accordance with local, State and federal regulations. Do
not mix old and new batteries.
Maintenance
Clean the solar module regularly with a damp towel to guarantee optimum performance
of the solar panel. Do not use any type of solvent for cleaning and be careful not to put too
much pressure on the module while cleaning.
Troubleshooting
If your solar charged light does not come on at dusk despite
observance of all the instructions, please try the following steps:
1. Make sure that the solar light is not being affected by any other light source.
2. Ensure the solar light is not positioned in the shade during the day.
3. Make sure the switch in the lamp head is in the ”LOW” or "HIGH" position.
4. Check that the batteries are installed correctly.
NOTE: The performance of the solar light will vary with the time of year. It will deliver
longer duration when it has had a full day in the sun rather than a day in overcast
weather.
WINTERTIME TIPS: For optimal performance, be sure to remove any snow or debris
accumulation from solar panel(s). A solar panel free of debris will charge the batteries
much more efficiently.
WARNING: Please keep out of reach of children.
Fig. 6
