Ganz DR8NRT User manual

1

2
Specification & Organization -------------------------------------------------- 5
Specifications --------------------------------------------------------- 5
Product Contents List -------------------------------------------------- 7
System Organization ---------------------------------------------------- 8
Product Description -------------------------------------------------------- 9
Front panel description --------------------------------------------------- 9
Rear panel description --------------------------------------------------- 10
Remote Controller description --------------------------------------------- 11
HDD, DVD-RW Connect ----------------------------------------------------------- 12
Power On ---------------------------------------------------------------- 13
Live Display --------------------------------------------------------------- 14
Configuring the live display ---------------------------------------------- 14
PTZ -------------------------------------------------------------------- 15
Search ----------------------------------------------------------------- 16
Normal Search -------------------------------------------------------- 16
Sequence Search ------------------------------------------------------ 21
Thumbnail Search ----------------------------------------------------- 22
S m a r t S ea r c h - --------------------------------------------------- 23
Backup ----------------------------------------------------------- 24
Backup -------------------------------------------------------------- 24
Backup Data Management ----------------------------------------------- 25
Configuration-System ------------------------------------------------------ 26
Camera --------------------------------------------------------- 26
Alarm/Event ------------------------------------------------------ 29
Display ------------------------------------------------------- 35
Audio ----------------------------------------------------------- 38
User ------------------------------------------------------ 39
Network ------------------------------------------------------- 41
S y s t e m ------------------------------------------------------- 43
S t o r age ----------------------------------------------------- 45

3
Configuration-Record -------------------------------------------------- 46
Record mode --------------------------------------------------------- 46
Normal record ---------------------------------------------------- 48
Intensive record ----------------------------------------------------- 50
Panic record ----------------------------------------------------- 52
Sequence -------------------------------------------------------- 53
Digital Zoom ------------------------------------------------------- 54
Keylock ---------------------------------------------------------------- 55
Panic Start/Stop ----------------------------------------------------------- 56
Shutdown ---------------------------------------------------------------- 57
Error Code List ---------------------------------------------------------- 57
RemoteSW installation ------------------------------------------------------- 58
System Requirement ---------------------------------------------------- 58
Introduce ------------------------------------------------------------ 59
RemoteSW Local Setup ----------------------------------------------------- 60
local setup ---------------------------------------------------- 62
RemoteSW Search --------------------------------------------------------- 64
Search Function Introduce ------------------------------------------------ 64
Search Method -------------------------------------------------------- 65
Search Option -------------------------------------------------------- 66
RemoteSW DVR System Setup ------------------------------------------------- 71
Camera ------------------------------------------------------------ 72
A l ar m/E v en t - - - --- - - ------------------------------------------------ 73
Display ---------------------------------------------------------- 76
Audio ----------------------------------------------------------- 78
User ----------------------------------------------------------- 78
RemoteSW DVR Record Setup ------------------------------------------------- 79
Record Mode ---------------------------------------------------------- 80
Normal record -------------------------------------------------------- 81
Intensive record -------------------------------------------------------- 83
Panic record ---------------------------------------------------------- 84
Web Client Installation -------------------------------------------------- 85

4
IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with a dry cloth.
7) Do not block any of the ventilation openings. Install in accordance with the manufacturer's
instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has
two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong is provided for your safety.
When the provided plug does not fit into your outlet, consult an electrician for replacement
of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11) Only use the attachments/accessories specified by the manufacturer.
12) Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury
from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
15) This equipment is indoor use and all the communication wirings are limited to inside of the
building.
16) The socket-outlet shall be installed near the equipment and shall be easily accessible.
17) CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
# Operation Max temperature : 40℃
# USB Load condition: USB Ports( 5 Vdc, Max. 500 mA)

5
SPECIFICATION&ORIGANIZATION
Specifications
MODEL DR8NRT,DR16NRT
Operation PENTAPLEX PENTAPLEX performance
( Simultaneous Live Display/Recording/Playback/Archiving/
Networking effectively without interfering each operations)
Video in Channels 16/8
Connection BNC, 1.0Vpp composite 75ohm balanced
Loop through BNC,1.0Vpp composite 75ohm unbalanced, auto termination
Audio in Channels 4
Connection line level unbalanced
Main Displays BNC 1.0Vpp composite 75ohm unbalanced
VGA 15 pin D-SUB 1024 x 768 @ 60Hz
Screen display modes 1 , 4 , 9 , 16 User defined channels for each mode
Sequence Adjustable dwell time, user defined sequences
Spot displays Channels 4 fully programmable
Connection BNC, 1.0Vpp composite 75ohm unbalanced
Display mode Full screen sequence, adjustable dwell time
Audio out Channels 1
Connection RCA, line level unbalanced
External alarm Inputs 16(16 Open collector TR), NO or NC common ground
Outputs 16, high(+5V) or low(0V) selectable, common ground
User interface On screen display GUI, alpha blending
Control Front panel/IR Remote/USB Mouse
Recording Video CODEC MPEG-4
Resolution options for each channel CIF (352 x 240, 352 x 288), 2 CIF (704 x 240, 704 x 288), D1 (704 x 480, 704 x 576)
Maximum total frame rate 480/240FPS(NTSC) / 400/200 FPS (PAL)
Image quality Highest, High, Standard, Low
Pre-event recording 5 seconds max
Recording modes Continuous / Motion detection / Alarm / User event / Panic
Frame rate options for each channel 30 – 15 – 7.5 – 4 – 2 – 1
Schedule Configurable recording time
limits
Weekly / Daily per Camera
Audio Audio inputs independently assigned to each channel
Motion detection 16 x 16 selectable grid with 10 levels of sensitivity
Covert recording Yes, selectable by channel

6
Camera title English and Numeric
Playback Speed Forward / reverse. 1x, 2x, 3x, 4x, 8x, 16x, 32x, 64x, 128x
Control Front panel buttons and Jog / Shuttle /USB Mouse
Search method Calendar / timeline, event log, Sequence, Thumbnail, Smart Search
Split screen display modes 1,4,16
Audio synchronization Yes at any frame rate
Archiving Storage DVD±RW, USB Memory stick, Network
Format Watermarked AVI
Archive data Independent channels selection (video / audio), backup log, event log
Time Time zone Worldwide, Selectable
DST Yes
PTZ RS-485 Multi protocol, baud rate and speed control for each channel
System Watchdog Yes
Abnormal shutdown detection Yes, with system auto recovery
HDD error detection Yes, SMART monitoring
Network Connection RJ45, 10 / 100 Ethernet
DHCP Yes
DDNS Yes
Two way network audio Yes
Bandwidth management Yes
Remote client Client software Yes, Included
Remote configuration Yes
Remote PTZ control Yes
Email event notification Yes
Storage Maximum Capacity Not limited
Storage 4 x HDD maximum
Recording options Write once / Overwrite
Event handling Source Alarm in, motion detection, video loss, HDD error, User event
Action Record, alarm out, email notification, log, remote client popup, buzzer, full screen
popup
Security User levels ADMIN, MANAGER, USER
Key Lock Yes, password protected
Physical Dimensions 428mm(w) x 475mm(d) x 93mm(h)
Weight 12Kgs

7
SPECIFICATION&ORIGANIZATION
Product Contents List
Please check if all the product contents are present after opening the package.
①Basic Contents
Remote Controller Instruction Manual Remote Agent
Installation CD
AAA Battery x 2
AC Power Cable
②Optional Contents
Internal Hard Disk Drive Internal DVD-RW Drive USB Thumb Drive
DR8NRT,16NRT Unit

8
SPECIFICATION&ORIGANIZATION
System Organization
NETWORK
Camera
Alarm Sensor Relay Out
VCR VGA
Monitor A/V Monitor
Remote Client PC Image Printer
Video In
Video Out
TCP/IP
Alarm Input/Out
Remote
Controller
DVD-RW
Backup
AVI Backup
WEB Client
USB USB Mouse

9
PRODUCT DESCRIPTION

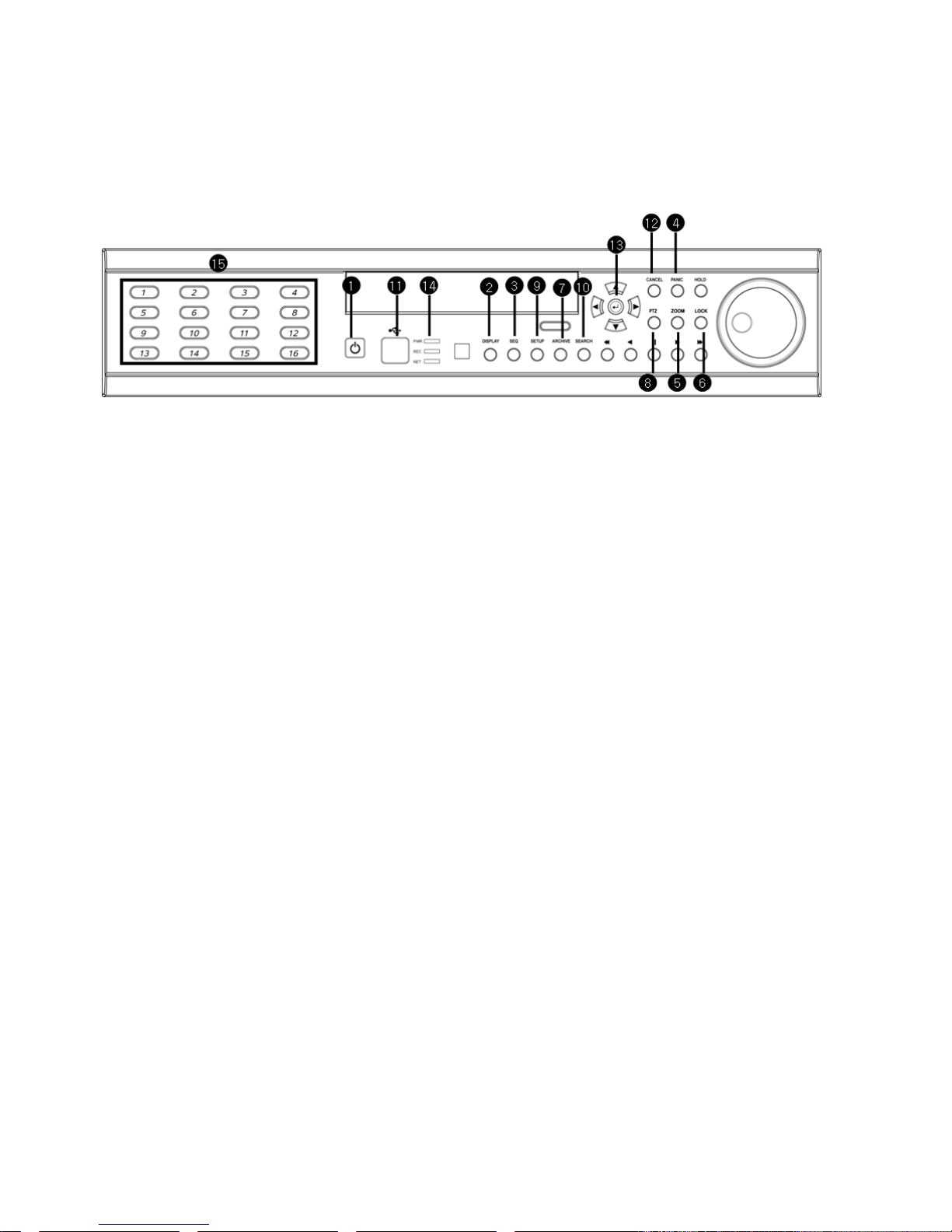

Front Panel
① Power : System Power On/Off
② DISPLAY : Select Screen Division Mode or Rotation Mode
③ SEQUENCE : Select Sequence Screen Mode
④ PANIC : Trigger Panic Recording Mode and Panic Relay Output
⑤ ZOOM : Digital Zoom on Live or Playback Image
⑥ LOCK : Front Panel Lock Button
⑦ ARCHIVE : Go to Archiving Menu
⑧ PTZ : Go to Camera PTZ Control
⑨ SETUP : Go to System Setup Menu
⑩ SEARCH : Go to Search Menu
⑪ USB PORT: USB Port for use of a USB Memory Stick and/or USB HDD Backup.
⑫ Mouse left Click
⑬ Mouse Right Click
⑭ LED Indicator : Indicates Present System Status. (POWER, REC, NETWORK)
⑮ Channel Selection Buttons (1~8/16) : Select Channel or Input Password
- Directional / Navigation Buttons (UP, DOWN, LEFT, RIGHT, ENTER)
- Remote Controller Input Sensor (IR)
- EJECT : Eject DVD-RW
- ◀ ◀ / ◀ : Focus Adjust (Near/Far) or Reverse Play / Rewind
- Ⅱ: Pause Playback
- ▶ / ▶ ▶ : Iris Adjust (Open / Close) or Forward Play / Fast Forward
- JOG / SHUTTLE : Outer wheel – variable REW or FF; Inner wheel – scroll frame-by frame while
PAUSE.
- HOLD : Hold Current JOG / SHUTTLE Position

10
PRODUCT DESCRIPTION
Rear Panel
① Video IN / Loop : BNC Video Input Port, BNC Video Loop Output
② Monitor out : BNC Monitor Output
SVHS : Output Video by Connected SVHS.
③ Spot #1 ~ #4 : 4 x BNC Output to Individually-Sequenced Spot Monitors
④ Audio In : 4 x RCA Audio Line Input Terminal
⑤ Audio Out : RCA Audio Line Out Terminal
⑥ Alarm : 16 x Input TTL Alarm/Sensor Input Terminal
⑦ Relay : 16 x Relay Output Terminal
⑧ USB PORT: USB Port for use of a USB Memory Stick and/or USB HDD Backup
⑨ VGA OUT : VGA Main Monitor Output
⑩ RS-232C : Serial Configuration Port for Program Debugging
⑪ RS-485 : Serial Interface for PTZ device connection and control
⑫ RJ-45 jack : 10/100 Ethernet LAN/WAN connection (for Remote Access and Configuration)
⑬ AC Power Input
• For System Installation, please install after turning off System’s Power.
• VGA monitor is the main monitor. Thus if you connect the CRT monitor with
monitor out, you cannot see the menu.
Tip

11
REMOTE CONTROLLER
※ If there are several DVRs together, each DVR must be set with a different ID. You can control all
The DVR’s from one controller, by setting DVR ID on controller using the ID button.
POWER
System
ON/OFF
MENU : Open System Setup Menu
RETURN
Mouse Left Click
ENTER : Mouse right Click
Channel Selection Buttons
Navigation Buttons: Used for Playback Control,
Menu Navigation, and PTZ/Focus Control
ID
ID Button
Select DVR ID

12
HDD, DVD-RW CONNECTION

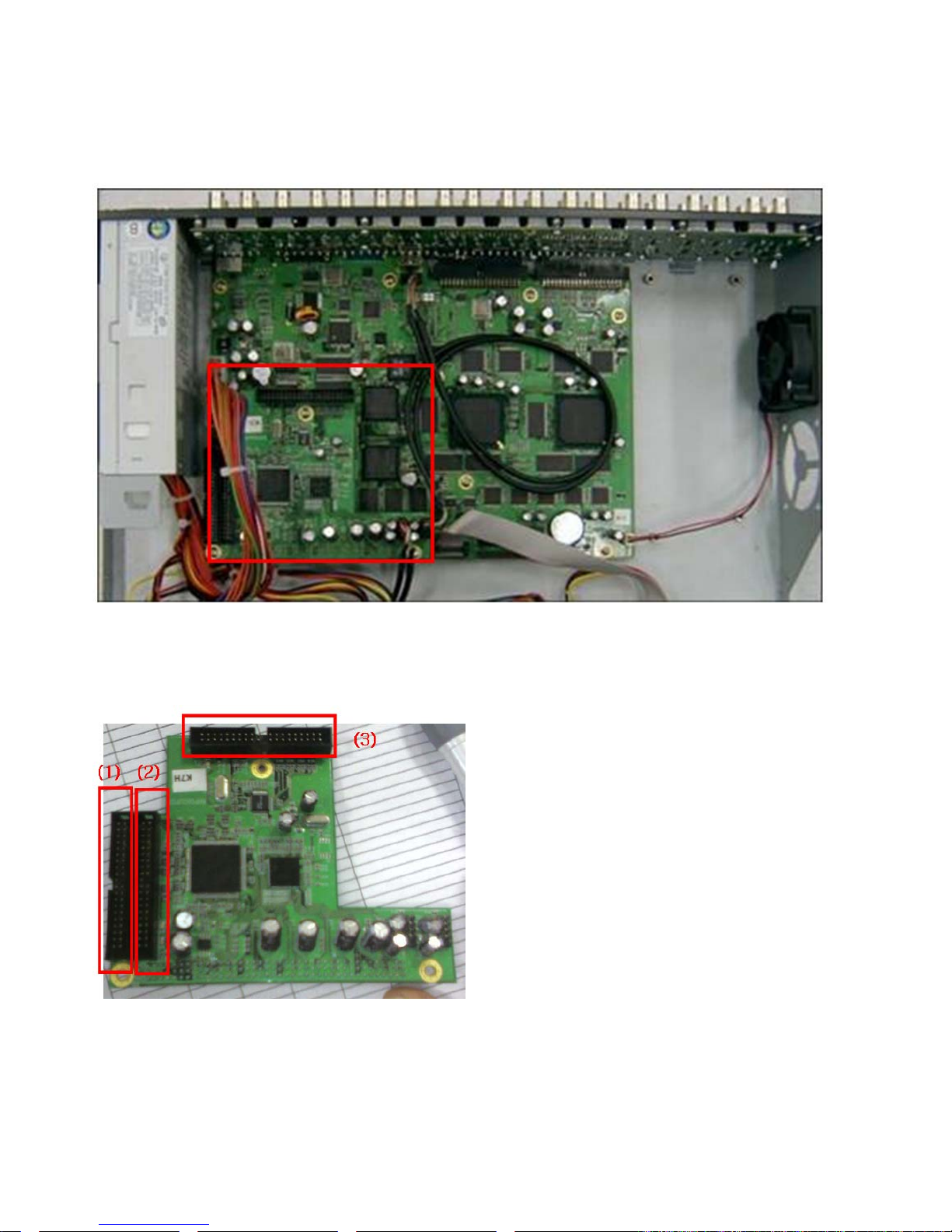

Above is the mainboard picture after opening the top cover.
The connection board is in red box
(1) is the port for system disk(master disk). Install the first HDD at this port. (HDD
jumper location should be “Master”).
(2) is also the port to connect additional HDD.
(3) is the port for DVD-RW only. Incase the HDD is connected at this port, HDD would not recognized

13
POWER ON
Press the power button.
The DVR startup screen detects and checks
the HDD and DVD-RW.
After startup process is completed, “logon”
display appears for inputting the Password.
(Default password is just leaving is as empty
column. Next, click the “Logon” button.)
The DVR starts the normal operation and it shows
default display of all 16channels.
Three pop-up displays would show current system
information, live log and live alarm situation.
C: Continuous Record
M: Motion Record
A: Alarm Record
P: Panic Record
Live System Info
1) Shows percentage of HDD used.
2) User Connection Information
3) Current recording frame information
4) The Backup situation
Live log
It shows the live log.
: Live log can be removed by pressing this
button.

14
Live Alarm
Alarm Detection channel show each channel.
When the operator drags the mouse to the
bottom left of the screen, this pop-up
screen will appear.
By pressing each button, the operator
can turn (On/Off) the functions of the above
pop-up screens.
LIVE DISPLAY
Press the mouse right button from live display and the menu screen would be shown.
When “setup” button from front panel is pressed, it will enter “system setup menu of configuration” directly.
Configuring the Live Display

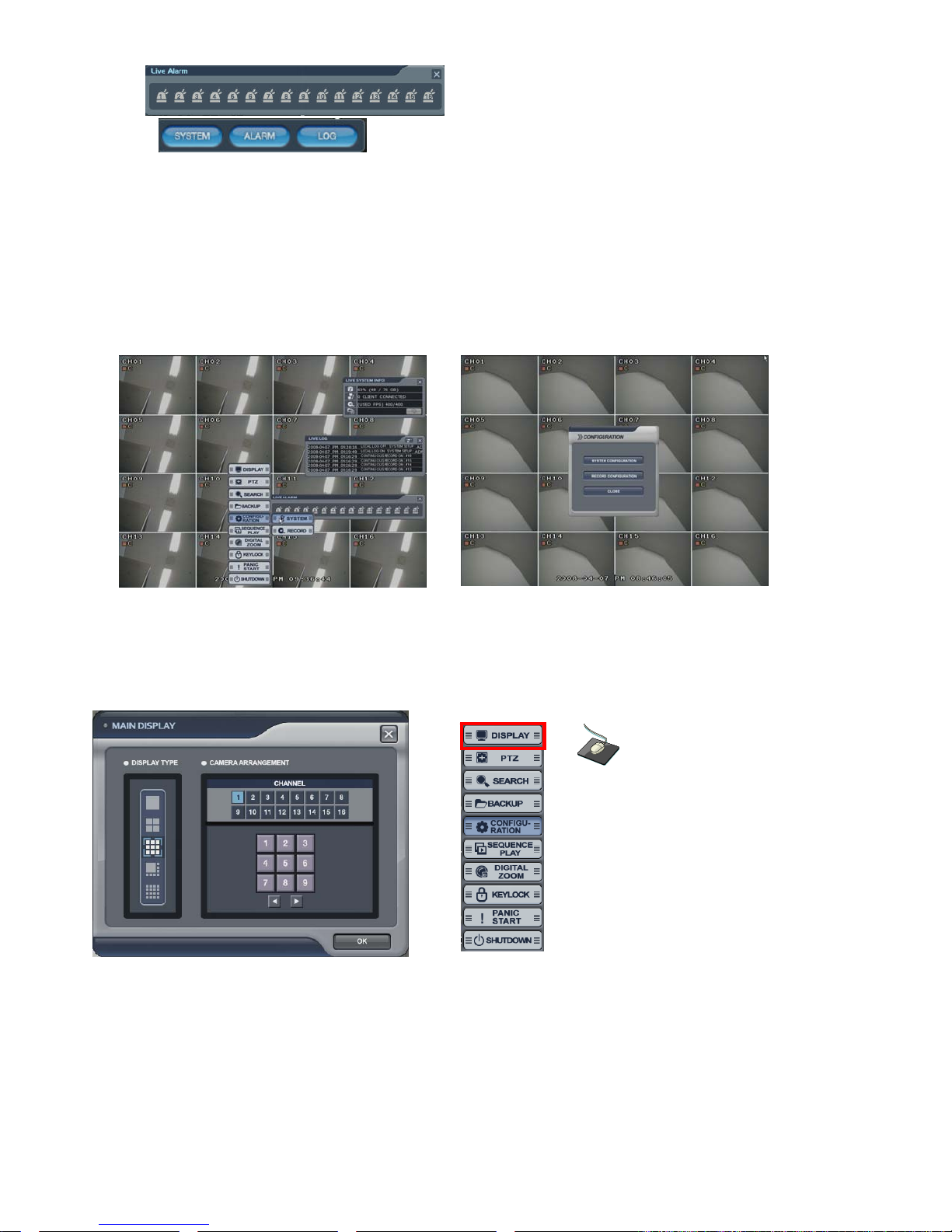

• Display Type: The operator could select 5 different display types.
Camera Arrangement: The operator can edit the camera location for each display type.
After clicking the one of 16 channel buttons, select below section. Then display channel will be changed
according to the selection. Additionally the operator can select next display by clicking the arrow buttons.
Click the right mouse button on the
Live Display screen, next click the
DISPLAY menu.

15
PTZ

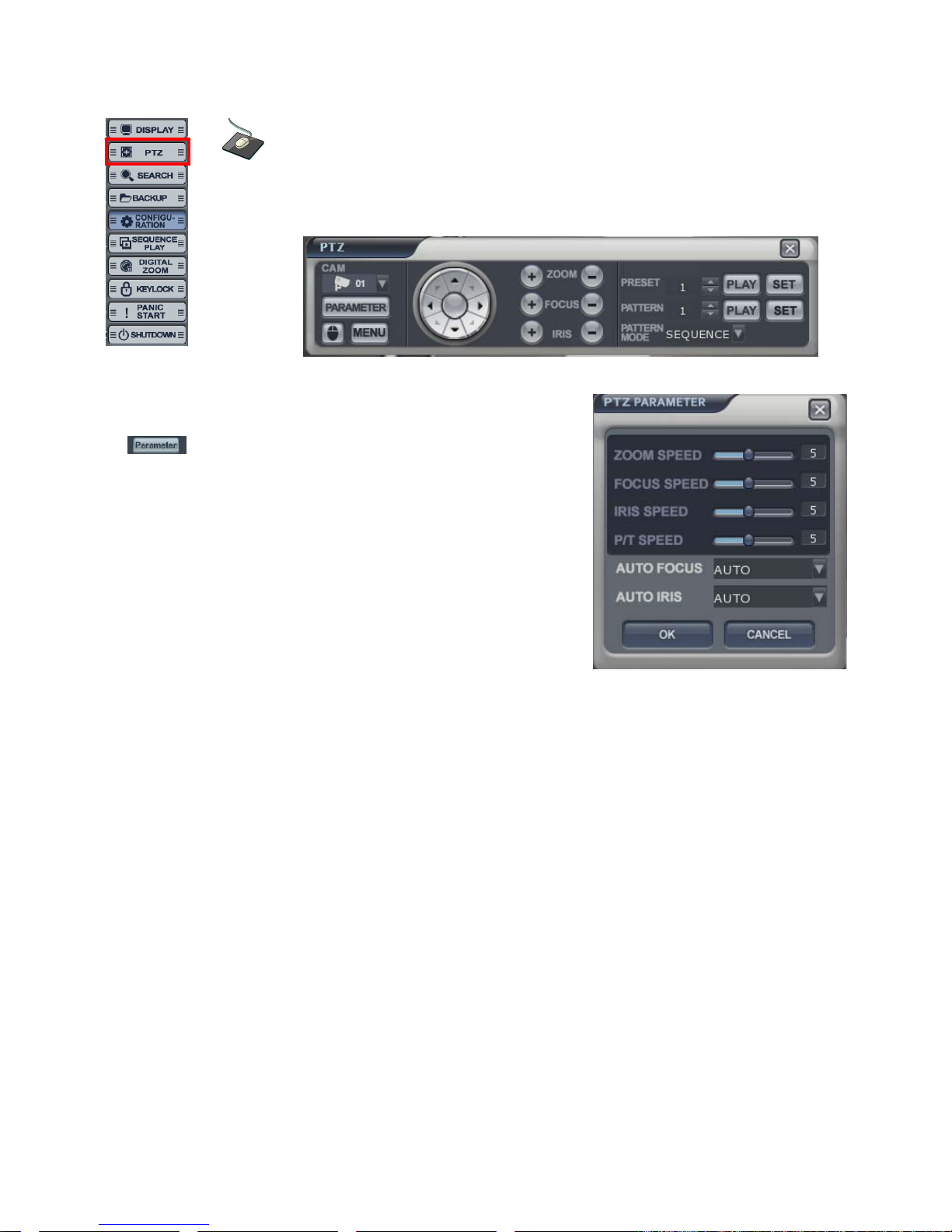

• PTZ controls appear like above.
1) Select the camera.
2) Control the camera direction.
3) Press this button. The operator can control the PTZ
detailed configuration with pop-up screen.
4) Control the Zoom, Focus, Iris.
5) Assign the Preset.
After moving the location, select the number
and press the [SET] button.
Camera will move as assigned location
when pressing the [PLAY] button after selecting the number”.
6) Assign the Pattern.
After selecting the number, click the [PLAY] button.
Pattern Mode
- SEQUENCE PATTERN
Set preset position. [Move to any position by direction keys and click the [SET] button.
Select [SEQUENCE] in “PATTERN MODE.”
To make starting position, click the [SET] button in “PATTERN”. ([SET] button is activated.)
Select preset Number in “PRESET” and click the [PLAY] button. (Have to select more than two preset)
ex) select preset No 1 and click the [PLAY] button. Next select preset No 2 and click the [PLAY]
button.
To make stop position, click the [SET] button in “PATTERN.” ([SET] button is not activated.)
To run, click the [PLAY] button in “PATTERN.”
-CRUISE PATTERN
Select [CRUISE] in “PATTERN MODE.”
To make start position, click the [SET] button in “PATTERN.” ([SET] button is activated.)
Click the direction key by manually.
To make stop position, click the [SET] button again in “PATTERN” ([SET] button is not activated.).
To run, click the [PLAY] button in “PATTERN.”
Click the right mouse button on the Live Display screen to
click the PTZ menu.

16
SEARCH
The operator can search the recorded data from Normal, Sequence, Thumbnail or Smart search folder.
Normal Search
Select the “SEARCH” icon and press the “SEARCH” button.
Logon display shows to input the password.
(A) It shows the backup display.
(B) Select either “Playback” or “Log”
(C) Select the date and time for searching
(D) The window would show the search in detail.
(E) Each recording configuration would show in different color.
(F) Shows the recorded data.
• Playback-> Date/time
- Select the date. When the date has recorded data, it would
show with color at (F).
Select the time. The operator can select the time from timer or
by drag the timeline bar from (F).
- Click the button for playback from (D),
- Playback speed is from 1X to 128X forward and backwards.

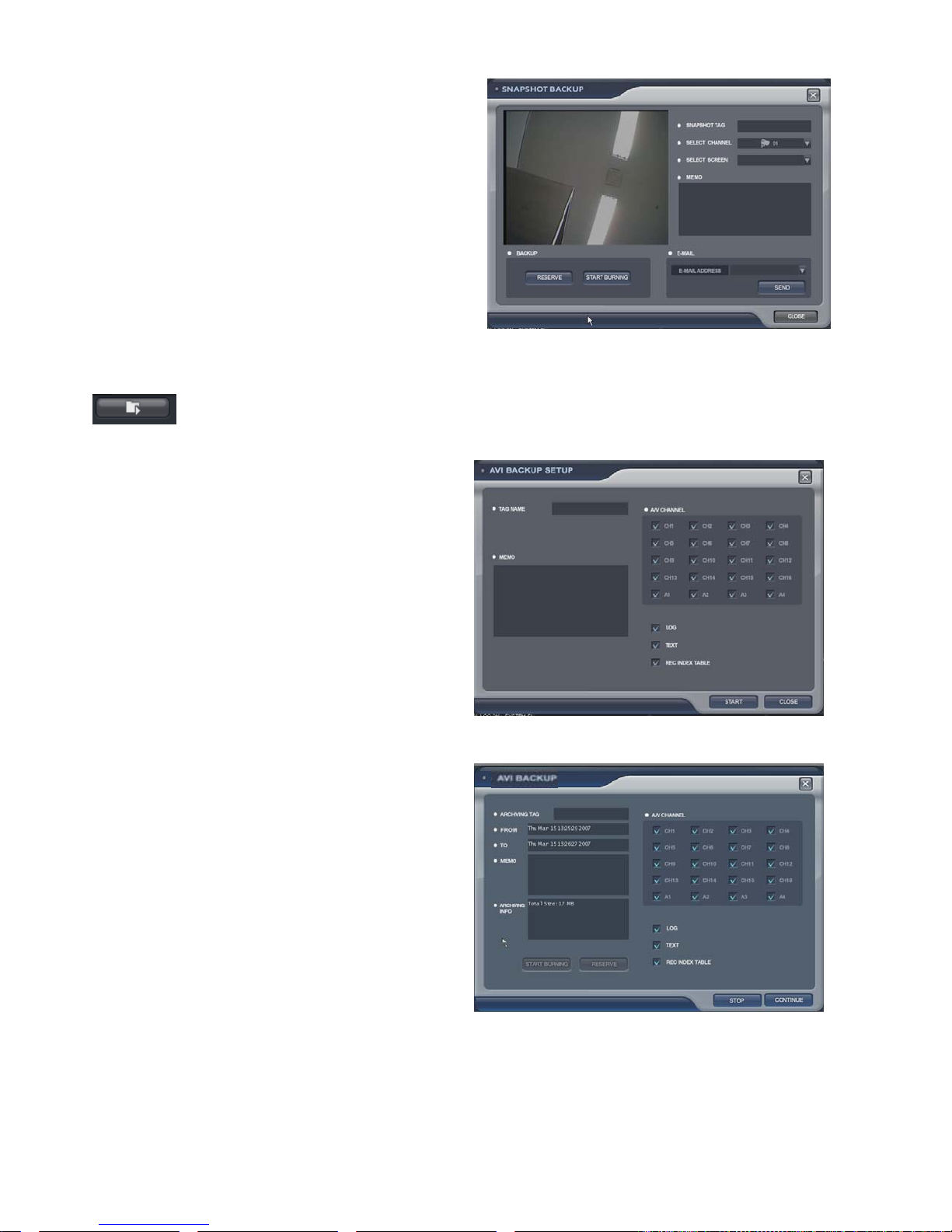

: Click the button for snapshot backup. Then it would show below screen.
During the playback, the operator can save the desired image.
Click the right mouse
button on the Live
Display screen and
click the
SEARCH menu.
(A)
(B)
(C)
(D)
(E)
(F)

17
Input the snapshot tag.
Select the channel.
Select the screen.
Input the Memo.
To save the image, click the [RESERVE] button.
(The operator can check the saved image from backup
Date Management of backup menu).
START BURNING: snapshot image can be burned
with USB device or DVD-RW.
E-mail: snapshot image can be sent by E-mail.
: Click the button for AVI archiving. Then it would show below screen.
During the playback, the operator can save the AVI file for a certain period.
Input the archiving tag.
Select the channel.
Tick on LOG, TEXT, REC INDEX TABLE
Input the Memo.
Click the “START” button.
Then, “AVI archiving” button color would change to
red. (To use this function, the playback should work
certainly. If not, it can not save AVI file).
For stopping, click “AVI archiving” button again.
Then the AVI BACKUP screen would appear.
To recording continuously, click the “CONTINUE”
button.
Or to stop, click the “STOP” button.

18
Backup data information would be shown in this
screen.
How to burn the backup and reserve is same with
how to save the snapshot.
(The operator can check the saved image
from backup Date Management of backup menu).
: Click the button for full screen from (D). Then below screen would be shown.
For returning, drag the mouse to the bottom of screen.
Then below icon would appear with return icon.
Click the “RETURN” button to return to the original screen.
The operator can control the playback speed with
below icon from full screen playback mode.

19
: Click the button for viewing the log from (D).
Then below screen would be shown. Current log would appear.
For returning, click the same button again.
: Click the button for changing the playback display from (D).
The operator can select the playback display mode.
The display color for the recorded data at Timeline from (E), appears differently for each type like above
• Playback -> Live View
Select the “Live View”.
Then it shows current live display instead of the calendar.
The function with below icon work equally.
You can see both the live display and playback display at the same time.

20
• Playback-> Log
Click the “log”.
Then it shows left screen.
Select the date to see
the log from calendar.
Select the event section to see the
what the operator desires.
Select the log.
For playing the recording data with log, double click the log.
Click same button again to return to the original screen.
Page Down, Page Up, Oldest log and Latest log in order.
Click to start the “search”.
Click the button to view with timeline.
The option to search each channel can be selected.
