USER MANUAL
AI BOX
4CH / 8CH / 16CH

Copyright
This manual without the manufacturer's approved copy and reprinted partially or in full, or translated into another
language is prohibited.
Limitation of Liability
This product is designed to prevent fire and theft is not the main means. We shall not be liable for accidents or
damage by using this product can result in liability for accidents or damage.
In order to improve the performance of the product without prior notice to the product may be a firmware
upgrade.

Contents
1 Overview 06
1. Safety Instruction 06
2. WARNING 08
3. Key features 09
2 Components 09
1. Components 09
2. Names and functions of front panel 09
3. Name and functions of rear panel 10
3 Installation 11
1. Basic connection configuration 11
2. Network setting 11
4 System setting 17
1. Network setting 17
2. Change user password 18
3. Language setting 20
4. Date and Time setting 20
5. Firmware upgrade 21
6. Factory default 23
5 AI Source & Annotated Live Video 24
1. Video Source setting 24

Contents
2. AI algorithm 26
3. False detection filter setting 27
4. Face Recognition 28
5. Annotated Live Video 28
6 Action Rules 30
1. Action Rule Overview 30
2. AI Trigger setting 31
3. System Trigger setting 54
4. Schedule setting 55
5. Event Action setting 58
7 Statistics 78
1. Counting 78
2. Report 78
8 AI Marketing 80
9 Other Menu 84
1. Search 84
2. Display 85

Contents
3. System 87
10 Face Recognition 89
11 License Plate Recognition 95

1 Overview
1. Safety Instruction
The Company shall not have any responsibility for any accident or damage that may
incur during the use of the product. For your safety, we provide a few instructions
about installation, manipulation, cleaning, assembly/disassembly of the product as
below. So please read carefully and comply with the instructions.
Before installation
Comply with the following instructions to prevent a fire, explosion,
system failure or electric shock
●Remove the power supply module before proceeding
●Check the input voltage (AC100V–AC240V) to the power supply module before
connecting it
●Keep the product away from excessive humidity (refer to optimal operating
temperature indicated in product specification sheet)
●Ensure that all devices connected to the product should be properly earth-
grounded
In operation mode
Comply with the following instructions to prevent a fire, explosion,
system failure or electric shock
●If in need of disassemble the product for service, please consult with our
trained technician before proceeding
●Do not connect multiple devices to a single adapter, Exceeding the capacity
may cause abnormal heat generation or fire
●Keep products away from excessive dust or flammable substances (e.g.:
propane gas)
●Do not touch it with wet hand while powered on
●Do not insert a conductor the ventilation system

1 Overview
●Do not apply excessive force to unplug the power cord
Disassembly & Cleaning
●When cleaning on the surface, use a dry cloth
●Do not wipe the product using water, paint thinner or organic solvents
●Do never dismantle, repair or modify the product. Without a consulting trained
technician
During installation
To prevent an accident or physical injury and to operate Product
properly, please comply with the followings:
●Secure at least 18 centimeter of distance between cooling fan and wall for a
proper ventilation
●Install the product on a flat surface
●Keep it away from direct sunlight or excessive heat
●Be sure to use only the standard adapter that is specified in the specification
sheet. Using any other adapter could cause fire, electrical shock, or damage to
the product
●Incorrectly connecting the power supply or replacing battery may cause
explosion, fire, electric shock, or damage to the product
While in use
●Do not apply excessive force to or shake it while in use
●Only use attachments/ accessories specified by the manufacturer

1 Overview
2. WARNING
To reduce the risk of fire or electric shock, do not expose this product to rain or
moisture.
To avoid injury, this product must be mounted securely to the floor / wall in
accordance with the installation instructions.
●Use only the standard power source specified in the specification. Using a
different power source can cause fire, electric shock, or damage to the
product.
●Install the product firmly and reliably. Otherwise, the product may fall and
personal injury may result.
●Do not block any ventilation openings, Install in accordance with the
manufacturer’s instructions.
●Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
●Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
●Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or
containers filled with water on top of the camera. Doing so may cause personal
injury due to fire, electric shock, or falling objects
●Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus
●Do not install the product where the air conditioner is exposed to direct air.
Otherwise, moisture may condense inside the product due to temperature
differences inside and outside the product
●Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the

1 Overview
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped
3. Key features
This device is based on the latest deep learning technology of intelligent video
analysis which has up to 16 channels network camera video inputs. The features
include object identification, object counts and object tracking by AI technology.
Also, it allows to configure various trigger rules to ring alarms and can be utilized for
various purposes by interworking with external network devices or systems, For
example, this product can be interlocked with existing surveillance system and build
an intelligent surveillance system such as business intelligence access control. It also
can be used as an edge computing based video analysis device that combined with
cloud web service.
●The latest deep learning technology of object recognition engine (Human, car
and etc)
●Equipped rule engine to detect various situations and actions such as
‘Intrusion’, ‘Occupancy’, ‘Loitering’, ‘Enter/Exit’, ‘Line Crossing’
●Counts the number of objects that exist in a specific zone or counts the
number of objects that pass through a specific zone
●OSD is displayed on the input image and provided as standard RTSP so that it
can be easily linked without major compatibility with existing interlocking
systems
●Standard ONVIF protocol support enables easy integration with ONVIF based
network cameras and VMS(Video Management System)
●Various I/O supports including Alarm-in, Relay, RS485, USB
●Receive up to 16 channels of network video
●Receive Full HD video up to 480 fps, 4K video up to 120fps

2 Components
9
1.Components
Cable clamp Adapter Screw
2.Names and functions of front panel
List
Status sign
LED
Description
POWER
Red light blinks during the boot phase and green light during
operation.
STATUS
Status light blinks when an event occurs after passing the set
condition.
ETH1
ETH1 light blinks when communication is take place via the
ETH1 port or turns off when communication is not taking
place.
ETH2
Headlight turns on when communication is take place via the
ETH2 port or turns off when communication is not taking

2 Components
10
place.
3.Name and functions of rear panel
●4CH
●8CH / 16CH
No.
Names
Description
①
USB
Universal Serial Bus (USB) ports for additional devices such as USB Mouse.
②
HD MONITOR
For connecting a monitor to view connected cameras. Note, AI Box cannot
be configured locally.
③
ETHERNET 1
RJ-45 port for connecting internet and other platforms such as
interoperable VMS, recorders and IP cameras.

2 Components
11
④
ETHERNET 2
Network port for connecting camera and other through a separate
network disconnected from the outside.
⑤
ALARM IN
Alarm input signal line terminal.
⑥
REPLAY
Relay connection terminal.
⑦
RS485
RS485 communication device connection terminal.
⑧
DC12V
12V adapter plug

3 Installation
12
1.Basic connection configuration
2.Network setting
●Basic requirements of Web
Name
Description
Recommended Browser
Google Chrome, FireFox, MS Edge
OS
Window / Mac / Linux
RAM
≥1GB

3 Installation
13
●Way to access the Web setting page
1. The factory default network setting is DHCP. Therefore, it is possible to access
the IP assigned through the router supported by DHCP (IP can be checked by
accessing the Web of the router).
- IP address: https://<AI Box IP>:8443
(e.g.: https://10.10.10.10:8443)
- ID: ADMIN
- Password: 1234
NOTE: Make sure to use ‘https://’ (Hypertext Transfer Protocol Secure)

3 Installation
14
2. ‘Admin_Tool.exe’ allows discover and configure AI BOX in the network. The
tool also discovers and configures other devices such as IP cameras, NVR and
DVR.
1) Click the 'Search' button to search the AI BOX connection to the network.

3 Installation
15

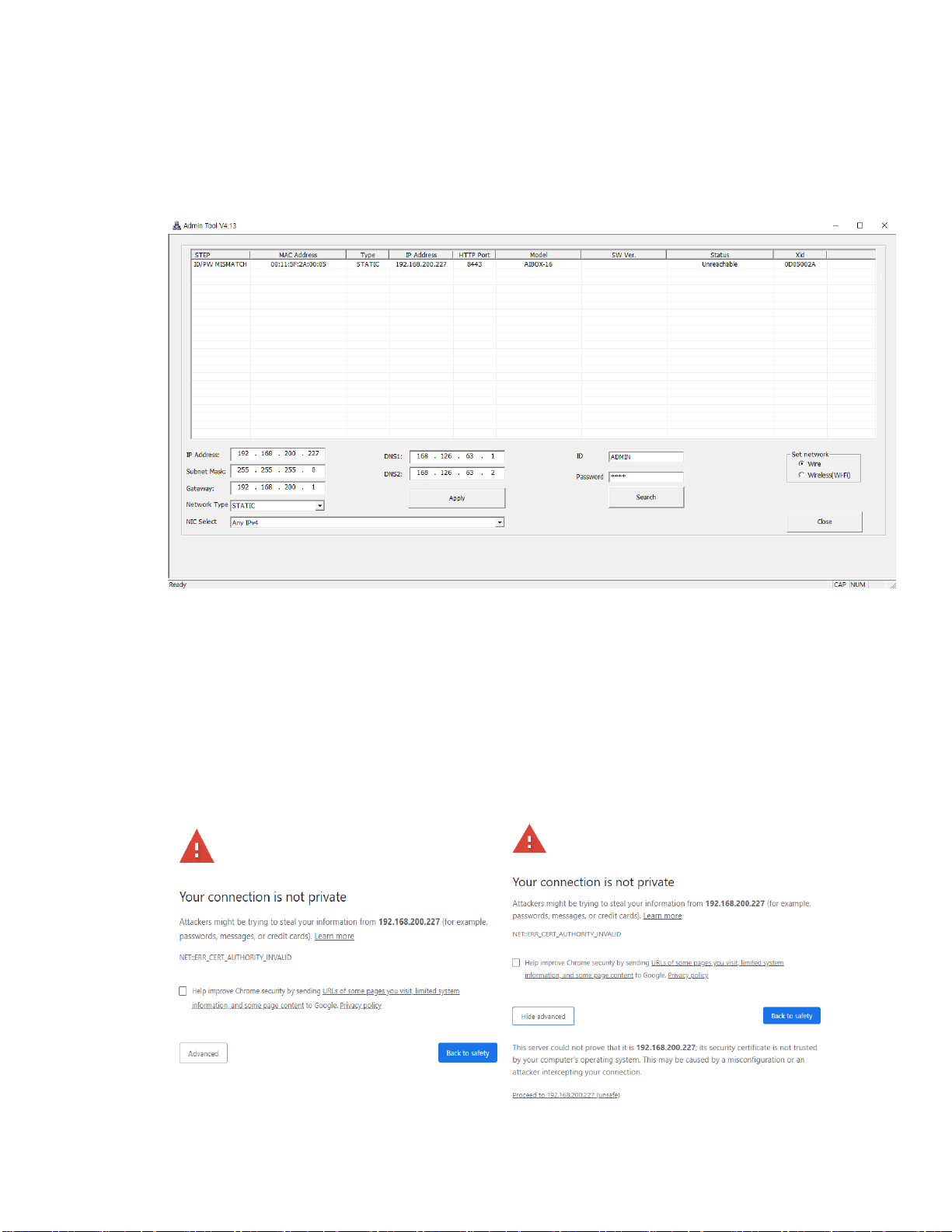

2) The search results are displayed on the screen when search function is
completed. You can determine the AI BOX from the model information and
click on the product you want to set up in the list.

3 Installation
16
3) Select one of ‘DHCP’ or STATIC’ for <Network Type> at the bottom left.
Please input the IP Address, Subnet Mask, Gateway, DNS information and
click 'APPLY' button.
4) After a short period of time, the list will be updated automatically and the
network configuration is completed by confirming that the settings are
correct.

3 Installation
17
5) Double click the device information in the list to open the device setting
page.
※Please click ‘Advanced’ button at the bottom and click ‘Go to(unsafe)’
button if you see a security warning as shown below. (Unlike a portal site that
uses a public certificate, you may get a warning by using a private certificate)
Note: This is a completely safe procedure as the user is only connecting to AI
BOX

3 Installation
18

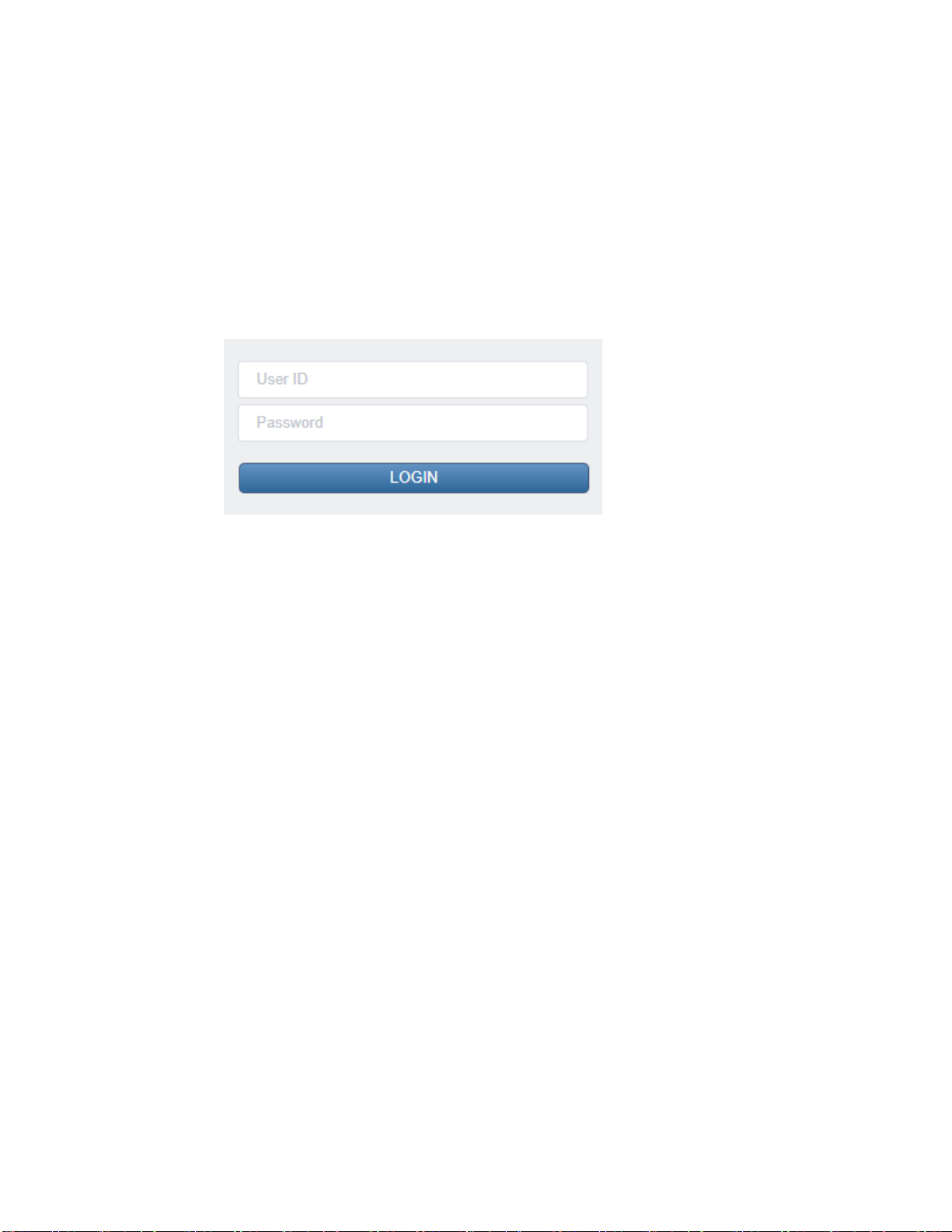

6) Input username and password in the login window
Primary username: ADMIN
Password: 1234
* It is recommended to change password for safety purposes. To increase security
of the device, it is recommended to change to a strong password and reset
regularly.

4 System setting
19
1.Network setting
Check and change the network-related settings of the device
Ethernet1, Ethernet2 means Ethernet port on the back of the device to which a
network cable is connected
●Automatic IP address allocation
Enable or disable the Dynamic Host Configuration Protocol (DHCP) server. DHCP
automatically assigns an IP address to the device if there is a DHCP server on the
network.
