Ganz DR16NRT User manual

1
USER MANUAL
DR16NRT
Stand Alone Type
DVR SYSTEM

2
Specification & Organization -------------------------------------------------- 4
Specifications --------------------------------------------------------- 4
Product Contents List --------------------------------------------------- 6
System Organization ---------------------------------------------------- 7
Product Description -------------------------------------------------------- 8
Front panel description --------------------------------------------------- 8
Rear panel description --------------------------------------------------- 9
Remote Controller description --------------------------------------------- 10
HDD , CD/DVD-RW Connect -------------------------------------------------- 11
Power On ----------------------------------------------------------------12
Live Display --------------------------------------------------------------- 13
Configuring the live display ---------------------------------------------- 13

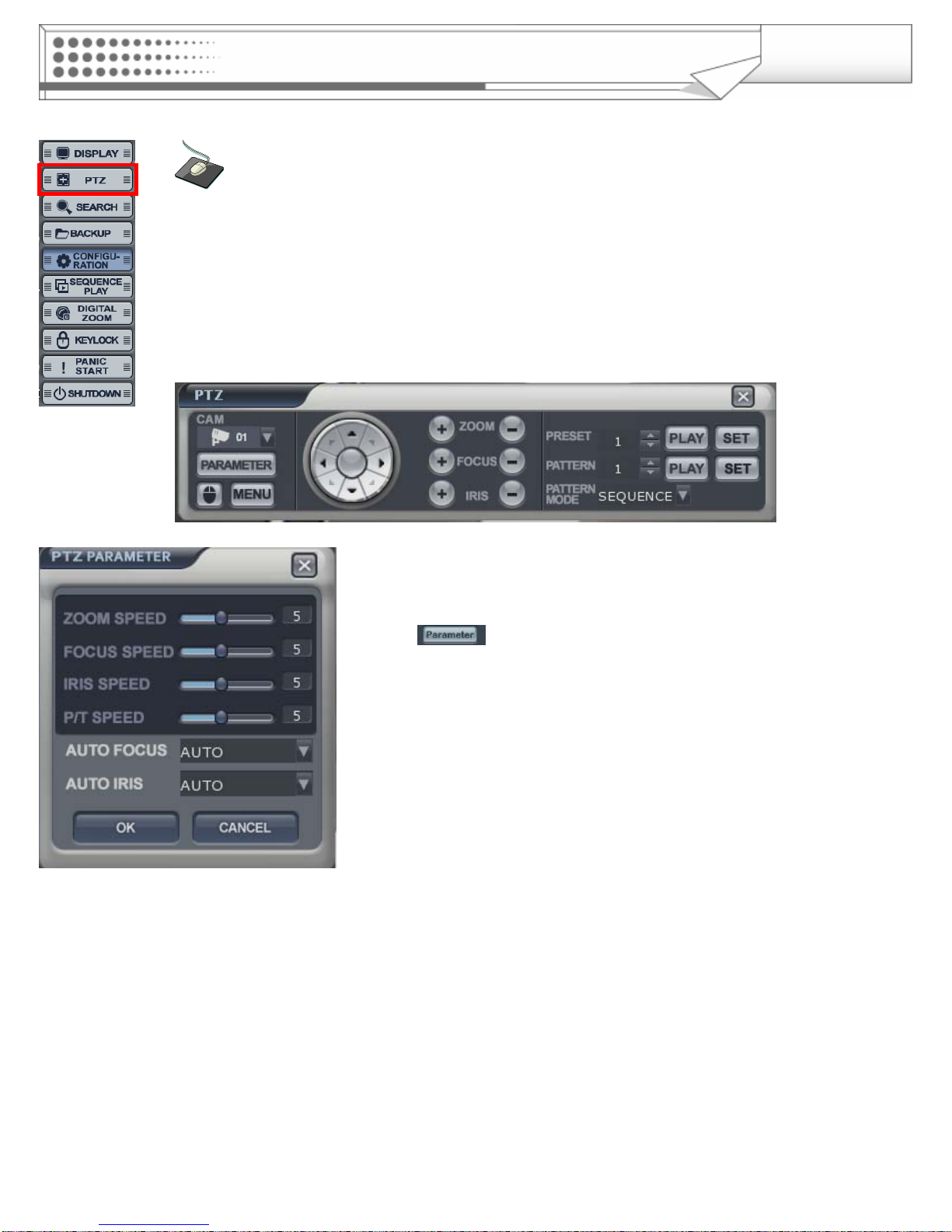

PTZ -------------------------------------------------------------------- 14
Search ----------------------------------------------------------------- 15

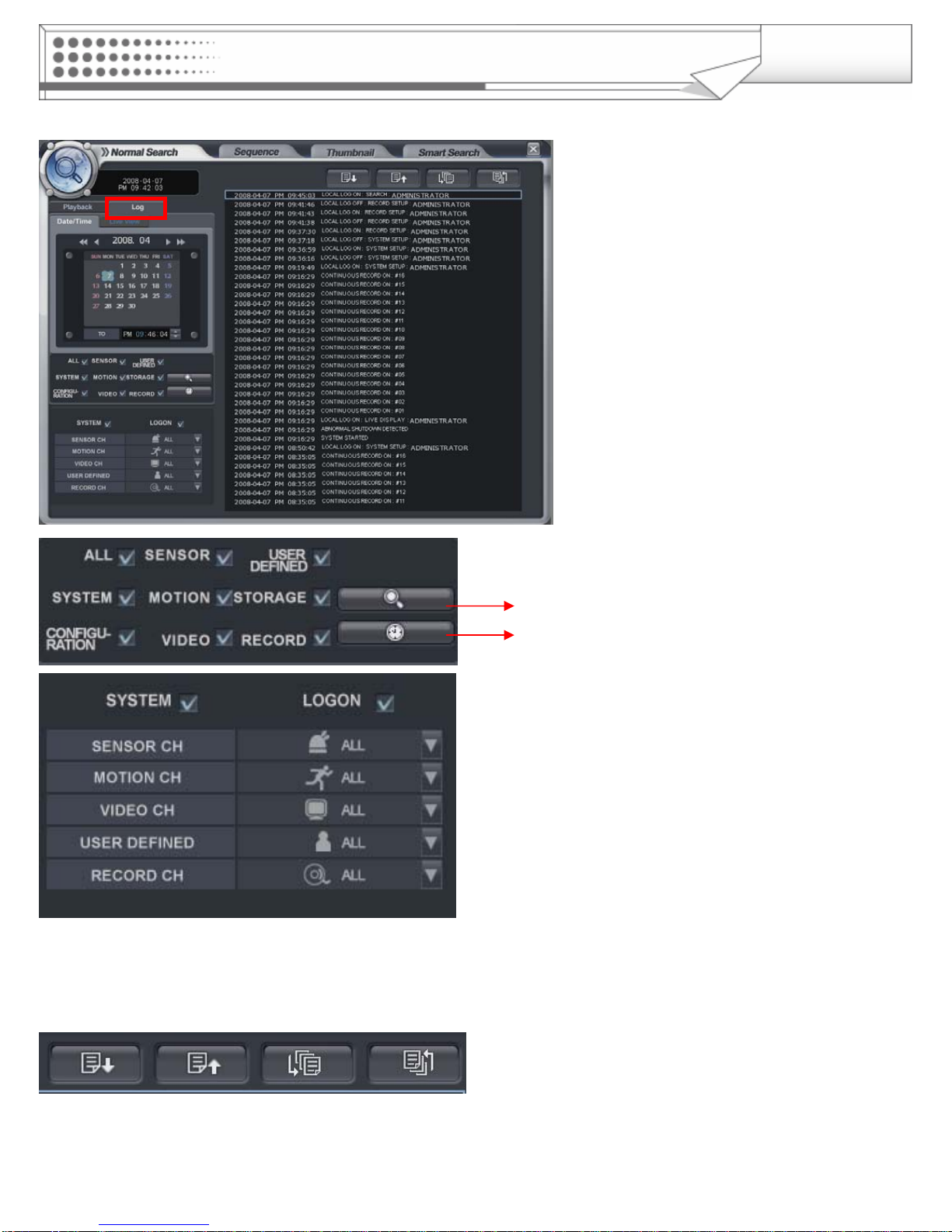

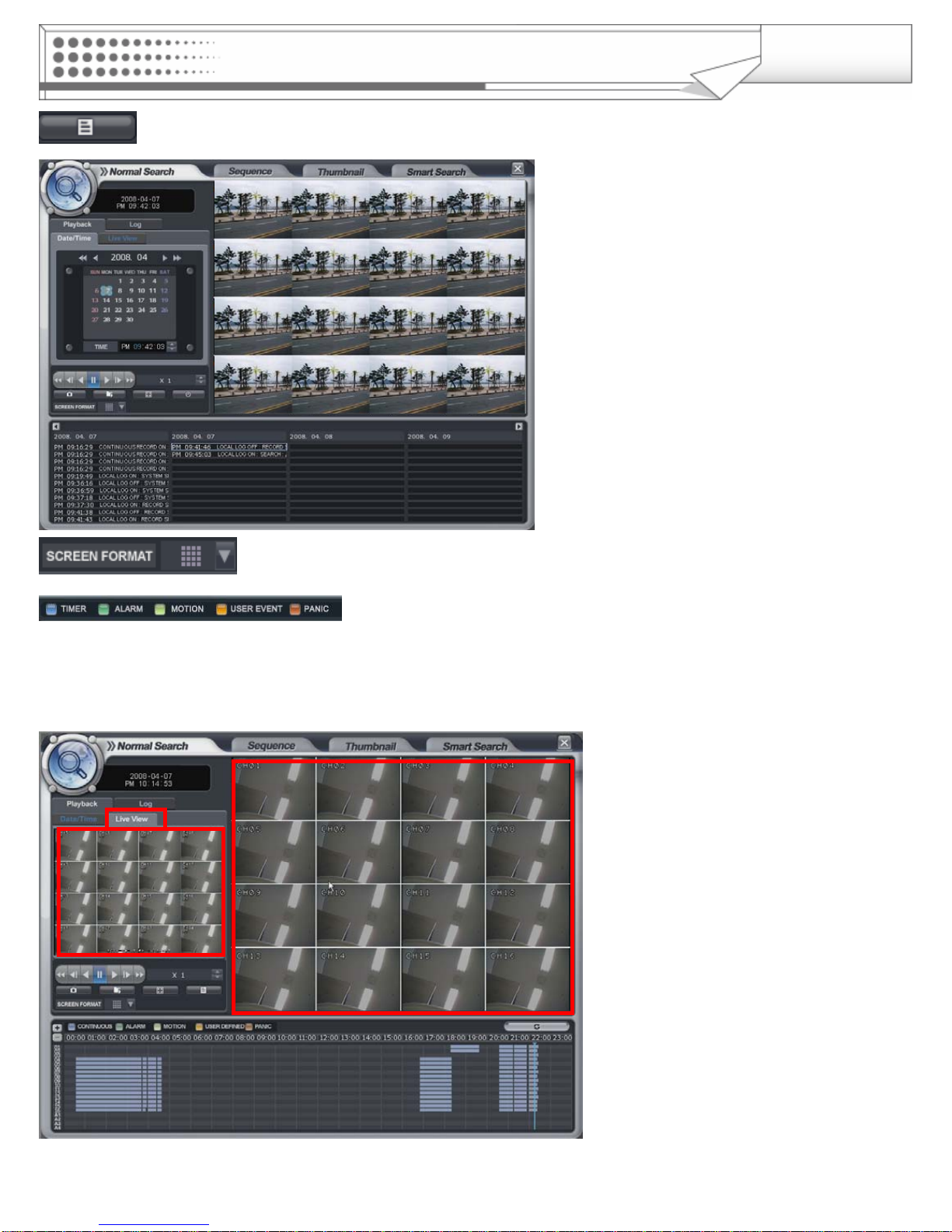

Normal Search -------------------------------------------------------- 15

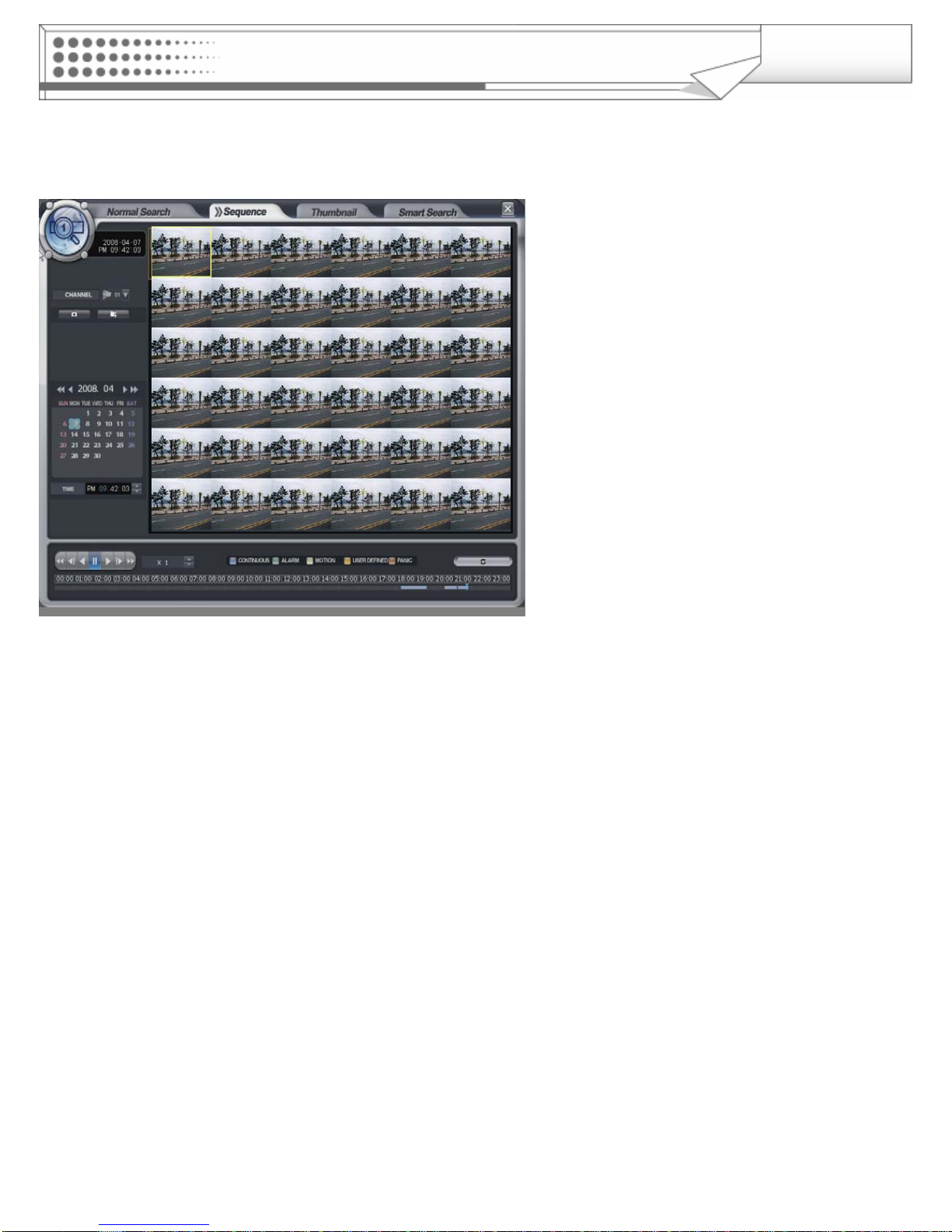

Sequence Search ------------------------------------------------------ 20
Thumbnail Search ----------------------------------------------------- 21
Smart Search ---------------------------------------------------- 22
Backup ----------------------------------------------------------- 23
Backup -------------------------------------------------------------- 23
Backup Date Management ----------------------------------------------- 24
Configuration-System ------------------------------------------------------ 25
Camera --------------------------------------------------------- 25
Alarm/Event ------------------------------------------------------ 28
Display ------------------------------------------------------- 35
Audio ----------------------------------------------------------- 38
User ------------------------------------------------------ 39
Network ------------------------------------------------------- 41
System ------------------------------------------------------- 43
Storage ----------------------------------------------------- 45

3
Configuration-Record -------------------------------------------------- 46
Record mode --------------------------------------------------------- 46
Normal record ---------------------------------------------------- 48
Intensive record ----------------------------------------------------- 50
Panic record ----------------------------------------------------- 52
Sequence -------------------------------------------------------- 53
Digital Zoom ------------------------------------------------------- 54
Keylock ----------------------------------------------------------------55
Panic Start/Stop ----------------------------------------------------------- 56
Shutdown ----------------------------------------------------------------57
RemoteSW installation ------------------------------------------------------- 58
System Requirement ---------------------------------------------------- 58
Introduce ------------------------------------------------------------ 59
RemoteSW Local Setup ----------------------------------------------------- 60
local setup ----------------------------------------------------60
RemoteSW Search --------------------------------------------------------- 64
Search Function Introduce ------------------------------------------------ 64
Search Method -------------------------------------------------------- 65
Search Option -------------------------------------------------------- 66
RemoteSW DVR System Setup ------------------------------------------------- 71
Camera ------------------------------------------------------------ 72
Alarm/Event -------------------------------------------------------- 73
Display ---------------------------------------------------------- 76
Audio ----------------------------------------------------------- 78
User -----------------------------------------------------------78
RemoteSW DVR Record Setup ------------------------------------------------- 79
Record Mode ---------------------------------------------------------- 79
Normal record -------------------------------------------------------- 81
Intensive record -------------------------------------------------------- 83
Panic record ---------------------------------------------------------- 84

4
Specifications
MODEL DR16NRT
Operation PENTAPLEX PENTAPLEX performance
( Simultaneous Live Display/Recording/Playback/Archiving/
Networking effectively without interfering each other operations)
Video in Channels 16
Connection BNC, 1.0Vpp composite 75ohm balanced
Loop through BNC,1.0Vpp composite 75ohm unbalanced, auto termination
Audio in Channels 4
Connection line level unbalanced
Main Displays BNC 1.0Vpp composite 75ohm unbalanced
VGA 15 pin D-SUB 1024 x 768 @ 60Hz
Screen display modes 1 , 4 , 9 , 16
User defined channels for each mode
Sequence Adjustable dwell time, user defined sequences
Spot displays Channels 4 fully programmable
Connection BNC, 1.0Vpp composite 75ohm unbalanced
Display mode Full screen sequence, adjustable dwell time
Audio out Channels 1
Connection RCA, line level unbalanced
External alarm Inputs 16(16 Open collector TR), NO or NC common ground
Outputs 16, high(+5V) or low(0V) selectable, common ground
User interface On screen display GUI, alpha blending
Control Front panel/IR Remote/USB Mouse
Recording Video CODEC MPEG-4
Resolution options for each
channel CIF (352 x 240, 352 x 288), 2 CIF (704 x 240, 704 x 288)), D1 (704 x 480, 704 x 576)
Maximum total frame rate 480 FPS (NTSC) / 400 FPS (PAL)
Image quality Highest, High, Standard, Low
Pre-event recording 5 seconds max
Recording modes Continuous / Motion detection / Alarm / User event / Panic
Frame rate options for each
channel 30 – 15 – 7.5 – 4 – 2 – 1
Schedule
Configurable recording time
limits Weekly / Daily per Camera
Audio Audio inputs independently assigned to each channel
Motion detection 16 x 16 selectable grid with 10 levels of sensitivity
Covert recording Yes, selectable by channel
Camera title English and Numeral
SPECIFICATION&ORIGANIZATION
SPECIFICATION&ORIGANIZATION

5
Model XVR - 1648
Playback Speed Forward / reverse. 1x, 2x, 3x, 4x, 8x, 16x, 32x, 64x, 128x
Control Front panel buttons and Jog / Shuttle ring/USB Mouse
Search method Calendar / timeline, event log, Sequence, Thumbnail, Smart Search
Split screen display modes 1,4,16
Audio synchronization Yes, any frame rate
Archiving Storage DVD±RW (CD-RW option), USB Memory stick, Network
Format Watermarked AVI
Archive data Independent channels selection (video / audio), backup log, event log
Time Time zone Worldwide, Selectable
DST Yes
PTZ RS-485 Multi protocol, baud rate and speed control for each channel
System Watchdog Yes
Abnormal shutdown detection Yes, with system auto recovery
HDD error detection Yes, SMART monitoring
Network Connection RJ45, 10 / 100 Ethernet
DHCP Yes
DDNS Yes
Two way network audio Yes
Bandwidth management Yes
Remote client Client software Yes, Included
Remote configuration Yes
Remote PTZ control Yes
Email event notification Yes
Storage Maximum Capacity Not limited
Storage 4 x HDD maximum
Recording options Write once / Overwrite
Event handling Source Alarm in, motion detection, video loss, HDD error, User event
Action Record, alarm out, email notification, log, remote client popup, buzzer, full screen popup
Security User levels ADMIN, MANAGER, USER
Key Lock Yes, password protected
Physical Dimensions 428mm(w) x 475mm(d) x 93mm(h)
Weight 12Kgs
SPECIFICATION&ORIGANIZATION
SPECIFICATION&ORIGANIZATION

6

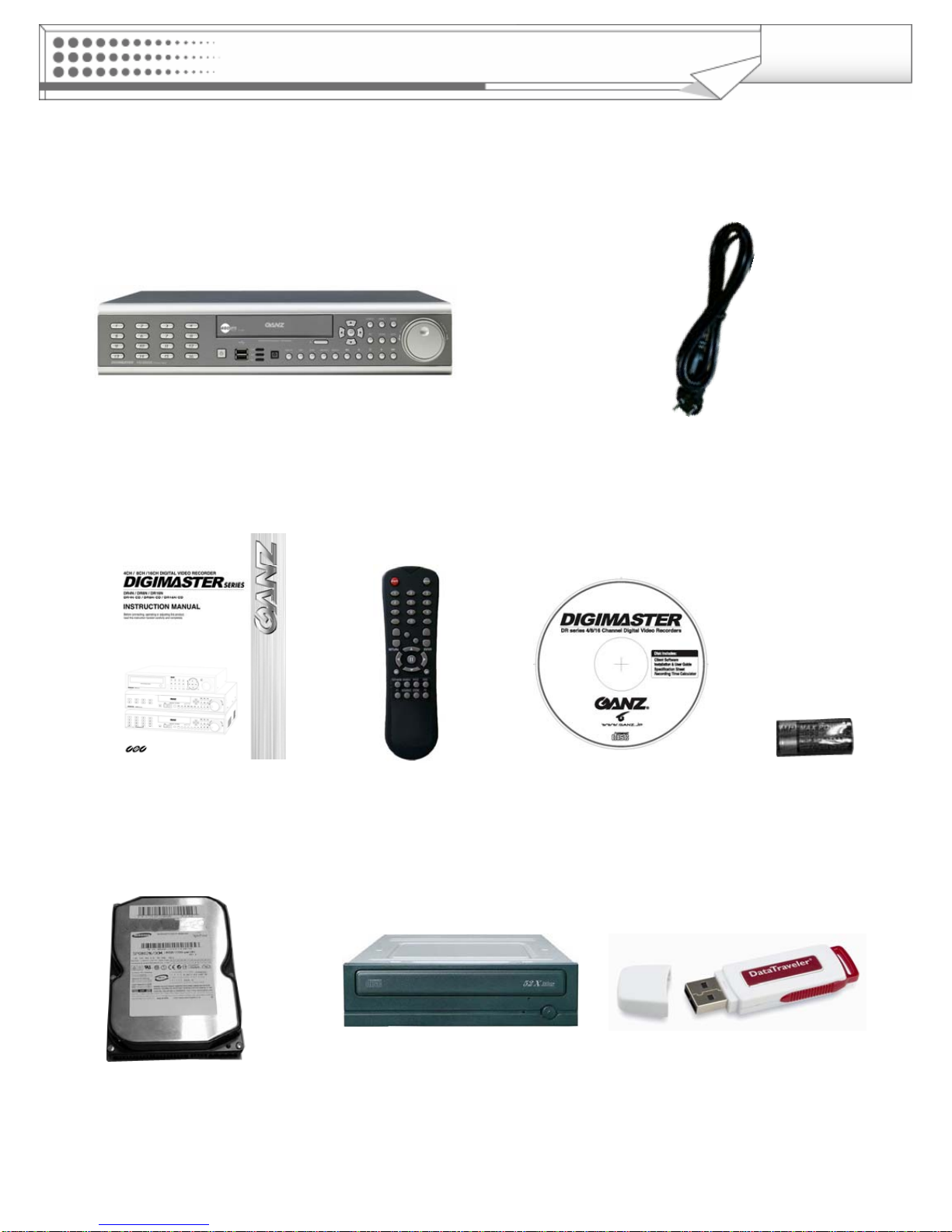

Product Contents List
Please confirm that all product contents are present after opening the package.
①Basic Contents
Remote ControllerInstruction Manual Remote Agent
Installation CD AAA Battery x 2
AC Power Cable
②Optional Contents
Internal Hard Disk Drive Internal CD-RW/DVD-RW Drive USB Thumb Drive
DR16NRT Unit
SPECIFICATION&ORIGANIZATION
SPECIFICATION&ORIGANIZATION

7
SPECIFICATION&ORIGANIZATION
SPECIFICATION&ORIGANIZATION
System Organization
NETWORK
Camera #1-16
Alarm Sensor #1-16 Relay Out
VCR VGA
Monitor A/V Monitor
Remote Client PC Image Printer
Video In
Video Out
TCP/IP
Alarm Input/Out
Remote
Controller
CD-RW
Backup
AVI Backup
WEB Client
USB USB Mouse

8
①Power : System Power On/Off
②DISPLAY : Select Screen Division Mode or Rotation Mode
③SEQUENCE : Select Sequence Screen Mode
④PANIC : Trigger Panic Recording Mode and Panic Relay Output
⑤ZOOM : Digital Zoom on Live or Playback Image
⑥LOCK : Front Panel Lock Button
⑦ARCHIVE : Go to Archiving Menu
⑧PTZ : Go to Camera PTZ Control
⑨SETUP : Go to System Setup Menu
⑩SEARCH : Go to Search Menu
⑪USB PORT: USB Port for use of a USB Memory Stick and/or USB HDD Backup.
⑫Mouse left Click
⑬Mouse Right Click
⑭LED Indicator : Indicates Present System Status. (POWER, REC, NETWORK)
⑮Channel Selection Buttons (1~8/16) : Select Channel or Input Password
- Directional / Navigation Buttons (UP, DOWN, LEFT, RIGHT, ENTER)
- Remote Controller Input Sensor (IR)
- EJECT : Eject CD-ROM (Optional)
- ◀◀/ ◀: Focus Adjust (Near/Far) or Reverse Play / Rewind
-Ⅱ: Pause Playback
-▶/ ▶▶: Iris Adjust (Open / Close) or Forward Play / Fast Forward
- JOG / SHUTTLE : Outer wheel – variable REW or FF; Inner wheel – scroll frame-by frame while PAUSED.
- HOLD : Hold Current JOG / SHUTTLE Position

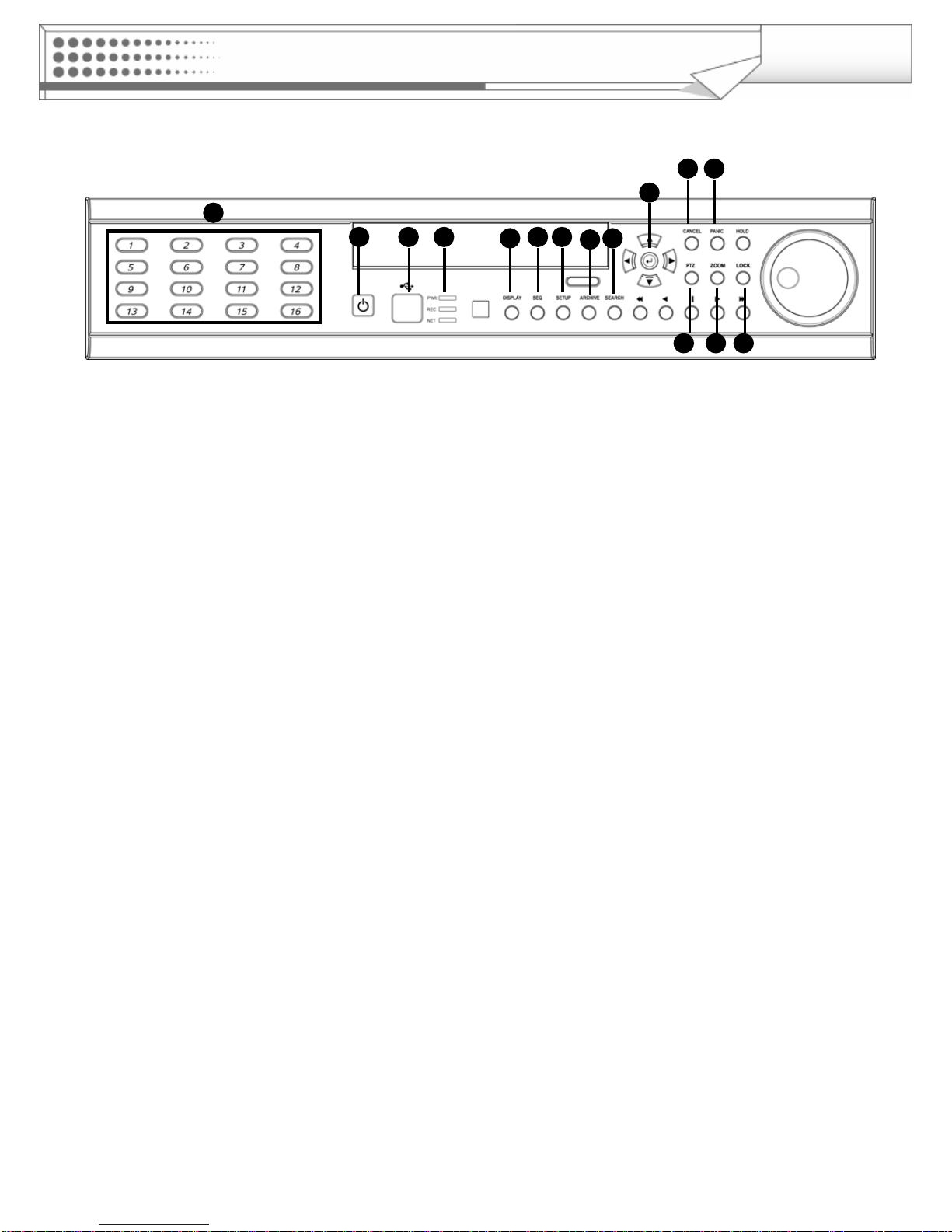

Front Panel
123
4
5 6
7
8
910 11
12
13
14
15
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION

9
• When System Installation, Please Install under System Power Off Status.
• VGA monitor is main monitor. If you connect the CRT monitor with monitor
out, you can not see the menu.
Rear Panel
Tip
12
98 10 13
1 2 3
476 511
① Video IN / Loop : BNC Video Input Port, BNC Video Loop Output
②Monitor out : BNC Main Monitor Output
SVHS : Output Video by Connected SVHS.
③Spot #1 ~ #4 : 4 x BNC Output to Individually-Sequenced Spot Monitors
④Audio In : 4 x RCA Audio Line Input Terminal
⑤Audio Out : RCA Audio Line Out Terminal
⑥Alarm : 16 x Input TTL Alarm/Sensor Input Terminal
⑦Relay : 16 x Relay Output Terminal
⑧USB PORT: USB Port for use of a USB Memory Stick and/or USB HDD Backup
⑨VGA OUT : VGA Main Monitor Output
⑩RS-232C : Serial Configuration Port for Program Debugging
⑪RS-485 : Serial Interface for PTZ device connection and control
⑫RJ-45 jack : 10/100 Ethernet LAN/WAN connection (for Remote Access and Configuration)
⑬ AC Power Input
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION

10
REMOTE CONTROLLER
REMOTE CONTROLLER
POWER
System
ON/OFF
MENU : Open System Setup Menu
RETURN
Cancel /
Deselect
Previous Screen
ENTER : Apply / Select /Go to Next Screen
Channel Selection Buttons
※If there are many DVRs together, each DVR must be set with a different ID. You can control all DVR’s
from one controller by setting DVR ID on controller using the ID button.
Navigation Buttons : Used for Playback Control,
Menu Navigation, and PTZ/Focus Control
ID
ID Button
Select DVR ID

11
HDD, CD/DVD
HDD, CD/DVD- -RW CONNECTION RW CONNECTION
Above is mainboard picture after opening the top cover.
The connection board is in red box
(1) is the port for system disk(master disk) so you must install the first HDD at this port .(HDD
jumper location should be “Master”)..
(2) is also the port to connect additional HDD.
(3) is the port for CD-RW or DVD-RW only. If you connect the HDD at this port, HDD is not recognized
(1) (2)
(3)

12
Press the power button.
The DVR startup screen detects and checks
the HDD and CD-RW/DVD-RW.
After startup process is complete, the “logon” display
appears and input the Password.
(Default password is none. So click the “Logon” button.)
The DVR start the normal operation and show default
display of all 16channels.
Three pop-up displays show current system information
and live log and live alarm situation.
C: Continuous Record
M: Motion Record
A: Alarm Record
P: Panic Record
• Live System Info
1) The percentage of HDD used.
2) User Connection Information
3) Current recording Frame information
4) Backup situation
•Livelog
It shows the live log.
: Live log can be removed by pressing this button.
• Live Alarm
Alarm Detection channel show each channel.
When the operator drags the mouse at left side of bottom,
this pop-up screen will appear.
When pressing each button, the operator can turn
(On/Off) the above pop-up screens.
POWER ON
POWER ON

13
Press the mouse right button from live display. It shows the menu screen.
In case of pressing the “setup” button from front panel, it will enter “system setup menu of configuration”
directly.
Configuring the Live Display
Click the right mouse button on the
Live Display screen and Click the
DISPLAY menu.
• Display Type The operator can select 5 different display type.
Camera Arrangement The operator can edit the camera location each display type.
After clicking the one of 16 channel buttons, select below section. Then display channel will be changed.
Additionally the operator can select next display with clicking the arrow buttons.
LIVE DISPLAY
LIVE DISPLAY

14
Click the right mouse button on the
Live Display screen and Click the PTZ
menu.
• PTZ controls appear like above.
1) Select the camera.
2) Control the camera direction.
3) Press this button. The operator can control the PTZ
detailed configuration with pop-up screen.
4) Control the Zoom, Focus, Iris.
5) Assign the Preset.
After moving the location, Select the number and press the
“save” button.
Camera will move as assigned location when pressing the “Run”
button after selecting the number” .
6) Assign the Pattern.
After selecting the number, click the “ Run” button.
PTZ
PTZ
Pattern Mode
- SEQUENCE PATTERN
Set preset position. [Move to any position by direction keys and click the [SET] button.
Select [SEQUENCE] in PATTERN MODE.
To make start position, click the [SET] button in PATTERN. ([SET] button is activated.)
Select preset Number in PRESET and click the [PLAY] button. (Have to select more than two preset)
ex) select preset No 1 and click the play button then select preset No 2 and click the play button.
To make stop position, click the [SET] button in PATTERN. ([SET] button is not activated.)
To run, click the [PLAY] button in PATTERN.
-CRUISE PATTERN
Select [CRUISE] in PATTREN MODE.
To make start position, click the [SET] button in PATTERN.([SET] button is activated.)
Click the direction key by manual.
To make stop position, click the [SET] button again in PATTERN ([SET] button is not activated.).
To run, click the [PLAY] button in PATTERN.

15
Click the right mouse
button on the Live
Display screen and
Click the SEARCH
menu.
The operator can search the recorded data as Normal, Sequence, Thumbnail and Smart search
Normal Search
(A)
(B)
(C)
(D)
(E)
(F)
Select the “SEARCH” icon and press the “SEARCH” button.
Logon display shows and input the password.
(A) It shows the backup display.
(B) Select the “Playback” or “Log”
(C) Select the “Date and Time” for search
(D) The window for search in detail.
(E) It shows different color each recording configuration
(F) It shows the recorded data .
• Playback-> Date/time
-Select the date. In case of date that has recorded data, it
shows with color at (F).
Select the time, The operator can select the time from timer or
by drag the timeline barform (F).
- Click the button for playback from (D),
- Playback speed is from 1X to 128X forward and backwards.
SEARCH
SEARCH

16
: Click the button for snapshot backup, Then it shows below screen.
During the playback, the operator can save the image that want to save.
Input the snapshot tag.
Select the channel.
Select the screen.
Input the Memo.
For saving the image, click the “reserve” button.
(The operator can check the saved image from
backup Date Management of backup menu).
START BURNING: snapshot image can be
burned with USB device or
CD/DVD-RW.
E-mail: snapshot image can be sent by E-mail.
: Click the button for AVI archiving. Then it shows below screen.
During the playback, the operator can save the AVI file about period that want to save.
Input the archiving tag.
Select the channel,
Select log, text. rec index table
Input the Memo.
Click the “start” button.
Then “AVI archiving” button color is changed as red.
(For using this function, it should work the playback
certainly. If not, it can not save AVI file).
For stopping, click ”AVI archiving” button again.
Then it shows left screen.
For recording continuously, click the “continue” button.
If want to stop, click the “stop” button.
SEARCH
SEARCH

17
It shows left screen with backup data information.
How to burning and reserve is same with how to save the
snapshot.
(The operator can check the saved image from backup
Date Management of backup menu).
: Click the button for full screen from (D). Then it shows below screen.
For returning, drag the mouse to the bottom of
screen.
Then appear below icon with return icon.
Click the “return” button then return original
screen.
The operator can control the playback speed
with above icon from full screen playback
mode.
SEARCH
SEARCH

18
: Click the button for viewing the log from (D).
Then it shows left screen. Current log is
appeared.
For returning, click the same button again.
: Click the button for changing the playback display from (D).
The operator can select the playback display mode.
The display color about the recorded data at Timeline from (E) appear differently each type like above.
• Playback -> Live View
Select the “live view”.
Then it shows current live display
instead of calendar.
The function with below icon work
equally.
You can see the live display and
playback display at the same time.
Playback display
Live display
SEARCH
SEARCH

19
• Playback-> Log
Click the “log”.
Then it shows left screen.
Select the date that want to see the log from
calendar.
Select the event section that want to see.
Click to start the “search”.
Click the button with viewing with timeline.
Select the log.
For playing the recording data with log, double click the log.
Click same button again for returning original screen.
The option that want to search each channel can
be selected.
Page Down, Page Up, The oldest log, The latest log as order.
SEARCH
SEARCH

20
Sequence Search
- The operator can search frame by frame.
•Select the channel.
•Select the date.
•Select the time.
•The operator can select the time from timer or by drag the timeline bar.
•How to search is almost the same as normal search.
SEARCH
SEARCH
