1.1 Tablet Introduction
Thanks for buying GAOMON M1220 Tablet. This is a new generation of professional battery-free
drawing tablet, which can greatly improve your work efficiency of painting and creation, and full of fun.
You can freely painting and writing, depicting different lines and colors, just as the pen writes on the
paper, which brings you a real shock experience.
To give you a better understanding and using of your tablet, please read this user manual carefully.
The user manual only shows the information under Windows, unless otherwise specified, this
information applies to both Windows and Macintosh systems.
1.2 Product and Accessories
1.2.1 Graphics Tablet

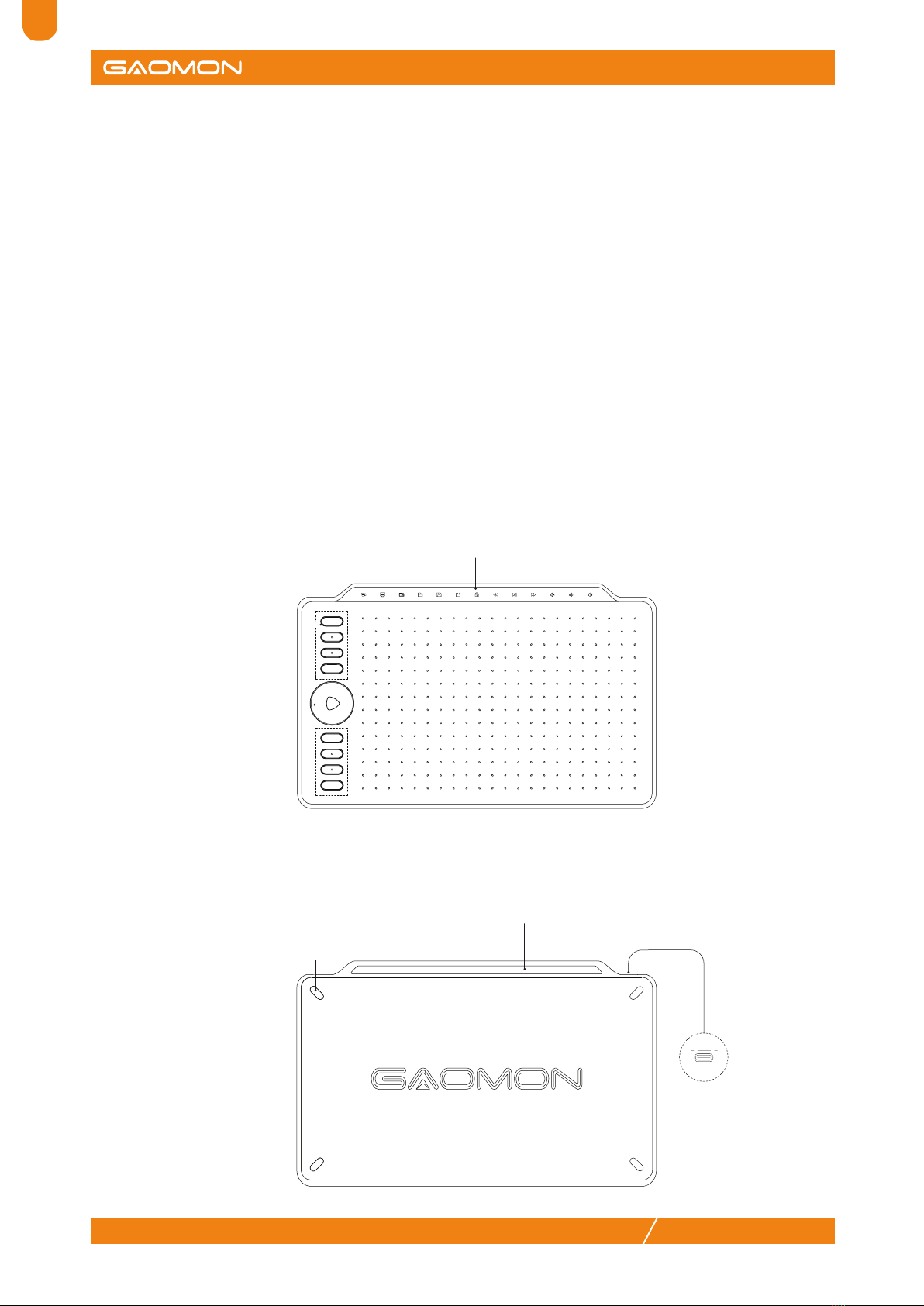

Multimedia Bar
Nameplate
Type-C
Anti-slip Mats
Shortcut Keys
HOME Key
Touch Ring
Working Area
(258.4 x 161.5mm)
1. Product Overview

EN
M1220
www.gaomon.net
5

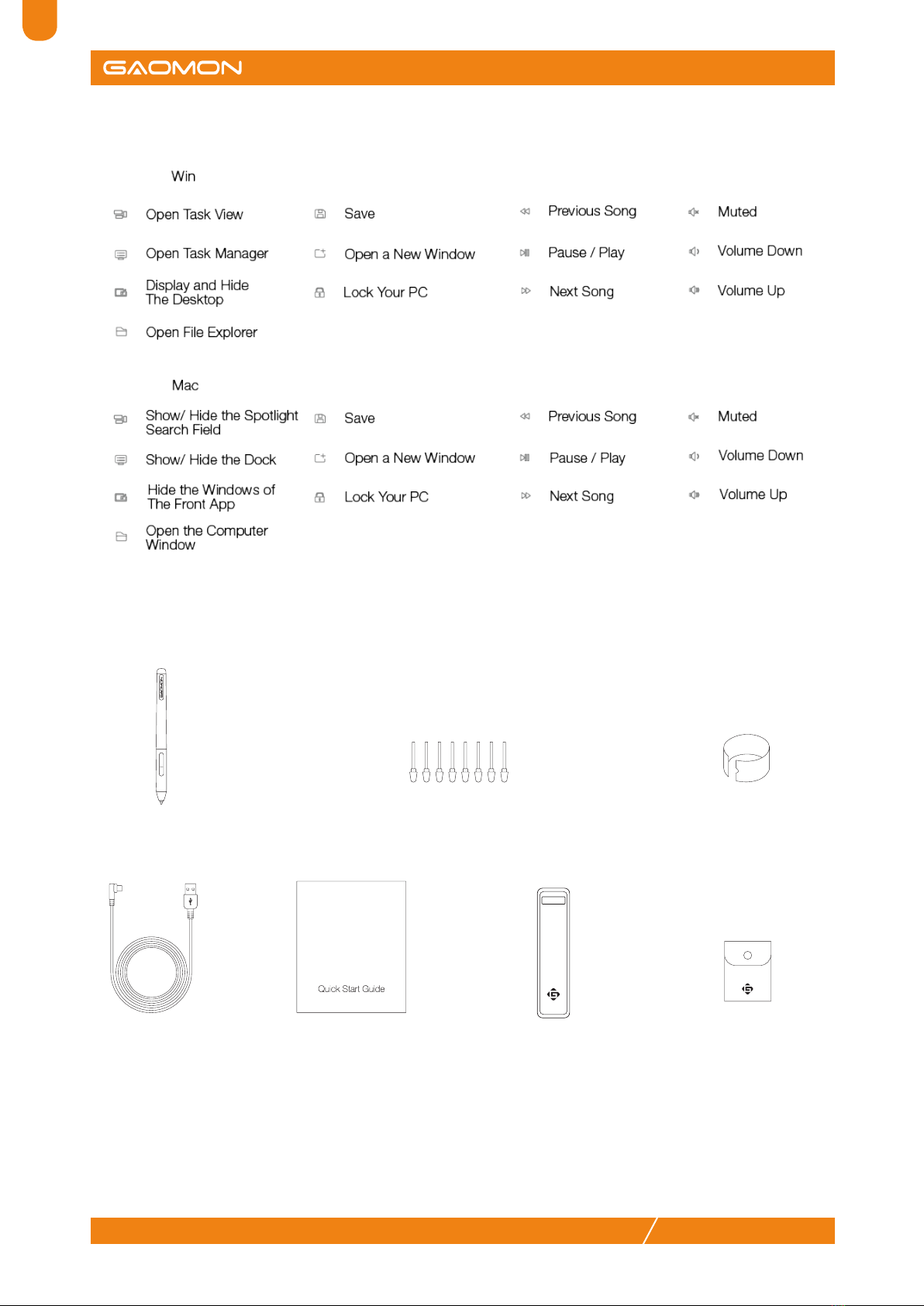

1.2.2 Multimedia Bar
1.2.3 Packing List
Pen AP32
Type-C Cable Quick Start Guide Pen Case Felt Pouch for Nibs
Pen Nibs Pen Nib Clip

EN
M1220
www.gaomon.net
6
Connect the tablet to your computer with USB cable.
1.3 Tablet Connection
1.4 Driver Installation
1.4.1 OS Support
Windows 7 or later，macOS 10.12 or later, Android 6.0 or later
1.4.2 Install Driver
Please download the driver from our website: www.gaomon.net/download
After finishing installation, you can find the grey driver icon in the system tray area, which means
the driver was installed successfully; when you connect the tablet to computer, the icon will become
orange , which means the driver has already recognized the tablet and you can start using it now.
Notice：
1. Before installing, you need to uninstall other driver of similar products, including the old driver of
this product.
2. Before installing, please close all graphics software and anti-virus software to avoid unnecessary
mistakes.

EN
M1220
www.gaomon.net
7
1.5 Connecting to Android Phone & Tablet
1. Please use Android phone/tablet in portrait mode.
2. Please make sure your phone/tablet OS is Android OS 6.0 or later, and supports OTG function.
3. For some models, you need to go phone or tablet "Settings" then enable "OTG" function.
4. You may need purchase a USB adapter to make GAOMON tablet connect with your Android phone/tablet. For
example a Type-C to USB adapter, or Micro USB to USB adapter, depending on the USB type of your devices.
Notice: For more information on enabling OTG function, please visit:
blog.gaomon.net/faq/solutions_about_otg_functions.
Notes:
1. The pen tablet can work without installing any driver into your phone/tablet.
2. Once connected, the tablet will automatically enter the phone mode, in which the pen can only work in the left
gray area(90.8 x 161.5mm).
3. If it fails to recognize the tablet as the phone mode, please press the button K1, K5 at the same time for 3
seconds to enter phone mode.
4. Please note that the express keys on the pen tablet and the buttons on the pen are not supported in phone
mode.
K1
K5

EN
M1220
www.gaomon.net
8
1.6 Digital Pen Overview
1.7 Pen Nib Replacement

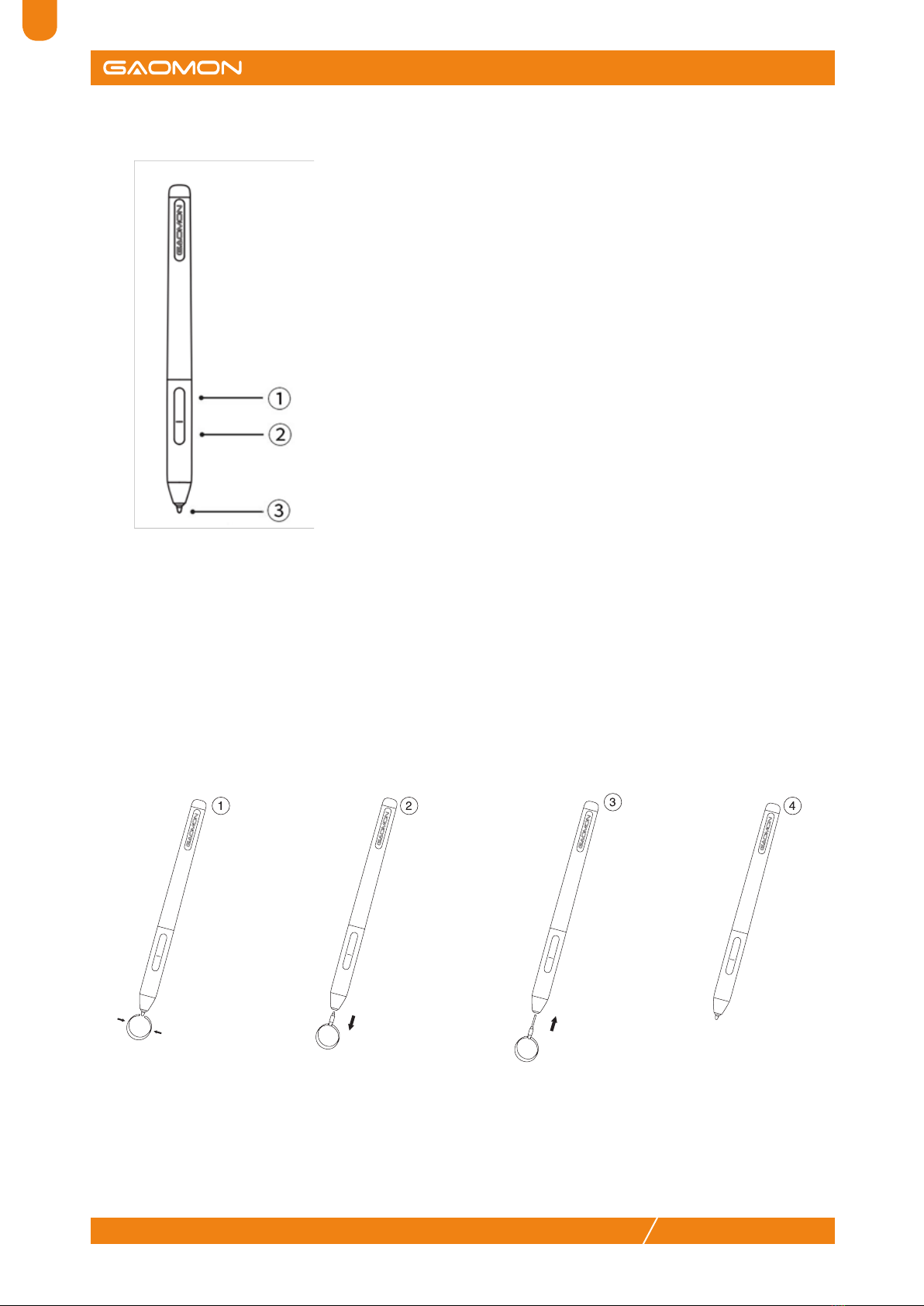

①: Upper button：Right mouse key function(default)
②: Lower button: Eraser function(default)
③: Pen nib: Left mouse key function
The nib will wear off after using for a long time, then you need to replace a new nib.
1) Use the pen nib clip to pull the old nib straight out of the pen. ( ①② )
2) Insert a new pen nib into the stylus and push the nib until it stops. ( ③④）

EN
M1220
www.gaomon.net
9
2.Function Setting
2.1 Device Connection Prompt
1. No Device Detected: The computer does not recognize the tablet.
2. Device connected: The computer has recognized the tablet.

EN
M1220
www.gaomon.net
10
2.2 Working Area Setting

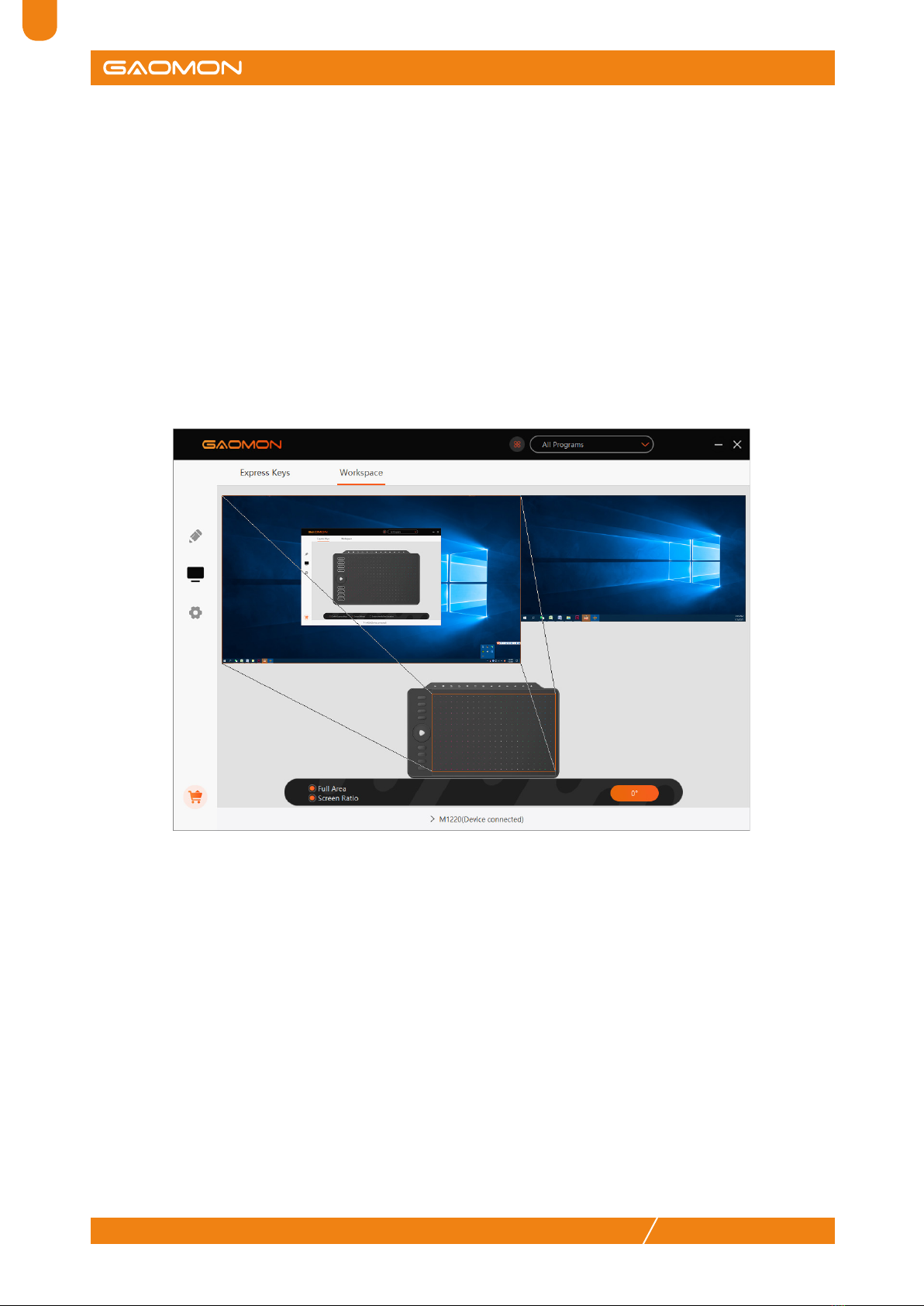

2.2.1 Using Multiple Monitors
Select the monitor to define the relationship between pen movement on the tablet and cursor
movement on the monitor screen.
By default the entire active area of tablet maps to the entire monitor. If more than one monitor is in use
and you are in extended mode, you need to choose the related monitor on the driver interface which
you are going to map to.
If your monitors are in mirror mode (All monitors display the same content), the tablet maps to the
entire space on each monitor and the screen cursor is displayed on each monitor simultaneously.

EN
M1220
www.gaomon.net
11
2.2.2 Working Area Setting
Define the tablet area that will be mapped to the screen area.
1. Full Area: the entire active area of the tablet. This is the default setting.
2. Custom Area: Drag the corners of the foreground graphic to select the screen area.

EN
M1220
www.gaomon.net
12

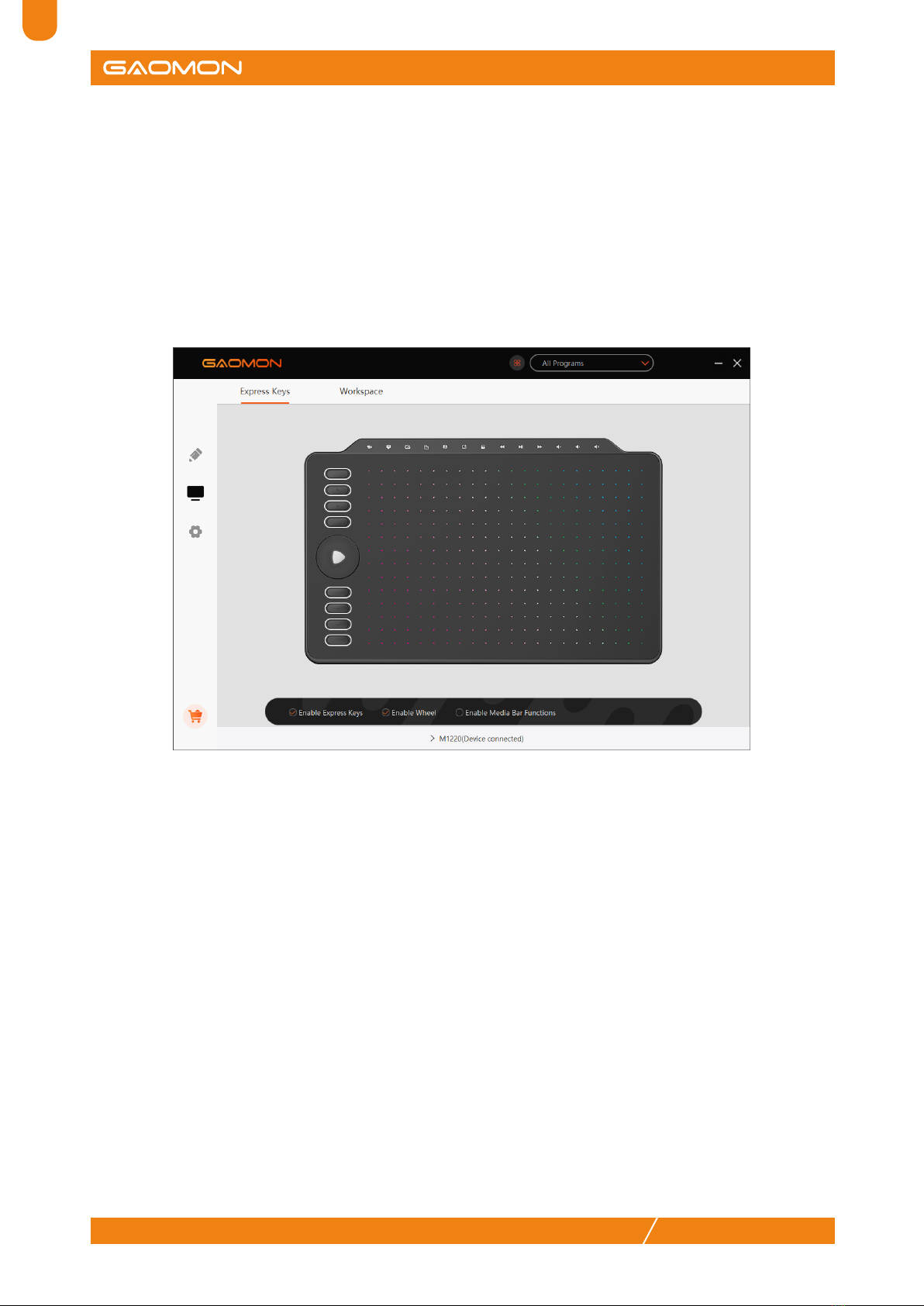

2.3 Shortcuts Keys Function Setting
Default Setting：Place the cursor on the shortcut key or click the shortcut keys to find the default
values.

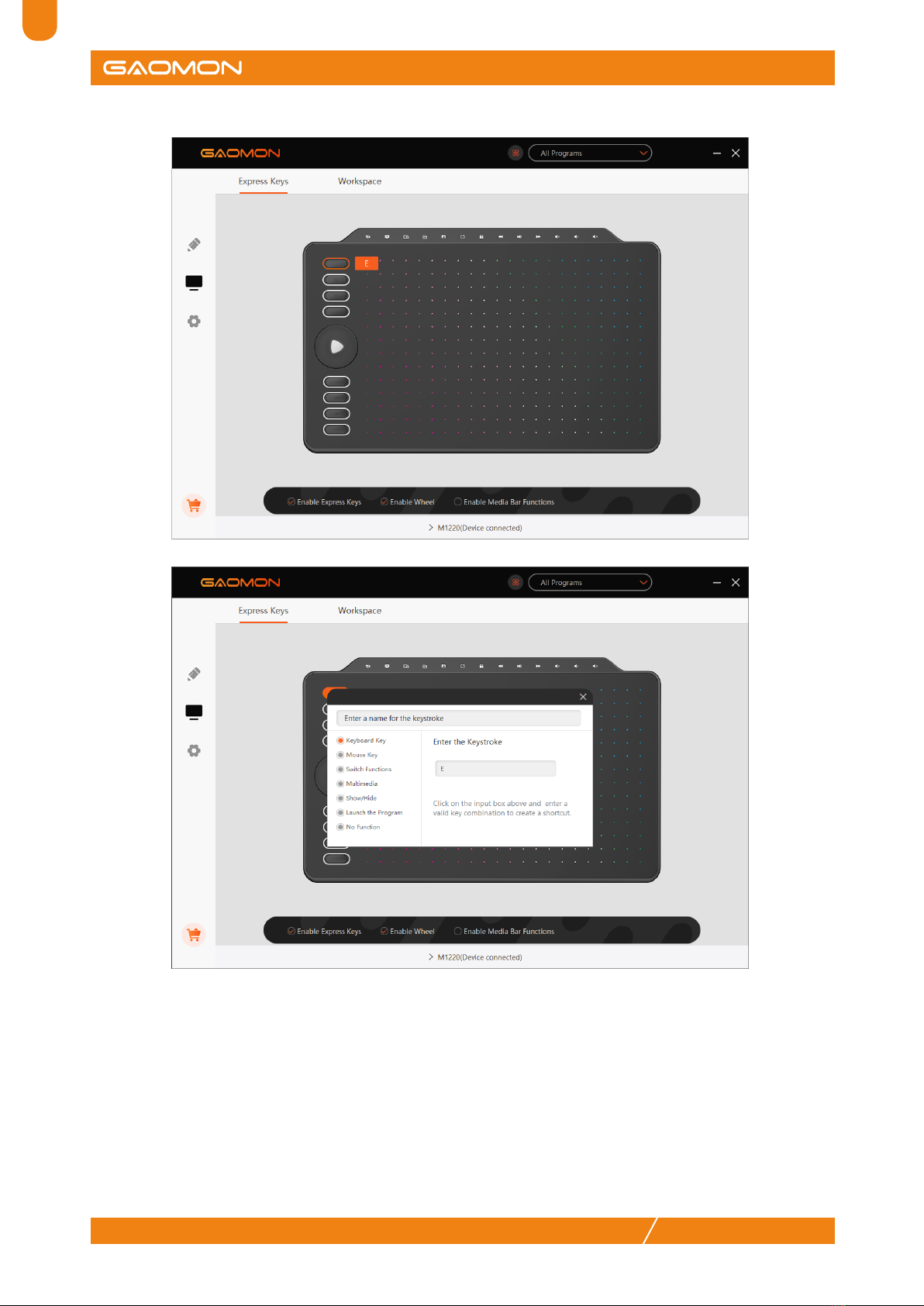

Customized Setting：Select the function to be achieved on the pop-up dialog box, and it will be
saved automatically.
Enable/Disable Press Keys: Check/Uncheck”Enable Press Keys”

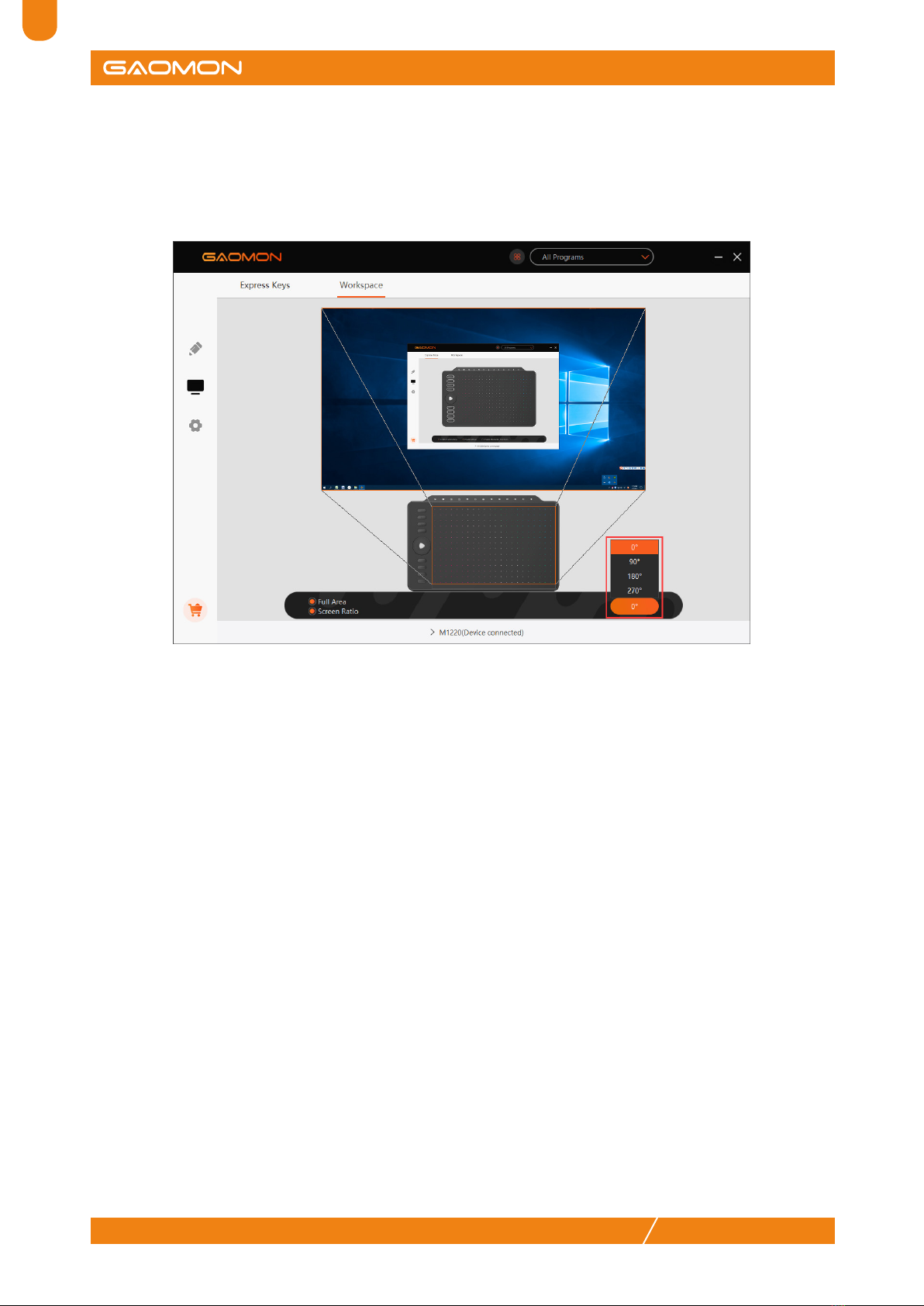

2.2.3 Rotate Working Area
By changing the direction of the tablet to adapt to the left and right hand operation. We provide four
directions of choice.

EN
M1220
www.gaomon.net
13

EN
M1220
www.gaomon.net
14
2.4 Windows Radial /Wheel Function
Windows Radial
The Ring is compatible with Windows Radial Controller Protocol. Windows Radial Function is enabled
by default, therefore you don’t need to check any option to activate it.
Long press the key on the centre of the Dial Controller to call up a tool menu, users can use Dial
Controller to adjust the brush size, pick the color and scroll through the pages, etc.

EN
M1220
www.gaomon.net
15
Wheel mode:
Uncheck the option “Enable Wheel“ to activate the Dial Mode. Press the middle button and three
groups of functions appear at the bottom of the screen, which can be switched by clicking the middle
button.
Default setting: Canvas Zoom in/out, Brush Zoom in/out , Scroll up/down.

EN
M1220
www.gaomon.net
16

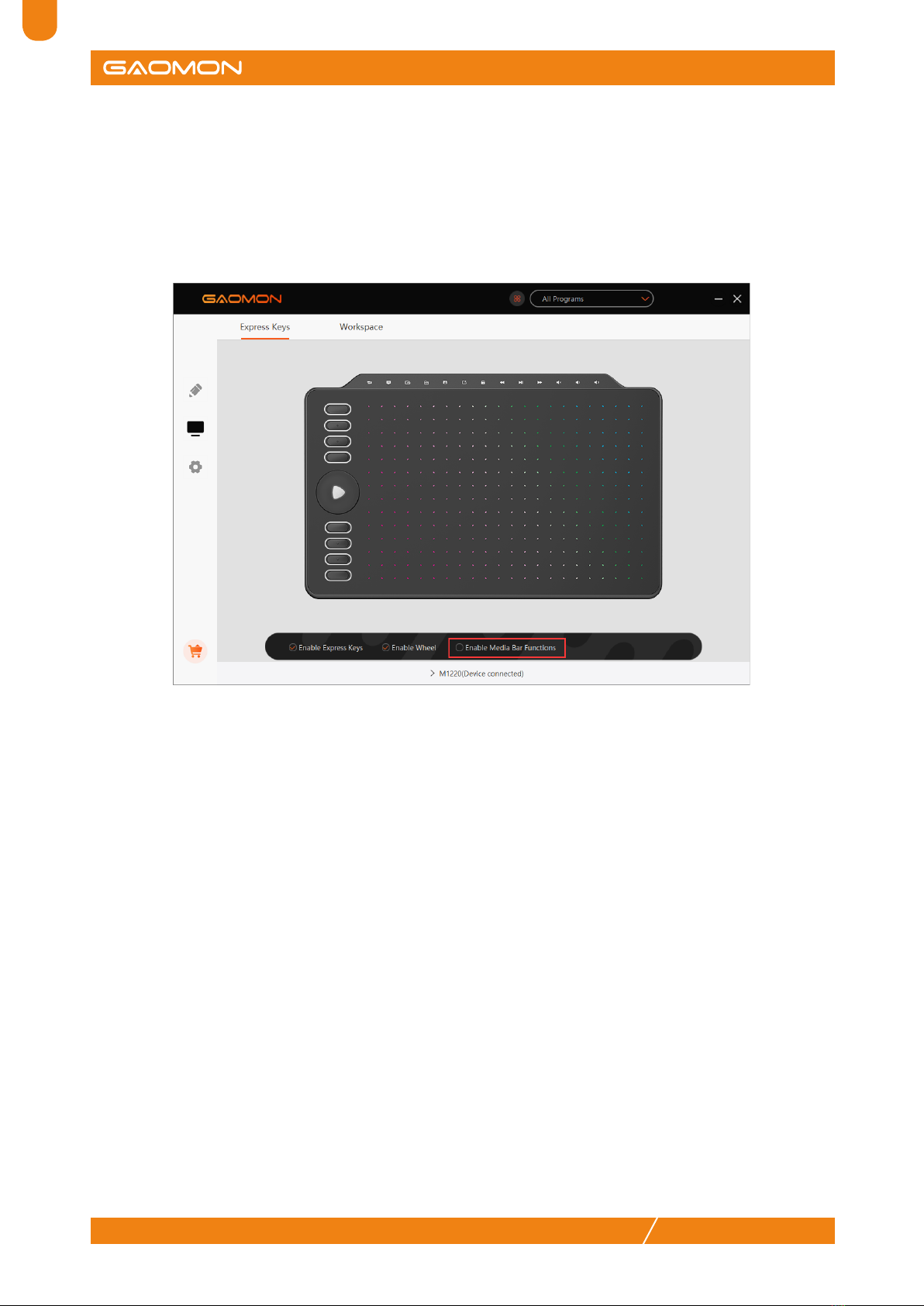

Multimedia Bar is enabled by default.
To disable Multimedia Bar, please uncheck “Enable Media Bar” via the driver.
2.5 Mutlimedia Bar

EN
M1220
www.gaomon.net
17
Customized Setting：Select the function to be achieved on the pop-up dialog box, and it will be
saved automatically.
2.6 Pen Buttons Function Setting

EN
M1220
www.gaomon.net
18
The pressure sensitivity will be changed by dragging the points of the pressure curve.
Drag the points to the upper left for higher sensitivity.
Drag the points to the lower right for lower sensitivity.
2.7 Pressure Sensitivity Setting

EN
M1220
www.gaomon.net
19

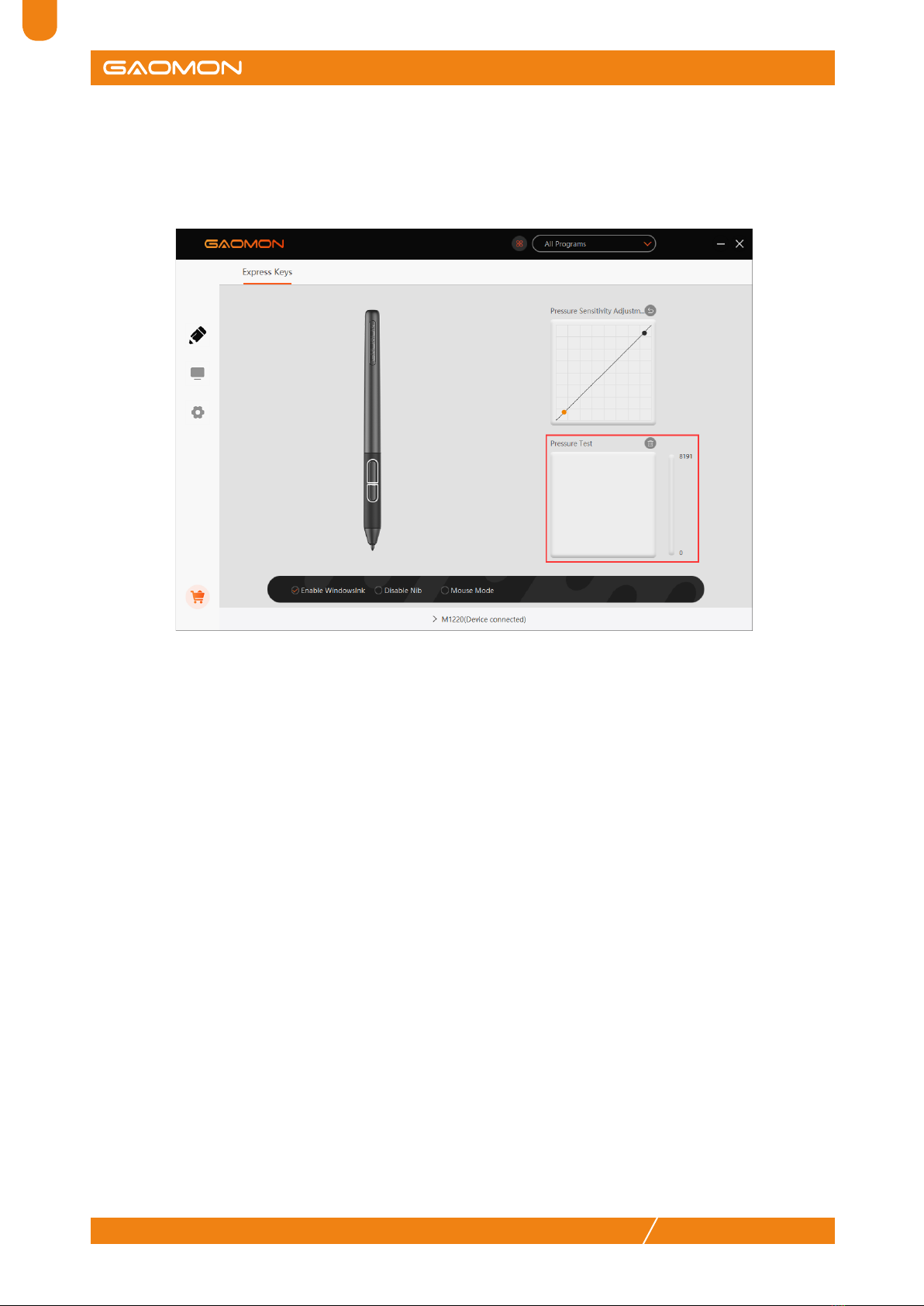

You can gradually apply pressure to the stylus on the screen to test the pressure level.
2.8 Pen Pressure Testing

EN
M1220
www.gaomon.net
20
Microsoft Windows provides extensive support for pen input. Pen features are supported in such as
Microsoft Office、Windows Journal、Adobe Photoshop CC、SketchBook 6 and so on.
2.9 Enable the Windows Ink Feature
