GAOMON S620 User manual

1/ 16 www.gaomon.net
Precautions
1. Please read this manual carefully before using, and keep it well for future reference.
2. Before cleaning the tablet please unplug the power cord and wipe with a soft damp cloth, do
not use any kind of detergents.
3. Don’t expose this product to water or other liquids. Take care to never spill liquids onto the
tablet and pen. Exposing this product to water or other liquids may cause product malfunction or
electrical shock.
4. Do not place the tablet on where is unstable or a height for children reaching easily in order to
avoid danger. Prevent children from swallowing the pen nib or side switch. The pen nib, side
switch, or other movable parts may accidentally be pulled out if children are biting on them.
5. Power off your tablet in locations where/when electronic devices is not allowed. Because the
tablet may cause other electronic devices to malfunction in some locations where/when the use
of electronic devices is not allowed, such as within an airplane, be sure to turn off the tablet.
6. Do not disassemble the tablet and pen. Do not disassemble or otherwise modify the tablet or
pen. Such action may cause heat generation, ignition, electronic shock, or other damage,
including human injury. Disassembling the product will void your warranty.
7. While getting the components replaced, you are supposed to guarantee that the repairman is
using the substitute components specified by the manufacturer. Unauthorized component
replacement might cause fire, electric shocks or other dangers.
8. Do not insert foreign material into the USB port or any other opening of this product. If a metal
object or foreign material is inserted into a port or other opening of this product it may cause the
product to malfunction or burn out, or cause electronic shock.

2/ 16 www.gaomon.net
CONTENTS
Precautions...................................................................................................................1
1. Product Overview....................................................................................................3
1.1 Tablet Introduction........................................................................................................... 3
1.2 Product and Accessories................................................................................................. 3
1.3 Connnecting to Computer ............................................................................................. 4
1.4 Connecting to Android Phone/Tablet ....................................................................... 5
1.5 Driver Installation .............................................................................................................. 6
1.4.1 OS Support....................................................................................................................... 6
1.4.2 Install Driver..................................................................................................................... 6
1.5 Pen Nib Replacement ...................................................................................................... 6
2. Function Setting ...................................................................................................7
2.1 Device Connection Prompt............................................................................................ 7
2.2 Working Area Setting ...................................................................................................... 7
2.3 Shortcuts Keys Function Setting.................................................................................. 9
2.4 Pen Buttons Function Setting .....................................................................................10
2.5 Pressure Sensitivity Setting..........................................................................................11
2.6 Pen Pressure Testing......................................................................................................11
2.7 Enable the Windows Ink feature................................................................................12
2.8 Mouse Mode(Only for specific models)..................................................................12
2.9 Data Export and Import ................................................................................................13
3. Specifications........................................................................................................ 14
4.Trouble Shooting................................................................................................... 15
5. Contact Us for After-sell Service........................................................................ 16

3/ 16 www.gaomon.net
1. Product Overview
1.1 Tablet Introduction
Thanks for buying GAOMON S620 Tablet. This is a new generation of professional
battery-free drawing tablet, which can greatly improve your work efficiency of
painting and creation, and full of fun. You can freely painting and writing,
depicting different lines and colors, just as the pen writes on the paper, which
brings you a real shock experience.
To give you a better understanding and using of your tablet, please read this user
manual carefully. The user manual only shows the information under Windows,
unless otherwise specified, this information applies to both Windows and
Macintosh systems.

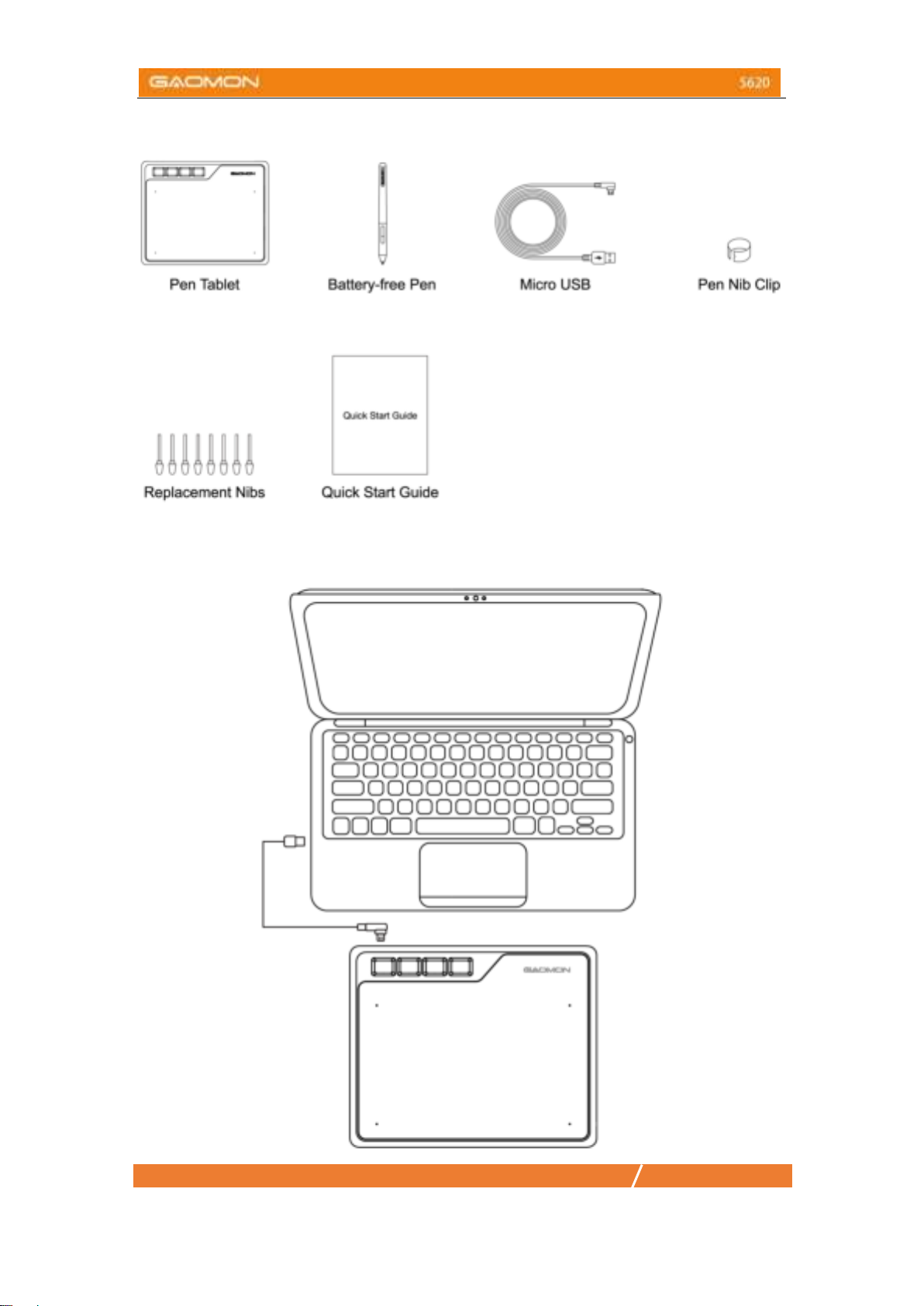

1.2 Product and Accessories
1.2.1 Graphics Tablet

4/ 16 www.gaomon.net
1.2.2 Packing List
1.3 Connnecting to Computer
Connect the tablet to your computer with USB cable.

5/ 16 www.gaomon.net
1.4 Connecting to Android Phone/Tablet
1. Please use Android phone/tablet in portrait mode.
2. Please make sure your phone/tablet OS is as following: Android OS 6.0 or later
3. For some models, you need to go phone or tablet "Settings" then enable "OTG"
function.
4. Choose the right OTG Adapter from package, which depends on USB port type
of your phone/tablet, then connect pen tablet to your phone following the illustra
tions below:
Notes:
1. The pen tablet can works without installing any driver into your phone/tablet.
2. Once connected, the tablet will automatically enter phone mode, in which the
pen can only work in the left gray area.
3. If not recognized the tablet to phone mode, please press the button ①for 3
seconds to enter phone mode
4. Please note that the press keys of pen tablet and digital pen are not supported
in phone mode.

6/ 16 www.gaomon.net
1.5 Driver Installation
1.4.1 OS Support
Windows 7 or later，macOS 10.12 or later
1.4.2 Install Driver
Please download the driver from our website: www.gaomon.net/download
After finishing installation, you can find the driver icon in the system tray area,
which means the driver was installed successfully; when you connect the tablet to
computer, the icon will change to color , which means the driver has already
recognized the tablet and you can start using it now.
Notice：
1. Before installing, you need to uninstall other driver of similar products,
including the old driver of this product.
2. Before installing, please close all graphics software and anti-virus software to
avoid unnecessary mistake.
1.5 Pen Nib Replacement
The nib will be wear off after using for a long time, then you need to replace a new
nib.
1) Use the pen nib clip to pull the old nib straight out of the pen. (①②）
2) Insert a new pen nib into the stylus and push the nib until it stops. (③④）

7/ 16 www.gaomon.net
2.Function Setting

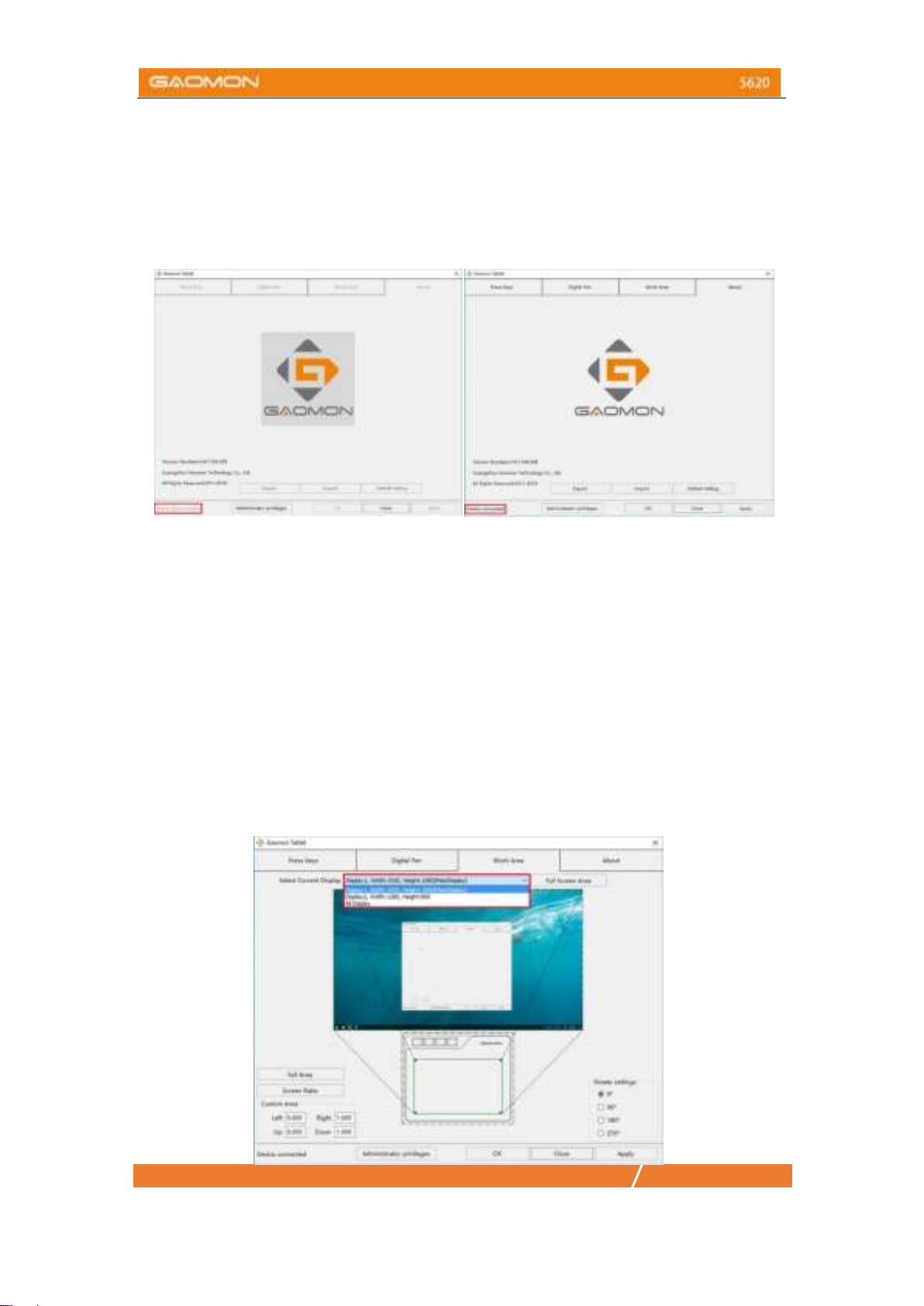

2.1 Device Connection Prompt
1. Device disconnected: The computer does not recognize the tablet.
2. Device connected: The computer has recognized the tablet.
2.2 Working Area Setting
2.2.1 Using Multiple Monitors
Select the Working Area tab to define the relationship between pen movement on
the tablet and cursor movement on the monitor screen.
By default the entire active area of tablet maps to the entire monitor. If more than
one monitor is in use and you are in extended mode, you need to choose the
related monitor on the driver interface which you are going to map to.
If your monitors are in mirror mode (All monitors display the same content), the
tablet maps to the entire space on each monitor and the screen cursor is
displayed on each monitor simultaneously.

8/ 16 www.gaomon.net
2.2.2 Working Area Setting
Define the tablet area that will be mapped to the screen area.
1. Full Area: the entire active area of the tablet. This is the default setting.
2. Custom Area: 1.> Enter coordinate values. Or 2.> Drag the corners of the
foreground graphic to select the screen area.
2.2.3 Rotate Working Area
By changing the direction of the tablet to adapt to the left and right hand
operation. We provide four directions of choice.

9/ 16 www.gaomon.net

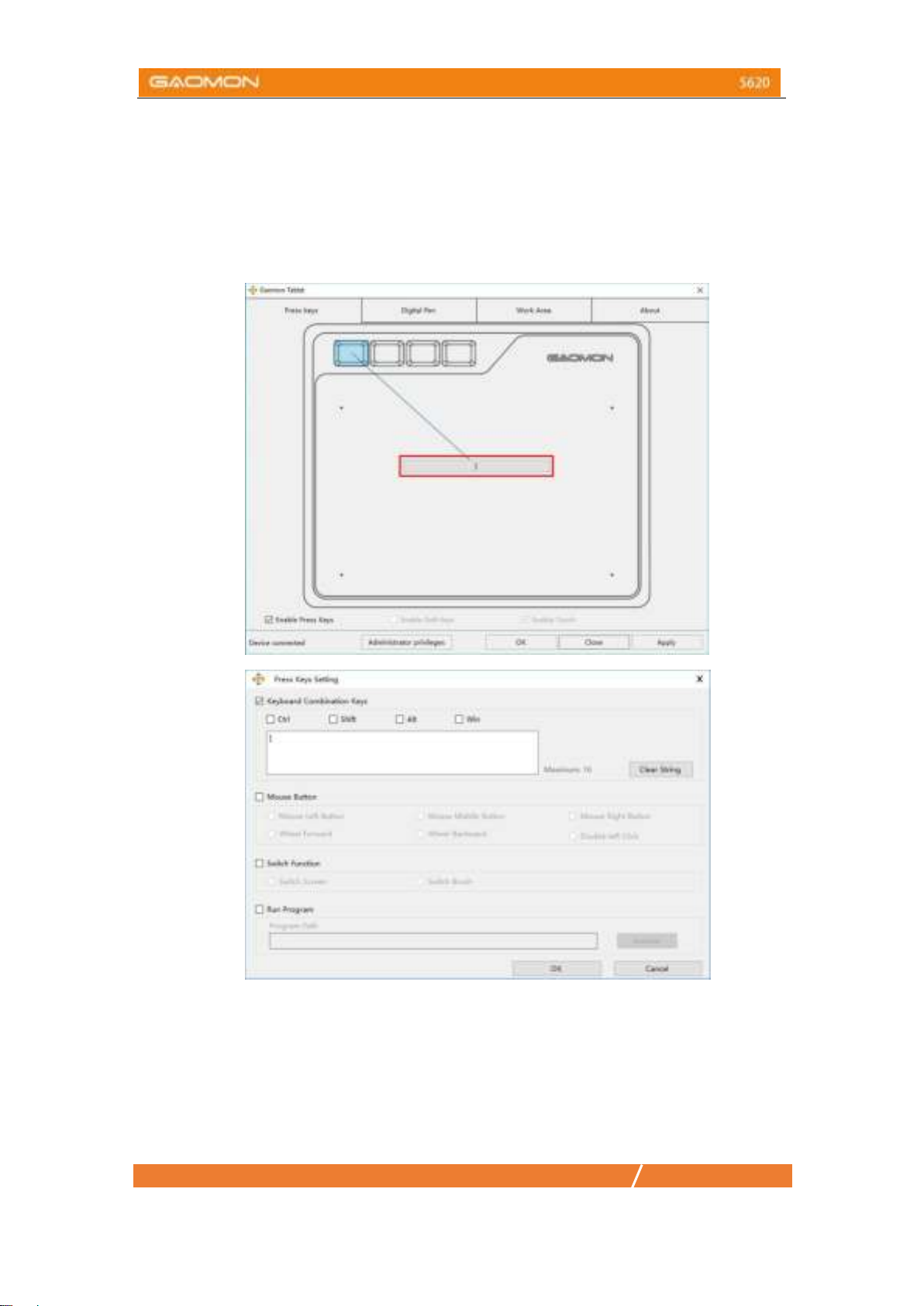

2.3 Shortcuts Keys Function Setting
Default Setting：Place the cursor on the shortcut key or click the press key to find
the default values.
Customized Setting：Select the function to be achieved on the pop-up dialog
box, then click APPLY or OK to take effect.
Enable/Disable Press Keys: Check/Uncheck”Enable Press Keys”
