Garden Treasures PG202H User manual

1
Garden Treasures® is a registered trademark
of LF, LLC. All Rights Reserved.
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 8 p.m., EST, Monday - Friday.
ITEM #0876155
GAS PATIO HEATER
MODEL #PG202H
Français p. 18
AB17940

2
TABLE OF CONTENTS
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the
appliance and immediately call your
gas supplier or fire department.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
An LP-cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
Improper installation, adjustment,
alteration, service or maintenance can
cause property damage, injury or death.
Read the installation, operation and
maintenance instructions thoroughly
before installing or servicing this
equipment.
For Outdoor Use Only
Product Specifications…….....................................................................................................3
Package Contents……...........................................................................................................4
Hardware Contents…….........................................................................................................5
Preparation……....……….......................................................................................................5
Safety Information……...........................................................................................................6
Assembly Instructions…….....................................................................................................8
Operating Instructions……...................................................................................................13
Care and Maintenance……..................................................................................................15
Troubleshooting…….............................................................................................................16
Warranty……........................................................................................................................16
Replacement Parts List…….................................................................................................17
DANGER
WARNING
G
WARNING:
WARNING

3
PRODUCT SPECIFICATIONS
Certification
CSA
Height Overall
86.6 inches
Reflector Diameter
34.1 inches
Rated Heat Input
47,000 BTU/hr
Fuel
Propane-LP
Gas Supply
20-lb. LP-Gas Cylinder
Manifold Pressure
11 inches W.C.
Injector Size (Diameter)
2.14 mm
Safety Features
Thermocouple & Tilt Switch
Gas Supply Pressure
Max 150 PSI, Min 5 PSI

4
PACKAGE CONTENTS
PART
DESCRIPTION
QUANTITY
PART
DESCRIPTION
QUANTITY
A
Dome
1
I
Deck Ring
1
B
Burner Assembly
1
J
Door Beam
1
C
Pole
1
K
Back Panel
1
D
Table
1
L
Right Side Panel
1
E
Side Panel Bracket
4
M
Tank Holder
1
F
Left Side Panel
1
N
Base Assembly
1
G
Handle
1
O
Cover
1
H
Door Assembly
1
P
Hardware Pack
1
A
B
C
A
D
E
F
G
H
L
K
J
N
O
I
M
P

5
HARDWARE CONTENTS
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 30 minutes.
Tools Required for Assembly (not included): Phillips screwdriver and adjustable open wrench.
AA BB DD
EE
CC
FF GG
AA
BB
CC
DD
EE
FF
GG
M15 x 6.5 mm
Washer
Qty. 2
Wing Nut
Qty. 3
Battery
Size AAA
Qty. 1
M6 x 16 mm
Bolt
Qty. 22
M6 x 10 mm
Hexagon Head
Bolt
Qty. 4
M5 x 8mm
Bolt
Qty. 4
Reflector
Spacer
Qty. 3

6
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
·CALIFORNIA PROPOSITION 65 WARNING: Chemicals known to the state of California to cause
cancer, birth defects or other reproductive harm are created by combustion of propane.
·The installation must conform with local codes or, in the absence of local codes, with the National
Fuel Gas Code, ANSI Z223.1 /NFPA 54, Natural Gas and Propane Installation Code, CSA
B149.1, or Propane Storage and Handling Code, B149.2.
·Young children should be carefully supervised when they are in the area of the item.
·Keep the ventilation opening(s) of the cylinder enclosure free and clear from debris. Use this
appliance in a well-ventilated space only. Do not use it in a building, garage or any other enclosed
area.
·Use this appliance in outdoor areas described below:
(a) With walls on all sides, but at least one permanent opening at ground level and no overhead
cover.
(b) Within a partial enclosure that includes overhead cover and no more than two walls. These
walls may be parallel or at right angles to each other.
(c) Within a partial enclosure that includes overhead cover and no more than two walls. The
following shall apply:
(i) One wall that is equivalent to at least 25% of the total wall area is completely open.
(ii) 30% or more in total of the remaining wall area is open and unrestricted.
·Store the cylinder outdoors in a well-ventilated area (not in a building, garage, or other enclosed
area) out of the reach of children.
·Do not store a spare LP-gas cylinder under or near this appliance.
·Never fill the cylinder beyond 80 percent full.
·Inspect the visible portion of the hose before each use of the appliance.
·Perform a leak test with a soapy solution:
(a) To check gas connections.
(b) After connecting a new cylinder.
(c) Upon re-assembly after disassembly.
Please refer to the leak test procedure indicated in this instruction manual on page 13.
·Replace the hose assembly prior to the appliance being put into operation if there is evidence of
excessive abrasion or wear, or if the hose is damaged. The pressure regulator and hose
assembly supplied with the appliance must be used. The replacement hose assembly/regulator
shall be that specified by the manufacturer.
·Place the propane hose with regulator assembly out of pathways where people may trip over it or
in areas where the hose will not be subjected to accidental damage.
WARNING
DANGER

7
SAFETY INFORMATION
·The cylinder used must include a collar to protect the cylinder valve.
·Installation and repair should be done by a qualified service person; the heater should be
inspected before use and at least annually by a qualified service person.
·Do not obstruct the flow of combustion and ventilation air.
·The LP-gas supply cylinder to be used must be:
(a) Constructed and marked in accordance with the Specifications for LP-gas cylinders of the
U.S. Department of Transportation of Dangerous Goods and Commission, CAN/CSA-B339,
as applicable;
(b) Provided with a listed overfilling prevention device; and
(c) Provided with a cylinder connection device compatible with the connection for the appliance.
·Disconnect the cylinder when the appliance is not in use.
·Storage of an appliance indoors is permissible only if the cylinder is disconnected and removed
from the appliance.
·Materials or items when stored under the heater will be subjected to intense heat and could be
seriously damaged.
·Clothing or other flammable materials should not be hung on the heater or placed on, under or
near the heater.
·Children and adults should be alerted to the hazards of high surface temperatures and should
stay away from the item to avoid burns or clothing ignition.
·Place the dust cap tightly on the cylinder valve outlet whenever the cylinder is not in use. Install
only the type of dust cap on the cylinder valve that is provided with the cylinder valve. Other types
of caps or plugs may result in a propane leak.
CAUTION
·Minimum clearance to the combustible materials is 44 inches.
·If you don’t feel the heater is on a stable surface, use a ground screw to fix the base of the heater
on the surface where the heater is installed. Fix the base on an incline no wider than 15 degrees.
·This heater is equipped with a battery-operated ignition device; please refer to the Assembly
Instructions on page 12.
·Any guard or other protective device removed for servicing the heater must be replaced prior to
operating the heater.
·More frequent cleaning may be required as necessary. It is imperative that the control
compartment, burners and circulating air passageways of the heater be kept clean.
·Keep the appliance area clear and free from combustible materials, gasoline and other flammable
vapors and liquids.
·Inspect the visible portion of the hose before each use of the appliance. When portions of the
hose are located within the confines of the heater post, instructions to inspect the entire hose
assembly at least annually. If disassembly is required, the instructions shall also include the
proper procedure for leak checking the connections upon re-assembly.
·Keep this manual for future reference and to educate new users about this product.

8
ASSEMBLY INSTRUCTIONS
Hardware Used
Hardware Used
Hardware Used
2. Attach the two Side Panels to Base Assembly
(N) using M6 x 16 mm bolts (AA).
3. Attach Back Panel (K) to the Side Panels using
M6 x 16 mm bolts (AA).
1. Attach two Side Panel Brackets (E) to Left Side
Panel (F) and Right Side Panel (L) using M6 x 16
mm bolts (AA).
AA M6X10 Bolt X 4
M6 x 16 mm Bolt
AA
AA M6X10 Bolt X 4
M6 x 16 mm Bolt
AA
2
F
MAA
L
Magnet
N
L
F
AA
Magnet
3
FK
AA J
E
AA
E
F
L
K
AA M6X10 Bolt X 4
M6 x 16 mm Bolt
AA
AA
F
E
1

9
ASSEMBLY INSTRUCTIONS
Hardware Used
Hardware Used
GG
HH
4. Attach Door Beam (J) to Left Side Panel (F)
and Right Side Panel (L) using M6 x 16 mm
bolts (AA).
5. Attach Handle (G) into Door Assembly (H) using
M6 x 16 mm Bolt (AA) and M15 x 6.5 mm Washer
(GG).
6. Insert the preassembled sheath on the bottom
of Door Assembly (H) into the Base Assembly
(N). Then, push down the preassembled
spring sheath at the top of Door Assembly (H)
until it locks into Door Beam (J).
AA M6X10 Bolt X 4
M6 x 16 mm Bolt
AA
GG
J
L
H
6
N
H
J
M15 x 6.5 mm Washer
x 2
AA M6X10 Bolt X 4
AA
GG
x 2
M6 x 16 mm Bolt
5
H
G
AA
GG
4
L
F
J
AA
J
F
L
J
J
AA

10
ASSEMBLY INSTRUCTIONS
C
Hardware Used
Hardware Used
7. Attach Table Assembly (D) to the panels using
M6 x 16 mm bolts (AA).
AA M6X10 Bolt X 4
M6 x 16 mm Bolt
AA
8. Insert the Pole (C) into the table assembly and
secure in place with M6 x 10 mm bolts (BB).
Then, feed the Deck Ring (I) over the Pole and
place on the table.
BB M6X10 mm Bolt X 4
BB
M6 x 10 mm Bolt
BB
D
C
C
I
D
8
BB
C
D
C
D
I
9
L
F
M
9. From inside the cabinet, secure the left end of
the tank holder (M) into the holder
preassembled on left panel assembly (F).
Then lock the other end of the tank holder (M)
into the holder on right panel assembly (L).
Note: The tank holder (M) is highly
recommended to be installed as it can prevent
gas tank from shaking.
AA
D
H
F
7
H
F
D
AA

11
ASSEMBLY INSTRUCTIONS
Hardware Used
Hardware Used
Hardware Used
10. Attach Reflector Spacers (DD) to the Burner
Assembly (B).
11. Attach the Burner Assembly (B) to the Pole
(C) and secure together with M5 x 8mm
bolts (CC).
DD Reflector
Spacer X3
Reflector Spacer
DD
CC M5X10 mm Bolt X 4
CC
M5 x 8mm Bolt
12. Attach the Dome (A) to the Reflector Spacers
(DD) using Wing Nuts (EE).
JJ x 3
Wing Nut
EE
Wing Nut
EE
DD
B
12
A
DD
EE
B
B
C
CC
11
C
B
CC
DD
B
B
DD
10

12
ASSEMBLY INSTRUCTIONS

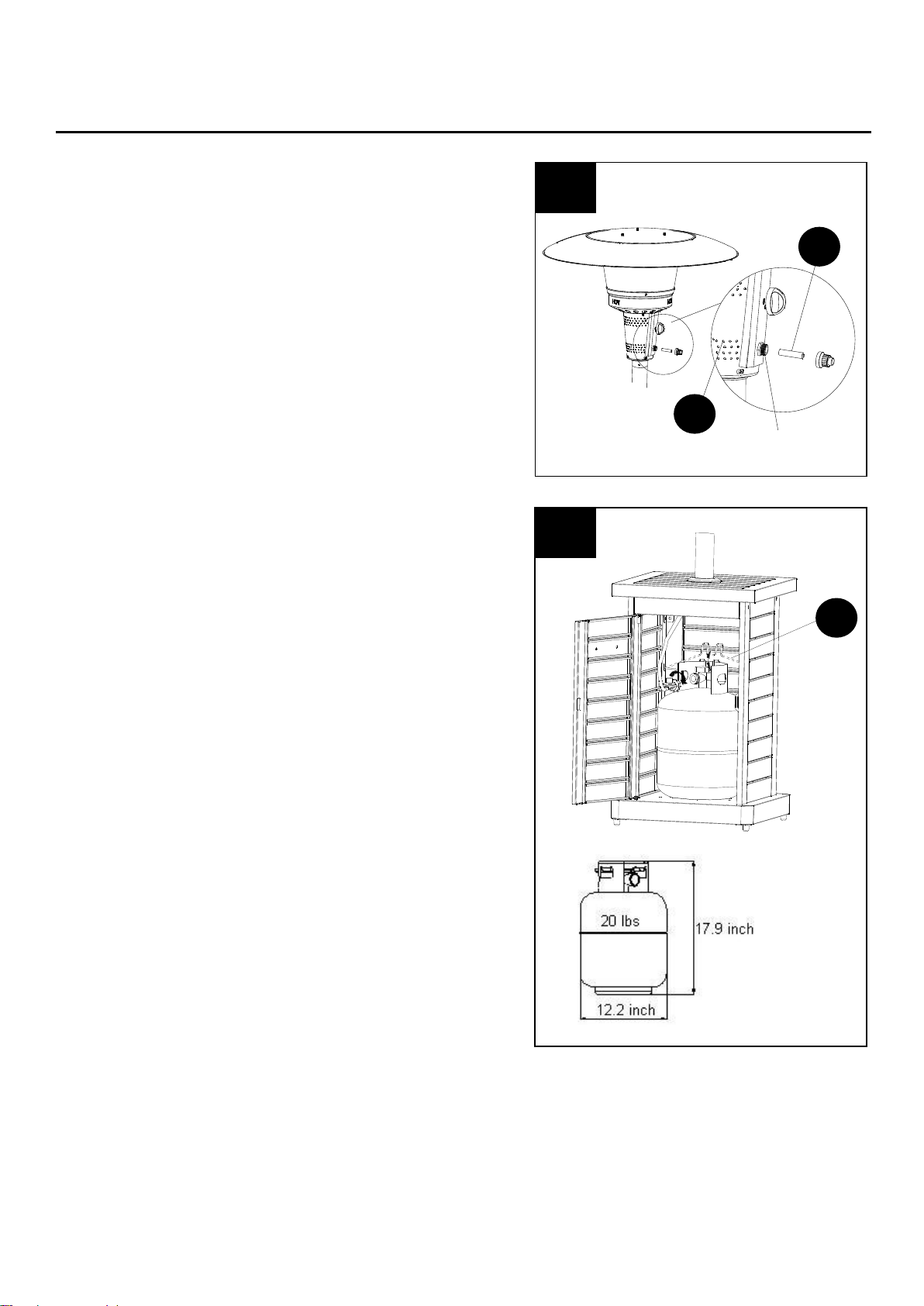

14. Connect the preassembled regulator
assembly from burner assembly (B) to a
20-lb. LP-gas cylinder (sold separately).
Line up threads on cylinder fitting with those
on regulator and rotate clockwise until tight.
HANDTIGHTENONLY.DONOTUSEANYHAND
TOOLS TO MAKE THIS CONNECTION. Be
careful not to cross threads when screwing in
fitting.
To disconnect the LP-gas cylinder, first
make sure the cylinder valve is in the "OFF"
position. Then, turn the knob on the
regulator assembly counterclockwise until it
is loose.
Warning
Before connecting, be sure there is no
debris caught in the head of the LP-gas
cylinder regulator valve or in the head of the
burner and burner ports.
Check for leaks after connecting the gas
cylinder every time according to the
“Checking for Leaks” section.
13. To install the battery (FF), unscrew the igniter
cap preassembled to burner assembly (B).
Insert battery (FF) into the igniter, ensuring the
positive "+" end faces outward. Replace the
igniter cap.
14
9,07kg
30,98 cm
45,46 cm
M
-+
B
FF
Igniter
13
B
FF
igniter

13
OPERATING INSTRUCTIONS
LightingInstructions
LightingInstructions
1.EnsuretheLP-gascylindervalveandtheitem's
controlknobareinthe"OFF" position.Ifnot,turnoff and
wait5minutesforanygastoclear.
2. Turn theLP-gas cylinder valve "ON" and push the
item's control knob in and rotate it to "PUSH." Then,
push the item's igniter button and control knob until
the burner lights. Note: If the burner fails to remain
lit or is extinguished, repeat step 2 after waiting the
necessary 5 minutes when completing the shutoff
process.
3. Once the burner has lit, continue to hold the control
knobinfor30 seconds,thenrelease.
4.Turnthecontrolknobfrom"LOW" to "HIGH" until
the desired heat setting is reached.
5.Visuallycheck the burner flame against the
illustrations below:
1) Flame should be blue with slight yellow tips.
2) You should see a smaller flame in LOW position
than seen on HIGH. Perform flame check prior
to each use. If only low flame is seen, refer to
“Burner flame is low” in the
“TROUBLESHOOTING” on page 16.
1
Forcomplete shutdown:
1. Turn the item's control knob to "PUSH", then push and turn to "OFF" for a complete shutoff.
2. Turn the LP-gas cylinder valve to the "OFF" position, then remove the tank, if desired.
CheckingforLeaks
a.Makeleak solutionbymixing1partliquiddish soapand3 partswater.
b. Spoon or brush several drops (or use squirt bottle) of the solution onto the gas hose/regulator and
regulator/cylinder andhoseconnections.
c.Turnongascylindervalve.Inspecttheconnectionsandlookforbubbles.
1.Ifnobubbles appear,theconnection is safe.
2. If bubbles appear, there is leakage. Loosen and re-tighten this connection. If it still leaks, please call
customerservice.
Note: Whenever gas connections are loosened, removed or re-assembled, you must perform a complete
leaktest.
1
Igniter
push
HIGH
LOW
PUSH
OFF

14
OPERATING INSTRUCTIONS
CARE AND MAINTENANCE
·Abrasive cleaners will damage this product.
·Never use oven cleaner to clean any part of heater.
·Do not clean any heater part in a self-cleaning oven. The extreme heat will damage the finish.
·More frequent cleaning may be required as necessary. It is imperative that control compartment,
burners and circulating air passageways of the heater be kept clean.
·Spiders and insects can create a dangerous condition that may damage heater or make it unsafe.
Keep burner area clean of all spiders, webs or insects. Clean burner holes by using a heavy-duty
pipe cleaner. Compressed air may help clear away smaller particles.
·Inspect heater before each use.
·Have heater inspected annually and repairs should be made by a qualified service person.
·Check heater immediately if any of the following conditions exist:
a. The smell of gas in conjunction with extreme yellow tipping of burner flames
b. Heater does not reach proper temperature.
c. Heater’s glow is excessively uneven.
d. Burner makes popping noises during use.
Note: A slight pop is normal when burner is extinguished.
·Carbon deposits may create a fire hazard. Keep dome and emitter clean at all times.
·Do not clean heater with combustible or corrosive cleaners. Use warm, soapy water.
·Do not paint engine, engine access panel or dome.
·This heater should be thoroughly cleaned on a regular basis.
·After a period of storage and/or non use, check for leaks, burner obstructions and inspect for any
abrasion, wear, cuts to the hose.
·Periodically check the hose located within the confines of the cylinder housing for damage.
Inanycaseof failureofnormal ignition,pleaseusetheignition bar
withamatchtoreachtheburnerforignitionthrough thehole onthe
bottomof burnerdiffuser. Insert the match from the back side of
the burner assembly opposite to the control panel.
WARNING
If at any time you are unable to light burner and smell gas, wait 5
minutestoallow gastodissipatebeforeattemptingtolight heater.
WARNING
DO NOT touch or move heater for at least 45 minutes after use.
Allow emitterand dometocoolbeforetouching.
WARNING
Avoidinhaling fumes emitted from the heater’s first use. Smoke and
odor from the burning of oils used in manufacturing will appear.
Both smoke and odor will dissipate after approximately 30 minutes.
TheheatershouldNOTproducethickblacksmoke.
2

15
CARE AND MAINTENANCE
Cleaning
·Wipe surfaces clean with mild dish detergent or baking soda.
·For stubborn surfaces, use a citrus-based degreaser and a nylon scrubbing brush.
·Rinse clean with water.
Note: While cleaning the unit, be sure to keep the area around the burner dry at all times. Do not
submerge the control valve assembly. If the gas control is submerged in water, do NOT use it. It
must be replaced.
TIP: Use high-quality automobile wax to help maintain the appearance of the heater. Apply to
exterior surfaces from the pole down. Do not apply to emitter screen or domes
Maintenance
·Keep exterior surfaces clean.
·Air flow must be unobstructed. Keep controls, burner and circulating air passageways clean.
Signs of possible blockage include:
Gas odor with extreme yellow tipping of flame.
Heater does NOT reach the desired temperature.
Heater glow is excessively uneven.
Heater makes popping noises.
Note
In a salt-air environment (such as near an ocean), corrosion occurs more quickly than normal.
Frequently check for corroded areas and repair them promptly.
Storage
Between uses or during periods of extended inactivity:
·Turn control knob to "OFF".
·Disconnect LP cylinder and move to a secure, well-location outdoors.
·Store heater upright in an area sheltered from direct contact with inclement weather (such as rain,
sleet, hail, snow, dust and debris).
Note
Never leave LP gas tank exposed to direct sunlight or excessive heat.
·If desired, use cover(s) to protect the heater and help prevent buildup in air passages.
CAUTION
Wait until heater is cool before covering.

16
TROUBLESHOOTING
PROBLEM
POSSIBLE CAUSE
CORRECTIVE ACTION
Burner doesn’t light.
1. Gas pressure is low.
2. The orifice is blocked.
3. Control knob is not in “ON”
position.
1. Turn the gas cylinder valve “OFF”
and replace the cylinder.
2. Clear blockage.
3. Turn control knob to “ON”
Burner flame is low.
1. Gas pressure is low.
2. The control knob is not
positioned at “High”.
3. The burner jet is partially
blocked.
4. Outdoor temperature is less
than 40°F and/or tank is less
than 1/4 full.
5. Supply hose is bent or kinked.
1. Turn the gas cylinder valve “OFF”
and replace the cylinder.
2. Position the control knob at “High”.
3. Clear blockage.
4. Use a full gas cylinder.
5. Straighten the hose.
Carbon buildup.
Seasonal accumulation.
Wipe off before lighting.
Thick black smoke.
Blockage in burner.
Remove blockage and clean burner
inside and outside.
WARRANTY
The appliance has been manufactured under the highest standards of quality and workmanship. We
warrant to the original consumer/purchaser that all aspects of this product will be free of defects in
material and workmanship for one (1) year from the date of purchase. Replacements for any
defective part will be supplied free of charge for installation by the consumer. Defects or damage
caused by the use of other than genuine parts are not covered by this warranty. This warranty shall
be effective from the date of purchase as shown in the purchaser’s receipt. This warranty is valid for
the original consumer purchaser only and excludes industrial, commercial or business use of the
product, product damage due to shipment or failure which results from alteration, product abuse or
product misuse, where performed by a container, service company or consumer. We will not be
responsible for labor charges and/or damage incurred in installation, repair or replacement, nor for
incidental or consequential damage. This warranty gives you specific legal rights, and you may also
have the other rights that vary from state to state.

17
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-800-643-0067, 8 a.m. - 8 p.m.,
EST, Monday –Friday.
PART
DESCRIPTION
PART #
1
Dome
5007156
2
Burner Assembly
5214157
2.1
Burner Chamber Assembly
5207453
2.2
Insulation plate
CH20201
2.3
Tilt Switch
2310662
2.4
Thermocouple
2409043
2.5
Ignition Pin
2409604
2.6
Knob
2413334
2.7
Igniter
2408276
3
Pole
5214097
4
Deck Ring
5201949
5
Table Assembly
5214098
6
Left Side Panel Assembly
5214099
7
Door Beam
5214103
8
Door Assembly
5214101
9
Door Handle
2414226
10
Base Assembly
5214105
11
Base Bracket Assembly
5214106
12
Side Panel Bracket
5214104
13
Back Board Assembly
5214102
14
Right Side Panel Assembly
5214100
15
Tank Holder
2414284
16
Magnet
2306622
17
Wheel
2404747
18
Wheel Bracket
5214107
19
Floor Mat
2404076
20
Weight Plate
2406533
21
Hardware Pack
5214108
22
Cover
3113996
19
20
P
Printed in China
V01
19
20
3
9
8
7
6
5
4
10
11
12
13
17
16
15
14
18
21
22
2.1
2.2
2.3
2.4
2.5
2.6
2.7

18
Garden Treasures® est une marque de commerce
déposée de LF, LLC. Tous droits réservés.
JOIGNEZ VOTRE REÇU ICI
Numéro de série Date d’achat
Des questions, des problèmes, des pièces manquantes? Avant de retourner l’article
au détaillant, appelez notre service àla clientèle au 1 800 643-0067, entre 8 h et 20 h
(HNE), du lundi au vendredi.
ARTICLE #0876155
CHAUFFERETTE À GAZ
POUR LA TERRASSE
MODÈLE #PG202H

19
TABLE DES MATIÈRES
POUR VOTRE SÉCURITÉ
Si vous sentez une odeur de gaz :
1. Coupez l’alimentation en gaz de
l’appareil.
2. Éteignez toute flamme nue.
3. Si l’odeur persiste, tenez-vous à
distance de l’appareil et appelez
immédiatement votre fournisseur de gaz
ou le service d’incendie.
Ne stockez pas et n’utilisez pas
d’essence ni toute autre vapeur ou
liquide inflammable à proximité de cet
appareil ou de tout autre appareil.
Aucune bouteille de gaz de pétrole
liquéfiénon utilisée ne doit être rangée à
proximitéde cet appareil ou de tout autre
appreil.
Une installation, un réglage, une
modification, une utilisation ou un
entretien inadéquat peut causer des
dommages matériels, des blessures ou
la mort. Lisez attentivement le mode
d’emploi et les instructions sur le
fonctionnement et l’entretiem avant de
procéder à l’installation ou à l’entretien
de cet équipement.
Pour un usage à l’extérieur seulement.
Caractéristiques du produit……............................................................................................20
Contenu de l’emballage…….................................................................................................21
Quincaillerie incluse…….......................................................................................................22
Préparation…....................................................................................................... 22
Consignes de sécurité……...................................................................................................23
Instructions pour l’assemblage……......................................................................................25
Mode d’emploi……...................................................................................................30
Entretien……..................................................................................................31
Dépannage…….............................................................................................................33
Garantie……........................................................................................................................33
Liste des pièces de rechange…….......................................................................................34
DANGER
AVERTISSEMEN
T
AVERTISSEMENT
AVERTISSEMENT

20
CARACTÉRISTIQUES DU PRODUIT
Certification
CSA
Hauteur totale
219,96 cm
Diamètre du réflecteur
86,61 cm
Débit calorifique nominal
47,000 BTU/h
Combustible
Propane (pétrole liquéfié)
Alimentation en gaz
Bouteille de gaz propane liquéfiéde 9,07 kg
Pression d’admission
Colonne d’eau de 27,94 cm
Dimension de l’injecteur (diamètre)
2,14 mm
Mesures de sécurité
Thermocouple et interrupteur àbascule
Pression d’alimentation en gaz
Maximum de 150 lb/po2, minimum de 5 lb/po2
