Garmin Edge 200 User manual

EDGE®
200
GPS-ENABLED CYCLING COMPUTER
December
2012
Printed
in
Taiwan

Getting
Started
Always
consult
your
physician
before
you
begin
or
modify
any
exercise
program.
See
the
Important
Safety
and
Product
Information
guide
in
the
product
box
for
product
warnings
and
other
important
information.
When
using
your
Edge
®
the
first
time,
complete
the
following
tasks:
1.
Charge
the
Edge
(page
2).
2.
Install
the
Edge
(page
3).
3.
Tum
on
the
Edge
(page
4).
4.
Acquire
satellites
(page
6).
5.
Go
for
a
ride
(page
6).
6.
Save
your
ride
(page
6).
7.
Get
Garmin
Connect™
software
(page
7).
8.
Transfer
history
to
your
computer
(page
8).
About
the
Battery
This
product
contains
a
lithium-ion
battery.
See
the
Important
Safety
and
Product
Information
guide
in
the
product
box
for
product
warnings
and
other
important
information.
The
Edge
is
powered
by
a
built-
in,
lithium-ion
battery
that
you
can
recharge
using
the
AC
charger
or
the
USB
cable
included
in
the
product
box.
NOTE:
The
Edge
will
not
charge
when
outside
the
temperature
range
of
32°F
to
122°F
(0°C
to
50°C).
Charging
the
Edge
NOTICE
To
prevent
corrosion,
thoroughly
dry
the
mini-
USB
port,
the
weather
cap,
and
the
surrounding
area
before
charging
or
connecting
to
a
computer.

NOTE:
To
connect
the
Edge
to
your
computer
using
the
USB
cable,
see
page
8.
1.
Plug
the
AC
charger
into
a
standard
wall outlet.
2.
Pull
up
the
weather
cap
from
the
mini-USB
port
<D
.
3.
Plug
the
small
end
of
the
AC
charger
into
the
mini-
USB
port.
4.
Charge
the
Edge
for
at
least
three
hours
before
you
begin
using
it.
A
fully
charged
battery
can
run
for
up
to
14
hours
before
it
must
be
recharged.
Edge
200
Owner's
Manual
Installing
the
Edge
For
the
best
GPS
reception
,
position
the
bike
mount
so
the
front
of
the
Edge
is
oriented
toward
the
sky.
You
can
install
the
bike
mount
on
the
stem
or
the
handlebars.
1.
Select
a
suitable
and
secure
location
to
mount
the
Edge
where
it
does
not
interfere
with
safe
operation
of
your
bike.
2.
Place
the
rubber
disk
<D
on
the
back
of
the
bike
mount
®.
The
rubber
tabs
align
with
the
back
of
the
bike
mount
so
it
stays
in
place.
3

3.
Place
the
bike
mount
on
the
bike
stem
.
4.
Attach
the
bike
mount
securely
using
the
two
bands
®.
5.
Align
the
tabs
on
the
back
of
the
Edge
with
the
bike
mount
notches
@.
6.
Press
down
slightly
and
tum
the
Edge
clockwise
until
it
locks
into
place
.
4
Releasing
the
Edge
1.
Tum
the
Edge
counterclockwise
to
unlock
the
device.
2.
Lift
the
Edge
off
the
mount.
Turning
on
the
Edge
Press
6 .
Configuring
the
Edge
The
first
time
you
tum
on
the
Edge
,
you
are
prompted
to
configure
s
ystem
settings
and
user
profile
settings.
•
Follow
the
on-screen
instructions
to
complete
the
initial
setup
.
•
Select
.._
or
T
to
view
choices
and
change
the
default
selection.
•
Select
OJ
to
make
a
selection
.
Edge
200
Owner
's
Manual

Keys
Each
Edge
key
has
multiple
function
s.
Key
Description
0
Select
to
turn
the
device
on
and
off
,
cancel
,
or
return
to
the
prev1ous
menu.
I[>
Select
to
start
and
stop
the
timer.
o
Select
to
create
a
new
lap.
D
Select
to
scroll
through
training
data
pages.
Hold
on
any
page
to
return
to
the
main
menu.
Edge
200
Owner
's
Manual
5

Acquiring Satellite
Signals
It may take 30 to 60 seconds to acquire
signals.
1. Go outdoors to an open area.
2. Make sure that the front of the Edge
is oriented toward the sky.
3. Wait while the Edge searches for
satellites.
The time of day and date are set
automatically.
6PS.111
Going for a Ride
Before you can record history, you
must acquire satellite signals (page 6).
1. Select Ride.
2. Select Start to start the timer.
History is only recorded while the
timer is running.
3. After completing your ride, select
ll>.
Training Indoors
You can tum offGPS when you are
training indoors.
1. Select Ride > Start.
A message appears asking if you
want to use the device indoors.
2. Select Yes.
GPS automatically turns back on when
indoor training is complete.
Saving Your Ride Data
Select Save to save your ride data
and reset the timer.

Back to Start
You can navigate back to the start of
your ride. The timer must be on to use
back to start.
1. Select Ride > Start.
2. After completing your ride, select
I[>.
3. Select Back to Start > Start.
Using Free Software
Garmin Connect is web-based software
for storing and analyzing your ride
data.
1. Go to www.garminconnect.com/
start.
2. Follow the on-screen instructions.
Courses
Courses allow you to train using a
previously recorded activity. You can
follow the course trying to match or
exceed previously set goals.
Garmin recommends that you use
Garmin Connect (page 7) to create
courses. You can then transfer the
courses to your Edge.
Creating a Course with Your
Edge
Before you can create a course, you
must have history with GPS track data
saved to the Edge.
1. Select Courses.
2. Select a ride > Create.
Starting a Course
You must have saved a course to start
a course.
1. Select Courses.
2. Select a course from the list >
Start.
""'!
I

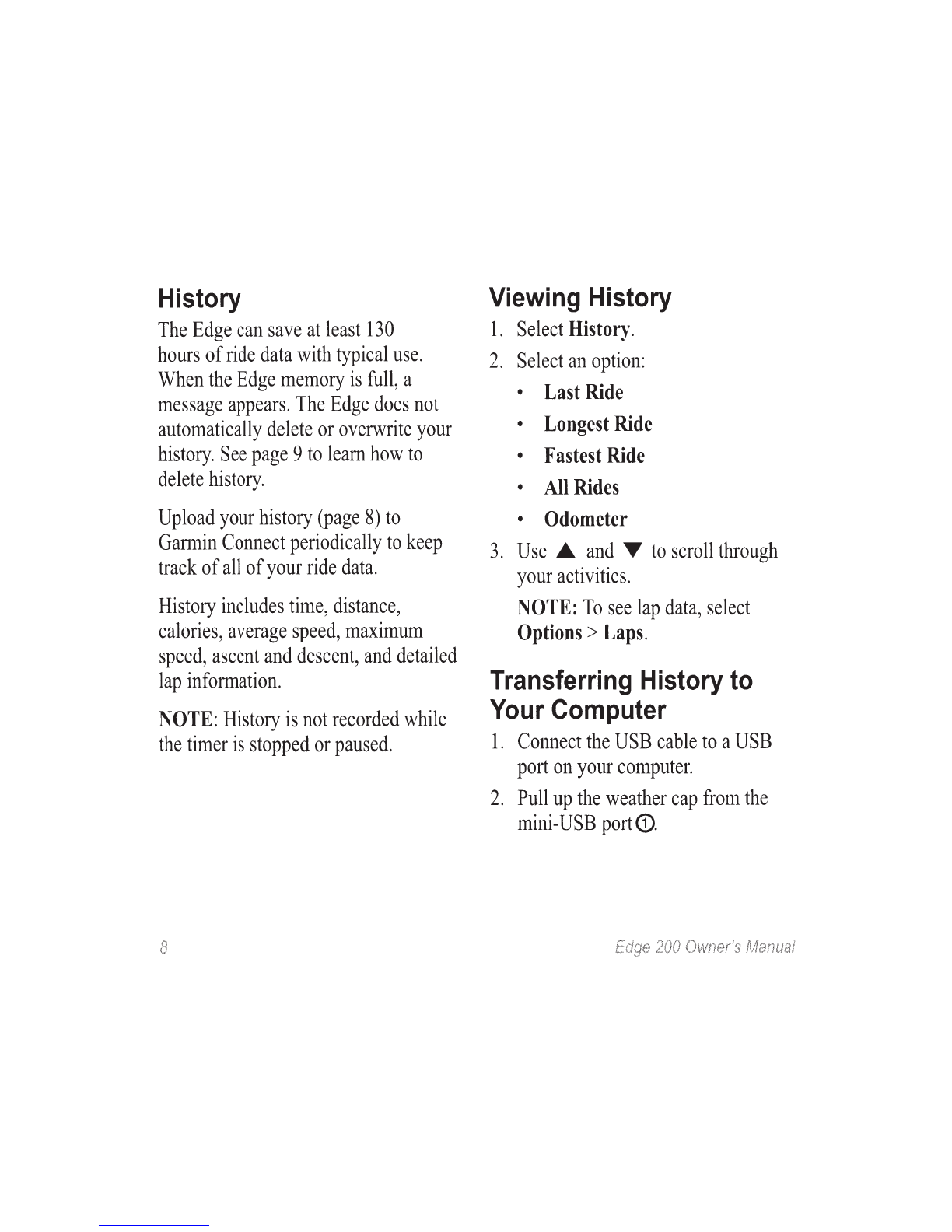

History
The Edge can save at least 130
hours of ride data with typical use.
When the Edge memory is full, a
message appears. The Edge does not
automatically delete or overwrite your
history. See page 9 to learn how to
delete history.
Upload your history (page 8) to
Garmin Connect periodically to keep
track of all of your ride data.
History includes time, distance,
calories, average speed, maximum
speed, ascent and descent, and detailed
lap information.
NOTE: History is not recorded while
the timer is stopped or paused.
Viewing History
1. Select History.
2. Select an option:
• Last Ride
• Longest Ride
• Fastest Ride
• All Rides
• Odometer
3. Use .._ and T to scroll through
your activities.
NOTE: To see lap data, select
Options > Laps.
Transferring History to
Your Computer
1. Connect the USB cable to a USB
port on your computer.
2. Pull up the weather cap from the
mini-USB port <D.

3.
Plug
the
small
end
of
the
USB
cable
into
the
mini-USB
port.
4.
Go
to
www.garminconnect.com.
5.
Follow
the
on-screen
instructions.
Viewing the Odometer
Select
History
>
Odometer
to
view
the
accumulated
ride
distance
and
time.
Resetting the Odometer
1.
Select
History
>
Odometer
>
Reset.
2.
Select
an
option:
•
Select
Trip
to
reset
current
trip
data
•
Select
Reset
All
to
reset
all
odometer
data.
Edge
200
Owner
's
Manual
3.
Select
Yes.
Deleting History
After
you
have
transferred
your
history
to
your
computer
,
you
may
want
to
delete
the
history
from
your
Edge
.
1.
Select
History.
2.
Select
an
option.
3.
Select
a
ride
.
4.
Select
Options
>
Delete
Ride.
Alerts
You
can
use
Edge
alerts
to
train
toward
specific
distance,
time,
and
calorie
goals.
Using Distance, Time, and
Calorie Alerts
1.
Select
Settings
>
Alerts.
2.
Select
Distance,
Time,
or
Calorie.
3.
Turn
on
the
alert.
4.
Enter
a
time,
distance
,
or
calorie
amount.
9

5.
Go
for
a
ride.
Each
time
you
reach
the
alert
amount,
the
Edge
beeps
and
displays
a
message.
Auto
Lap
Using
Auto
Lap
by
Position
You
can
use
Auto
Lap
®
to
automatically
mark
the
lap
at
a
specific
position.
This
feature
is
helpful
for
comparing
your
performance
over
different
parts
of a
ride
(for
example,
a
long
climb
or
training
sprints).
1.
Select
Settings
>
Auto
Lap.
2.
Select
By
Position.
3.
Select
an
option:
'f
()
•
Select
Lap
Only
to
trigger
the
lap
counter
each
time
you
select
D
and
each
time
you
pass
any
of
those
locations
again.
•
Select
Start
And
Lap
to
trigger
the
lap
counter
at
the
GPS
location
where
you
select
I[>
and
at
any
location
during
the
ride
where
you
select
D.
•
Select
Mark
And
Lap
to
trigger
the
lap
counter
at
a
specific
GPS
location
marked
before
the
ride
and
at
any
location
during
the
ride
where
you
select
D.
4.
Go
for
a
ride.
NOTE:
During
courses,
use
the
By
Position
option
to
trigger
laps
at
all
of
the
lap
positions
saved
in
the
course.
Using
Auto
Lap
by
Distance
You
can
use
Auto
Lap
to
automatically
mark
a
lap
at
a
specific
distance.
This
feature
is
helpful
for
comparing
your
performance
over
different
parts
ofa
ride
(for
example,
every
10
miles
or
40
kilometers).
1.
Select
Settings
>
Auto
Lap.
2.
Select
By
Distance.

3. Enter a value.
4. Select Save.
Using Auto Pause
You can use Auto Pause® to pause the
timer automatically when you stop
moving or when your speed drops
below a specified value. This feature is
helpful if your ride includes stop lights
or other places where you need to slow
down or stop.
NOTE: The paused time is not saved
with your history data.
1. Select Settings > Auto Pause.
2. Select an option:
• Select Off.
• Select When Stopped to pause
the timer automatically when
you stop moving.
• Select Custom Speed to pause
the timer automatically when
your speed drops below a
specified value.
3. Go for a ride.
Using Auto Scroll
Use the auto scroll feature to
automatically cycle through all of the
training data pages while the timer is
running.
1. Select Settings > Auto Scroll.
2. Select a display speed: Slow,
Medium, or Fast.
3. Go for a ride.
The training data pages scroll
automatically.

Changing
the
Start
Notice
This
feature
automatically
detects
when
your
Edge
has
acquired
satellites
and
is
moving.
It
is
a
reminder
to
start
the
timer
so
you
can
record
your
ride
data.
1.
Select
Settings
>
Start
Notice.
2.
Select
an
option:
•
Select
Off.
•
Select
Once.
•
Select
Repeat
to
change
the
amount
of
time
to
delay
the
reminder.
Changing
Your
User
Profile
Settings
The
Edge
uses
information
that
you
enter
about
yourself
to
calculate
accurate
ride
data.
1.
Select
Settings
>
User
Profile
to
update
gender,
birth
year,
weight,
and
height.
12
2.
Follow
the
on-screen
instructions.
Data
Management
You
can
use
the
Edge
as
a
USB
mass
storage
device.
NOTE:
The
Edge
is
not
compatible
with
Windows
®
95, 98,
Me,
or
NT.
It
is
also
not
compatible
with
Mac
®
OS
10.3
and
earlier.
Deleting
Files
NOTICE
Your
device
memory
contains
important
system
files
that
should
not
be
deleted.
1.
Connect
the
Edge
to
your
computer
using
the
USB
cable
(page
8).
2.
Open
the
Garrnin
drive
or
volume.
3.
Select
the
file.
4.
Select
the
Delete
key
on
your
keyboard.

System Settings
Changing the Backlight
1.
Select
Settings
>
System
>
Display.
2.
Adjust
the
backlight
brightness
and
the
backlight
duration.
TIP:
Use
a
short
backlight
setting
to
conserve
battery
power.
Changing the Audible Tones
1.
Select
Settings
>
System
>
Tones.
2.
Tum
the
tones
for
keys
and
messages
on
or
off.
Changing the Auto Power
Down Setting
This
feature
automatically
turns
the
Edge
off
after
15
minutes
of
inactivity.
1.
Select
Settings
>
System
>
Power
Down.
2.
Select
On
or
Off.
Edge
200
Owner's
Manual
Specifications
NOTICE
The
Edge
is
waterproof
to
IEC
Standard
60529
IPX7.
It
can
withstand
immersion
in
1
meter
of
water
for
30
minutes.
Prolonged
submersion
can
cause
damage
to
the
unit.
After
submersion,
be
certain
to
wipe
dry
and
air
dry
the
unit
before
using
or
charging.
Edge
Specifications
Water
IPX7
resistance
Computer
USB
2.0
full
speed
interface
Battery
life
14
hours,
typical
usage*
Operating
From
-4
oF
to
140°F
temperature
(from
-20°C
to
60°C)
range
13

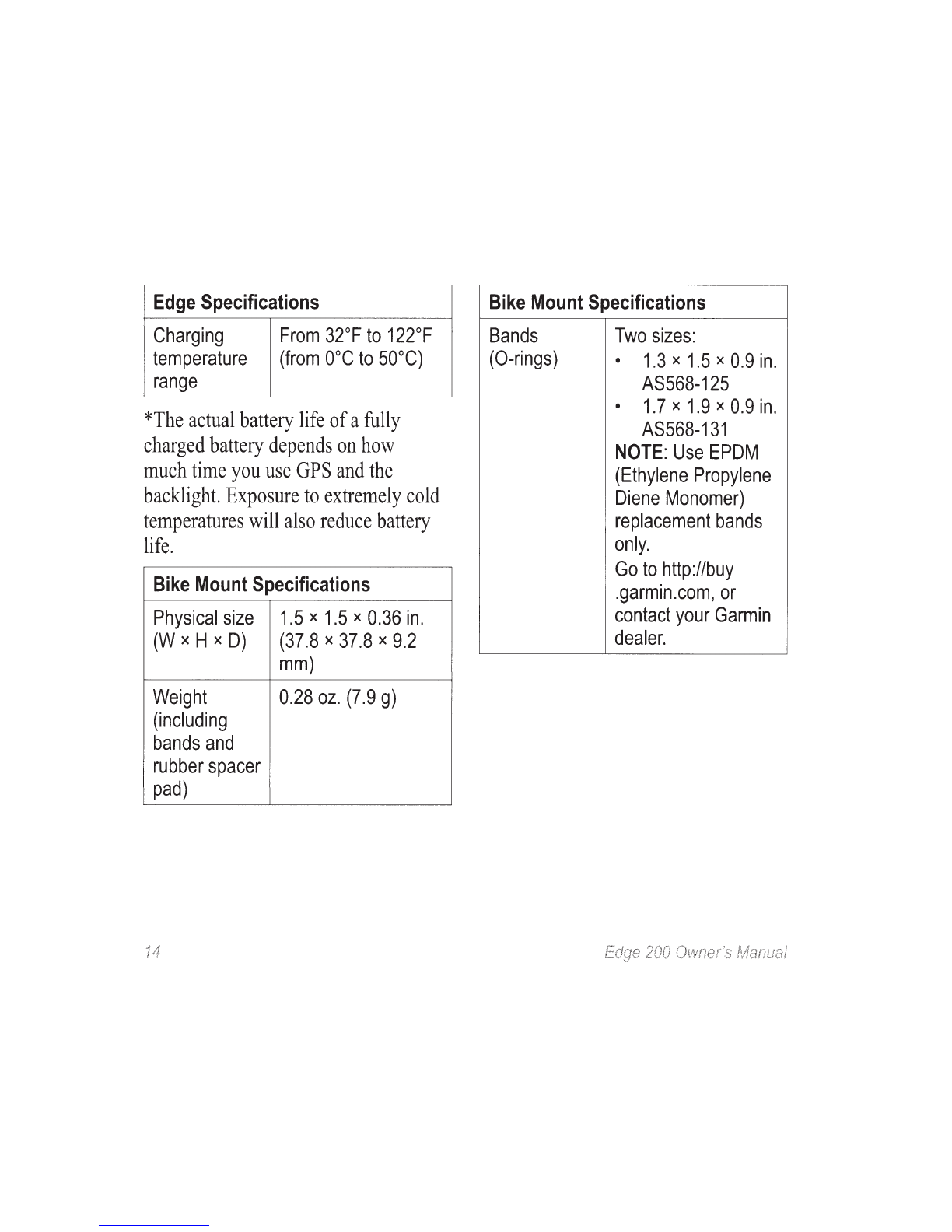

Edge Specifications
Charging From 32°F to 122°F
temperature
(from ooc to 50°C)
range
*The actual battery life ofa fully
charged battery depends on how
much time you use GPS and the
backlight. Exposure to extremely cold
temperatures will also reduce battery
life.
Bike Mount Specifications
Physical size
1.5 X 1.5 X 0.36 in.
(W X HX D)
(37.8 X 37.8 X 9.2
mm)
Weight 0.28 oz. (7.9 g)
(including
bands and
rubber spacer
pad)
Bike Mount Specifications
Bands Two sizes:
(0-rings)
•
1.3 X 1.5 X 0.9 in .
AS568-125
•
1.7 X 1.9 X 0.9 in .
AS568-131
NOTE: Use EPDM
(Ethylene Propylene
Diene Monomer)
replacement bands
only.
Go to http://buy
.garmin.com, or
contact your Garmin
dealer.

Troubleshooting
Registering Your Device
Help us better support you by
completing our online registration
today:
• Go to http://my.garmin.com.
• Keep the original sales receipt, or a
photocopy, in a safe place.
Resetting the Device
If the keys stop responding, you may
need to reset the device.
Hold C> for 10 seconds.
Clearing User Data
1. Turn off the Edge.
2. Hold C> and C> simultaneously.
3. Select Yes to clear all user data.
NOTE: This deletes all
user-entered information, but it
does not delete your history.
Updating the Software
1. Connect the Edge to your computer
using the USB cable (page 8).
2. Go to www.garminconnect.com.
If there is new software available,
Garmin Connect alerts you to
update the software.
3. Follow the on-screen instructions.
Caring for Your Device
NOTICE
Do not store the device where
prolonged exposure to extreme .
temperatures can occur, because It can
cause permanent damage.
Avoid chemical cleaners and solvents
that can damage plastic components.
Cleaning the Device
1. Use a cloth dampened with a mild
detergent solution.
2. Wipe it dry.

•
www.garm1n.com
~ 913-397~8200
~ 1-800-800~1020
~ 0808 2380000
~ +44 (0) 870.8501241
~ 00 35819 311 001
u 00 33 1 5517 81 89
e 81569555
II oosoo 4412 454
- [phone]
Hl1-866-429-9296
'------'
0180 5/42 76 46- 880
0180 5I 42 76 46 ~ 550
c 43 (0) 3133 3181 0
u 00 32 2672 5254
== 00 45 4810 5050
u 00 39 02 3669 9699
00 35 1214 447 460
~ 00 902 00 70 97
== 00 46 77 44 52020
c 0800-0233937
www.garmin.com/support
Garmin International, Inc.
1200 East 151 st Street,
Olathe, Kansas 66062, USA
Garmin (Europe) Ltd.
Liberty House, Hounsdown Business Park
Southampton, Hampshire, S040 9LR UK
Garmin Corporation
No. 68, Zhangshu 2nd Road, Xizhi Dist.
New Taipei City, 221, Taiwan (R.O.C.)
© 2011-2012 Garmin Ltd. or its subsidiaries
GarminrD, the Garmin logo, EdgeA', Auto Lap:B, and Auto
Pause® are trademarks of Garmin Ltd. or its subsidiaries,
registered in the USA and other countries. Garmin
Connect™ is a trademark of Garmin Ltd. or its subsidiaries.
These trademarks may not be used without the express
permission of Garmin. Windows@ is a registered trademark
of Microsoft Corporation in the United States and/or other
countries. Mac® is a trademark of Apple Computer, Inc.,
registered in the U.S. and other countries.
·t·· TA-2012/1345
I C 1\·S 1\
.
•. • APPROVED

© 2009-2010 Garmin Ltd. or its subsidiaries
www.garmin.com
January 2010
Printed in Taiwan
Part Number 190-01071-90 Rev. B
NOTICE
To avoid damage to the device, use
EPDM (Ethylene Propylene Diene
Monomer) replacement bands only. Go
to http://buy.garmin.com, or contact
your Garmin dealer.
AVIS
Pour eviter d'endommager l'appareil,
utilisez des bandes de rechange
en EPDM (terpolymere ethylene-
propylene-diene) uniquement. Rendez-
vous sur http://buy.garmin.com ou
contactez votre revendeur Garmin.
AWISO
Per evitare di danneggiare il dispositivo,
usare solo fasce di sostituzione EPDM
(Ethylene Propylene Diene Monomer).
Visitare il sito http: / /buy.garmin.com o
contattare il proprio rivenditore Garmin.
HINWEIS
Damit das Geriit nicht beschadigt win!,
verwenden Sie ausschlieBlich Ersatzbander
aus EPDM (Ethylen-Propylen-Dien-
Monomer). Weitere Informationen finden
Sie unter http: / /buy.garrnin.com. Sie k6nnen
sich auch an einen Garrnin-Handler wenden.
AVISO
Para evitar dafios al dispositivo, usa
s6lo bandas de repuesto de EPDM
( caucho de etileno dieno propileno ).
Visita http://buy.garmin.com o ponte en
contacto con tu distribuidor de Gannin .
AVISO
Para evitar danificar o dispositivo,
utilize apenas correias de substitui~ao
de EPDM ( mon6mero de etileno-
propileno-dieno ). Visite http :/ /buy
.garmin.com ou contacte o seu
revendedor Garmin.

OPMERKING
Gebruik aileen vervangende ringen
van EPDM ( ethyleen-propyleen-
dieenmonomeer) om schade aan
bet toestel te voorkomen. Ga naar
http://buy.gannin.com ofneem contact
op met uw Garmin-dealer.
MEDDELELSE
For at undga at beskadige enheden rna du
lam anvende udskiftningsremme af syntetisk
EPDM-gummi (Ethylene Propylene Diene
Monomer). Ga til http://buy.gamrin.com,
eller kontakt din Gamrin-forhandler.
ILMO/TUS
Valtii laitteen vaurioituminen
kayttamalla ainoastaan EPDM
(Ethylene Propylene Diene Monomer)
-vaihtohihnoja. Siirry osoitteeseen
http://buy.gannin.com tai ota yhteys
Gannin-jalleenmyyjaan .
MERKNAD
Bruk bare ekstrastropper med EPDM
(etylenpropylen) for a unnga skade pa
enheten. Ga til http://buy.garmin.com,
eller kontakt Garmin-forhandleren.
MEDDELANDE
Anvand bara EPDM-reservband
( etylenpropylendienmonomer ), sa
undviker du att enheten skadas. Ga till
http://buy.garmin.com eller kontakta
din Garmin-aterforsaljare.
Gannin International, Inc .
1200 East 151
81
Street , Olathe, Kansas
66062, USA
Gannin (Europe) Ltd .
Liberty House, Hounsdown Business Park,
Southampton, Hampshire , S040 9LR UK
Garmin Corporation
No . 68 , Jangshu 2"d Road , Sijhih, Taipei
County , Taiwan
Part Number 190-01071-90 Rev. B

Power
Adapter
Assembling
Instruction
1
Assembling
Put
the
power
plug
and
USB
cord
snaps
in
the
body
of
the
power
adapter,as
shown
in
the
following
figure
.
Figure
1
Assemble
the
power
adapter

2 View of the Power Adapter
Figure 2 View of the power adapter
3 Disassembling
While pushing down on the front of the push button,pull the power
plug out until it is separated from the body of the power adapter, as
shown in the following figure.
1
Figure 3 Disassemble the power adapter
2
