Safety & Operating Manual
Power Crimp 707 Crimper
®
Power Crimp 707 Crimper
(Ind.) 35019-AG
(Auto.) 428-7300
10/02

An incorrect hose assembly can rupture or blow apart in use,
resulting in serious injury, death, or property damage.
REMEMBER: Others depend on you to make correct
assemblies.
FOR SAFETY’S SAKE
USE THIS MACHINE ONLY IF YOU:
1. Receive hands-on TRAINING with this Gates crimper and assemblies.
2. Follow current GATES OPERATING MANUAL and CRIMP DATA for the
Gates PC 707 crimper.
3. Use only NEW (UNUSED GATES) hose and fittings.
4. Wear SAFETY GLASSES.
5. Keep hands clear of moving parts.
WARNING!
NOTE:
Gates recommends only those hose and
coupling combinations specified in the Gates
Hydraulic Product catalogs. Gates disclaims any
liability for any hose assemblies which have not
been produced in conformance with Gates
assembly recommendations.

Contents
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Calibration Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Hose Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
Measuring Crimp Diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Power Crimper 707 Conversion from 115v to 230v . . . . . . . . . . . . . . . . . . . . . . . . . 11
Schematic and Replacement Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-13
Trouble Shooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-15
1
Serial No. ____________________________
(Located on base plate in front of left rod.)
Date of Purchase _____________________

23 Die sets are available for crimping hydraulic and industrial hose from
3⁄16” through 11⁄4” I.D. A Swager Kit (Prod. No. 7480-0040, Part No. 78081)
also is available to swage thermoplastic and C14 Teflon hoses.
PC707 8-Finger Die Sets Available
Product Part
Description Number Number Notes
Die Set 721 7482-1217 78943
Die Set 722 7482-1218 78944
Die Set 731 7482-0931 78931
Die Set 732 7482-0932 78932
Die Set 733 7482-0933 78933
Die Set 734 7482-0934 78934
Die Set 735 7482-0935 78935
Die Set 736 7482-0936 78936
Die Set 737 7482-0937 78937
Die Set 739 7482-0939 78939 Must use the No-Notch Die Cone (Prod. No. 7482-0297, Part No. 78747)
Die Set 740 7482-0947 78950 For crimping 6ACA
Die Set 741 7482-0941 74951 For crimping 8ACA
Die Set 742 7482-0942 78952 For crimping 10ACA
Die Set 743 7482-0943 78953 For crimping 12ACA
Die Set 744 7482-0944 78954 For crimping power steering
Die Set 745 7482-0945 78955 For crimping grease fitting
Die Set 746 7482-0946 78956 For crimping miscellaneous (Replaces B die)
Die Set 781 7482-1231 78578 For GL Fittings
Die Set 782 7482-1232 78579 For GL Fittings
Die Set 783 7482-1233 78580 For GL Fittings
Die Set 7C3 7482-1122 78941 For crimping clamp collar (5⁄8”)
Die Set 7C4 7482-1123 78942 For crimping clamp collar (3⁄4”)
2
Specifications
Prod. No.: 7480-0043* Part No.: 77700*
Dimensions: 13” wide x 12” deep x 26-1/2” high
Weight: 188 lbs.
Production Rate: 50 assemblies per hour (1/2” I.D. 2-wire
straight thread assemblies)
* Power Crimp 707 crimper can also be ordered wired for 230 volts (Prod. No. 7480-0046,
Part No 77701). Must be used with 230 volt power unit (Prod No. 7481-0028, Part No. 77811).
Power Crimp®707 Crimper
Prod. No.: 7481-0023 Part No.: 77810
Power Source: 115 Volt, 15 Amp.,
1 H.P., 60 Cycles
Dimensions: 12 “ wide x 25” deep x 12” high
Weight: 70 lbs.
Maximum Rated Working Pressure: 4900 psi.
Prod. No.: 7481-0028* Part No.: 77811*
Power Source: 230 Volt, 7.5 Amp.,
1 H.P., 60 Cycles
* Use only with Power Crimp 707 (Product No. 7480-0046,
Part No. 77701), or 230 Volt rewired Power Crimp 707 crimper only.
Electro Power Pump
Note: Do Not operate 115V crimper with a 230V pump. Digital readout will be damaged. See page 11
for additional instructions.
Do not use 720 or 739 die set with notched die cone. May cause damage to die cone.
CAUTION:

1. Remove crimper, back-up ring, two die
cones, die magnet, hose assembly, mounting
bracket with bolt, jar of Molykote “G” grease,
operating manual, crimp data book and crimp
decals from shipping carton. Locate serial
number on base plate in front of left post and
record on Page 1. Be sure to fill out the
crimper registration card. (By completing the
card and returning it to Gates, you will receive
crimp data updates and full warranty cover-
age.) Remove pump, breather cap and operat-
ing manual from its shipping carton.
2. Mount crimper so it overhangs a work-
bench (as shown in Photo 1). The back of the
cutout (in the base plate) should be in line
with front of bench. The bench should be 37”
to 42” high, stable and of sturdy construction.
3. Drill three 3/8” diameter holes as shown
in Illustration 1. Connect the mounting bracket
to top rear of crimper and to the hole farthest
from edge of workbench. Further secure
crimper to workbench using the two
remaining holes.
4. When crimper is secured to the work-
bench, connect hose assembly between
crimper and pump.
5.Connect receptacle on short cord of pump
to plug on cord of switch box of the crimper.
If plug and receptacle do not match, do
not try to connect. Differences in the plug
and receptacle indicate the pump and crimper
have different voltages and should not be
operated.
6. Remove plug from top of pump reservoir
and replace with breather cap provided. Check
that hydraulic oil is within 1/2” of bottom of
plug opening. If needed, add Dextron II ATF or
equivalent to reservoir.
7. Verify that switch on pump electrical box is
in “OFF” position. Connect pump power cord
to a 15 amp (minimum) rated electrical circuit.
8. Move switch on pump electrical box to
“ON” position. This will provide power to the
pump and crimper.
9. Turn knob on top of crimper switch box to
get a setting of 2.00 on the readout. Cycle
crimper at least 5 times to bleed air from
cylinder and hydraulic system.
3
Mounting
Bracket
Work Bench
Crimper Base
(3) 3/8Diameter Holes
3-1/4
9-3/4
22
Peel and position crimp
decal on the shroud
according to your
preference.
Crimper and pump voltage must be the
same or digital readout will be damaged.
WARNING:
Setup
ILLUSTRATION 1
PHOTO 1

1. Before initiating calibration procedure,
make sure crimper has been cycled five times.
To cycle, dial in a setting of 2.00 and run
crimper down to shutoff with no die set
loaded.
2. Install the “733” die set to calibrate the
machine using an 8G MegaCrimp®coupling.
3. Set the digital readout setting to 5.20.
(Rotating the knob on top of switch box clock-
wise will increase the number; counterclock-
wise will decrease the number. When chang-
ing the setting, always move to a higher num-
ber then down to the desired setting.
Example: To change from 5.00 to 5.20, move
dial up to 6.00 then down to 5.20.) The
readout figures may jump a number; i.e. 5.20
to 5.19 or 5.21. This will not affect the crimp OD.
4. Insert the coupling into the die set
approximately 1/8” below top of die. (See
Photo 1.)
5. Slide the die cone assembly under the
ram until it stops against back locating pins
and push the crimp button and hold. Release
the button immediately when the pump stops.
6. Remover coupling and measure crimp diame-
ter, which should measure 1.000” ± .003”. (See
Page 9 for Measuring Crimp Diameter.)
7. If ferrule crimp diameter is not acceptable,
adjust actuator rod. (See Photo 2.)
a. To increase crimp diameter – Hold the
1-1/16” actuator rod while loosening the
3/4” lock nut. Rotate the actuator rod clock-
wise (one full turn of the actuator rod will
change crimp diameter approximately
0.024”). Then tighten the lock nut down.
b. To decrease crimp diameter – Hold the
1-1/16” actuator rod while loosening the
3/4” lock nut. Rotate the actuator rod
counter clockwise (one full turn of the actu-
ator rod will change crimp diameter approxi-
mately 0.024”). Then tighten the lock nut
down.
8. Repeat steps 3 through 7 to verify correct
crimp diameter.
4
Make sure area under pusher cup is clear of die cone or die sets.
WARNING:
PHOTO 1 PHOTO 2
CLOCKWISE
Do not
over-tighten
lock nut.
CAUTION:
PC 707 Calibration Procedure

Two-Piece Couplings

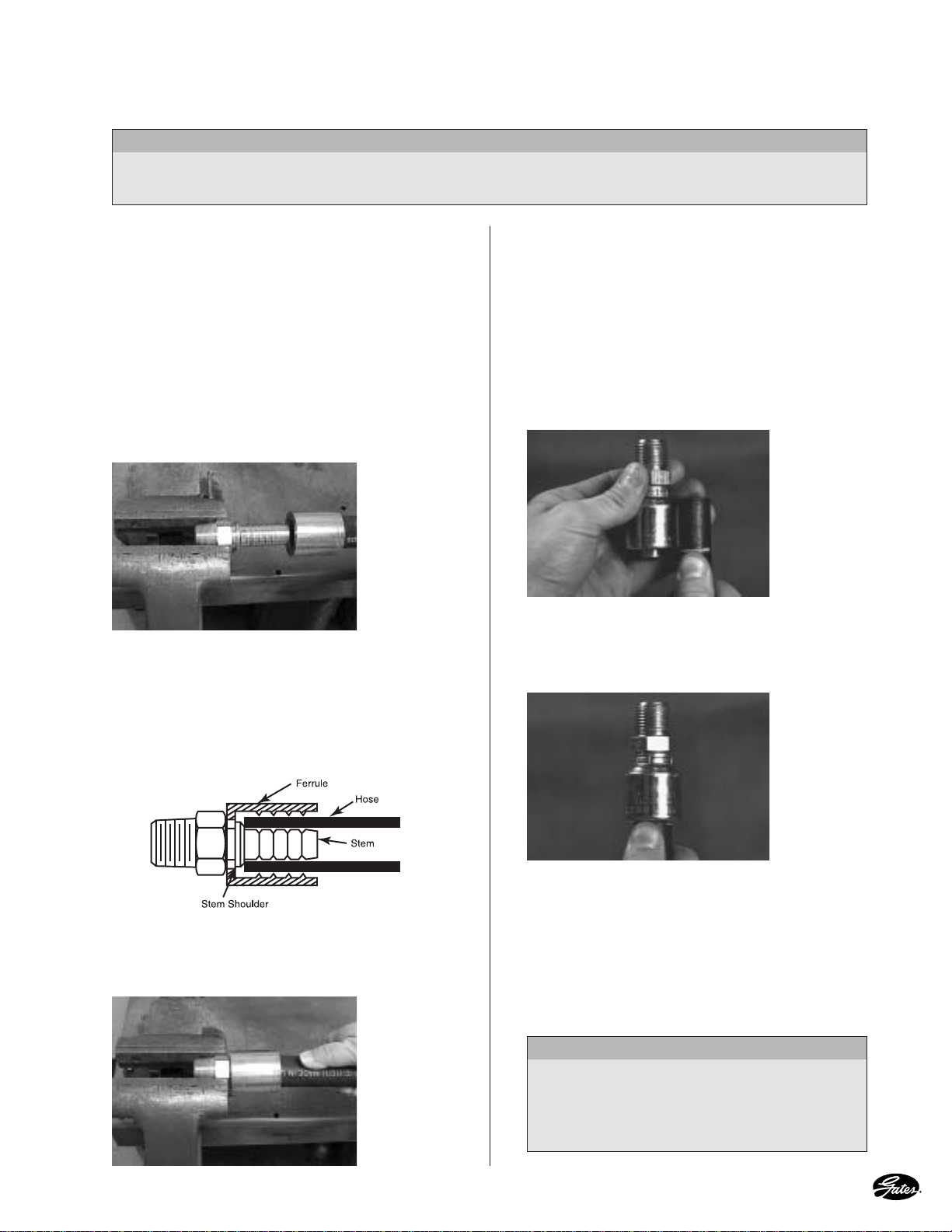

1. Cut hose to desired length.
2. Using Gates Crimp Data Manual #35019
(Ind.), 428-7365(Auto.), select the correct stem
and ferrule. Or, log onto www.gates.com/ecrimp
for the latest crimp information on-line.
3. Place ferrule over end of hose. If skiving is
required, see instructions in Gates Hand Skiver
Manual, #35019-W.
4. Lubricate the first two or three serrations
on stem with lightweight oil (SAE 10W).
5. Clamp stem in vise on hex portion, and
push hose onto stem. Hose should be flush
against stem shoulder (see cutaway drawing).
6. Push ferrule so it rests against hex of stem.
Hose and coupling are now ready for crimping.
MegaCrimp®Pre-Assembled
Couplings
1. Cut hose to desired length.
2. Using Gates Crimp Data Manual#35019
(Ind.), 428-7365(Auto.), select the correct
MegaCrimp coupling. Or, log onto
www.gates.com/ecrimp for the latest crimp
information on-line.
3. Place a visible mark on hose cover at the
insertion length shown in the crimp data
manual.
4. Insert coupling into the hose until the
mark lines up with the end of the coupling
ferrule.
5. Hose and coupling are now ready for
crimping.
5
A new hose and end fittings (stem/ferrule) must be used when building a hose assembly. Re-using any
component will seriously affect performance and could result in serious injury or property damage.
CAUTION:
Hose Preparation
See Hose Assembly Guide of the
Gates Crimp Data Manual, #35019 (Ind.)
and 428-7365(Auto.) or log onto
www.gates.com/ecrimp, for more details.
NOTE:

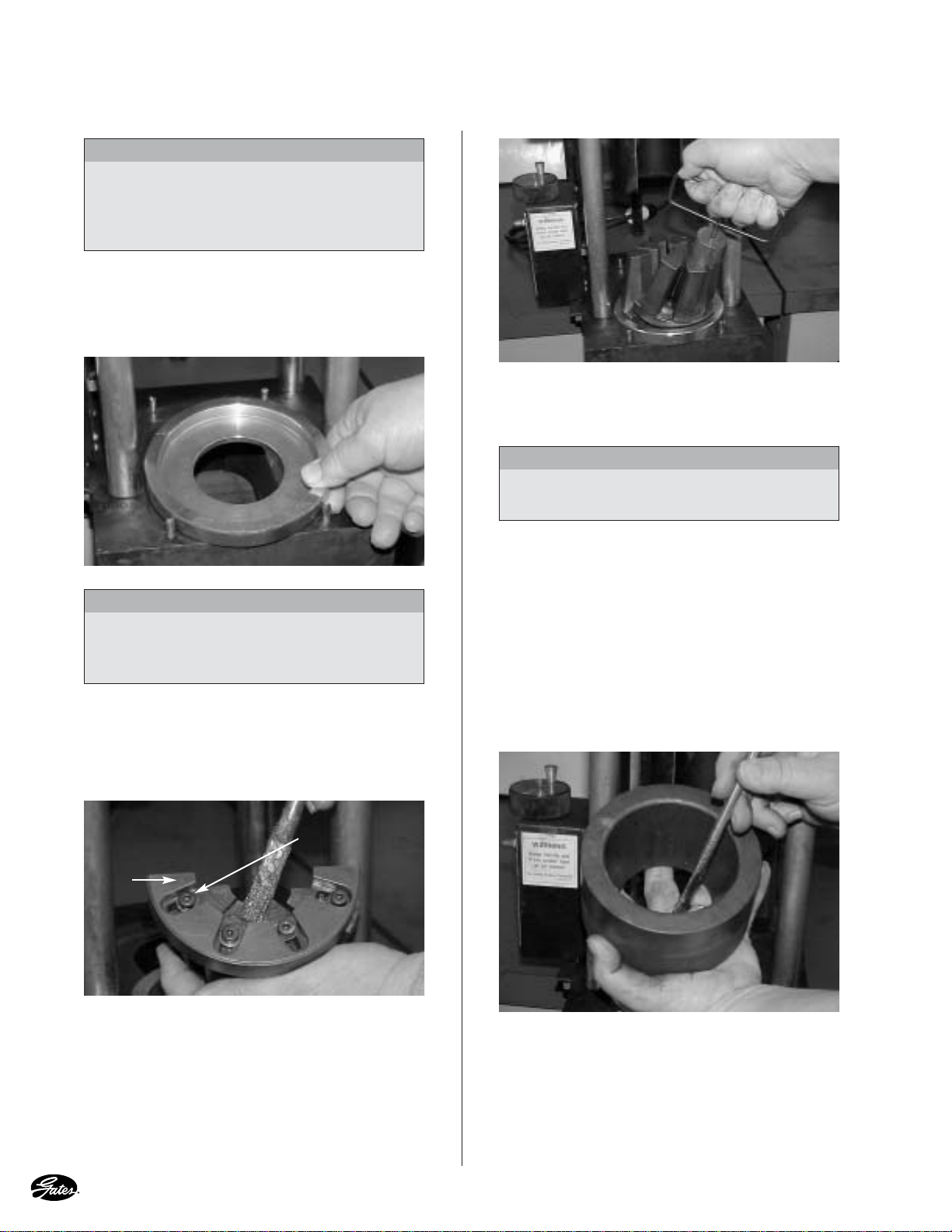

1. Place die back up ring on front of crimper
base plate. This back up ring is used with all
die sets.
2. Select proper die set for hose and cou-
pling by referring to the Gates Crimp manual,
#35019 (Ind.) and 428-7365 (Auto.), or log
onto www.gates.com/ecrimp.
3. Using die magnet supplied with crimper,
insert proper die set, one half at a time, onto
die backup ring.
4. Periodically check bottom of die cage and
top surface of die back up ring for cleanliness.
5. Check screws holding fingers to cage to
make sure they are tight. Tighten if necessary.
This could affect crimp if loose.
6. Apply a thin layer of Molykote “G” grease
to inside working area of die cone. The layer
of grease must be redistributed periodically
when the area becomes shiny from rubbing
on the die fingers.
6
Operating Instructions
Not recommended for use below 40°F.
Pump damage may occur. If operation is
required below 40°F, pump oil reservoir
must be heated.
CAUTION:
Use No-Notch Die Cone when crimping with
720, 739, and 6PS Die sets. Using a notched
cone may cause damage to die cone.
NOTE:
Die cage may break if surfaces are not
kept clean.
WARNING:
Die
Cage
Screws for
Die Fingers
(7482-1672
or 78749)

7. Insert hose assembly through bottom of
the crimper base plate up through die fingers.
8. Locate top of ferrule or MegaCrimp®
coupling approximately 1/8” below top of the
die fingers. Place die cone over the die fingers
to hold assembly in position.
9. Move die cone and backup ring back
against BOTH rear locating pins of crimper
base plate.
10. The crimp data manual gives approxi-
mate digital readout setting for specific
hose/coupling combination. Rotating the knob
on top of switch box clockwise will increase
the setting; counterclockwise will decrease the
setting.
11. Turn knob to a setting below the desired
setting. Then turn knob back up to the
desired setting. (Digital readout numbers may
jump a number, e.g., 5.50 to 5.49 or 5.51.
This will not affect crimp diameter of the
coupling.)
12. Activate pump by pressing and holding
the crimp switch on switch box. The readout
light will go out when the crimp switch is
pushed in. When actuator rod contacts switch
box’s microswitch, the power to pump is
automatically turned off.
7
Top of
Die Finger
Top of
Ferrule
Rear
locating pins
Operating Instructions (continued)
Keep hand out from under ram
at all times.
WARNING:
Be sure the hex of a straight stem or round
portion of a bent tube rests against ferrule.
IMPORTANT:
Do not use 720, 739, or 6PS die sets
with notched die cone. May cause damage
to die cone.
CAUTION:
Always wear safety glasses and
KEEP HANDS AWAY
FROM MOVING PARTS.
CAUTION:
Incorrect Correct

13. When you hear pump shut off, release
switch and the ram will move up.
14. Move die cone and backup ring unit all
the way forward. Remove assembly by lifting
the die cone.
15. Measure crimp diameter. (See Page 9).
16. Check the crimp data chart for correct
crimp diameter.
17. When crimping bent tube couplings, use
the same procedure as crimping straight end
couplings. Keep thread end of bent tube for-
ward to clear slot in pusher.
18. To crimp a 45° or 90° block type cou-
pling, follow the same procedure used for the
bent tube.
19. Position thread end of coupling into the
die cone notch, which must be towards the
front of the crimper.
8
Operating Instructions (continued)
Your measured crimp diameter MUST be in
tolerance range as listed in the
Crimp Data Manual.
WARNING:

9
When using 21 and 22 Dies
1.Using Gates “21/22” dial calipers (Product No.
7369-1320, Part No. 78217) measure halfway
between ridges (Fig. 1). To be sure crimp diameter
is being properly measured, mark a crimp flat.
Beginning with that flat, count 9 flats to get the
diameter. Be sure caliper blades DO NOT touch
ridges. (See Photo 3.)
2.Measure halfway between the ends of crimped
portion of the ferrule (Fig. 2).
When NOT using 21 and 22 Dies
1.Using Gates dial calipers (Product No. 7369-
0320, Part No. 78215) which are notched to clear
ridges, measure halfway between ridges (Sketch 1).
Be sure caliper fingers DO NOT touch ridges or
part number stamps. (See Photo 3.)
2.Measure halfway down the crimped portion of
the ferrule (Sketch 2).
Measuring Crimp Diameter
FIG. 1
SKETCH 2
DO NOT measure on top of
part number stamps.
NOTE:
Target
C.O.D. Measured C.O.D.
Adjusted
Setting Published Approx. Setting
=–+x 50
To properly measure a crimp diameter:
CRIMP DIA.
CALIPER RIDGES
SKETCH 1
FIG. 2
3.Should actual crimp diameter not be within
recommended crimp tolerance, check calibration of
the machine and recalibrate. If the machine is
properly calibrated, you may need to make a slight
adjustment to the digital readout.
4.To obtain a smaller crimp diameter, change
digital readout setting to smaller number. To get a
larger crimp diameter, change digital readout setting
to a larger number. Changing digital readout num-
ber by .05 will change crimp diameter .001”.
Record new setting on your crimp data chart for
future reference.
PHOTO 3

10
This crimper requires minimal maintenance.
However, the following practices are recom-
mended to ensure maximum reliability
and service.
1. Lubricate.
Using a small brush and Molykote “G”
grease, apply a light coat to the inside
surface of the die cone whenever it
becomes shiny.
2. Check oil level.
a. Check the hydraulic oil level in the
pump reservoir after each 10 hours of
use (see pump operation manual for
instructions).
b. If the oil is more than 1/2” below the
top, add Dextron II ATF or equivalent
until within 1/2” of the top of the
reservoir.
3. Change the oil.
(NOTE: Frequency depends on the
pump’s general working conditions,
severity of use and overall cleanliness.)
a. For general shop conditions, change
oil every 300 hours.
b. Drain, clean and refill the reservoir per
pump operating instructions with
Dextron II ATF or equivalent to within
1/2” of the top of the reservoir.
4. Inspect die sets.
a. Periodically inspect the surfaces of die
sets for debris (metal chips, dirt, etc.)
or damage.
b. If debris is present, clean and lightly
lubricate. If damaged, replacement is
required (see parts list for ordering
information).
c. Check screws holding fingers to cage
to make sure they are tight. Tighten if
necessary.
5. Inspect hose assembly.
a. Inspect hose assembly connecting the
crimper and pump monthly (more
often with severe use).
b. If hose has any signs of damage,
replace immediately. A damaged hose
may rupture and cause serious injury.
c. If hydraulic oil is present on the hose
assembly, serious damage may exist.
Replace hose assembly immediately.
Maintenance

11
The standard PC 707 crimper (P/N
7480-0043/77700) requires a 115V,
15A power source. It is possible to oper-
ate the crimper with a 230V, 15A power
source. However, a 230V wiring harness
must be purchased and the pump must
be rewired to use the PC 707 as a 230V
machine. If the crimper is not rewired
when operated at 230V, the LED digital
readout will be damaged. Other
problems may also occur if the PC 707 is
not operated using the proper power
source.
Instructions
1. Purchase a new, 230V wiring har-
ness (Prod. No.: 7482-0498 / Part
No.: 78748).
2. Unplug the pump from the power
source.
3. Remove the shroud from the PC
707 by removing the two allen
screws on the front of the shroud.
4. Replace the old wiring harness
between the digital readout meter
and the switchbox with the new,
230V wiring harness.
5. Place the shroud on the crimper.
6. Unplug the pump from the crimper
switchbox.
7. Rewire the pump for 230V. Note: A
230V pump can be purchased
(Prod. No.: 7481-0028 /
Part No.: 77811).
Rewiring the Pump
A. Unplug the pump from the wall
outlet.
B. Remove the coverplate on the
end of the motor control box and,
per the instructions on back of
coverplate, change the motor
leads to the 230V configuration.
C. Re-install the coverplate on the
motor control box.
D. Install a new, 230V, 15A male
plug on the power cord.
E. Check the plug types for the con-
nectors (one from the pump and
one from the crimper) between
the pump and the switch box.
Both plugs should be rated for at
least 230V and 15A to be used
with a 230V PC 707. If these
plugs are not rated to handle
230V and 15A, then replace both
plugs with nema L6-15 plugs.
After all the re-wiring is completed and
the plug and wire types checked (and
changed, if necessary), re-connect the
pump to the pump source and the
crimper.
Power Crimper 707 Conversion from 115V to 230V

12
23 1
2
3
4
6
7
10
11
12
13
14
15
16
15
17
18
19
20
31
21
22
5
28
30
29 27
26
25
24
Crimper Schematic for Serial #B14,000
and above and newer refurbished units.*
KEY PROD. PART
NO. NO. NO. DESCRIPTION QTY.
17253-0029 86967 8MB-8FPX Adapter 1
*2
—————-
——— Screw 3/8-16 x Hex HD 1
37482-0243 78737 Nut 1-8 Standard Hex (Special-
Grade 8) 8
*4 ————— ——— Screw 1/2-13 x 1-1/4 S.H.C.S. 2
57482-6959 78751 Return Spring 2
*6 ————— ——— Nut 1-14 w/Nylon Insert 1
77482-0105 78718 Piston Seal Kit Assembly 1
10 7482-0147 78732 “O” Ring 1-1/8 O.D. x 1 I.D. (Nitrile) 1
11 7482-0106 78719 Piston Rod 1
12 7482-0109 78722 Piston Rod Guide 1
13 7482-0118 78729 Spring Anchor 2
14 7482-0107 78720 Return Spring Anchor Channel 1
*15 ————— ——— Washer 3/8 Plain 3
*16 ————— ——— Nut 3/8-16 Hex 2
*17 ————— ——— Lockwasher 3/8 1
*18 ————— ——— Screw 3/8-16 x 2-1/4 S.H.C.S. 1
19 7482-0112 78725 Pusher Cup 1
20 7482-0111 78724 Tie Rod 4
*21 ————— ——— Roll Pin 1/4 x 1 4
22 7482-0110 78723 Base Plate (Machine) 1
** 7482-0119 78730 Mounting Bracket 1
23 7482-0116 78728 Cylinder and Top Plate 1
24 7482-0229 78734 Microswitch Actuator Rod 1
*25 ————— ——— Top Actuator Nut (1/2-13) 1
*26 ————— ——— Bottom Actuator Nut (1/2-13) 1
*27 ————— ——— Actuator Locking Nut (1/2-20,
new style, only) 1
** 7482-0115 78727 Backup Ring, Large 1
** 7482-0789 78478 Die Cage (includes eight
1/4 x 3/8 socket head shoulder 2
screws with 10-24 thread) halves
** 7482-0919 78758 Washers for Die Fingers 1
** 7482-0297 78747 Die Cone, No Notch 1
** 7482-0239 78737 Die Cone, Notched 1
** 7482-3011 78755 Molykote “G” Grease (3 oz. jar) 1
** 7253-86876 86876 8MB-8FPX90 Adapter 1
** 7482-0289 78745 Hose Assembly PC707 1
** 7482-0283 78742 Shroud only 1
** 7482-0280 78740 Readout Meter 1
** 7482-0291 78746 Die Finger Removal Tool (Magnet) 1
** 7482-1672 78749 Shoulder Screws for Die Fingers 8
SWITCH BOX
28 7482-0277 78739 Switch Box - Complete
with Wiring Harness 1
29 7482-0231 78735 Knob, Switch Box 1
30 7482-0054 78717 Crimp Switch 1
31 7482-0442 78252 Microswitch 1
** 7482-0747 78754 Wiring Harness, Switch Box
to Shroud for 115 Volt only 1
** 7482-0498 78748 Wiring Harness, Switch Box
to Shroud to convert
from 115 to 230 Volt 1
** 35019-FP ——— Face Plate 1
*These items can be purchased at most hardware stores-not stocked at Gates.
**Not shown on diagram.
Gates Power Crimp®707 Schematic and
Parts List
Newer refurbished units have a serial
number with a -7R suffix.
*NOTE:

13
23 1
2
3
4
6
7
8
9
10
11
12
13
14
15
16
15
17
18
19
20
31
21
22
5
28
30
30 27
26
25
24
Crimper Schematic for Non-Refurbished
units with Serial #B13,999 and below.
KEY PROD. PART
NO. NO. NO. DESCRIPTION QTY.
17253-0220 86322 8MP-8FPX90 Adapter 1
*2
—————-
——— Screw 3/8-16 x Hex HD 1
37482-0243 78737 Nut 1-8 Standard Hex (Special-
Grade 8) 8
*4 ————— ——— Screw 1/2-13 x 1-1/4 S.H.C.S. 2
57482-6959 78751 Return Spring 2
*6 ————— ——— Nut 1-14 w/Nylon Insert 1
7————— ——— Piston 1
87482-0122 78731 Seal Replacement Kit 1
97482-0122 78731 Seal Replacement Kit 1
10 7482-0147 78732 “O” Ring 1-1/8 O.D. x 1 I.D. (Nitrile) 1
11 7482-0106 78719 Piston Rod 1
12 7482-0109 78722 Piston Rod Guide 1
13 7482-0118 78729 Spring Anchor 2
14 7482-0107 78720 Return Spring Anchor Channel 1
*15 ————— ——— Washer 3/8 Plain 3
*16 ————— ——— Nut 3/8-16 Hex 2
*17 ————— ——— Lockwasher 3/8 1
*18 ————— ——— Screw 3/8-16 x 1-1/2 S.H.C.S. 1
19 7482-0112 78725 Pusher Cup 1
20 7482-0111 78724 Tie Rod 4
*21 ————— ——— Roll Pin 1/4 x 1 4
22 7482-0110 78723 Base Plate (Machine) 1
** 7482-0119 78730 Mounting Bracket 1
23 7482-0116 78728 Cylinder and Top Plate 1
24 7482-0229 78734 Microswitch Actuator Rod 1
*25 ————— ——— Top Actuator Nut (1/2-13) 1
*26 ————— ——— Bottom Actuator Nut (1/2-13) 1
*27 ————— ——— Actuator Locking Nut (1/2-20,
new style, only) 1
** 7482-0115 78727 Backup Ring, Large 1
** 7482-0114 78726 Die Cage (Does not include six
1/4 x 3/8 socket head shoulder 2
screws with 10-24 thread) halves
** 7482-0919 78758 Washers for Die Fingers 1
** 7482-0297 78747 Die Cone, No Notch 1
** 7482-0239 78737 Die Cone, Notched 1
** 7482-3011 78755 Molykote “G” Grease (3 oz. tube) 1
** 7253-86876 86876 8MB-8FPX90 Adapter 1
** 7482-0289 78745 Hose Assembly PC707 1
** 7482-0283 78742 Shroud only 1
** 7482-0280 78740 Readout Meter 1
** 7482-0291 78746 Die Finger Removal Tool (Magnet) 1
** 7482-1672 78749 Shoulder Screws for Die Fingers 8
SWITCH BOX
28 7482-0277 78739 Switch Box - Complete
with Wiring Harness 1
29 7482-0231 78735 Knob, Switch Box 1
30 7482-0054 78717 Crimp Switch 1
31 7482-0442 78252 Microswitch 1
** 7482-0747 78754 Wiring Harness, Switch Box
to Shroud for 115 Volt only 1
** 7482-0498 78748 Wiring Harness, Switch Box
to Shroud to convert
from 115 to 230 Volt 1
** 35019-FP ——— Face Plate 1
*These items can be purchased at most hardware stores-not stocked at Gates.
**Not shown on diagram.
Gates Power Crimp®707 Schematic and
Parts List (continued)

14
Trouble Shooting Guide
All equipment is tested for proper performance before it is shipped from the factory. However, if you should
experience any difficulties, we recommend you check the guide below to help restore equipment to proper
operating standards before contacting Gates customer service.
Problem Solution
Crimper will not come up to pressure. ●Check the oil level in pump.
●Check operation of pump relief valve.(See pump operation manual.)
Crimping leaves a “bell” or “tail” on ferrule. ●Check location of ferrule in die fingers before crimping.
Crimping gives wrong crimp diameter. ●Check for proper die set.
●Check for proper hose/ferrule/stem combination.
●Check for proper digital readout setting.
●Check calibration of crimper.
●Change digital readout setting until an acceptable crimp diameter
is obtained. (See page 9) Record new setting for future use.
NOTE: Published settings are only approximate values. You need
to adjust your setting so that thecorrect crimp diameter is achieved.
Pump will not activate crimper. ●Check crimp switch on switchbox.
●Check electrical connections between pump and crimper and
between pump and wall outlet.
Crimping unit is off center under the ram. ●Make certain die backup ring is completely back against both rear
locating pins.
No digital readout, but crimper is ●Check wiring harness to see if it is connected between switchbox
operational. and digital readout. If connected properly, the digital readout
is faulty and must be replaced.

15
Trouble Shooting Guide(continued)
Problem Solution
A dashed line appears across digital ●Check wiring harness to see if it is connected between
readout meter. switch box and digital readout. If connected properly,
switch box is faulty and must be replaced.
Ram will not retract, retracts slowly, or ●Carefully remove hose assembly from pump. Fluid is under
retracts with a “jerky” motion. pressure. Be prepared to catch in a container. If ram retracts
normally, without a “jerky” motion, repair or replace relief
valve in the pump. If ram does not retract, retracts slowly,
or with a “jerky” motion, the piston or piston seals may be
damaged or binding. Replace piston seals or piston.
Cylinder is leaking hydraulic fluid. ●Replace piston seals.
Hose assembly will not fit through base ●Check width of the slot in crimper’s base plate. Width should
plate of crimper. measure at least 2.64”. If not, grind base plate slot to increase
width to accommodate –20 MegaCrimp.®
Hose assembly will not fit through die ●Check diameter of hole in the die backup ring. Diameter should
backup ring. measure at least 2.56”. If not, grind die backup ring hole to
increase the diameter or replace.
Die cone sticks on die fingers. ●Check inside of die cone for proper lubrication. Apply a thin layer
of Molykote ‘G’ grease to lubricate die cone.
Crimping unit does not fit under ram. ●Check the distance between bottom of pusher cup and top of
base plate. The distance should measure approximately 5.37”.
●Check for correct ferrule and die.

16
NOTES

Two-Year Limited Warranty on Equipment
For two years from the date of shipment of the equipment to the original user, The Gates
Rubber Company will, at its option, replace or repair any unit which proves to be defective in
material or workmanship, or both, at no cost to the original user of the equipment. Warranty
claims require proof of purchase. This is the exclusive remedy. THERE IS NO OTHER
EXPRESS OR IMPLIED WARRANTY. ALL INCLUDING THOSE OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO TWO YEARS FROM DATE OF
SHIPMENT OF THE EQUIPMENT TO THE ORIGINAL USER. LIABILITY FOR CONSEQUEN-
TIAL AND INCIDENTAL DAMAGES UNDER ANY AND ALL WARRANTIES IS EXCLUDED TO
THE EXTENT EXCLUSION IS PERMITTED BY LAW. Some states do not allow the exclusion
of incidental or consequential damages, and some states do not allow limitations on how
long an implied warranty lasts, so the above limitation and exclusion may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary
from state to state. For warranty service, contact Service Department, The Gates Rubber
Company, 990 S. Broadway, P.O. Box 5887, Denver, Colorado 80217.
IMPORTANT:
Be sure to fill out the crimper registration card
included with your equipment. Also include the
serial number located on top of the crimper base,
front left side. Completing the registration card will
assure that you receive crimp data updates and full
warranty coverage.
HOW TO ORDER REPAIR PARTS
All parts for the Power Crimp®machine listed in
current replacement parts price sheets can be
ordered directly from your local Gates Hydraulic
Distributor.
When ordering, be sure to include the following
information:
(1) Name of unit shown on front cover.
(2) Product or part number of parts needed.
(3) Description of parts needed.
(4) Serial number of machine.
For selling prices on inventoried parts, refer to
Hydraulic Power Crimp Equipment and Parts List
Price Schedule. Selling prices for parts not shown in
these lists will be furnished upon request, or parts
will be shipped at prevailing prices and you will be
billed accordingly. For information regarding prices,
contact your local Gates representative or The
Gates Rubber Company, 990 South Broadway, P.O.
Box 5887, Denver, Colorado 80217-5887.
When returning inoperable equipment, contact your
local Gates representative for information on
where to ship the unit(s).

The World’s Most Trusted Name In Belts, Hose And Hydraulics.
The Gates Rubber Company
P.O. Box 5887
Denver, Colorado 80217-5887
www.gates.com
