GATEXPERT DKC500DCL User manual

Sliding Gate Opener
User Manual
DKC500DCL/DKC800DCL
Website: www.gatexpertstore.com
E-mail: [e-mail]

Instructions for DKC500DCL/DKC800DCL
www.gatexpertstore.com
WARNING
☆Instructions must be read before installation. Please follow these instructions carefully,
incorrect installation could affect gate operation.
☆When mounting and positioning this product please ensure the power cable is
unplugged.
☆The motor cover will need to be removed to mount the motor to the mounting plate or
directly to the concrete footing.
☆Any changes to the settings on this product can only be made by a licensed electrician.
☆This product can be powered by AC110V/220V power supply or backup battery power
and solar power.

Instructions for DKC500DCL/DKC800DCL
www.gatexpertstore.com
WARRANTY
1. To repair against this warranty card and invoice during the warranty period.
2. Warranty period: 1 year after the date of invoice.
3. Without unauthorized dismantling, any product broken or damage due to quality problem,
we’ll offer the repair service for free or replace for free.
4. The malfunction and damages caused by incorrect use or man fault is not covered by this
warranty.
CONTACT US
E-mail: [e-mail]
Please fill in the order information in the form below.
All personal information you provided will be only used for warranty service and kept
strictly confidential.
Refer to this list when contacting GATEXPERT for technical service or assistance with
your automatic gate opener.
Order Number
Product Model
Purchase Date
Country / Region
Email Address
Issue Details

Instructions for DKC500DCL/DKC800DCL
www.gatexpertstore.com
CONTENTS
Default Setting Instruction..............................................................................................................1
Safety Instruction.............................................................................................................................2
Parts List...........................................................................................................................................3
Technical Parameters......................................................................................................................5
Installation........................................................................................................................................5
Before You Start..........................................................................................................................5
Tools Required / Example Sliding Gate………............................................................................6
Step 1 - Gate Preparation............................................................................................................6
Step 2 - Checking Manual Release.............................................................................................7
Step 3 - Removing / Installing Motor Cover.................................................................................7
Step 4 – Motor Pad Footing.........................................................................................................8
Step 5 - Fitting Mounting Base and Motor....................................................................................8
Step 6 - Sprocket and Chain & Motor Alignment.......................................................................10
Step 7 - Limit Switch Stops........................................................................................................11
Step 8 - Powering on........................……..................................................................................13
Step 9 - Testing Travel and Limit Stops.....................................................................................14
Programming and Wiring..............................................................................................................15
DIP Switch Adjustment..............................................................................................................16
Potentiometer Adjustment.........................................................................................................17
Terminal Instructions.................................................................................................................18
Wiring to the Terminal...............................................................................................................20
Connecting Infrared Photocells.................................................................................................21
Remote Control Operation........................................................................................................22
Connecting Storage Battery......................................................................................................22
Connecting Solar Panel.............................................................................................................22
Wiring to the Transformer..........................................................................................................23
Maintenance...................................................................................................................................23
Troubleshooting.............................................................................................................................24
Drawing and Measurements..........................................................................................................25

Instructions for DKC500DCL/DKC800DCL
www.gatexpertstore.com
1
Then the gate will move in
the set direction.
Default Setting Instruction
The gate opener will open the gate to the right-hand side as its default setting. By default, the
opener mounts on the right-hand side. (Figure 1)
Gate in closed position Gate in open position
Figure 1
Before installation: Test the gate opener by plugging it into a power source and pressing the
remote. Press the opening button, the output sprocket rotates, then press the stop button, the
output sprocket stops rotating. Finally, press the closing button, the output sprocket rotates to the
opposite direction. This will give you an understanding of the way how the opener moves the gate.
Figure 2
Note: Ensure that the gate opener is unplugged before proceeding with installation. Please keep
fingers away from the motor output sprocket whilst it is turning.
If your gate needs to open from the other direction (to the left, refer to figure 3), your opener needs
to be mounted on the left-hand side as shown, the relative wires need to be swapped over, please
check under “Terminal Instructions” for swapping. (Factory default setting is for right-hand opening:
opener mounted on the right-hand side).
Figure 3
Any works done to the gate opener must be completed whilst the power is off, and the opener is
unplugged.
Press the first/top button
on the remote.
Rotating output sprocket will
drive the gate frame.

Instructions for DKC500DCL/DKC800DCL
www.gatexpertstore.com
2
Safety Instruction
Warning: Incorrect or improper use of this product can cause damage to persons, animals or
properties.
·Please ensure that the input voltage used matches with the supply voltage of gate opener.
·All modifications to wiring or electrics, and any adjustment or maintenance to input voltage
must be done by a qualified electrician.
·All potential hazards and exposed pinch points of the gate must be eliminated or guarded prior
to installation of this gate opener.
·Never mount any device that operates the gate opener where the user can reach over (under,
around or through) the gate to operate the controls. These must be placed away from any
moving range of the moving gate.
·Ensure power plug is disconnected from the power socket during installation or maintenance.
·Keep remote control and other control devices out of children’s reach, in order to avoid
unintentional activation.
·To ensure safety, before installing the motor, mount a Gate End Catch and a Gate Stop at each
end of the rail to prevent the gate travelling off the track.
·If required, install infrared photocell to detect obstructions and prevent injury to person or
damage to property.
·Instruct all users about the control systems provided and the manual opening operation in case
of emergency.
·Ensure that the power cable is connected to a RCD protected weatherproof power outlet
installed by a qualified electrician.
·Do not install this product in an explosive atmosphere or where there is any danger of flooding.
·This product was exclusively designed and manufactured for the use specified in the present
documentation. Any other use not specified in this documentation could damage the product
and be dangerous.
·Only use original parts for any maintenance or repair operation. Our company declines all
responsibility with respect to the automation safety and correct operation when other supplier’s
components are used.
·Do not modify the automation components, unless explicitly authorized by our company.
·The user must avoid any attempt to carry out any works or repairs on this product, and should
always request the assistance of qualified personnel.
·This product is suitable for use on one sliding gate only.
·Anything which is not expressly provided for in these instructions is not allowed and will void
warranty.
·Dispose of all packing materials (plastic, cardboard, polystyrene etc.) according to current
guidelines. Keep plastic bags and polystyrene out of children’s reach.
·Save these instructions for future use.

Instructions for DKC500DCL/DKC800DCL
www.gatexpertstore.com
3
Parts List
Parts List (standard configuration)
No.
Name
Quantity
1
Motor
1
2
Manual Release Keys
2
3
Remote Controls
2
4
Mounting Accessories Box
1
4-1
Sprocket Cover
1
4-2
Chain(Including 2 Chain Links)
6m
4-3
Tie Rod
2
4-4
Square Screw
4
4-5
Round Screw
4
4-6
Door Connecting Plate
2
4-7
Horizontal Mounting Plate
1
4-8
Vertical Mounting Plate
2

Instructions for DKC500DCL/DKC800DCL
www.gatexpertstore.com
4
No.
Name
Quantity
4-9
Anchor Bolts M8
4
4-10
Magnetic Limit Switch Stop
2
Magnets
2
Hexagon Head Bolt M6X65
4
Nut M8
4
Flat Washer φ8
2
Spring Washers φ8
2
4-11
Inner Hexagon Head Bolt M6X20
4
4-12
Hexagon Head Bolt M8X40
4
4-13
Nut M6
16
Nut M8
16
4-14
Flat Washer φ6
16
Flat Washer φ8
16
4-15
Spring Washers φ6
16
Spring Washers φ8
12

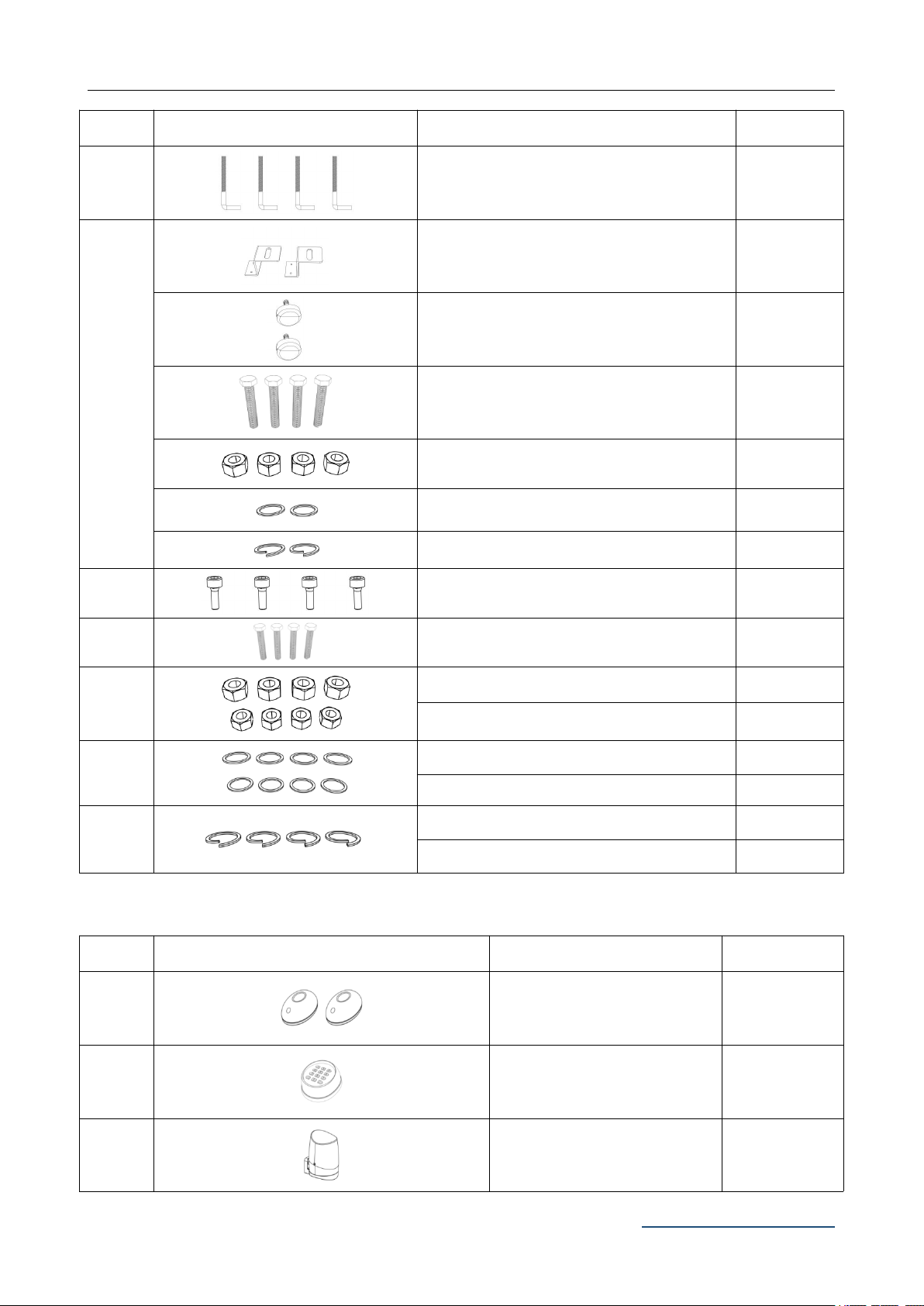

Note: Extra flat washers and spring washers are spare parts.
Parts List (optional)
No.
Name
Quantity
1
Infrared Photocell
1
2
Wireless Keypad
1
3
Alarm Lamp
1

Instructions for DKC500DCL/DKC800DCL
www.gatexpertstore.com
5
Additional remote controls: Spare/Additional remotes for the automatic gate kit, these will need to
be paired to the motor.
Infrared photocell: Detects pedestrians, vehicles and objects that cross an infrared beam and
prevents the gate from closing.
Wireless keypad: Allows secure access through the gate used with a user set code.
Wired control: Allow users to control the opening and closing of the door through an external
push-button.
Alarm lamp: Alerts people near the gate and users that the gate is in operation.
Technical Parameters
Model
DKC500DCL
DKC800DCL
Power Supply
110VAC/60Hz; 220VAC/50Hz
Motor Power
150W
170W
Gate Moving Speed
13m/min
18m/min
Maximum Loading Weight
500KG
800KG
Remote Control Distance
≥30m
Remote Control Mode
Single button mode / Three button mode
Limit Switch
Magnetic limit switch
Working Noise
≤58dB
Working Duty
S2, 20min
Recording of up Remote Controls
40
Remote Frequency
433.92 MHz
Working Temperature
-20°C - +70°C
Package Weight
16.42KG
16.5KG
Installation
Before You Start
·DKC500DCL/DKC800DCL Sliding Gate Automation Kit is suitable for powering the opening
and closing motion of gates up to 600kg,800kg in weight, up to a length of 8m. (Standard kit
contains a 6m chain, if the gate length is over 5.5m, please consider to extend the length of the
chain.)
·Gate motion is achieved by the rotating output sprocket of the gate opener driving the chain
fitted to the moving gate.
·The gate opener requires you to press the remote control once to open, and once again to
close. This is a safety feature to ensure safe operation.
·The gate opener itself must be fitted within private property, never externally to a property’s
boundary.
Any works done to the gate opener must be completed whilst the power is off and the opener is
unplugged. Any modifications/alterations/works to AC power components must only be completed by
a licensed electrician.

Instructions for DKC500DCL/DKC800DCL
www.gatexpertstore.com
6
Tools Required
·Tape measure
·Level
·12mm concrete drill and hammer (when uses expansion screws)
·Phillips head screwdriver
·Straight screwdriver
Example Sliding Gate
Gate Track and Track Wheels Gate End Catch Gate Guide Rollers Gate Stop
Figure 4
Please ensure that the gate opener power cable is not plugged in at any stage before Step 8.
Step 1 - Gate Preparation
·Ensure that the sliding gate is correctly installed.
·The gate is horizontal and level and the gate can glide back and forth smoothly when moved by
hand before installing the gate opener.
·Wheels and guide rollers should rotate easily and be free from dirt or grime.
·Track should be flat, level and firmly affixed.
·Any misalignment in the gate will affect performance of the automatic gate opener.
The gate should slide smoothly by hand before attempting to install the gate opener.
Figure 5

Instructions for DKC500DCL/DKC800DCL
www.gatexpertstore.com
7

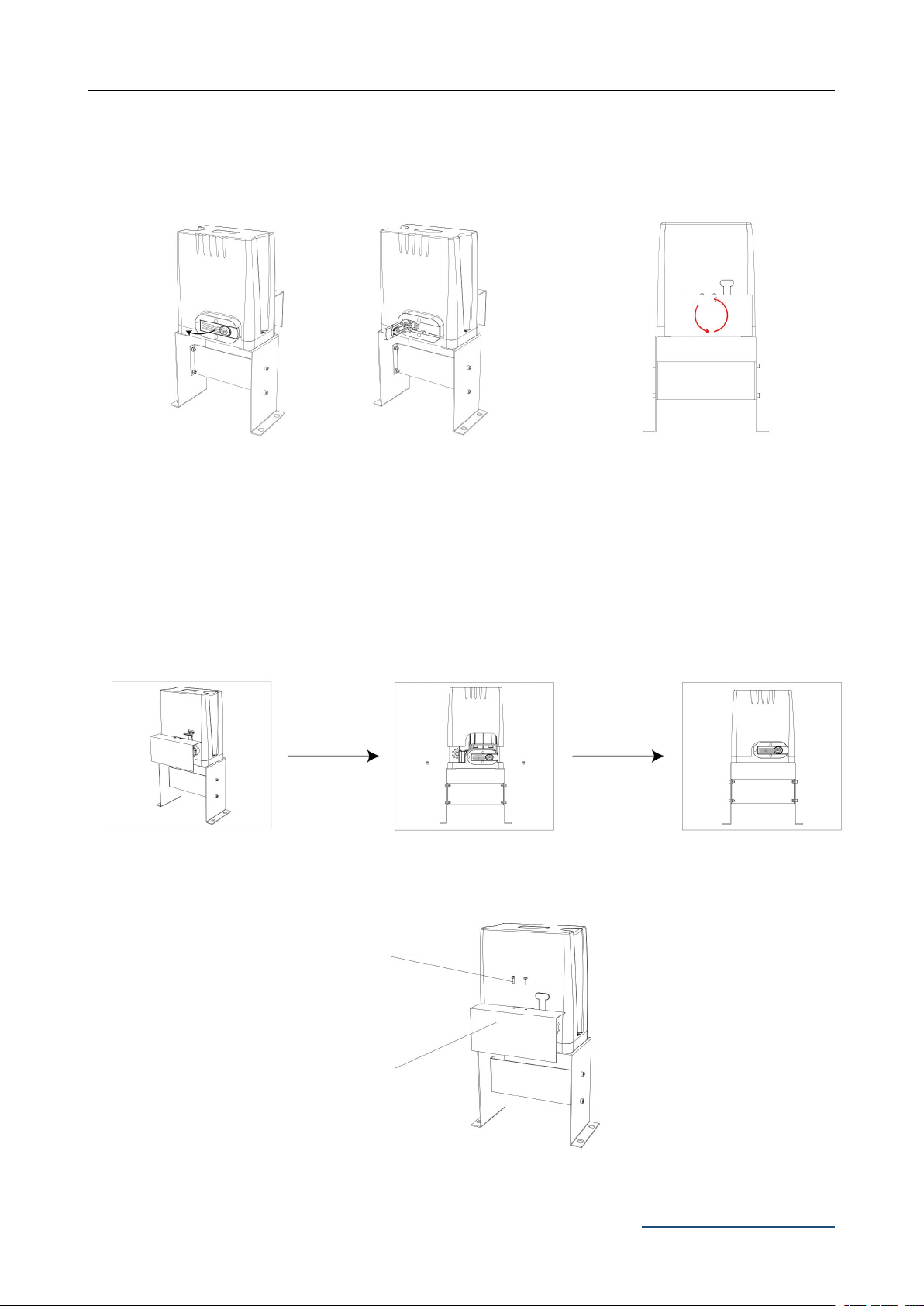

Step 2 - Checking Manual Release
·Insert the key and open the manual release bar to enable the motor get into manual mode and
check that the motor output sprocket rotates freely by hand (Figure 6).
Figure 6
Step 3 - Removing / Installing Motor Cover
·Unscrew the two cover screws located at each side of the motor cover.
·Remove the rubber grommet below the limit switch (Figure 7).
Figure 7
·Sprocket cover installation as Figure 8
Figure 8
To make the motor into manual mode, insert the key
and open the manual release bar till it rotates by 90°.
In manual mode, the sprocket can turn
freely and the gate can be operated by
hand.
Bolts
Sprocket Cover
Turn 90°

Instructions for DKC500DCL/DKC800DCL
www.gatexpertstore.com
8
Please Note: the rubber grommet must be fitted back onto the motor cover once the
cover has been re-fitted/replaced onto the base of the motor.
Step 4 - Motor Pad Footing
·The motor pad concrete footing requires an area of no less than 500mm long x 350mm wide
and a minimum depth of 200mm (Standard requirement).
·Ensure surface is level and parallel to the driveway.

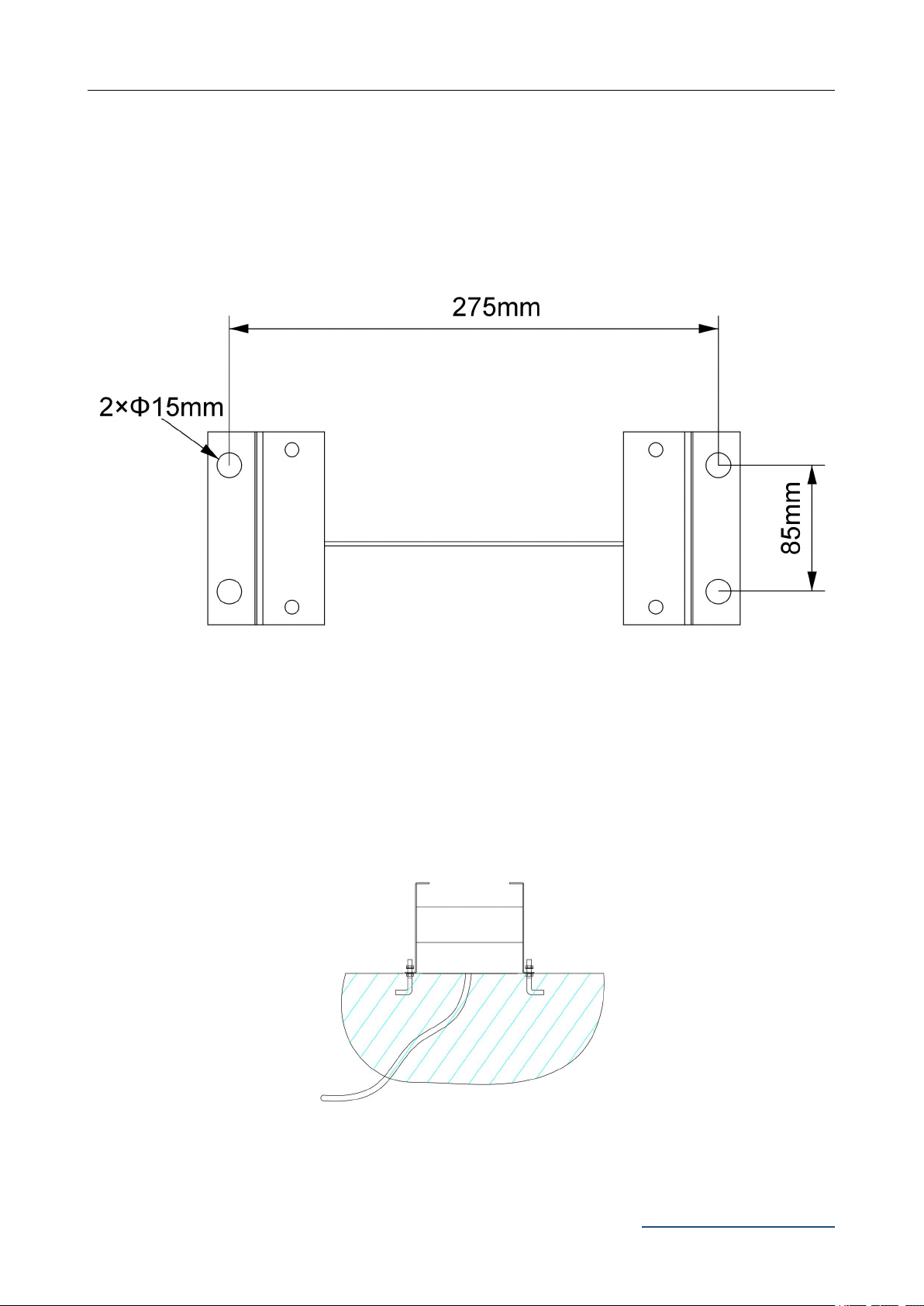

Mounting Base Dimensions
Figure 9
Step 5 - Fitting Mounting Base and Motor
·Fit anchor bolts(included in kit) or expansion bolts(should be prepared by users) according to
holes in mounting base (as per Figure 9).
·Position the mounting base and fix it as per Figure 10.
·Bolt motor to its base using the M8x40 bolts with spring and flat washers provided and tighten
as required.
Figure 10

Instructions for DKC500DCL/DKC800DCL
www.gatexpertstore.com
9
Figure 11
Fitting Motor
·Fit motor and mounting base on the concrete footing.
·Ensure the motor output sprocket and chain are correctly aligned. Sprocket and chain should
be centered as much as possible.
·Take the motor away from mounting base.
·Leave a space of 30cm from the motor to end of the chain.
Nut
Flat Washer
Spring Washer
Nut
Sliding Gate Frame (in open position)

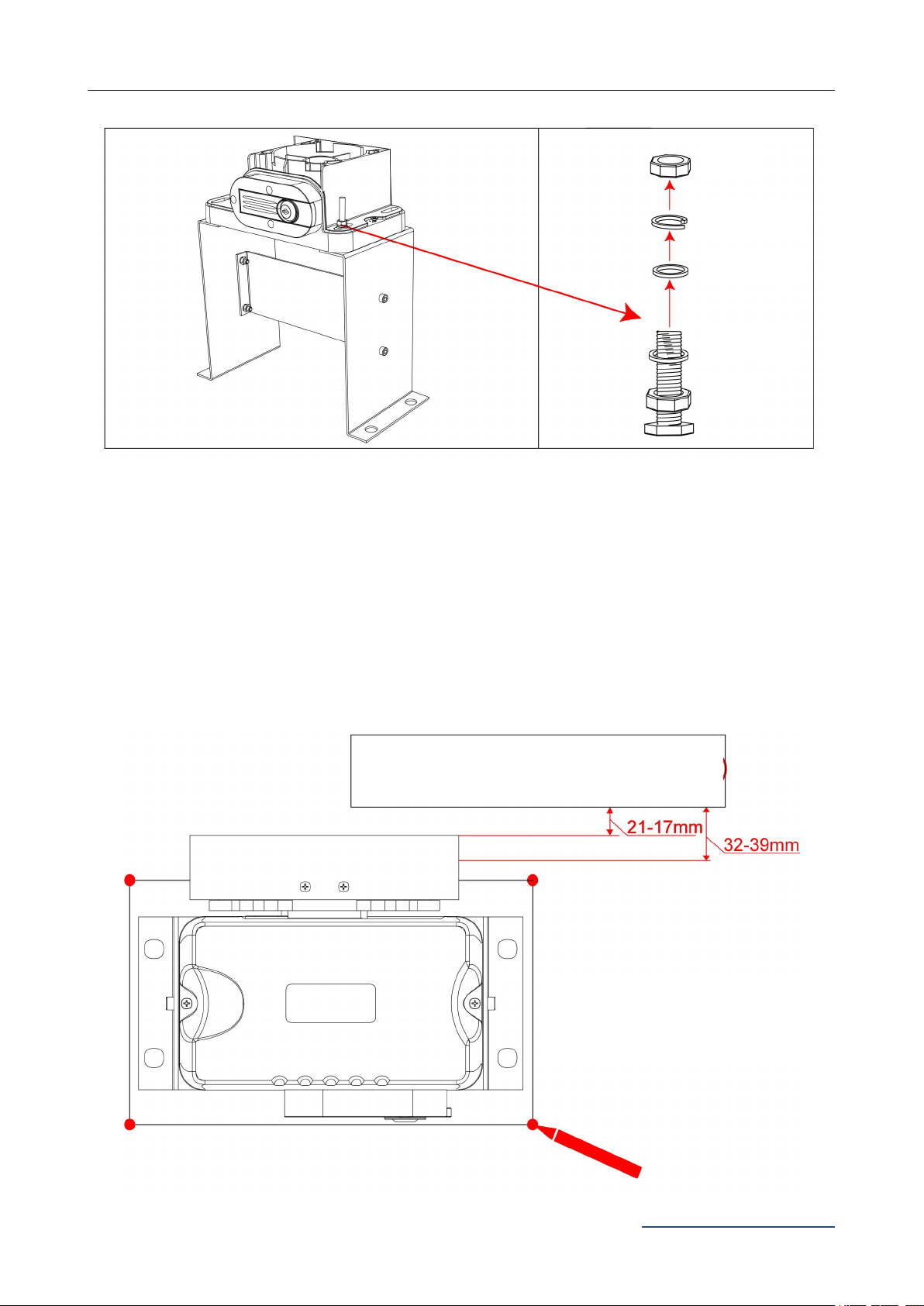

Use pencil, chalk or similar tools to
mark at the corners of mounting plate
Flat Washer

Instructions for DKC500DCL/DKC800DCL
www.gatexpertstore.com
10
Figure 12
Step 6 - Sprocket and Chain & Motor Alignment
·Ensure output sprocket and chain are correctly aligned. Under no circumstances should the
gate opener output sprocket carry any weight of the gate. It is the task of the gate castors or
wheels to carry the weight of the gate.
·If the gate doesn’t slide freely by hand, adjust the height of the chain accordingly until the full
length of gate slides freely by hand.
·Ensure the chain is in proper tightness after installation. (refer to Figure 14)
Figure 13

Instructions for DKC500DCL/DKC800DCL
www.gatexpertstore.com
11
Figure 14
Step 7 - Limit Switch Stops
Included in your gate opener kit are two limit
switch stops which must be fitted on your gate
to ensure safe operation.
The limit switch stops are designed to set the
desired opening and closing position of your
gate. When the limit switch stops come into
contact with the magnetic limit switch, the gate will stop moving.
It is extremely dangerous that without or incorrect installation of the limit switch stops can cause
crash of gate, damage of internal structure of the motor, moreover, the gate may slide off the guide
rail.
Setting the Limit Switch Stops
Closed Position
·Position gate 150-200mm back from the gate end catch closed position. This will help in
making sure you do not slam the gate into the end stop/catch when setting the closed position
under power.
·Fit limit switch stop onto the top of chain at the point where it meets the magnetic limit switch on
the motor.
·Tighten locking screws of limit switch stop.
Sprocket
Chain

Instructions for DKC500DCL/DKC800DCL
www.gatexpertstore.com
12
Open Position
·Position gate 150-200mm back from the gate stop open position. This will help in making sure
you do not slam the gate into the end stop/catch when setting the open position under power.
·Fit limit switch stop onto the top of chain at the point where it meets the magnetic limit switch on
the motor.
·Tighten locking screws of limit switch stop.
Test the magnetic limit switch stops by moving the gate manually until you hear a click, making sure
contact is made with the magnetic limit switch on the motor.
Magnetic limit switch
switch
Magnetic limit switch
switch

Instructions for DKC500DCL/DKC800DCL
www.gatexpertstore.com
13
To Reset: Turning the power off will reset the limit switch stop memory. Power on the gate
opener again, pressing remote control or external push button switch to open and then
close the gate once, then new limit switch stop setting is completed.
Step 8 - Powering on
·Ensure that the outer cover has been fitted and fastened back onto the motor base.
·Before powering up the gate opener make sure the gate can travel by hand in manual mode
(key unlocked).
·Slide the gate to between the middle of the posts, approximately (see below diagrams).
·Lock the manual release spanner (key locked) in readiness for automatic mode.
·Plug the power cord into an approved RCD protected weatherproof outlet.
·Remote controls included in this kit are factory paired ready for use.
Figure 15
Open Position Limit Switch Stop
Closed Position Limit Switch Stop
Motor
Magnet
Gate

Instructions for DKC500DCL/DKC800DCL
www.gatexpertstore.com
14
Step 9 - Testing Travel and Limit Stops
Testing the Closed Position
·Ensure gate opener is installed as per step 5, 6 and 7 and the sliding gate is in the middle
position.
·Press remote (remotes included in kit are factory paired to the motor). The sliding gate will
begin to close.
·The limit switch stop will hit the limit switch and the sliding gate will stop.
·When the gate stops, measure the distance remaining between the sliding gate and the desired
closed position.
·You have now determined the closed position of the sliding gate when the limit switch stop hits
the limit switch.
·Adjust the limit switch stop from the measurement you have taken to get your final gate closed
position. The ideal closed final position for the gate frame is 10-15mm from closed gate end
catch.
Testing the Open Position
·Press remote, the sliding gate will begin to open.
·The limit switch stop will hit the limit switch and the sliding gate will stop.
·When the gate stops, measure the distance remaining between the sliding gate and the desired
open position.
·You have now determined the open position of the sliding gate when the limit switch stop hits
the limit switch
·Adjust the limit switch stops from the measurement you have taken to get your final gate open
position. The ideal open final position for the gate frame is 10-15mm from the gate stop.
To Reset:
When setting new limit stop positions please ensure that you turn the power off and then on
again. Turning the power off will reset the limit stop memory, allowing for new limit switch
stop positions to be recognized by the motor.
Now the basic open and closed positions are set, for further setting functions and adjusting
parameters, please refer to pages 15-23 in this manual.

Instructions for DKC500DCL/DKC800DCL
www.gatexpertstore.com
15

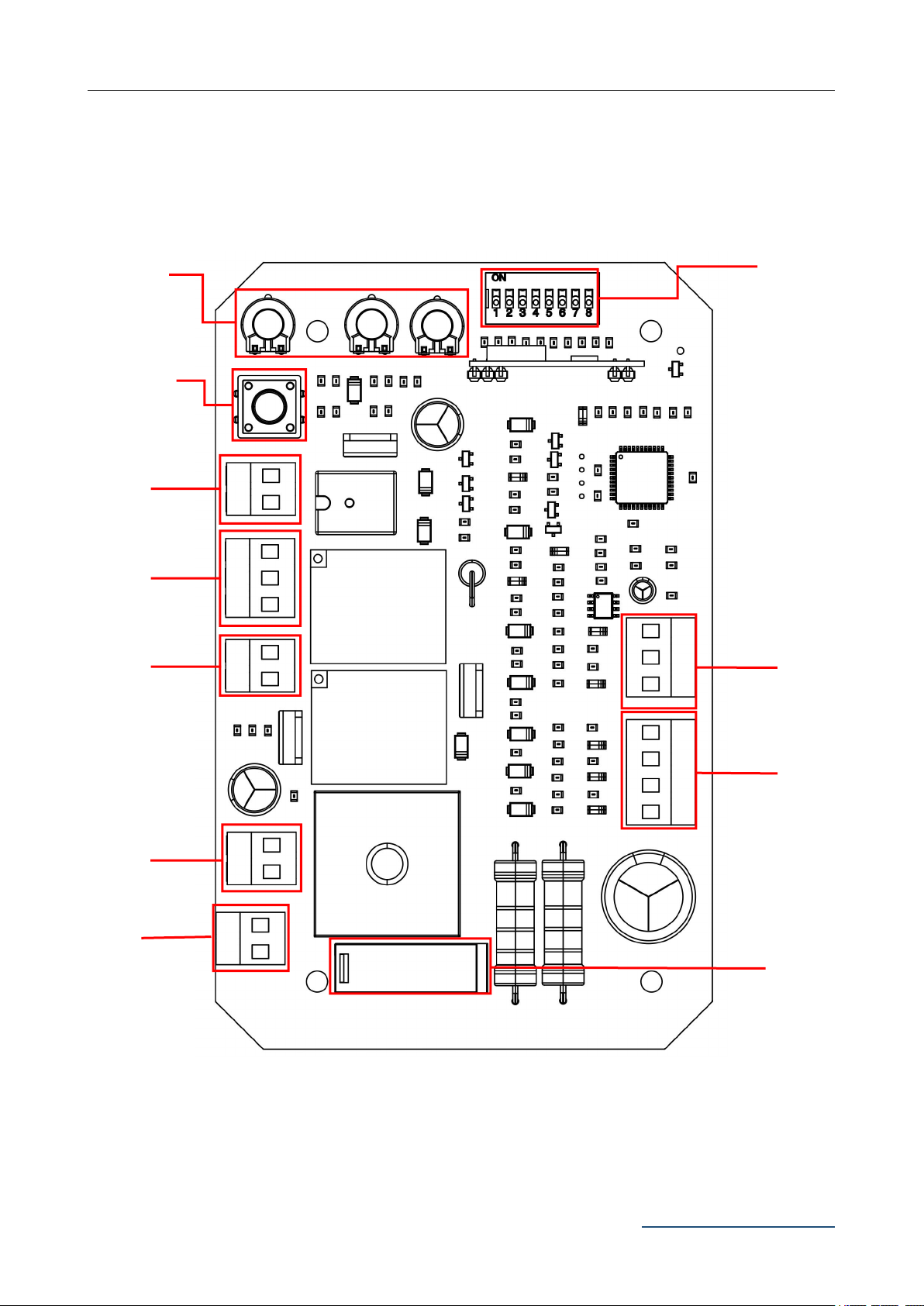

J10 Terminal
J4 Terminal
Dip Switches
Learn Button
Potentiometers
Storage Battery
Programming and Wiring
Any works to the 110V/220V AC must only be performed by a licensed electrician.
Ensure power is off before any modifications are made.
J1 Terminal
J8 Terminal
J7 Terminal
Figure 16
24VAC
Fuse
(10A 250V fuse)

Instructions for DKC500DCL/DKC800DCL
www.gatexpertstore.com
16

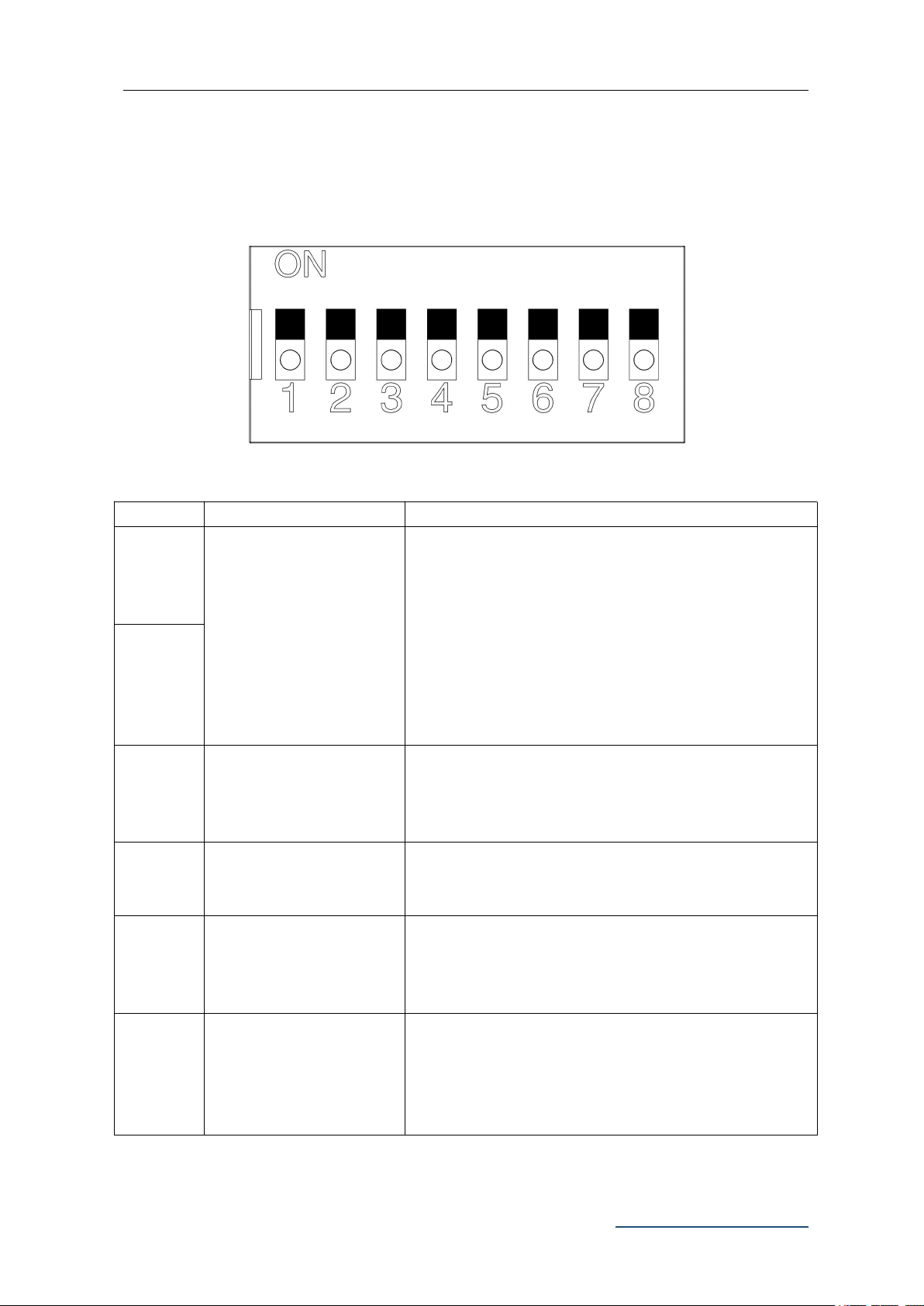

DIP Switch Adjustment
All changes to these settings must be completed by a licensed electrician
Figure 17
Number
Function
Description
1
Automatic Close Time
Setting
Automatic close time setting: the gate is operated to
open by remote control operation and will close
automatically after a few seconds delay.
1 ON 2 OFF: automatic close delay time is 3s.
1 OFF 2 ON: automatic close delay time is 10s.
1 ON 1 ON: automatic close delay time is 30s.
1 OFF 2 OFF: no automatic close function.
Default setting: 1 OFF 2 OFF
Disable the automatic close function.
2
3
Remote Control Mode
Switch
ON–three button mode:
first button-open; second button-close; third
button-stop
OFF–single button mode
4
External Button Mode
Switch
OFF–single button mode, should connect to 1 and 4
on J7 terminal
ON–three button mode
5
Opening Direction
Setting
OFF–right-hand opening (default setting)
ON–left-hand opening
The change on opening direction will be valid after
cutting off the power and returning.
6
Limit Switch Setting
ON–Normal Open
OFF–Normal Close
Default position is ON, this should align with limit
switch and is not recommended to be modified by
the users.
