Gator GHDVR370 User manual

!
Resolution
1080P
HD
Full
Screen Size
2.3”
120
Wide Angle Super
Capacitor
G Sensor Suction
Mount
Manual
GHDVR370
FULL HD 1080P
DaSH cam +
GPS TRaCKING

!
2
Introduction
Product features
Product overview
FULL HD 1920 x 1080 @ 30FPS
2.3" 4:3 High-resolution LCD screen
120 Degree HD wide angle lens
GPS Tracking (Windows OS Software included)
Super capacitor works in extreme temperature &
saves last recording once power is disconnected
Suction car mount with 360 degree rotation
G-Sensor function
12Vin-car USB charger
8GB Micro SD card included
Supports Micro SD card class10 up to 32GB
Mini USB interface
Seamless cycle loop recording
Thank you for purchasing the Gator GHDVR370 FULL HD 1080P Dash
Cam. Please ensure that you have read the product manual and
instructions in full, prior to installation and use. Failure to do so may
result in product failure/damage or incorrect operation and therefore
impact the product performance.
The Gator GHDVR370 Dash Cam has been designed to provide high
definition recordings of your trips for security and evidence in the case
of an accident. The built in GPS allows for recording position, route
taken and speed.
The Dash Cam simply mounts to the windscreen and records footage
onto a Micro SD memory card.It has a G-sensor with adjustable
sensitivity and loop recording functionality.

3
Table of Contents
Introduction 2
2
2
3
Package components 4
Product structure 5
Installation of Dash Cam 6
7
Indicator lights 7
8
9
Dash Cam menu
Video Menu Settings
Resetting Dash Cam
Product specifications
Infringement of copyright warning
10
10
13
13
15
16
16
18
Product overview
Product features
Table of contents
Video/Photo playback
Formatting the SD Card
Safety information & warnings
Technical assistance
Fixing the Dash Cam
Tools Menu Settings 11
Photo Menu Settings 12
13Locking Footage (SOS)
13Microphone Recording
13Connecting to a PC
14GPS Player
17Trouble shooting guide
Video and photo operation
7
Powering your Dash Cam

!
4

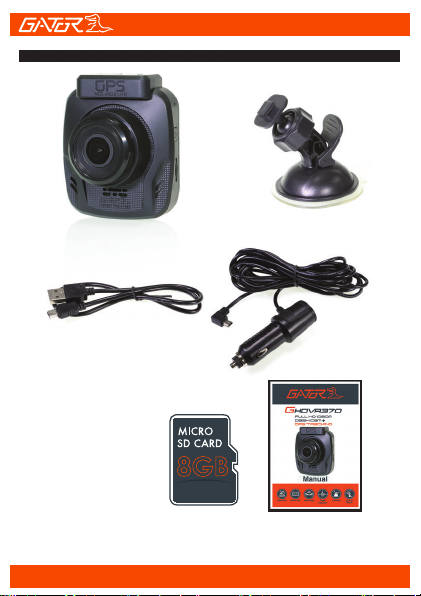

Package components
GHDVR370 Mounting
Bracket
USB to Mini USB Car Charger
GHDVR370
User Manual
Micro SD
Card
INCLUDED
8GB

!
5

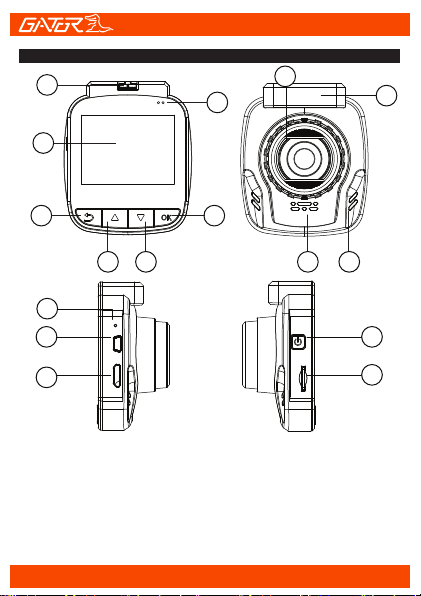

Product structure
2
3
4 7
1
1) Mounting Slot
2) Power Indicators
3) LCD Screen
4) Menu/Return
5) Up
6) Down
7) OK Button
8) Lens
9) GPS Antenna
10) Mic
11) Speaker
12) Reset
13) Mini USB port
14) HDMI port
15) Power/Lock Button
16) Micro SD Card Slot
5 6 10 11
15
12
16
14
13
8
9

6
!
Installation of Dash Cam
1. Ensure windscreen is clean and free of debris. Attach suction cup to
the windscreen and lock into position with the lever.
2. Fix where the vision is not blocked (Place close to rear-view mirror
is recommended). Don't install device on airbag or within its working
range.
3. Insert Micro SD card into the Dash Cam
4. Insert Mini USB end of the 12V power adapter into the Mini USB
interface/ charging point of the Dash Cam. Connect socket end of the
adapter into the into 12V power socket of vehicle.
5. Adjust the mounting bracket and rotate the camera direction to get
the best view. Ensure of the vehicles bonnet is visible from the
bottom of the screen for alignment.
6. Turn vehicles ignition to accessories, and the Dash Cam will power
ON and start recording automatically, you will hear an audible tone
once powered.
7. The blue power indicator LED will show when the Dash Cam is
receiving power.
8. A red circle on screen will start flashing when recording has started.
9. For the Dash Cam to work it must receive power from the charging
adapter. Once power is removed or turned off the Dash Cam will save
the current file and turn off.
ATTENTION:
The Dash Cam must be connected to power when in use. The super
capacitor only holds date and time settings. The Dash Cam has no
internal battery.

7
Suggested
Indicator lights
Fixing the Dash Cam
1. The blue power indicator LED lights up and the charge symbol on
screen flashes when the Dash Cam is receiving power.
2. One of the blue indicators flashes when the Dash Cam is recording.
Press the power button to turn the Dash Cam on. It will automatically
start recording once it receives power. When power is turned off
manually or power is removed, the Dash Cam will save the current file
and turn off.
Powering your Dash Cam

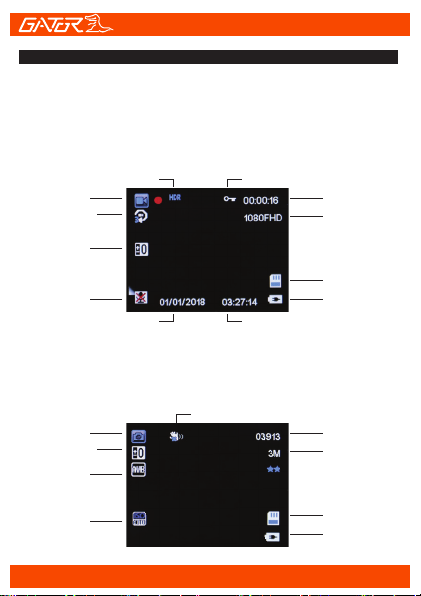

Video time
SOS locked leHDR mode
Video mode
Microphone
Exposure
Compensation
Loop rec time Resolution
SD Card
Battery
Camera Shake
TimeDate
There is a camera icon at the top left corner of the LCD to signify you are
on video mode. When the Dash Cam is recording, a red circle indicator
appears and flashes on the top left corner of the screen. To stop the
recording, simply press the OK button. To resume press recording press
OK button. Press/Unpress Menu/Return button to Lock/Unlock recorded
video.
Press the power button to switch the Dash Cam to photo mode. There is a
camera icon at the top left corner of the LCD to signify you are on photo
mode. To take a photo, press the OK button. The screen will flash and
make a camera sound when a picture is taken.
Video Mode
Photo Mode
Photos remainingCamera mode
ISO
White Balance
Exposure
Compensation Image resolution
SD Card
Battery
8
Video and photo operation

Playback mode
icon
Playback mode
icon

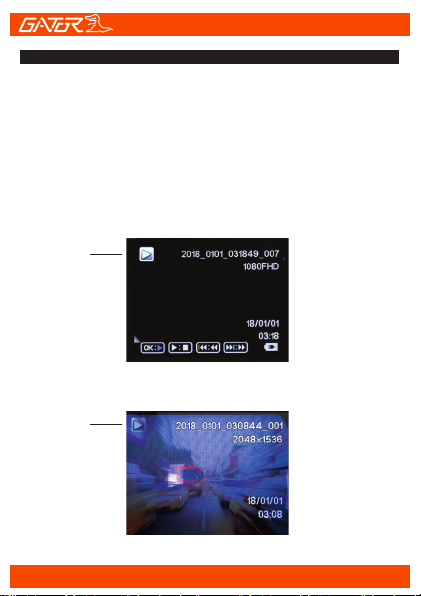

Press the power button until you see the playback icon on the top left
of the screen. Using the arrow buttons, you can choose between all
your recorded videos or photos. The protected files have a lock icon
meaning they cannot be deleted until unlocked. Press the OK button
to select a file for playback. Pressing the return button once will give
the option to delete, protect or unlock the file. Pressing the return
button twice will open video/photo settings. Press OK button to initiate
changes. Press the return button again to exit and return to playback
mode screen.
Video Playback Screen
Photo Playback Screen
Video/Photo playback
9

Menu Settings
In video mode press the Menu (Return) button to get into the menu
settings when not recording. Press once for Video settings, twice for
Tool settings. You can navigate the settings menu by using the Up/Down
buttons. To change or edit a selected setting, press the OK button.
Press the menu button again to exit the menu settings.
Video Menu Settings
Resolution:
Resolutions are 1296P 1728x1296, 1080 FULL HD 1920x1080 or 720P
1280 x 720. The recommended resolution should be set at ‘1080 FULL
HD 1920x1080.
Loop Recording:
This feature allows you to set the size of the files your Dash Cam will
record before saving and creating a new file. It allows the Dash Cam to
record over the oldest recorded files once the card is full. This can be
turned OFF, or record 1,3 & 5 minute video files. If you want to keep any
of the files it is best to upload them to your computer. We recommend
the Dash Cam to be set to ‘3’ minute files
HDR:
High Dynamic Range is used to achieve greater exposure to dynamic
range than normal digital image technology and make video and pictures
look better.
Exposure:
This feature will change the light and dark balance of your photos. We
recommend it always be set at ‘0’.
Record Audio:
This Feature will allow you to turn the Dash Cam’s recording sound on
or off. If you want to stop the Dash Cam recording sound in the cab of
your vehicle, set this feature to ‘off’.
DASH CAM Menu
10

Date Stamp:
This feature will stamp the date and time on all your footage produced
by your Dash Cam.
G Sensor:
This feature allows you to set the sensitivity of the Gravity sensor in
the Dash Cam. Settings are OFF, Low, Medium & High. We recommend
this be set to ‘LOW’ to help stop false or irrelevant readings.
11
Video Menu Settings Cont....
Tools Menu Settings
Date/Time:
This feature will allow you to change the year, month, day and time. To
change the date simply use the arrow keys to go up or down. Press the
OK button to move onto the next section. Again, use the arrow buttons
to go up or down. Once through all the sections, pressing return button
will finish the setup.
Beep Sound:
Allows you to turn the beeping sound on or off.
Language:
Allows you to choose from a selection of languages that include:
English,
French, Spanish, Portuguese, Dutch, Italian, Chinese & Russian
Screen savers:
This feature will turn your LCD off after 30 seconds, 1 or 2 minutes but
will continue to record regardless. This feature is useful for night driving
as having the LCD on could be a distraction.
Frequency:
This feature allows the best recording in conditions where street lights
and AC lighting is used. The Australian standard frequency is 50HZ so it
should be set to ‘50hz’.
Format:
This feature allows you to format/delete all the files off your micro SD
card and also reinstalls your DCIM directory and Dash Cam software on
your SD card so the micro SD card can operate with your Dash Cam
free of errors.
Default Setting:
This feature will reset all your settings and return your Dash Cam to the
factory standard settings.
Version:
This simply shows the firmware/software used by the Dash Cam’s
hardware.

12
Photo Menu Settings
Menu Settings
In photo mode press the Menu (Return) button to get into the photo
menu settings. Press once for Photo settings, twice for Tool settings
(Page 11). You can navigate the settings menu by using the Up/Down
buttons. To change or edit a selected setting, press the OK button.
Press the menu button again to exit the menu settings.
Capture Mode:
Timer shooting modes. Single, 2, 5 and 10 second timer.
Resolution:
Resolutions available are 12M, 10M, 8M, 5M, 3M, 2M, 1.3M & VGA
Sequence:
This feature will change allow you to take multiple photos with one
click
Quality:
Fine, Normal & Economy
Sharpness:
Strong, Normal & Soft
White Balance:
Auto, Daylight, Cloudy, Tungsten & Fluorescent
Color:
Color, Black & White or Sepia
ISO:
Auto, 100, 200 & 400
Exposure:
This feature will change the light and dark balance of your photos. We
recommend it always be set at ‘0’.
Anti-Shaking:
To help with motion blur when taking photos
Quick Review:
Used for viewing images as a slideshow
Date Stamp:
Used for displaying date and time on photos taken

When connecting your Dash Cam to a PC with the USB cable, the
Dash Cam will present “Mass Storage” and “PCCamera” on its screen
allowing you to transfer your videos and photos to your PC. Select
“Mass Storage” and press OK button and a “SD Card” icon will appear
on your PC with a folder CARDV inside. 3 folders will reside 1. EMR:
For locked files. 2. VIDEO: For video files. 3. PHOTO: For picture files.
Selecting “PCCamera” allows the user to use the Dash Cam as a web
camera with additional software, not included.
Resetting DASH CAM
Formatting the SD Card
Locking Footage (SOS)
Microphone Recording
Connecting to a PC
To hard reset the device in the case of a system jam or crash. Insert a
fine point paper clip into reset hole on the side of the Dash Cam above
the USB input.
It is advisable to format the card weekly. As all footage that is locked
will fill up the card causing it to stop recording any footage.
When recording press the Menu/Return button. A lock key will appear
on the screen and this will save any footage from getting erased from
the card. Press again to unlock when recording. To remove locked
footage you must unlock the file on the Dash Cam or format the card
on the device or your computer.
When recording press the down arrow to turn mic On or Off.
13

14
GPS PLAYER (Windows Only)

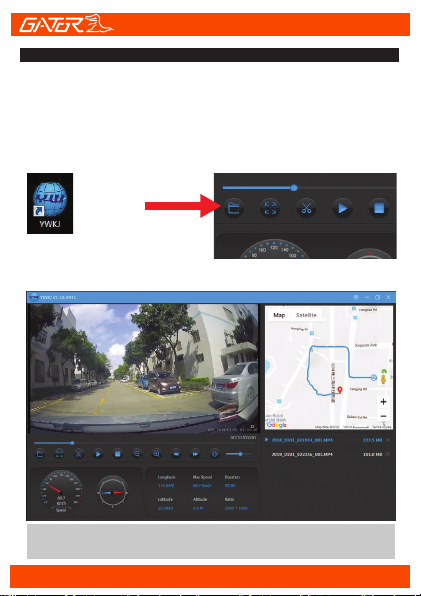

The GPS data is automatically saved to the video files. In order to see
the GPS data in the video files, you will need to install “YW GPS
PLAYER” from the provided software on the disc. Once installed, open
the program and click on the folder shown in the picture below (Pic1).
Find the video file you want to play from your Dash Cam’s SD card.
Select open and the player will import the file and allow you to view
GPS information as screen below (Pic2).
GPS PLAYER
Icon
(Pic1)
(Pic2)
NOTE: To avoid any possible signal interference, make sure the
Dash Cam is away from any other car audio equipment.

NTK96658CPU
2.31-inch LCD screenDisplay
BlackColor
MOV/MP4Video
1080 FULL HD 1920x1080 at 30fps
720P HD 1280 x 720 at 30fps
12M, 10M, 8M, 5M, 3M, 2M, 1.3M & VGAPicture
JPGPicture format
120 degree view angleViewing Angle
GPS tracking, G-Sensor, Loop recordingFunctions
English, Russian, Chinese, etcOSD Language
Built-in Microphone and speakerAudio
Micro SD card (8GB included)
Up to 32GB Class 10 Max Storage
Mini USB
Input / Output
Super CapacitorBattery
7.5*6.0*3.8CM(H*W*D)Dimension
Car mount, Car charger, USB cable, GPS CDAccessories
1080 FULL HD 1920x1080 at 30fps
1296P 1728x1296
720P HD 1280 x 720 at 30fps
12M, 10M, 8M, 5M, 3M, 2M, 1.3M & VGAPicture
JPGPicture format
120 degree view angleViewing Angle
GPS tracking, G-Sensor, Loop recordingFunctions
English, Russian, Chinese, etcOSD Language
Built-in Microphone and speakerAudio
Micro SD card (8GB included)
Up to 32GB Class 10 Max Storage
Mini USB
Input / Output
Super CapacitorBattery
7.5*6.0*3.8CM(H*W*D)Dimension
Car mount, Car charger, USB cable, GPS CDAccessories
Product specifications
15

16
Safety information & warnings
Infringement of copyright warning
Please note that this product is for personal use only, the method of
use shall not violate the goods, or infringe on domestic or international
copyright laws. Recorded images are for personal use only, please
note that in some cases to use this product to record performances,
exhibitions or business activities may infringe the copyright or other
legal rights and interests of others.
Do not use the Dash Cam in damp working conditions; the Dash Cam
is not waterproof
Do not try opening the shell or trying to repair the Dash Cam by
yourself. If the accessories for the Dash Cam have any problems,
please take it to an authorised repair agent for repair.
Do not use a chemical substance, cleaning solvent or cleaner to clean
the Dash Cam, please use a moist soft cloth if you would like to clean
the Dash Cam.
Do not use the Dash Cam under conditions where dust is present.
Please pay attention to cleaning the lens surface, use a moist soft
cloth to clean the lens before use, to avoid poor video footage.

17
Troubleshooting guide
Under normal operating conditions, if there are problems with the
device, please refer to the following methods to resolve.
Cannot take pictures or record video?
Please check whether there is enough space on the
Micro SD card or internal storage.
Stopping automatically while recording?
Due to the high amount of HD video data being recorded, please use a
high-speed Micro SD card. To tell if you have the required high speed
card, check if it has the ‘Micro SDHC’ logo on the SD card and 8GB
class 10 or above is recommended. Make sure that your card is
labeled Micro SDHC and not Micro SDXC as SDXC cards will not work
with this Dash Cam.
Fuzzy/dirty image?
Please check if the lens is filled with dirt or fingerprints and clean
carefully. Please clean lens with cloth before shooting. Remove
transparent lens protector.
The DASH CAM is jammed or not responding?
Please hard reset the device by pushing in the reset button on the
Dash Cam.
Why is the DASH CAM not turning on in the car?
Please check and make sure that there is power in the cigarette lighter
socket of your car.
Micro SD card not recognised by DASH CAM?
Format card in the Dash Cam’s menu setting’s before use.
A coloured tinge showing up in the video?
Make sure to peel off the transparent protective sticker on the front of
the Dash Cam's lens.
8GB

18
Technical assistance
If you need assistance setting up or using your Gator product now or
in the future, call Gator Support.
Australia
TEL: 03 – 8587 8898
FAX: 03 – 8587 8866
Mon-Fri 9am – 5pm AEST
Please retain this user guide for future reference.
If you would like to download a digital copy of this manual, or other
Gator manuals/software, please visit the http://gatordriverassist.com
website and click on ‘Firmware & Manuals” for information on
where to find the manuals/software.
This manual is considered correct at time of printing but is subject to
change. For latest manuals and updates refer to the website.
Copyright © 2017 by TDJ Australia
All rights reserved. No part of this publication may be reproduced,
distributed, or transmitted in any form or by any means, including
photocopying, recording, copying or other electronic or mechanical
methods, without the prior written permission of the author.
