Gazer CM60 Series User manual

www.gazer.com
USER MANUAL
GAZER CAR MULTIMEDIA SYSTEMS

User manual ..................................................................................................................................................................4-33
Руководство пользователя.................................................................................................................................... 34-63
Посібник користувача ............................................................................................................................................ 64-93
ENG
RU
UA

4
ENG
Content
1. Gazer Multimedia System Package Contents ...........................................................................................................................................6
2. Connection Diagram .......................................................................................................................................................................................7
3. Installation Tips ...............................................................................................................................................................................................8
4. Radio App..........................................................................................................................................................................................................9
5. Music App....................................................................................................................................................................................................... 11
6. Video App....................................................................................................................................................................................................... 12
7. Bluetooth App................................................................................................................................................................................................ 13
8. A2DP App ....................................................................................................................................................................................................... 19
9. AirPlay and MirrorLink Functions .............................................................................................................................................................. 20
• AirPlay ........................................................................................................................................................................................................ 20
• MirrorLink USB........................................................................................................................................................................................... 22
• MirrorLink Wi-Fi ......................................................................................................................................................................................... 23
10. Installing Apps from Google Play........................................................................................................................................................... 24
11. Configuring GPS Navigation Voice Prompts......................................................................................................................................... 24
12. Configuring Equalizer................................................................................................................................................................................ 25
13. Display Customization .............................................................................................................................................................................. 27
14. Front Panel Buttons................................................................................................................................................................................... 27
15. Configuring Steering Wheel Controls .................................................................................................................................................... 29
16. Additional Settings..................................................................................................................................................................................... 30
17. Rear View Camera Settings..................................................................................................................................................................... 30
18. Front View Camera Settings.................................................................................................................................................................... 31
19. Changing Boot Logo .................................................................................................................................................................................. 31
20. Front Panel Backlight Customization..................................................................................................................................................... 32
21. Problems and Troubleshooting................................................................................................................................................................ 33

5
ENG
We congratulate you on purchasing Gazer multimedia system!
Please, read this guide carefully before using your Gazer multimedia system and store it safely for future
reference.
Gazer multimedia systems are designed for standard installation in a specific car model or model range. All Gazer multimedia
systems support Plug&Play mounting and connection. Operation via control bus and CAN bus data transfer is also supported.
When connected to CAN bus via a special module, the system is controlled by the car’s onboard computer (turning on/off,
climate control status, steering wheel buttons, car speed data, door opening sensors status, and other functions supported
by CAN bus of a specific car). The user can program the steering wheel control buttons atits own discretion.
Gazer Multimedia Systems

6
ENG
Gazer Multimedia System Package Contents
* Depends on the model
Power cable
Signal/Video in/out cable
Bracketing*
Speaker cable
GPS antenna
Adapter bracket*
USB cable
Microphone*
Antenna adapter* CAN unit*
Audio out cable
Mounting screws*

7
ENG
Connection Diagram
1. Bluetooth antenna
2. Wi-Fi antenna
3. GPS antenna jack
4. External microphone jack
5. Digital TV antenna jack
6. FM antenna jack
7. Optional accessories jack
8. USB cable jack
9. Audio out cable jack
10. Signal/Video in/out cable jack
11. Speaker jack
12. 15A fuse
13. Power jack
Signal/Video in/out
Cable Jack Speaker and Power Jacks
1. Video out 1
2. Video GND
3. Video out 2
4. Camera in
5. Reverse
6. Amplifier
7. AUX Audio in R
8. Audio GND
9. Wheel key 1
10. AUX Audio in L
11. Wheel key 2
12. GND
13. Video GND
14. Not used
15. AUX Video in
16. Not used
17. Not used
18. Not used
19. Brake
20. Remote out
1. Purple – Rear Right +
2. Purple and Black – Rear Right –
3. Gray – Front Right +
4. Gray and Black – Front Right –
5. White – Front Left +
6. White and Black – Front Left –
7. Green – Rear Left +
8. Green and Black – Rear Left –
9. Pink - CAN RX
10. Orange - CAN TX
11. Green – Illumination
12. Red – ACC
13. Blue – Antenna Control
14. Not used
15. Yellow – BATT +
16. Black – GND
10
12
11
13
3
2
1
5
4
6
78 9
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

8
ENG
Installation Tips
•For Gazer multimedia system installation, one must check that all plugs and jacks are connected in accordance with the
connection diagram.
•Make sure that the yellow «BATT+» wire of the power cable is connected to the plus terminal of the car battery while the
red «ACC» wire is connected to the auxiliary equipment bus (+12V voltage is supplied when the ignition key is turned
to АСС position).
•Prior to installing the system, one must consider where to place the remote elements such as GPS antennas and USB
ports.
•Lay all cables under the trim.
•Connect the stock USB and AUX connectors to the multimedia system (depending on the car model).
•If model of your multimedia system has a built-in DVD drive, unscrew two safety screws located in the center of the top
panel prior to installing and the first start-up.
•Prior to using the device, insert a memory card in the «SD card» slot.
•To use all Gazer multimedia system functionalities, one must connect it to the Internet.
Caution! Incorrect power connection may cause the multimedia system to malfunction or fail.
Caution! Remove the memory card only when the device is switched off.

9
ENG
Radio App
To launch Radio app, tap on a corresponding icon on the main home screen, a corresponding icon in the installed apps list,
or by pressing the BAND key on the multimedia device front panel.
Use and buttons to initialize automatic search for available radio stations.
Use the button for manual tuning of the radio.
To enable manual fine-tuning, hold down or button for 2 sec., after that, you can fine-tune the receiver to the
required frequency.
To make the radio station accessible from a memory button, hold down the required button for 2 sec.
Use . button to make the receiver search and memorize all the available radio stations automatically. During the scan-
ning process, the radio receiver will detect all the available radio stations and assign them consecutively to memory buttons

10
ENG
Radio App
in FM1 FM2 FM3 or AM1, AM2 groups depending on the frequency range.
To switch between FM1, FM2, FM3 or AM1, AM2 memory button groups, use on-screen and buttons, or the BAND
button on the multimedia device front panel.
To enable the function of Scanthrough the radio stations memorized, press button. When enabling this function, the
radio receiver will recall all the radio stations memorized one by one, starting from the first one, and run them for 5 sec.
each.To disable this operation mode, press button again.
button enables or disables Stereo mode.
You can open the equalizer settings using button.
When listening to radio in the background, one can switch between stations using the mini-player built into the widget on
the home screen.
button is designed for searching radio stations by genre. Once this button is pressed, a drop-down list is displayed
where one can select the genre of the required radio station.
button is designed for searching radio stations broadcasting live traffic information.
button enables automatic retuning of the radio receiver (e.g., in case of poor reception on the current frequency) to a
different frequency where the current program is also broadcasted.
Note. Keep in mind that the multimedia system has 6 memory buttons in each group, which allows memorizing a total of
18 radio stations for FM frequency range and 12 radio stations for AM frequency range.

11
ENG
Music App
To launch Music app, tap on the corresponding icon in the installed apps list.
Press to pause the audio playback and button to resume it.
To skip to the next or previous audio track, use and buttons.
To fast forward/rewind the recording, move the slider on the audio track progress bar.
To fast switch between audio equalizer presets, press the button in the bottom left corner. The current equalizer preset is
indicated on the button.
To select a media source or a folder for playback, pressуbutton or pull the main screen to the right.
To view the current playlist, pull the main screen to the left.
Buttons located in the top right corner are used for switching information display and audio playback modes.

12
ENG
When audio tracks are played back in the background, one can switch between stations using the mini-player built into
thewidget on the main home screen, and stop and resume the playback, as well.
Music App
To launch Video app, tap on a corresponding icon in the installed apps list.
Press , to pause video playback, use button to start playing a video file, and tap to stop video playback
completely.
Video App

13
ENG
Video App
To skip to the next or previous video clip, use and buttons.
To navigate to a certain scene in the video clip, move the slider on the video playback progress bar either back or forward.
To select a media source or a folder for playback, press button or pull the main screen to the right.
To view the current playlist, pull the main screen to the left.
When button is pressed, the video image will be stretched to fit the screen margins.
Set playback order using the second button on the left. Once pressed, the button changes depending on the selected order.
Bluetooth app allows using the multimedia system as a hand-free communication system, and making and receiving calls.
To connect a mobile phone to the multimedia system, follow the instructions below:
•Enable Bluetooth in the mobile phone
•Find the multimedia system in the list of available Bluetooth devices («Gazer CM» by default)
•Pair your phone with the multimedia system and enter the password («0000» by default).
If mobile phone pairing is successful, its name will appear in the Search tab of Bluetooth app. All other tabs in the app will
also become active.
One may open Bluetooth app anywhere in the interface by pressing a button with a Handset image on the front panel of the
device or using the button on the main screen.
Bluetooth App

14
ENG
To disconnect the device, use button.
To remove mobile device from the list of paired devices, press button.
To navigate to the dialer tab, press button.
Bluetooth App

15
ENG
button is used to enable/disable hands-free mode during a telephone call.
To navigate to the contacts tab, press button.
Use the search bar to search in the contacts list.
One can also press button for quick alphabetic navigation.
Bluetooth App

16
ENG
To dial the selected number, use button.
Press button for manual synchronization of contact data saved on your mobile phone.
Bluetooth App

17
ENG

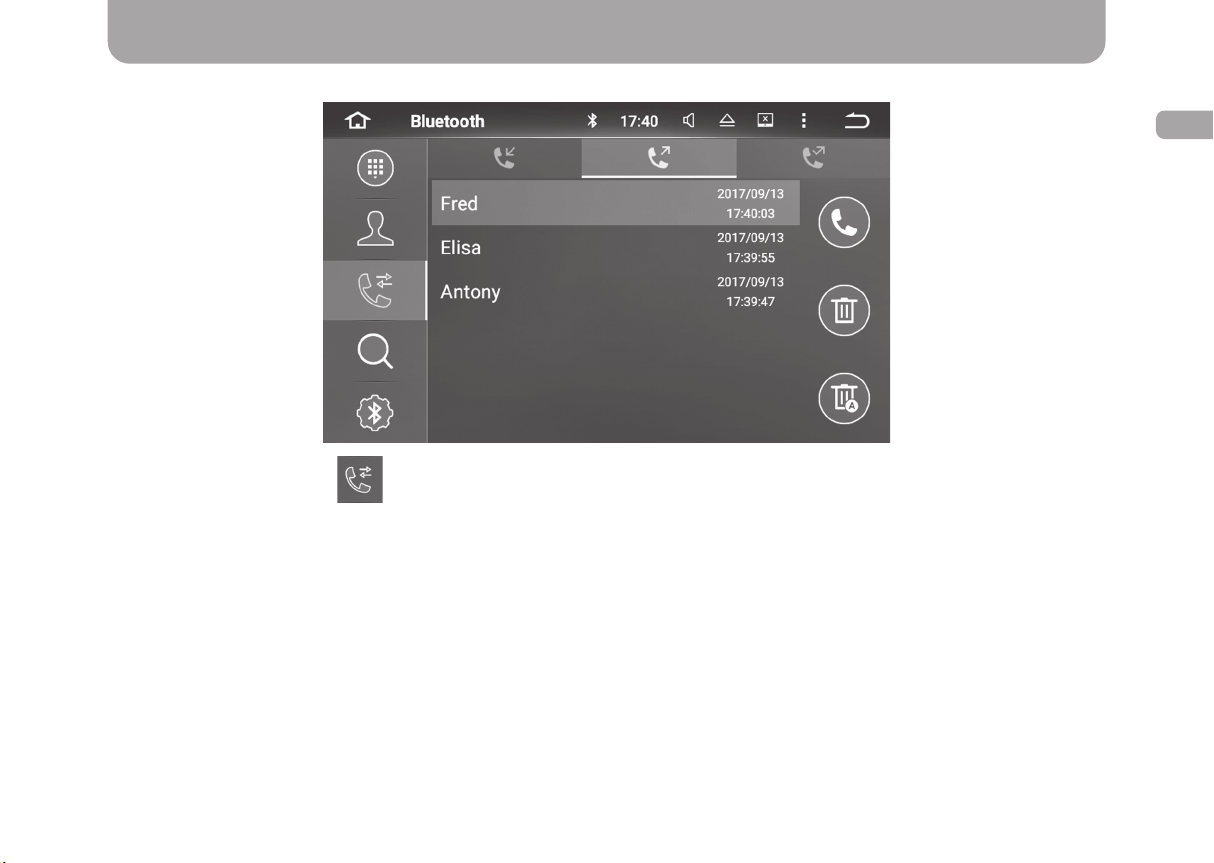

To access the call log, press button.
Bluetooth App

18
ENG
Bluetooth App

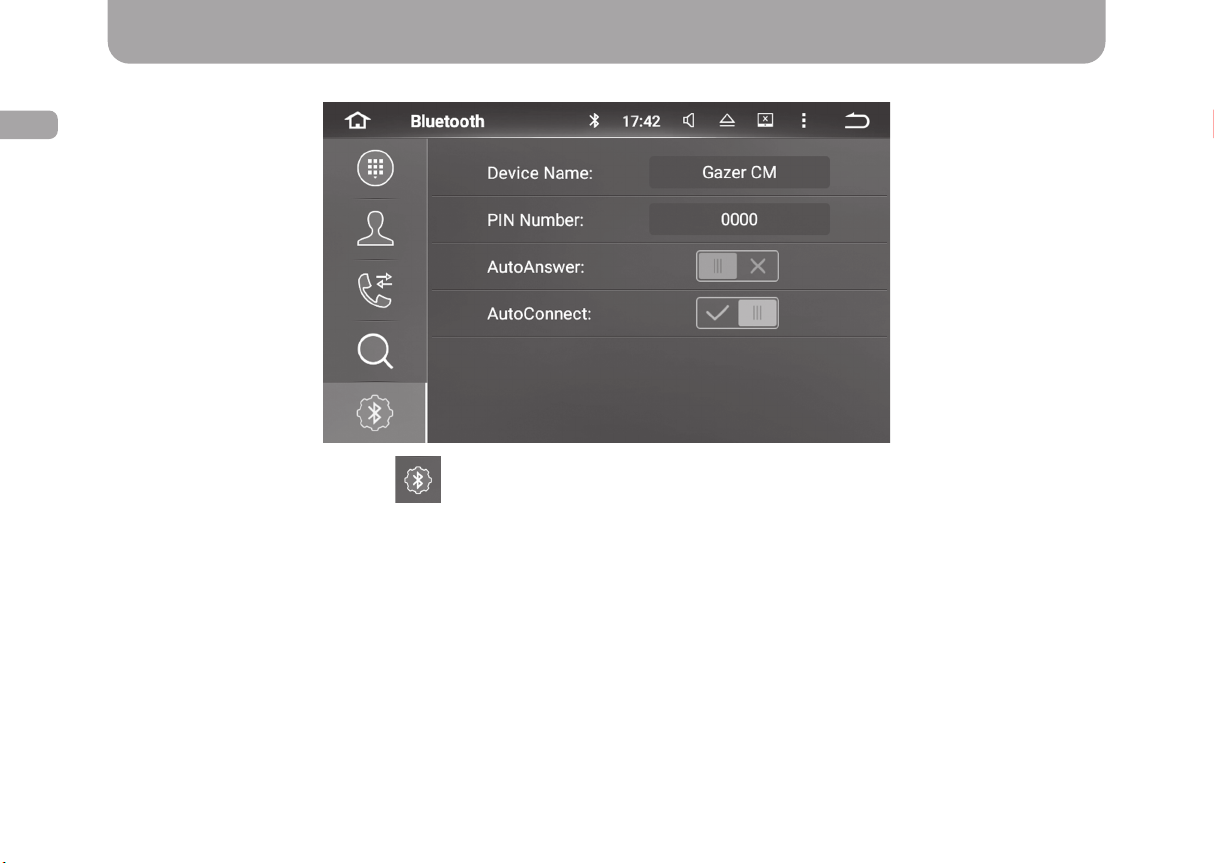

To access Bluetooth settings, press button.
One can use this tab to change the Bluetooth name of the device, connection password, and configure the auto-answer set-
tings for incoming calls as well as to enable the automatic pairing whenever a previously paired device is detected.

19
ENG
A2DP App
A2DP App is designed for listening music from the mobile phone via Bluetooth connection.
To use the app, connect your mobile phone to the multimedia system via Bluetooth, as described above.
The app can be launched by tapping on the corresponding icon in the installed apps list.
Switch between audio tracks by pressing and buttons.
To start or pause playback, press button.
During audio playback, one can see the name of the current track and the artist.

20
ENG
AirPlay and MirrorLink Functions
AirPlay
AirPlay function is designed for mirroring the screen and playing back audio files from iOS-running devices on the multimedia
system display.
To use AirPlay function, the multimedia system and iOS mobile device must be connected to the same Wi-Fi network. One
can connect the devices into a single network in a number of ways:
•By connecting both devices (a mobile device and a multimedia system) to the same Wi-Fi network (home network,
public network, Wi-Fi network of mobile 3G router, etc.).
•By creating a Wi-Fi network on a mobile device and connecting the multimedia system to it.
•By creating a Wi-Fi network on the multimedia system and connecting the mobile device to it.
To setup a Wi-Fi network on an iOS mobile device, do as follows:
•Open «Settings» – «Personal Hotspot»
•Activate the personal hotspot
To setup a Wi-Fi network on the multimedia system, do as follows:
•Open «Settings» – «Tethering & portable hotspot»
•Enable the «Wi-Fi hotspot» option
Once both the devices (the multimedia system and the iOS mobile device) are connected within a single Wi-Fi network, one
can proceed to enabling AirPlay function.
Note. This menu also allows changing the access password to the newly created network.
Note. Use the «Set up Wi-Fi hotspot» item of this menu to change the access password and the name of the newly
created network.

21
ENG
AirPlay and MirrorLink Functions

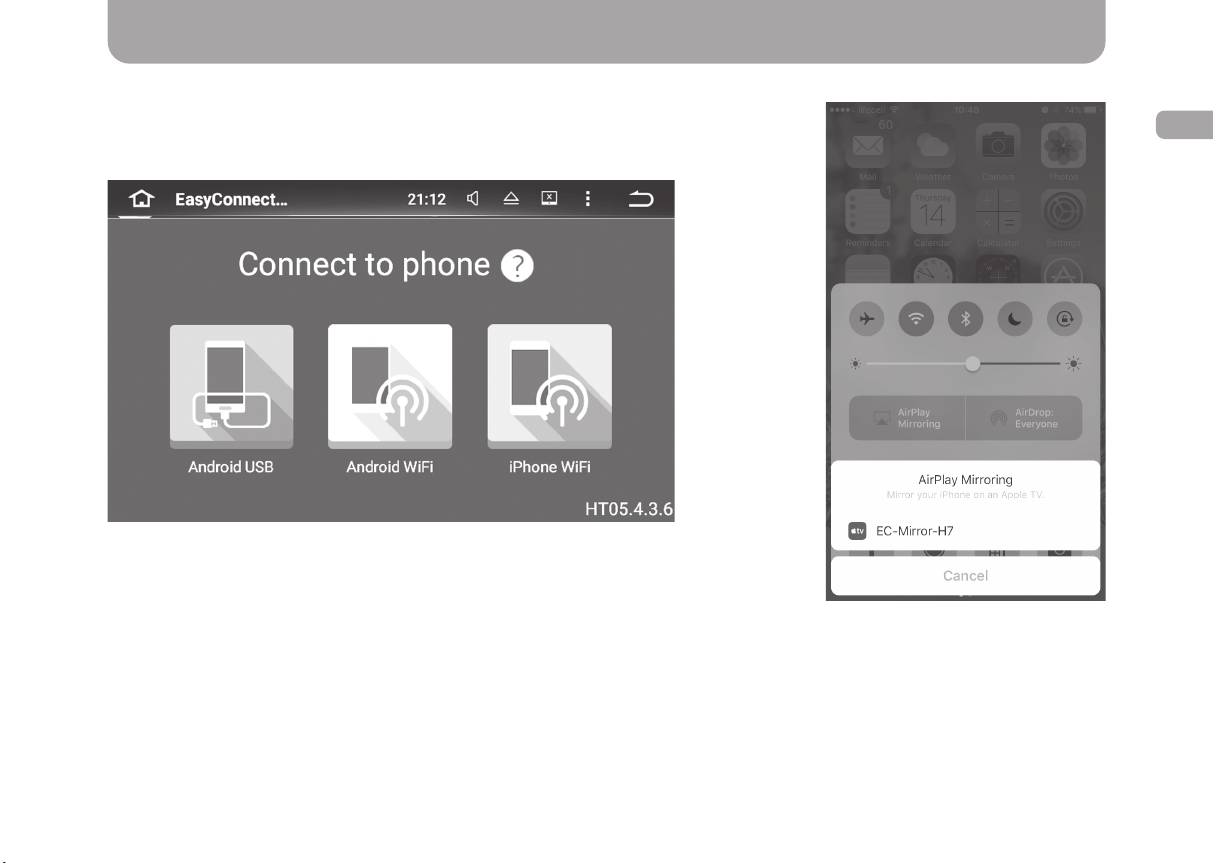

•Select «AirPlay mirroring» in the
mobile device control panel and es-
tablish connection with the «EC-Mir-
ror-XX» device.
To enable AirPlay function, do the following:
•Open EasyСonnected app available in the installed apps list.
•Select «iPhone WiFi» option.
