Gazer CM70 Series User manual

User manual..................................................................................................................................................................4-21
Руководство пользователя.................................................................................................................................... 22-39
Посібник користувача ............................................................................................................................................ 40-57
EN
RU
UK

4
EN
Content
1. Gazer Multimedia System Package Contents .......................................................................................................................................... 6
2. Connection diagram....................................................................................................................................................................................... 7
3. Installation Tips.............................................................................................................................................................................................. 8
4. Radio App......................................................................................................................................................................................................... 9
5. Music App....................................................................................................................................................................................................... 11
6. Video App....................................................................................................................................................................................................... 12
7. Bluetooth App................................................................................................................................................................................................ 13
8. BT Music App................................................................................................................................................................................................. 14
9. AirPlay and MirrorLink Functions.............................................................................................................................................................. 15
• AirPlay ........................................................................................................................................................................................................ 15
• MirrorLink USB........................................................................................................................................................................................... 17
• MirrorLink Wi-Fi......................................................................................................................................................................................... 18
10. Installing Apps from Google Play........................................................................................................................................................... 19
11. Conguring Equalizer ................................................................................................................................................................................ 19
12. Display Customization .............................................................................................................................................................................. 20
13. Front Panel Buttons................................................................................................................................................................................... 20

5
EN
We congratulate you on purchasing Gazer multimedia system!
Please, carefully read this guide in full before mounting and using the Gazer multimedia system. Keep this
guide for future reference.
Gazer multimedia systems are designed for standard installation in a specic car model or model range. The Gazer multime-
dia system is mounted and connected based on the Plug&Play principle. Operation via control bus and CAB-BUS data transfer
is also supported.
When connected to CAN bus via a special module, the system is controlled by the car’s onboard computer (turning on/off,
climate control status, steering wheel buttons, car speed data, door opening sensors status and other functions supported by
the CAN bus of a specic car). The user can program the steering wheel control buttons at his/her own discretion.
Gazer multimedia system

6
EN
Gazer CM70XX-XX multimedia system package contents
* Package contents and appearance can differ depending on the model
Signal/
Video in/out cable
USB cable Audio out cable
Antenna adapter* GPS antenna Microphone* Mounting screws*
CAN unit*
Power cable and Speakers
cable

7
EN
Connection diagram Gazer CM70XX-XX
1. Power jack
2. Video in/out
3. USB cable jack
4. External Wi-Fi antenna
5. GPS antenna jack
6. 4.1 jack
7. AUX (Audio L/R, Video-in) jack
8. FM antenna jack
1
2
678
34 5
Connection diagram
Power: 12V
10
20
123456789
111213141516171819
1 FL+ WHITE
2 FL- WHITE/BLACK
3 FR+ GRAY
4 FR- GRAY/BLACK
5 ACC RED
6 BRAKE PINK
7 WHEEL/KEYI ORANGE/BLACK
8 CAN_RXD BLUE/BLACK
9 IR BROWN/WHITE
10 ILL ORANGE
11 RL+ GREEN
12 RL- GREEN/BLACK
13 RR+ PURPLE
14 RR- PURPLE/BLACK
15 BATT+12V YELLOW
16 GND BLACK
17 WHEEL/KEY2 ORANGE/WHITE
18 BROWN BROWN/BLACK
19 ANT BLUE
20 BACK BROWN
Connection diagram

8
EN
Installation tips
•For Gazer CM70XX-XXX multimedia system installation, the original climate control buttons must be unmounted. Free
plugs must be connected with the multimedia system. Climate control is further set up using the sensor panel of the
Gazer CM70XX-XX multimedia system.
•For Gazer multimedia system installation, one must check that all plugs and jacks are connected in accordance with the
connection diagram.
•Make sure that the yellow BAT+ wire of the power cable is connected to the plus terminal of the car battery, while the
red ACC wire is connected to the auxiliary equipment bus (+12V voltage is supplied when the ignition key is turned to
АСС position).
•Prior to installing the system, one must consider where to place the remote elements such as GPS antennas and USB
ports.
•Lay all cables under the trim.
• Connect the stock USB and AUX connectors to the multimedia system (depending on the car model).
•Connect the system to the Internet to take full advantage of all features of the Gazer multimedia system.
Caution! Incorrect power connection may cause the multimedia system to malfunction or fail.

9
EN
Radio App
Note. Keep in mind that the multimedia system has 6
memory buttons in each group, which allows memorizing
a total of 18 radio stations for FM frequency range and 12
radio stations for AM frequency range.
Use and buttons to automatically search for
radio stations.
To enable manual ne-tuning, hold down or
button for 2 sec.
To save a radio station to one of the memory buttons, hold
down the required button for 2 sec.
To enable the Scanthrough function for the memorized sta-
tions, press button. When this function is enabled, the
radio receiver will recall all memorized stations one by one and
run them for 5 sec. To disable this operation mode, press
button again.
button enables or disables the Stereo mode.
To launch Radio app, tap on the corresponding icon on the main home screen, the corresponding icon in the installed apps
list, or press the BAND key on the multimedia device front panel.

10
EN
Radio App
You can open the equalizer settings using button.
button is designed for searching radio stations by
genre. Once this button is pressed, a drop-down list is dis-
played where one can select the genre of the required radio
station.
button is designed for searching radio stations broad-
casting live trafc information.
button enables automatic retuning of the radio receiver
(e.g., in case of poor signal on the current frequency) to a
different frequency where the current program is also broad-
casted.

11
EN
Music App
To launch Music app, tap on the corresponding icon in the
installed apps list.
Press button to pause audio playback and but-
ton to resume it.
To skip to the next or previous audio track, use and
buttons.
To fast forward/rewind the recording, move the slider on the
audio track progress bar.
To open equalizer settings, press button in the left top
corner. To select a media source or a folder for playback, press
the Browse button.
To view the current playlist, press the Playing button.

12
EN
Video App
To launch Video app, tap on the corresponding icon in the
installed apps list.
Press button to pause video playback and button
to start playback.
To skip to the next or previous video clip, use and
buttons.
To fast forward/rewind the video, move the slider on the video
playback progress bar.
To select a media source or a folder for playback, press
button.
The video image will be stretched to t the screen size once
button is pressed and to half the size of the display when
the button is pressed again.
When button is pressed, the «picture in picture» function
is enabled, and the video will be played in a small window over
the desktop and other applications. Tap on the video twice to
disable the «picture in picture» mode.
Set playback order using button on the lower panel. Once
pressed, the order changes depending on the selected mode.

13
EN
Bluetooth App
Bluetooth app allows using the multimedia system as a hand-free communication system, and making and receiving calls.
To connect a mobile phone to the multimedia system, follow the instructions below:
•Enable Bluetooth in the mobile phone
• Find the multimedia system in the list of available Bluetooth devices («Gazer CM» by default)
• Pair your phone with the multimedia system and enter the password («0000» by default)
If mobile phone pairing is successful, its name will appear in the Search tab of the Bluetooth app, and the other tabs in the
app will also become active.
One may open Bluetooth app anywhere in the interface by pressing a button with a handset image on the front panel of the
device or using the button on the main screen.
To disconnect the device, use button.
To remove the mobile device from the list of paired devices,
press .
To navigate to the dialer tab, press button.
To navigate to the contacts tab, press button.
Use the search bar to search in the contacts list. You can also
use quick alphabetic navigation.
To dial the selected number, use button.

14
EN
BT Music App
BT Music app is designed for listening music from the mobile
phone via Bluetooth connection.
To use the app, connect your mobile phone to the multimedia
system via Bluetooth, as described above.
The app can be launched by tapping on the corresponding icon
in the installed apps list.
Switch between audio tracks by pressing and
buttons.
To start or pause playback, press button.
During audio playback, one can see the name of the current
track and the artist.

15
EN
AirPlay and MirrorLink Functions
AirPlay
AirPlay function is designed for mirroring the screen and playing back audio les iOS-running devices on the multimedia
system display.
To use AirPlay function, the multimedia system and iOS mobile device must be connected to the same Wi-Fi network. One
can connect the devices into a single network in a number of ways:
•By connecting both devices (a mobile device and a multimedia system) to the same Wi-Fi network (home network,
public network, Wi-Fi network of mobile 3G router, etc.).
•By creating a Wi-Fi network on a mobile device and connecting the multimedia system to it.
•By creating a Wi-Fi network on the multimedia system and connecting the mobile device to it.
To setup a Wi-Fi network on an iOS mobile device, do as follows:
•Open «Settings» – «Router mode»
•Activate the personal hotspot
To setup a Wi-Fi network on the multimedia system, do as follows:
•Open «Settings» – «Router mode»
•Enable the «Wi-Fi hotspot» option
Once both the devices (the multimedia system and the iOS mobile device) are connected within a single Wi-Fi network, one
can proceed to enabling AirPlay function.
Note. This menu also allows changing the access password to the newly created network.
Note. Use the «Set up Wi-Fi hotspot» item of this menu to change the access password and the name of the newly
created network.

16
EN

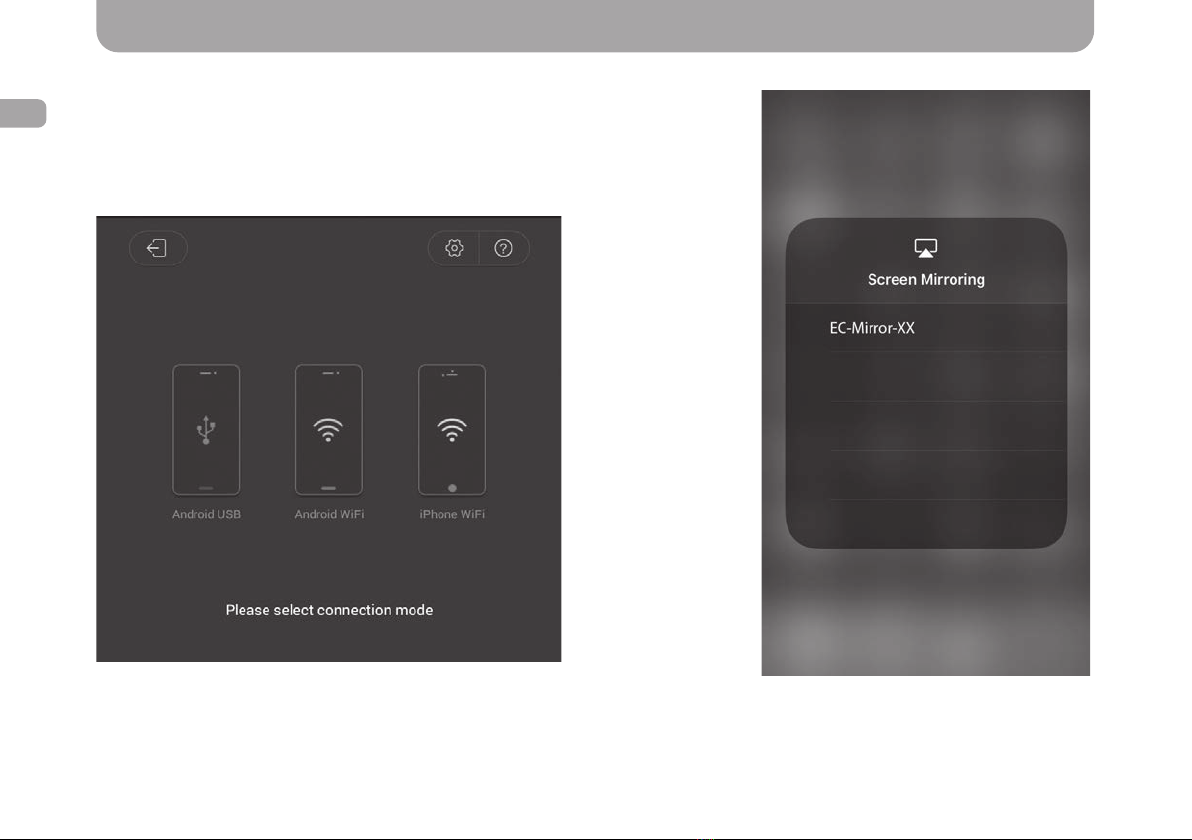

AirPlay and MirrorLink Functions
•Select «AirPlay mirroring» in the mobile
device control panel and establish con-
nection with the «EC-Mirror-XX» device
To enable AirPlay function, do as follows:
•Open PhoneLink app available in the installed apps list
•Select «iPhone WiFi» option

17
EN
MirrorLink USB
MirrorLink function allows mirroring the screen of an OC Android mobile device to a multimedia system display.
For this function to work, one must enable the «USB debugging» option on the mobile device. To do this, follow the steps
below:
•Open «Settings» – «About device»
• Tap «Build number» 5 times to activate the developer mode (for the majority of smartphones)
•Then open «Settings» – «Developer options» and activate «USB debugging»
Perform this procedure once for each device you want to connect.
To complete the connection process, do as follows:
•Open PhoneLink app available in the installed apps list
•Select the «Android USB» option
•Use a USB cable to connect the mobile device to the multimedia system
• Conrm the connection on the mobile device
Caution! Developer mode activation method may differ depending on the smartphone model.
Important notice! When conrming the connection on the mobile device, we recommend activating «Always allow USB
debugging from this computer» option for faster MirrorLink connection of previously congured devices.
AirPlay and MirrorLink Functions

18
EN
MirrorLink Wi-Fi
For MirrorLink function to work via Wi-Fi, both devices (the multimedia system and the OC Android mobile device) must be
connected to the same Wi-Fi network. There are several ways to do that:
1. By connecting both devices (a mobile device and the multimedia system) to the same Wi-Fi network (home network,
public network, Wi-Fi network of mobile 3G router, etc.).
2. By creating a Wi-Fi network on a mobile device and connecting the multimedia system to it.
3. By creating a Wi-Fi network on the multimedia system and connecting a mobile device to it.
To setup a Wi-Fi network on the multimedia system or an OC Android mobile device, do as follows:
•Open «Settings» – «Router mode»
•Enable the «Wi-Fi hotspot» option
When this function is used for the rst time, one needs to connect the mobile device with a USB cable and enable the «USB
debugging» function on the mobile device. See MirrorLink USB item of this guide for a detailed description of the activation
procedure.
Once both the devices (the multimedia system and the Android mobile device) are connected within a single Wi-Fi network,
one can proceed to enabling MirrorLink function.
To do this, follow the steps below:
•Open PhoneLink app available in the installed apps list
•Select «Android WiFi» option
•Use a USB cable to connect the mobile device to the multimedia system
•Conrm the connection on the mobile device
•Disconnect the USB cable after the successful connection when «Disconnect the USB cable» message appears on the
screen
Note. Use the «Set up Wi-Fi hotspot» item of this menu to change the access password and the name of the newly
created network.
Note. Connection with a USB cable is required only when MirrorLink Wi-Fi function is used for the rst time. After that,
the devices will only need to be connected to the same Wi-Fi network.
AirPlay and MirrorLink Functions

19
EN
Conguring Equalizer
One of the key advantages of having Android as an OS on the multimedia system is the ability to install any app from a wide
range of apps available at Google Play market.
To install apps, one needs to have access to the Internet.
If you want to use Google Play and download apps, you will have to enter the name of your Google account or create a new
one by following the instructions.
To congure the equalizer, go to settings and select «Equalizer».
To change equalizer settings, move the sliders assigned to
each frequency range. In case of conguring the equalizer
manually, the system will automatically switch to «User» pre-
set, and all the changes will be saved in this preset.
The «Reset» button is intended to place the «Reset» preset
sliders at 0 position (in the middle).
To set up the sound eld, move the pointer along the vehicle
schematic diagram or press the buttons assigned to 4 chan-
nels in the vehicle. When the channel buttons are pressed,
the conguration is set so that the reproduction of the sound
from other three channels will be stopped, and one operating
channel only will remain.
Installing Apps from Google Play

20
EN
Various physical and touch-sensitive buttons may be available on the front panel of the multimedia system depending on
the model.
• when short pressed will take the user from anywhere of the interface back to the main home screen (Home).
When long pressed, this button will switch between audio sources: Radio, Music, Video, AV input.
Display Customization
«Settings» – «Display»:
•Brightness (day mode) – display brightness during daylight hours (parking lights off).
•Brightness in night mode – display brightness during hours of darkness (parking lights on, cabin lighting on).
•Wallpaper – changing wallpaper of the home screen.
•Gesture control – setting up of quick commands, icons that can be called up on the display by gestures.
•Font size – conguring the font size in the system interface.
•Assistant button – switching on and conguring a virtual assistant button on the display.
Note. Use button located on the upper panel to promptly adjust the brightness from anywhere in the interface.
Note. To change your desktop wallpapers, you can open the context menu by pressing and short holding down anywhere
of the blank space of the desktop.
Front Panel Buttons
