GBC 930-400 User manual

)DOFRQ2SHUDWLRQ
0DQXDO
© 1997 GBC Pro-Tech
Do not duplicate without written permission
©1994HCS,Inc.800-748-0241ReorderNo.1033R-PT
Crushand burn
hazard. Stay clear
ofmoving rollers.
Stopmachine and
raiseroll before
cleaning.
WARNING
ACHTUNG
MISEEN GARDE
©1994HCS,Inc.800-748-0241ReorderNo.1033-PT
Crushand burn
hazard. Stay clear
ofmoving rollers.
Stopmachine and
raiseroll before
cleaning.
WARNING
ACHTUNG
MISEEN GARDE
Tobe serviced only
bytrained and
authorized personnel.
Lockoutpower before
servicing.
HAZARDOUS
VOLTAG E.
DANGER
GEFAHR
©1994HazardCommunication Systems, Inc. 800-748-0241 ReorderNo.5025-PT
©1994HCS,Inc.800-748-0241ReorderNo.6001-PT
Carefullyread Operator's
Manualbefore handling
thismachine. Observe
instructionsand safety
ruleswhen operating.
WARNING
ACHTUNG
MISEEN GARDE
NOT
AUS
E
M
E
R
G
E
N
CY
ST
OP
ARR
E
T
D'
U
R
G
E
N
C
E
B
O
T
T
O
M
T
O
P
MOTOR
FWD
REV SPEED STOP
AUTO
FANS POWER
HEATERS
PRO-TECHEngineering Madison,WI 608-246-8844
0
3
6912
15
18
1
O
1
O
1
O
50
75
100
125
150 175 200
225
250
275
300
OUT HI
LO
PROTECH
°F
001-133
50
75
100
125
150 175 200
225
250
275
300
HI
LO
PROTECH
°F
001-133
©1994HCS,Inc. 800-748-0241 ReorderNo.7002-PT
SAFETY
INSTRUCTIONS
SICHERHEITS-
RICHTLINIEN
CONSIGNES DE
SÉCURITÉ
1. Read and understand the Operation
Manualand all safety labels before
operatingthis machine.
2. Only a trained person is to be
permittedto operate this machine.
Trainingshould include instruction
inoperation under normal conditions
andemergency situations.
3. This machine is to be serviced only
bytrained and authorized personnel.
Followlockout procedures before
servicing.
4. Never reach into the machine forany
reasonunless the machine is at a
COMPLETESTOP.
5. Never leave the machine stopped in
sucha manner that another worker can
startthe machine while you are working
onor within the machine.
6. Never change or defeat the function of
electricalinterlocks or other machine
“shutdown”switches.
7. Before starting this machine, checkthat:
-All persons are clear of the machine.
-No maintenance work is being performed
on the machine.
-All guards are in place.
-All parent rolls are well chucked in the
unwind stands.
-The machine is free of paper scraps,
wraps and jams.
8. There is a potential hazard of entanglement
inthis machine caused by items such as
longhair, loose clothing and jewelry.
Makesure your clothing and hair fit
closelyto your body and that all jewelry,
ringsand watches are removed.
NOT
AUS
E
M
E
R
G
E
N
CY
ST
OP
ARR
E
T
D'
U
R
G
E
N
C
E
OUT
GBC Pro-Tech
4151 Anderson Road
De Forest, Wisconsin 53532
Tel: [phone]
Part Number 930-400 Fax: [phone]

Falcon 36 Operation Manual
ii GBC Pro-Tech 1997 October
The information in this publication is provided for reference and is believed to be
accurate and complete. GBC Pro-Tech is not liable for errors in this publication or for
incidental or consequential damage in connection with the furnishing or use of the
information in this publication, including, but not limited to, any implied warranty of
fitness or merchantability for any particular use.
GBC Pro-Tech reserves the right to make changes to this publication and to the products
described in it without notice. All specifications and information concerning products are
subject to change without notice.
Reference in this publication to information or products protected by copyright or patent
does not convey any license under the rights of GBC Pro-Tech or others. GBC Pro-Tech
assumes no liability arising from infringements of patents or any other rights of third
parties.
This Manual is Copyrighted © 1997 by GBC Pro-Tech. All rights reserved. The
information contained in this manual is proprietary and may not be reproduced, stored,
transmitted, or transferred, in whole or in part, in any form without the prior and express
written permission of GBC Pro-Tech.

Falcon 36 Operation Manual
GBC Pro-Tech 1997 October iii
7DEOHRI&RQWHQWV
6HFWLRQ6DIHW\ 
Caution/Warning Label Locations........................................................................................1-4
6HFWLRQ,QVWDOODWLRQ 
Preinstallation Checklist.......................................................................................................2-1

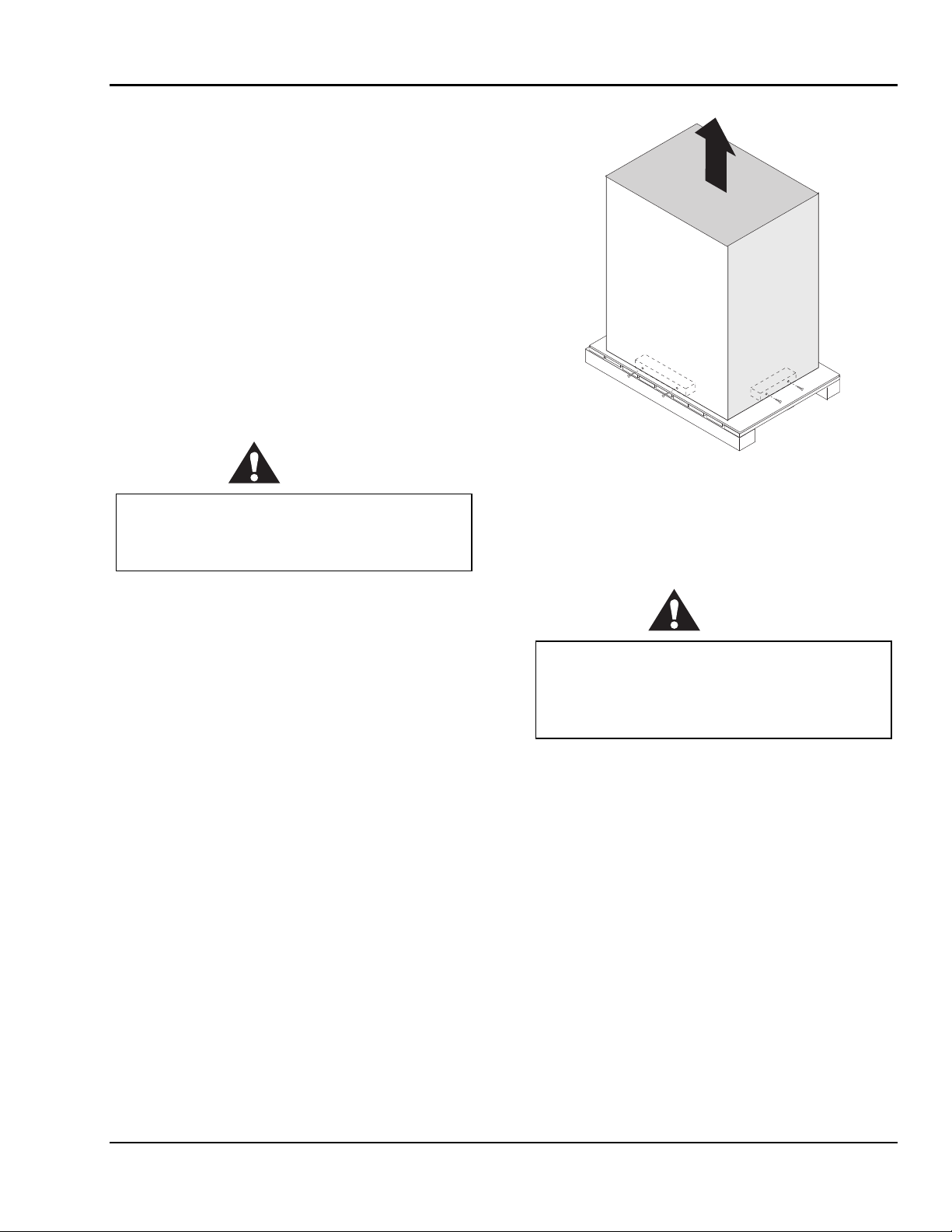

Unpacking............................................................................................................................2-4
Setup ...................................................................................................................................2-7
Startup .................................................................................................................................2-8
6HFWLRQ2SHUDWLRQ
Safety...................................................................................................................................3-1
Operator Controls ................................................................................................................3-2
Front Control Panel ..........................................................................................................3-2
Rear Panel Control...........................................................................................................3-2
Setup ...................................................................................................................................3-3
Laminator Roll Pressure...................................................................................................3-3
Loading the Film ..................................................................................................................3-3
Positioning the Film..............................................................................................................3-3
Heating.................................................................................................................................3-4
Cooling.................................................................................................................................3-4
Paper Tips ...........................................................................................................................3-4
Process Control Charts........................................................................................................3-5
Mounting and Laminating (One Pass) .................................................................................3-5
Setup and Procedure........................................................................................................3-5
Mounting Only......................................................................................................................3-6
Setup and Procedure........................................................................................................3-6
Two-Pass Mount and Laminate (Cold Overlaminate)..........................................................3-6
Setup and Procedure, Pass 1...........................................................................................3-6
Setup and Procedure, Pass 2...........................................................................................3-7
Two-Pass Mount and Laminate (Hot Overlaminate)............................................................3-7
Setup and Procedure, Pass 1...........................................................................................3-7
Setup and Procedure, Pass 2...........................................................................................3-7
Encapsulation ......................................................................................................................3-8
Setup and Procedure........................................................................................................3-8
Machine Shutdown ..............................................................................................................3-8

Falcon 36 Operation Manual
iv GBC Pro-Tech 1997 October
Procedure.........................................................................................................................3-8
PROCESS CONTROL CHART............................................................................................3-9
PROCESS CONTROL DIAGRAM.......................................................................................3-9
PROCESS CONTROL CHART 3-2 ...................................................................................3-10
PROCESS CONTROL DIAGRAM 3-2...............................................................................3-10
PROCESS CONTROL CHART 3-3 ...................................................................................3-11
PROCESS CONTROL DIAGRAM 3-3...............................................................................3-11
PROCESS CONTROL CHART 3-4a .................................................................................3-12
PROCESS CONTROL DIAGRAM 3-4a.............................................................................3-12
PROCESS CONTROL CHART 3-4b .................................................................................3-13
PROCESS CONTROL DIAGRAM 3-4b.............................................................................3-13
PROCESS CONTROL CHART 3-5a .................................................................................3-14
PROCESS CONTROL DIAGRAM 3-5a.............................................................................3-14
PROCESS CONTROL CHART 3-5b .................................................................................3-15
PROCESS CONTROL DIAGRAM 3-5b.............................................................................3-15
PROCESS CONTROL CHART 3-6 ...................................................................................3-16
PROCESS CONTROL DIAGRAM 3-6...............................................................................3-16
6HFWLRQ0DLQWHQDQFHDQG7URXEOHVKRRWLQJ 
Thermocouple Positioning and Cleaning.............................................................................4-1
Cleaning...............................................................................................................................4-4
Adjusting the Nip..................................................................................................................4-5
Chain Tensioning.................................................................................................................4-6
Lubrication ...........................................................................................................................4-7
Contacting Technical Support..............................................................................................4-7
Output Troubleshooting Guide.............................................................................................4-9
6HFWLRQ:DUUDQW\ 
Limited Warranty..................................................................................................................5-1
Exclusions to the Warranty...............................................................................................5-1
6HFWLRQ7HFKQLFDO,QIRUPDWLRQ 
Specifications.......................................................................................................................6-1
6HFWLRQ,QGH[

Falcon 36 Laminator Service Manual Safety and Warranty Information
GBC Pro-Tech 1997 October 1-1
6HFWLRQ 6DIHW\
DO NOT ATTEMPT TO OPERATE YOUR
FALCON 36 LAMINATOR UNTIL YOU
HAVE READ THIS SECTION
CAREFULLY!
Your safety, as well as the safety of others, is
important to GBC Pro-Tech. This section contains
important safety information.
The following symbols are used throughout this
manual to indicate warnings and cautions.
DANGER
Indicates an imminently hazardous situation
which, if not avoided, will result in death or
serious injury.
WARNING
Indicates a potentially hazardous situation
which, if not avoided, could result in death or
serious injury.
CAUTION
Indicates a potentially hazardous situation
which, if not avoided, could result in minor
or moderate injury, or alerts against unsafe
practices, or alerts against actions which
could damage the product.
The Falcon 36 Laminator has been designed with
safety as a primary consideration. However, you
must become thoroughly familiar with the controls,
proper operation, proper service procedures, and
safety features of the laminator before using or
servicing the unit.
GBC Pro-Tech laminators are powerful machines
that are designed to mount, laminate and
encapsulate. The forces required to accomplish
these tasks can vary from negligible to very large.
The spring system used to provide downward
pressure on the top roll is capable of producing
forces greater than 1000 pounds (454kg). This force
is applied to any object presented in the opening
(called the nip) between the two rolls.
In addition, the laminating rolls of the Falcon 36 can
reach temperatures of over 200°F (100°C). At these
temperatures there is a danger of a severe burn if the
rolls are touched during set-up, operation or
servicing.
An important feature of the laminator is the
photoelectric eye system that stops the machine
when objects move into the nip area. Once the
blocking object is removed and the light beam
reestablished, the rolls resume turning. However,
this system is overridden if you use the footswitch.
WARNING
Use extreme caution when operating the
laminator with the footswitch. The
photoelectric eye system is overridden and
your fingers can get caught in the nip. You
can be crushed or burned.
The Falcon 36 Laminator has a steel cabinet that is
bolted closed to isolate the electrical and drive
system components for the safety of the operator.
Only a qualified service technician should open
these cabinets.
The laminator is equipped with two emergency stop
buttons located on the top of either side of the
laminator. Either of these, if engaged, stops the
laminator. To continue operation both emergency
stop buttons must be in the up position.

Safety and Warranty Information Falcon 36 Laminator Service Manual
GBC Pro-Tech 1997 October
1-2
NOT
AUS
E
M
E
R
G
E
N
CY
ST
OP
ARR
E
T
D'
U
R
G
E
N
C
E
NOT
AUS
E
M
E
R
G
E
N
CY
ST
OP
ARR
E
T
D'
U
R
G
E
N
C
E
Twist and pull up
both buttons to
resume operation
Push either
button to stop the
laminator
1
/
4
tu
r
n
Figure 1-1: Using the Emergency Stop Buttons
Despite the safety features built into the Falcon 36
Laminator, extreme caution must be used when
operating or servicing the unit. READ THE
FOLLOWING WARNINGS AND CAUTIONS
BEFORE ATTEMPTING TO OPERATE OR
SERVICE THE FALCON 36 LAMINATOR.
WARNING
Never place fingers or arms between the rolls
when they are turning or when the rolls are
in the closed position. You can be crushed or
burned.
WARNING
Do not wear ties, loose fitting clothing or
dangling jewelry while operating or servicing
the laminator. These items can get caught in
the nip and choke you or you can be crushed
or burned.
WARNING
Use extreme caution when operating the
laminator with the footswitch. The
photoelectric eye system is overridden and
your fingers can get caught in the nip. You
can be crushed or burned.
CAUTION
ALWAYS CHECK THE POSITION AND
CONDITION OF THE THERMOCOUPLES
PRIOR TO OPERATION! The thermal
junction of the thermocouples MUST make
contact with the laminating rolls to maintain
proper roll operating temperatures. The
thermocouples must also be free of adhesive
and dirt. The rolls can overheat and cause a
fire or seriously damage the laminator.
WARNING
Always use care in lowering the top
laminating roll. You can be crushed or
burned.
WARNING
Do not operate the laminator near water.
You can be severely shocked, electrocuted or
cause a fire.
DANGER
Unplug the laminator from the wall outlet
before servicing. You can be severely
shocked, electrocuted or cause a fire.
WARNING
Do not use liquid or aerosol cleaners on the
laminator. Do not spill liquid of any kind on
the laminator. You can be severely shocked,
electrocuted or cause a fire. Use only a damp
cloth for cleaning.

Falcon 36 Laminator Service Manual Safety and Warranty Information
GBC Pro-Tech 1997 October 1-3
WARNING
Exercise care when cleaning the rolls with
80% isopropyl alcohol:
•Use only in a well ventilated area.
•Wear rubber gloves.
•Use only on cool rolls.
Cleaning heated rolls can ignite the fumes.
CAUTION
Use only 80% isopropyl alcohol or a rubber
cement eraser to clean the laminating rolls.
Harsh chemicals like toluene, acetone or
MEK destroy the silicone covering of the
rolls.
CAUTION
Raise the upper main roll when the
laminator is not in operation. Prolonged
contact can damage the rolls.
CAUTION
Excess pressure can damage the laminating
rolls. Always select the minimum roll
pressure necessary to complete the task.
CAUTION
If silicone adhesive contacts the upper or
lower roll, remove it IMMEDIATELY using
80 % isopropyl alcohol. It can harden within
an hour and ruin the roll.
WARNING
The operating environment must be free of
dust, flammable liquids and vapors. You can
be injured by inhaling chemical vapors.
Vapor build up or stored flammable liquids
can cause a fire. Excessive dust can damage
the laminator.
CAUTION
Do not use a knife or other sharp instrument
during installation or while servicing the
laminator. You can cause irreparable
damage to the rolls.
WARNING
Do not attempt to move the laminator across
anything other than a flat, level surface
without trained and qualified riggers. You
can be crushed or seriously injured.
The Falcon 36 Laminator is a large and
heavy piece of equipment. It is necessary to
employ LICENSED RIGGERS ONLY to
move the machine. The laminator is not
designed to be tipped up or sideways in any
way. Such action disturbs the exact
alignment of the rolling parts of the machine
and requires extensive realignment. GBC
Pro-Tech’s warranty does not cover
malfunction of the equipment due to
mishandling and/or tipping.
GBC Pro-Tech bears no responsibility for
personal injury or damage due to moving the
laminator improperly.

Safety and Warranty Information Falcon 36 Laminator Service Manual
GBC Pro-Tech 1997 October
1-4
WARNING
Connect the laminator only to the type of
power source indicated on the label on the
back of the laminator. You can be severely
shocked, electrocuted or cause a fire. If you
are not sure of the type of power available
consult the dealer or local power company.
WARNING
Do not attempt to defeat the grounding
feature of the ground plug on the laminator.
You can be severely shocked, electrocuted or
cause a fire. The three prong plug fits only
into a grounding-type power outlet. If you
are unable to insert the plug into the existing
outlet, contact a qualified electrician to
replace the obsolete outlet.
WARNING
Do not use an extension cord on this
laminator. You can be severely shocked,
electrocuted or cause a fire. If you need a
longer cable contact a qualified electrician.
WARNING
Do not operate the laminator if the power
cord is damaged or frayed. You can be
severely shocked, electrocuted or cause a fire.
Contact a qualified electrician to replace the
cord.
WARNING
Do not allow anything to rest on the power
cord. Do not locate the cord where people
can walk on it. You or others can be severely
shocked, electrocuted or cause a fire.
WARNING
Do not attempt to plug any device into the
vacuum table outlet that does not require
240V. You can be severely shocked,
electrocuted or cause a fire.
WARNING
Never insert objects of any kind through any
of the slots on the laminator. You can touch
dangerous voltage points or short out parts.
You can be severely shocked, electrocuted or
cause a fire.
ALWAYS USE GOOD SAFETY PRACTICES
WHEN OPERATING OR SERVICING THE
LAMINATOR AND KNOW HOW TO REACT
QUICKLY IN AN EMERGENCY.
&DXWLRQ:DUQLQJ/DEHO/RFDWLRQV
Posted at various locations on your Falcon 36
Laminator are important safety labels. PAY
CAREFUL ATTENTION TO THESE LABELS AT
ALL TIMES! Figure 1-2 shows the location of each
of these labels.

Falcon 36 Operation Manual Safety
GBC Pro-Tech 1997 October 1-5
©1994HCS,Inc.800-748-0241ReorderNo.1033R-PT
Crush and burn
hazard. Stay clear
of moving rollers.
Stop machine and
raise roll before
cleaning.
WARNING
ACHTUNG
MISE EN GARDE
©1994HCS,Inc. 800-748-0241 ReorderNo.1033-PT
Crush and burn
hazard. Stay clear
of moving rollers.
Stop machine and
raise roll before
cleaning.
WARNING
ACHTUNG
MISE EN GARDE
©1994HCS,Inc. 800-748-0241 ReorderNo.6001-PT
Carefullyread Operator's
Manualbefore handling
this machine. Observe
instructions and safety
rules when operating.
WARNING
ACHTUNG
MISE EN GARDE
©1994HCS, Inc. 800-748-0241 ReorderNo.7002-PT
SAFETY
INSTRUCTIONS
SICHERHEITS-
RICHTLINIEN
CONSIGNES DE
SÉCURITÉ
1. Read and understand the Operation
Manualand all safety labels before
operatingthis machine.
2. Only a trained person is to be
permittedto operate this machine.
Trainingshould include instruction
inoperation under normal conditions
andemergency situations.
3. This machine is to be serviced only
bytrained and authorized personnel.
Followlockout procedures before
servicing.
4. Never reach into the machine for any
reasonunless the machine is at a
COMPLETESTOP.
5. Never leave the machine stopped in
sucha manner that another worker can
startthe machine while you are working
onor within the machine.
6. Never change or defeat the function of
electricalinterlocks or other machine
“shutdown”switches.
7. Before starting this machine, check that:
-All persons are clear of the machine.
-No maintenance work is being performed
on the machine.
-All guards are in place.
-All parent rolls are well chucked in the
unwind stands.
-The machine is free of paper scraps,
wraps and jams.
8. There is a potential hazard of entanglement
inthis machine caused by items such as
longhair, loose clothing and jewelry.
Makesure your clothing and hair fit
closelyto your body and that all jewelry,
ringsand watches are removed.
NOT
AUS
E
M
E
R
G
E
N
CY
ST
OP
ARR
E
T
D'
U
R
G
E
N
C
E
B
O
T
T
O
M
T
O
P
MOTOR
FWD
REV SPEED STOP
AUTO
FANS POWER
HEATERS
PRO-TECH Engineering Madison,WI 608-246-8844
0
3
6912
15
18
1
O
1
O
1
O
50
75
100
125
150 175 200
225
250
275
300
OUT HI
LO
PROTECH
°F
001-133
50
75
100
125
150 175 200
225
250
275
300
HI
LO
PROTECH
°F
001-133
OUT
KBICBARRIER TERMINAL BOARD
LINE
FUSE
ACCEL
P/N9884
MAX MIN IR CL
ARM
FUSE
I1
P3 P2 P1 I1 F+ F- L1 L2 A+ A-
NOT
AUS
E
M
E
R
G
E
N
CY
ST
OP
ARR
E
T
D'
U
R
G
E
N
C
E
Tobe serviced only
bytrained and
authorized personnel.
Lockoutpower before
servicing.
HAZARDOUS
VOLTAGE .
DANGER
GEFAHR
©1994HazardCommunicationSystems,Inc.800-748-0241Reorder No. 5025-PT
©1994 HCS, Inc. 800-748-0241 Reorder No. 1012-PT
Moving parts can
crush and cut.
Do not operate with
door open.
WARNING
ACHTUNG
MISE EN GARDE
To be serviced only
by trained and
authorized personnel.
Lockout power before
servicing.
HAZARDOUS
VOLTAGE.
DANGER
GEFAHR
©1994 Hazard Communication Systems, Inc. 800-748-0241 Reorder No. 5025-PT
©1994 HCS, Inc. 800-748-0241 Reorder No.6001-PT
Carefully read Operator's
Manual before handling
this machine. Observe
instructions and safety
rules when operating.
WARNING
ACHTUNG
MISE EN GARDE
©1994 HCS, Inc. 800-748-0241 Reorder No.7002-PT
SAFETY
INSTRUCTIONS
SICHERHEITS-
RICHTLINIEN
CONSIGNES DE
SÉCURITÉ
1. Read and understand the Operation
Manual and all safety labels before
operating this machine.
2. Only a trained person is to be
permitted to operate this machine.
Training should include instruction
in operation under normal conditions
and emergency situations.
3. This machine is to be serviced only
by trained and authorized personnel.
Follow lockout procedures before
servicing.
4. Never reach into the machine for any
reason unless the machine is at a
COMPLETE STOP.
5. Never leave the machine stopped in
such a manner that another worker can
start the machine while you are working
on or within the machine.
6. Never change or defeat the function of
electrical interlocks or other machine
“shutdown” switches.
7. Before starting this machine, check that:
- All persons are clear of the machine.
- No maintenance work is being performed
on the machine.
- All guards are in place.
- All parent rolls are well chucked in the
unwind stands.
-The machine is free of paper scraps,
wraps and jams.
8. There is a potential hazard of entanglement
in this machine caused by items such as
long hair,loose clothing and jewelry.
Make sure your clothing and hair fit
closely to your body and that all jewelry,
rings and watches are removed.
©1994 HCS, Inc. 800-748-0241 Reorder No.1033R-PT
Crush and burn
hazard. Stay clear
of moving rollers.
Stop machine and
raise roll before
cleaning.
WARNING
ACHTUNG
MISE EN GARDE
240VOLTS
LEM PRODUCTIONS, INC. DOYLESTOWN PA LVM-240C
©1994 HCS, Inc. 800-748-0241 ReorderNo.1033-PT
Crush and burn
hazard. Stay clear
of moving rollers.
Stop machine and
raise roll before
cleaning.
WARNING
ACHTUNG
MISE EN GARDE
240VOLTS
LEM PRODUCTIONS, INC. DOYLESTOWN PA LVM-240C
Figure 1-2: Locations of Safety Labels

Safety Falcon 36 Operation Manual
GBC Pro-Tech 1997 October
1-6
Blank page.

Falcon 36 Operation Manual Installation
GBC Pro-Tech 1997 October 2-1
6HFWLRQ ,QVWDOODWLRQ
Before a Falcon 36 Laminator can be installed there
are a few requirements that must be met. Make
certain that each of the requirements listed in the
following preinstallation checklist are met before
beginning installation.
CAUTION
Failure to follow the preinstallation checklist
can result in damage to the laminator.
3UHLQVWDOODWLRQ&KHFNOLVW
❒Are doorways and hallways wide enough for the
laminator to be moved to the installation site?
❒Is there ample room for the laminator?
A work area must be established that allows for
operation in both the front and the rear of the
machine and provides space for efficient
material flow. Figure 2-1 shows a typical
machine area layout.
❒Is the environment appropriate for the
laminator?
The laminator requires a clean, dust and vapor
free environment to operate properly. It must not
be located where there is air blowing directly on
the machine.
WARNING
The operating environment must be free of
dust, flammable liquids and vapors. You can
be injured by inhaling chemical vapors.
Vapor build up or stored flammable liquids
can cause a fire. Excessive dust can damage
the laminator.
CAUTION
Do not locate the laminator where air is
blowing directly on the machine. The air flow
can cool the rolls unevenly and result in poor
quality output.
❒Is there an appropriate power outlet available or
has a certified electrician been contacted to wire
the laminator directly?
The laminator requires 30A single phase service
and a power receptacle that accepts a 30A 250V
NEMA L6-30P plug.
WARNING
Do not attempt to defeat the grounding
feature of the ground plug on the laminator.
You can be severely shocked, electrocuted or
cause a fire. The three prong plug fits only
into a grounding-type power outlet. If you
are unable to insert the plug into the existing
outlet, contact a qualified electrician to
replace the obsolete outlet.
WARNING
Do not use an extension cord on this
laminator. You can be severely shocked,
electrocuted or cause a fire. If you need a
longer cable contact a qualified electrician.
WARNING
Do not operate the laminator if the power
cord is damaged or frayed. You can be
severely shocked, electrocuted or cause a fire.
Contact a qualified electrician to replace the
cord.

Installation Falcon 36 Operation Manual
GBC Pro-Tech 1997 October
2-2
WARNING
Do not allow anything to rest on the power
cord. Do not locate the cord where people
can walk on it. You or others can be severely
shocked, electrocuted or cause a fire.

Falcon 36 Operation Manual Installation
GBC Pro-Tech 1997 October 2-3
4'6" (~1.1m)
2'2"
(~.7m)
10'
(~3m)
10'
(~3m)
3' (~1m)
73" (~1.8m)
Floor Trimmer
3' x 6' (~1m x 2m)
Table
Recommended
clearance
Figure 2-1: Laminator Space Requirements

Installation Falcon 36 Operation Manual
GBC Pro-Tech 1997 October
2-4
8QSDFNLQJ
⇒NOTE
ALL SHIPMENTS ARE EX- WORKS. At our dock
title passes to the buyer Please review your
insurance coverage prior to shipment, as you are
responsible for all subsequent freight charges and
risks. Before signing the Bill of Lading they should
be sure to inspect the crate and/or pallet for signs of
damage or missing items; if applicable, they should
make a note of this on the Bill of Lading.
The Falcon 36 Laminator is shipped one of two
ways. It is either encased in a plywood crate on a
skid or in a cardboard box on a skid.
WARNING
The unpacking process requires at least two
people. You can be severely injured or
crushed.
Tools required:
•Phillips head screwdriver
•7/8" open end wrench or adjustable wrench
If the laminator is in a cardboard box:
1. Remove the securing screws around the bottom
of the box using the Phillips head screwdriver as
shown in Figure 2-2.
Figure 2-2: Removing the Cardboard Box
2. Lift the cardboard box off the laminator.
3. Gently unwrap the shrink wrap from around the
laminator.
CAUTION
Do not use a knife or other sharp instrument
during installation or while servicing the
laminator. You can cause irreparable
damage to the rolls.
4. Carefully remove any accessories packed with
the laminator. The accessory pack should
contain:
1 Set, hex wrenches
1 Slitting knife
1 Manual
1 Set, spare fuses
1 Tape measure
1 Roll of masking tape
1 Rubber cement eraser

Falcon 36 Operation Manual Installation
GBC Pro-Tech 1997 October 2-5
Foot Bolt
Shipping
Pad
Figure 2-3: Removing the Packing Assemblies
5. Remove the screws holding the foot pads onto
the pallet using the Phillips head screwdriver.
6. Have the laminator lifted off the skid and placed
on the floor by licensed riggers. The riggers
must also unscrew the foot bolts from the
laminator frame since it requires lifting the
laminator.
WARNING
Do not attempt to move the laminator across
anything other than a flat, level surface
without trained and qualified riggers. You
can be crushed or seriously injured.
The Falcon 36 Laminator is a large and
heavy piece of equipment. It is necessary to
employ LICENSED RIGGERS ONLY to
move the machine. The laminator is not
designed to be tipped up or sideways in any
way. Such action disturbs the exact
alignment of the rolling parts of the machine
and requires extensive realignment. GBC
Pro-Tech’s warranty does not cover
malfunction of the equipment due to
mishandling and/or tipping.
GBC Pro-Tech bears no responsibility for
personal injury or damage due to moving the
laminator improperly.
7. Once the laminator is in place set the locking
mechanism on all four wheels to ON.
8. Remove any plastic strapping and packing paper
taped to the rolls.
CAUTION
Do not use a knife or other sharp instrument
during installation or while servicing the
laminator. You can cause irreparable
damage to the rolls.
9. Remove all packing materials to a safe distance
from the laminator.
⇒A NOTE ABOUT RECYCLING
The pallet can be reused for shipping the machine
again, or can be disassembled and the wood and
screws recycled. The cardboard can be recycled.
The shrink wrap is not recyclable, however, so it
must be discarded.
⇒NOTE
A word about international shipments: As these are
heavy pieces of equipment, GBC Pro-Tech takes
every precaution to ensure that our laminators are
properly crated to the highest standards.
Before machines leave our loading dock, they are
pre-treated with a VCI protective film to provide
total corrosion protection. This protective film is
wrapped around the machine and completely sealed.
In addition, moisture absorbing silicone desiccite
packs are packed inside the crate and machine
cabinets.
Prior to start up of the machine, you must remove
the desiccite packs from each cabinet and discard.
DO NOT operate the machine with the desiccite
packs inside the cabinets.

Installation Falcon 36 Operation Manual
GBC Pro-Tech 1997 October
2-6
If the laminator is in a crate:
1. Remove the top of the crate and then the sides in
the order shown in Figure 2-4.
CAUTION
Do not allow the top to fall into the crate. It
can damage the laminator.
Do not put packing screws on the floor. They
can cause problems when trying to roll the
machine into position.
A second person must support the side
labeled 5 in Figure 2-4. It can fall and
damage the laminator.
5
4
©1994HCS,Inc.800-748-0241 ReorderNo.1033R-PT
Crushandburn
hazard.Stay clear
ofmovingrollers.
Stopmachineand
raiserollbefore
cleaning.
WARNING
ACHTUNG
MISEENGARDE
©1994HCS,Inc.800-748-0241 ReorderNo.1033-PT
Crushandburn
hazard.Stay clear
ofmovingrollers.
Stopmachineand
raiserollbefore
cleaning.
WARNING
ACHTUNG
MISEENGARDE
Tobeserviced only
bytrainedand
authorizedpersonnel.
Lockoutpowerbefore
servicing.
HAZARDOUS
VOLTAGE.
DANGER
GEFAHR
©1994HazardCommunicationSystems,Inc.800-748-0241ReorderNo.5025-PT
©1994HCS,Inc.800-748-0241ReorderNo.6001-PT
CarefullyreadOperator's
Manualbeforehandling
thismachine. Observe
instructionsandsafety
ruleswhenoperating.
WARNING
ACHTUNG
MISEENGARDE
NOT
AUS
E
M
E
R
G
E
N
CY
ST
OP
ARR
E
T
D'
U
R
G
E
N
C
E
B
O
T
T
O
M
T
O
P
MOTOR
FWD
REV SPEED STOP
AUTO
FANS POWER
HEATERS
PRO-TECHEngineeringMadison,WI 608-246-8844
0
3
6912
15
18
1
O
1
O
1
O
50
75
100
125
150175200
225
250
275
300
OUT HI
LO
PROTECH
°F
001-133
50
75
100
125
150175200
225
250
275
300
HI
LO
PROTECH
°F
001-133
©1994HCS,Inc.800-748-0241ReorderNo.7002-PT
SAFETY
INSTRUCTIONS
SICHERHEITS-
RICHTLINIEN
CONSIGNESDE
SÉCURITÉ
1.Readand understand the Operation
Manualandall safety labels before
operatingthismachine.
2.Onlya trained person is to be
permittedtooperate this machine.
Trainingshouldincludeinstruction
inoperationunder normal conditions
andemergencysituations.
3.Thismachine is to be serviced only
bytrainedand authorized personnel.
Followlockoutproceduresbefore
servicing.
4.Neverreach into the machine for any
reasonunlessthe machine is at a
COMPLETESTOP.
5.Neverleave the machine stopped in
suchamanner that another worker can
startthemachine while you are working
onorwithin the machine.
6.Neverchange or defeat the function of
electricalinterlocksor other machine
“shutdown”switches.
7.Beforestarting this machine, check that:
-Allpersons are clearof the machine .
-Nomaintenance work is being performed
on the machine.
-Allguards are in place.
-Allparent rolls are well chuckedin the
unwind stands.
-Themachineis free of paper scraps,
wraps and jams.
8.Thereis a potential hazard of entanglement
inthismachine caused by items suchas
longhair,looseclothing and jewelry.
Makesureyour clothingand hair fit
closelytoyourbody and that all jewelry,
ringsandwatches are removed.
NOT
AUS
E
M
E
R
G
E
N
CY
ST
OP
ARR
E
T
D'
U
R
G
E
N
C
E
OUT
1
2
3
Figure 2-4: Removing the Crate
2. Gently unwrap the shrink wrap from around the
laminator.
CAUTION
Do not use a knife or other sharp instrument
during installation or while servicing the
laminator. You can cause irreparable
damage to the rolls.
3. Carefully remove any accessories packed with
the laminator. The accessory pack should
contain:
1 Set, hex wrenches
1 Slitting knife
1 Manual
1 Set, spare fuses
1 Tape measure
1 Roll of masking tape
1 Rubber cement eraser
Foot Bolt
Shipping
Pad
Figure 2-5: Removing the Packing Assemblies
4. Remove the screws holding the foot pads onto
the pallet using the Phillips head screwdriver.
5. Have the laminator lifted off the skid and placed
on the floor by licensed riggers. The riggers
must also unscrew the foot bolts from the
laminator frame since it requires lifting the
laminator.

Falcon 36 Operation Manual Installation
GBC Pro-Tech 1997 October 2-7
WARNING
Do not attempt to move the laminator across
anything other than a flat, level surface
without trained and qualified riggers. You
can be crushed or seriously injured.
The Falcon 36 Laminator is a large and
heavy piece of equipment. It is necessary to
employ LICENSED RIGGERS ONLY to
move the machine. The laminator is not
designed to be tipped up or sideways in any
way. Such action disturbs the exact
alignment of the rolling parts of the machine
and requires extensive realignment. GBC
Pro-Tech’s warranty does not cover
malfunction of the equipment due to
mishandling and/or tipping.
GBC Pro-Tech bears no responsibility for
personal injury or damage due to moving the
laminator improperly.
6. Once the laminator is in place set the locking
mechanism on all four wheels to ON.
7. Remove any plastic strapping and packing paper
taped to the rolls.
CAUTION
Do not use a knife or other sharp instrument
during installation or while servicing the
laminator. You can cause irreparable
damage to the rolls.
8. Remove all packing materials to a safe distance
from the laminator.
⇒A NOTE ABOUT RECYCLING
The crate components can be reused for shipping
the machine again, or can be disassembled and the
wood and screws recycled. The shrink wrap is not
recyclable, however, so it must be discarded.
⇒NOTE
A word about international shipments: As these are
heavy pieces of equipment, GBC Pro-Tech takes
every precaution to ensure that our laminators are
properly crated to the highest standards.
Before machines leave our loading dock, they are
pre-treated with a VCI protective film to provide
total corrosion protection. This protective film is
wrapped around the machine and completely sealed.
In addition, moisture absorbing silicone desiccite
packs are packed inside the crate and machine
cabinets.
Prior to start up of the machine, you must remove
the desiccite packs from each cabinet and discard.
DO NOT operate the machine with the desiccite
packs inside the cabinets.
6HWXS
Once the Falcon 36 Laminator has been unpacked
and moved into final position check each of the
following items.
Tools required:
•1/8" hex wrench
•Adjustable wrench
Setup Procedure
1. Inspect the laminator for any obvious shipping
damage.
2. Remove the drive and control side cabinet
covers with the 1/8" hex wrench by removing the
six screws holding each cover in place.
3. Inspect all the bolts and tighten any that were
loosened during shipping.
4. Check the upper main roll assembly by using the
handwheel to raise and lower the roll. It should
move smoothly.
5. Set the nip. (See Section 4: Maintenance and
Troubleshooting for the procedure.)
6. Verify that both thermocouples make contact
with the rolls. (See Section 4: Maintenance and
Troubleshooting for the procedure.)

Installation Falcon 36 Operation Manual
GBC Pro-Tech 1997 October
2-8
WARNING
ALWAYS CHECK THE POSITION AND
CONDITION OF THE THERMOCOUPLES
PRIOR TO OPERATION! The thermal
junction of the thermocouples MUST make
contact with the laminating rolls to maintain
proper roll operating temperatures. The
thermocouples must also be free of adhesive
and dirt. The rolls can overheat and cause a
fire or seriously damage the laminator.
7. Plug the laminator into an approved socket or
have a certified electrician wire the laminator
directly to a power source.
8. Verify that the photoelectric eye is working
properly. (See the procedure below.)
9. Replace both cabinet covers.
6WDUWXS
The first time the laminator is started and every time
it is serviced you should use the following checklist
to confirm that the unit is operating properly and
that all safety mechanisms are functioning.
Startup Checklist
Start the laminator and go through the following
checklist.
❒Are the emergency stop buttons working?
Push down on one of the emergency stop
buttons. The laminator should stop. Pull up on
the button. The laminator should resume
operation. Always check both buttons.
WARNING
Never operate the laminator unless both of
the emergency stop buttons are functioning
properly. You can be crushed or burned.
❒Is the photoelectric eye system working?
With the laminator running, place an object
approximately the size of your hand just in front
of the nip to confirm that the photoelectric eye
system is functioning. The rolls should stop.
Move the object away from the nip. The
laminator should resume operation.
WARNING
Never operate the laminator unless the
photoelectric eye system is functioning
properly. You can be crushed or burned.
❒Is the motor functioning?
Test the motor at various speeds ranging from
0-18. At 0 the rolls should stop turning.
Run the motor in both forward and reverse.
❒Are the heaters working?
Verify that the top heater controller heats the
top roll and the bottom heater controller heats
the bottom roll.
❒Is the footswitch operating?
Test the footswitch for both forward and reverse
operation. Verify that the footswitch overrides
the photoelectric eye by pressing the footswitch
and pushing an object as large as your hand into
the nip area.
Once you have completed the startup checklist you
can safely run a test sample.

Falcon 36 Operation Manual Operation
GBC Pro-Tech 1997 October 3-1
6HFWLRQ 2SHUDWLRQ
6DIHW\
GBC Pro-Tech laminators are powerful machines
that are designed to mount, laminate and
encapsulate. The forces required to accomplish
these tasks can vary from negligible to very large.
The spring system used to provide downward
pressure on the top roll is capable of producing
forces greater than 1000 pounds (454kg). This force
is applied to any object presented in the opening
(called the nip) between the two rolls.
In addition, the laminating rolls of the Falcon 36 can
reach temperatures of over 200°F (100°C). At these
temperatures there is a danger of a severe burn if the
rolls are touched during set-up, operation or
servicing.
An important feature of the laminator is the
photoelectric eye system that stops the machine
when objects move into the nip area. Once the
blocking object is removed and the light beam
reestablished, the rolls resume turning. However,
this system is overridden if you use the footswitch.
WARNING
Use extreme caution when operating the
laminator with the footswitch. The
photoelectric eye system is overridden and
your fingers can get caught in the nip. You
can be crushed or burned.
The Falcon 36 Laminator has a steel cabinet that is
bolted closed to isolate the electrical and drive
system components for the safety of the operator.
Only a qualified service technician should open
these cabinets.
The laminator is equipped with two emergency stop
buttons located on the top of either side of the
laminator. Either of these, if engaged, stops the
laminator. To continue operation both emergency
stop buttons must be in the up position.
NOT
AUS
E
M
E
R
G
E
N
CY
ST
OP
ARR
E
T
D'
U
R
G
E
N
C
E
NOT
AUS
E
M
E
R
G
E
N
CY
ST
OP
ARR
E
T
D'
U
R
G
E
N
C
E
Twist and pull up
both buttons to
resume operation
Push either
button to stop the
laminator
1
/
4
tu
r
n
Figure 3-1: Using the Emergency Stop Buttons
Despite the safety features built into the Falcon 36
Laminator, extreme caution must be used when
operating or servicing the unit.

Operation Falcon 36 Operation Manual
GBC Pro-Tech 1997 October
3-2
2SHUDWRU&RQWUROV
The operator controls for the Falcon 36 Laminator
are located on the front and rear of the unit, to the
right of the operator position. The names and
functions of these controls are as follows:
)URQW &RQWURO 3DQHO
MOTOR
FWD
REV SPEED STOP
AUTO
FANS POWER
HEATERS
T
O
P
B
O
T
T
O
M
GBC Pro-Tech, De Forest, WI 608-246-8844
50
75
100
125
150 175 200
225
250
275
300
OUT HI
LO
PROTECH
°F
001-133
50
75
100
125
150 175 200
225
250
275
300
OUT HI
LO
PROTECH
°F
001-133
1
O
1
O
1
O
0
3
6912
15
18
Foot Switch/
Continuous Run
AUTO/STOP
Power Light
Top Roll Heater
Controller
Lower Roll Heater
Controller
Motion Control
FORWARD/
REVERSE
Cooling Fans
ON/Off
.
Upper Roll Heat
ON/OFF
Lower Roll Heat
ON/OFF
Speed Adjustment
1
3
4
5
2 6
8
9
7
Figure 3-2: Front Control Panel
1. SPEED ADJUSTMENT – Adjusts the speed of
the machine from zero to the maximum as the
control is turned clockwise.
2. MOTION CONTROL
FORWARD/REVERSE - Controls the
direction of the drive system, forward, reverse,
or stop.
3. COOLING FANS ON/OFF – Turns the
cooling fans on or off and turns the vacuum
table fans on or off, when a vacuum table option
is installed.
4. UPPER ROLL HEAT ON/OFF – Turns the
heater controller for the upper main roll on or
off.
5. LOWER ROLL HEAT ON/OFF – Turns the
heater controller for the lower main roll on or
off.
6. FOOT SWITCH/CONTINUOUS RUN
AUTO/STOP - Changes control of the machine
drive from a foot switch to continuous run.
7. POWER LIGHT – Indicates when the main
power is being applied to the machine.
8. UPPER ROLL HEATER CONTROLLER –
Provides a readout of the temperature of the
upper roll and the set-point for the desired
temperature. (See Figure 3-3.)
9. LOWER ROLL HEATER CONTROLLER–
Provides a readout of the temperature of the
lower roll and the set-point for the desired
temperature. (See Figure 3-3.)
50
75
100
125
150 175 200
225
250
275
300
OUT HI
LO
PROTECH
°F
001-133
Solid: Temperature is
within 5°of set point
Blinking: Temperature is
lower than 5°of set point
Off: Set point has been
reached or exceeded
Solid: Temperature is
within 5°of set point
Blinking: Temperature
is greater than 5°of set
point
Off: Set point has been
reached or exceeded
Red: Set point has
not been reached
Green: Temperature
is exactly at set point
Figure 3-3: Heater Controller
5HDU 3DQHO &RQWURO
Foot Switch/
Continuous Run
AUTO/STOP
MOTOR
STOP
AUTO
Figure 3-4: Rear Panel Control
FOOT SWITCH/CONTINUOUS RUN
AUTO/STOP - Changes control of the machine
drive from a foot switch to continuous run.
WARNING
Use extreme caution when operating the
laminator with the footswitch. The
photoelectric eye system is overridden and
your fingers can get caught in the nip. You
can be crushed or burned.
