GE AEV07KP User manual

GE Window Type Air Conditioner
AEV07KP, AEV09KP, AEV12KP, AEV18KP,
AEV24KP, AEE07KP, AEE09KP, AEE12KP,
AEE18KP, AEE24KP
Use & Care Manual
GE
Appliances

Contents
CARE AND MAINTENANCE ............................... 14
Caution ................................................................. 14
Care and Maintenance .................................. 15
Trouble Shooting Guide ................................. 16
After Service ....................................................... 17
STRUCTURE MECHANISM AND
INSTALLATION ......................................................... 2
Function ................................................................. 2
Operating Condition ......................................... 3
Power Requirement .......................................... 3
Installation ............................................................ 4
Notes for Installation ........................................ 7
OPERATION PROCEDURE.................................... 8
Part Identification .............................................. 8
Air Direction Adjustment ................................. 8
Operation for Mechanical Model ................. 9
Operation of Control Panel for
Electronic Model ................................................. 9

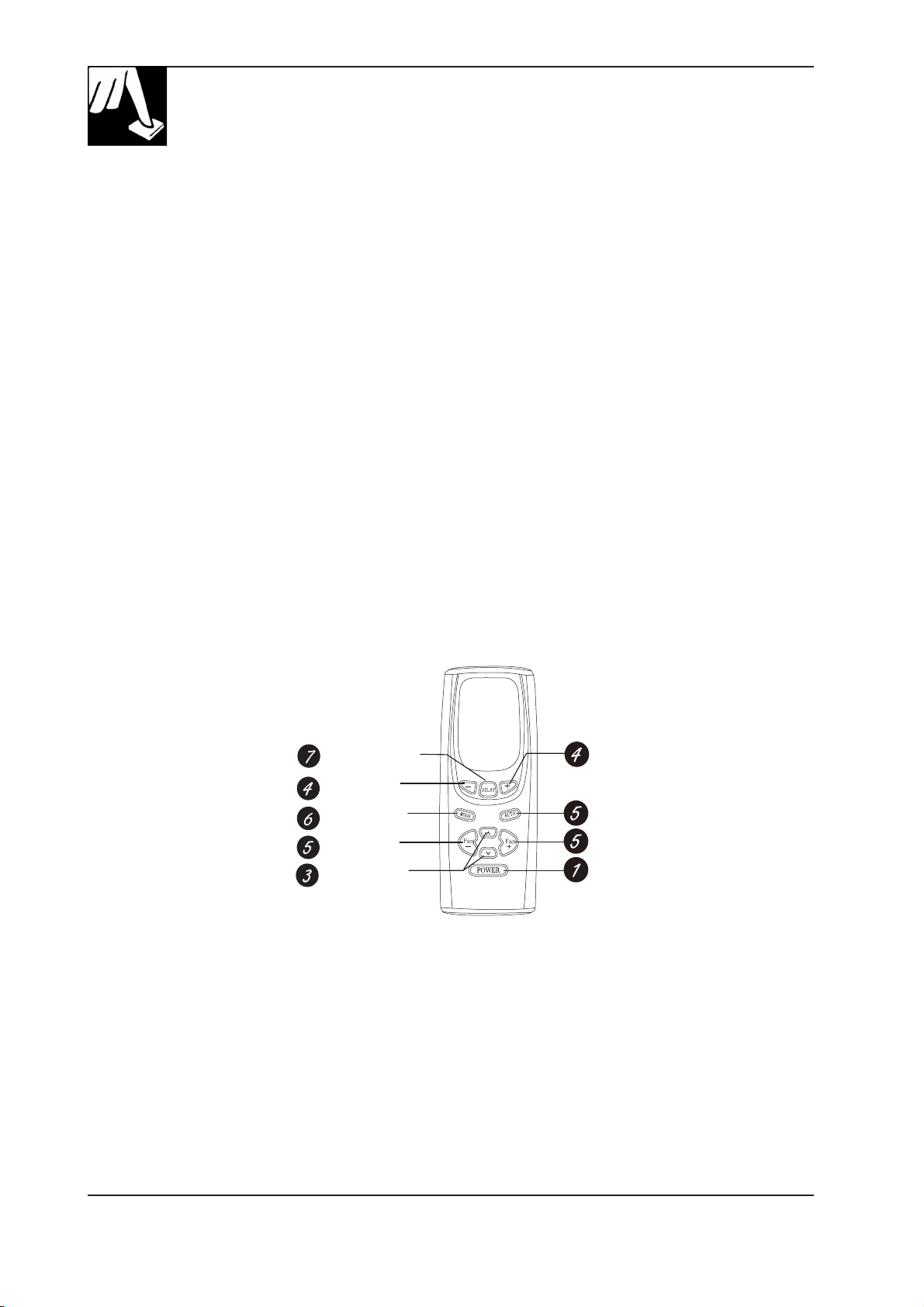

Operation of Remote Control for
Electronic Model ............................................... 10
Operation Tips ................................................... 13
To get the full benefit from your new Window Type Air Conditioner, please read this Use & Care Manual carefully
before operating the unit.
Thank you for choosing a GE Window Type Air Conditioner. Please keep this manual for future consultation.
GE Window Type Air Conditioner
AEV07KP, AEV09KP, AEV12KP, AEV18KP, AEV24KP,
AEE07KP, AEE09KP, AEE12KP, AEE18KP, AEE24KP
Pub. No. M11035L

Structure Mechanism and Installation
2
FUNCTION
Introduction
Window type room air conditioners of GE can regulate the room
temperature and dry the room. It is convenient for your work, study
and life. It can be widely used in residence, shop, hotel, office, library
and laboratory, and so on.
Cooling in summer
In hot summer, Air conditioner can cool down the
room air by transferring heat out.
Dehumidifying in rainy or humid season
Air conditioner can dehumidify and make the
room air dry and comfortable.
Exchange fresh air
Open storm door to keep the fresh air in the room.
Room
temp.
.
Spring
Summer
Autumn
Wind
direction
Winter
Dry
Fresh Air

Structure Mechanism and Installation
tS r noitallatsnI dna msinahceM erutcu
3
OPERATING CONDITION
Please operate air conditioner in the correct conditions as following.
COOL mode operation
Outdoor temperature should be in range of 16 ~ 43°C (61~86°F), otherwise it is possible for air conditioner
to breakdown.
Room humidity should be lower than 90%.
Otherwise, it is possible for air conditioner to dew at air conditioner surface and even drop water after
running for so much time. But this is normal.
POWER REQUIREMENT
Rated voltage and voltage range: 230V~±10%
• The electric components will be damaged when the
voltage is too high. If the voltage is too low, the
compressor will vibrate violently to damage the
refrigerant system and easily cause the compressor
and electric components not work.
Earth wire To ensure the reliable earthing, please do not connect earth wire to the following places:
Water pipe
The ground must be connected.
• Special socket must be used. Furthermore, the socket
and wiring must conform to the wiring regulations.
And the earthing method must be reliable.
• In fixed circuit, there must be electricity leakage
protection switch of enough power capacity and air
switch with enough space.
This appliance is not intended for use by persons (including children) with reduced phisical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of appliance by a person reponsible for their safety.
Children should be supervised to ensure that they don not play with the appliance.

Structure Mechanism and Installation
4
INSTALLATION
Installation precaution:
Window type conditioner is so valuable and the improper
installation of it will cause a lot of damage! Please associate the
professional technician to install the unit and don't install it by
yourself. Otherwise, we are not responsible for the damage like
this.
Location:
•The condensation water must be drained away conveniently.
•Install air conditioner unit far away from TV set or radio etc. to avoid disturbing video or voice.
•In salt and coastal area or place where is near thermal springs and polluted by sulphurous gas, or other
special areas, please contact the seller before use.
•Avoid a place where is possible for in flammable gas to leak out.
•Avoid other heat sources or direct sun light.
•Avoid a place where is easy for children to touch.
• Don't use the unit in the immediate surrondings of a laundry, a bath, a shower or a swimming pool.
•For window type air conditioner with remote control, install in a location where is strong electromagnetic
disturbance, you should contact the seller in advance to avoid the malfunction in use.
How to install:
• Choose a location where there are no any obstacle surrounding the unit , and the plug is accessible.
•Prepare the installation hole slightly bigger than unit size.
•Choose the installation space according to the following diagram.
The distance of obstructions from window unit inside
should be upper 150mm. left 150mm, right 150mm
and back 500mm.

Structure Mechanism and Installation
Structure Mechanism and Installation
5
Installation procedure:
1) Remove the sticker from the front panel.
2) Put the unit into the installation hole.
•When installing the unit, it should be slanted down to the back to
avoid the enlargement of noise or vibration. (Slant between 6-10mm.)
(Shown at right figure.)
•The installation place should be strong enough to avoid the
enlargement of noise or vibration.
3) Fill up sews in the cabinet with sponge or foam.
Installation assistance:
•Use iron support
The installation hole should be strong
enough to support the air conditioner.
If it cannot, iron support has to be used
outdoors.
Iron support should be fixed on the
building (Shown at right figure.)
•Use sunshade board
Air conditioner should avoid anything to
be dropped into it and avoid direct
sunshine. If there is no cover on it, you
should contact the seller for installing
the sunshade board. When installing the
sunshade board, don't let it block the air
inlet at the side grille.
Horizontal line
6~10mm
Sunshade board
Wall
Wooden frame
Rubber plate
Support
Horizontal line
6~10mm

Structure Mechanism and Installation
6

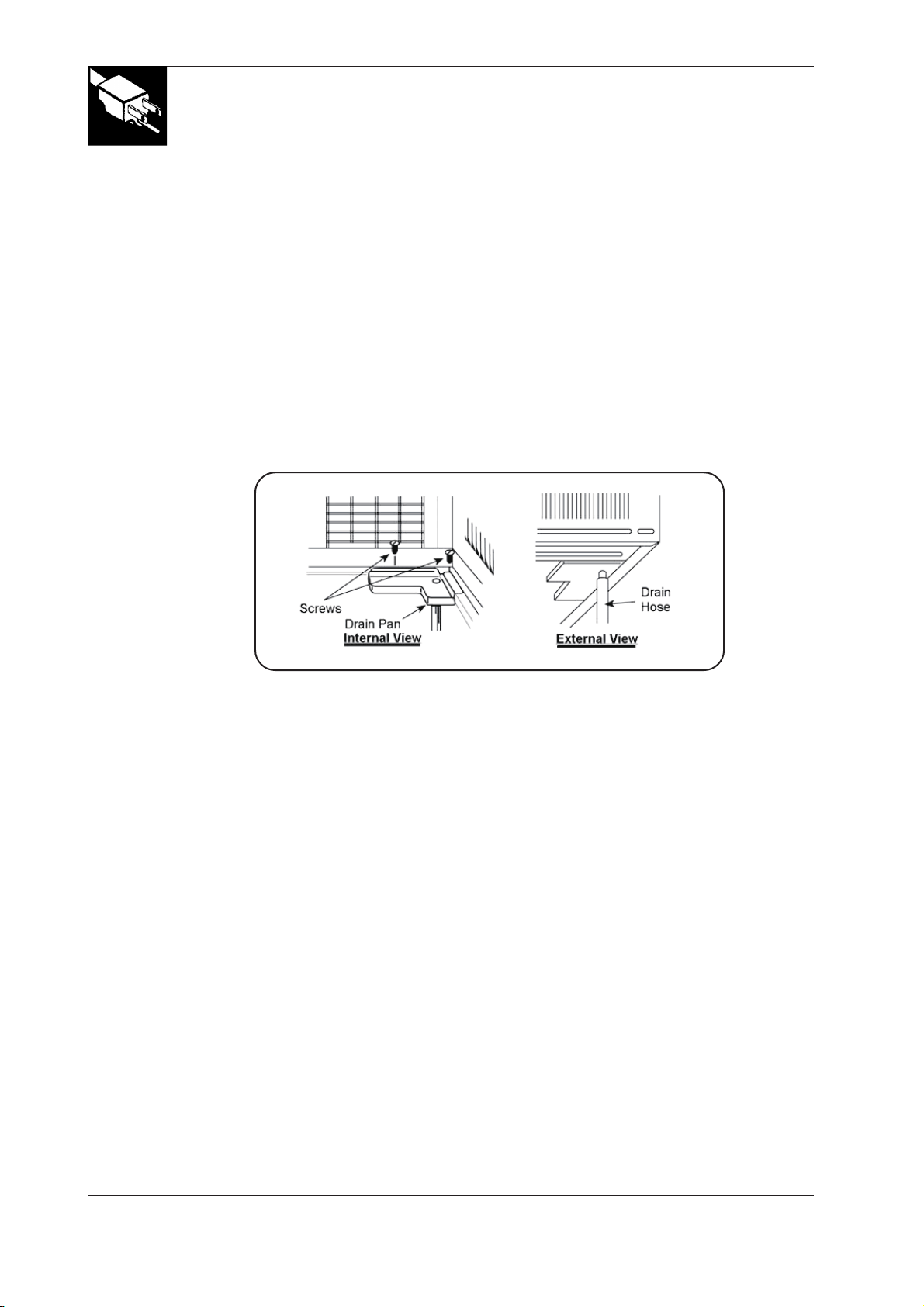

Drain water:
To get the maximum cooling efficiency, the air conditioner is designed to splash the condensation water
on the condenser coil.
To the cooling only unit,If the splashing sound annoys you, you can provide an outside drain by using the
following procedure, whichmay however cause a small loss of performance.
1. Slide out the chassis from the cabinet.
2. Remove the rubber plug from the body base plate.
3. Install the drain pan to the corner of the cabinet with 2 screws.
4. Connect the drain hose to the outlet on the drain pan bottom.
5. Slide the chassis into its original place in the cabinet.
Note:
• Drain pan and drain hose must be installed before using reverse cycle models.
•Drain hose or tubing can be purchased locally to satisfy your particular needs.

Structure Mechanism and Installation
Structure Mechanism and Installation
7
NOTES FOR INSTALLATION
Remove
Before removing air conditioner to the other place, you should contactthe
seller firstly.
Then it must be done under the direction of the professional technician. In
addition, the charge of this must be paid.
Noise
•Install in a location where is firm enough to avoid the enlargement of
noise and vibration.
•Don't put anything in front of the outlet of outdoor unit to avoid
increasing noise.
•Be sure that hot air or noise will not inconvenience neighbors.
•Please contact the seller as soon as there is strange noise during
operation.
•Please use the safety support.
Electric wiring
•Must connect with ground reliably.
•The exclusive circuit must be used. But removable socket can't be used
because poor contact of it can cause over heat or fire.
• Don't pull the power cord strongly.
•In fixed circuit, there must be electricity leakage protection switch and
leakage current is less than 30mA.
•Connecting method between air conditioners and power cord and
interconnecting method of each individual element with one another
should accord with wiring diagram on the unit.
•The air conditioner should be installed in accordance with national
wiring regulation.
•An all-pole disconnection switch having a contact separation of at least
3mm in all poles should be connected in fixed wiring
•Air switch (thermal-magnetic breaker) should be installed in the circuit
•If the supply cord is damaged, it must be replaced by the manufacturer
or your dealer or a qualified person to avoid a hazard.
•All the electrical work must be done according to the local wiring
regulations.

Operation Procedure
8

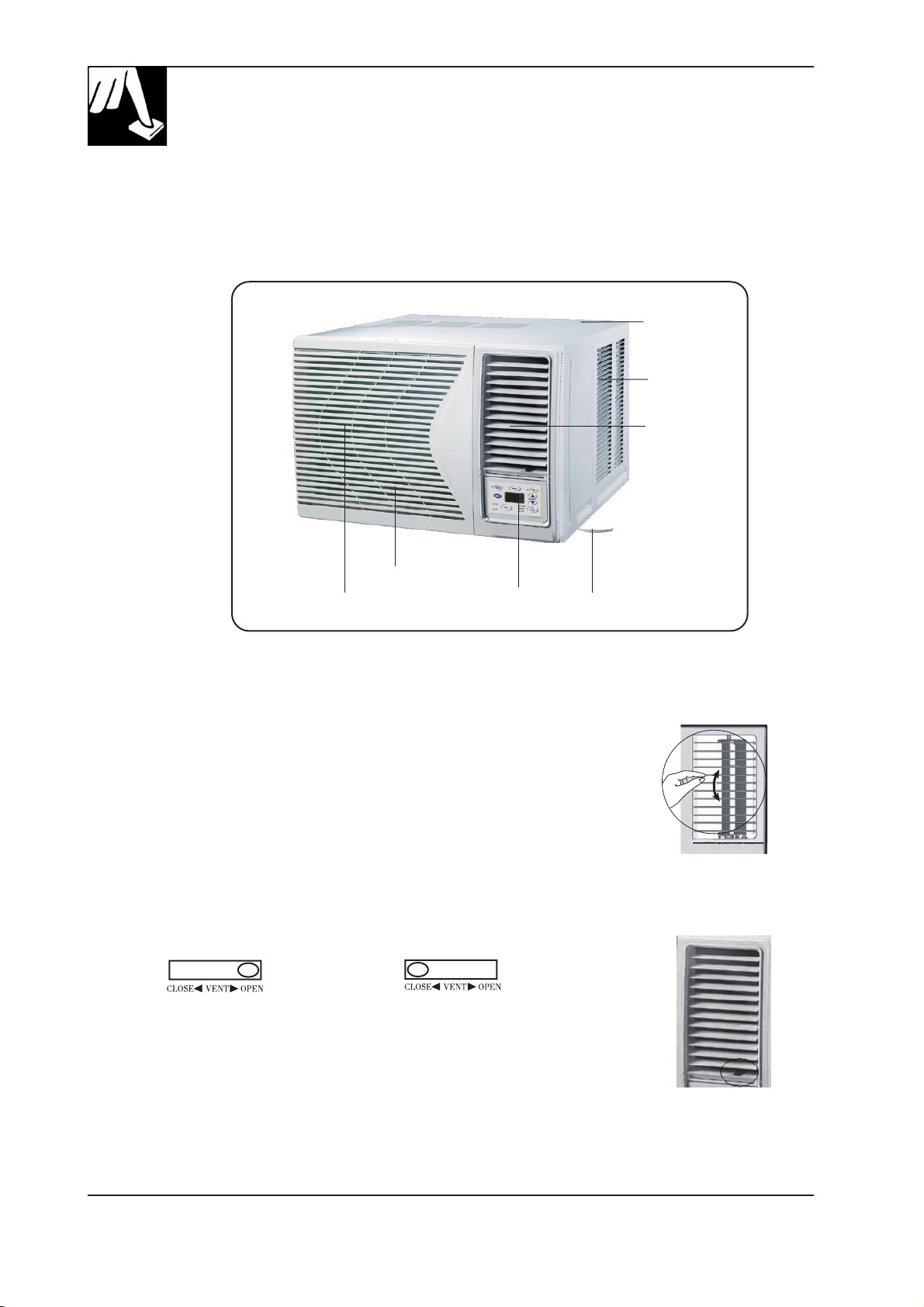

PART IDENTIFICATION
AIR DIRECTION ADJUSTMENT
Vertical airflow direction vane
(Airflow direction adjustment up and down).
The vertical airflow direction vane is controlled by positioning the vane to
discharge the air upwards, downwards or straight out.
Ventilation Lever
When the slider at the:
-"OPEN" position, the ventilation
door opens to allow air, smoke or
odors to be expelled from the
room.
When the slider at the:
-"CLOSE" position, the ventilation
door is closed and the air will be
circulated inside the room and
conditioned.
Front grille
Air inlet louver
Cabinet
Air filter
(behind the front intake grille)
Front intake grille)
Control Panel Power cord
Panel outlook picture, just for reference, please take the real until as standard.
Ventilation Lever

Operation Procedure
Operation Procedure
9
OPERATION FOR MECHANICAL MODEL
1. Main Control Knob
Set to Low Cool, High Cool or Turbo Cool as desired (FAN setting operates the fan only.)
CAUTION: If the main control knob is turned off orchanged to a fan setting from a cooling operation
setting. WAIT at teast 3 minutes before resetting to cooling operation.
2. Thermostat control Knob
Set the thermostat control knob to your desired setting (Usually 6-7 is recommended), If the room
temperature is not as desired after a reasonable period, turn the thermostat. When the thermostat
control knobis set to 10 moisture may freeze onto evaporator fins and the thermostat control knob
counter clockwise, This will quickly defrost the evaporator fins so that mormal cooling can be resumed.
HIGH
COOL
TURBO
COOL
3. Air Swing Switch
(Airflow direction adjustment Side-to Side)
To obtain a fix airflow direction, set the air swing switch to “ON” for the
vanes to swing from side to side until the desired flow direction is
reached, then switch it to “OFF”. For continuous side-to-side air
circulation, set the air swing switch to “ON”.
OPERATION OF CONTROL PANEL FOR ELECTRONIC MODEL
Note:
Open the surface panel and operate manually.
1POWER BUTTON
Under OFF mode, press the ON/OFF
button to turn on the unit. and stops
when pressing this button again.
2SWING BUTTON
Activate the automatic air swing
function.
3FAN SPEED BUTTTON
Select the fan speed LOW, HIGH,
TURBO, AUTO in sequence.

Operation Procedure
10
4TEMP/TIMER BUTTON
Press the ▲to increase the set (operating) temperature of the unit.and Press the ▼to decrease the set
(operating) temperature of the unit. The temperature seting range is from 16~30°C (61~86°F). Press the
▲also to increase the selected time, and Press the ▼to decrease the selected time. The time setting
will be modified in steps of half an hour at a time when less than 10 hours, and in steps of an hour for
more than 10 hours.
The time seting range is from 0.5~24 hours.
5SIGNAL RECEIVER
6MODE BUTTON
Select the operation mode FAN, COOL, AUTO.
7ENERGY SAVER BUTTON
Under energy saving mode, lamp of energy saving mode is on, and the temperature setting range is
16~30°C (61~86°F). The buzzer will give out a beep if remote control turbo speed by remote controller
NOTE:
Control panel is capable of displaying temperature in degrees Fahrenheit or degrees Celsius, To convert
from one to the other, Press and hold the Up ▲and Down ▼buttons on Control panel together for 3
seconds.
OPERATION OF REMOTE CONTROL FOR ELECTRONIC MODEL
Delay 0.5-24hr
Delay timer
Decrease
Mode select
Fan speed
Decrease
Temperature
set Increase
and Decrease
Delay timer Increase
Auto Fan on
Fan speed Increase
Unit power on/off
Remote Control
1Power Button
Turns air conditioner on and off. When turned on, the display will show the room temperature.
2Display
Shows the room temperature or time remaining on the Delay timer. Shows the Set temperature while
setting the temperature except Auto mode.
NOTE:
The display will change to show the room temperature after settings have been made. To change the
Set temperature, press the Temp Increases ▲or Decrease ▼buttons

Operation Procedure
Operation Procedure
11
3Temp Increase ▲/Decrease ▼Buttons
Use to set temperature except Auto mode.
4Delay Timer Increase ▲(+) /Decrease ▼(-) Buttons
Each touch of the Increase ▲/ Decrease ▼buttons on the unit or the Increase+ / Decrease - buttons
on the remote control will set the delay time when using the Delay 0.5-24hr timer (DELAY).
5Fan Speed Buttons
Use to set the fan speed to Low, High, Turbo or Auto on the unit .
NOTE:
On the remote control, use the fan speed Increase+ /Decrease - buttons to set the fan speeds to Low,
High or Turbo. Use the Auto button to turn Auto fan on.
6Mode Button
Use to set the air conditioner to Cool, Auto Fan Only mode.
7Delay Button
Delay ON – When the air conditioner is off, it can be set to automatically come on in 0.5 to 24 hours at
its previous mode and fan settings.
Delay OFF – When the air conditioner is on,it can be set to automatically turn off in 0.5 to 24 hours.
How to set:
Press the Delay 0.5-24hr button on the unit or the Delay button on the remote control. Each touch of
the Increase ▲/ Decrease ▼buttons on the unit or the Increase+ / Decrease - buttons on the remote
control will set the timer in 0.5-24hour intervals.
To review the remaining time on the Delay 0.5-24hr timer, press the Delay 0.5-24hr button on the unit
or the Delay button on the remote control. Use the Increase / Decrease buttons on the unit or the
Increase+ / Decrease - button on the remote control to set a new time if desired. During preview of
timer or timer setting, press Delay 0.5-24hr button on the panel or Delay button on the remote controller
to cancel the timer setting.
Remote Control
■To ensure proper operation, aim the remote control at the signal receiver on the air conditioner.
■The remote control signal has a range of up to 20 feet.
■Make sure nothing is between the air conditioner and the remote control that could block the signal.
■Make sure batteries are fresh and installed correctly as indicated on the remote control.
Cool Mode
Use the Cool mode at Low, High, Turbo or Auto Fan Speed for cooling. Use the Temperature Increases ▲/
Decrease ▼buttons to set the desired temperature between 16°C (61°F) and 30°C (86°F) in 1°C (1°F)
increments.
An electronic thermostat is used to maintain the room temperature. The compressor will cycle on and off
to keep the room at the set level of comfort. Set the thermostat at a lower number and the indoor air will
become cooler. Set the thermostat at a higher number and the indoor air will become warmer.
NOTE:
If the air conditioner is off and is then turned on while set to a Cool setting or if turned from a fan setting to
a Cool setting, it may take approximately 3 minutes for the compressor to start and cooling to begin.

Operation Procedure
12
Sketch map for
changing batteries
1
2
3
4
Changing batteries and notices
1. Slightly to press the place with , along the arrowhead direction to push the
back cover of wireless remote control. (As show in figure)
2. Take out the old batteries. (As show in figure)
3. Insert two new AAA1.5V dry batteries, and pay attention to the polarity. (As show
in figure)
4. Attach the back cover of wireless remote control. (As show in figure)
NOTE:
•When changing the batteries, do not use the old or different batteries, otherwise,
it can cause the malfunction of the wireless remote control.
•If the wireless remote control will not be used for a long time, please take them
out, and don't let the leakage liquid damage the wireless remote control.
• The operation should be in its receiving range.
• It should be placed at where is 1m away from the TV set or stereo sound sets.
•If the wireless remote control can not operate normally, please take them out, after 30s later and
reinsert, if they cannot normally run, please change them.
Cooling Descriptions
For Normal Cooling–Select the Cool mode and High or Turbo fan with a middle set temperature.
For Maximum Cooling–Select the Cool mode and Turbo fan with a lower set temperature.
For Quieter & Nighttime Cooling–Select the Cool mode and Low fan with a middle set temperature.
Energy Saver Mode
The fan will cycle on and off with the compressor. This results in wider variations of room temperature and
humidity
Normally used when the room is unoccupied.
NOTE:
The fan may continue to run for a short time after the compressor cycles off and fan will cycle on and off.
Fan Only Mode
Use the Fan Only Mode at Low, High, Turbo fan speed to provide air circulation and filtering without cooling.
Since fan only settings do not provide cooling, a Set temperature cannot be entered. The room temperature
will appear in the display.
NOTE: Auto Fan Speed cannot be used when in the Fan Only Mode.
Auto Fan Speed
Set to Auto fan speed for the fan speed to automatically set to the speed needed to provide optimum
comfort settings with the set temperature. If the room needs more cooling, the fan speed will automatically
increase. If the room needs less cooling, the fan speed will automatically decrease.
NOTE: Auto Fan Speed cannot be used when in the Fan Only Mode.

Operation Procedure
Operation Procedure
13
OPERATION TIPS
Operation for comfort and economy
Do not overcool the room
temperature. This is not good for
health and wastes electricity.
Keep blind or curtains closed.
Do not let sunshine enter the
room directly when the air
condition is in operation.
Keep the room temp. uniform.
Adjust the vertical and horizontal
airflow direction to ensure a
uniform temperature in the room.
Air can't be discharged to the
direction of air-in.
Make sure that the doors and
windows are tightly closed.
Avoid opening doors and
windows as much as possible to
keep air conditioning in the room.
Clean the air filter regularly.
Blockages in the air filter reduce
dehumidifying effects.
Clean the air filter at least once
every two weeks.
Ventilate the room occasionally.
Since windows are kept closed, it
is a good idea to open them and
ventilate the room now and then.
When starting the unit, curtains
or windows should be closed to
prevent the cool leakage.

14
Care and Maintenance
CAUTION
Operations for safety and health
1) The plug must be accessible after the appliance is positioned.
2) Do not use this appliance in the laundry.
3) If the power cord is damaged, it must be replaced by the manufacture or its service agent in void of
hazard.
•Do not pull out the power cord.
•Damage to the cord may result
in serious electric shocks.
•Do not use the air conditioner
for other purposes except for
cooling the room.
•Do not use the air conditioner
for other purposes such as
drying clothes, preserving
foods, or cultivating
vegetables.
•Do not block the air intake and
outlet vents
This causes lowered
performance and irregular
operation.
•Do not insert sticks or other
objects into these vents as it is
dangerous to touch the electric
components and the fan.
Select the most appropriate
temperature.
Pay attention to adjust the
temperature to suit the
conditions.
Rooms occupied by infants, the
elderly, or the sick should be kept
at an appropriate temperature.
Do not use heating apparatuses
in the vicinity. The air
conditioner’s plastic parts will
melt if exposed to excessive heat.
Avoid exposing the body directly
to a continuous unidirectional air
flow for long periods.
This is not recommended for
health reason.
Always wait at least 3 minutes before switching the air conditioner on
again after you have switched it off during cooling or heating.
Always waite
at least 3 minutes

15
Care and Maintenance
Care and Maintenance
CARE AND MAINTENANCE
Always turn off the air conditioner and main power supply before cleaning to ensure safety.
Cleaning unit
Plug out only
afterair conditioner
stops at all.
Dry the cloth
by hands before
cleaning.
Accident could
happen.
1. Cut power off before cleaning. Air filter
The air filter behind the intake grille should be
washed at least once every two weeks or as
often as it needs cleaning.
How to clean the air filter:
1. To remove the air
intake grille, grasp the
tab on the filter and
pull to take out.
Is it broken
or loose?
2. Use soft cloth when
cleaning cabinet.
If the cabinet is very
dirty, dip cloth into
warm water below 40°C
dry the cloth and then
rub off the dirt.
Vacuum cleaner
Air lock could result in
bad efficiency.
2. Vacuum the filter on the dusty side to
remove light dust.
3. Don't use gas, benzene, solvent, wash,
chemical solvent, etc. for cleaning.
4. Do not splash water directly into indoor
unit, in which
there are
microcomputer
and circuit
plate, they
must not be
drenched with
water.
3. Wash the filter, cleaner side up under gently
flowing water to wash out accumulated
dust and lint.
4. If the filter is very dirty, use a mild household
detergent in the
wash water.
•Check earth wire •Check if air inlet and outlet of outdoor unit
are blocked or not.
Let the filter dry
thoroughly before
reinstalling it.
If necessary, please ask the professional
personnel to clean it.

Immediately stop all operations and plug out, please contact your dealerin the following situations.
• Operation starts or stops abnormally;
• Power fuse or switch often breaks;
• Carelessly splash water or something into air conditioner;
• Electrical lines are much hot or lines cover breaks;
• Other strange situations.
16
Care and Maintenance
TROUBLE SHOOTING GUIDE
Please check the following items before asking for repair, it saves your time and money.
Fault phenomenon Trouble-shooting
Air conditioner dose not
operate at all.
OFF
Cool or heat efficiency is
not good.
No
cooling
Foggy air flows out.
The air conditioner operation is
noisy.
• Is there a power failure?
• Is the plug out?
• Is power fuse or switch off ?
• Whether the voltage is too high or too low?
It seems that condensation is leaking from air
conditioner.
Air conditioner dose not operate for about
3minutes when restart.
• Is air inlet or outlet locking?
• Is there any other heat/cool source in room?
• Are air filters dirty very much?
• Is indoor fan speed set at LOW?
• Maybe the room is too hot/cool when the unit
is started.
• At COOL mode operation, sometimes there is
foggy air flowing out of indoor unit, this is
because the room humid air has been cooling
rapidly.
• The unit is normal while the indoor outlet is
sending out some odor, because the inlet air may
be mixed with the smell of furniture and smoke.
• For a noise that sounds like water flowing:
This is the sound of freon flowing inside the air
conditioner unit.
• For a noise that sounds like a shower:
This is the sound of the dehumidifying water
being processed inside the air conditioner unit.
• Condensation occurs when the airflow from the
air conditioner cools the warm room air.
• This is to protect the mechanism.
• Wait about three minutes and operation will
begin.

17
AFTER SERVICE
• If your air conditioner has the questions of quality or anything else, please contact the service center
of GE.
Indoor Side DB/WB( ℃ ) Outdoor Side DB/WB( ℃ )
Maximum Cooling 32/23 43/26
Minimum Cooling 21/15
Maximum Heating 27/- 24/18
Minimum Heating 20/- -5/-6
※Working temperature range
21/15
Care and Maintenance
ne an ec a Mn d a ni tC ra e

66129910152
