GE QuickPanel+ IC754VSI12CTD User manual

This Datasheet is for the
IC754VSI12CTD

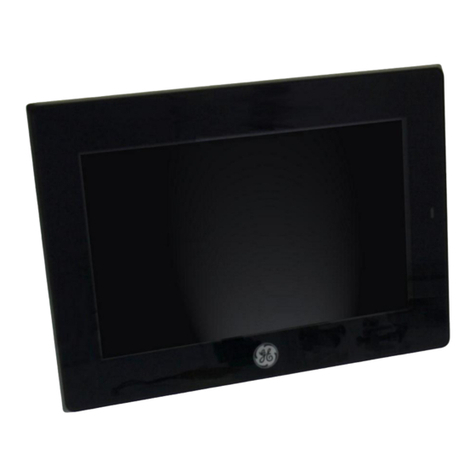

The IC754VSI12CTD for the GE QuickPanel has a View Intermediate 12 inch
Color TFT Touch DC
http://www.qualitrol.com/shop/p-16391-ic754vsi12ctd.aspx
For further information, please contact Qualitrol Technical Support at
1-800-784-9385
[email protected]

2GFK-2847
Contents
Chapter 1. Introduction.................................................................................................................4
1.1 Specifications........................................................................................................................................... 4
1.1.1 General Specifications...................................................................................................................... 4
1.1.2 Physical Specifications and Mounting .............................................................................................. 6
1.1.3 Environmental Specifications............................................................................................................ 6
1.2 QuickPanel+ Hardware User Features.................................................................................................... 7
1.2.1 Overview........................................................................................................................................... 7
1.2.2 Status Indicators ............................................................................................................................... 8
Chapter 2. Getting Started............................................................................................................9
2.1 Unpacking and Inspection ....................................................................................................................... 9
2.2 Basic Setup............................................................................................................................................ 11
2.3 Startup................................................................................................................................................... 11
2.3.1 Connecting Input Power ................................................................................................................. 12
2.3.2 Initial Configuration......................................................................................................................... 13
2.4 Runtime Setup....................................................................................................................................... 13
2.5 Firmware Updates ................................................................................................................................. 13
2.6 Shutdown............................................................................................................................................... 13
Chapter 3. QuickPanel+ Software ..............................................................................................15
3.1 Operating System.................................................................................................................................. 15
3.2 Backup Utility......................................................................................................................................... 15
3.3 Storage Manager................................................................................................................................... 15
3.4 Copy Project to SD Card ....................................................................................................................... 16
3.5 Updating a Machine Edition Project ...................................................................................................... 16
3.6 FTP Server ............................................................................................................................................ 17
3.6.1 Authentication of Remote Users..................................................................................................... 17
3.6.2 FTP with Removable Flash Devices............................................................................................... 17
3.7 HTTP Server.......................................................................................................................................... 17
Chapter 4. Installation.................................................................................................................19
4.1 Installing the Protective Sheet............................................................................................................... 19
4.2 Choosing a Mounting Location.............................................................................................................. 19
4.3 Panel Mounting...................................................................................................................................... 19
4.4 Mounting on a VESA Arm...................................................................................................................... 21
4.5 Installing/Replacing the Battery............................................................................................................. 23
4.6 Connectors ............................................................................................................................................ 25
4.6.1 Power Connector Pin-out................................................................................................................. 25
4.6.2 Ethernet ........................................................................................................................................... 25
4.6.3 Serial Port........................................................................................................................................ 26
4.6.4 Universal Serial Bus (USB) Ports................................................................................................... 26
QuickPanel+ User’s Manual–November 2013

Contents
4.6.5 Audio (LINE OUT) Details ................................................................................................. 30
4.6.6 Audio (MIC IN) Details ...................................................................................................... 30
4.6.7 SD Card Slot ..................................................................................................................... 31
Chapter 5. Detailed Operation ........................................................................................... 32
5.1 Touch Screen Display ................................................................................................................. 32
5.1.1 Adjusting the Display Brightness ...................................................................................... 32
5.1.2 Configuring the Backlight .................................................................................................. 32
5.1.3 Calibrating the Touch Screen ........................................................................................... 33
5.2 Keyboard ..................................................................................................................................... 34
5.2.1 External Keyboard (optional) ............................................................................................ 34
5.2.2 Soft Input Panel ................................................................................................................. 34
5.3 Mouse .......................................................................................................................................... 34
5.4 Memory ........................................................................................................................................ 35
5.4.1 DRAM Memory .................................................................................................................. 35
5.4.2 Changing the Memory Allocation ...................................................................................... 35
Appendix A Product Certifications & Installation Guidelines for Conformance .............. 36
Agency Approvals ................................................................................................................................... 36
Government Regulations ........................................................................................................................ 36
Appendix B Orderable Part Numbers .................................................................................. 37

.
4 QuickPanel+ User’s Manual–November 2013 GFK-2847
GFK-2847 QuickPanel+ User’s Manual–November 2013 7
Chapter 1 Introduction
Chapter 1. Introduction
The QuickPanel+ operator interface is an all-in-one microcomputer designed for maximum
flexibility. The design, based on an advanced ARM core microprocessor, brings together a
high-resolution touch-screen operator interface with a variety of communications options. You
can connect to most industrial equipment through the QuickPanel+ communications ports.
The QuickPanel+ is equipped with several memory types to satisfy the most demanding
applications. A 512MB section of DRAM is split between the operating system, an object
store and application memory. Functioning as a virtual hard drive, a 256MB section of non-
volatile flash memory is divided between the operating system and persistent storage for
application programs. The retentive memory consists of 512KB of battery-backed SRAM for
data storage, protecting your valuable data during a power failure.
1.1 Specifications
1.1.1 General Specifications
Processor
Freescale i.MX535 (1GHz ARM Cortex A8)
Memory
RAM
DDR2 SDRAM 512MB
ROM
SLC NAND 256MB
SRAM
512 KB (with Battery backup)
Operating system
Microsoft Windows Embedded Compact 7
Display
Type
7” Widescreen TFT LCD
Resolution
800(W) x 480(H) pixels WVGA
Backlight
LED
Touch screen
Touch Panel Type
Projected Capacitive
Multi-touch
Two-point
Communications
Ethernet Port
1x 10/100BaseT (RJ-45)
Serial Port
1x RS-232 UART Port (5-Pin Connector)
USB, Host
Two USB2.0 (Type-A)
Max. Power (5V @ 0.5A)
USB, Device
One USB 2.0 (Mini Type-B)
Storage
One SD/SDHC Card Slot
Audio
One Mic In (mono) (3.5mm Jack
One Line Out (Stereo) (3.5mm Jack)
Noise immunity
Noise voltage: 1500V p-p
Pulse Duration: 1µs, Rise time: 1ns
Input power
Maximum Rated
Voltage
+30VDC
Rated Voltage
+24VDC ±20% (3-Pin Connector)
Power Consumption
15W (max)
Frame Ground
Frame GND is connected to Signal GND internally

.
6QuickPanel+ User’s Manual–November 2013 GFK-2847
Chapter 1. Introduction
1.1.2 Physical Specifications and Mounting
Dimensions (L×W×D)
192 mm × 137 mm × 36 mm
(7.56 in. × 5.39 in. × 1.42 in.)
Weight
0.800 kg (1.76 lbs)
Mounting options
Panel cutout
dimensions
183.5 mm ×128.5 mm
(7.22 in. × 5.06 in.)
VESA mount
VESA Mount: 75 mm x 75 mm
1.1.3 Environmental Specifications
Note: The QuickPanel+shall be installed in a location that is well ventilated and not exposed
to dust, corrosive gases or liquids, flammable gases, rain, strong ultraviolet light or
direct sunlight, and that meets the environmental specifications listed below.
Cooling
Natural convection
Ambient Operating
temperature
0°C to +50°C
Ambient Storage temperature
-20°C to +60°C
Ambient Humidity (operating
and storage)
85% RH
(non-condensing, wet-bulb temperature:30°C or less)
Environment
Pollution Degree 2 as defined by UL60950-1.
Vibration resistance
5 to 9Hz single-amplitude 3.5mm
9Hz to 150Hz constant-accelerated velocity 9.8m/s2
X, Y, Z directions 10 time (100minutes)
(Compliance 3502, IEC61131-2 JIS B)
ROHS
Compliant with EU RoHS Directive 2002/95/EC using the following
exemptions identified in the Annex: 7(a), 7(c)-I, & 7(c)-III.
Enclosure rating
IP65 and JEM1030 when installed in accordance with the instructions
in Chapter 4, “Installation.”
Note: For additional product standards and agency approvals, refer to Appendix A.

7
GFK-2847 QuickPanel+ User’s Manual–November 2013
Chapter 1 Introduction
1.2 QuickPanel+ Hardware User Features
In addition to the primary touch screen interface, the QuickPanel+ supports a variety of
communication ports. The following diagrams show the physical layout of the QuickPanel+ including
locations of status LEDs, communications ports, and connectors.
1.2.1 Overview
Bottom
Figure 1. QuickPanel+ Hardware Features
Chapter 1. Introduction
Front
Right Side

.
8QuickPanel+ User’s Manual–November 2013 GFK-2847
1.2.2 Status Indicators
The QuickPanel+ operator interface has a tri-color LED that provides visual status indications
and an on-board buzzer for audio indications.
1.2.2.1 QuickPanel+ Status LED Operation
LED State
QuickPanel+ State
Amber, steady
Operating system starting
Green, steady
Normal operating state
Green, blinking
Backlight off
Red, blinking
Backlight fail
Off
Power not applied to the QuickPanel+
1.2.2.2 Ethernet Port LED Operation
The Ethernet port has two LED indicators, ACTIVITY and LINK.
Speed
Link Activity
GFK-2847 QuickPanel+ User’s Manual–November 2013
LED
LED State
Operating State
Speed
On, Yellow
10/100
Link
Activity
On, Green
L
ink status

Chapter 2. Getting Started
GFK-2847 QuickPanel+ User’s Manual–November 2013 9
Chapter 2. Getting Started
This chapter contains information for performing a pre-installation check of your QuickPanel+
operator interface.
Before installing and using the QuickPanel+, the following steps should be completed:
■
Unpacking and Inspection
■
Basic Setup
■
Initial Startup
■
Runtime Setup
■
Firmware Updates
■
Shutdown
2.1 Unpacking and Inspection
Upon receiving your QuickPanel+ operator interface carefully inspect all shipping containers
for damage. If any part of the system is damaged, notify the carrier immediately. The
damaged shipping container should be saved as evidence for inspection by the carrier. As
the consignee, it is your responsibility to register a claim with the carrier for damage
incurred during shipment. However, we will fully cooperate with you should such action be
necessary.
After unpacking the unit, record all serial numbers. Serial numbers are required if you need
to contact Customer Care during the warranty period. Shipping containers and packing
material should be saved in case it is necessary to transport or ship the unit.
Verify that all components of the system have been received and that they agree with your
order. If the system received does not agree with your order, contact Customer Care (see
“Contact Information” for phone numbers and email addresses).
Before you attempt to power up the operator interface for the first time, inspect the unit for
loose or damaged components. If damage is found (for example, in the form of bent
component leads or loose components), contact GE Intelligent Platforms for additional
instructions.
Do not apply power to the unit if it has visible damage. Applying power to a unit with damaged
components could cause additional damage.

Chapter 2. Getting Started
10 QuickPanel+ User’s Manual–November 2013 GFK-2847
Serial Port Connector, one
Power Connector, one

Chapter 2. Getting Started
GFK-2847 QuickPanel+ User’s Manual–November 2013 11
Gasket, one (not shown, pre-installed)
Figure 2. QuickPanel+ Package Contents
2.2 Basic Setup
Your QuickPanel+ is shipped ready for use after a few configuration steps. To power up, all
you need to do is connect a DC power supply using the supplied quick-connect plug.
Depending on your application, you may also want to connect and configure optional input
devices, communications ports and expansion adapters.
Figure 3. Basic Setup Diagram
Warning
Electrical Shock Hazard: To avoid personal injury or damage to
equipment, ensure that the DC supply is disconnected from power
and that the leads are not energized before attaching them to
the unit's power supply plug.
2.3 Startup
You will need the following:

Chapter 2. Getting Started
12 QuickPanel+ User’s Manual–November 2013 GFK-2847
A 24VDC power supply. For requirements, see the Input power specification on page
8.
A power terminal block is supplied.
Power cord with 30 –14 AWG (0.05 –2.00 mm2) wires
USB-compatible keyboard (optional)
USB-compatible mouse (optional)
2.3.1 Connecting Input Power
1. Make sure that the power cable is not energized
and that the QuickPanel+ unit is not on.
2. Loosen the screw clamps on the mating power
connector
3. Strip the insulation from the power cables.
4. Secure the power cable to the mating connector
while noting polarity and tighten the screw clamps.
The torque for the attaching screws is 0.31 Nm.
5. Apply DC power to the unit.
During normal power up and operation, the
QuickPanel Status LED display is:
Solid amber while the QuickPanel+ unit is starting up
Solid green during normal operation
6. Once power is applied, the QuickPanel+ begins initializing. The first thing to appear on the
display is the splash screen.
To skip running any programs included in the StartUp folder, tap Don’t run StartUp
programs.
7. The Microsoft Windows Embedded Compact 7 operating system starts automatically.
During powerup, you should see the normal operating system starting displays.
To activate the operating system online, you will need to first configure the Ethernet
settings for operation on your network, as described in “Initial Configuration.”
You can find the operating system product key on the Microsoft Certificate of Authenticity
label, which is on the back of the QuickPanel+.

Chapter 2. Getting Started
GFK-2847 QuickPanel+ User’s Manual–November 2013 13
2.3.2 Initial Configuration
When you first start up the QuickPanel+, a few configuration steps are necessary.
1. Tap Start , point to Settings and then tap Control Panel.
2. In the Control Panel, double-tap Date and Time to configure the system clock.
3. In the Control Panel, double-tap System to configure a network Device Name. Many
applications, including Proficy Historian require a unique Device Name. It is recommended
procedure to set a unique Device Name for the QuickPanel+ to avoid future conflicts.
4. In the Control Panel, double-tap Network and Dial-up Connections to configure network
settings.
5. To save the settings, run Backup.
2.4 Runtime Setup
To download an application to a QuickPanel+ unit, you must set up a data link between it and
your development workstation. For more information, see 4.6.2, “Ethernet.”
“Downloading a Machine Edition Project” in the Machine Edition online help.
2.5 Firmware Updates
Updates to the QuickPanel firmware are available on the Support web site. This allows you to
update the unit to the most recent released version of the firmware with the latest feature
updates and issues addressed.
2.6 Shutdown
There are no specific dangers associated with a power failure or other unplanned shutdown
of the QuickPanel+. In general, programs are retained in flash memory and user data can be

Chapter 2. Getting Started
14 QuickPanel+ User’s Manual–November 2013 GFK-2847
retained in battery-backed SRAM. Some operating system settings are retained only with
user intervention. We recommend the following procedure to shut down the QuickPanel+. To
shut down the QuickPanel+
1. Quit any programs that are running and wait for all file operations to complete.
2. If you have not changed operating system settings (for example, brightness or touch
screen sensitivity) or do not want to save the changes, remove AC power from the DC
supply.
3. To save changes to operating system settings run Backup. When the Backup dialog box
displays Completed Successfully, remove power from the DC power supply connected to
the QuickPanel.

GFK-2847 QuickPanel+ User’s Manual–November 2013 15
Chapter 3 QuickPanel+ Software
Chapter 3. QuickPanel+ Software
This chapter provides introductory information on the QuickPanel+ software with procedures
for completing some of the most common tasks you will encounter.
3.1 Operating System
Microsoft Windows Embedded Compact 7 is the operating system for the QuickPanel+. It is a
full 32-bit O/S with a graphical user interface.
The QuickPanel+ operating system is stored in flash memory and copied to a block of DRAM
for execution. The operating system starts automatically following a power-up or reset of the
QuickPanel+.
For detailed information about using the operating system, refer to
http://windows.microsoft.com.
3.2 Backup Utility
Backup saves changes that you make to the Windows Registry or Desktop to Flash memory.
This utility is required because the QuickPanel+ is not battery powered. Specifically, Backup
does the following:
■Stores the Windows Embedded Compact 7 registry (including any control panel
settings) in Flash memory.
■Stores any changes (or additions) made to the ‘\Windows’ subtree of the file system
in the user block of flash memory.
Run Backup whenever you make configuration changes to the operating system or
installed applications, and before shutting down the QuickPanel+.
3.3 Storage Manager
Use Storage Manager to repair or format lost or corrupted data volumes. Storage Manager
can repair data volumes existing either in SD Card, battery-backed SRAM (BBSRAM), or
USB Flash Keys (thumb drives). Data volumes existing in the main flash file system of the
QuickPanel+ may not be repaired by Storage Manager.
Storage Manager, accessed from the Control Panel folder, is a Microsoft product for which
on-line help is available.
Chapter 3. QuickPanel+ Software

.
16 QuickPanel+ User’s Manual–November 2013 GFK-2847
3.4 Copy Project to SD Card
This is a custom utility for transferring Proficy Machine Edition View and Control projects
between compatible QuickPanel+ units via SD cards.
To copy a Machine Edition project to SD card
1. Ensure there is a blank SD card in the SD card port.
2. Double tap the Copy Project to SD Card icon on the desktop.
3. Tap Yes when the Copy Project Query confirmation dialog box appears.
Caution
Copying a project while the Proficy Machine Edition runtimes
are active may cause an incomplete copy to be created if the
runtimes are also writing to files in the project folders. The
utility can detect this situation and will notify you to stop the
runtimes before making the backup. You will not be able to
create a backup while the runtimes are writing files.
3.5 Updating a Machine Edition Project
You can update a Machine Edition application currently stored on the QuickPanel+ with a
revision stored on a flash device, such as a SD card.
1. Insert the flash device containing an upgraded version of the Machine Edition project into
the appropriate port.
2. Reboot the machine
See the settings section below, as depending on options set, the update may or may not
be enabled, or may automatically update. If there is more than one flash device with a
valid project copy present, a Select Media confirmation dialog will appear allowing you to
choose which flash device to update with. Select the device from the list and select OK to
continue. When a valid project is found on the flash device, you will be prompted to install
the project or skip it. Tap OK to install or Cancel to skip the install and continue to boot. If
an invalid project is found, an error message appears in a dialog box. This dialog box
must be closed before boot will continue.
3. Remove the flash device from the port.
Chapter 3 QuickPanel+ Software
Caution
Ensure that the copy or update operation is complete (i.e., no
busy or
wait cursor displays) b
efore disconnecting power.

GFK-2847 QuickPanel+ User’s Manual–November 2013 17
3.6 FTP Server
The FTP Server included with the QuickPanel+ supports standard (RFC 959). It does not
support SFTP or implicit FTPS, which uses different ports and is based on SSH rather than
SSL.
The configuration of the FTP server is accomplished with the Quick Panel+ Setup Tool. By
default, the server is not enabled. Once enabled, a background program will run, waiting for
clients to connect. Up to ten connections are supported. Sessions that are idle for five
minutes are terminated by the server.
The Server supports:
■Non-secure operation. All information including username, password, and data is
transmitted with no encryption and susceptible to packet sniffing and various FTP
attacks.
Note: If the server status is changed, the QuickPanel+ must be re-booted before changes
take effect.
3.6.1 Authentication of Remote Users
The server only supports anonymous login.
■Anonymous with password requested (but not validated). This can prevent some
types of attacks and is required by some clients.
Once connected, a remote user is logged into the FTP root directory. This is available from
the QuickPanel+ as \ and is the root of the flash device.
3.6.2 FTP with Removable Flash Devices
All removable flash devices appear to remote FTP users as directories off the FTP root
directory. PC Flash card partitions appear as directories such as \SDMemory and USB Flash
Keys as directories such as \Hard Disk. Full access privileges are granted for the client in
these folders/devices.
Removable flash device directories are captured when a session is opened and are not
changed while the session exists. If you start without an SD Card installed, you will have to
close your session and login again to see the SD Card directory. If the SD Card existed when
you logged in and is removed and inserted, it will still work, provided the SD Card’s device
name did not change during reinsertion.
3.7 HTTP Server
The HTTP Server included with the QuickPanel+ supports standard (RFC 2616).
The configuration of the HTTP server is accomplished with the Quick Panel+ Setup Tool. By
default, the server is not enabled. Once enabled, a background program will run, waiting for
clients to connect. The default web page is located in \Windows\www\wwwpub on the
QuickPanel+.
The Server supports:
■Non-secure port 80 operation.

.
18 QuickPanel+ User’s Manual–November 2013 GFK-2847
Note: If the server status is changed, the QuickPanel+ must be re-booted before changes
take effect.

Chapter 4. Installation
GFK-2847 QuickPanel+ User’s Manual–November 2013 19
Chapter 4. Installation
This chapter provides the following procedures for installing the QuickPanel+ unit:
■
Installing the Protective Sheet
■
Choosing a Mounting Location
■
Panel Mounting
■
Mounting on a VESA Arm
■
Installing/Replacing the Battery
■
Connectors
4.1 Installing the Protective Sheet
1. Wipe the display of any dust or fingerprints.
2. Peel a corner of the clear side of the protective sheet.
3. Begin applying the corner to the display.
4. Slowly apply the rest of the protective sheet, smoothing out as you go.
5. Peel the green curing film off the protective sheet.
4.2 Choosing a Mounting Location
When mounting the QuickPanel+ make sure that the mounting area allows room to insert and
remove the SD card, cables, and mounting brackets. The QuickPanel+ should not be
mounted at an angle more than 30° from the vertical as illustrated below.
Figure 4. Mounting Angle
Choose a location that will allow natural convection air flow from bottom to top of the
QuickPanel+ unit.
For environmental requirements, see 1.1.3, “Environmental Specifications.”
4.3 Panel Mounting
To mount the QuickPanel+ in an enclosure, you will need:
■a Phillips head screwdriver
■four mounting brackets (supplied)
The QuickPanel+has four mounting holes located on the top and bottom of the unit. The
mounting holes are indicated in the drawing below.

Chapter 4. Installation
20 QuickPanel+ User’s Manual–November 2013 GFK-2847
Figure 5. Mounting Holes
Installation Notes:
■To avoid gasket degradation, limit repeated insertions or removals of the unit and
retightening of the mounting clips. For full protection, always use a fresh gasket.
Replacement gaskets can be ordered using the part number listed in Appendix B.
■The unit will not fit through the cutout with any cables connected, or with the power
supply plug inserted in the socket.
1. Cut an opening in the panel according to the specifications in the diagram below. Panel
thickness supported: 1.0mm to 5.0mm.
Figure 6. Panel Cutout Dimensions for 7” QuickPanel+
2. Slide the QuickPanel+ into the mounting panel cut-out.
