GE
Security
P/N 1069179 • REV 1.0 • ISS 23FEB10
MS-PoE Injector User
Manual
firealarmresources.com
firealarmresources.com
MS-PoE Injector User Manual i
Copyright © 2010 GE Security, Inc.
This document may not be copied in whole or in part or otherwise
reproduced without prior written consent from GE Security, Inc.,
except where specifically permitted under US and international
copyright law.
Disclaimer The information in this document is subject to change without notice.
GE Security, Inc. (“GE Security”) assumes no responsibility for
inaccuracies or omissions and specifically disclaims any liabilities,
losses, or risks, personal or otherwise, incurred as a consequence,
directly or indirectly, of the use or application of any of the contents
of this document. For the latest documentation, contact your local
supplier or visit us online at www.gesecurity.com.
This publication may contain examples of screen captures and
reports used in daily operations. Examples may include fictitious
names of individuals and companies. Any similarity to names and
addresses of actual businesses or persons is entirely coincidental.
Trademarks and
patents
GE and the GE monogram are trademarks of General Electric
Company.
Other trade names used in this document may be trademarks or
registered trademarks of the manufacturers or vendors of the
respective products.
Intended use Use this product only for the purpose it was designed for; refer to the
data sheet and user documentation for details. For the latest product
information, contact your local supplier or visit us online at
www.gesecurity.com.
FCC compliance This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
firealarmresources.com
ii MS-PoE Injector User Manual
Regulatory
information
N4131
Manufacturer GE Security, Inc.
HQ and regulatory responsibility:
GE Security, Inc., 8985 Town Center Parkway,
Bradenton, FL 34202, USA
EU authorized manufacturing representative:
GE Security B.V., Kelvinstraat 7,
6003 DH Weert, The Netherlands
European Union
directives
2002/96/EC (WEEE directive): Products marked with this symbol
cannot be disposed of as unsorted municipal waste in the European
Union. For proper recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or dispose of it at
designated collection points. For more information see:
www.recyclethis.info.
Contact information For contact information see our Web site: www.gesecurity.com.
For contact information see our Web site: www.gesecurity.eu.
firealarmresources.com
MS-PoE Injector User Manual iii
Content
Chapter 1 Overview 1
Introduction 2
Chapter 2 Hardware Installation 7
firealarmresources.com
firealarmresources.com
MS-PoE Injector User Manual 1
Chapter 1
Overview
The GE Security MS-PoE is an IEEE 802.3af Power over Ethernet Injector that
provides 48VDC power over Ethernet cables (PoE).
Package Contents
Your MS-PoE injector carton should contain the following items:
• The Power over Ethernet Injector x 1
• User's Manual x 1
If any item is missing or damaged, please consult the dealer from whom you
purchased you MS-PoE injector module.
firealarmresources.com
Chapter 1: Overview
2 MS-PoE Injector User Manual
Introduction

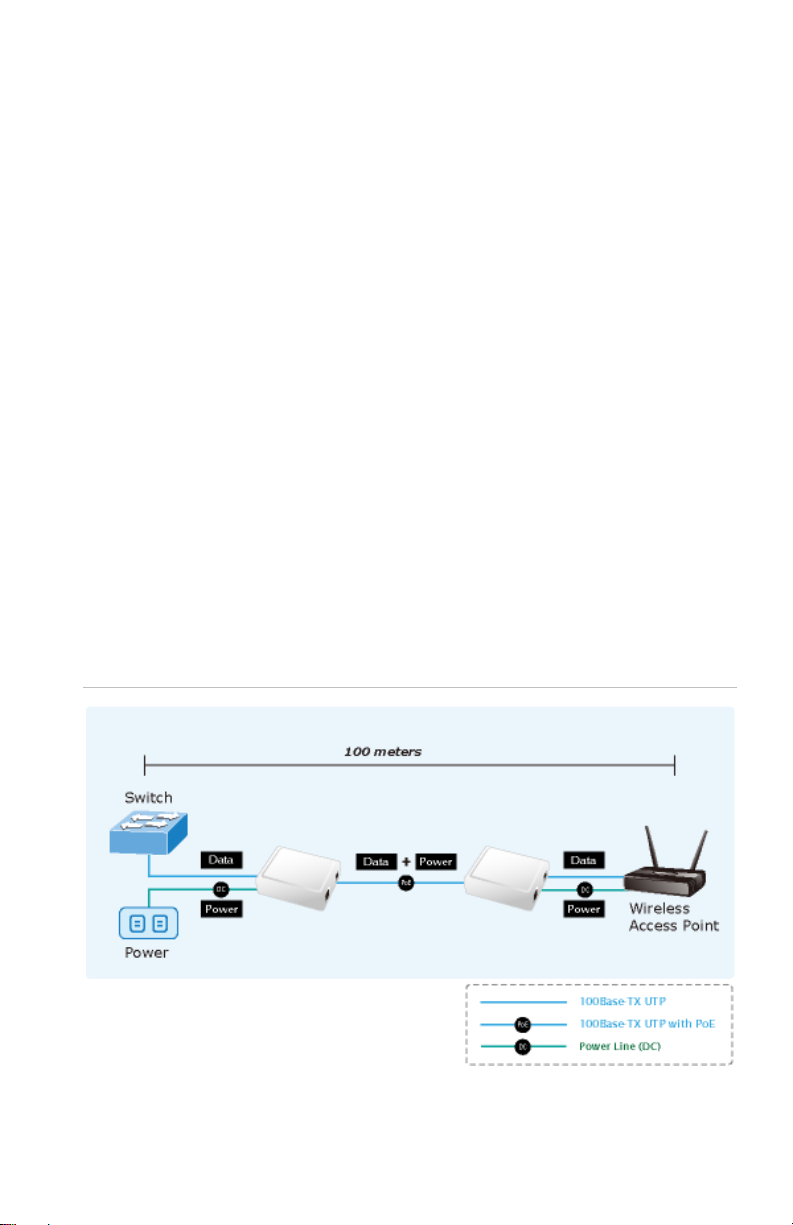

The GE Security MS-PoE IEEE 802.3af Power over Ethernet Injector inserts DC
Voltage into Cat.5 cable, allowing the cable between the Injector (MS-PoE)
and Splitter (SP-PoE) to transfer data and power simultaneously. The
maximum distance between the Injector (MS-PoE) and Splitter (SP-PoE) is 100
meters. With MS-PoE installed, it is combines the Ethernet digital data with
power over the twisted pair cables as an IEEE 802.3af Power over Ethernet
Injector. The IEEE 802.3af Power over Ethernet splitter can separate the
digital data and power into two outputs.
With IEEE 802.3af Power over Ethernet devices installed, the system
administrator only has to use a single RJ-45 Ethernet cable to carry both
power and data to each devices.
Product Features
• Complies with IEEE 802.3af Power over Ethernet, IEEE 802.3/802.3u
10/100Base-TX
• Provide DC 48V power over RJ-45 Ethernet cable to device with
Ethernet port
• LED indicators power input indication
• Distance up to 100 meters
• Auto-detect of PoE IEEE 802.3af equipment, protects devices from
being damaged by an incorrect installation
• Work with EIA568, category 5,4-pair cables for 10Base-T or
100Base-TX
• EMI standards comply with FCC, CE class B
• Saves time and reduces installation costs
• Easy plug-and-play installation.
firealarmresources.com
Chapter 1: Overview
MS-PoE Injector User Manual 3
Product Overview

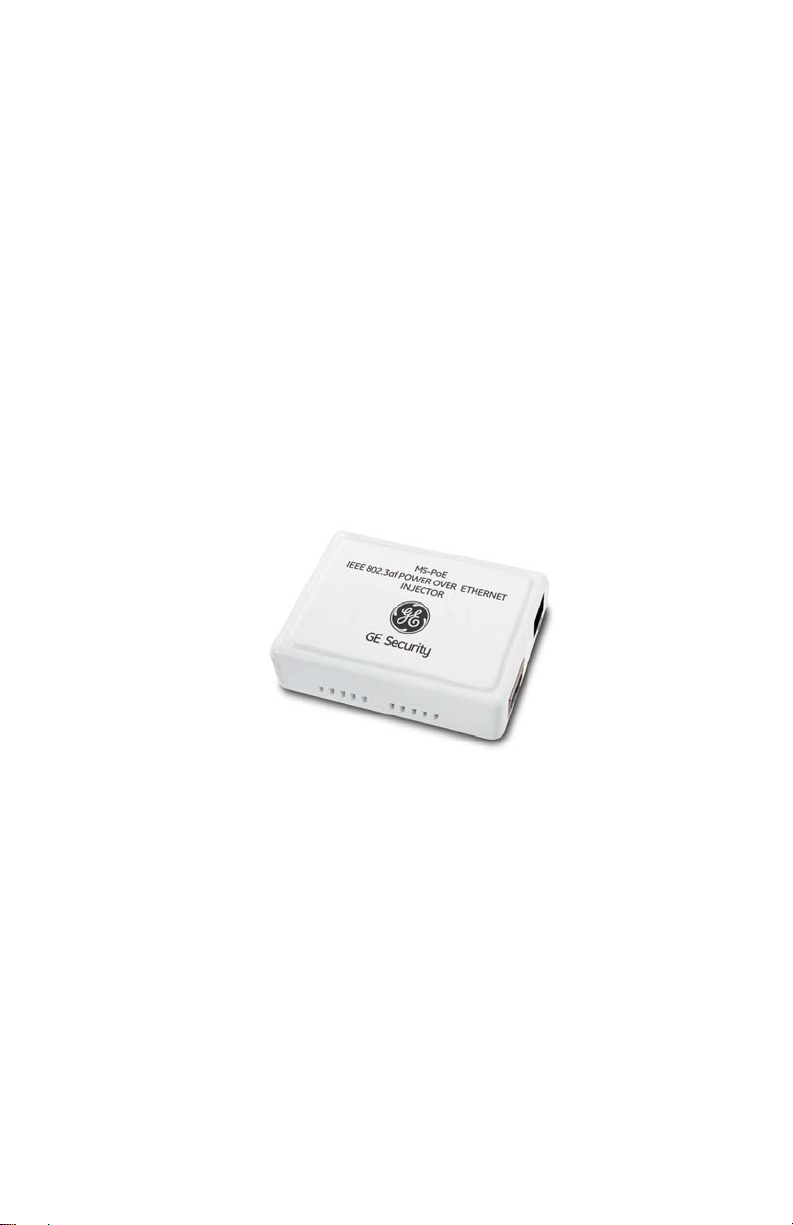

Figure 1 shows the right and left side views of the MS-PoE injector.
Figure 1: MS-PoE right and left side panels
LED Indicators
LED Color Function
Power Yellow Lights to indicate that the MS-PoE has
power.
PoE ready / in-use Green Lights to indicate the port is providing
48VDC in-line power.
firealarmresources.com
Chapter 1: Overview
4 MS-PoE Injector User Manual
Product Specifications
Model MS-PoE
Interface
Ethernet Copper Port 1 x 10/100Base-TX for data in
RJ-45 connector
Ethernet + DC Copper Port 1 x 10/100Base-TX with IEEE
802.3af PoE PSE for data + DC out
RJ-45 connector
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet
/ PSE
PoE Power Supply Type Mid-Span / Type B
Power PIN Assignment 4/5(+), 7/8(-)
PoE Power Output PoE 48V DC, Max. 15.4 watts,
350mA
Number of device can be powered 1
Hardware Specification
Ethernet Data rate 10/100Mbps( vary on Ethernet
device attached)
Throughput(Packet per second) 148810@64Bytes
Input Power 48V DC, 0.38A max.
LED indicator
1 x Power
1 x PoE ready / in-use
Installation Standalone or wall mount
Material Plastic
Standard Conformance
Standard Compliance
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3af Power over Ethernet
Ethernet cable TIA/EIA-568, Category 5/5e cable
firealarmresources.com
