IMPORTANT
This manual was produced by the GENATA Holdings, Ltd. primarily for use by GENATA dealers
and their qualified mechanics. It is not possible to include all the knowledge of a mechanic in one
manual.
Therefore, anyone who uses this book to perform maintenance and repairs on GENATA vehicles
should have a basic understanding of mechanics and the techniques to repair these types of vehicles.
Repair and maintenance work attempted by anyone without this knowledge is likely to render the vehicle
unsafe and unfit for use.
This model has been designed and manufactured to perform within certain specifications in regard to
performance and emissions. Proper service with the correct tools is necessary to ensure that the vehicle
will operate as designed. If there is any question about a service procedure, it is imperative that you
contact a GENATA dealer for any service information changes that apply to this model. This policy is
intended to provide the customer with the most satisfaction from his vehicle and to conform to federal
environmental quality objectives.

www.genatamotor.eu 3
GENATA International Holdings, Ltd. is continually striving to improve all of its models. Modifications and
significant changes in specifications or procedures will be forwarded to all authorized dealers and will
appear in future editions of this manual where applicable.
TIP________________________________________________________________________________
This Service Manual contains information regarding periodic maintenance. Please read this
material carefully.
Designs and specifications are subject to change without notice.
IMPORTANT MANUAL INFORMATION
Particularly important information is distinguished in this manual by the following notations.

www.genatamotor.eu 4
PREFACE
Dear users：
Welcome to buy our Super Power. Sincerely we hope you could provide us with valuable comments and
suggestions while using our products. Your satisfaction is our greatest wish.
GENATA International Holdings Ltd. is a professional manufacturer of Power Technology. Super Power
bike is modern design, development, research and manufacture are ideal for a new generation of green
transportation which are original in appearance, comfortable for riding ,easy to operate, powerful, safe
with low noise, low maintenance cost advantages and a long cruising mileage. In order to make electric
bicycles better serve you, please read the instructions carefully before driving, and fully understand its
performance, use and maintenance of this e-bike, and then properly use it, exercise its best performance,
reduce failures and prolong its life.
Do not lend it to people who can not drive electric bicycles. Be strictly abided by traffic rules and drive
in the slow lane.
Ride slowly and keep the distance in rainy, snowy and in slippery road to ensure safety
Bag just to be used for storing helmets, chargers and other lightweight items (less than 3KG).
Prohibited to be stored heavy goods

www.genatamotor.eu 5
Due to the continuous improvements of this product, there are some difference between our product
and instruction. Please forgive us.
This manual is intended as a handy, easy-to-read reference book for the customer and mechanic.
Comprehensive explanations proposes solutions to technical problems, repair and check procedures
are laid out with the individual steps in sequential order.
The manual is divided into chapters and each chapter is divided into sections. The current
section title is shown at the top of each page.
Sub-section titles appear in smaller print than the section title.
To help identify parts and for the ordering of spare parts is an exploded diagramm available
Numbers are given in the order of the jobs in the exploded diagram. A number indicates a
disassembly step.

www.genatamotor.eu 6
675

www.genatamotor.eu 7
Safe driving of matters need attention
Please obey the traffic rules, the speed control in
the safety speed. Please. (The highest safe
speed of this bike is 45KM/H)
Before driving, you should understand the
contents of this instruction manual, and then
find a empty safe field exercise, to fully grasp
the skill and familiar with its structure, which is
the basic safe driving.
Pay more attention to the rain and snow
weather driving on the road.
Rain and snow weather the ground is wet
and slippery dangers! Should avoid high-
speed driving, steering to be especially
careful, encountered in advance braking, to
prevent accidental!
Properly qualified helmet, and fasten your
belt
To properly dressed:
Dress color contrast, systemic activity freely, not
tight, cuff not open clothing, please do not wear
slipper or high heels driving vehicle
Load capacity not too heavy
Warning:
Do not lend it to people who can not
drive electric bike. Single and take off
the handlebar, drunk driving is
prohibited.

www.genatamotor.eu 8
When loading or without loading, the vehicle
operation is different, and carrying too much,
will seriously affect the operation, prone to
danger. Allowable only one passenger, stored
bag rated load 3KG, do not exceed loading,
avoid driving safety hidden trouble and parts
damages
Attention
In order to facilitate the maintenance and service, each vehicle from our
company issued a unique frame number and motor number, ensures the dealer
to provide better service for you.
Frame number engraved on the direction of the vehicle frame pole on the right.
Motor number engraved on the body.
Electric Motor number engraved on the motor body.

www.genatamotor.eu 9

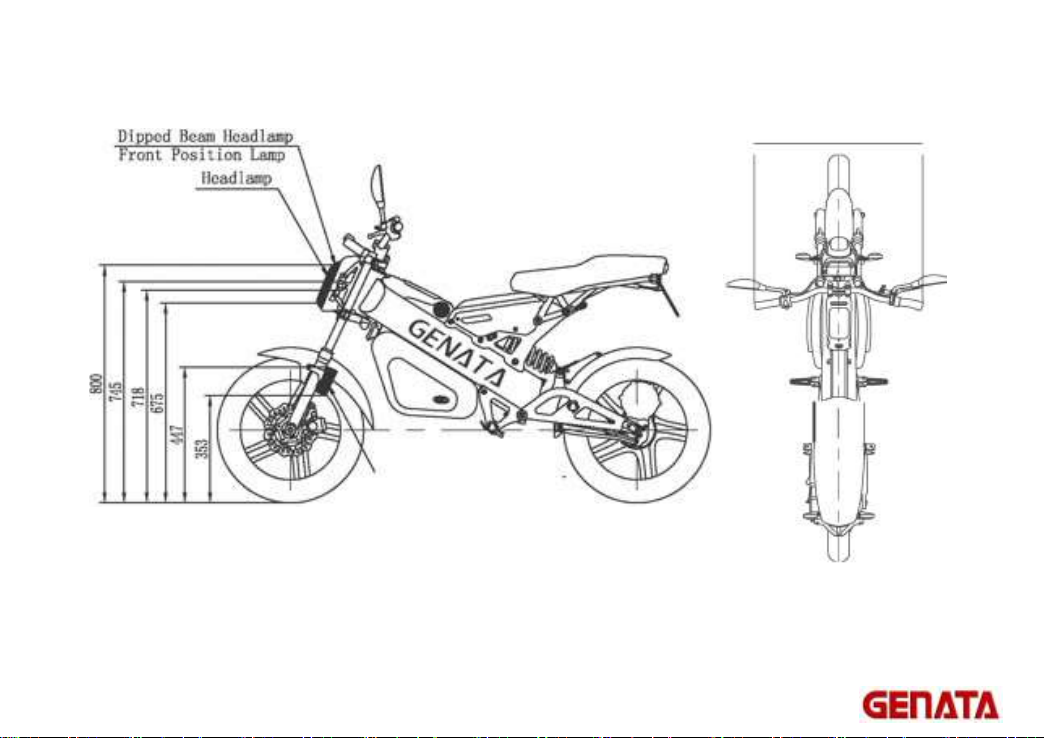

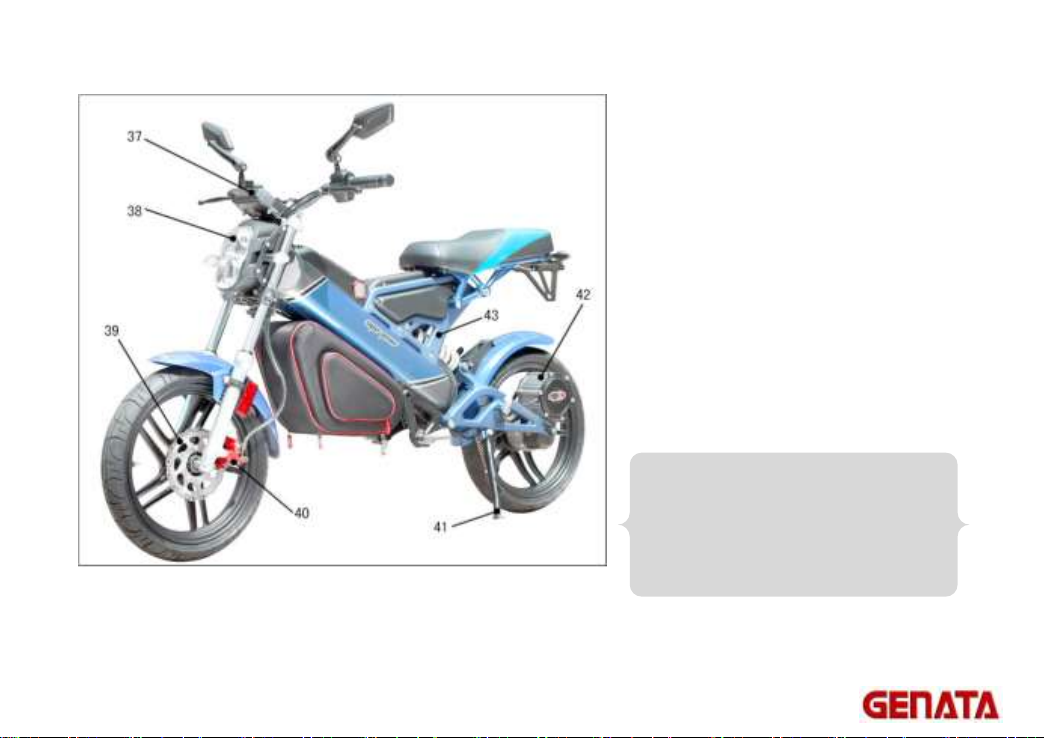

Super Power diagrammatic sketch
1.REAR VIEW MIRROR
2.HANDLEBAR
3.LEFT ASSEMBLE SWITCH
4.TURNING HANDLEBAR
5.FRONT BRAKE HANDLEBAR
6.LIGHTING SWITCH
7.REAR BRAKE HAND SHANK
8.STEERING UPPER CONNECTING PLATE
9.FRONT TURN INDICATOR
10.STEERING LOWER CONNECTING PLATE
11.STEERING LOCK
12.FRONT SHOCK ABSORBER
13.SIDE FLASHER
14.FRONT WHEEL RIM
15.FRONT WHEEL TYRE
16.FRONT FENDER
17.STORED BAG
18.FRONT FOOTREST
19.FRAME MAIN STAND
20.REAR FOOTREST
21.FORK
22.REAR DRUM BRAKE
23.REAR WHEEL RIM
24.REAR WHEEL
25.REAR FENDER
26.REAR SHOCK ABSORBER

www.genatamotor.eu 10
27.FOLDING FAST DISASSEMBLE
HANDLE
28.SEAT BRACKET
29.LICENSE PLATE BRACKET
30.REAR FLASHER
31.REAR INDICATOR
32.TAILLIGHT
33.SEAT
34.AIR SWITCH
35.CHARGER INTERFACE
36.MUSIC SYSTEM
37.SPEEDOMETER
38.HEADLIGHT
39.FRONT DISK BRAKE
40.FRONT BRAKE LOWER PUMP
41.SIDE STAND
42.SHIFT MOTOR ASSEMBLY
43.SUB-FRAME
Please identify the body were
marked in the figure the various
components, be familiar with the
vehicle

www.genatamotor.eu 11

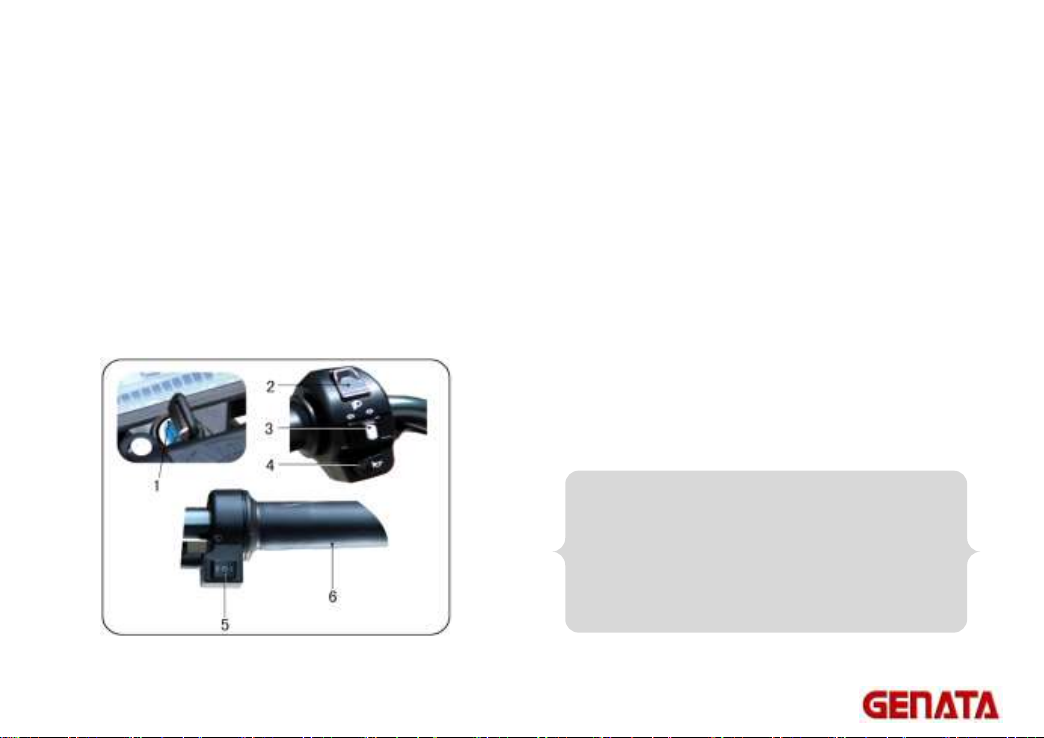

SPEEDOMETER Function and Operation
1.STARTING LOCK
2.TEMPERATURE,TIME,KM/MILE INDICATION
3.SPEED 4.MAX SPEED
5.POWER AND VOLTAGEINDICATION
6.TOTAL MILEAGE 7.ONE TIME MILEAGE
8.SETECT PUSH-BUTTON INDICATOR
9.SETUP PUSH-BUTTON
10.TURNING INDICATOR
11.HIGH BEAM INDICATOR
12.FIRST GEAR
13.VOLTAGE TOO LOW INDICATOR
Regional Function
1. Power door locks, running in the ON
position, the vehicle can be started the motor
and function of each part.
2. Is used to display the environment
temperature, time, and km / mile system
3.4. Respectively show the current speed and
the maximum speed driving
5. Display the remaining battery voltage and
current
6.7. Shows the total mileage and vehicle
mileage single
8.9. For adjusting and setting instruments
10.On turn signal, the indicator flashes
followed
11.Open beam headlamps, the indicator lights
along
12.When the vehicle is in a file, this
indicator lights
13.When the battery voltage is lower than
45V, the indicator lights
Meter adjustment and setup time：
Two buttons for the "SELECT" and "SETUP"
button

www.genatamotor.eu 12
Press the "SELECT" button for the
speedometer in kilometers / miles switch
Press "SETUP" button for the Single
odometer cleared
Press "SETUP" button for 2 seconds to enter
time setting function
Then you press the "SETUP" button to select
the setting items (current project will flash),
then press the "SELECT" button to change
the flashing item to adjust the value (long
press can quickly transform).
After setting a loop or long press "SETUP"
key to exit the settings
Switch operation
1.Turn on the switch, starting the motor and all
function of the vehicle; Turn off the switch, all
electrical source is cut off, then remove the key,
2.High & low beam switch, when open the head
light, Use this switch to change high and low
beam, up is high beam, down is low beam.
3.Turning light switch, when turning or change
road use the switch, the blinker flashs when use
the switch, press the middle button to stop, then
blinker crush out.
4.Horn switch
5. Light switch
Attention：
To avoid any misunderstanding, Please
stop the turning light after use.

www.genatamotor.eu 13
Accelerate Bar
5. Use and drive operation
Starting Method
Before starting: Check the vehicle is no
abnormity
1Put the key and turn to on position, then check
the switch, indicator, horn, and hold the Front &
Rear brake bar, check the brake and brake light
works.
2.Start E-Motor: when driver sit on the bike,
rise the side stander, Please operate the
acceleration bar smoothly
Speed
Use the acceleration bar smoothly to accelerate
or decelerate, please don’t not use it roughly
Brake operation
1. Please don’t use the acceleration bar when
brake.
2. To avoid tyre slip or any dangerous, Please
control the strength when brakes.
3. To avoid sideslip or any dangerous, Please do
not suddenly turn side or brake operation,
Especially raining weather.
Warning：
To avoid accident, please don’t use the
acceleration bar before driving, Please
remove the key immediately when stop
vehicle.
Remark:
The vehicle is automatic gear, only use
accelerate bar, no need other operation

www.genatamotor.eu 14
Drive notice
1. To ensure the safety of driver and vehicle,
save on battery for Endurance mileage, Please
keep smoothly drive, Do not hurry operation for
accelerate or decelerate
2. Pay attention for Rain or snow weather road
condition, please check the brake is works fine
and drive the vehicle at low speed,.
3. To ensure the controller safety, Please don't
drive the vehicle at heavy rain weather or road
gathered much water condition,
Parking
1. Take signal and indicator. Pay attention to the
rear, slow down the speed then close the parking
place.
2. Use brake system to stop, turn off the indicator,
lock the vehicle then remove the key.
Notice:
To avoid the vehicle fall down, Do not
stop the vehicle at incline or soft place.
Please lock the the vehicle and
steering and remove the key before
leave
Do not caught in or swash the electric
parts.
Attention
Only use Fr. Brake or Rr. Brake may
cause sideslip

www.genatamotor.eu 15
3.After the vehicle stop, use the side stander to
park the vehicle.

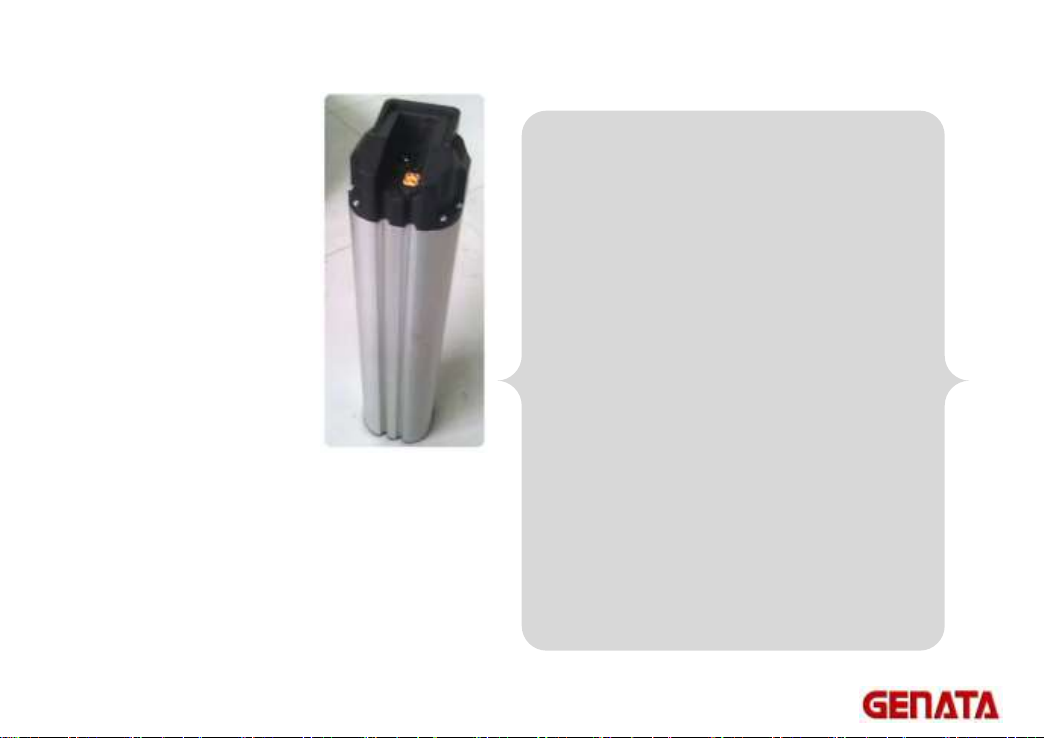

Use and Maintenance of Battery
1.The vehicle use high performance 48V lithium
battery, It can be use temperature range -20℃to
50℃, best temperature is 10-30℃; Too over or
low temperature will effect the performance of
battery, Please do not charge the battery below
the temperature 0℃.
2. The performance like Endurance mileage
would be effected if temperature too low, It will
renew when temperature rise again,
3. The battery have protect function to avoid
overcharge or Excessive discharge, but
deepness discharge is harm for battery; please
charge the battery when the quantity of electric
charge lights on
4. Frequently charge would be health for lithium
battery.
5. Please keep 60% quantity of electricity and
turn off air lock when don't use the vehicle,
Charge the battery for each three month to avoid
effect the performance.
Charge and charger
1. Do not use other charger to avoid harm for
battery or any dangerous.
2. Check the input voltage is AC220V
Warning
Do not charge the battery below 0℃,
it will harm for battery

www.genatamotor.eu 16
3. You can both charge the battery or vehicle
directly.
4. The right side picture is
the lithium battery, Black
for charge, Yellow for
discharge
5. When charging, the
Charger indicator will flash,
full charge is around 2-8
hours,( charger type 3A-
5A-8A)
6. The charger will turn off
automatic when battery
charged full, do not connect
the charger with electrified
wire netting, not more than
12 hours.
7.To avoid harm or dangerous, strictly prohibit
disassemble the battery by customer.
Charging Notice
Keep the charger in a safe place cannot
reach of children when charging.
Do not use the vehicle if the battery didn’t’t
charge full; Please use the vehicle after 10
minutes when charge full.
The charger can only use in dry and well-
ventilated place, do not cover anything
when charge
When charging, If the temperature is high
or can't charge full after a long time or
peculiar smell, Please stop charge and
send to maintain office.
Do not use others charger.
The charger is high voltage, Do not
disassemble it
It can be charge when lock the switch
Do not charge the battery billow 0℃
Prohibit to charge the vehicle when drive.

www.genatamotor.eu 17
Use and Maintenance of Motor and Controller
1.Check the screw of the motor to avoid it is
loosen frequently
2.Check the connection wire between motor and
controller frequently.
3.Check the fuses frequently.(if it is
loosen,fasten or change it at once.)
Use of MP3 and IPHONE Player
The player support MP3 and IPHONE music
mode.
1.press red button to open the phone house.Do
not keep press the button for a long time.
2.IPHONE house can load IPHONE4 or 4S as
music player.
3.Control Key：Sound source, Play/Pause,
Voice Up/Down, Next/Back.
4.Speaker：Do not touch the speaker with sharp
objects.
5.TF/MINISD card slot: support memory card as
sound source.
6.USB Connection, user can user USB disk to
be the music source. And also, user can use this
USB connection to charge the mobile phone. But
please do not connect the mobile phone, while
there’s the USB Disk connected.
A. SD Cart Input
B. USB Connect

www.genatamotor.eu 18
INSPECTION BEFORE RIDING
TIRES INSPECTION
1.INSPECTION OF TIRES PRESSURE
According to the tires depression (The part
which touches the ground), users can judge
whether the tires pressure is normal. Generally
speaking, the normal tire pressure for front tire is
125Kpa,(1,25Bar) and the normal tire pressure
for rear tire is 175Kpa (1,75 Bar ) (If the tire
pressure is lower than the normal condition, the
speed and the riding distance per charge will be
affected).
2. Before riding, please check whether there’re
alligator cracks or abnormal wears on the tires,
3. Before riding, please check whether the tires
were damaged by the nails, sharp rocks, glasses,
etc
4. Before riding, please check the tires tread
depth. If the tires tread depth is worn out 2/3,
then, users need to replace the old tires with
new tires.
INSPECTION OF SPEEDOMETER,
INDICATOR LAMPS, BRAKES
1.Open the electricity lock to check whether all
parts of the speedo meter are working in normal
condition.
2.Before riding, press the switches to see
whether the head light, indicator lamps, tail lamp,
horn work correctly.
3. Before riding, hold the right and left brake
handles to check whether the brakes work
correctly.

www.genatamotor.eu 19
4. Before riding, please check the tires tread
depth. If the tires tread depth is worn out 2/3,
then, user need to replace the old tires with new
tires.
INSPECTION OF SPEEDOMETER,
INDICATOR LAMPS, BRAKES
1.Open the electricity lock to check whether all
parts of the speedo meter are working in normal
condition.
2.Before riding, press the switches to see
whether the head light, indicator lamps, tail lamp,
horn work correctly.
3.Before riding, hold the right and left brake
handles to check whether the brakes work
correctly.
INSPECTION OF REAR VIEW MIRRORS
1. Before riding, please check whether there
have some dirts or damages on the rear view
mirrors.
2. Before riding, please check the rear view
mirror from the riding position to see whether 2.
Before riding, please check the rear view
Warning
It’s not safe to ride, when tires are
with abnormal pressures, damages,
and severe wears.
When tires pressure is lower than
the normal condition, it will speed
up the tires wears, and cause the
steering failure happen, lower down
the speed, and shorten the riding
distance per charge)
When tires pressure is higher than
the normal condition, it will also
speed up the tires wears, reduce
the riding comfort, and even cause
the tires blowout

www.genatamotor.eu 20
mirror from the riding position to see whether
riders can watch clearly about the situation at the
rear and two sides.
Before riding, please check whether there
have some dirts or damages on the
reflectors and the license plate.
INSPECTION OF HANDLE BAR & SEAT
Please check whether the handle bar & seat are
correctly fixed and adjusted in the right positions.
INSPECTION OF VEHICLE FOLDING
STRUCTURE
Please check whether the rear fork and seat
bracket are mounted in the right positions, and
fix them tightly. Any problems found after the
inspection, user can try to solve the problems
according to the instructions in the users’ manual.
Or contact the dealer for after sales service.
MOTORCYCLE FOLDING, BATTERY
TAKE-OUT & PUT-IN
MOTORCYCLE FOLDING

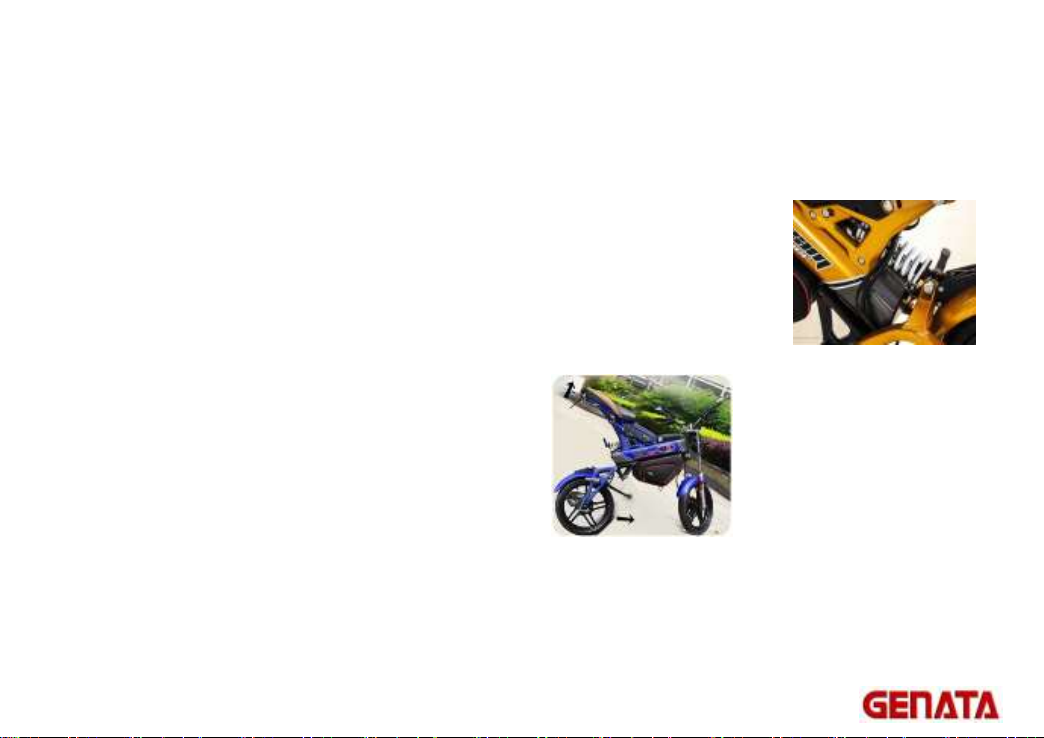

1.User stand at the left side of the vehicle, when
the vehicle is supported by the side stand. And
push the fast dismantling switch, which is
mounted at the right side
of the connection point
between the rear
absorber and the rear fork,
then, loosen the rear fork
to start the fast
dismantling between rear
fork and rear absorber.
2. Right hand leaning on
the right side of the body
cushions and slightly to the
left side of the body force,
the left hand will be lifted up the rear shock,
quick-release lever from the flat fork, then lift the
rear bodywork, fork and rear wheel to a flat
before folding
