Genie GAHD18IRPTZ User manual

User Manual
Please read these instructions carefully before operating the unit
and keep for further reference.
1080p AHD 18x Optical Zoom
External 360° PTZ Camera with
Wall Bracket
GAHD18IRPTZ

ii
Intro Section
CAUTION:
• During transport and installation process, prevent weight, severe vibration and water
damage to the product.
• Please do not disassemble the zoom camera.
• For power supply cable, video cable and control cable, please adopt shielded cable
and independent wiring and do not mix with other cables.
• Please follow all kinds of electric standards when using the PTZ camera and make
sure that the signal cable is kept at enough distance (at least 50m) with high voltage
equipment or cables. If possible, please take lightning and surge measurement.
• When cleaning the camera housing, please use a dry soft cloth to wipe. If it is too dirty,
please use a neutral cleaner to wipe lightly. Do not use a strong cleaner and scrub
otherwise housing can scratch.
• Prevent liquid or other things getting into the housing to prevent any damage.
• Please do not use the camera beyond its limited temperature and humidity : -25°C to
50°C, humidity less than 90%.
• Please do not install the camera near an air conditioner outlet or any of the following as
the lens will be fogged because of condensation:
– Under the environment where the temperature is up and down frequently.
– In an environment which can make the glass fog.
– In an environment full with smoke or dust.
• Please do not place the camera towards a strong light source, such as the sun for a
long time as this will damage the colour filter on CCD or CMOS which will make the
image lose colour.

Contents
iii
1.0 Introduction..........................................................................................................4
1.1 Product Features...........................................................................................4
1.2 Speed Dome Parameter...............................................................................4
1.3 Product Dimensions .....................................................................................5
2.0 Installation ...........................................................................................................6
2.1 Installation Instructions ................................................................................6
2.2 Installation Method......................................................................................6
2.3 Baud Rate Set-up.........................................................................................9
2.4 ID Set-up ......................................................................................................9
2.5 Power Supply and Control Cable Connection ...........................................10
2.6 Connection Method ....................................................................................10
2.7 Cabling Mark Instruction .............................................................................10
2.8 Typical Application Wiring Diagram ...........................................................10
3.0 Basic Operation ...................................................................................................11
3.1 Power On Self-Test .......................................................................................11
3.2 Preset Setting ..............................................................................................11
3.3 Call a Preset.................................................................................................11
3.4 Function by Preset.......................................................................................12
3.5 Patrol Setting ...............................................................................................15
4.0 FAQ’s and General Info........................................................................................16
4.1 FAQ’s.............................................................................................................16
4.2 Cleaning the Transparent Cover .................................................................16
4.3 Lightning and Surge Protection..................................................................17
4.4 RS485 Bus Wiring ........................................................................................18

4
1.1 Product Features
• 18x optical zoom
• IP66 ingress protection
• 60m IR distance (in ideal conditions)
• RS485 PTZ control
• Supports auto iris, electronic shutter, automatic white balance, backlight
compensation
• 6 piece infrared lights
• Supports 220 presets, 8 patrols, 4 patterns
• 360° endless pan range and 0–90° tilt range
• PELCO-D/P communication protocols
• NDAA compliant
1.2 Speed Dome Parameter
1.0 Introduction
Electric
Rated Voltage DC12V 4A±10%
Power Consumption 10 Max at daytime, 30Max at night (without heating)
Decoder Built-in
IR Distance 100–120m
Set
Communication Protocol PELCO-D/P
ID 1–255
Baud Rate (RS485) 2400/4800/9600bps/auto identify
Operate
Pan Rotate 360° endless
Tilt Rotate 90°
Speed Middle Speed: Pan 6~30 °/ S, Tilt: 4~17 °/S
High Speed: Pan 0.1~200 °/S, Tilt: 4~30 °/S
Preset 220
Monitor Mode Preset Patrol, pan scan and pattern scan
Environment
Operate Environment Outdoor: -20°C~60°C
Indoor: -10°C~50°C
Environment Humidity
Ingress Protection IP66
Physical
Installation Mode Wall mount/ceiling mount

User Manual 1080p AHD 18x Optical Zoom External 360° PTZ Camera with Wall Bracket
5

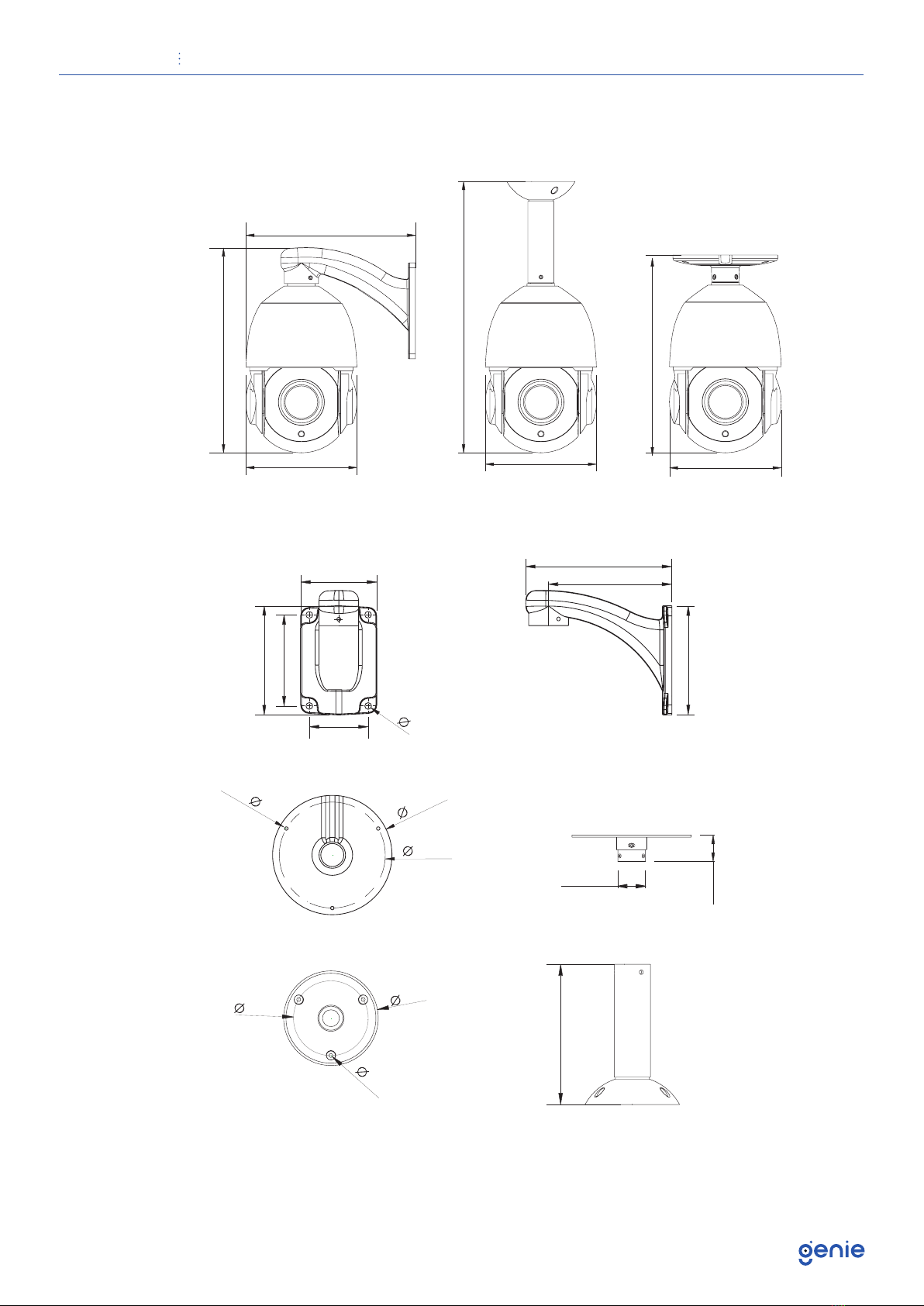

1.3 Product Dimensions
Unit: mm
241.2
136.1
332.8
136.1
251.1
136.1
208.0
114.9
154.0
130.0
62.0
80.0
96.0
4x 7.0
114.6
66.1
83.7
3.5
124.3
3-4.0
120.0
29.9
30.9
135.0

6
2.1 Installation Instructions
Before installation
• In order to prevent any trouble with installation, it should be done by a
professional.
• Confirm all spare-parts are there, ensure the application of this camera and
installation mode is suitable for requirement.
• Wall/ceiling mount camera composite with bracket, zoom camera, transparent
cover and other parts.
2.2 Installation Method

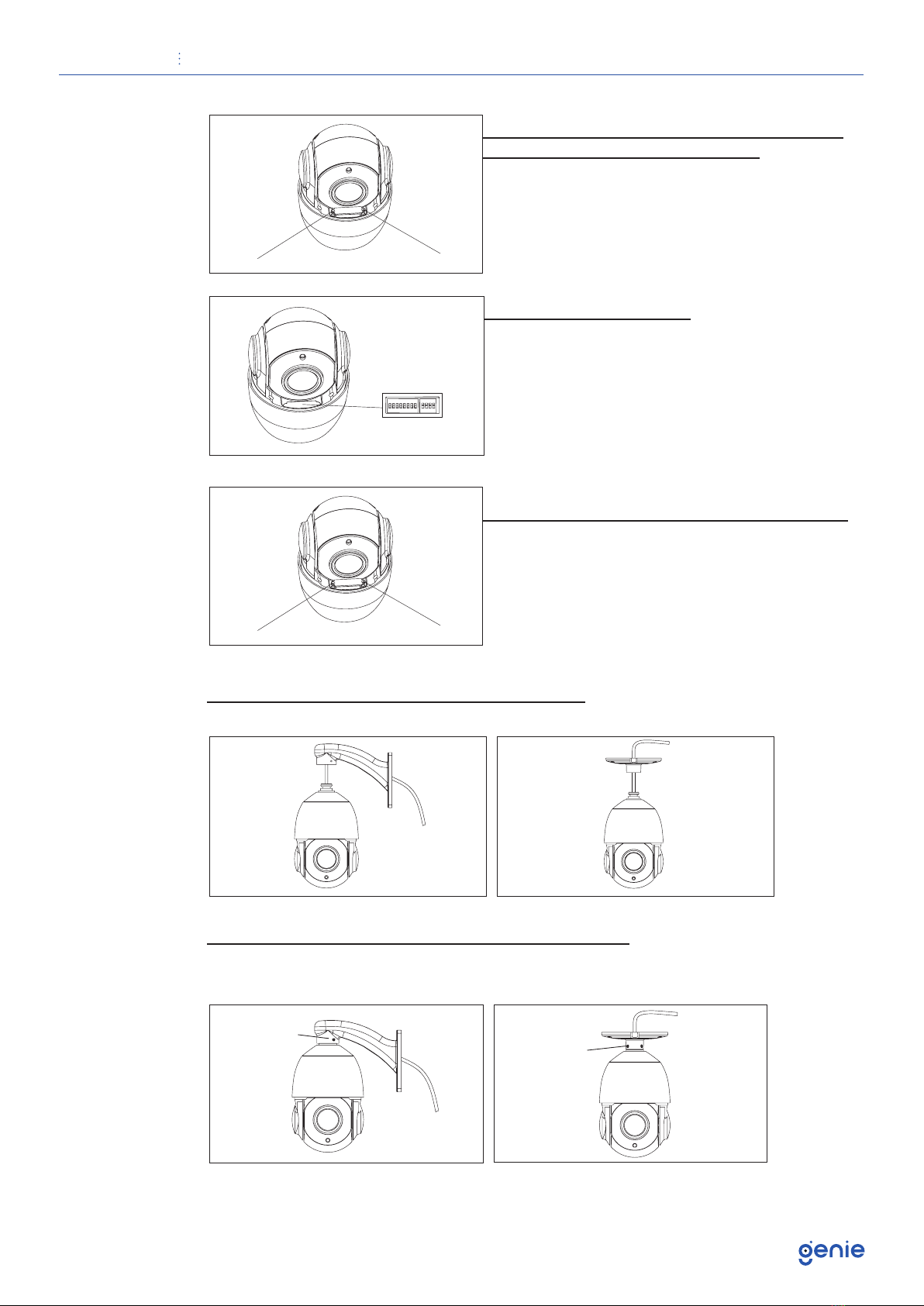

Step 1 – Draw positioning holes
Take out the bracket from packaging box. Mark the holes’ position based on the
wall mount bracket bottom 4pcs installation holes.
Wall Mount Bracket Ceiling Mount Bracket
Step 2 – Drill holes and put expansion screws in
Drill 4pcs expansion screw’s installation holes at pre-marked position, then put
4pcs expansion screws in.
(Note: please bring own expansion screws.)
2.0 Installation
114.9
4x 7.0
96.0
62.0
80.0
11
2
.
2
1
2
8
.
0
5
.
2

User Manual 1080p AHD 18x Optical Zoom External 360° PTZ Camera with Wall Bracket
7
Step 3 – Unscrew the 2pcs screws used to fix
the ransparent cover for DIP switch
Use the screwdriver to open 2pcs screw which
are used to fix the transparent cover for DIP
switch, then move transparent cover from
speed dome camera.
Step 4 – Set up DIP switch
Please refer to section 3, Baud rate setup.
Step 5 – Install transparent cover of DIP switch
After finishing baud rate setup, install
transparent cover of DIP switch again.
Step 6 – Lead cable through wall mount bracket
Lead the cable through the wall mount bracket hole.
Step 7 – Connect PTZ camera and wall mount bracket
Put PTZ camera connection port into bracket hole, screw 4pcs hexagon
screws into corresponding screw holes.
M4 Screws
M4 Screws

User Manual 1080p AHD 18x Optical Zoom External 360° PTZ Camera with Wall Bracket
8
Step 8 – Fix PTZ camera on wall
To esnure the product is water-resistant, first install rubber seals on wall mount
bracket, and lead the cable out from the wiring port, then fix it onto the wall by
using 4 screws. Seal the wiring port of the bracket by using silicon sealant.
Step 9 – Cable connection
Please refer to section six of this chapter –
Connection method.
Step 10 – Tear off protection film
Teal off protection film of transparent cover.
Note: Please take care of transparent cover.

User Manual 1080p AHD 18x Optical Zoom External 360° PTZ Camera with Wall Bracket
9
2.3 Baud Rate Set-up
Baud rate and corresponding DIP status as below:
RS485 control bus needs all devices that connect to it in parallel mode, and each
end of the system shall be connected to a 120ohm resistor. The PTZ has a 120ohm
resistor in it, so you only need to set it up through dip switch SW2, put the 4th
switch on, then the resistor is connected, details as below :
Resistor is connected Resistor isn’t connected
2.4 ID Set-up
ID setup (address code setup obey binary rules) address code shall be set through
8 DIP switch (SW1). Keyboard control speed dome through communication bus,
one keyboard can control max. 255pcs speed dome camera, each speed dome
camera has its own address code, user can set address code through 8 DIP switch,
details as below:
2400bps 4800bps 9600bps
1 2
ON
1 2
ON
1 2
ON
1 2
ON
Baud Rat e Automatic identify
ON
1 2 3 4
ON
1 2 3 4
1 2345678
ON

User Manual 1080p AHD 18x Optical Zoom External 360° PTZ Camera with Wall Bracket
10
2.5 Power Supply and Control Cable Connection
Power Supply Connection
Note: Please check rated voltage and power supply carefully, rated voltage
and current as below:
Control Line Connection
Connect RS485 line to keyboard controller or DVR, if there is more than one that
needs to be controlled by keyboard or DVR, please connect it in parallel.
Note:
1. Protocol and baud rate of keyboard and DVR can be set by customer, just make
sure it is the same with that PTZ.
2. The ID of different camera which is in same system shall be set as different.
3. It should set the difference PTZ Camera Address in Monitor system with multi-
cameras.
2.6 Connection Method
2.7 Cabling Mark Instruction
2.8 Typical Application Wiring Diagram

11
As there are different system platforms, specific operation method is not the same, subject
to manufacturer’s manual, different situations have special requirements and operation
methods. Please contact distributor to obtain necessary information and only introduce
this control method when connected with a universal keyboard controller.
3.1 Power On Self-Test
After powering on the camera, it will action in pan and tilt direction automatically,
through self-test to confirm the camera is working normally.
Control camera up, down, left and right rotate:
After selecting one camera, you can manually control the camera’s up, down,
left and right movements through the keyboard joystick.
When moving the joystick to the right, the camera will also move to the right, and
when moving the joystick left, the camera will also move to the left. Moving the
joystick in a tilt direction, the camera also will make corresponding action in tilt
direction. If you move the joystick in a diagonal direction, it can make the camera
move in a pan and tilt direction action at the same time, with the movement
direction same as the joystick.
3.2 Preset Setting
Operation steps as below:
1. Select camera (please refer to your keyboard controller manual for details)
2. Operate joystick or zoom+/− button to adjust camera image
3. Press (PRESET) + (N) (input specified preset number) + (ENTER), save current position
parameters as a preset.
3.3 Call a Preset
Operation steps as below:
1. Select camera
2. Press (SHOT) + (N)(input specified preset number) + (ENTER), camera will move to
corresponding preset position at once, zoom+/− will also adjust according to the
parameter of preset automatically.
3.0 Basic Operation

User Manual 1080p AHD 18x Optical Zoom External 360° PTZ Camera with Wall Bracket
12
3.4 Function by Preset
Adopting the method of a double-layer preset can be achieved through all the
functions of the camera by preset call, Specific correspond <<Preset Function Table
of General Function>>and <<Preset Function of Specific Function>>.
Call Mode:
Call mode is on in general preset of call, specific function is achieved by the mode
of preset call, for example: [92] + [SHOT] + [1] + [SHOT], which is to call
patrol 1.
Setting Mode:
Setting mode is on in general preset of setting, specific function is achieved by the
mode of preset call, for example: [92] + [PRESET] + [1] + [SHOT],
which is to set patrol 1.
Preset Function Table of General Function
Preset Function of Specific Function

User Manual 1080p AHD 18x Optical Zoom External 360° PTZ Camera with Wall Bracket
13

User Manual 1080p AHD 18x Optical Zoom External 360° PTZ Camera with Wall Bracket
14
Remark: Preset 35 could run Patrol 1, Default Preset Point No.1~No.8

User Manual 1080p AHD 18x Optical Zoom External 360° PTZ Camera with Wall Bracket
15
3.5 Patrol Setting
Start patrol order “set preset 92+ call corresponding preset of patrol number”, then add
preset “call preset”, every patrol path can add Max. 32 presets. After adding, save the
setting by “set preset 92 + call preset 9”.
The setting of preset standing time: “set preset 92 + call preset 10 + call
corresponding preset of time”.
The setting of preset running speed in patrol: “set preset 92 + call preset 11 +
call corresponding preset of speed.
For example, add 1–4 presets in patrol 1, standing time 30s, speed 40, follow
the instructions below:
Add preset in patrol path:
1. Set preset 92, call preset 1, start patrol 1 setting.
2. Call preset 1, add preset 1 to patrol 1.
3. Call preset 2, add preset 2 to patrol 1.
4. Call preset 3, add preset 3 to patrol 1.
5. Call preset 4, add preset 4 to patrol 1.
6. Call preset 92, then call preset 9, save patrol 1.
The setting of preset standing time in patrol:
1. Set preset 92, then call preset 10,start the setting of preset standing time.
2. Call preset 30, set standing time to 30s.
The setting of preset running speed in patrol:
1. Set preset 92, then call preset 11, start the setting of preset running speed.
2. Call preset 40, set preset running time to 40.

16
4.1 FAQ’s
4.2 Cleaning the Transparent Cover
In order to keep the image clear, the cover needs to be cleaned.
When clear, please be careful and avoid touching the transparent cover directly. Any
scratches of the flint on the transparent cover will lead to a foggy image, affecting the
image quality.
Please use soft enough dry cloth or other replacement to wipe the inner and surface.
If seriously dirty, use a neutral cleanser.
4.0 FAQ’s and General Info

User Manual 1080p AHD 18x Optical Zoom External 360° PTZ Camera with Wall Bracket
17
4.3 Lightning and Surge Protection
When placing outside, you need to consider lightning and surge protection.
To guarantee electrical safety, we can take following measures:
• At least keep 50m distance between signal transmission line and high voltage
equipment or high voltage cable.
• Outdoor wiring under the eaves.
• For open field, use a seal steel pipe buried wiring way, and use one-point earthing with
the steel pipe. Do not use aerial wiring.
• It needs to add extra high-frequency thunder-proof device and lightning rod in strong
thunderstorms area or high inductive voltage region (such as high voltage substation).
• Thunder-proof and grounding design of exterior installation and circuit must be in
accordance with building lightning proof requirements. It must meet national standard
and industry standard.
• System must be equipotential grounding. Grounding device must meet anti-jamming
and electric safety dual requirements. The connection with strong electrified wire
netting can’t be short connection or mixed connection. When system is in the
condition of single-phase grounding, ground impedance is less than 4, ground wire
cross-section area must be more than 25 mm2.

User Manual 1080p AHD 18x Optical Zoom External 360° PTZ Camera with Wall Bracket
18
4.4 RS485 Bus Wiring
RS485 bus basic characteristic
RS485 industry bus is characteristic impedance 120 half-duplex communication bus
according to RS485 industry bus standard.
RS485 bus transmission distance
When using 0.511mm (24AWG) screen twisted pair cable as communication cable.
Depending on different baud rate, the longest transmitting distance theoretical value is
shown as below:
The longest transmitting distance of baud rate:
2400Bps 1800m
4800Bps 1200m
9600Bps 800m
Connection mode and terminal resistance
RS485 industry bus standard require adopt snake-like wiring (chrysanthemum chain), the
ends must connect with 120 terminal resistance(such as figure 6), ease connection can
adopt figure 7, but distance of section “D” can’t exceed 7m.

Sales [phone]
Enquiries [email protected]o.uk
Website www.genieproducts.co.uk
