Genie WIPX4VDVAF User manual

Quick Start Guide
Please read these instructions carefully before operating the unit
and keep for further reference.
4MP H.265 IP IR Vandal Dome
with 2.8-12mm Auto Focus
Lens and Facial Recognition
WIPX4VDVAF

ii
Intro Section
Please read this instruction carefully before operating the product and keep it for further
reference. All examples and pictures used here are for reference only.
The contents of this manual are subject to change without notice.
CAUTION:
• If the product does not work properly, please contact your dealer or the nearest service
centre. Never attempt to disassemble the camera yourself. We shall not be responsible
for any problems caused by unauthorised repair or maintenance.
• Do not allow water or liquid into the camera while in use.
• When using the product, you must be in strict compliance with the electrical safety
regulations of the nation and region.
• When the product is mounted on wall or ceiling, the device needs to be firmly fixed.
• Make sure the power supply voltage is correct before using the camera.
• Do not drop the camera or subject it to any physical shock.
• If cleaning, please use a clean soft cloth with a little neutral detergent to wipe it gently.
• Do not aim the camera at the sun or in any area where there is bright lighting.
• The device may be burned out by a laser beam, so when any laser equipment is in use,
make sure that the surface of the device will not be exposed to the laser beam.
• Do not place the camera in extremely hot, cold , dusty or damp locations, and do not
expose it to high electromagnetic radiation.
• To avoid heat accumulation, good ventilation is required for operating environment.

Contents
iii
1.0 Introduction..........................................................................................................4
1.1 Product Features...........................................................................................4
1.2 Product Dimensions.....................................................................................4
1.3 Contents ......................................................................................................4
1.4 Specification ................................................................................................5
2.0 Overview..............................................................................................................7
3.0 Installation............................................................................................................9
3.1 Installing the Camera ...................................................................................9
3.2 Installing the Camera with a Junction Box..................................................10
4.0 Network Connection ...........................................................................................11
5.0 Camera Maintenance...........................................................................................12

4
The Genie WIPX4VDVAF is a 4MP IP IR vandal dome camera with a 2.8–12mm auto focus
lens. The camera features facial recognition when paired with any Genie AI NVR.
1.1 Product Features
• 4MP (2592×1520) H.265 full real time coding
• Maximum resolution: 2592 × 1520
• ICR auto switch, true day / night vision
• 30 ~ 50m IR night view distance
• Motorised zoom lens
• Supports image distortion correction
• 3D DNR, true WDR, HLC, BLC, Defog, NIR, Smart IR and ROI coding
• Built-in micro SD card slot up to 128GB
• DC12V/PoE power supply
• IP67 & IK10 ingress protection
• Supports three streams
• Intelligent analytics
• Supports remote monitoring by smart phones & tablet PCs with iOS and Android OS
• Onvif compliant
1.2 Product Dimensions
1.3 Contents
1.0 Introduction
Camera Quick Start Guide 4 Tapping Screws PA 4×25
CD Drill Template Plastic Plug x4
Rubber Plug L-Wrench CVBS & DC In Cables
141mm
100.2mm

Quick Start Guide 4MP H.265 IP IR Vandal Dome with 2.8-12mm Auto Focus Lens and Facial Recognition
5
1.4 Specification
Camera
Image Sensor 1 / 3” CMOS
Image Size 2592 × 1520
Electronic Shutter 1 / 30 s ~ 1 / 100000 s
Iris Type DC Iris
Minimum Illumination 0.0038 Lux @ F1.4,AGC ON, 0 Lux with IR
0.0028 Lux @ F1.2,AGC ON, 0 Lux with IR
Lens 2.8~12mm @ F1.4, motorised
Lens Mount Φ14
Field of View Horizontal: 94.2°~29.8°, Vertical: 62.4°~17°, Diagonal: 102°~33.9°
Day & Night ICR
Wide Dynamic Range 120dB
BLC Yes
HLC Yes
Defog Yes
Digital NR 3D DNR
Angle Adjustment Pan: 0°~345°, Tilt:0°~77°, Rotation: 0°~345°
Video Compression Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264
/ MJPEG
H.264 Compression
Standard Baseline Profile / Main Profile / High Profile
Resolution 4MP (2592 × 1520), 2K (2560 × 1440), 3MP (2304 × 1296),
1080p (1920 × 1080), 720p (1280 × 720), D1, CIF, 480 × 240
Main Stream
4MP / 2K / 3MP / 1080p / 720p
(60Hz : 1 ~ 30fps, 50Hz: 1~25fps)
HFR mode: 1080p / 720p
(60Hz : 1 ~ 60fps, 50Hz: 1~50fps)
Sub Stream 720p / D1 / CIF / 480 × 240 (60Hz : 1 ~ 30fps, 50Hz: 1~25fps)
Third Stream D1 / CIF / 480 × 240 (60Hz : 1 ~ 30fps, 50Hz: 1~25fps)
Bit Rate 64 Kbps ~ 8 Mbps
Bit Rate Type VBR / CBR
Audio Compression G711A / U
Image Settings
ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic,
Sharpen, NR,etc. Adjustable through client software or web
browser
ROI Each ROI to be configured separately
Interface
Network RJ45
Video Output CVBS Output (BNC x 1)
Audio 1CH audio input, 1CH audio output, 1CH built-in MIC
Alarm 1CH alarm input, 1CH alarm output
Storage Built-in micro SD card slot, up to 128GB
Hardware Reset Yes

Quick Start Guide 4MP H.265 IP IR Vandal Dome with 2.8-12mm Auto Focus Lens and Facial Recognition
6
Functions
Remote Monitoring Web browsing, CMS remote control
Online Connection Supports simultaneous monitoring for up to 10 users. Supports
multi-stream real time transmission
Network Protocol UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP,
SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS
Interface Protocol Onvif compatible
Intelligent Analytics
Line crossing
Region entrance / exiting /intrusion (human / motor vehicle
/ non-motor vehicle classification)
Line crossing human / motor vehicle / non-motor vehicle
counting scene change
Video blur and video colour cast detection
Face recognition and face capture
Storage Network remote storage, Micro SD card storage
Smart Alarm Motion detection, Sensor detection, SD card error, SD card
full, IP conflict, cable disconnection
General Function Watermark, IP address filtering, video mask, heartbeat,
password protection, image distortion correction, etc.
PoE Yes, IEEE802.3af
IR Distance 30~50m
Others
Ingress Protection IP67 & IK10
Power Supply DC12V / PoE
Power Consumption < 8W
Operating Environment - 30 °C ~ 60 °C (-22 °F~140°F)
Humidity: Less than 95 % (Non-Condensing)
Dimensions 141 × 100.2 mm
Weight Approx. 0.93 Kg

7
1. Ethernet Connector
2. Audio Input (MIC)
3. Audio Output (HP)
4. CVBS Video Output
5. Alarm Input/Output
6. DC12V Power Connector
7. A: Zoom- (only available for type A),
B: Focus
8. A : Zoom+ (only available for type A),
B: Zoom
9. Micro SD Card Slot
10. Reset
11. DC in & CVBS Interface
2.0 Overview
Security Cap
Type A : Motorised Zoom Camera
Type B : Manual Zoom Camera
DC12V
Alarm Input: Join the grounding ends of the sensor and the camera and then connect
the signal cable of the sensor to the alarm input port of the camera.
Alarm Output: Loosen the screws in the alarm output port. Then insert the signal wires
of the alarm output devices into the port of COM and OPEN separately. Finally tighten
the screws. Some of the external alarm output devices need the power supply.
• If the PoE switch is used to power the camera, DC12V power supply is not required.
• It is recommended to install the security cap for outdoor installation.

Quick Start Guide 4MP H.265 IP IR Vandal Dome with 2.8-12mm Auto Focus Lens and Facial Recognition
8

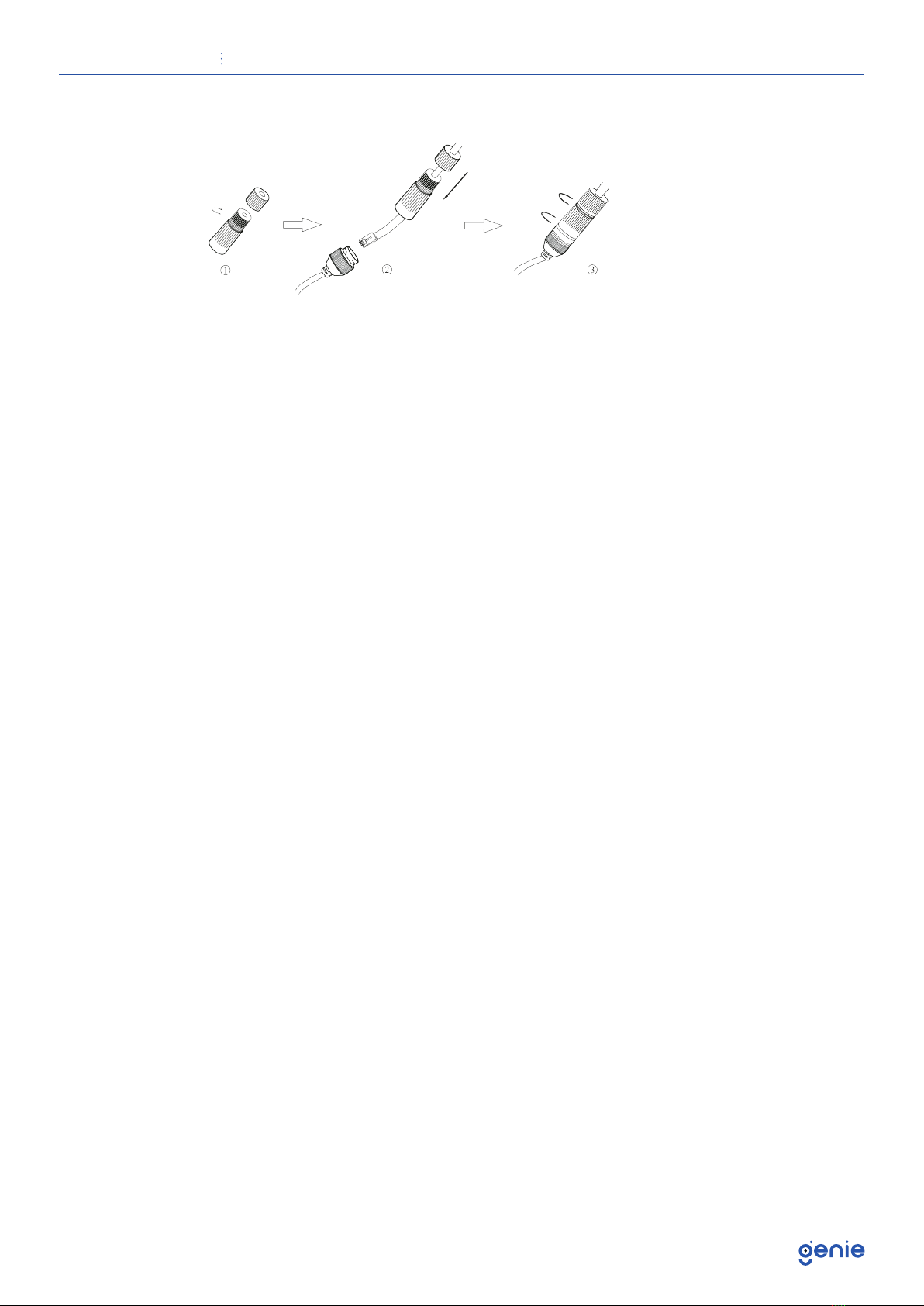

1. Loosen the nut from the main element.
2. Run the network cable (without RJ 45 connector) through both elements. Then crimp
the cable with RJ 45 connector.
3. Connect the cable to the hermetic connector. Then tighten the nut and the main
cover.
Connecting Network Cable

9
3.1 Installing the Camera
Please make sure that the wall or ceiling is strong enough to withstand 3 times the weight
of the camera. Please install the camera in and under a dry environment and place the
cover of the camera within 4 hours of removing it. Do not remove the protection film until
finishing the installation.
1. Rotate the trim ring anti-clockwise to remove it from the camera.
2. Attach the drill template to the place where you want to fix the camera and then drill
4 screw holes and 1 cable hole (if you want to route the cables through the ceiling)
according to the drill template.
3. Loosen the screws to open the lower dome.
4. Route and connect these cables. Then secure the camera to the ceiling or wall with the
screws provided.
5. Three-axis adjustment. Before adjustment, preview the image of the camera on a
monitor and then adjust the camera according to the figure below to get an optimum
angle.
3.0 Installation
Trim Ring
Lower Dome
Rubber Plug
Install it when routing the
cables through the ceiling.
Pan 0–345°
Tilt 0–77°
Rotation 0–345°
Hold it and rotate

Quick Start Guide 4MP H.265 IP IR Vandal Dome with 2.8-12mm Auto Focus Lens and Facial Recognition
10

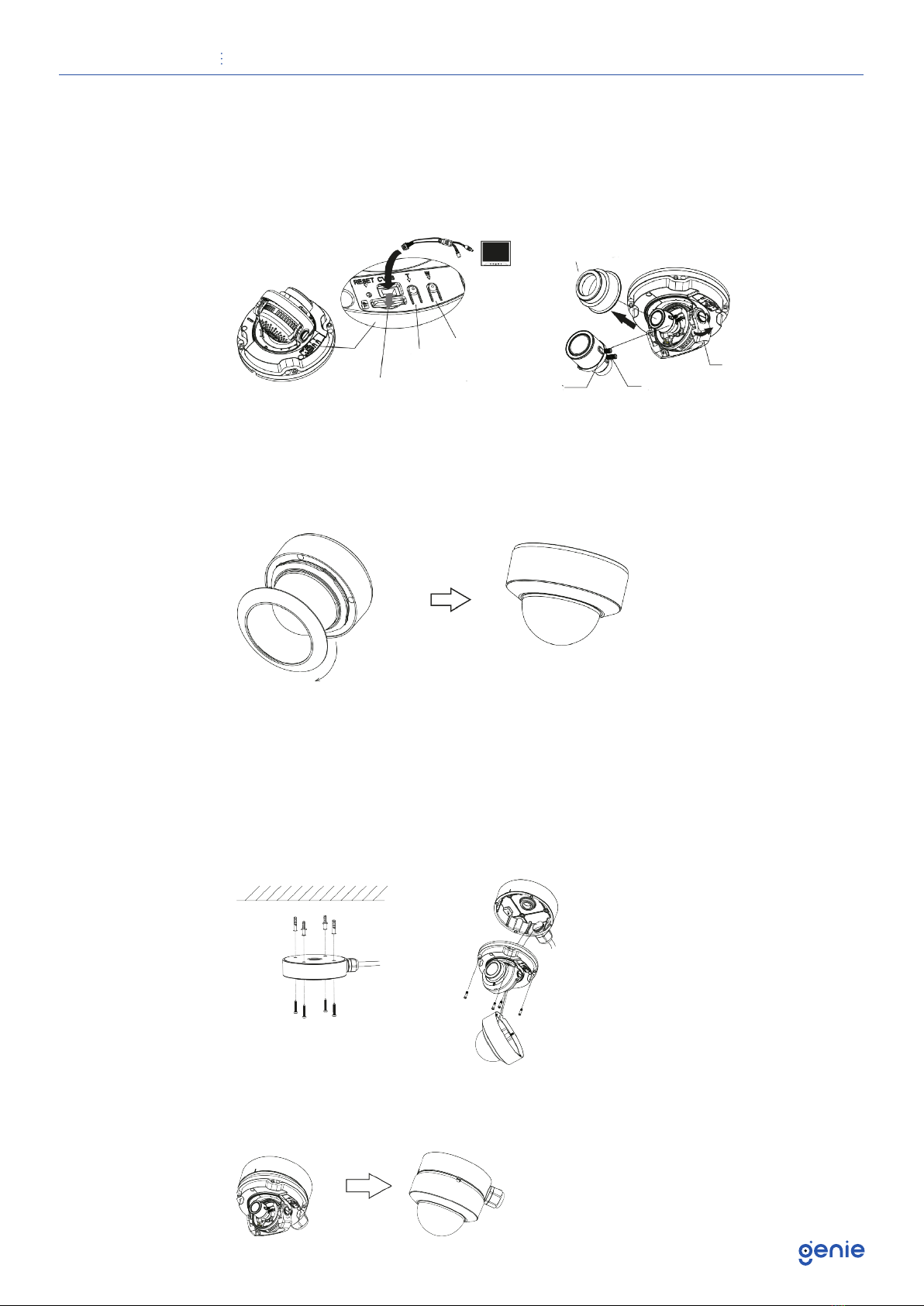

6. Insert a micro SD card. After that, adjust Zoom or Focus to obtain an optimum image.
Before adjustment, view the image of the camera on a monitor. For Type A, press the T
or W button. For Type B, (a) push the IR light hood to the position, (b) remove the lens
cover, (c) adjust the Zoom and Focus, (d) install back the lens cover and move the IR
light hood back.
7. Install the lower dome back to the camera and fix it with screws. Then put the trim ring
onto the lower dome and then rotate it clockwise until it is locked. Finally, remove the
protection film softly.
3.2 Installing the Camera with a Junction Box
1. Fix the junction box to the wall with screws.
2. Rotate the trim ring anticlockwise to remove it from the camera and then loosen the
screws to open the lower dome.
3. Route and connect these cables (take side conduit cabling for example). Then fasten
the camera to the junction box with screws.
4. Insert a micro SD card. Then
adjust the view of angle and the
image.
5. Install the lower dome back to the camera and fix it with screws. Then put the trim ring
onto the lower dome and then rotate it clockwise until it is locked. Finally, remove the
protection film softly.
Lens Cover
Focus
Monitor
Zoom
Zoom-
Zoom+ IR Light Hood
Insert a Micro
SD card
Type A : Motorised Zoom Camera Type B : Manual Zoom Camera

11

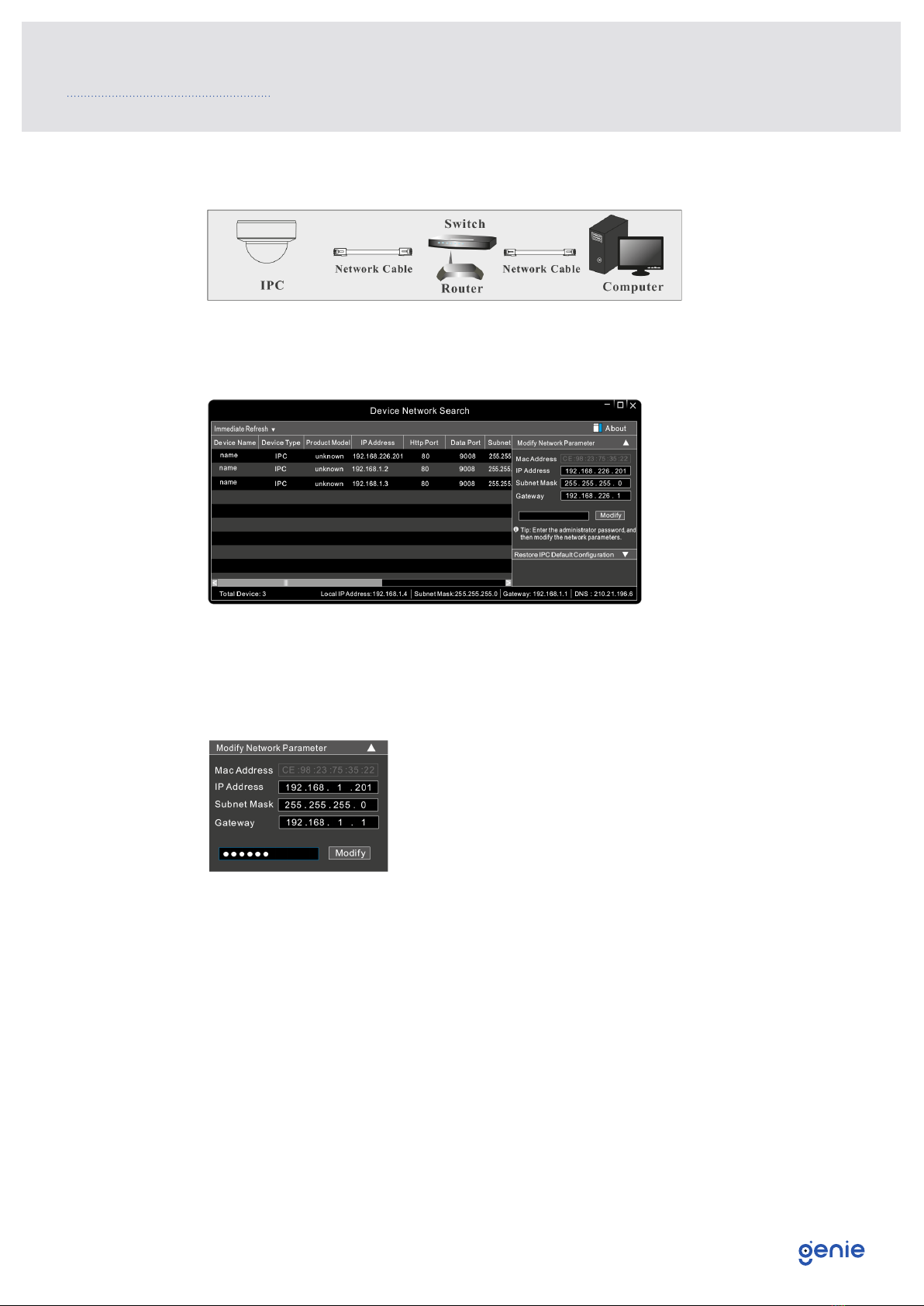

Access the Camera through the IP Tool
1. Make sure that the camera and the PC are well connected via LAN.
2. Find the IP-Tool from the CD and then install it in the computer. After that, run the IP
Tool as shown below.
3. Modify the IP address. The default IP address of this camera is 192.168.226.201. Click the
information of the camera listed in the above table to show the network information
on the right hand. Modify the IP address and gateway of the camera and make sure its
network address is in the same local network segment as that of the computer. Please
modify the IP address of your device according to the practical situation.
4. Double-click the camera listed in the IP-Tool or manually enter the IP address in
the address bar of the web browser to connect IP-CAM. Then follow directions to
download and install the plugin. Enter the username and password in the login
interface. The default username is admin; the default password is 123456.
4.0 Network Connection
For example, the IP address of your computer is 192.168.1.4. So the IP address of the
camera shall be changed to 192.168.1.X and the gateway shall be changed to 192.168.1.1.
After modification, please enter the password of the administrator and click “Modify”
button to modify the settings. The default password of the administrator is “123456”.

12
Transparent dome is an optical element. As dirt, dust or fingerprints on the dome will
reduce the clarity of the image, please don’t touch or wipe the cover surface directly
during installation and use. Please refer to the following cleaning tips to clean it.
• If there is dust on the dome, please use a dry soft brush to gently brush it
• If there is water or grease on the dome, please gently wipe off the water drop or
grease with a soft cloth and then use oil-free cotton cloth with the neutral detergent to
wipe it several times from the center to outward. Finally, change the cloth to dry it.
• If there are fingerprints on the dome, please use oil-free cotton cloth or paper soaked
with the neutral detergent to wipe it several times from the center to outward and then
dry it with a soft cloth.
5.0 Camera Maintenance

Sales [phone]
Enquiries [email protected]o.uk
Website www.genieproducts.co.uk
