Genie HDC222 User manual

These servicing instructions are for use by qualied service personnel only.
To reduce the risk of electric shock do not perform any servicing other than that
contained in the operating instructions unless you are qualied to do so.
Use CEPower Supply Only
CAUTION
2

CONTENTS
1. CAUTIONS
2. IMPORTANT SAFETY INSTRUCTIONS
3. FEATURES
4. EQUIPMENT AND ACCESSORIES
5. CAMERA COMPONENT DESCRIPTIONS
6. INSTALLATION
7. DIMENSIONS
8. SPECIFICATION
9. OSD MANUAL
3

1. CAUTIONS
4
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions;
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference
that may cause undesired operation.
Note
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.”
WARNING
This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
Caution
Any changes or modications in construction of this devices which are not expressly
approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
1. A regulated DC12V 1A power supply is recommended for use with this camera
for the best picture and the most stable operation.
An unregulated power supply can cause damage to the camera.
When an unregulated power supply is applied, the product warranty will be void.
2. It is recommended that the camera is used with a monitor that is of CCTV quality
75 video impedance level.
If your monitor is switched to high impedance then please adjust accordingly.
3. Do not attempt to disassemble the camera to gain access to the internal components.
Refer servicing to your dealer.
4. Never face the camera towards the sun or any bright or reective light, which may
cause smear on the picture and possible damage to the CCD.
5. Do not remove the serial sticker for the warranty service.
6. Do not expose the camera to rain or other types of liquid.
7. The apparatus must be connected to a mains socket-outlet with a protective earthing
connection.

1. CAUTIONS
5
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with
separate collection systems)
This marking shown on the product or its literature, indicate that it should not
be disposed with other household wastes at the end of its working life. To
prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.
This product should not be mixed with other commercial wastes purchased this
product, or their local government ofce, for details of where and how they can
take item for environmentally safe recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract.
Household users should contact either the retailer where they for disposal.

2. IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with a dry lint free cloth.
7) Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including ampliers) that produce heat.
9) Do not defeat the safety purpose of the polarised or grounding-type plug. A
polarised plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not t into your
outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specied by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specied by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to
avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long
periods of time.
14) Refer all servicing to qualied service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply cord
or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
6

3. FEATURES
• High Resolution
SONY 1/3” 2.1M/P Progressive Colour CMOS Image Sensor,
1920x1080 30fps
• Supports Various Digital Video Outputs
720p60, 720p50, 1080p30, 1080p25
• Video Outputs
Primary HD-SDI (BNC)
Test/Setup TV Out (Test Point-adapter to BNC included), NTSC/PAL selectable
• OSD Menu for Setup and Configuration
• Lens Control
DC Iris
• Power Source
DC12V/AC 24V (Dual Power Model)
DC12V (DC Only Power Model)
7

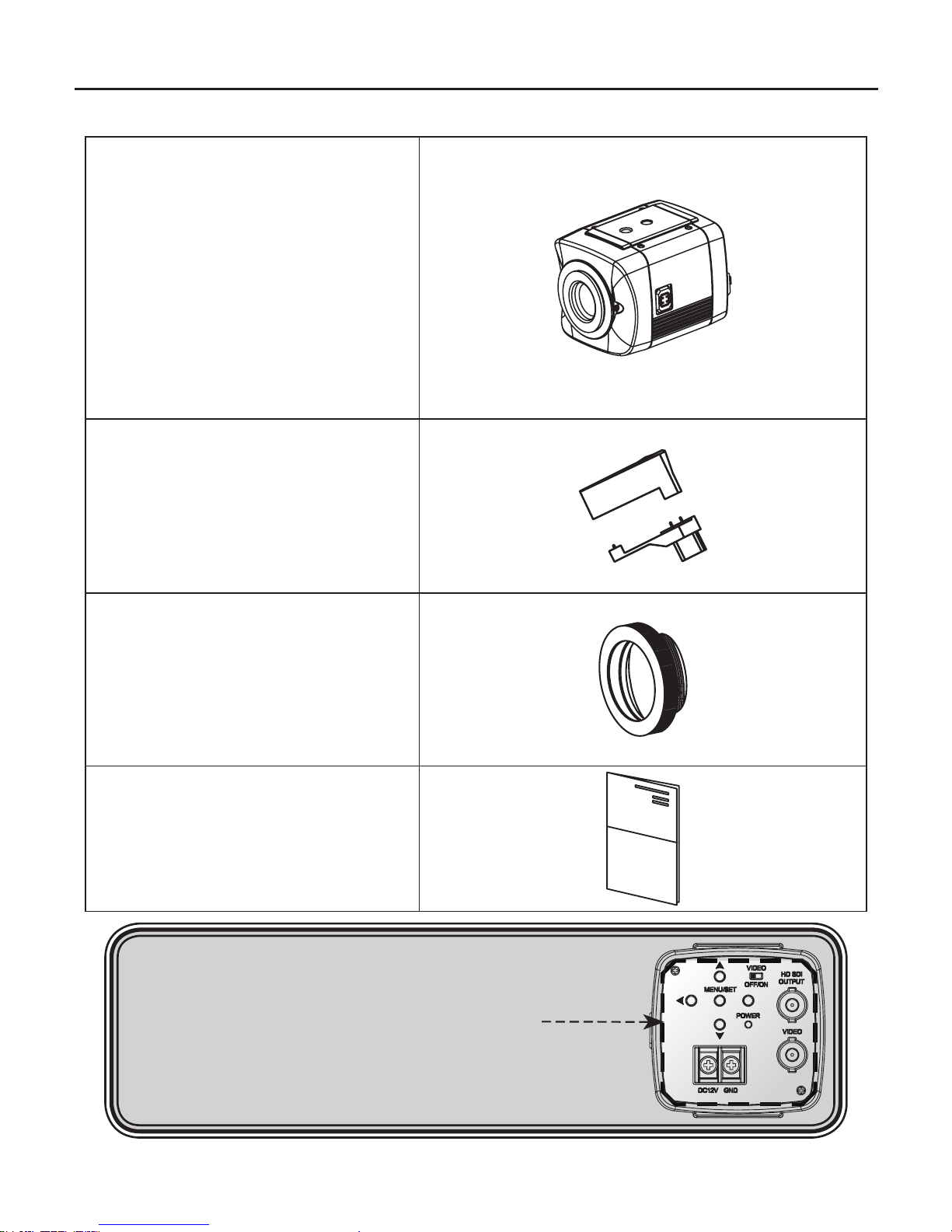

4. EQUIPMENT AND ACCESSORIES
HD CCTV
Digital Video Camera
Auto Iris Lens
Connection Plug
C-Mount Adapter Ring
Operation Manual
8
+ -
* NOTE
PLEASE REMOVE PROTECTIVE FILM

5. CAMERA COMPONENT DESCRIPTIONS
• FRONT
9
TRIPOD MOUNTING HOLE (1/4"-20 UNC)
TRIPOD MOUNTING HOLE (1/4"-20 UNC)
C-MOUNT ADAPTER RING
MOUNT COVER
CS-MOUNT ADAPTER RING
CS-MOUNT ADAPTER RING FIXING SCREW (2EA)
AUTO
IRIS JACK

10
5. CAMERA COMPONENT DESCRIPTIONS
• BACK

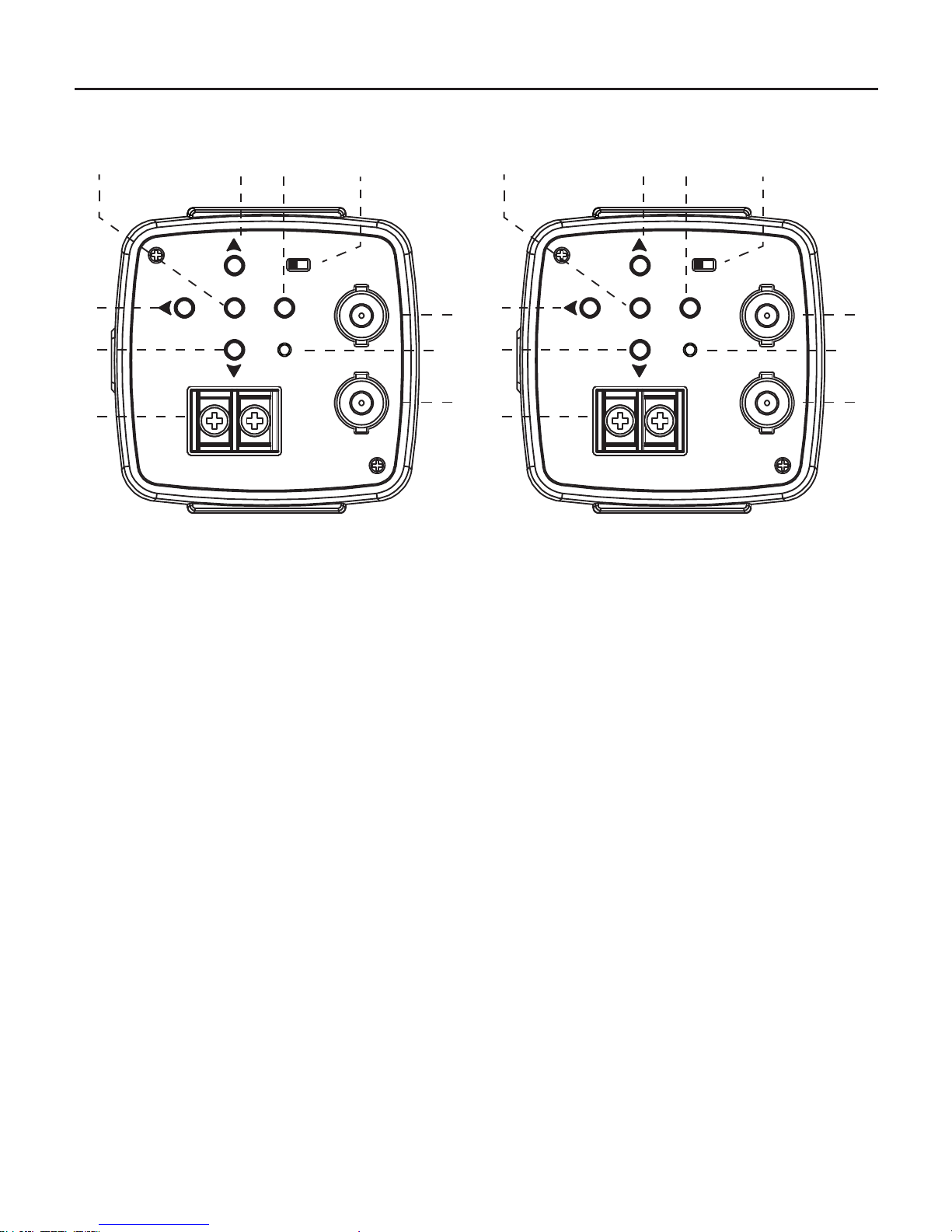

①. MENU BUTTON
②. UP BUTTON
③. DOWN BUTTON
④. LEFT BUTTON
⑤. RIGHT BUTTON
⑥. POWER LED
(The LED turns on when power is supplied)
⑦. VIDEO OFF/ON SWITCH
⑧. HD SDI OUTPUT JACK
⑨. VIDEO OUT JACK
(Used to connect an external video monitor in jack)
⑩.POWER TERMINAL
(Used to connect an DC12V power source)
(Option: AC24V/DC12V)
➊ ➋ ➎ ➐
➌
➓
➍➑
➒
➏
DC12V
MENU/SETMENU/SET
VIDEOVIDEO
OFF/ONOFF/ON
POWERPOWER
HD SDI
OUTPUT
HD SDI
OUTPUT
DC12V/AC24V
➊ ➋ ➎ ➐
➌
➓
➍➑
➒
➏
VIDEOVIDEO
AC24V/DC12V
DC12V GND
+ -

6. INSTALLATION
• LENS CONNECTION
Mega Pixel Lenses are sold separately. Lenses such as an Auto Iris Lens,
CS-Mount lens and C-Mount lens can be used (adapter included for C-Mount Lens).
NOTE
• Please keep the lens clean.
• Any foreign objects and fingerprint marks on the lens can cause
inferior image quality, especially in low light level conditions.
When Using an Auto Iris Lens

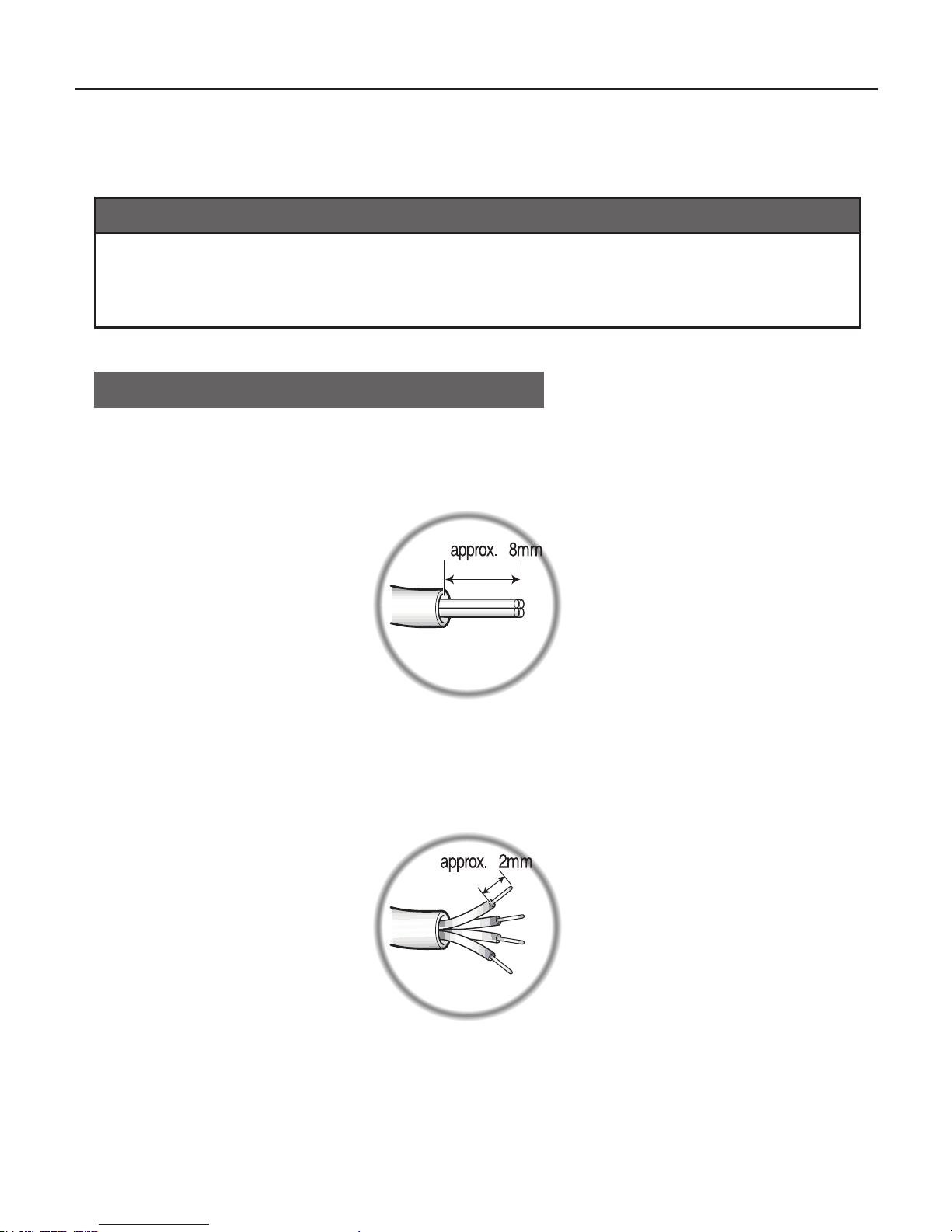

1. Strip off about 8mm of the outer jacket of the auto iris lens cable.
2. Strip off about 2mm each of the insulated conductors
inside the lens cable.
11

6. INSTALLATION
3. Remove the cover of the auto iris lens connection plug and
solder the lens cable to the connector pinsinside the plug.

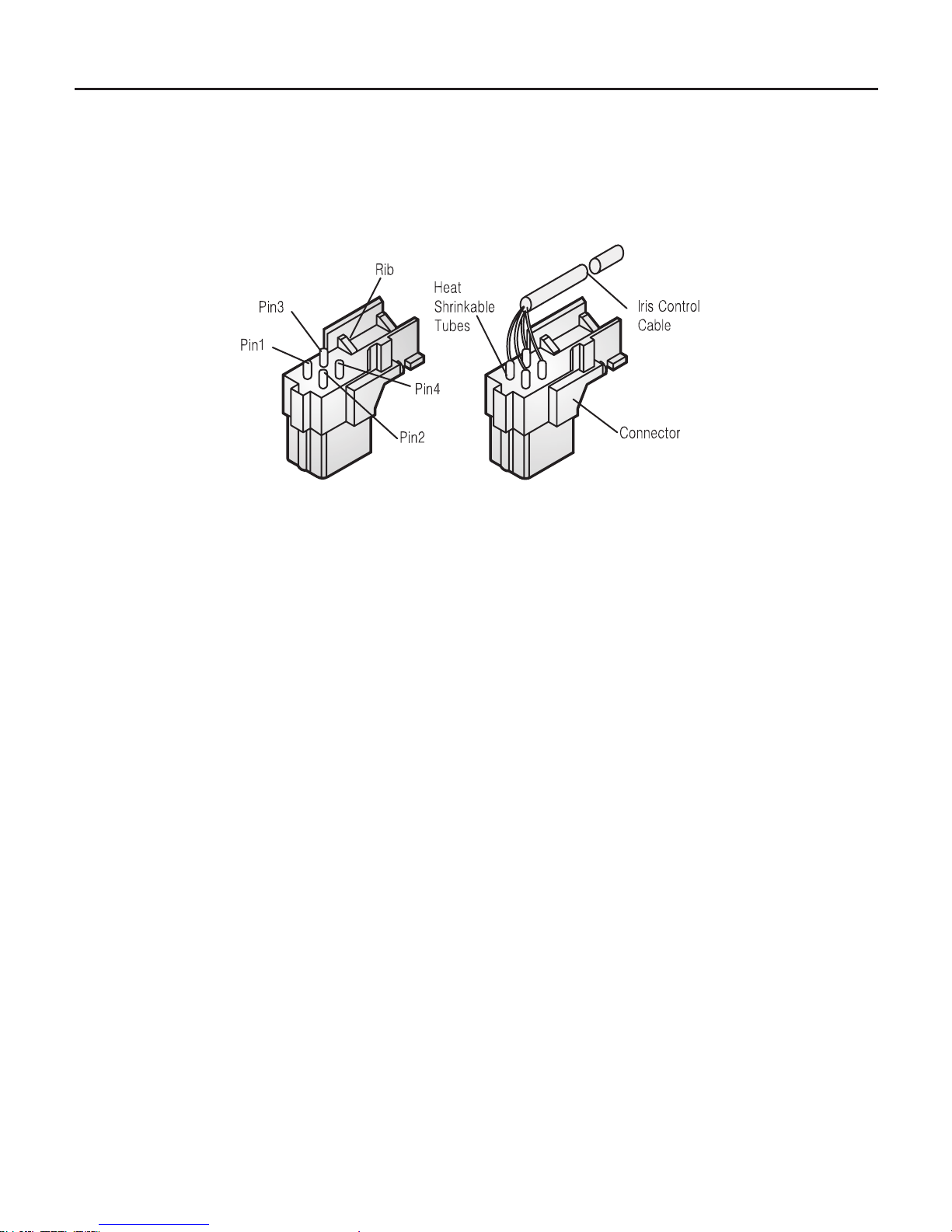

* PIN ASSIGNMENT OF THE LENS CONNECTOR
1) Video Auto Iris Lens
Pin 1: Power source (DC 12V)
Pin 3: Video signal
Pin 4: Shield, GND (Ground)
2) DC Auto Iris Lens
Pin 1: DAMP- (CTL-)
Pin 2: DAMP+ (CLT+)
Pin 3: DRV+
Pin 4: DRV- (GND)
4. Replace the auto iris lens connection plug cover and take off the sensor
protection cap then attach the auto iris lens to the camera by screwing it in
clockwise.
12

6. INSTALLATION
5. Insert the connection plug from the auto iris lens cable into the auto
lens connector, which is located on the side of the camera.
13
C-mount lens: 10 mm or less
CS-mount lens: 5 mm or less
* NOTE
Use the lens under the specification as shown.
Otherwise the lens can damage the camera or
abnormal fixing may result.

6. INSTALLATION
Installation of C-Mount Lens
Installation of CS-Mount Lens
14
CS-MOUNT ADAPTER RING
CS-MOUNT ADAPTER RING
C-MOUNT ADAPTER RING

MENU/SET
VIDEO
OFF/ON
POWER
HD SDI
OUTPUT
VIDEO
DC12V/AC24V
MENU/SET
VIDEO
OFF/ON
POWER
HD SDI
OUTPUT
DC12V GND
VIDEO
+ -
6. INSTALLATION
• MONITOR CONNECTION
15
CAUTION
When you output Video
WDR function does not work
DC12V/AC24V REGULATED
POWER SUPPLY
HD SDI INPUT
HD SDI INPUT
SDI
RECEIVER
DISPLAY
DEVICE
SDI
RECEIVER
DISPLAY
DEVICE
TV
MONITOR
TV
MONITOR
VIDEO INPUT
VIDEO INPUT
BNC FEMALE
VIDEO OUTPUT
BNC FEMALE
VIDEO OUTPUT
HD SDI OUTPUT
HD SDI OUTPUT
DC12V REGULATED
POWER SUPPLY
- DC12V
- DC12V/AC24V

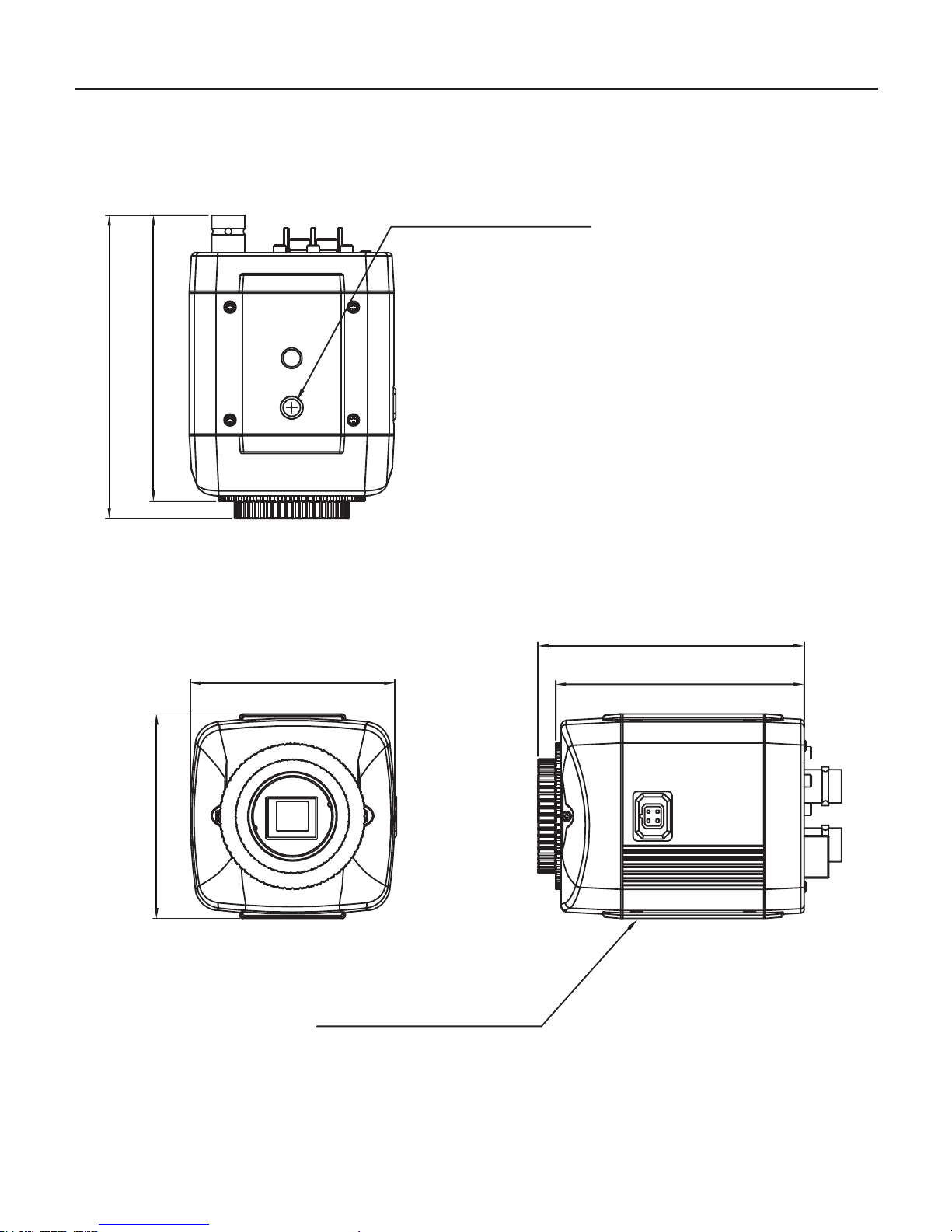

7. DIMENSIONS
Unit(mm)
16
86.1 (C-MOUNT)
81.1 (CS-MOUNT)
58
58
75.5 (C-MOUNT)
70.5 (CS-MOUNT)
TRIPOD MOUNTING HOLE
(1/4"-20 UNC, Depth 5)
TRIPOD MOUNTING HOLE
(1/4"-20 UNC, Depth 5)

8. SPECIFICATION
Image Device SONY 1/3” 2.1MP Progressive Colour CMOS Image Sensor
Effective Pixels 1984 (H) x 1105 (V) 30fps
Unit Cell Size 2.8um (H) x 2.8um (V)
Video Output Mode HD-SDI: 720p60, 720p50, 1080p30, 1080p25
TV Out: NTSC / PAL Selectable
Minimum Illumination 0.1 Lux
S/N Ratio More than 50dB
Shutter Speed Auto / Manual Selectable
Manual Shutter Speed 1/30 (25), 1/60 (50), 1/120 (100), 1/240, 1/500,
1/1K, 1/2K, 1/4K, 1/8K, 1/16K, 1/30K, 1/60K
Controllable Max.Gain 29dB
White Balance AUTO / AUTOext / PUSH / MANUAL
Lens Control DC Iris
OSD Menu Yes
Power
Consumption
DC DC12V(±10%), Max. 200mA
DUAL DC12V(±10%), Max. 270mA
AC24V(±10%), Max. 3.6W
Weight DC12V: 175g, DUAL: 200g
Dimension 58(W) x 58(H) x 70.5(D)
Conformity CE, FCC, KC
Temperature / Humidity
(NonCondensing)
Operation: -10~50 Deg. C / 20~80%
Storage: -20~70 Deg. C / 20~95%
Specifications and designs are subject to change for improving the
functionality of this product without notice.
17

9. OSD MANUAL
• Menu Structure
SETUP
EXPOSURE
WHITE BALANCE
WDR / BLC
DNR
DAY & NIGHT
SPECIAL
SYSTEN
RESET DATA ALL
EXT
Main Sub Menu Sub Menu
EXPOSURE
BRIGHTNESS 0 ~ 20
AE MODE NORMAL AE / INDOOR
LENS(IRIS) MANUAL / AUTO
SHUTTER MANUAL /
AUTO
LEVEL 1/30 (25), 1/60 (50), 1/120 (100), 1/240, 1/500,
1/1K, 1/2K, 1/4K, 1/8K, 1/16K, 1/30K, 1/60K.
RETURN BACK / EXIT
DSS OFF, X2, X3, X4.
AGC 0 ~ 10
BASE FREQ 60Hz / 50Hz
RESET DATA BACK / DEF.
RETURN BACK / EXIT.
WHITE
BALANCE
WB MODE
AUTO
/AUTOext
/PUSH
/MANUAL
COLORTEMP. LOW / MIDDLE / HIGH
R-GAIN 0 ~ 20
B-GAIN 0 ~ 20
RETURN BACK / EXIT
SATURATION 0 ~ 20
RESET DATE BACK / DEF.
RETURN BACK / EXIT.
WDR / BLC
MODE OFF, WDR, BLC, D-WDR
WDR WGT 0 ~ 4
BLC OSD OFF ~ ON
BLC POS-X 0 ~ 20
BLC POS-Y 0 ~ 20
BLC SIZE-X 0 ~ 20
BLC SIZE-Y 0 ~ 20
RESET DATA BACK / DEF.
RETURN BACK / EXIT.
DNR OFF, LOW, MIDDLE, HIGH
DAY &
NIGHT
COLOR/
B&W/
AUTO
D&N DETECT AGC
DELAY 1sec, 3, 5, 10, 15, 20, 25, 30, 40, 50, 60sec
D->N LEVEL 3 ~ 20
N->D LEVEL 0 ~ 16
RESET DATA BACK / DEF.
RETURN BACK / EXIT.
18

9. OSD MANUAL
Main Sub Menu Sub Menu
SHARPNESS 0 ~ 20
GAMMA 0 ~ 4
FLIP OFF, H FLIP, V FLIP, HV FLIP
LENS SHADING OFF, ON
DZOOM 1x, 2x, 4x, 6x, 8x, 10x, 12x, 14x, 16x, 18x, 20x
RESET DATA BACK / DEF.
RETURN BACK / EXIT.
SPECIAL
PRIVACY OFF / ON
ZONE NO 0 ~ 23
ZONE OP OFF / ON
X-POS 0 ~ 60
Y-POS 0 ~ 40
X-SIZ 0 ~ 40
Y-SIZ 0 ~ 40
COLOURBLK, WHT, YEL, CYN, GRN,
MAG, RED, BLU
TRANS. 0 ~ 4
RESET DATA BACK / DEF.
RETURN BACK / EXIT.
HLMASK OFF / ON
LEVEL 0 ~ 20
COLOURBLK, WHT, YEL, CYN, GRN,
MAG, RED, BLU
RESET DATA BACK / DEF.
RETURN BACK / EXIT.
PATTERN OFF / 0 / 1
RESET DATA BACK / DEF.
RETURN BACK / EXIT.
SYSTEM
SDI FORMAT 1080P / 720P
SDI FPS 30 (60) / 25 (50)
CVBS FORMAT NTSC /
PAL
CVBS OUT AUTO / OFF / ON (WDR OFF)
CVBS VIEW CROP / FULL
RETURN BACK / EXIT.
APPLY OK / ON
SYSTEM INFO.
S/W VERSION
SET VERSION
RETURN BACK / EXIT.
REBOOT
RETURN BACK / EXIT.
19

9. OSD MANUAL
• Function Description
0. SETUP
- EXPOSURE : Go sub menu for camera exposure control.
- WHITE ALANCE : Go sub menu for camera white balance control.
- WDR/BLC : Go sub menu for camera WDR or BLC action.
- DNR : Control noise reduction setting.
- DAY & NIGHT : Go sub menu for camera day & night control.
- IMAGE : Go sub menu for adjust image functions.
- SPECIAL : Go sub menu for special feature control.
- SYSTEM : Go sub menu for system control & information.
- RESET DATA ALL : Reset all the cameras feature data to the default values.
1. EXPOSURE
- BRIGHTNESS : Adjust image brightness value.
- AE MODE : Adjust AE control mode.
- LENS(IRIS) : Select lens iris control type.
- SHUTTER : Select shutter speed control type.
• LEVEL : Adjust shutter speed at manual shutter mode.
- DSS : Adjust digital slow shutter control level.
- AGC : Adjust max.gain level for brightness control.
- BASE FREQ : Select basic control frequency for control camera feature.
2. WHITE BALANCE
- WB MODE : Select white balance control mode.
• AUTO : Full auto control mode in colour temperature range 2300K~10000K.
• AUTOext : Extended auto mode for special illumination.
• PUSH : Enablesfixing the control settingsfor a specific environment.
Push & release, for fixing WB control setting.
• MANUAL : Enable WB control setting in manual mode.
◦COLOR TEMP. : Select colour temperature range for WB control in manual mode.
◦ R-GAIN : Adjust red colour gain for WB control in maual mode.
◦ B-GAIN : Adjust blue colour gain for WB control in manual mode.
- SATURATION : Adjust colour saturation level.
3. WDR/BLC
- MODE : Select WDR / BLC mode.
• WDR : Operate in Wide Dynamic Range mode. Controlled video frame rate.
• BLC : Operate in Backlight Compensation mode.
• D-WDR : Digital wide dynamic range control.
20
