Genie WIPX2LBVLPR User manual

Quick Start Guide
Please read these instructions carefully before operating the unit
and keep for further reference.
2MP H.265 IP LPR Camera with
7-22mm Motorised Lens with
50m IR
WIPX2LBVLPR

ii
Intro Section
Please read this instruction carefully before operating the product and keep it for further
reference. All examples and pictures used here are for reference only.
The contents of this manual are subject to change without notice.
CAUTION:
• If the product does not work properly, please contact your dealer or the nearest service
centre. Never attempt to disassemble the camera yourself. We shall not be responsible
for any problems caused by unauthorised repair or maintenance.
• Do not allow water or liquid into the camera while in use.
• When using the product, you must be in strict compliance with the electrical safety
regulations of the nation and region.
• When the product is mounted on wall or ceiling, the device needs to be firmly fixed.
• Make sure the power supply voltage is correct before using the camera.
• Do not drop the camera or subject it to any physical shock.
• If cleaning, please use a clean soft cloth with a little neutral detergent to wipe it gently.
• Do not aim the camera at the sun or in any area where there is bright lighting.
• The device may be burned out by a laser beam, so when any laser equipment is in use,
make sure that the surface of the device will not be exposed to the laser beam.
• Do not place the camera in extremely hot, cold , dusty or damp locations, and do not
expose it to high electromagnetic radiation.
• To avoid heat accumulation, good ventilation is required for operating environment.

Contents
iii
1.0 Introduction..........................................................................................................4
1.1 Product Features...........................................................................................4
1.2 Product Dimensions.....................................................................................4
1.3 Contents ......................................................................................................4
1.4 Specification ................................................................................................5
2.0 Overview..............................................................................................................6
3.0 Installation............................................................................................................7
4.0 Network Connection ...........................................................................................8

4
The Genie WIPX2LBVLPR bullet style camera is a high quality IP camera especially designed
to operate with the Genie “AI” NVR’s and provide a very effective LPR (License Plate
Recognition) system suitable for a host of applications including clubs, business car parks,
private estates etc. etc. The camera utilises a motorised auto focus lens for ease of set up,
and whilst it boasts long range IR the “Starlight” sensor used provides colour images in the
darkest of environments.
1.1 Product Features
• Starlight
• 1080p (1920 × 1080) @ 30fps
• Support Smart H.265/H.264 coding
• ICR auto switch, True day/night
• 50~70m IR night view distance, motorised zoom lens
• 3D DNR, true WDR, HLC, BLC and ROI coding
• Built-in micro SD card slot, up to 128GB
• 1 channel audio input and output, Hardware reset
• To be used in conjunction with an “AI” network video recorder
• IP67 ingress protection
• Supports three streams
• 1 channel alarm input and output
• Supports mobile surveillance by smart phones with iOS and Android OS
• Intelligent Analytics: Video abnormality (Video tampering, scene change), Licence
• plate recognition
• DC12V / PoE power supply

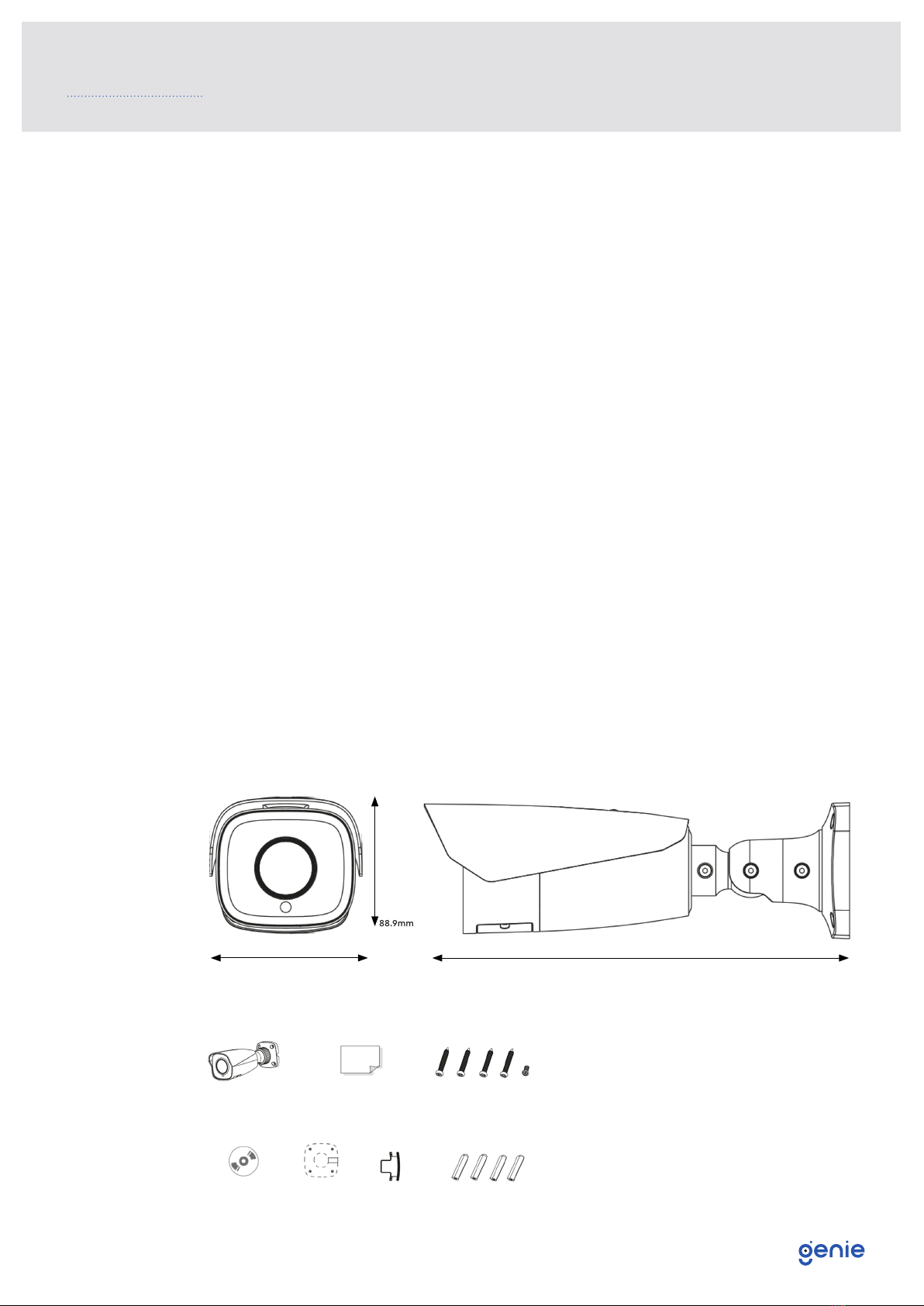

1.2 Product Dimensions
1.3 Contents
1.0 Introduction
Camera Quick Start Guide 4 Tapping Screws PA 4×25
1 Machine Screw PWM3×5
CD Drill Template Rubber Plug Plastic Plug x4
279.5mm100.3mm
88.9mm

Quick Start Guide 2MP H.265 IP LPR Camera with 7-22mm Motorised Lens with 50m IR
5
1.4 Specification
Camera
Image Sensor 1 / 2.8 “CMOS
Image Size 1920 × 1080
Electronic Shutter 1 / 25 s ~ 1 / 100000 s
Iris Type DC Iris
Minimum Illumination 0.0026 Lux @ F1.2,AGC ON, 0 Lux with IR, 0.005 Lux @ F1.6,
AGC ON, 0 Lux with IR
Lens Motorised zoom lens, 7–22mm @ F1.4
Lens Mount Φ14
Field of View Horizontal: 44°~17.6°
Wide Dynamic Range 120dB
BLC Yes
HLC Yes
Defog Yes
Digital NR 3D DNR
Angle Adjustment Pan: 0°~360°, Tilt: 0°~90°, Rotation: 0°~360°
Video Compression Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264
/ MJPEG
H.264 Compression
Standard Baseline Profile / Main Profile / High Profile
Resolution 1080p (1920 × 1080), 720p (1280 × 720), D1, CIF, 480 × 240
Main Stream 60Hz :1080p / 720p (1~30fps), 50Hz : 1080p / 720p (1~25fps),
HFR Mode : 1080p / 720p (1~60fps / 50fps)
Sub Stream 60Hz : 720p / D1 / CIF (1~30fps), 50Hz: 720p / D1 / CIF
(1~25fps)
Third Stream 60Hz : D1 / CIF / 480 × 240 (1~30fps), 50Hz : D1 / CIF / 480 x
240 (1~25fps)
Bit Rate 64 Kbps ~ 6 Mbps
Bit Rate Type VBR / CBR
Audio Compression G711A/U
Image Settings
ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic,
Sharpen, NR, etc. Adjustable through client software or web
browser.
ROI Each ROI to be configured separately
Functions
Remote Monitoring Web browsing, CMS remote control
Online Connection Supports simultaneous monitoring for up to 10 users. Supports
multi-stream real time transmission
Network Protocol UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP,
SNMP, 802.1x, UPnP, HTTP, HTTPs, QoS
Interface Protocol Onvif compatible
Intelligent Analytics License plate recognition, video abnormality detection (video
tampering, scene change)
Storage Network remote storage, Micro SD card storage
Smart Alarm Motion detection, Sensor alarm, SD card full, SD card error, IP
address conflict, Network disconnection
General Function
Watermark, IP address filtering, video mask, heartbeat,
password protection, non-photosensitive switch, image
distortion correction
PoE Yes, (802.3af)
IR Distance 50~70m

Quick Start Guide 2MP H.265 IP LPR Camera with 7-22mm Motorised Lens with 50m IR
6
LPR
Snapshot Overview and cutout of plate for picture
White List 10000
Capture Speed Range 0~70km/h
Interface
Network RJ45
Video Output No
Audio 1CH audio input and output
Alarm 1CH alarm input, 1CH alarm output
Storage Built-in Micro SD card slot, up to 128GB
Hardware Reset Yes
Others
Ingress Protection IP67
Power Supply DC12V / PoE
Power Consumption < 11W
Operating Environment -30 °C ~ 60°C (-22 °F~140°F) Humidity: Less than 95 % (Non-
Condensing)
Dimensions 279.5 × 100.3 × 88.9 mm
Weight Approx. 1.04 Kg

7

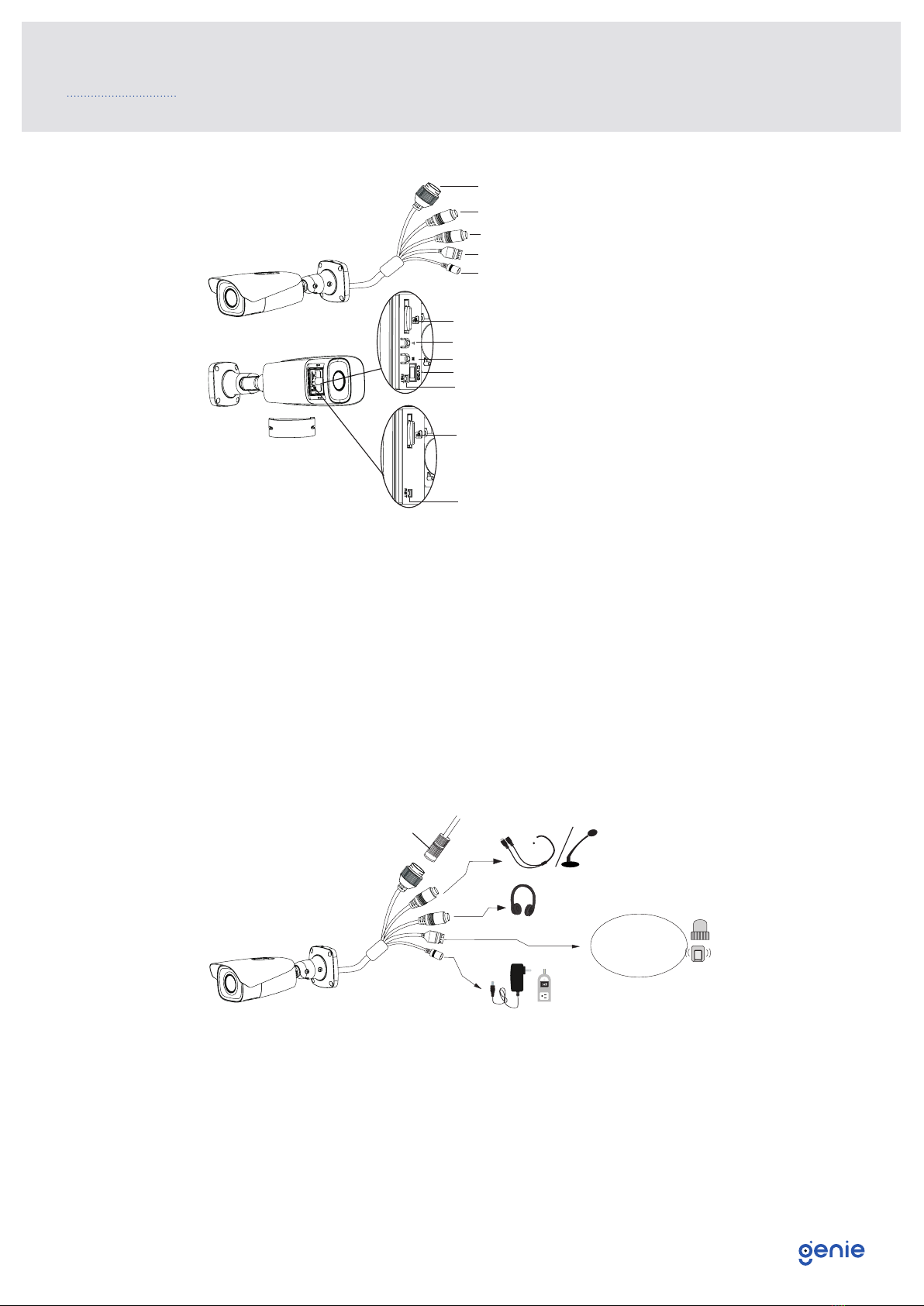

2.0 Overview
1. F Ethernet Connector
2. MIC-Audio Input
3. HP-Audio Output
4. Alarm Output/Input
5. Power Connector *
6. Micro SD Card Slot
7. Zoom +*
8. Zoom -*
9. CVBS output (unavailable)
10. Reset
1
3
4
5
2
ALAR
M
4
3
2
1
6
6
7
8
9
10
10
(Type A)
(Type B)
* If the PoE switch is used to power the camera, DC12V power supply is not required.
* Only some models support T&W buttons. If your camera doesn’t have these two buttons,
please skip 7 and 8.
ALARM
4321
Security Cap
DC12V
1. ALM-COM
2. ALM-OPEN
3. ALM-INA
4. ALM-GND

Quick Start Guide 2MP H.265 IP LPR Camera with 7-22mm Motorised Lens with 50m IR
8
1. Loosen the nut from the main element.
2. Run the network cable (without RJ 45 connector) through the both elements. Then
crimp the cable with RJ 45 connector.
3. Connect the cable to the hermetic connector. Then tighten the nut and the main cover.
Connecting Network Cable
Connecting Alarm Input/Output
Sensor
Alarm
Power Source
IPC
IPC
Alarm-INA
Alarm-INA
Alarm-GND
Alarm-GND
4
3
+
+
--

9
Please make sure that the wall or ceiling is strong enough to withstand 3 times the weight
of the camera. Please install the camera in and under a dry environment.
1. Attach the drill template to the place where you want to fix the camera. Then drill the
screw holes and the cable hole on the wall according to the drill template.
2. Route and connect the cables.
3. Secure the mounting base with camera to the wall with the screws provided.
4. Bracket adjustment. Before adjustment, preview the image of the camera on a monitor
and then loosen the fixed ring to adjust the view angle of the camera.
5. Open the cover of the camera as shown in the following figure and then insert a micro
SD card.
3.0 Installation
Mounting Base
360° Pan
90° Tilt
360° Rotation
Fixed Screws
5
64.6mm
64.6mm

Quick Start Guide 2MP H.265 IP LPR Camera with 7-22mm Motorised Lens with 50m IR
10
6. Press T/W button to obtain an optimum image. Before adjustment, view the image of
the camera on a monitor.
Note: Only some models support T&W buttons. If your camera doesn’t have these two
buttons, please skip step 6.
7. Install the cover back to the camera and fix it firmly with the screws. (Note that the
cover should not be installed unevenly
Zoom + Zoom -
Cover
Insert Micro SD card

11
Connecting the Network Cable

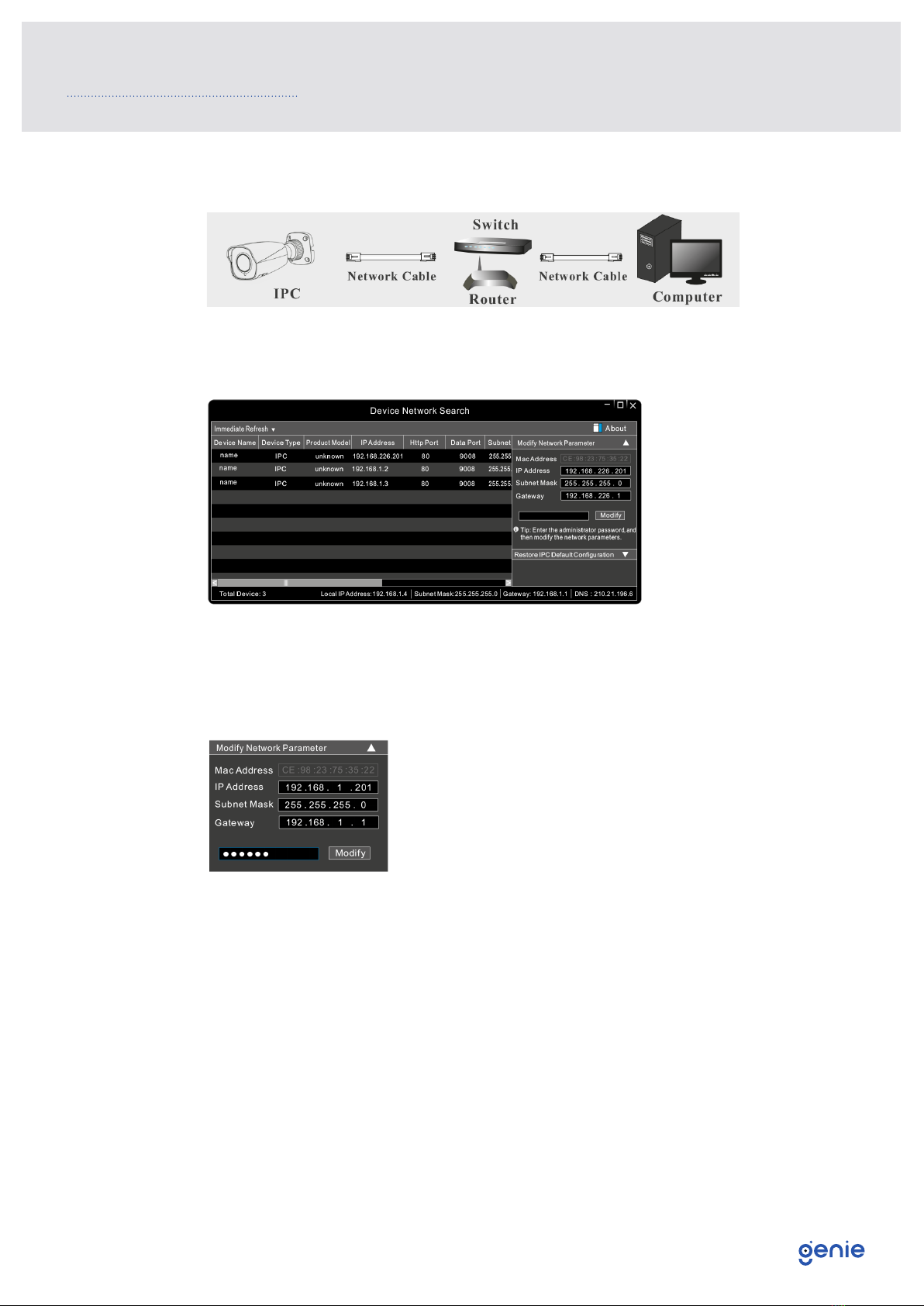

1. Make sure that the camera and the PC are well connected via LAN.
2. Find the IP-Tool from the CD and then install it in the computer. After that, run the IP
Tool as shown below.
3. Modify the IP address. The default IP address of this camera is 192.168.226.201. Click the
information of the camera listed in the above table to show the network information
on the right hand. Modify the IP address and gateway of the camera and make sure its
network address is in the same local network segment as that of the computer. Please
modify the IP address of your device according to the practical situation.
4. Double-click the camera listed in the IP-Tool or manually enter the IP address in
the address bar of the web browser to connect IP-CAM. Then follow directions to
download and install the plugin. Enter the username and password in the login
interface. The default username is admin; the default password is 123456.
4.0 Network Connection
For example, the IP address of your computer is 192.168.1.4. So the IP address of the
camera shall be changed to 192.168.1.X and the gateway shall be changed to 192.168.1.1.
After modification, please enter the password of the administrator and click “Modify”
button to modify the settings. The default password of the administrator is “123456”.
