Genie WIPX4BVAF722 User manual

Quick Start Guide
Please read these instructions carefully before operating the unit
and keep for further reference.
4MP H.265 IP IR Bullet Camera
with 7-22mm Auto Focus Lens
and Facial Recognition
WIPX4BVAF722

ii
Intro Section
Please read this instruction carefully before operating the product and keep it for further
reference. All examples and pictures used here are for reference only.
The contents of this manual are subject to change without notice.
CAUTION:
• If the product does not work properly, please contact your dealer or the nearest service
centre. Never attempt to disassemble the camera yourself. We shall not be responsible
for any problems caused by unauthorised repair or maintenance.
• Do not allow water or liquid into the camera while in use.
• When using the product, you must be in strict compliance with the electrical safety
regulations of the nation and region.
• When the product is mounted on wall or ceiling, the device needs to be firmly fixed.
• Make sure the power supply voltage is correct before using the camera.
• Do not drop the camera or subject it to any physical shock.
• If cleaning, please use a clean soft cloth with a little neutral detergent to wipe it gently.
• Do not aim the camera at the sun or in any area where there is bright lighting.
• The device may be burned out by a laser beam, so when any laser equipment is in use,
make sure that the surface of the device will not be exposed to the laser beam.
• Do not place the camera in extremely hot, cold , dusty or damp locations, and do not
expose it to high electromagnetic radiation.
• To avoid heat accumulation, good ventilation is required for operating environment.

Contents
iii
1.0 Introduction..........................................................................................................4
1.1 Product Features...........................................................................................4
1.2 Product Dimensions.....................................................................................4
1.3 Contents ......................................................................................................4
1.4 Specification ................................................................................................5
2.0 Overview..............................................................................................................7
3.0 Installation............................................................................................................9
4.0 Network Connection ...........................................................................................11

4
The Genie WIPX4BVAF722 is a 4MP IP IR bullet camera with a 7–22mm auto focus lens. The
camera features intelligent analytics as well as facial recognition when paired with any
Genie AI NVR.
1.1 Product Features
• Maximum resolution: 2592 × 1520
• 50 ~ 70m IR night view distance
• 4MP (2592 × 1520) H.265 full real time coding
• 3D DNR, true WDR, HLC, BLC, Defog, Smart IR and ROI coding
• ICR auto switch, true day / night
• Built-in micro SD card slot, up to 128GB
• DC12V/PoE power supply
• Supports three streams
• Support remote monitoring by smart phones and tablet PC’s with iOS and Android OS
• Intelligent analytics
• IP67 ingress protection
• Supports image distortion correction

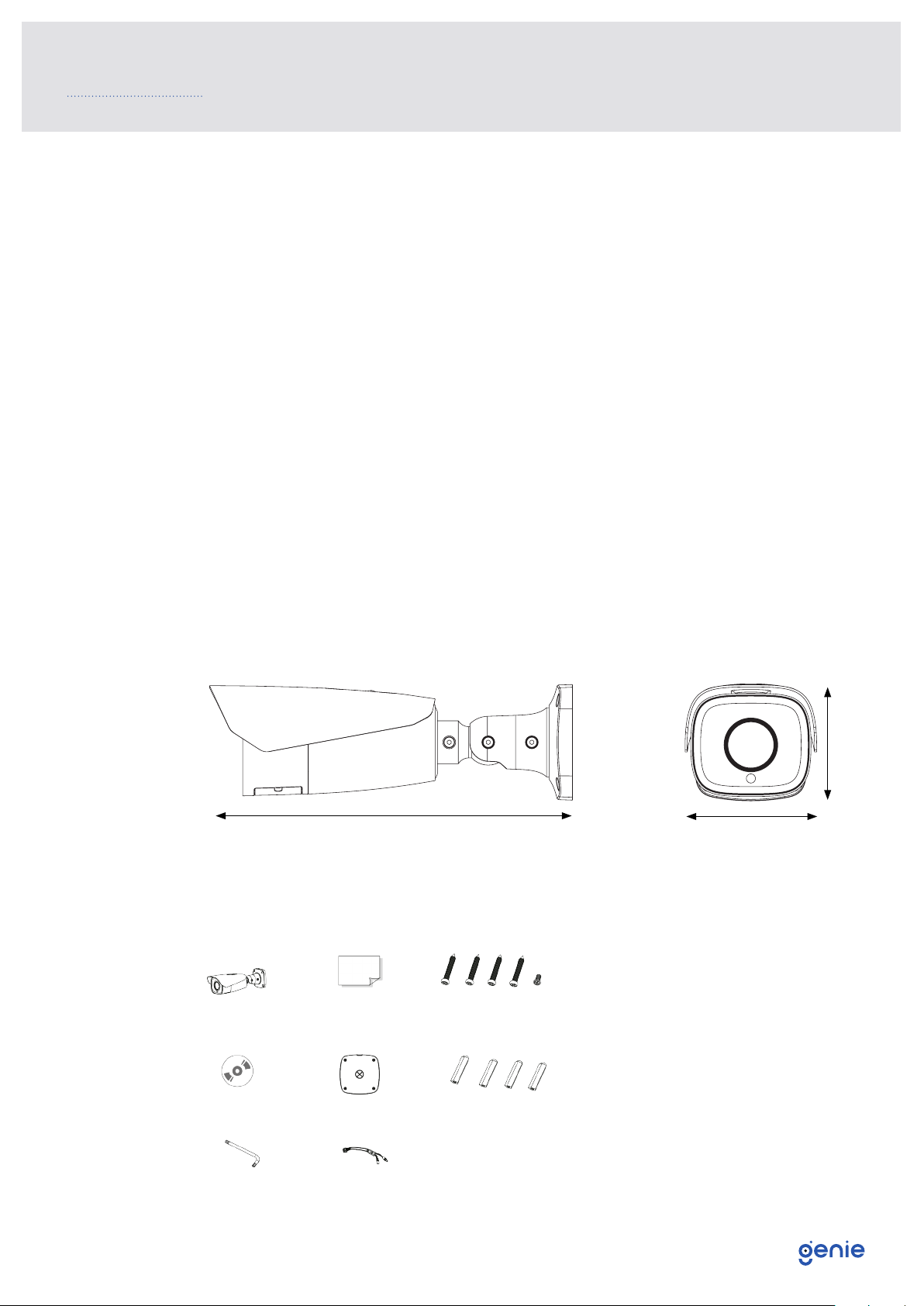

1.2 Product Dimensions
1.3 Contents
1.0 Introduction
Camera Quick Start Guide 4 Tapping Screws PA 4×25
1 Machine Screw PWM3×5
CD Drill Template Plastic Plug x4
L-Wrench CVBS & DC In Cables
279.5mm 100.3mm
88.9mm

Quick Start Guide 4MP H.265 IP IR Bullet Camera with 7-22mm Auto Focus Lens and Facial Recognition
5
1.4 Specification
Camera
Image Sensor 1 / 3” CMOS
Image Size 2592 × 1520
Electronic Shutter 1 / 30 s ~ 1 / 100000 s
Iris Type DC Iris
Minimum Illumination 0.005 Lux @ F1.4,AGC ON, 0 Lux with IR
0.0028 Lux @ F1.2,AGC ON, 0 Lux with IR
Lens 7–22mm @ F1.6, motorised zoom lens
Lens Mount Φ14
Field of View Horizontal field of view: 94.2°~29.8°
Wide Dynamic Range 120dB
BLC Yes
HLC Yes
Defog Yes
Digital NR 3D DNR
Angle Adjustment Pan: 0°~360°, Tilt: 0°~90°, Rotation: 0°~360°
Video Compression Smart H.265, H.265+, H.265, Smart H.264, H.264+, H.264, MJPEG
H.264 Compression Standard Baseline Profile, Main Profile, High Profile
Resolution 4MP (2592 × 1520), 2K (2560 × 1440), 3MP (2304 × 1296),
1080p (1920 × 1080), 720p (1280 × 720), D1, CIF, 480 × 240
Main Stream 4MP, 2K, 3MP, 1080p, 720p (60Hz : 1 ~ 30fps, 50Hz: 1~25fps)
HFR mode: 1080p, 720p (60Hz : 1 ~ 60fps, 50Hz: 1~50fps)
Sub Stream 720p, D1, CIF (60Hz : 1 ~ 30fps, 50Hz: 1~25fps)
Third Stream D1, CIF, 480 × 240 (60Hz : 1 ~ 30fps, 50Hz: 1~25fps)
Bit Rate 64 Kbps ~ 8 Mbps
Bit Rate Type VBR / CBR
Audio Compression G711A / U
Image Settings ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen,
NR, etc. Adjustable through client software or web browser.
ROI Each ROI to be configured separately
Functions
Remote Monitoring Web browsing, CMS remote control
Online Connection Supports simultaneous monitoring for up to 4 users. Supports multi-
stream real time transmission.
Network Protocol UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP,
HTTP, 802.1x, UPnP, HTTPs, QoS
Interface Protocol Onvif compatible
Intelligent Analytics
Line crossing, region entrance/exiting / intrusion (human / motor
vehicle / non-motor vehicle classification)
Line crossing human / motor vehicle / non-motor vehicle counting
Scene change, video blur and video color cast detection
Face recognition and face capture
Crowd density detection, heat map, object abandoned / missing
detection
Storage Network remote storage, micro SD card storage
Smart Alarm Motion detection, sensor alarm, SD card error, SD card full, IP address
conflict, cable disconnection
General Function Watermark, IP address filtering, video mask, heartbeat, password
protection, non-photosensitive switch, image distortion correction
PoE Yes , IEEE802.3af
IR Distance 70 ~ 100 m

Quick Start Guide 4MP H.265 IP IR Bullet Camera with 7-22mm Auto Focus Lens and Facial Recognition
6
Interface
Network RJ45
Video Output CVBS output (BNC x1)
Audio 1CH audio input, 1CH audio output
Alarm 1CH alarm input, 1CH alarm output
Storage Built-in micro SD card slot, up to 128GB
Hardware Reset Yes
Others
Ingress Protection IP67
Power Supply DC12V / PoE
Power Consumption < 10W
Operating Environment
- 30 °C ~ 60°C (-22°F~140°F)
Humidity: Less than 95%
(Non-condensing)
Dimensions 279.5 × 100.3 × 88.9 mm
Weight Approx. 1.04 Kg

7

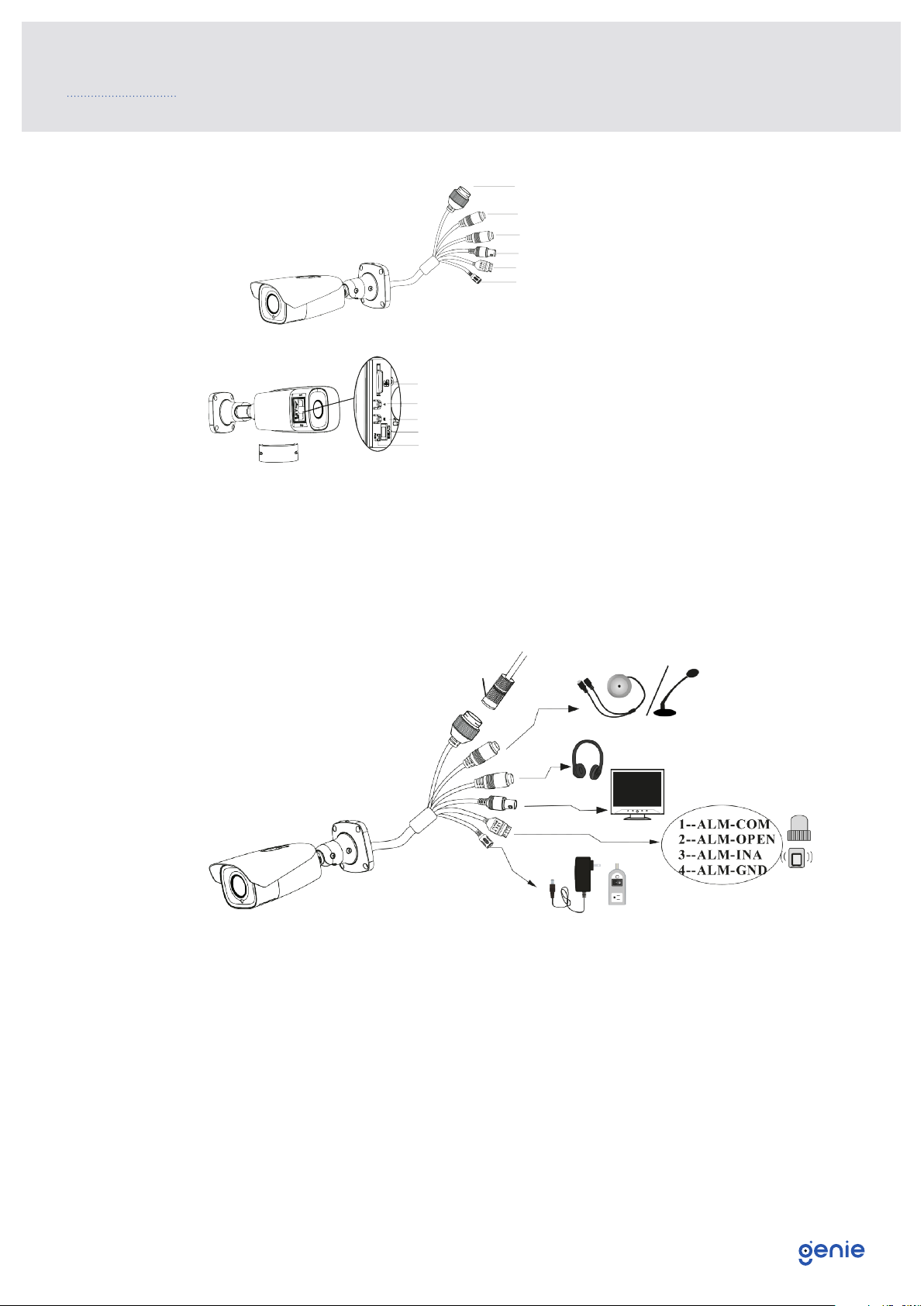

1. Ethernet Connector (It is
recommended to install the
security cap for outdoor
installation)
2. Audio Input (MIC)
3. Audio Output (HP)
4. CVBS Video Output
5. Alarm Input/Output
6. Power Connector (Can be
powered by DC 12V/PoE power
supply. If the PoE switch is used
to power the camera, DC12V
power supply is not required).
7. Reset (Press and hold the reset
button for more than 5 seconds
to restore to the factory default
setting).
8. DC IN & CVBS Interface
9. Zoom –
10. Zoom +
11. Micro SD Card Slot
2.0 Overview
Security Cap
1
2
3
4
5
6
7
8
9
10
11
DC12V
Alarm Input: Join the grounding ends of the sensor and the camera and then connect
the signal cable of the sensor to the alarm input port of the camera.
Alarm Output: Loosen the screws in the alarm output port. Then insert the signal wires
of the alarm output devices into the port of COM and OPEN separately. Finally tighten
the screws. Some of the external alarm output devices need the power supply.

Quick Start Guide 4MP H.265 IP IR Bullet Camera with 7-22mm Auto Focus Lens and Facial Recognition
8
1. Loosen the nut from the main element.
2. Run the network cable (without RJ 45 connector) through both elements. Then crimp
the cable with RJ 45 connector.
3. Connect the cable to the hermetic connector. Then tighten the nut and the main
cover.
Connecting Network Cable

9
Please make sure that the wall or ceiling is strong enough to withstand 3 times the weight
of the camera. Please install the camera in and under a dry environment and place the
cover of the camera within 4 hours of removing it.
1. Drill the screw holes and the cable hole (if you want to route through the ceiling) on the
wall or ceiling according to the drill template.
2. Route and connect the cables.
3. Secure the mounting base with camera to the wall with the screws provided.
4. Bracket adjustment. Before adjustment, preview the image of the camera on a monitor
and then loosen the fixed screws to adjust the view angle of the camera. After, tighten
the fixed screws.
3.0 Installation
Mounting Base
Fixed Screws
360° Pan
90° Tilt
360° Rotation

Quick Start Guide 4MP H.265 IP IR Bullet Camera with 7-22mm Auto Focus Lens and Facial Recognition
10
5. Open the cover of the camera as shown in the following figure and then insert a micro
SD card. After that, adjust Zoom or Focus to obtain an optimum image. Press the T or
W button for Type A; adjust the Focus and Zoom screws for Type B. Before adjustment,
view the image of the camera on a monitor.
6. Install the cover back to the camera and fix it firmly with the screws. (Note that the
cover should not be installed unevenly).
Cover
Monitor
Zoom+
Type A- Motorised Zoom Camera
Zoom-
Insert a Micro
SD card
