GeoCue TrueView 515vB Installation manual

1/13/2023
GeoCue
1/13/2023
Version 1.0
TrueView 515vB Hardware
Users Guide
Compatible with LP360 version 2022.1.48 and newer.

TrueView 515vB Hardware Users Guide
2
1/13/2023
TABLE OF CONTENTS
About GeoCue ........................................................................................................................................4
About LP360 Drone.................................................................................................................................5
About TrueView Reckon .........................................................................................................................6
A TrueView Cycle .................................................................................................................................... 7
System Configuration File (SCF).......................................................................................................... 7
FCC and IC compliance............................................................................................................................8
Notice to users........................................................................................................................................9
Warnings.............................................................................................................................................9
Disposal ............................................................................................................................................ 10
TrueView Hardware Integration Kit (M600) .......................................................................................... 11
Installing the Top Plate ..................................................................................................................... 11

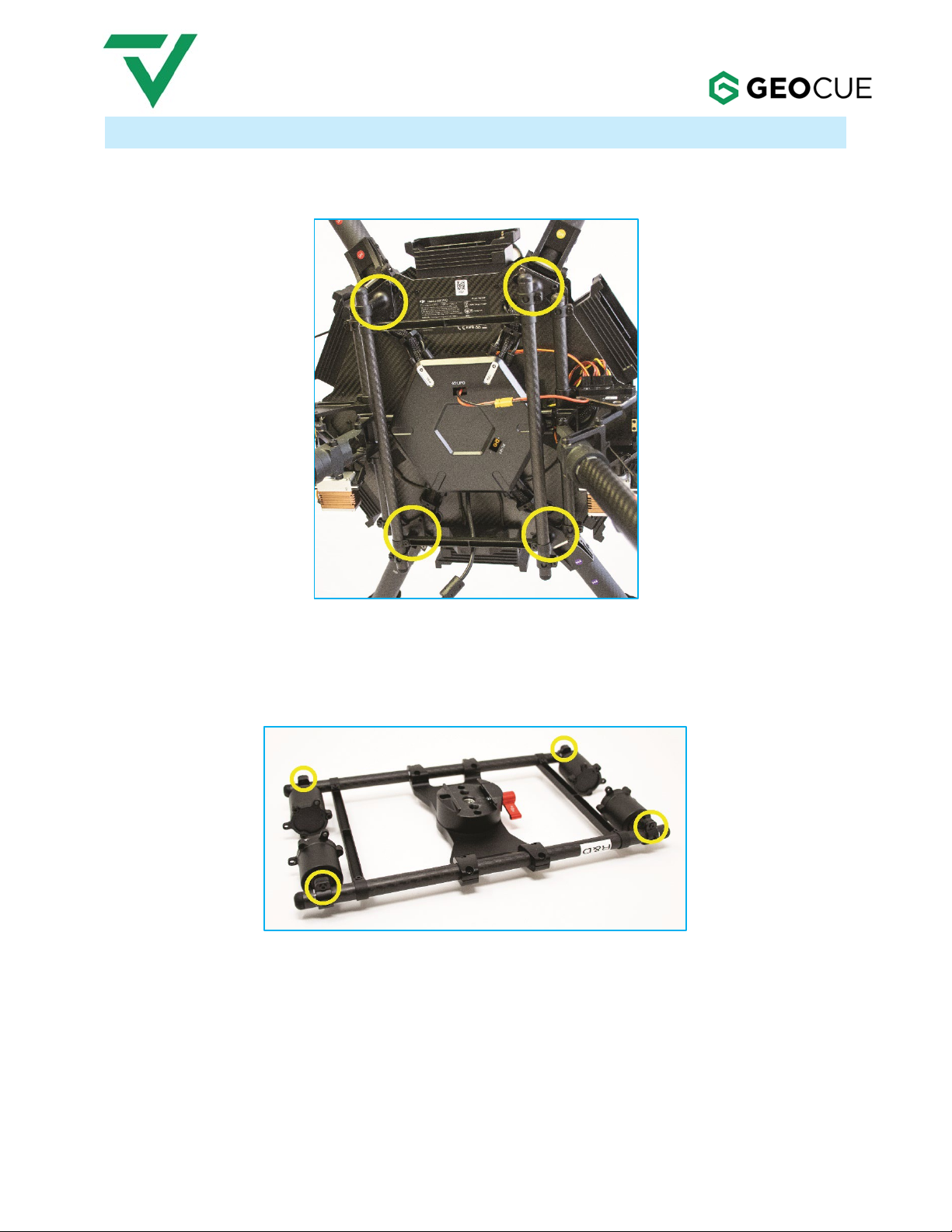

Installing the Ronin Mount ......................................................................................................... 14
TrueView Hardware Integration Kit (M300)........................................................................................... 16
Installing the Antenna Mast Base.............................................................................................. 16
Installing M300 TrueView Mounting Bracket..................................................................................... 18
TrueView 3DIS Installation.................................................................................................................... 21
TrueView Battery..................................................................................................................................24
TrueView External Power Adapter ........................................................................................................ 25
Trueview Data Storage Devices ............................................................................................................26
UMS..................................................................................................................................................26
Firmware Update.................................................................................................................................. 27
Trueview 515vB Field Operations..........................................................................................................28
Base Station......................................................................................................................................28
Pre-Flight..........................................................................................................................................29
Disable Obstacle Avoidance.............................................................................................................. 31
Center of Gravity (GC) Calibration..................................................................................................... 32
LED Lights ........................................................................................................................................ 34
Takeoff preparation .......................................................................................................................... 36
Multifunction button......................................................................................................................... 36
Heading Alignment Maneuver .......................................................................................................... 37

TrueView 515vB Hardware Users Guide
3
1/13/2023
After Landing .................................................................................................................................... 39
Measuring GNSS Lever Arm Offsets .....................................................................................................40
Z Offset........................................................................................................................................... 41
X Offset...........................................................................................................................................42
Y Offset........................................................................................................................................... 43
TrueView Mission Checklist ..................................................................................................................44
Debug port........................................................................................................................................ 45
Debug cable ...................................................................................................................................... 45
Hardware Maintenance.........................................................................................................................46
Dust Filter .........................................................................................................................................46
FAQ ...................................................................................................................................................... 47
Support.................................................................................................................................................48

TrueView 515vB Hardware Users Guide
4
1/13/2023
ABOUT GEOCUE
GeoCue was founded in 2003 by a group of engineers with extensive experience in developing hardware
and software solutions for primary remote-sensed data acquisition. Our initial products were aimed at
reducing schedule and cost risk in geospatial production workflows by providing organizational,
productivity and data management tools for base geospatial data production. These tools have been
realized as the GeoCue product family. Today GeoCue workflow management tools are used by a
majority of North American geospatial production shops. In 2005, GeoCue began selling and supporting
Terrasolid tools for kinematic LiDAR data production. This was followed in 2009 by our acquisition of
QCoherent Software LLC, the creator of the point cloud exploitation toolset, LP360. Today GeoCue is
the largest supplier of kinematic LiDAR processing tools in North America and LP360 is the world’s
most widely used tool for exploiting point cloud data. In 2014, GeoCue started a division focused on
using small Unmanned Aerial Systems for high accuracy mapping. Leveraging our expertise in
production, risk reduction, and point cloud processing tools, we are continuing to bring new services
and products to market to provide surveyors and other geomatics professionals exciting tools for
geospatial data extraction using low-cost drones including Loki, our plug-and-play PPK direct
positioning system, and now our TrueView LiDAR/Imagery fusion (3DIS) sensors. To learn more, visit
www.geocue.com.

TrueView 515vB Hardware Users Guide
5
1/13/2023
ABOUT LP360 DRONE
LP360 is a 64-bit Windows® desktop application used for many years by the LP360 Geospatial
community for processing traditional aerial, mobile, and terrestrial tripod laser scanner data. The LP360
Drone community is the focus of this Users Guide containing the LP360 workflows for processing and
exploiting TrueView, microdrones® and guest sensor drone data. Formerly called TrueView EVO, LP360
Drone, is GeoCue’s LP360 point cloud exploitation product with the addition of a collection of tools and
workflows for processing drone data. LP360 Drone is the software used to post-process your raw flight
data to generate a 3D LiDAR point cloud in LAS format, colorize the point cloud, and geotag the images
collected. LP360 also has many tools for assessing and processing point cloud data, such as accuracy
assessment, automatic and manual ground classification, and contour/ surface generation. LP360
Drone is available in the following licensing levels:
•LPViewer – A free viewer level of LP360 for viewing a point cloud.
•TrueView EVO/LP360 Drone Explorer – A low-cost inspector license equivalent to LP360
Viewer, with Image Explorer enabled for viewing True Pose® photos, and Import TrueView
Cycle for field QC checks. This is also the license that should be purchased for delivery with
LP360 Explorer Packages provided to end users so they can make full use of the TrueView 3DIS
point cloud and photos, plus any derivative products you generate for them.
•LP360 Drone – Enables PPK processing for guest systems, such as the DJI P4RTK plus
TrueView 2DIS and 3DIS. This is the next generation ASPSuite Advanced and is equivalent to
LP360 Standard with the addition of the TrueView workflow tools and tools for ground
classification and volumetric computations. It is limited to product areas of no more than 10
km2of LAS data. Available as an annual subscription or a perpetual license.
•LP360 Drone+Fast Photo – Enables local Fast Orthomapping at a lower resolution, local
Orthomapping processing if you have your own Metashape license, and Cloud based
Orthomapping (using TrueView points). Available as an annual subscription or a perpetual
license.
•LP360 Drone+Cloud Photo 3000 – Enables local Fast Orthomapping, local Orthomapping
processing if you have your own Metashape license, and Cloud based Orthomapping (includes
3000 photos per month, additional photos may be processed using TrueView points). Available
as an annual subscription or a perpetual license.
•LP360 Drone+Strip Align – Enables Strip Align tools for adjusting for dynamic trajectory errors
in the dataset. Available as an annual subscription or a perpetual license.
•LP360 Drone+Business Intelligence Tools – Enables specific point cloud tasks designed for
extraction of non-ground features, such as rail, power lines, buildings, trees. Available as an
annual subscription or a perpetual license.
•LP360 Drone+Unlimited – this is the same functionally as LP360 Drone with the size limit
removed. Available as an annual subscription or a perpetual license.

TrueView 515vB Hardware Users Guide
6
1/13/2023
The legacy TrueView EVO license levels are:
•TrueView EVO, formerly named TrueView EVO Lite – Enables PPK processing for guest
systems, such as the DJI P4RTK. This is the next generation ASPSuite Advanced and is
equivalent to LP360 Advanced with the addition of the TrueView workflow tools. It is limited to
product areas of no more than 10 km2of LAS data.
•TrueView EVO 3DIS, formerly named TrueView EVO – This is equivalent to LP360 Advanced
with the addition of the TrueView workflow tools. It is limited to product areas of no more than
10 km2of LAS data.
•TrueView EVO Unlimited – this is the same functionally as TrueView EVO with the size limit
removed. Available as an annual subscription.
ABOUT TRUEVIEW RECKON
TrueView Reckon is an Amazon Web Services (AWS) hosted platform that is used for a variety of
purposes in TrueView (and other) workflows. It provides services such as (items marked with a $T are
extra cost, paid in TrueView Points):
•Project data hosting and visualization ($T)
•Data archival ($T)
•Management and automatic delivery of sensor calibration files
•Automatic sensor health check
•Transfer of sensor Cycle data to GeoCue for technical support
•Management of TrueView Points for services that are paid via a metering scheme (marked in
this list with $T)
•Transaction history of sensor usage
•other related services
TrueView Reckon is accessed from within LP360 Drone in various workflows. These workflows might
require an LP360 Drone user to provide their Reckon login credentials. TrueView Reckon also has a web
interface for data visualization and account monitoring.
Every customer with a TrueView or guest sensor (whether purchased or a rental) is provided a Reckon
account.

TrueView 515vB Hardware Users Guide
7
1/13/2023
A TRUEVIEW CYCLE
All TrueView and GeoCue sensors running the latest firmware, write their various data streams to a
standard file folder structure called a“Cycle” on the UMS (Universal Mass Storage). The original
meaning of cycle was an on/off cycle of the sensor. It is possible to have multiple collections
(flights, in the case of adrone) in asingle Cycle, so it is not necessarily correct to think of Cycle as being
synonymous with flight,though it is typically.
System Configuration File (SCF)
If and update is needed the System Configuration file (SCF) (SystemConfiguration.json), must be
placed on the TrueView Universal Mass Storage (UMS). The file will be copied into the internal storage
of the payload and the Cycle\System folder as each Cycle is created. Once the SCF is updated it can be
deleted from the UMS. The SCF contains information on the calibration parameters of all components
for each TrueView system and is used by LP360 to process TrueView data. The latest calibration file for
each sensor is stored on the TrueView Reckon portal. Note: For concerns regarding calibration or to
verify the SCF requires updating contact GeoCue Customer Support for more information.

TrueView 515vB Hardware Users Guide
8
1/13/2023
FCC AND IC COMPLIANCE
This device complies with Part 15 of the FCC Rules and Industry Canada License-exempt RSS
standard(s). Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
Parts used in the construction of this device may contain radio components or functionality. The parts
were selected based upon availability and are compliant with FCC and Industry Canada rules and
standard(s). Compliance statements and / or certification can be obtained within the manufactures’
resources.
This device contains the following parts:
Component Hardware
Version ID no.
Product
Marketing Name
Firmware
Version ID no.
IC no. FCC no.
Raspberry Pi-4
model B
Raspberry Pi,4
model B
Raspberry Pi,4
model B
n/a 20953-RPI4B 2ABCB-RPI4B
APPLANIX APX-15
/20
n/a n/a n/a Please see
Manufacturer
Compliance
Certificate
Please see
Manufacturer
Compliance
Certificate
Hesai PandarXT-32 n/a n/a n/a Please see
Manufacturer
Compliance
Certificate
2ASO2PANDARX
Table 1. Radio components in the TrueView 515vB payload.

TrueView 515vB Hardware Users Guide
9
1/13/2023
NOTICE TO USERS
Warnings
Read these warnings carefully before you use TrueView 515vB payload.Failure to do so can result
in serious injury.
WARNING
Do not attempt to take apart, reassemble, or alter the TrueView 515vB payload series as it
will void the warranty. Only qualified personnel can service the payload.
CAUTION
Do not disconnect the power from the drone/payload until the payload is fully powered OFF.
CAUTION
Do not expose the payload to rain or water.
CAUTION
This payload has an operation range of -10°C up to 50°C. Operation outside this temperature
range can lead to damage to the payload.
WARNING
This is a Class 1 laser and is not hazardous however, do not look directly at the laser light or
direct it toward people at any time. The payload contains infrared lasers which are invisible to
the human eye and can cause harmful exposure and injury.

TrueView 515vB Hardware Users Guide
10
1/13/2023
Disposal
Do not put batteries or other electrical equipment into general waste containers. Substances in
batteries are harmful to human health and the environment. Dispose of electrical equipment at a
collection point or recycling center. Contact your local authority for detailed information.
WARNING
Do not block the cooling vents located on the right and left side of the payload. If you block the
cooling vents the payload will become too hot.
