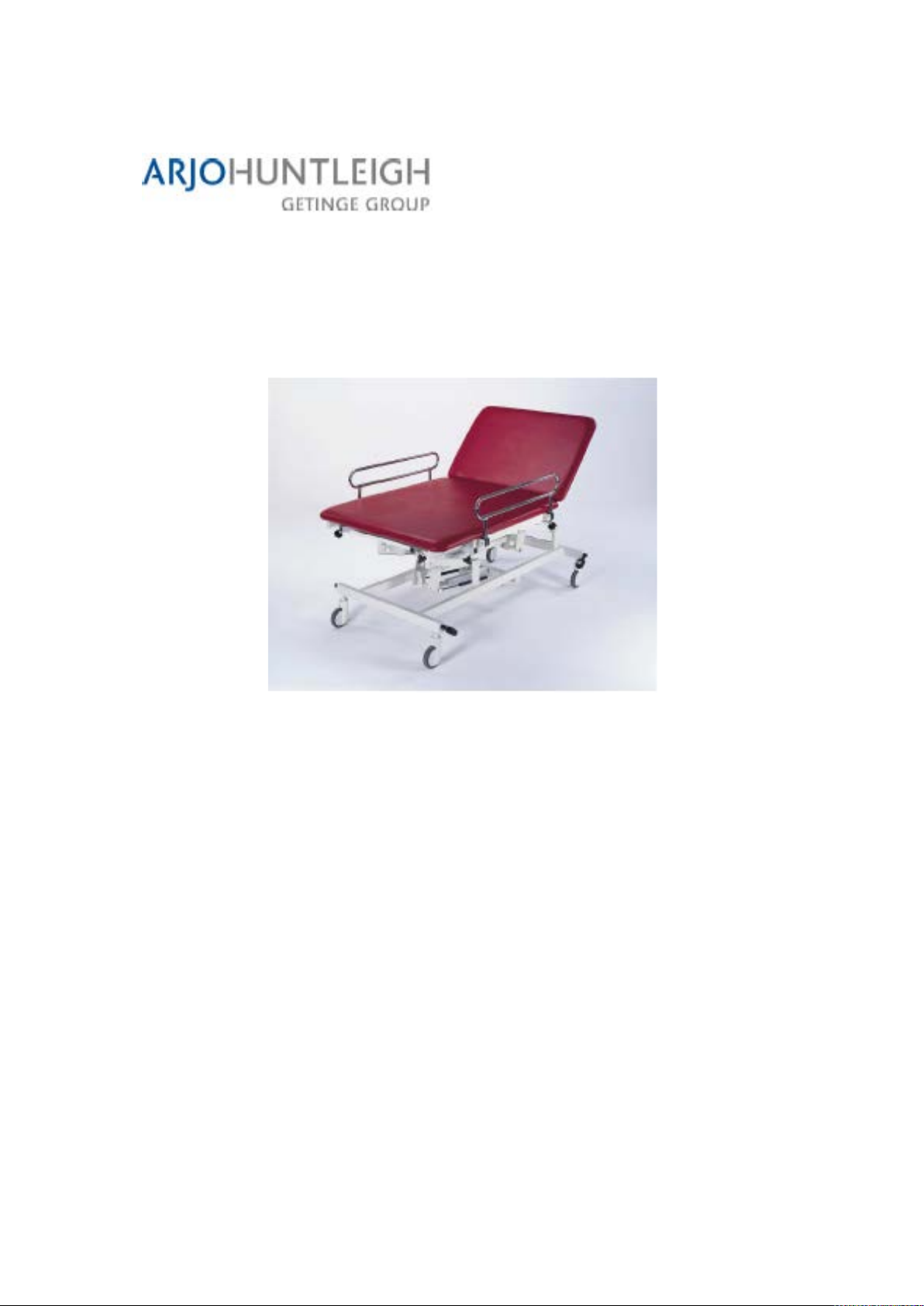

Getinge ArjoHuntleigh Akron BoBath 5 4632 User manual

Akron BoBath 5
Instructions for Use
...with people in mind
792-462_03CN.REG • 03/2016

Intentionally left blank

792-462-02
UM ENGLISH
USER MANUAL
AKRON
®
BOBATH 5
Model
4632

AKRON 4632
1
Contents
1. Introduction 2
Warnings, Cautions 2
General Warnings 2
2. Installation 3
3. Operation 4
4. Optional Accessories 5
5. Cleaning and Decontamination 9
6. Troubleshooting 10
7. Maintenance 10
8. Warranty and Service 11
12
9. Revision Status 12
10. Technical Specification 13
11. Transport and Storage 14
12. Environmental Protection 14
The mark on this product demonstrates conformity with the EC Directive 93/42/EEC.

AKRON 4632
2
1. Introduction
Always keep this Operating Manual available for reference.
Warnings & Cautions
General Warnings
WARNINGS
Warnings identify possible hazards in procedures or conditions which, if not correctly followed,
could result in death, injury or other serious adverse reactions.
CAUTIONS
Cautions identify conditions or procedures which, if not correctly followed, could result in equipment
failure or damage.
WARNINGS
Use only accessories that have been designed or approved for use with this table.
Do not use electric tables in the presence of flammable gasses such as an
anaesthetic agent.
Maximum Load 325 Kg (715 lbs) distributed evenly.
Do not concentrate weight on either side of the table.
Plug acts as a disconnect device.
Do not allow children to play with the table at any time.
Adequately supervise children in the proximity of the table.

AKRON 4632
3
2. Installation
Ensure mains supply cable is not stretched when connected.
Ensure, during table use, no obstacles are in its path.
Ensure hand / foot switch tubes or leads are not trapped by moving parts of the table.
Battery Backup
The table should always be used with mains power connected.
The light on the control box indicates mains power is on.
Whilst 'on' batteries are trickle charged – in case of power failure.
To charge the accumulators, the control unit must be activated by shortly pressing one of the switch keys.
WARNING
Do not insert the 2-pin mains connector directly into a 3-pin 13A mains outlet.
Always use the adapter provided.
Plug acts as a disconnect device.
Use adapter if 3 pin 13A plug is required.
(Order reference 5S0409Z)
CAUTION
When not in use, switch table off.
CAUTION
Battery Backup is for the unlikely event of mains power failure / not normal use.

AKRON 4632
4
3. Operation
Elevation Controls
Handswitch Backrest Angles = +85º -0º
Wheel Locking
Wheels
Wheels Locked Directional Lock Wheels Unlocked
WARNING
Safely position patient before elevating table.
Position all electrical cables away from the moving parts.
Position Hand/Foot switch where accidental operation is not possible.
WARNING
Lock table wheels/castors prior to patient transfer or treatment.
The retractable castors are not designed for transportation of patients.
Disconnect and coil electrical cord away from moving parts prior to
repositioning table.
Press up to raise table
Press down to lower table
Press up to raise backrest
Press down to lower backrest

AKRON 4632
5
4. Optional Accessories - Operating Instructions
The accessories specifically designed for use with this product can be viewed on the Bobath 5 video
which can be found on the 2005 Catalogue CD Rom. The video covers a range of clinical procedures that
utilise these accessories and gives further details on fitting these items ready for use.

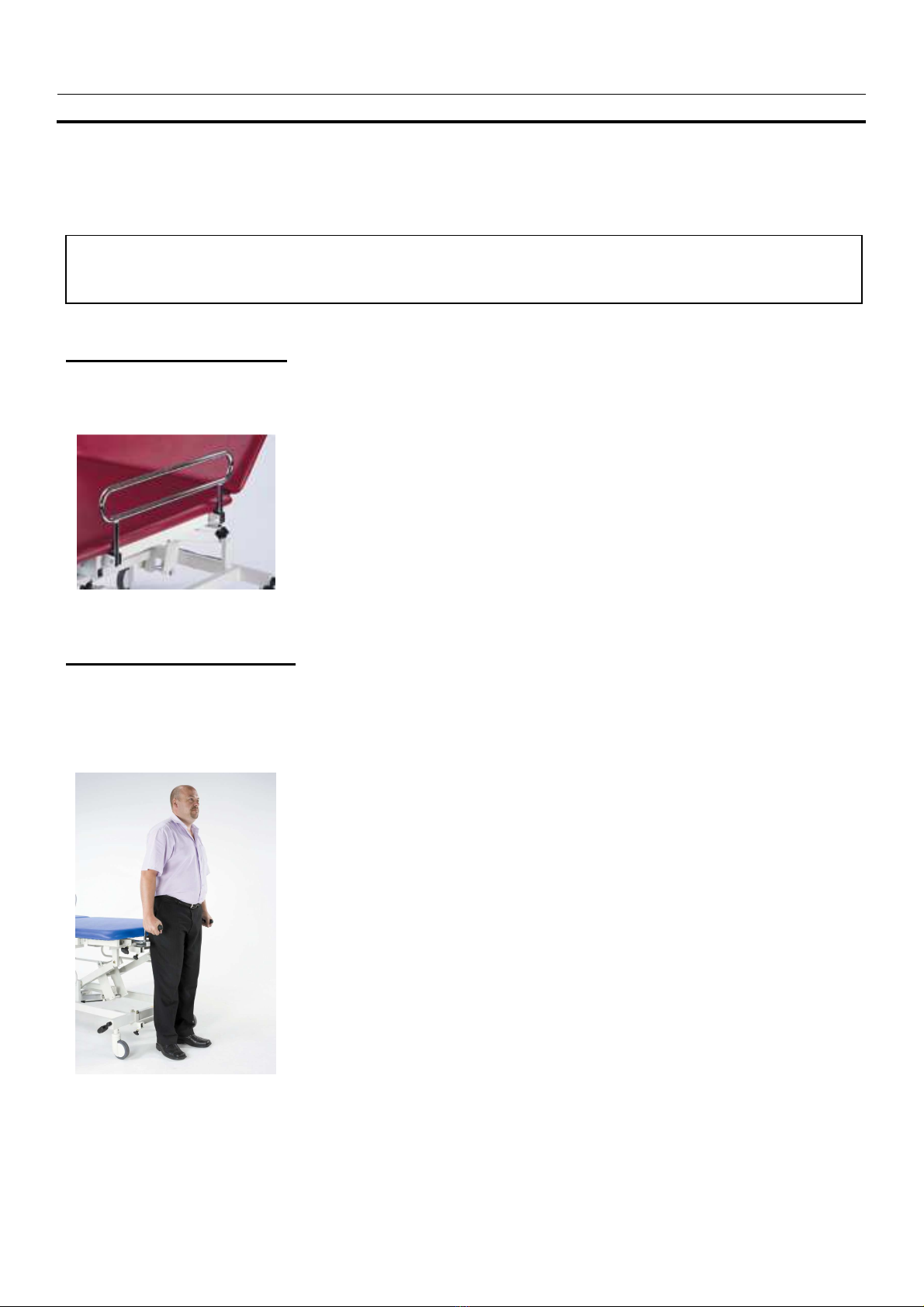

Fold-Down Safety Sides - Models 4604(Chrome) / 4605(Nylon Coated)
The Fold-down Safety Sides provide additional patient safety.
Patient Support Handles - Model 4602
These handles assist standing and stepping procedures. Their offset design caters for both the smaller or
larger patient.
CAUTION
Ensure accessories are secure prior to use.
A) To raise the safety side when in the down position, lift and rotate
towards you through 180°. Once upright, push the safety side
downwards into the moulded block until located fully.
B) To lower the safety side from the upright position, lift out of
the moulded block and rotate through 180° into the down position.
A) To insert support handles, position pin into socket.
B) Secure by tightening locking knob.
C) To remove support handles, loosen locking knob and lift support
handles out of the socket.

AKRON 4632
6
4. Optional Accessories - Operating Instructions
Patient Support Loops - Model 4603
These can be fitted to either side or at the foot of the couch. They can be used for a wide range of sitting
or standing exercises, balance training and wheelchair transfers. When locating them into the fixing
brackets, make sure that the ‘spring pins’ locate in the holes in the box section for additional security and
ensure the locking knobs are secure prior to use.
A) To insert arm loop, position pin into socket.
B) Secure by tightening locking knob.
C) To remove arm loop, loosen locking knob and lift arm loop
out of the socket.

AKRON 4632
7
4. Optional Accessories - Operating Instructions
Arm/Leg Support - Model 4607
This accessory can be fitted to either side or at the foot end of the couch. The padded support surface can
be adjusted and set at 3 different angles by releasing the red knobs at each side of the attachment and
relocating the integral pins into different holes. This attachment is used for a wide range of upper and
lower limb exercises and mobilisation techniques. It may also be used for prone standing procedures
where it can be used in combination with the knee block for additional support. A patient harness (Model
TT1 - supplied with knee block) can be used for added safety and is located and secured via the chrome
fixing bars of the Arm/Leg attachment frame.
To adjust Arm Support Table:-
A) Locate Arm Support table into bracket.
B) Secure by tightening locking knob.
C) To adjust angle of Arm Support Table, loosen lever
on underside of pad, adjust to desired position and
secure by tightening lever.

AKRON 4632
8
4. Optional Accessories - Operating Instructions

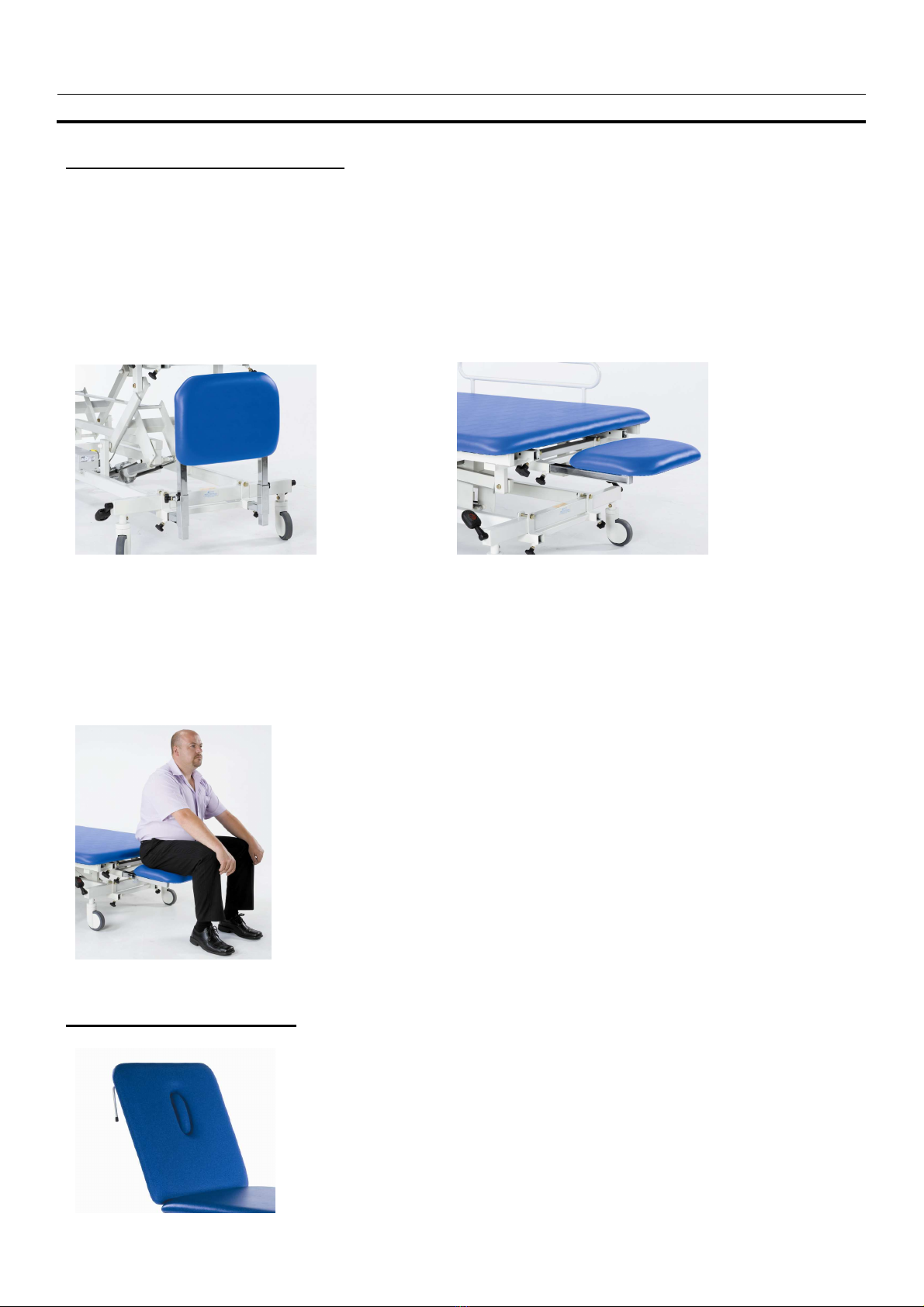

Knee Block & Low Level Seat - Model 4608
The knee block is located and positioned into brackets on the base frame at the foot end of the couch via
chrome plated right angled brackets that are inserted and then secured on each side by locking knobs. The
knee block can be adjusted for height and is easily removable when not in use. This attachment provides
additional stability for the patient during standing procedures and it can also be used conjunction with the
Arm/Leg Support for prone standing. The patient harness provided can be secured around the chrome
bars of the Arm/Leg attachment or the Support Loops when used in combination with either of these
accessories.
Knee Block Low Level Seat
The knee block can also ‘double up’ as a low level seat for seated assessments and ‘sit to stand’
procedures. It must be located into the brackets just below the upholstery surface at the foot end of the
couch and secured by the locking knobs on each side. The chrome right angled brackets are not required
for this procedure.
Breathing Hole and Plug
To remove seat frame:-
A) Loosen locking knob on underside.
B) Slide seat frame horizontally away from couch.
To refit seat frame:
A) Locate seat frame into tubes.
B) Secure by turning locking knob on underside clockwise to tighten.
Remove plug for patient prone position
Press out from underneath

AKRON 4632
9
5. Cleaning and Decontamination
Frequency of routine table cleaning will depend on exact application.
CLEANING / DECONTAMINATION
1. Wear protective clothing: plastic disposable apron and gloves.
2. Disconnect any mains supply and lock table wheels.
3. Control handsets can be wiped over using a 70% Isopropranol alcohol wipe.
4. Prepare a solution of warm water and neutral detergent.
5. Start at the top of the table and work your way downwards.
6. Wipe over head end working towards mid torso.
7. Wipe over remaining horizontal patient surface, working towards foot end.
8. Wipe all horizontal parts under the patient surface.
9. Wipe all vertical parts under the patient surface.
10. Wipe over shroud (if fitted).
11. Wipe over all parts of wheels.
12. Ensure all parts of the table are dry before re-use.
13. Safely discard cleaning materials.
14. Wash hands thoroughly.
If DECONTAMINATING then repeat steps 1) to 14) using a dilute Hypochlorite / warm water mixture
(10,000ppm) instead of warm water and soap.
Put table back into service.
WARNING
Do not use Alkalis or other organic solvents for routine cleaning.
Replace torn or damaged vinyl immediately.
Always cover vinyl with fresh paper or sheet between patients.
If contamination is known or suspected always decontaminate table before use.

AKRON 4632
10
6. Troubleshooting – Electric Actuator
Symptom Possible cause Action
Actuator will not work Power disconnected
Fuse blown
Hand/footswitch disconnected
Thermal protection
Ensure mains supply is connected
Replace fuse in socket
Check that the hand/foot switch is
fully inserted into the actuator
Disconnect power cord from mains
supply. Leave unit for 1 minute then
re-connect power cord.
If the problem persists consult your local Akron Supplier.
7. Maintenance
Check table visually before use.
Carry out routine servicing every six months or more frequently if in heavy use.
Routine servicing or repair must only be performed by suitably qualified person.
Examine the table for any signs of damage. Make sure that all nuts, bolts and other fasteners are tight. Do
not over tighten as this may cause binding.
Upholstery fasteners should be checked, tightened or replaced if necessary.
Check section hinge pins to ensure that no pin protrudes.
Check gas strut controls, throughout the full range of movement for locking and assistance.
Check hydraulic tables for smooth operation and signs of leakage.
Examine the flexible cables for cuts, abrasions, kinking or other deterioration and replace if necessary.
Ensure that the power supply connector plug is securely attached.
Check mains plug connections are tight and fuse is correctly rated (5A).
WARNING
Before commencing any maintenance activity, disconnect the table from the
electrical supply. Plug acts as disconnect device.
WARNING
All electrical checks should be performed by a suitably qualified and licensed
electrician.
Neither BLUE or BROWN wires are to be connected to the earth terminal of a
three pin plug.

AKRON 4632
11
8. Warranty and Service (UK only)
ArjoHuntleigh AB standard terms and conditions apply to this couch. A copy is available upon request.
These contain full details of warranty terms and do not limit the statutory rights of the consumer.
For service or maintenance please contact:
Service Department
Huntleigh Healthcare
310-312 Dallow Road
Luton
Beds
LU1 1TD
Telephone: [phone]
Fax: [phone]
For information on this product, regarding warranty and spare parts, please contact:
ArjoHuntleigh AB
Verkstadsvägen 5
241 38 Eslöv
SWEDEN
www.arjohuntleigh.com
If for any reason your couch is being returned, please inform ArjoHuntleigh AB prior to sending, and:
1. Clean the product, as described in the cleaning section.
2. Pack it in suitable packing.
3. Attach the decontamination certificate (or other written statement declaring that the product has
been cleaned) to the outside of the package.
4. Mark the package “Service Department”.
Manufactured in the UK by ArjoHuntleigh AB. As part of the ongoing development programme this
company reserves the right to modify specifications and materials of this couch without notice.

AKRON 4632
12
8. Warranty and Service (Outside UK)
ArjoHuntleigh AB standard terms and conditions apply to this couch. A copy is available upon request.
These contain full details of warranty terms and do not limit the statutory rights of the consumer.
For service, maintenance and any questions regarding this, or any other ArjoHuntleigh AB Product,
please contact:
ArjoHuntleigh AB
Verkstadsvägen 5
241 38 Eslöv
SWEDEN
www.arjohuntleigh.com
If for any reason your couch is being returned, please inform ArjoHuntleigh AB prior to sending and:
1. Clean the product, as described in the cleaning section.
2. Pack it in suitable packing.
3. Attach the decontamination certificate (or other written statement declaring that the product has
been cleaned) to the outside of the package.
4. Mark the package “Service Department”.
Manufactured in the UK by ArjoHuntleigh AB. As part of the ongoing development programme this
company reserves the right to modify specifications and materials of this couch without notice.
9. Revision Status
4632
PAGES ISSUE WRITTEN DATE
ALL PAGES UM - 01 J. Barker 28/06/02
VARIOUS UM - 02(DCN1058/1044) J. Barker 13/10/03

AKRON 4632
13
10. Technical Specification
4632
Head Length (cm) 71±1.5
Foot Length (cm) 124±1.5
Width (cm) 107±1.5
Overall Length (cm) 196±3
Height Range (cm) 50±1.5
97±1.5
Max. Load Weight 325 Kg
Elevation Control Electric
Electrical Data 230v
Voltage 220-240v / 50Hz
Current 0.8A
Power 24v / 6A
Electrical Data 115v
Voltage 115v / 60Hz
Current 1.6A
Power 24v / 6A
IEC 601-1 Classification
Class 1
Type B equipment
Attention consult this manual

AKRON 4632
14
11. Transportation and Storage
Handle with care. Do not drop. Avoid shock or violent impact.
The equipment should be stored in a clean, dry and well ventilated area. The following limits apply
during transport and for a storage period of up to 15 weeks:
Ambient temperature -25°C to +70°C
Relative humidity 10% to 75%
Air pressure 50 kPa to 106 kPa
The following limits apply to operating conditions or longer periods of storage:
Ambient temperature +10°C to +40°C
Relative humidity 30% to 75%
Air pressure 70 kPa to 106 kPa
12. Environmental Protection
Dispose of unit in compliance with local regulations.

AKRON 4632
15
792-462-03
Intentionally left blank

AKRON 4632
AKRON®
BOBATH 5
电动床
型号
4632
使用说明书

AKRON 4632
目录
1.
简介
警告，注意事项
通用警告
2
2
2
2.
安装
3
3.
操作
4
4.
配件操作
5
5.
清洁与去污
9
6.
故障排除
10
7.
维护
10
8.
质量担保与售后服务
11
12
9.
修订校正数据信息
12
10.
技术参数
13
11.
运输与储存
14
12.
环境保护
14
产品上的 标志表示该产品符合 EC 条款 93/42/EEC 的要求
