GIGAIPC QBiX Jumbo Series User manual

System - QBiX Jumbo Series QBiX-JWB-SKYA110H-A1 (QJ-H110A-SI)
1www.gigaipc.com
QBiX-JWB-SKYA110H-A1
(QJ-H110A-SI)
QBiX-JWB Industrial Embedded System
Quick Start Guide

2
www.gigaipc.com
Copyright Notice
This document is copyrighted, 2019. All rights are reserved. The
original manufacturer reserves the right to make improvements to the
products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translat¬ed, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in
this manual is intended to be accurate and reliable. However, the
original manufacturer assumes no respon¬sibility for its use, or for any
in¬fringements upon the rights of third parties that may result from its
use.
The material in this document is for product information only and
is subject to change without notice. While reasonable efforts have
been made in the preparation of this document to assure its accuracy,
GIGAIPC assumes no liabilities resulting from errors or omissions in this
document, or from the use of the information contained herein.
GIGAIPC reserves the right to make changes in the product design
without notice to its users.

System - QBiX Jumbo Series QBiX-JWB-SKYA110H-A1 (QJ-H110A-SI)
3www.gigaipc.com
Acknowledgement
All other products’ name or trademarks are properties of their
respective owners.
• AMD is trademark of Advanced Micro Devices.
• Microsoft Windows is a registered trademark of Microsoft Corp.
• Intel, Pentium, Celeron, and Xeon are registered trademarks of Intel
Corporation
• Core, Atom are trademarks of Intel Corporation
• ITE is a trademark of Integrated Technology Express, Inc.
• IBM, PC/AT, PS/2, and VGA are trademarks of International Business
Machines Corporation.
All other product names or trademarks are properties of their
respective owners.

4
www.gigaipc.com
Packing List
Before setting up your product, please make sure the following items
have been shipped:
Item Quantity
System kit 1 pcs
HDD screw, M3 x 8L 8 Pcs
Exsiccator (10g) 1 pcs
If any of these items are missing or damaged, please contact your
distributor or sales representative immediately.

System - QBiX Jumbo Series QBiX-JWB-SKYA110H-A1 (QJ-H110A-SI)
5www.gigaipc.com
About this Document
This User’s Manual contains all the essential information, such as
detailed descriptions and explanations on the product’s hardware
and software features (if any), its specifications, dimensions, jumper/
connector settings/definitions, and driver installation instructions (if
any), to facilitate users in setting up their product.
Users may refer to the GIGAIPC.com for the latest version of this
document.

6
www.gigaipc.com
Safety Precautions
Please read the following safety instructions carefully. It is advised that
you keep this manual for future references
1. All cautions and warnings on the device should be noted.
2. Make sure the power source matches the power rating of the
device.
3. Position the power cord so that people cannot step on it. Do
not place anything over the power cord.
4. Always completely disconnect the power before working on the
system’s hardware.
5. No connections should be made when the system is powered
as a sudden rush of power may damage sensitive electronic
components.
6. If the device is not to be used for a long time, disconnect it from
the power supply to avoid damage by transient over-voltage.
7. Always disconnect this device from any AC supply before
cleaning.
8. While cleaning, use a damp cloth instead of liquid or spray
detergents.
9. Make sure the device is installed near a power outlet and is
easily accessible.
10. Keep this device away from humidity.
11. Place the device on a solid surface during installation to prevent
falls
12. Do not cover the openings on the device to ensure optimal heat
dissipation.

System - QBiX Jumbo Series QBiX-JWB-SKYA110H-A1 (QJ-H110A-SI)
7www.gigaipc.com
13. Watch out for high temperatures when the system is running.
14. Do not touch the heat sink or heat spreader when the system is
running
15. Never pour any liquid into the openings. This could cause fire or
electric shock.
16. As most electronic components are sensitive to static electrical
charge, be sure to ground yourself to prevent static charge
when installing the internal components. Use a grounding
wrist strap and contain all electronic components in any static-
shielded containers.
17. If any of the following situations arises, please the contact our
service personnel:
i. Damaged power cord or plug
ii. Liquid intrusion to the device
iii. Exposure to moisture
iv. Device is not working as expected or in a manner as described
in this manual
v. The device is dropped or damaged
vi. Any obvious signs of damage displayed on the device
18. Connect only to a properly wired and ground outlet.
19. The LVDS output connector of the unit is only intended to
be connected to an UL/IEC/EN approval equipment with fire
enclosure.
20. DO NOT LEAVE THIS DEVICE IN AN UNCONTROLLED
ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S
PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO
PREVENT DAMAGE.

8
www.gigaipc.com
FCC Statement
This device complies with Part 15 FCC Rules. Operation
is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device
must accept any interference received including
interference that may cause undesired operation.
Caution:
There is a danger of explosion if the battery is incorrectly replaced. Replace only with
the same or equivalent type recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions and your local government’s
recycling or disposal directives.
Attention:
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte.
Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le
constructeur. Recycler les batteries usées en accord avec les instructions du fabricant
et les directives gouvernementales de recyclage.

System - QBiX Jumbo Series QBiX-JWB-SKYA110H-A1 (QJ-H110A-SI)
9www.gigaipc.com
Table Contents
QBiX-JWB Industrial Embedded System 1
Quick Start Guide 1
Copyright Notice .......................................................................... 2
Acknowledgement ....................................................................... 3
Packing List................................................................................... 4
About this Document ................................................................... 5
Safety Precautions ....................................................................... 6
FCC Statement.............................................................................. 8
Chapter 1 - Product Specifications 13
1.1 Specifications ............................................................... 15
17
Chapter 2 – QBiX-JWB-SKYA110H-A1 (QJ-H110A-SI) 17
Industrial Embedded System Kit 17
2.1 Dimension .................................................................... 18
2.2 Getting Familiar with Your Unit..................................... 19
2.3 Support ........................................................................ 21
2.4 Safety and Regulatory Information............................... 22
23
Chapter 3 – Hardware Information 23
3.1 Jumpers and Connectors ............................................. 24
3.2.1 AT_CN (AT/ATX power mode select jumper) ................ 27

10
www.gigaipc.com
3.2.2 Battery ......................................................................... 28
3.2.3 BKL_CN (Back light brightness control connector) ....... 29
3.2.4 CLR_CMOS .................................................................. 30
3.2.5 COM2 (Serial Port header)............................................ 31
3.2.6 CPU_FAN (CPU fan connector) ..................................... 32
3.2.7 DC_IN (DC In JACK Connector) ..................................... 33
3.2.8 DC_IN2 (ATX 2x2 pin power connector)....................... 34
3.2.9 EDP (Embedded Display Port Connector)..................... 35
3.2.6 F_Audio (Front audio header)....................................... 36
3.2.11 F_USB 30 (USB 3.0 header) ........................................... 37
3.2.12 F_USB 20_1 (USB 2.0 header) ....................................... 38
3.2.13 F_USB 20_2 (USB 2.0 header) ...................................... 39
3.2.14 GPIO_CNT ................................................................... 40
3.2.15 JCOM11 (Default COM1 is RI pin, can select RI/5V/12V)
.......................................................................................41
3.2.16 JCOM21 (Default COM2 is RI pin, can select RI/5V/12V)
...................................................................................... 42
3.2.17 JCOM12 (COM1 RS-232/RS-422/RS-485 Select) .......... 43
3.2.18 JCOM22 (COM2 RS-232/RS-422/RS-485 Select) ......... 44
3.2.19 JRS21-24 (COM2 JRS21-24 select jumper for serial port)
...................................................................................... 45

System - QBiX Jumbo Series QBiX-JWB-SKYA110H-A1 (QJ-H110A-SI)
11 www.gigaipc.com
3.2.20 JRS 11-14 (COM1 JRS11-14 select jumper for serial port)
...................................................................................... 46
3.2.21 LSW (LVDS resolution jumper)...................................... 47
3.2.22 LVDS (LVDS connector).................................................. 48
3.2.23 SATAIII_0, SATAIII_1, SATAIII_2 (SATA 6GB/s Connector)
...................................................................................... 49
3.2.24 SATAPW_1, SATAPW_2 (SATA 6GB/s Power Connector)
...................................................................................... 50
3.2.25 SPK_OUT (Speaker out Connector)............................. 51
3.2.26 SYS_FAN (System Fan Connector) ................................ 52
3.2.27 SYS_PANEL (Front Panel Header)................................ 53
3.2.28 TPM_LPC (Trusted Platform Module Connector)......... 54
3.2.29 M2_M (M.2 Slot, M-Key, SATA 6Gb/s & PCIe, Supports
NGFF-2280/2242 Card) ................................................. 55
Chapter 4 – BIOS 57
4.1 The Main Menu ........................................................... 58
4.2 Advanced Menu............................................................ 60
4.2.1 CPU Configuration Menu.............................................. 61
4.2.2 A Trusted Computing Menu ......................................... 63
4.2.3 SATA and RST Configuration Menu .............................. 64
4.2.4 Hardware Monitor Menu.............................................. 65
4.2.5.1 Super IO Configuration Menu....................................... 66

12
www.gigaipc.com
4.2.5.2 Serial Port 1/2 Configuration Menu ............................. 67
4.2.6 S5 RTC Wake Settings Menu......................................... 68
4.2.7 OS Selection Menu ....................................................... 69
4.2.8 Digital IO Port Configuration Menu.............................. 70
4.3 Chipset Menu................................................................ 71
4.4 Security Menu............................................................... 73
4.4.1 Secure Boot Menu .........................................................74
4.4.2 Key Management Menu ............................................... 75
4.5 Boot Menu .................................................................... 76
4.6 Save & Exit Menu.......................................................... 77

13 www.gigaipc.com
System - QBiX Jumbo Series QBiX-JWB-SKYA110H-A1 (QJ-H110A-SI)
Chapter 1
Chapter 1 - Product Specifications

14
www.gigaipc.com

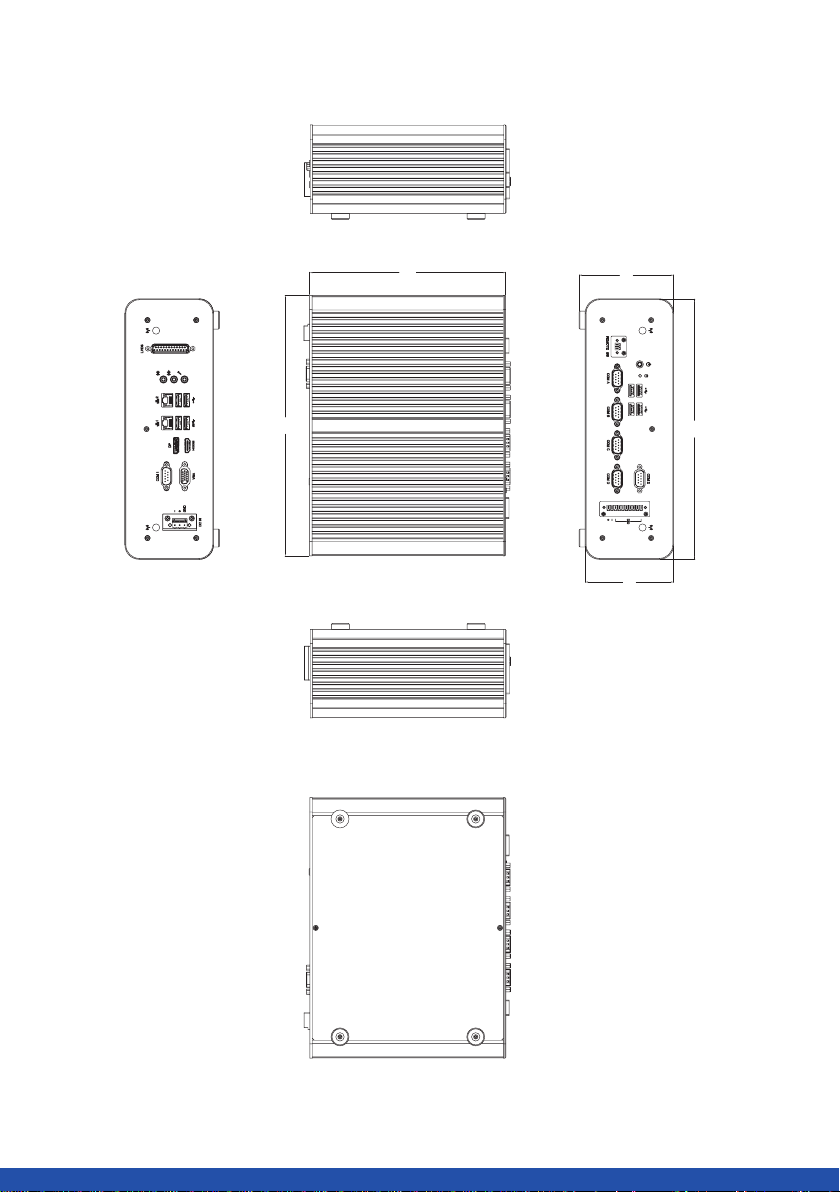

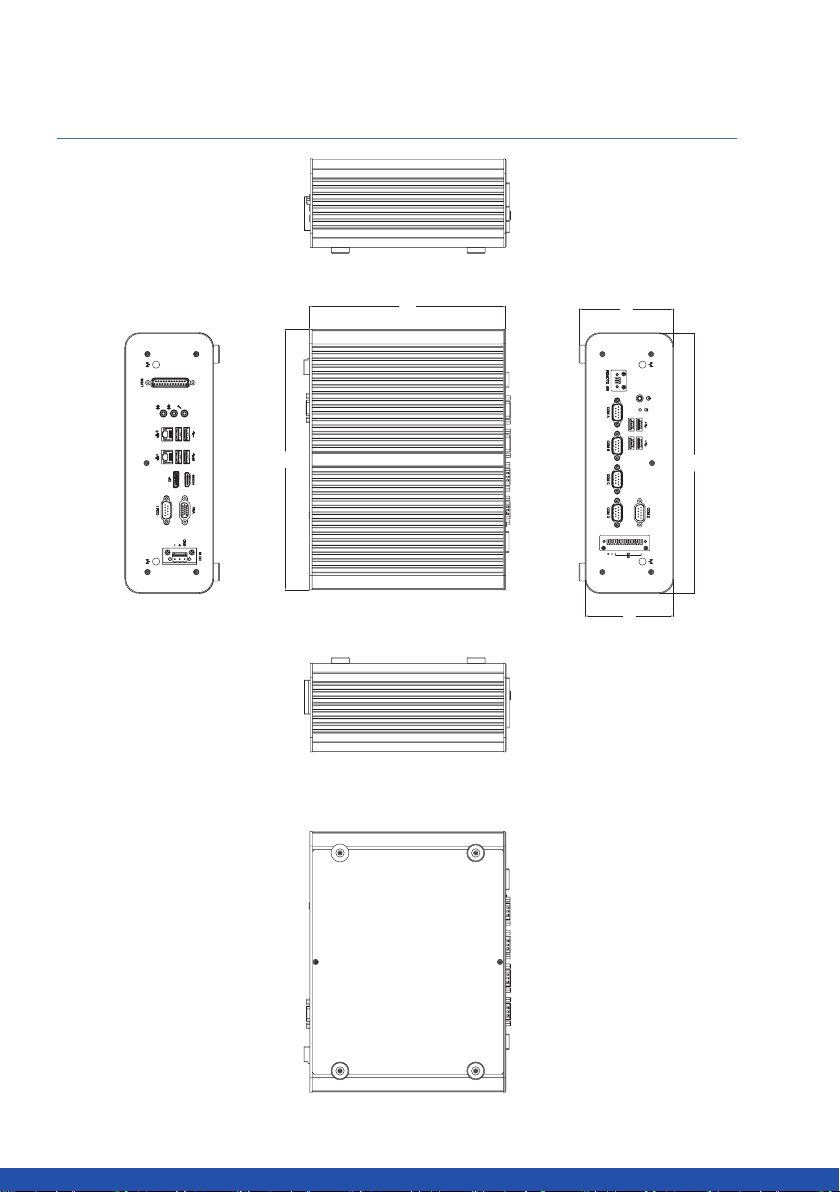

272.6
205.0
92.6
272.6
99.0

15 www.gigaipc.com
System - QBiX Jumbo Series QBiX-JWB-SKYA110H-A1 (QJ-H110A-SI)
1.1 Specifications
System QBiX-JWB-SKYA110H-A1 (QJ-H110A-SI)
Dimension 273W x 203D x 91H(mm)
CPU Supports for 6/7th Generation Intel® Core™ i7/i5/i3,
Pentium® & Celeron® processors, TDP under 35W
Chipset Intel® H110 Chipset
Memory 2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB,
Support Dual Channel DDR4 2400/2133 MHz
Ethernet 2 x GbE LAN ports (Intel® I219V and Intel® I211AT)
Graphic support
Integrated Graphics Processor - Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of
4096x2160@30 Hz
1 x DP port, supporting a maximum resolution of
4096x2160@60 Hz
1 x D-Sub port, supporting a maximum resolution of
1920x1200@60 Hz
1 x LVDS port, supporting a maximum resolution of 1920 x
1080@60Hz
2 independent display outputs
Audio Realtek ALC269
High Definition Audio
Storage 2 x SATA 6 Gb/s port (Support 2.5’’ Hard drive/SSD)
Expansion Slots 1 x 2280 M.2 M-Key (SATA 6Gb/s)
1 x Full/Half-size Mini PCIe with SIM slot
Front I/O
1 x Power Switch
1 x Power & HDD LED
2 x Remote control header
4 x USB 2.0
4 x COM ports (RS-232/422/485)
1 x COM port (RS-232)
1 x GPIO (8 bit)
4 4r
2 x External Antenna Hole (Optional)

16
www.gigaipc.com
System QBiX-JWB-SKYA110H-A1 (QJ-H110A-SI)
Rear I/O
3 x Audio Jacks (Line in, Line out, Mic in)
1 x VGA
1 x HDMI
1 x Display Port
1 x LVDS
1 x COM port (RS-232/422/485 & RI/5V/12V)
2 x RJ45 LAN ports
2 x USB 3.0
2 x USB 2.0
1 x 3-pin Terminal Block
2 x External Antenna Hole (Optional)
Power +12V/+19V/+24VDC
Operation
temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During
Operation TBD
Shock During
Operation TBD
Order Information 9BQJH110AMR-SI (Box packing)
Build in
Components
CPU: Intel® Core™ i3-7100T Processor, 3M Cache, 3.40 GHz
Memory: 4GB DDR4 SO-DIMM
Storage: 128GB, 2280 M.2, SSD

17 www.gigaipc.com
System - QBiX Jumbo Series QBiX-JWB-SKYA110H-A1 (QJ-H110A-SI)
Chapter 2
Chapter 2 – QBiX-JWB-SKYA110H-A1 (QJ-H110A-SI)
Industrial Embedded System Kit

18
www.gigaipc.com
2.1 Dimension
272.6
205.0
92.6
272.6
99.0

19 www.gigaipc.com
System - QBiX Jumbo Series QBiX-JWB-SKYA110H-A1 (QJ-H110A-SI)

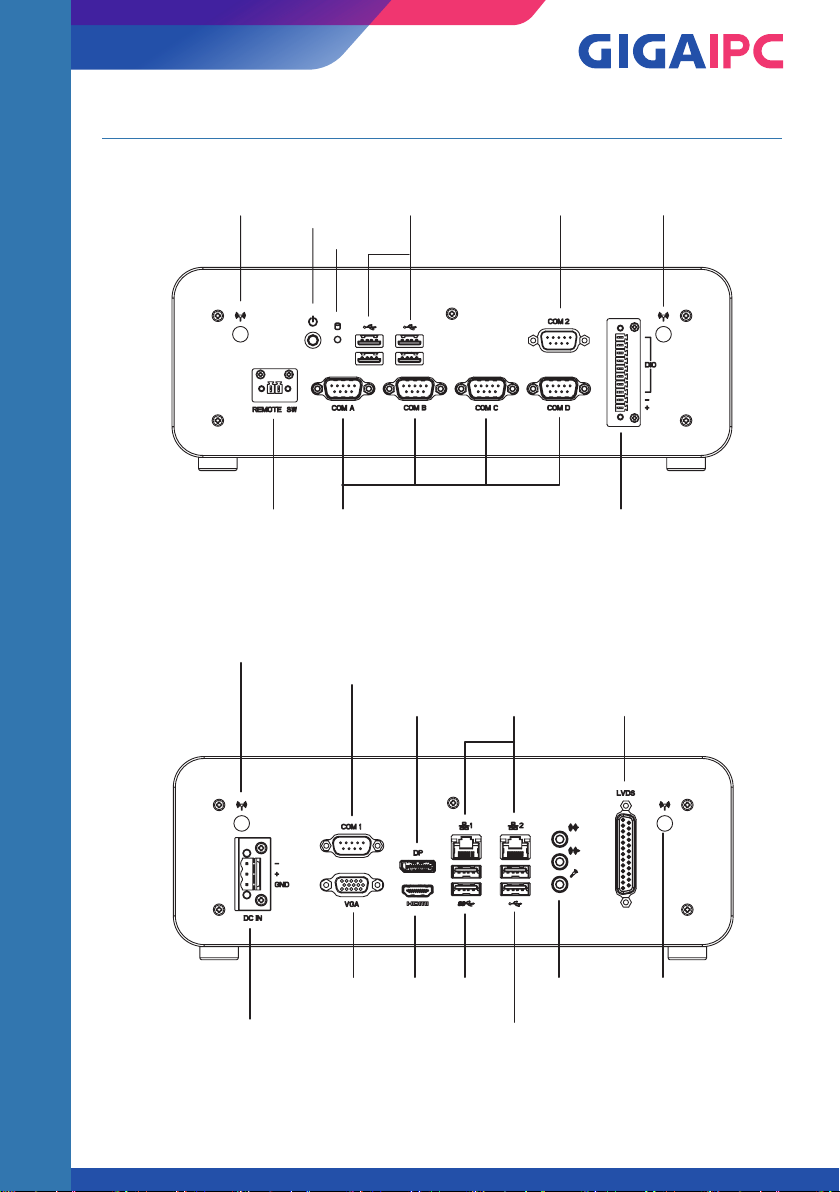

2.2 Getting Familiar with Your Unit
[Front Side]
[Rear Side]

  

 
   

 



   

  
  
   

Note: The LVDS output connector of the unit is only intended to be connected to
an UL/IEC/EN approval equipment with fire enclosure.

20
www.gigaipc.com
[Install]
x Before opening the case, make sure to unplug the power cord.
x Before Connecting the power, make sure to fasten the case securely.
